1. Donelli Cranes



Hi Guys,



Time to bite the bullet! I've recently had the time to get back in to Model Railways again, and as you are all so kind and willing to share your work here on the forum, it's only fair that I share some stuff aswell. I've been working on a couple of small projects but this one jumped the queue as it's been topical here on the forum. Thanks to Wexfordloco10 for sharing his images and answering Heirflicks original question about the Donelli Cranes. I've had a go at representing wagon #770 (which is how I remember seeing them) which is a 60' frame as opposed to the 42' #774 & #776 in the pictures. Painting and detailing to follow. The second wagon carries the gantry arm that is suspended between the 2 cranes and lifts the track panels. I will run this with 5 or 6 60' flats with track panels. Should look the part!

700 a.jpg

700 b.jpg

700 c.jpg

700 d.jpg

700 e.jpg

Share this post


Link to post
Share on other sites

A very innovative project and one I have not seen modelled before. Good luck on its progress.

Share this post


Link to post
Share on other sites

Looking great! An original and interesting bit of modelling - going to look fantastic all painted and weathered up ;):)

Share this post


Link to post
Share on other sites

:banana: Nice work Dave, very nice. Nothing quite like seeing someone having a go at a most unusual train, and full length too. No half measures! How did you do the 60's and stopped them warping in the middle?



Richie.

Share this post


Link to post
Share on other sites

January 2014 update! Well I managed to carve out a bit of space in the house over Christmas to go through all my bits and pieces, and even found a few hours to get stuck in to a bit of 'scratching'! Panic this evening though as I'm told that a man is coming to fit floors in the morning, so everything has to go back in the box! Hopefully as the house repairs are completed I'll get the (my!) shed back and can get going on a permanent layout. Anyways, enough rambling, wanted to post these couple of pics up of my early 90's scrap train. Not often photo'd, and I don't know too much about it, but basically 20' ISO containers, in pretty poor shape, with crudely cut open roofs. They could be seen in Galway and Port Laoise, and were usually attached to regular liner trains. If anyone has pictures to share, or information on markings, please share. Any advise on weathering them greatly appreciated also. I've scratch built the containers, and made some removable 'scrap' loads using leftovers from kits and other bits of styrene off cuts. They are a long ways from being finished, but I couldn't resist giving a quick splash of paint to see if I've captured the 'feel' of the scrap containers, and I'm happy so far. (sorry about quality of pics, poor lighting)





Share this post


Link to post
Share on other sites

Like that idea! I miss the Orange and Black. I really do! It must be because every real train I saw as a lad was one!

Share this post


Link to post
Share on other sites

Imagine an ICR in orange and black.... I think it would actually look well....



Congrats on this project you are doing - always very refreshing to see an unusual prototype!

Share this post


Link to post
Share on other sites

New Project on the (New!) Workbench! Info required!



So after a house move last year I've finally gotten round to carving out some space to set up a new, permanent workspace. And I've a couple of weeks off to get stuck in to some projects! I'm a big fan of PW trains and a rare consist is the one that was used during the DART extension to Greystones. Loco 143 was assigned for the project and had a motley crew of 2-axle wagons and equipment. Someone on here referred to it as the ADtranz train, but I haven't found any reference to this online. Brian Flanigans picture on Flickr is the only reference I have, I never saw this train in the flesh.



https://www.flickr.com/photos/holycorner/6772496283/in/photolist-bjsPci-bjsUbT-bjsTn8-7HpCqq



So here is where I'm at after a days work:






The consist was Loco 183, 3 old spoil wagons carrying drilling equipment, Wagon with Air Compressor, Wagon with Drilling rig, wagon with Drilling supplys (Red container), and some more 2-axles with spoil and CIE containers.



My problem is the Middle shelf of the picture! I can't quite make out what wagons were used on the real thing. My thoughts are that the mobile drill and Compressor trailer are on Lowmacs. In the picture there is a man accessing the red container with the door open, so I'm thinking this must be on 42' Flat. (Could even be the one with the Atlas Crane at one end?)



Anyone can shed some light on this for me?

Edited by dave182

Share this post


Link to post
Share on other sites

How did you get all that from that grainy shot?!?



Anyhoo, anything to do with dart electrification is really thin - perhaps the early eighties and trainspotting were the worst bedfellows. Trying to get some info on the overhead line maintenance (flat roof on a bredin) vehicle that was in vogue at the time is equally baffling.



Just based on logic, and this is just a crackpot theory here, use of 42 flats is unlikely. I know a few park royal chassis were used as flat wagons and the lowmacs were still in use, so it's quite possible it was a motley assembly. I reckon josefstadt here might have the skinny...R

Share this post


Link to post
Share on other sites

The engineers equipment makes an unusual model, I like the look of that drilling rig. The scrap containers were very heavily weathered to a browny black colourprobably a combination of road dirt and brake dust.



It might be worth while looking through back issues of the IRRS Journal from that era for equipment used in the electrification. CIE was acutely short of coaches at the time, s mainly loose coupled corrugated opens and the odd 1/2 height container wagon used or spoil.



Ready mixed concrete agitator on bogie wagon used to transport concrete to work site for signal and mast bases, short trains made up of 4w open and closed containers to transport tools and equipment, MK1 4w container flats fitted with Haib crane for erecting signal posts.

MK1 Conflat.jpg



I lost most of my very grainy photos from the electrification. Loose coupled train made up of unconverted beet wagons and 4w container flats with half height containers seem to used to carry spoil, most ended up dumped a Liffey Junction.



Atlas "Rubber Duck" excavators widely used, CIE Priestman crane on Lomac hired in Ruston or NCK crawler cranes for lifing in point and crossing work, baby Metrovicks n engineers trains.

Edited by Mayner

Share this post


Link to post
Share on other sites

John, great info and a superb pic! - RICHIE...did you see this? are you willing to have a go?!:praying: - i will as always give it a good home!

Share this post


Link to post
Share on other sites

John & Richie- thanks for the info! I'm gonna clarify on my model a bit - this train was in use during IEs time, around 2001/2002. The DART line was being extended around Bray head to Greystones. See pick of 143 at the head of the train here:



https://www.flickr.com/photos/holycorner/6772507911/in/photolist-9B44G5-fsFJbm-nzu138-ma6Ltv-bEw2aR-55CEj8-e9yfhb-dLgU47-c47vvm-7qJ8D-agPgBz-4ZDjiT-nuDuz9-bjsSDM-6QBpKq-gsLAh8



Note the wording on 143 'Confined to PWD work, Dart line'. Part of the draw of this model is that it is so rare and unique! I think that 143 was involved in a crash, thus got stuck with this duty for its last days!



The drill rig was required because of the difficult terrain around Bray head. Remember that the DART was only brought to Malahide at this time too!



Heirflick- for once I'm one up on you! It wouldn't be up to Glendergs standards but this sits in a siding at the back of a shed on my layout, and it's my intention as John rightly points out, to weather all of the bits of stock I've made up over the years!

atlas 1.jpg



atlas 2.jpg



Finally, back to the original question! Would that then make it possible for lowmacs or bogie flats to be in use? For the time being I'm planning to put the drill rig and compressor on 2 lowmacs, and leave the rest on 2-axle wagons. Updates to follow!

Share this post


Link to post
Share on other sites


beautiful! can i assume that the digger arm was pulled off some construction vehicle? seems very simple - might try that myself! thanks for posting and i look forward to seeing it finished. can you post pics of the donnellies please - i didnt drool enough today:rolleyes:

Share this post


Link to post
Share on other sites

Sure did see it Shem, and looking forward to the dirty results. Current per way fetish is the Cable train shem....;) but if I can get any more photos on the electrification, why not?!



Well done Dave, it looks smashing so far.



Double-Headed Passenger Train at Bray is that the consist on the left?

Share this post


Link to post
Share on other sites

Herpa do a few accessories such as cranes, so picked a pair of those up on the Internet. That's the great thing about CIE- they had very little to work with, so I'm assuming the same conversation was had back when that was being built...

Foreman: 'we need a crane, but on a railway wagon'

New Inchicore Works Aprentice (standing beside an old Bedford truck with crane): 'hmmm, gimme 5 minutes'



As for the Donellis... I realized I was working off a very old design where the Donellis were mounted on a 60' wagon, which puts the model way back into the early 80's, 10 years befor my modeling time! Since I started some really good images have appeared up on this site so I've parked that project for a bit, until I get a suitable 42' chassis.

Share this post


Link to post
Share on other sites

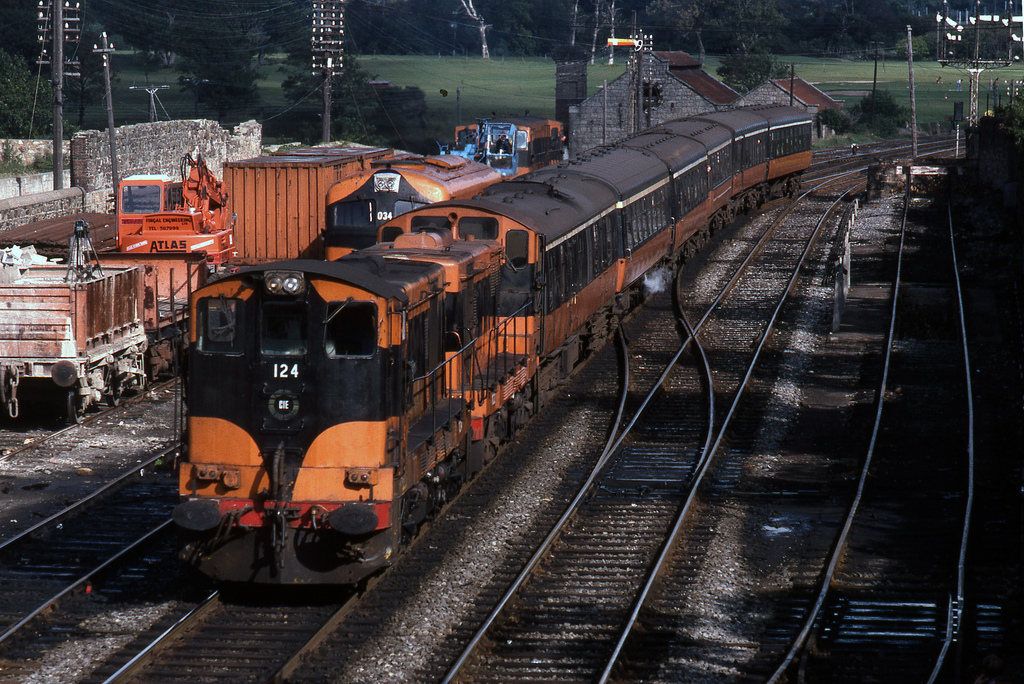

Double-Headed Passenger Train at Bray is that the consist on the left?



I guess that's it's predecessor. That would be 20 years before my version! That shot is from '82 or '83 when the Electrification first began. You have reminded me of a memory as a 6 or 7 year old staying down at my Granny's house in Eastwall, when there used to be a signal cabin up on the embankment out of Dublin Port on to the Belfast line. I remember that all being dismantled and the overhead lines being installed in a very short period of time!

Share this post


Link to post
Share on other sites

Dave, here are some photos of the train working on Bray Head, close to where the cliff path crosses the line just above Naylor's Cove. The train consists of Loco 143 at the Greystones end, three 4-wheel wagons with half-height containers carrying steel tubes, a bogie wagon with the pile driver, a 4-wheel wagon with an air compressor and a bogie wagon with stores container and work area. The train propelled from Greystones to the work site, returning loco first after work was completed.



The works train propelling backwards from Greystones is approaching No. 1 Tunnel. Note the steel tubes and OHLE masts laid out alongside the track. To the right of the current tunnel is Brunel's original 1855 Brabazon tunnel, abandoned in 1876.

980601 - DART Greystones Extension - Works Train 01.jpg



The rear wagon on the train, which is in the short open air section between No. 1 Tunnel (on the right) and OBR147A, carried a 20' container containing equipment for the drilling rig, and also had a work area. Behind the train are two of the footings for one of Brunel's wooden viaducts.

980601 - DART Greystones Extension - Works Train 02.jpg



The loco, 143, and two of the wagons with half height containers entering OBR147A.

980601 - DART Greystones Extension - Works Train 03.jpg



The train has arrived at the work site and the pile driver is being deployed.

980601 - DART Greystones Extension - Works Train 05.jpg



The notice on the cab side of 143 detailing its restriction to Per Way work in connection with DART extension projects. Despite this restriction the loco managed to 'escape' on a number of occasions and was noted shunting in Connolly and the North Wall

980601 - DART Greystones Extension - Works Train 04.jpg



A view from the Greystones end of the train with pile driving in progress.

980601 - DART Greystones Extension - Works Train 06.jpg



Close up view of the Schomburg Grundbau pile driver mounted on 42' 9" bogie flat wagon 30093. This was one of eight wagons (30091-8) fitted with floors for transporting steel traffic.

980601 - DART Greystones Extension - Works Train 07.jpg



Pile driving work in progress.

980601 - DART Greystones Extension - Works Train 08.jpg



The HIAB crane in Mayner's earlier post (#20) was used by the S&E Department for erecting signals and for off loading / recovering other equipment, e.g. location cases.

Share this post


Link to post
Share on other sites

that is fantastic stuff -great pics and info! that would make for a great model of p/w train for any layout!!:tumbsup:

Share this post


Link to post
Share on other sites

Fantastic Josefstadt!!! That gives me all I need! I'm gonna have to modify my drill rig a bit, but otherwise I'm going the right direction. Brilliant images! Thank you so much for taking the time to post that up for me.

Share this post


Link to post
Share on other sites

No problem Dave. Happy to oblige. The pics were taken sometime around the June Public Holiday in 1998. Work on erecting the masts was undertaken between early May and mid-July of that year.

Share this post


Link to post
Share on other sites

as a matter of interest lads - was all trains stopped on that line for the duration of the works, or was a few trains let by during the day?

Share this post


Link to post
Share on other sites

HF, as far as I can remember mainline passenger and freight services operated normally (there weren't that many of either) and the DART works train came out between them. Indeed, shortly before the works train ventured out on the day I was there, 225 trundled past with the Up morning empty ammonia tanks - seen here exiting No. 2 Tunnel:



980601 - Ammonia Train at Bray Head 01.jpg



For suburban services I think that peak services operated but off peak ones were probably cancelled. Again, compared to now, there wouldn't have been a great number of services.

Share this post


Link to post
Share on other sites

thanks for that J, and thats a smashing pic of a dirty big girl!!! have you any more jems like that?

Share this post


Link to post
Share on other sites
... thats a smashing pic of a dirty big girl!!! have you any more jems like that?



Careful HF. If HID* reads that she'll might get the wrong idea! She'll think I'm like those spivs of old "Pssst, want to buy dirty postcards"!!



I'll see what I can turn up. I'm slowly scanning some of my collection of prints and slides taken over the years.



* HID Herself In Doors

Share this post


Link to post
Share on other sites
