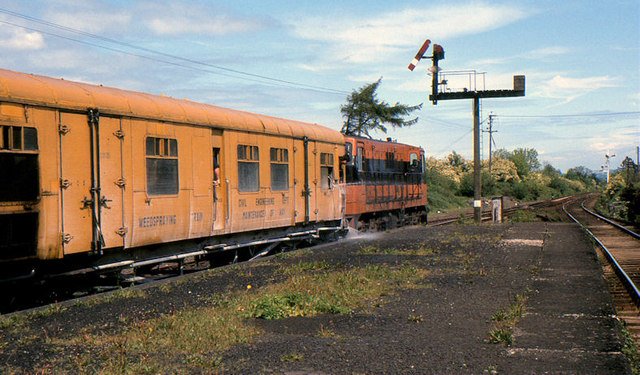

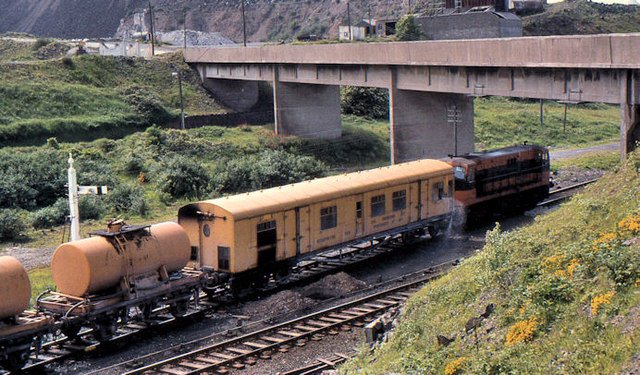

Glenderg Posted May 31, 2012 Share Posted May 31, 2012 Afternoon all. I was thinking of doing a cut n shut of this using two ancient Hornby LMS Stanier Coaches. Any additional info would be most welcome, length, provenance etc. to try and put together a drawing of it. Snaps from 1979 when it was clean! Ta in advance. Richie. Quote Link to comment Share on other sites More sharing options...
0 enniscorthyman Posted May 31, 2012 Share Posted May 31, 2012 Nice find there Riche.Paddy Neville was the driver for many years of the weed spray train because of his extensive route knowledge of lines such as the North Kerry,Ballinacourty etc. I would love to see drawings myself,and what donors could be used for it. Quote Link to comment Share on other sites More sharing options...
0 Warbonnet Posted May 31, 2012 Share Posted May 31, 2012 In Croke park at the moment and I saw the train roll past twice already, is it doing a Dublin circuit today? Quote Link to comment Share on other sites More sharing options...
0 heirflick Posted May 31, 2012 Share Posted May 31, 2012 did you bring the camera fran? Quote Link to comment Share on other sites More sharing options...
0 ttc0169 Posted May 31, 2012 Share Posted May 31, 2012 In Croke park at the moment and I saw the train roll past twice already, is it doing a Dublin circuit today? It operated from Heuston to M3 Parkway and back this morning via Northwall. Quote Link to comment Share on other sites More sharing options...
0 Warbonnet Posted May 31, 2012 Share Posted May 31, 2012 Wish I did Seamus, saw a liner too, pity I was stuck in some conference! Quote Link to comment Share on other sites More sharing options...
0 Warbonnet Posted May 31, 2012 Share Posted May 31, 2012 Cheers for the info ttc, would love to get a video of it sometime Quote Link to comment Share on other sites More sharing options...
0 Glenderg Posted June 3, 2012 Author Share Posted June 3, 2012 Lads, Am I on the right track thinking that the original vehicle was the bredin mail coach 2548? It appears to be either 60 ft long as 2548 http://homepage.eircom.net/~studioscale/BredV.html cheers weshty, but scaling of photos brings it to 61'6".... des coakhams book on Irish broad gauge carriages doesn't throw any further light on this iconic vehicle. Either way me 57' lms stanier donors are not suitable and a total scratch build is far more preferable. I'll post up the drawings as soon as I can get a hint at the length! Thanks in advance. Richie. Quote Link to comment Share on other sites More sharing options...
0 Glenderg Posted June 5, 2012 Author Share Posted June 5, 2012 Afternoon all, Just a quick update. This wagon had a 60' underframe, and I don't think there is a suitable donor wagon about. Mainline used to do a LMS 60' Stanier Coach, which would be the right chassis and roof, the side walls could be butchered to match. Anyhoo, here's the drawing I did, and the camera matching shots [for accuracy purposes.] This photo is slightly stretched vertically which threw me off for a bit.... Lighter lines between windows etc. are the panel break lines. Comments most welcome, before I post the complete set. 44' 7" seems like an odd bogie centre dimension! Richie. Quote Link to comment Share on other sites More sharing options...
0 Guest hidden-agenda Posted June 5, 2012 Share Posted June 5, 2012 I like the way your planing this Richie would you consider http://www.dartcastings.co.uk/mjt/2971.php as they make a few roofs and one may be suitable plus they are reasonably priced. Regards Gareth. Quote Link to comment Share on other sites More sharing options...
0 WRENNEIRE Posted June 5, 2012 Share Posted June 5, 2012 The only 60' coach I am aware of is an Airfix Corridor Composite, ref 54202-1 Roof detail and under chassis detail look fairly similar Quote Link to comment Share on other sites More sharing options...
0 Glenderg Posted June 5, 2012 Author Share Posted June 5, 2012 ..would you consider http://www.dartcastings.co.uk/mjt/2971.php as they make a few roofs and one may be suitable plus they are reasonably priced.Regards Gareth. That's a great idea Gareth, but the roof profile is mighty odd and the closest roof part appears to be the BR Mk1 variant. It's been slightly compressed to match other 00 carraiges.... Dart Castings has absolutely everything else though! Thanks for the link. The only 60' coach I am aware of is an Airfix Corridor Composite, ref 54202-1Roof detail and under chassis detail look fairly similar That's the one, similar to this one listed on fleabay Richie. Quote Link to comment Share on other sites More sharing options...
0 Weshty Posted June 5, 2012 Share Posted June 5, 2012 Awesome work Richie, what cad package do you use? Quote Link to comment Share on other sites More sharing options...
0 Glenderg Posted June 5, 2012 Author Share Posted June 5, 2012 Cheers Weshty, AutoCAD 2010 for drawing, and 3DS Max 2010 for camera matching, and a bit of Photoshop to eek the details out of fuzzy snaps! Quote Link to comment Share on other sites More sharing options...
0 heirflick Posted June 6, 2012 Share Posted June 6, 2012 richie, heres my weedspray coach....far from perfect but the best i could do as a first attempt. will try another conversion when time permits. 1 1 Quote Link to comment Share on other sites More sharing options...
0 Noel Posted June 11, 2018 Share Posted June 11, 2018 (edited) Catching up on this old but rather interesting thread. I quite like the look of the old CIE weed spray trains with their two coaches and five 2 axle chemical wagons. @Glenderg Richie just wondering did you have a go at one of the weed spray coaches in the end? I quite like the idea of the five tankers on two axle container flats. I'm wondering if I could use the tanker loads from the future IRM release with a kit bashed old style spray coach (i.e. converted brake parcel van). There is a great picture of the old weed spray train on page 105 of "From CIE to IR the changing face of Ireland's Railways" (ISBN 978 0 7110 3476 1). Train consists of spray coach (ex Brake parcel van), five yellow 2 axle tanker wagons, one 2 axle short yellow engineering coach, three 20ft CIE containers on 2 axle flat wagons. (see video clip below) Youtube clip of old CIE weed spray train formation Must have been awkward repositioning these trains between traffic once CWR became common due to the speed limits imposed on 2 axle wagons running on CWR. Higher speed limits permitted on jointed rail lines. Some good views of the old weed spray train on this clip below. Edited June 11, 2018 by Noel 1 Quote Link to comment Share on other sites More sharing options...
0 josefstadt Posted July 11, 2018 Share Posted July 11, 2018 Like Noel catching up on an old but interesting thread. The coach in question, 628A, was a 1978 conversion of 61' 6" bogie parcels van No. 2574. This itself had been converted in 1974 from Standard No. 1619 which in turn had been 1950-built Composite No. 2125, the re-classification from Composite to Standard class taking place in 1972. Dimensions of the coach were: Length over buffers: 65' 6"; Length over headstocks: 61' 6"; Maximum Width: 9' 11¼"; Maximum Height: 12' 9" 2 1 Quote Link to comment Share on other sites More sharing options...
0 josefstadt Posted July 11, 2018 Share Posted July 11, 2018 Slight correction - Length over headstocks: 60' 0" there reduce overall length correspondingly. Width over body 9' 6", the maximum width quoted in my previous post includes door handles etc. Quote Link to comment Share on other sites More sharing options...
0 DiveController Posted October 7, 2018 Share Posted October 7, 2018 (edited) Side Corridor composites 2124-2129 (3F, 4T) were the last of the CIE coaching stock to be built on the 60' chassis. The 2130- series composites (1952) were built on the newer 61'6" under frames which became the standard length for almost everything after that time. It's remarkable that the 638A coach was repurposed so many times over 60 years. Edited June 21, 2019 by DiveController Quote Link to comment Share on other sites More sharing options...
