brianmcs Posted February 10, 2016 Share Posted February 10, 2016 Hi folks , allways wanted to be a scratch builder so I made a start on a bogie cement wagon . will post updates as I make further progress. Quote Link to comment Share on other sites More sharing options...
Garfield Posted February 10, 2016 Share Posted February 10, 2016 Nice one, Brian! Looking forward to seeing this progress. Quote Link to comment Share on other sites More sharing options...
The Derry Road Posted February 10, 2016 Share Posted February 10, 2016 Watching this with interest, well done so far brianmcs Quote Link to comment Share on other sites More sharing options...
scahalane Posted February 10, 2016 Share Posted February 10, 2016 Great start well done. Quote Link to comment Share on other sites More sharing options...
David Holman Posted February 11, 2016 Share Posted February 11, 2016 Good for you, am sure you will get much more satisfaction from making something yourself than just opening a box - even though many boxes have very nice contents these days! Will look forward to seeing the model progress Quote Link to comment Share on other sites More sharing options...
Mike 84C Posted February 12, 2016 Share Posted February 12, 2016 Great stuff you are off to a flying start! I look forward to seeing more photos of your progress. Enjoy! Quote Link to comment Share on other sites More sharing options...
krose Posted February 12, 2016 Share Posted February 12, 2016 Well done looks great so far. Quote Link to comment Share on other sites More sharing options...
JasonB Posted February 12, 2016 Share Posted February 12, 2016 Nice job so far,really like this wagon so im looking forward to seeing this progress:tumbsup: Quote Link to comment Share on other sites More sharing options...
richrua Posted February 13, 2016 Share Posted February 13, 2016 It is a really good match for the prototype ; super Quote Link to comment Share on other sites More sharing options...
richrua Posted February 13, 2016 Share Posted February 13, 2016 Did you make the ends on a lathe ? Quote Link to comment Share on other sites More sharing options...
brianmcs Posted February 13, 2016 Author Share Posted February 13, 2016 Hi Guys , thanks for all the encouraging comments , especially Scahalane whose own excellent build of these was part of the inspiration for me to have a go. The ends were made by casting some machinable wax into a mould and machining them to size on a small lathe . I am working from the drawing on the forum and the photos on the net. These are very good but not great for the smaller detail such as the hatch lids , so if anyone can offer more detailed pics I would be very grateful . Quote Link to comment Share on other sites More sharing options...
brianmcs Posted March 13, 2016 Author Share Posted March 13, 2016 Hi Folks , eventually made it back to the workbench and made some progress , photos attached , Brian Quote Link to comment Share on other sites More sharing options...
brianmcs Posted March 13, 2016 Author Share Posted March 13, 2016 Hi Folks , not sure what happened to the previous post . Eventually made it back to the workbench and made some progress, Brian. Quote Link to comment Share on other sites More sharing options...
Kirley Posted March 13, 2016 Share Posted March 13, 2016 Well done for your perseverance and a good outcome. Good to see some actual modelling on this Site which unfortunately has become more of a talking shop recently. 1 Quote Link to comment Share on other sites More sharing options...
JasonB Posted March 14, 2016 Share Posted March 14, 2016 Lovely work very tidy,its coming along nicely. Quote Link to comment Share on other sites More sharing options...
DiveController Posted March 14, 2016 Share Posted March 14, 2016 Been watching this. Definitely starting to take shape now:cheers: Quote Link to comment Share on other sites More sharing options...
brianmcs Posted April 11, 2016 Author Share Posted April 11, 2016 HI Guys , the day job has slowed progress on this , but I got the mould made . This is the first "pull" from it . It is in a polyurethane resin . The white one is the master . I need to work on eliminating the air bubbles in the resin . Quote Link to comment Share on other sites More sharing options...
Mayner Posted April 11, 2016 Share Posted April 11, 2016 Very impressive. Did you use a one or two part mould? Quote Link to comment Share on other sites More sharing options...
The Derry Road Posted April 11, 2016 Share Posted April 11, 2016 Absolutely impressive, very well done. Watching this with interest TDR Quote Link to comment Share on other sites More sharing options...
RedRich Posted April 11, 2016 Share Posted April 11, 2016 For the first test that looks great. It's nice to see that all the hours and effort have really paid off. Rich, Quote Link to comment Share on other sites More sharing options...
daryl43068 Posted April 11, 2016 Share Posted April 11, 2016 Fantastic work there! Quote Link to comment Share on other sites More sharing options...
brianmcs Posted April 12, 2016 Author Share Posted April 12, 2016 thanks guys , the mould has one part in silicone rubber and a core made in acetal both of which are inside an acetal box or " shell" . not sure if that makes it a 2 or 3 part mould? Now that I am starting work on the chassis does anyone have any advice re which bogies to use ? Quote Link to comment Share on other sites More sharing options...
murrayec Posted April 12, 2016 Share Posted April 12, 2016 Hi brianmcs The mould looks cool, though it looks like you had an air problem also! the silicone looks like it needs to be evacuated when mixed and before pouring to make the mould- this may help in casting bubble free casts. Also you could try a mould spray loubricator it may stop the plastic cast forming bubbles at the bubbles in the mould! if that makes sence? SSM do the bogies sides your looking for or you could the Y25 bogies from Bachmann which are a bit smaller then Irish ones Eoin Quote Link to comment Share on other sites More sharing options...
Dunluce Castle Posted April 12, 2016 Share Posted April 12, 2016 Very, very nice casting. Reminds me I must try it out some time soon. Quote Link to comment Share on other sites More sharing options...
brianmcs Posted April 12, 2016 Author Share Posted April 12, 2016 Hi brianmcs The mould looks cool, though it looks like you had an air problem also! the silicone looks like it needs to be evacuated when mixed and before pouring to make the mould- this may help in casting bubble free casts. Also you could try a mould spray loubricator it may stop the plastic cast forming bubbles at the bubbles in the mould! if that makes sence? SSM do the bogies sides your looking for or you could the Y25 bogies from Bachmann which are a bit smaller then Irish ones Eoin Hello Eoin , I am a big fan of your work . There are air bubbles in the surface which you can see but virtually none on the surfaces of the part. This can be achieved by brushing a coat of the silicone onto the part first . If I was doing this professionally I might invest in some vacuum equipment which would produce a better result . I am using a spray on wax on the silicone and a honey wax on the acetal core ( in the day job I work with GRP ) The lubricant will not usually eliminate the air bubbles in the polyurethane resin but there are a couple of ways of doing this . I will try them and post an update . Thanks for the tip regarding the bogies . Brian. Quote Link to comment Share on other sites More sharing options...
murrayec Posted April 12, 2016 Share Posted April 12, 2016 (edited) Hi Brian Thanks I'm now a fan of your work, when I saw the way you put the mould together I said 'he's done this before' - GRP - I did a bit of that years ago working on boats n stuff- a long time ago!! Even the master model for the mould is very neat Eoin Edited April 12, 2016 by murrayec Quote Link to comment Share on other sites More sharing options...
brianmcs Posted May 15, 2016 Author Share Posted May 15, 2016 Hello Guys, progress has been slow but I got the chassis made , the bogies are from SSM. Quote Link to comment Share on other sites More sharing options...
JasonB Posted May 15, 2016 Share Posted May 15, 2016 Coming along nicely,beautiful piece of work. Quote Link to comment Share on other sites More sharing options...

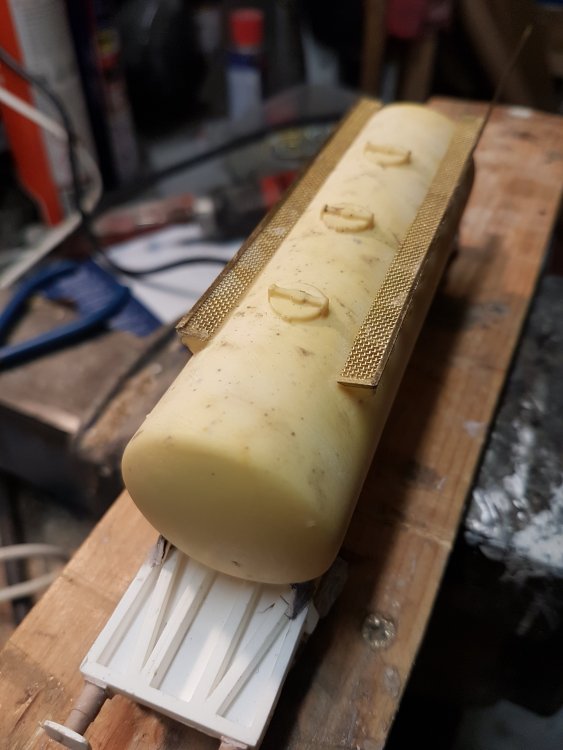

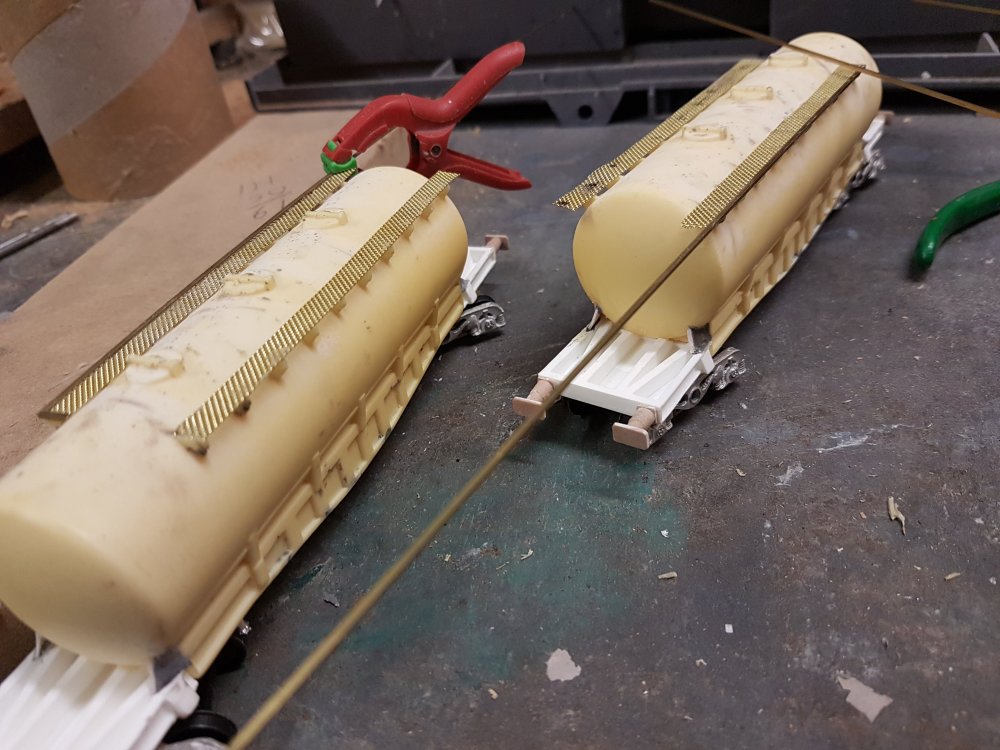

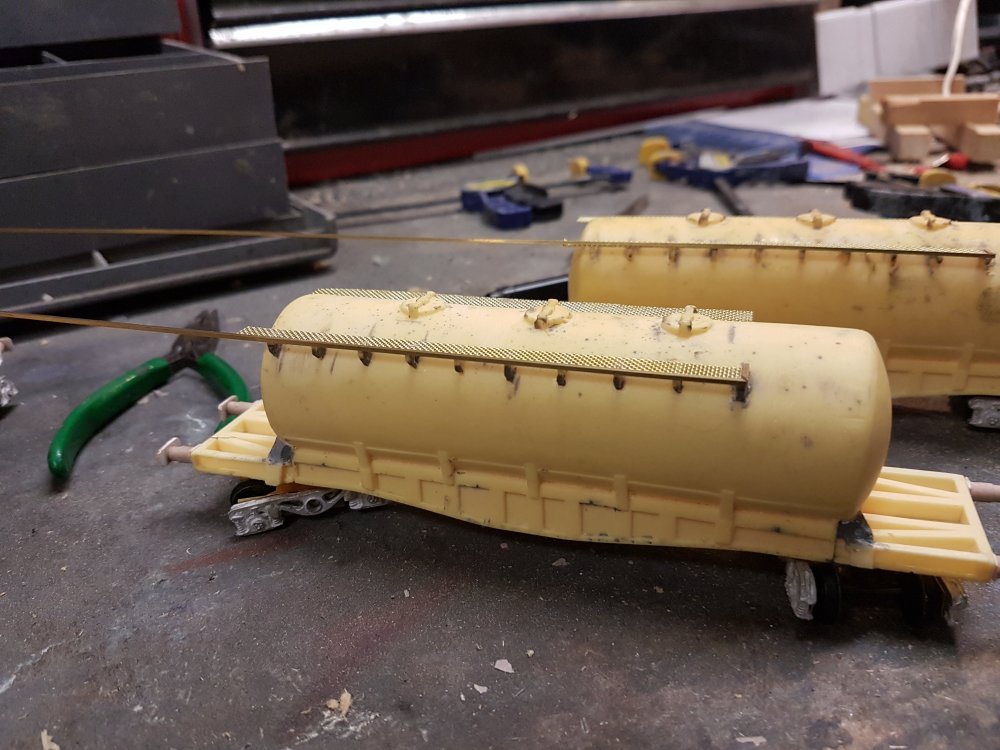

brianmcs Posted November 5, 2018 Author Share Posted November 5, 2018 Hi folks , been away from these fro a long time .am making some progress. 4 Quote Link to comment Share on other sites More sharing options...

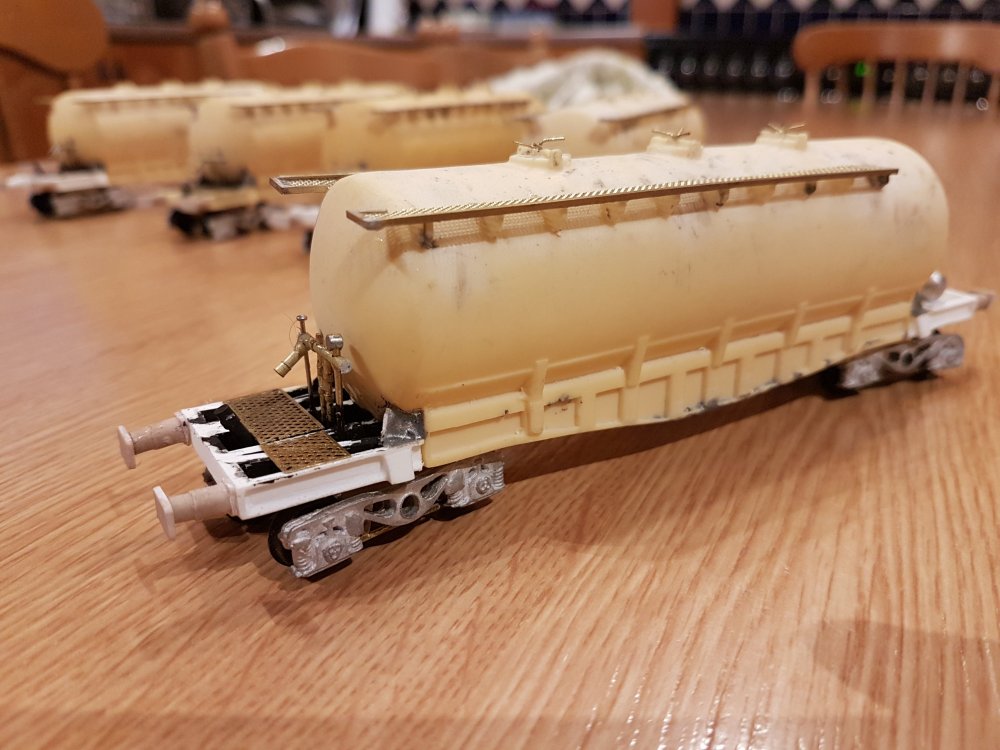

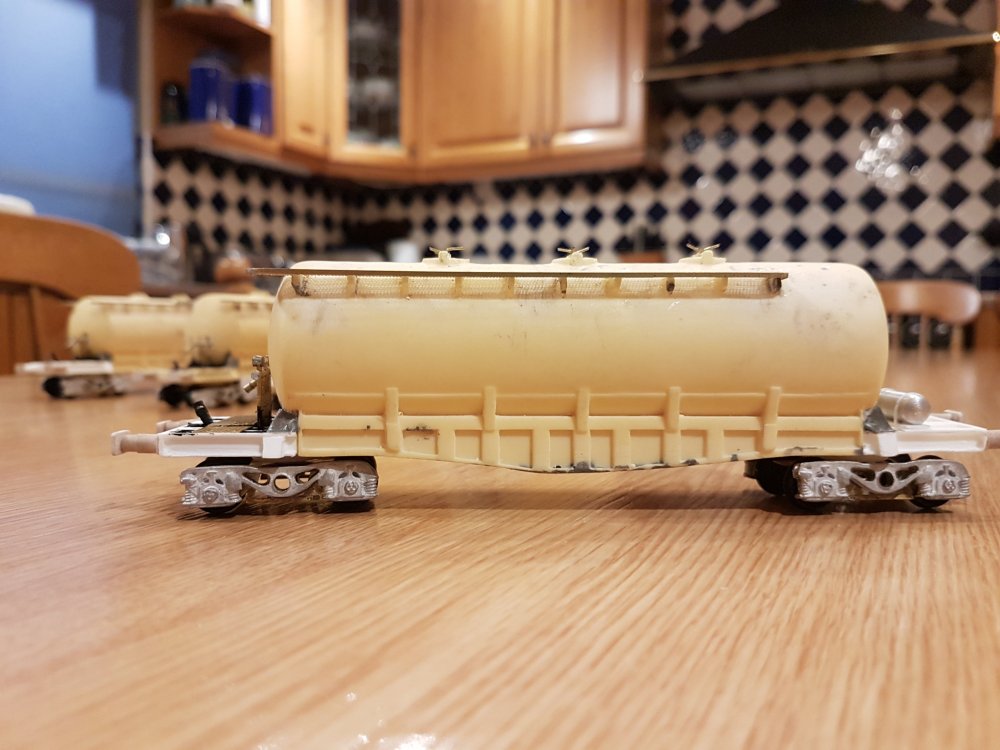

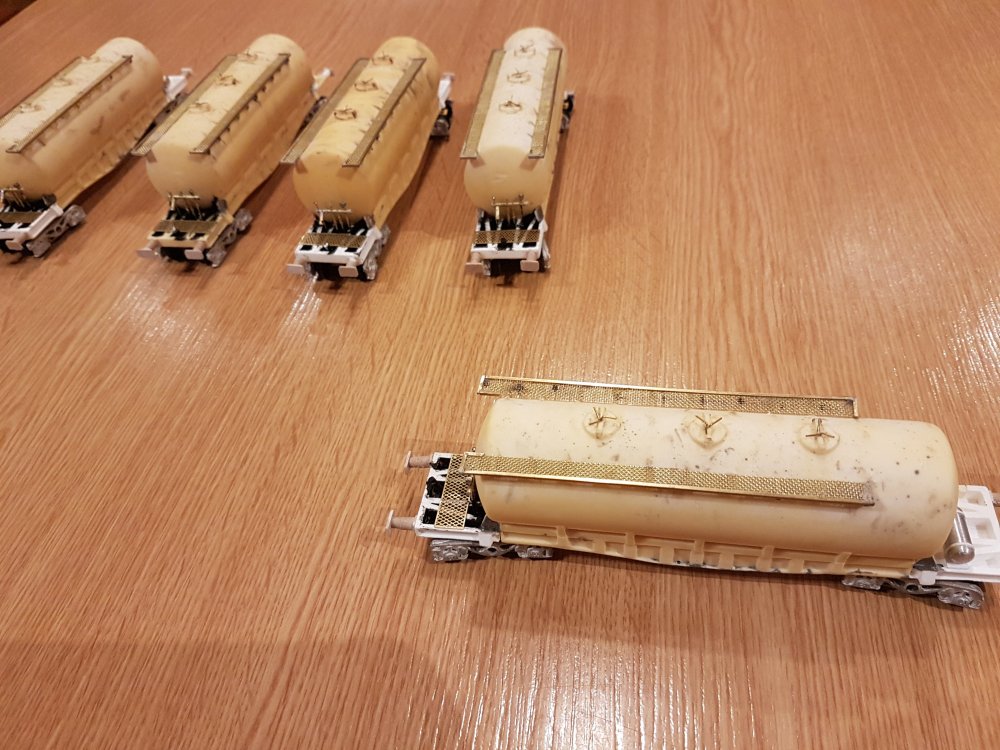

brianmcs Posted October 14, 2019 Author Share Posted October 14, 2019 Hello All , it's been a long time but I finally restarted work on these. 7 Quote Link to comment Share on other sites More sharing options...
David Holman Posted October 15, 2019 Share Posted October 15, 2019 That is going to be a very impressive rake. Quote Link to comment Share on other sites More sharing options...

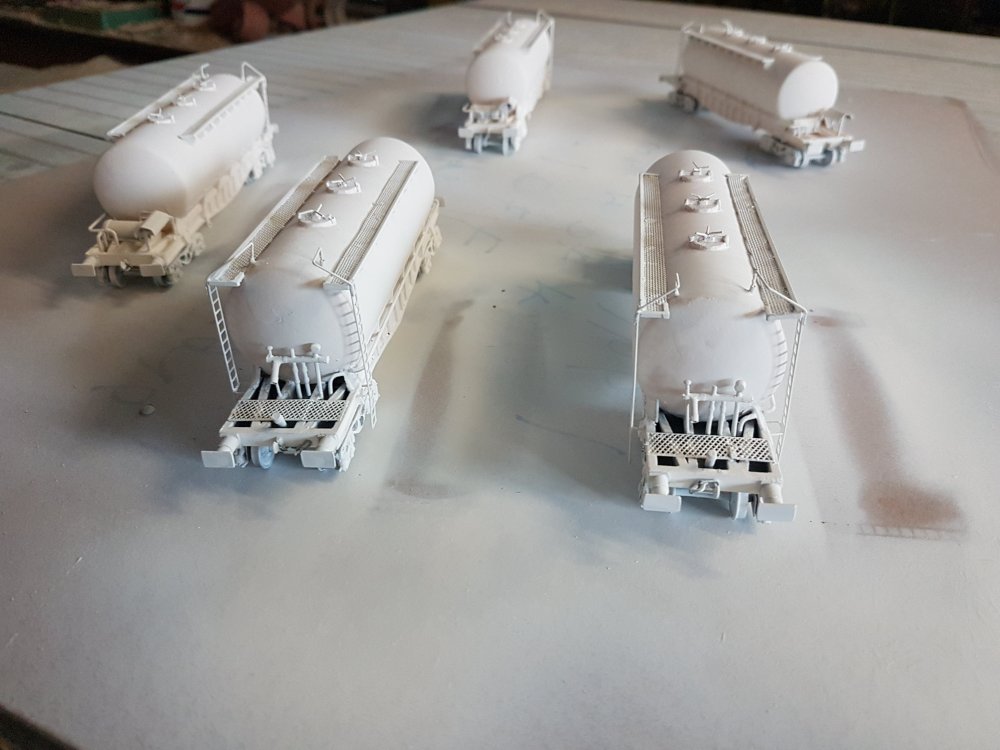

brianmcs Posted March 13, 2020 Author Share Posted March 13, 2020 It has taken a long time to get to this stage but finally started the painting 7 1 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted March 13, 2020 Share Posted March 13, 2020 Looking amazing, Brian! That lot will look amazing behind an "A"...... Quote Link to comment Share on other sites More sharing options...
flange lubricator Posted March 13, 2020 Share Posted March 13, 2020 (edited) 12 minutes ago, jhb171achill said: Looking amazing, Brian! That lot will look amazing behind an "A"...... The bogie Bulks were never hauled by the A class as they were air braked wagons the A class were never equipped for air braked trains (029 was as a trial ). Nice job on the wagons Edited March 13, 2020 by flange lubricator 1 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted March 13, 2020 Share Posted March 13, 2020 23 minutes ago, flange lubricator said: The bogie Bulks were never hauled by the A class as they were air braked wagons the A class were never equipped for air braked trains (029 was as a trial ). Indeed; I stand humbly corrected!! 1 Quote Link to comment Share on other sites More sharing options...
