GSR 800 Class - Locomotive

murrayec · February 4

With recent requests for Class 800 drawings I post below KMCE's scanned drawings in pdf format. It was Ken's intention to complete out a general arrangement set of drawings and make them available to fellow modellers, sadly time ran out for him, but with these drawings he will be remembered.

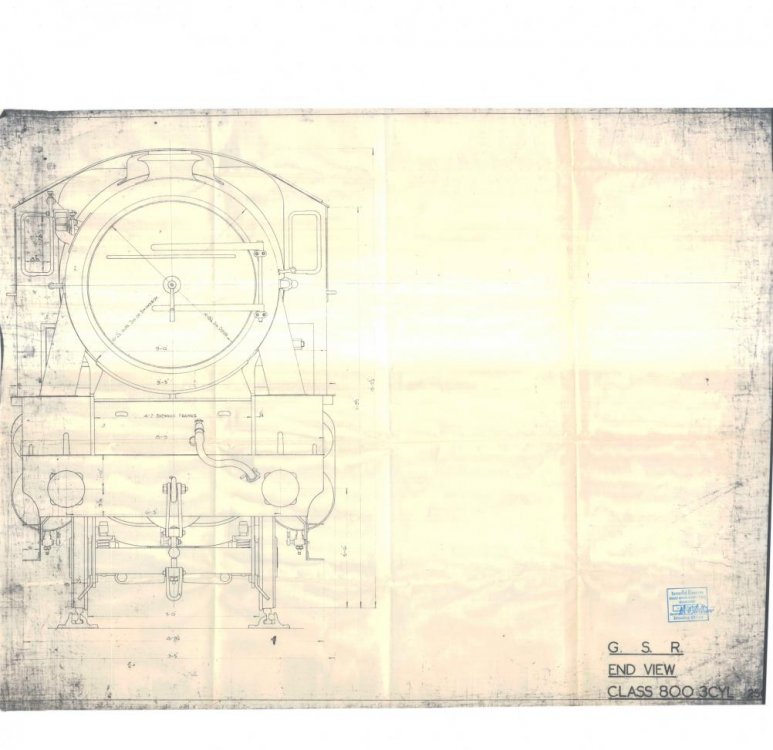

scan751 front.pdf scan752 Side Cab.pdf scan753 Side Valves.pdf scan754 Side Front.pdf scan755 Third Cylinder Section.pdf scan756 Third Cylinder Valve Section.pdf scan757 Boiler Tubes.pdf

Eoin

Horsetan · July 23, 2022

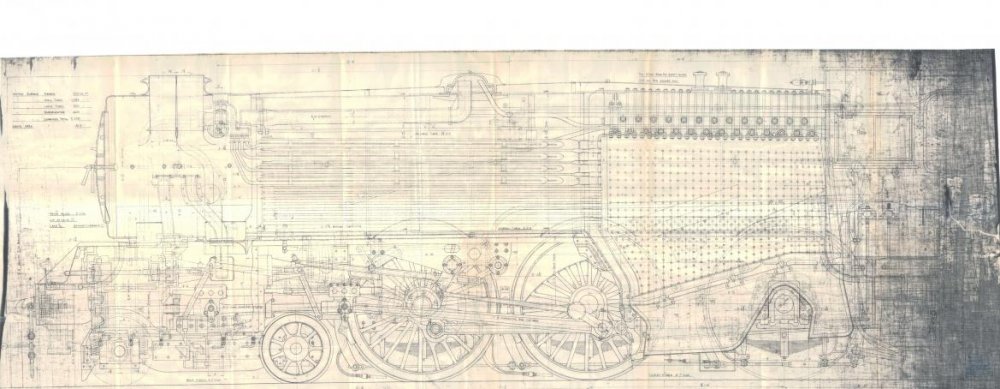

Useful. I'd have liked to have seen a better resolution of the official side view, in order to read the measurements properly. The wheelbase, etc. is of particular interest.
