Westland Row signal cabin

[kenbac]

Does anyone have photo of the Signal cabin on the south side of Westland Row, mentioned in “Rails around Dublin “ – p46.



Photograph taken from “The 1936 GSR-built signal cabin, which was situated on a structure spanning the tracks. It survived until the line was electrified.”

[DART8118]



Is this the one?



[DART8118]

When I posted this photo I didn't have the full image.  Now that I can see the entire shot there are some interesting questions that it would be great to have answered.

The full image (use the + icon to enlarge things) is on the National Library of Ireland website at

http://catalogue.nli.ie/Record/vtls000306673



Where exactly was the signal cabin and is there any evidence of it to be seen today?

What are the carriages in the rake beyond the signal cabin on the carriage siding?

Where exactly was the signal gantry that shows beyond and above that rake?

Opposite the signal cabin on the engine siding there is a pit.  What kind of pit is it, ash or inspection or other?

Just beneath the pit there is a panel with writing, all set on a small plinth.  What is that and what might the text be?

Many thanks in advance

8118





[warb]

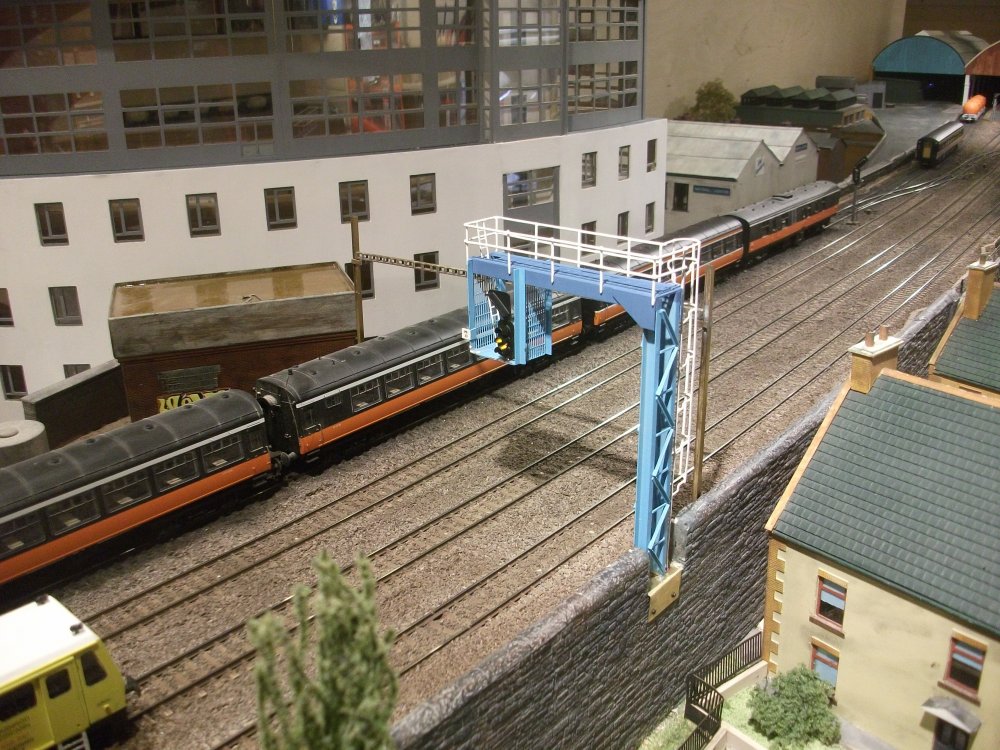

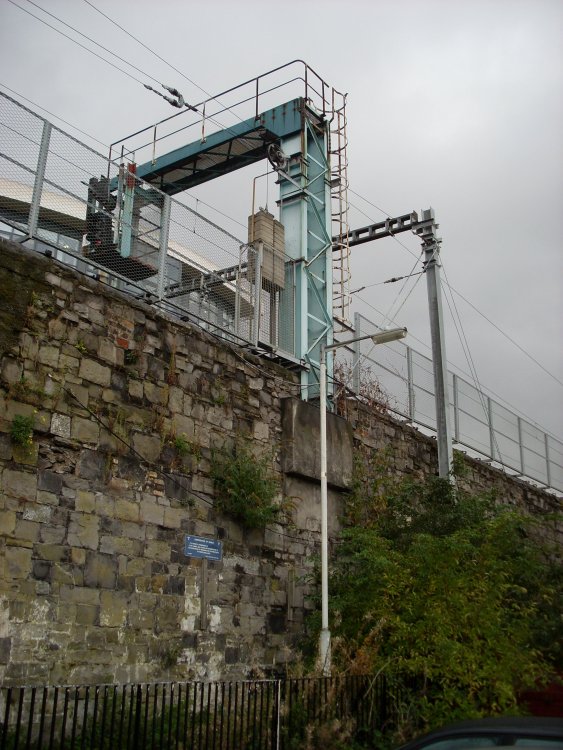

As far as i am aware it is approx were the signal gantry was in the following photos

warb

[DART8118]

Would anyone have a photo or other details of the McKenzie & Holland signal cabin that was erected in Westland Row in 1881?  Something that might show the west elevation which I believe was the side with the door and the access stair.

8118

[DSERetc]

On 5/10/2019 at 2:10 PM, DART8118 said:



When I posted this photo I didn't have the full image.  Now that I can see the entire shot there are some interesting

!questions that it would be great to have answered.

The full image (use the + icon to enlarge things) is on the National Library of Ireland website at

http://catalogue.nli.ie/Record/vtls000306673



Where exactly was the signal cabin and is there any evidence of it to be seen today?

The signal cabin was built over the siding or loop on the  north or down side of the railway about one third of the way from Westland Row to Grand Canal Street shed  or between Pearse Station and Grand Canal Dock Station.  The only evidence is the triangular steel plate on the wall securing the upright to the diagonal brace,  a few feet in front of the bicycle in the picture.   You can see it better from a train travelling towards Pearse, provided nothing is parked in the loop.

DSERetc



DSERetc

Quote









?

Quote





Quote







Quote

Many thanks in advance

8118









Quote

Where exactly was the signal gantry that shows beyond and above that rake?

Opposite the signal cabin on the engine siding there is a pit.  What kind of pit is it, ash or inspection or other?

Just beneath the pit there is a panel with writing, all set on a small plinth.  What is that and what might the text be?

Many thanks in advance

811blockquot











[jhb171achill]

On ‎5‎/‎10‎/‎2019 at 2:10 PM, DART8118 said:



What are the carriages in the rake beyond the signal cabin on the carriage siding?







From left to right, two Bredins (probably 1937 series), a Park Royal, another coach of either Bredin or early CIE (1950-2) design, and a wooden-bodied third of 1910-20 GSWR design.  All in black'n'tan, so probably 1965/70-ish.

[DART8118]

Thanks JB.

8118
