Sean Roberts Posted April 17, 2023 Share Posted April 17, 2023 (edited) Has anyone removed bogies from an a class, I have one that appears to have a pick up problem or an intermittent short and I have eliminated evry thing bar the bogies and pick up strips so need to investigate them. Any help would be great. Thanks Edited April 17, 2023 by Sean Roberts Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted April 17, 2023 Share Posted April 17, 2023 23 minutes ago, Sean Roberts said: Has anyone removed bogies from an a class, I have one that appears to have a pick up problem or an intermittent short and I have eliminated evry thing bar the bogies and pick up strips so need to investigate them. Any help would be great. Thanks @murphaph perhaps? Quote Link to comment Share on other sites More sharing options...
DJ Dangerous Posted April 17, 2023 Share Posted April 17, 2023 1 hour ago, Westcorkrailway said: @murphaph perhaps? Technically it was me who removed them, and @murphaph who glued all of the bits back together... 1 Quote Link to comment Share on other sites More sharing options...
murphaph Posted April 18, 2023 Share Posted April 18, 2023 Technically it was a cat that removed them wasn't it ? IIRC the caps that snap over the worm gears should also be resonsible for holding the bogies in place. I would suggest taking a look at my workbench thread (not too far back) and see if the pics can help. I ended up needing to remove the PCB to gain access as there was no slack in the droppers to the bogies. It looks like there is just enough slack sometimes to ease the PCB out of the way (according to the IRM instructions for reaseating the popped out driveshafts). @DJ Dangerous maybe you could attach that file. I can't seem to find it now? 1 1 Quote Link to comment Share on other sites More sharing options...
DJ Dangerous Posted April 18, 2023 Share Posted April 18, 2023 1 hour ago, murphaph said: Technically it was a cat that removed them wasn't it ? IIRC the caps that snap over the worm gears should also be resonsible for holding the bogies in place. I would suggest taking a look at my workbench thread (not too far back) and see if the pics can help. I ended up needing to remove the PCB to gain access as there was no slack in the droppers to the bogies. It looks like there is just enough slack sometimes to ease the PCB out of the way (according to the IRM instructions for reaseating the popped out driveshafts). @DJ Dangerous maybe you could attach that file. I can't seem to find it now? By the strictest legal definition, it was a cat, but writing that might have scared the OP off. She's a very special cat, to be found anywhere that she shouldn't be... I'd forgotten that the lads sent me that schematic for the duff 054. Here it is. As a disclaimer, I'd suggest contacting IRM in private before opening up a loco. They have amazing customer service, absolutely can't be faulted. A guide to self repairing a slipping driveshaft.pdf 4 Quote Link to comment Share on other sites More sharing options...
Sean Roberts Posted April 18, 2023 Author Share Posted April 18, 2023 13 hours ago, murphaph said: Technically it was a cat that removed them wasn't it ? IIRC the caps that snap over the worm gears should also be resonsible for holding the bogies in place. I would suggest taking a look at my workbench thread (not too far back) and see if the pics can help. I ended up needing to remove the PCB to gain access as there was no slack in the droppers to the bogies. It looks like there is just enough slack sometimes to ease the PCB out of the way (according to the IRM instructions for reaseating the popped out driveshafts). @DJ Dangerous maybe you could attach that file. I can't seem to find it now? Thanks for the useful information and photos, I have all stripped to the bogies, still a bit unsure on the actual bogie removal , I'm thinking I have to remove the bogie cover that has IRM printed on it 1 minute ago, Sean Roberts said: Thanks for the useful information and photos, I have all stripped to the bogies, still a bit unsure on the actual bogie removal , I'm thinking I have to remove the bogie cover that has IRM printed on it 1 Quote Link to comment Share on other sites More sharing options...

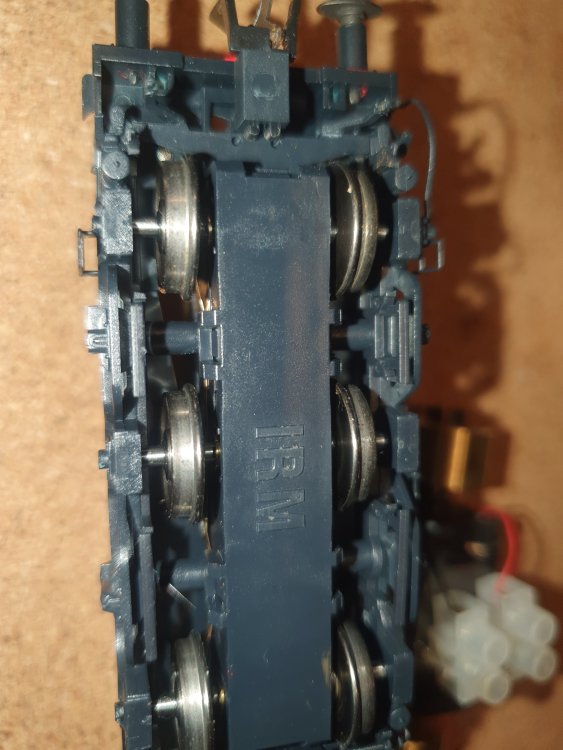

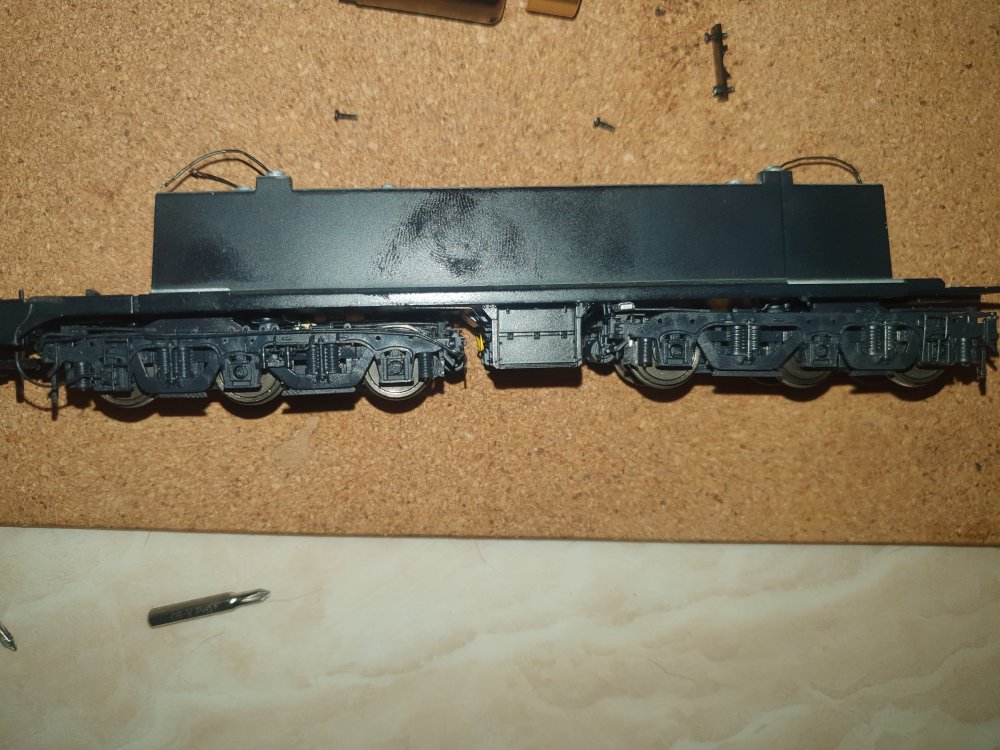

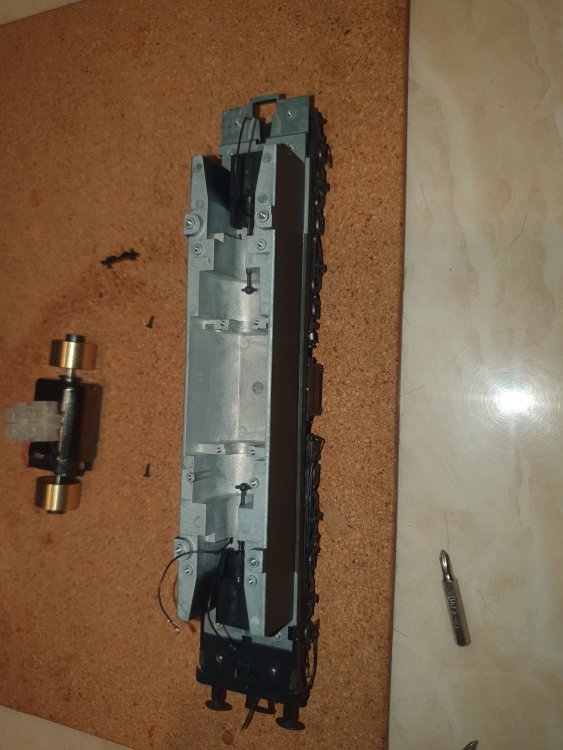

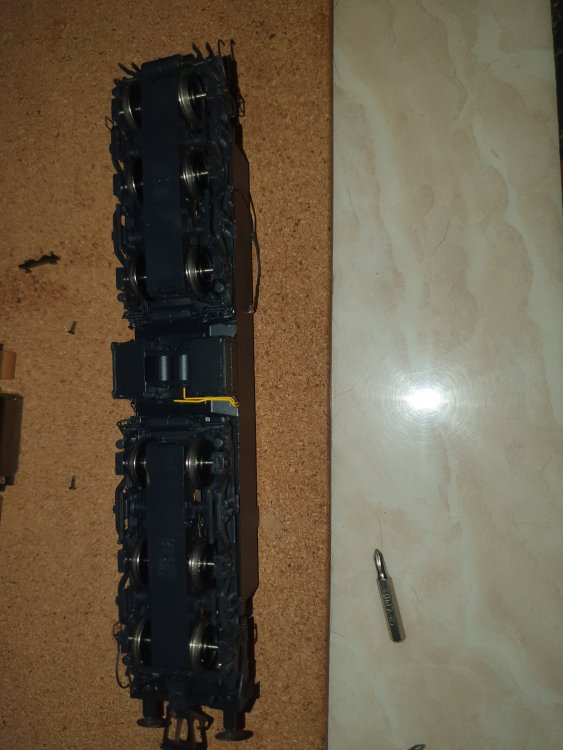

murphaph Posted April 18, 2023 Share Posted April 18, 2023 I did not remove the axle cover plate as far as I remember. I was working the other way, putting a loco back together that had smashed to bits. If you want to remove the bogies from the chassis you need to unclip the lids where the drive shaft engages the worm gears and then the bogies should drop out but I was doing it in reverse so don't hold me to that. If you wand to inspect the axle gears then yeah that cover plate muct come off somehow. This is as far as I took them apart: 1 Quote Link to comment Share on other sites More sharing options...

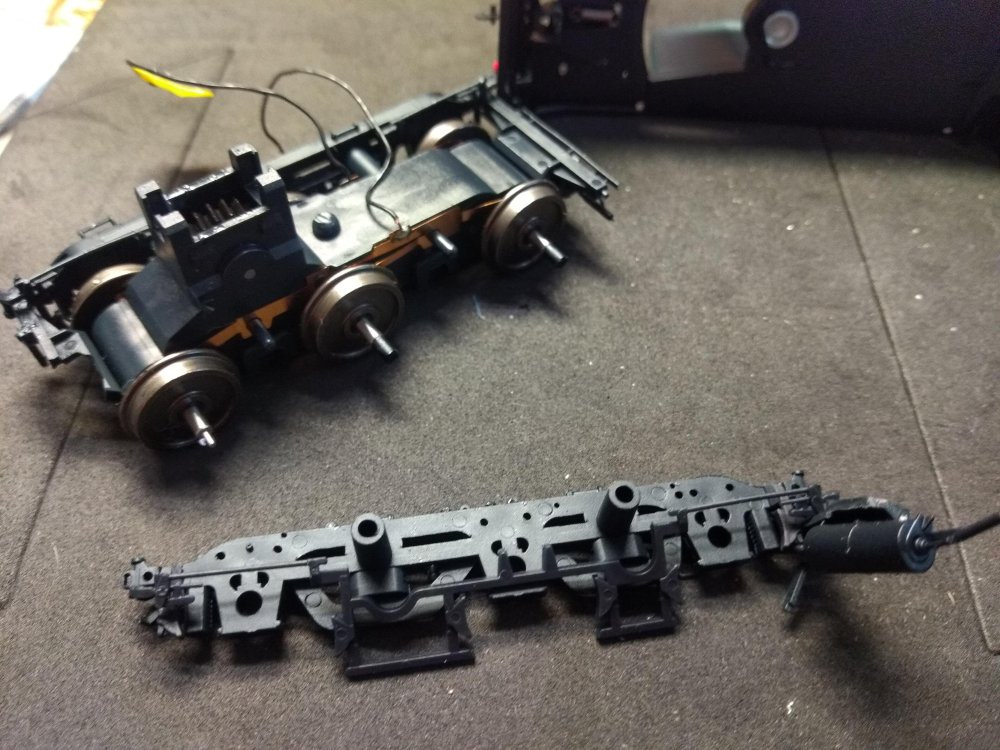

Sean Roberts Posted April 19, 2023 Author Share Posted April 19, 2023 (edited) On 18/4/2023 at 9:30 PM, murphaph said: I did not remove the axle cover plate as far as I remember. I was working the other way, putting a loco back together that had smashed to bits. If you want to remove the bogies from the chassis you need to unclip the lids where the drive shaft engages the worm gears and then the bogies should drop out but I was doing it in reverse so don't hold me to that. If you wand to inspect the axle gears then yeah that cover plate muct come off somehow. This is as far as I took them apart: Sorted, thanks again for the help issue was as I thought the pick up strips Edited April 19, 2023 by Sean Roberts Spelling 2 Quote Link to comment Share on other sites More sharing options...
