West Clare Railway Rolling Stock Drawings

[Colin R]

Hi all

Its been a while since I have been on here (work and life out of balance right now), One think I have been meaning to ask does anyone know who I can contact about finding any old 3ft gauge WCR rolling stock drawings.

I have the ones in the published books (the Patrick Taylor Book), but more so the other 6 wheeled brake vans that were used on Passenger trains mainly, I have a feeling that they may not exist, but if anyone has a contact, I would be glad to be put in contact with them, the same also goes for any photos of WCR rolling stock as well.

Regards



Colin R







[jhb171achill]

On pages 124 and 126 of Taylor's book there are drawings of two of their standard designs of 30ft long six-wheelers. Those vans were built to the same overall external dimensions, so that's a start.

They started life in ordinary wagon grey, but in later years got a darker grey shade (with the GSR) and a few - not all - of them ended their days in plain CIE green, of the later (lighter) shade. None were ever in the darker green.



[Killian Keane]

HMRS have drawings of the 6 wheel brakes, listed under CIE

HMRS Drawings

[jhb171achill]

In later years at least one had the roof lookout removed….

[Bob49]

Is the Patrick Taylor book the best book for drawings etc?

[Galteemore]

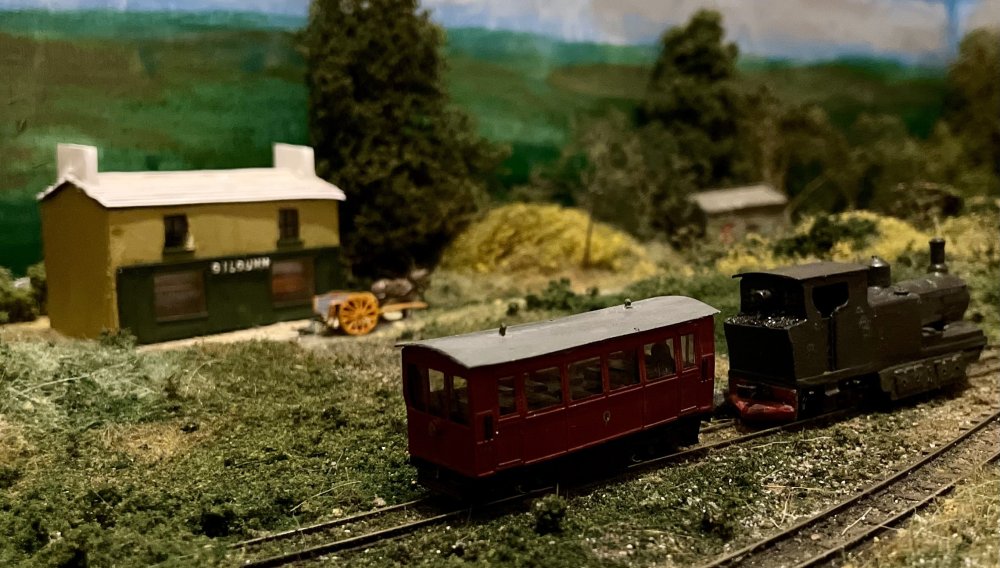

Try Des Coakham’s NG rolling stock book too, plus David Lloyd’s. Worsley do the WCR Drewry car - I built it in 3mm scale when I briefly fell off the 7mm wagon a few years ago…..

Edited December 26, 2023 by Galteemore

[jhb171achill]

2 hours ago, Bob49 said:

Is the Patrick Taylor book the best book for drawings etc?

It’s the best I’ve seen. I’m aware if several good G scale models having been made using these.

Always thought the Wisht Clare stock, from locos to carriages and wagons, was of very attractive / interesting designs.

[Rob R]

Sorry to drag up an old(ish) thread but, if anyone is after West Clare photos then a look here might be worthwhile:-

West Clare Railway

R

[Gabhal Luimnigh]

Some great photos there, well spotted

[Rob R]

More West Clare and some nice WL&WR here:-

Limerick City Museum

A bit of a trawl to get through but it's worth it.

R

EDIT. The link doesn't go all the way. Choose "advanced search" and put "railway" in the keyword box.

Sorry, it's late (or early?) and the brain can't work it out.........
