Hi all,

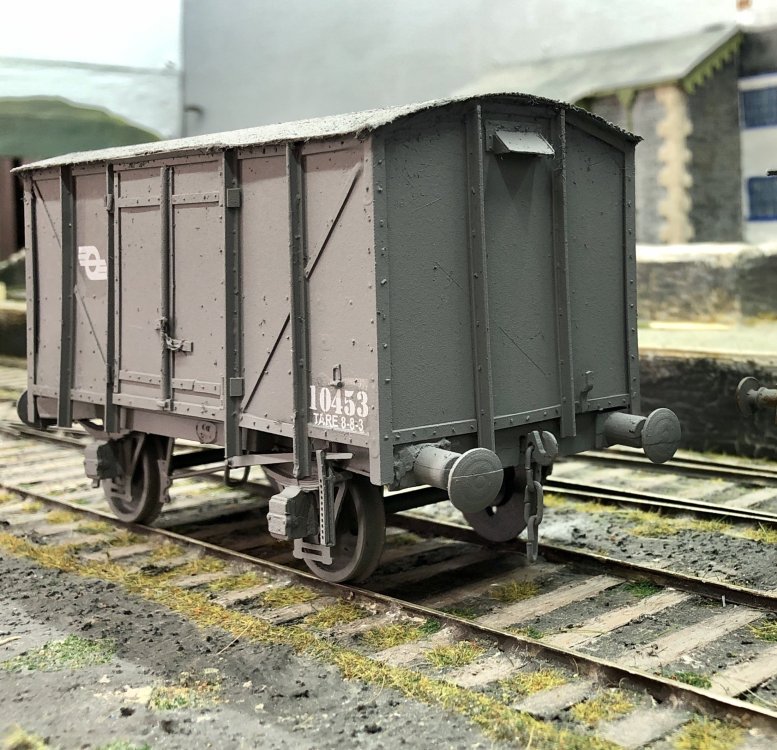

Please pardon my immense ignorance. I’m trying to scratch build and I need the particular part pictured below. It’s the riveted metal “beams” (?) that are on the sides of some vans. I don’t know what it’s called and I just wondered if anyone knew a company that makes these or a shop that sells them. Or do people normally just make their own?
Thanks in advance for any info,

John


Edited by Johnny B. Good
Spelling
Link to comment
Share on other sites

Hi

Often called strapping or "iron works.   You can buy etched sheets to cut out, also a product called Archer rivets which are a resin rivet head on transfer/ decal backing sheets in varying specs and these can be laid on to and painted - very effective. 4MM33: Wagon Strapping – Wizard Models Limited

Hope that helps

Robert



  • Like 2
Link to comment
Share on other sites

Hi John,

What scale and material are you working with ?

I build most of my models from plasticard of and I use various sections of Plastruct or Evergreen sections that come in all sorts of shapes and sizes.

As Robert noted above Archers do rivet transfers as does Railtec which I have found to much easier to source direct from Railtec's website.

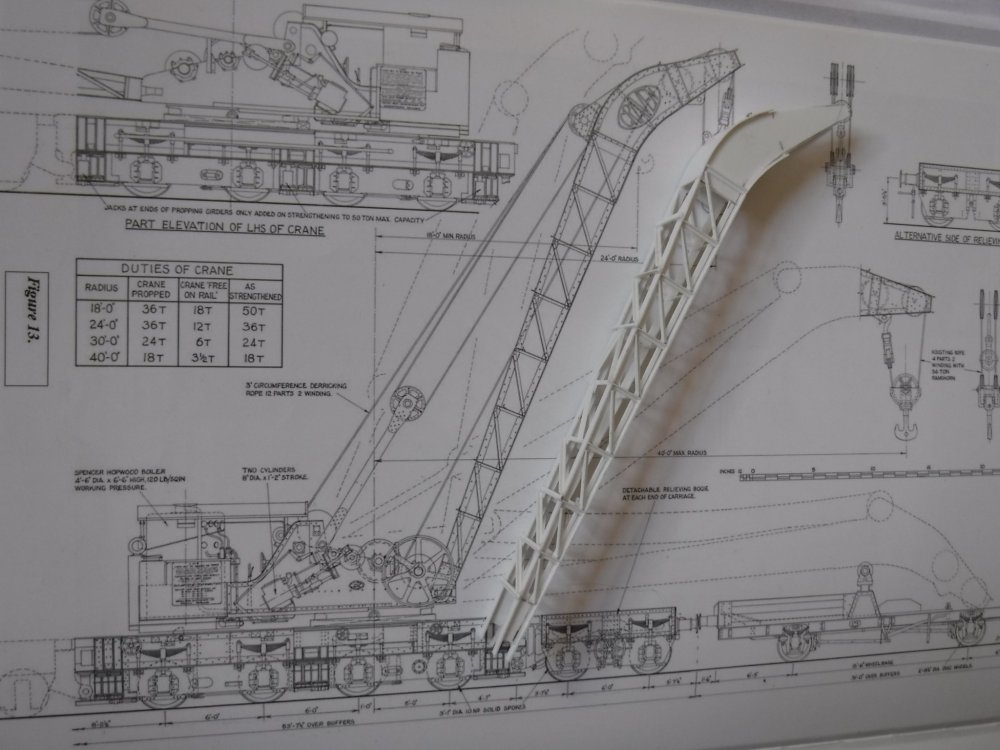

This is a OO gauge crane jib that I have made up from 2mm and 1.6mm angles and various pieces of square section.

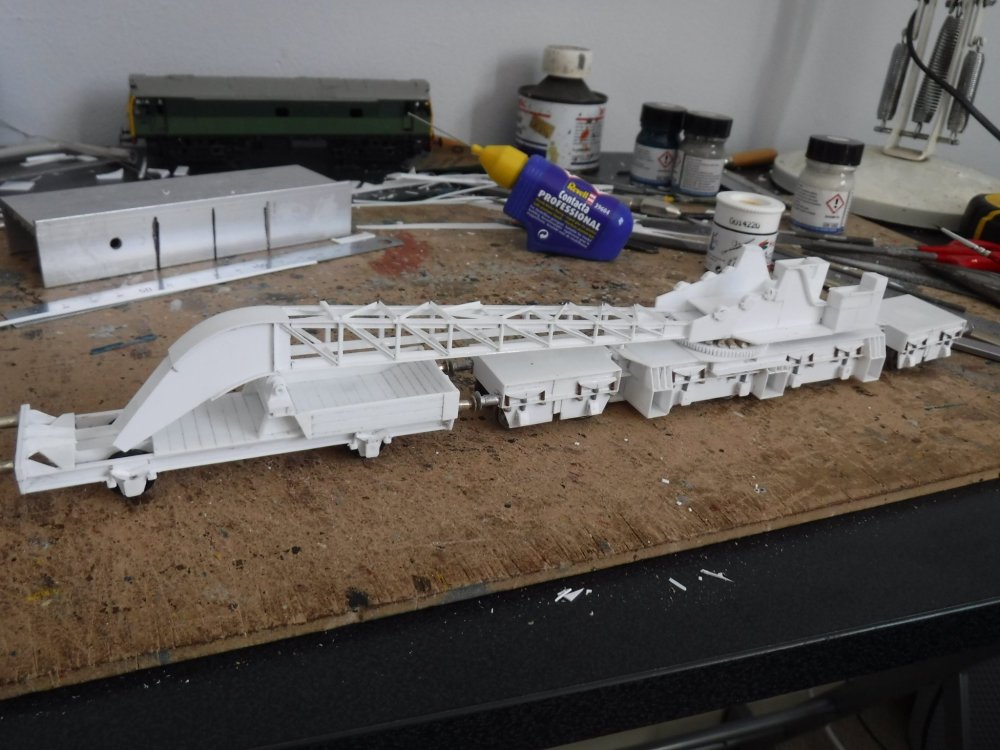

This is the rest of it although I haven't applied the rivet transfers yet.

Gibbo.

  • Like 4
  • WOW! 2
Link to comment
Share on other sites

21 hours ago, Johnny B. Good said:

Hi all,

Please pardon my immense ignorance. I’m trying to scratch build and I need the particular part pictured below. It’s the riveted metal “beams” (?) that are on the sides of some vans. I don’t know what it’s called and I just wondered if anyone knew a company that makes these or a shop that sells them. Or do people normally just make their own?
Thanks in advance for any info,

John


John

Gareth Brennan, whose scratch-built models in plastic are amongst the best I've ever seen, tells me that Plastruct TFS 1 is the stuff you need for this job.

Good luck with your build.

Alan



  • Like 1
  • Agree 1
  • Informative 1
Link to comment
Share on other sites

On 9/7/2024 at 11:21 AM, Robert Shrives said:

Hi

Often called strapping or "iron works.   You can buy etched sheets to cut out, also a product called Archer rivets which are a resin rivet head on transfer/ decal backing sheets in varying specs and these can be laid on to and painted - very effective. 4MM33: Wagon Strapping – Wizard Models Limited

Hope that helps

Robert



Thanks Robert, that does help. And thanks Eoin, Gibbo Galteemore and Alan I really appreciate all your help.
John

Edited by Johnny B. Good
Spelling
  • Like 1
  • Thanks 2
