Horsetan Posted October 8 Posted October 8 5 hours ago, Tullygrainey said: I've looked at CSB but I've yet to try it. I find it hard enough to fit a single compensation beam between the frames as it is. As well as getting it in the right place! When done properly, it takes up a little less space than compensation, and leaves more room for inside motion.....
Tullygrainey Posted October 9 Author Posted October 9 11 hours ago, Horsetan said: ... and leaves more room for inside motion..... I think for me that might remain a bridge not crossed

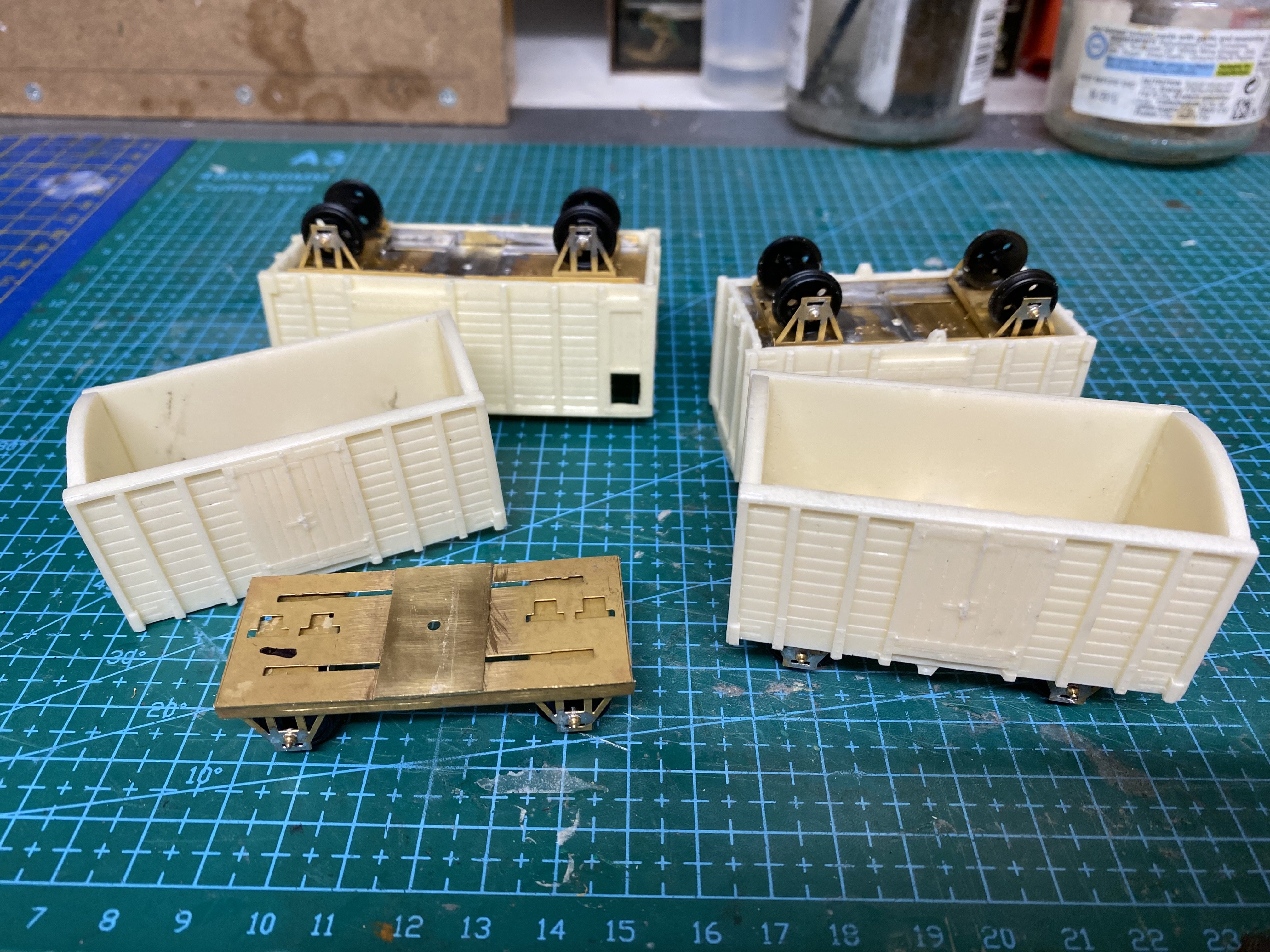

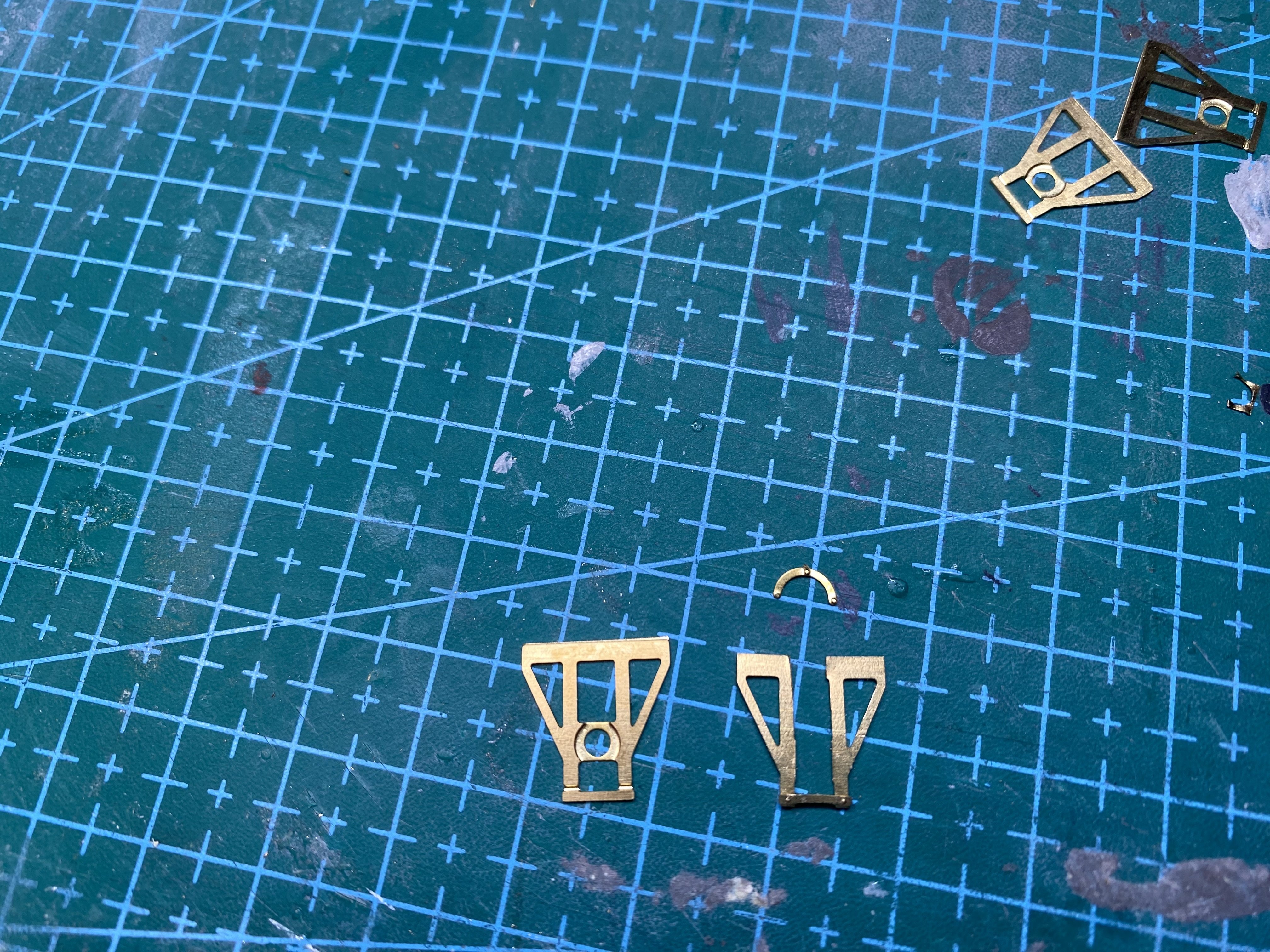

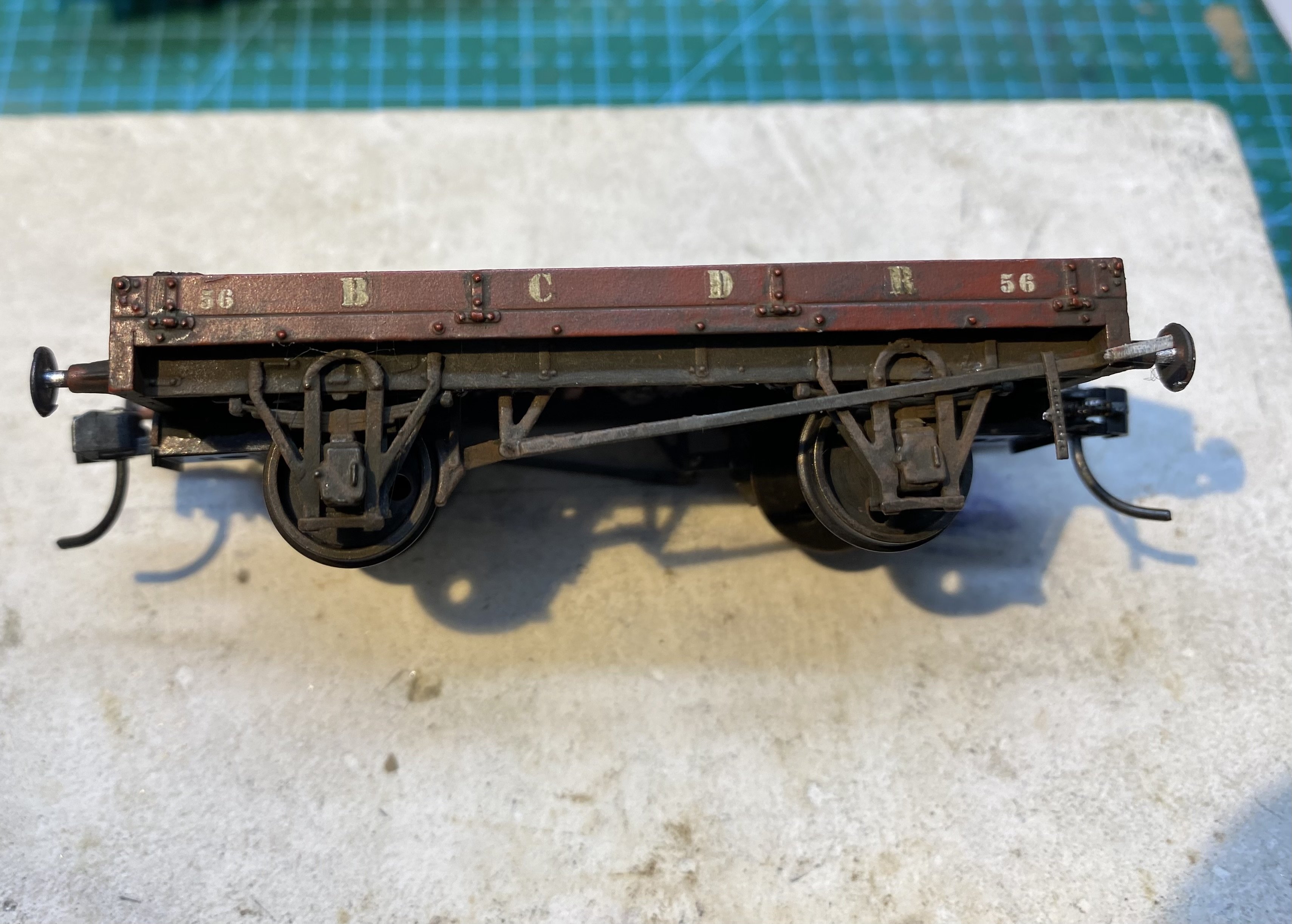

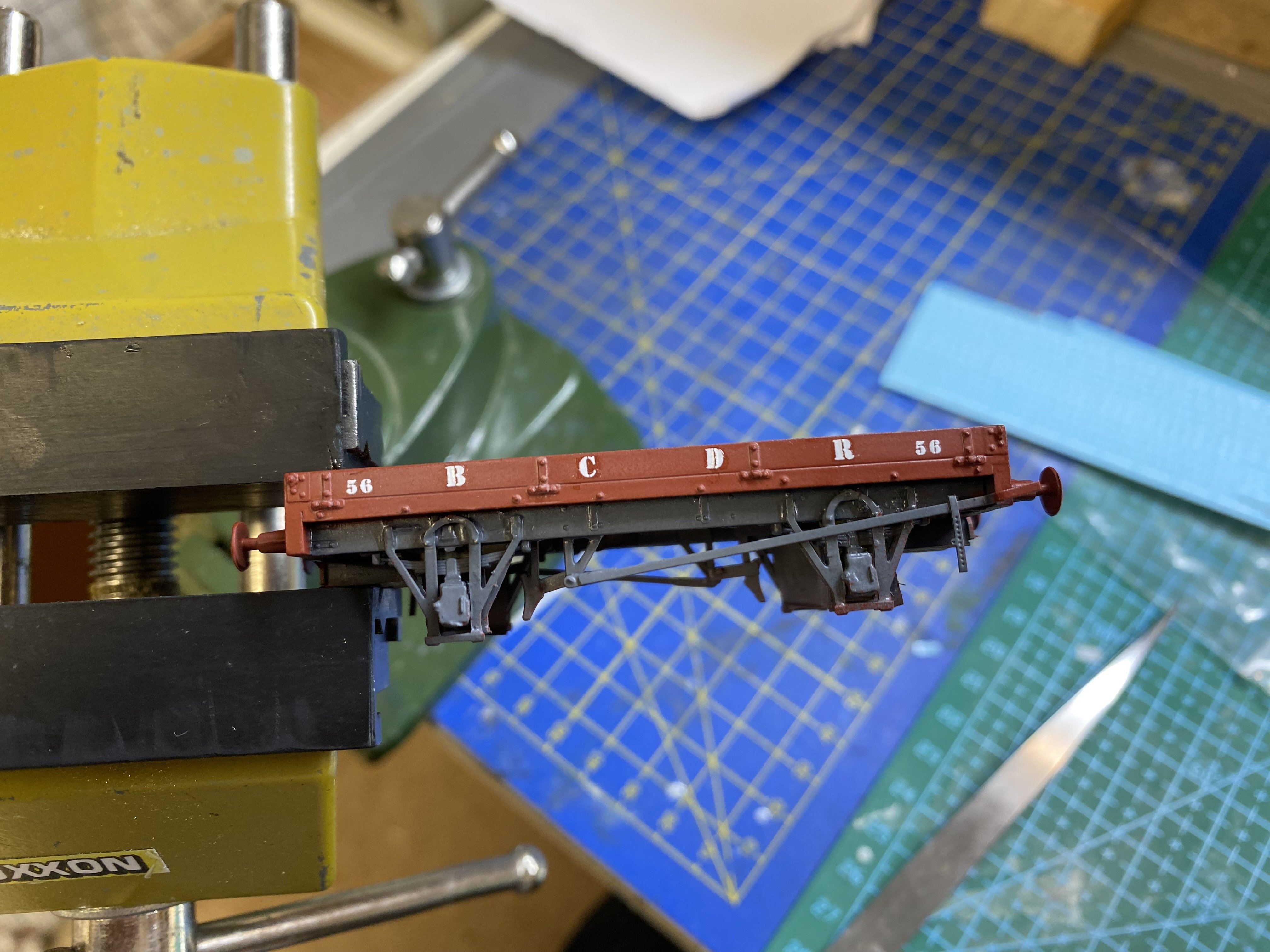

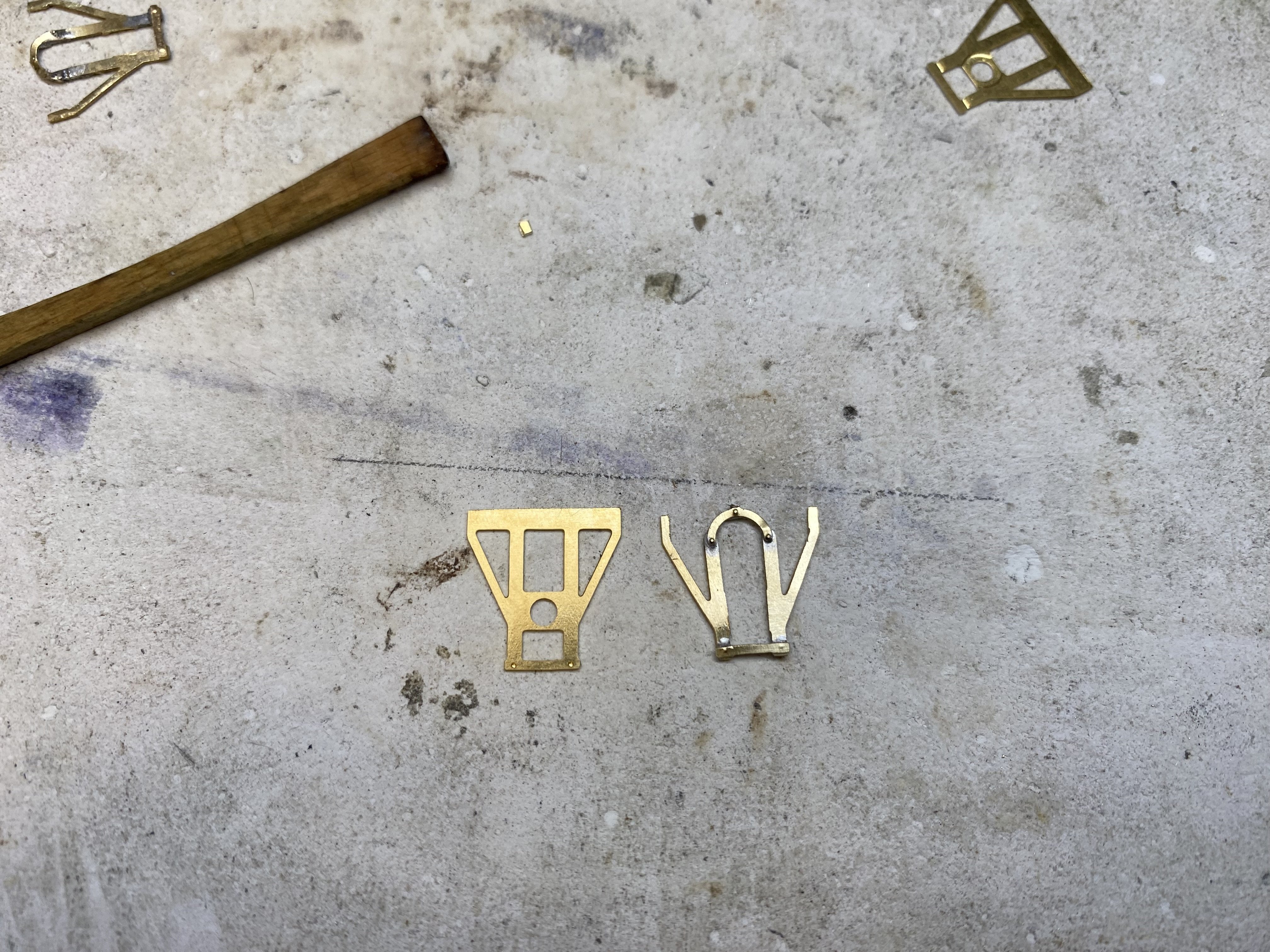

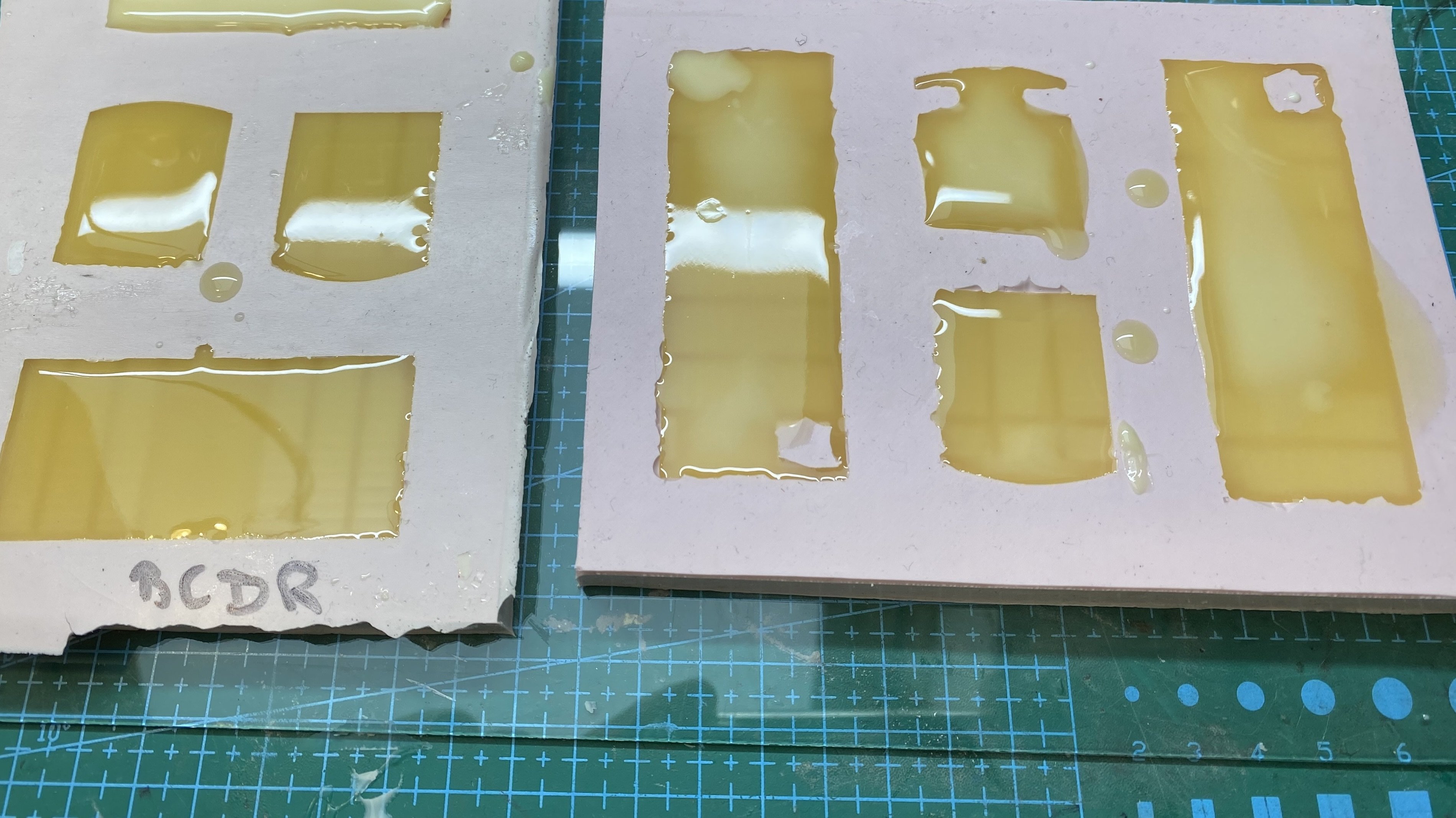

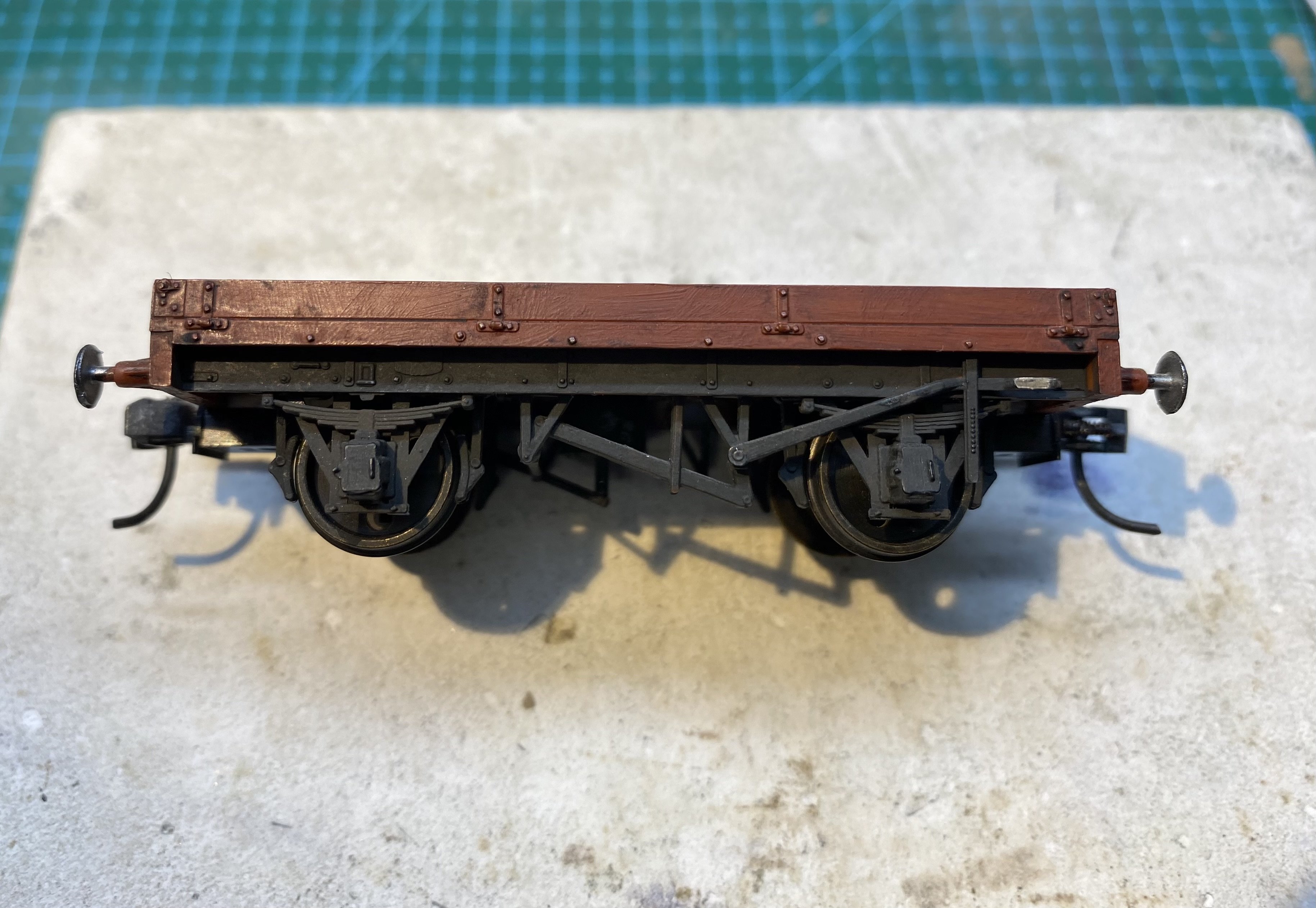

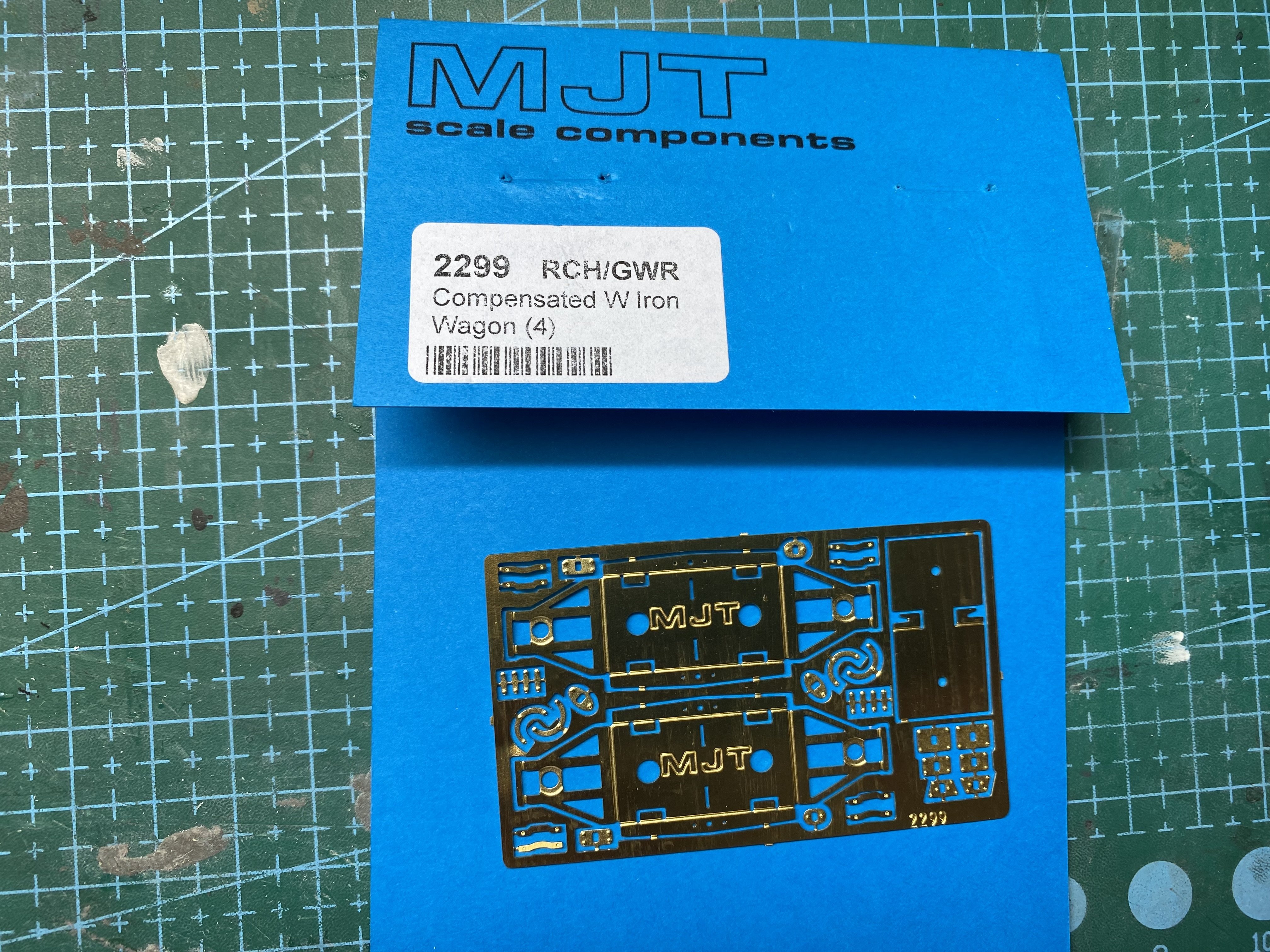

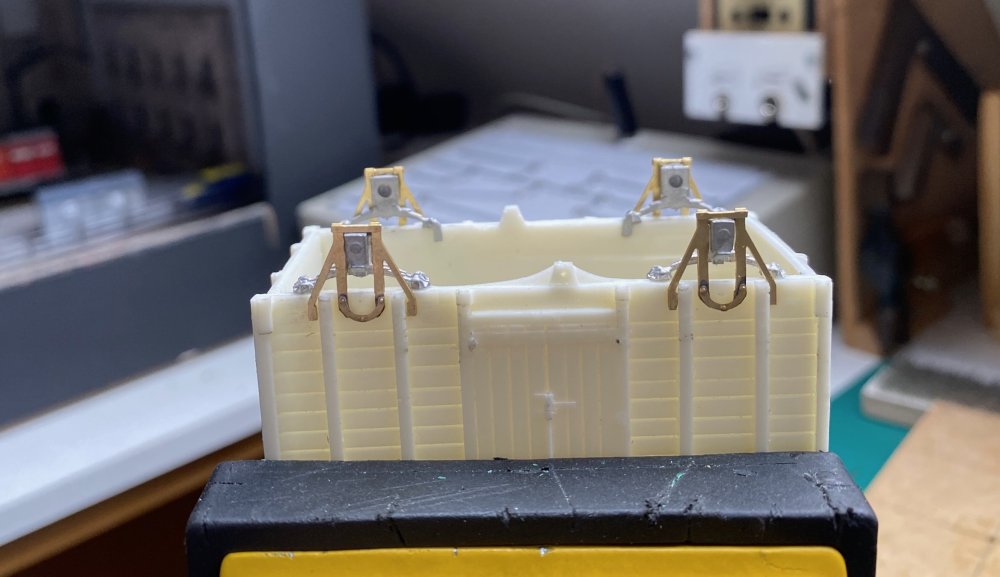

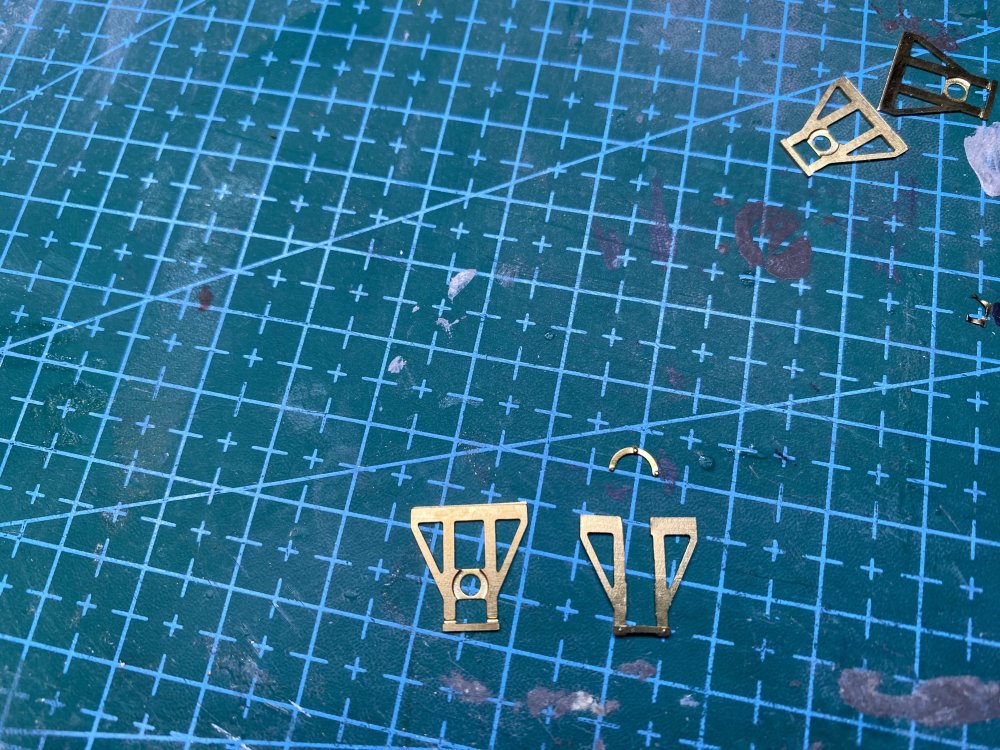

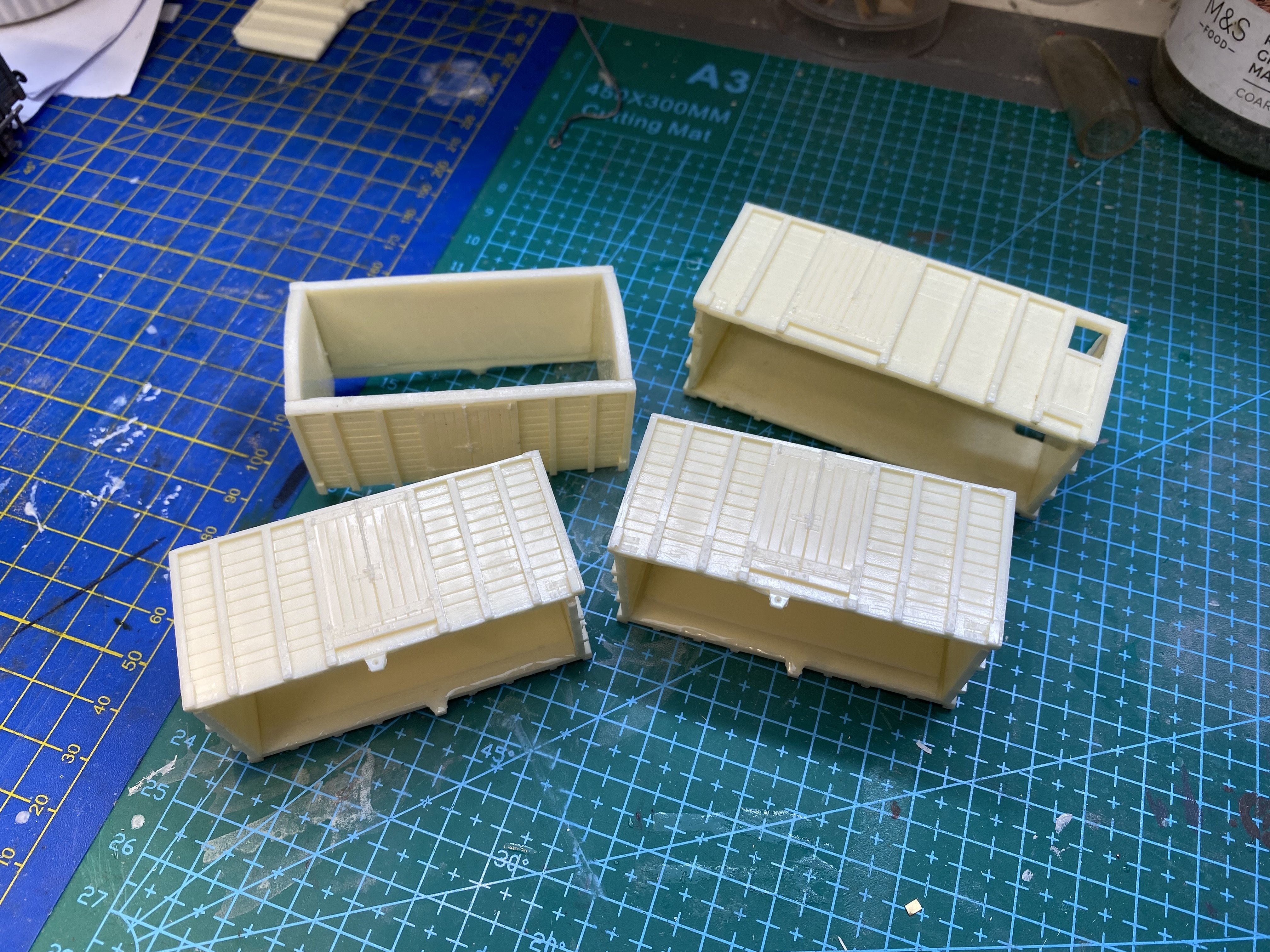

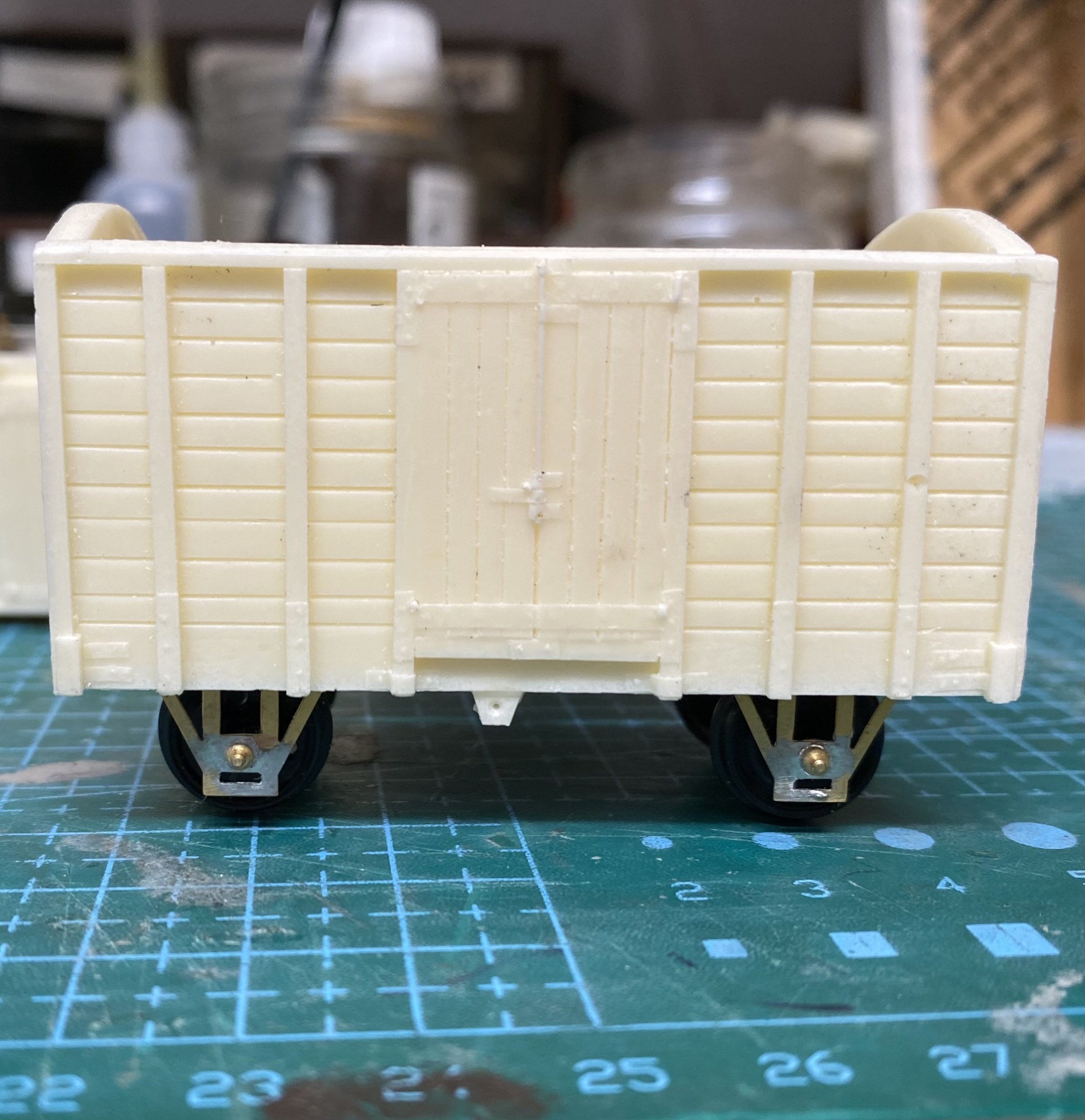

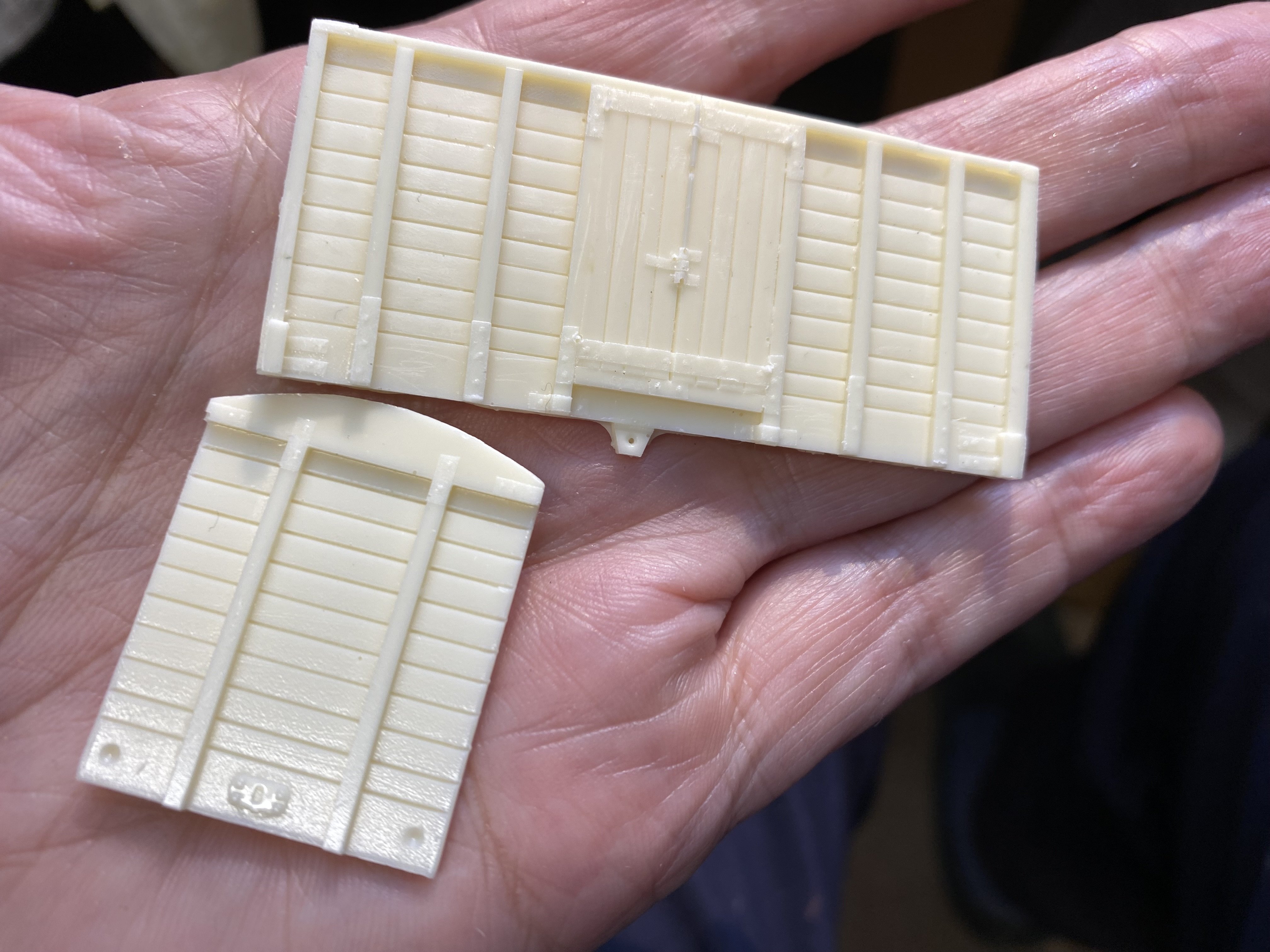

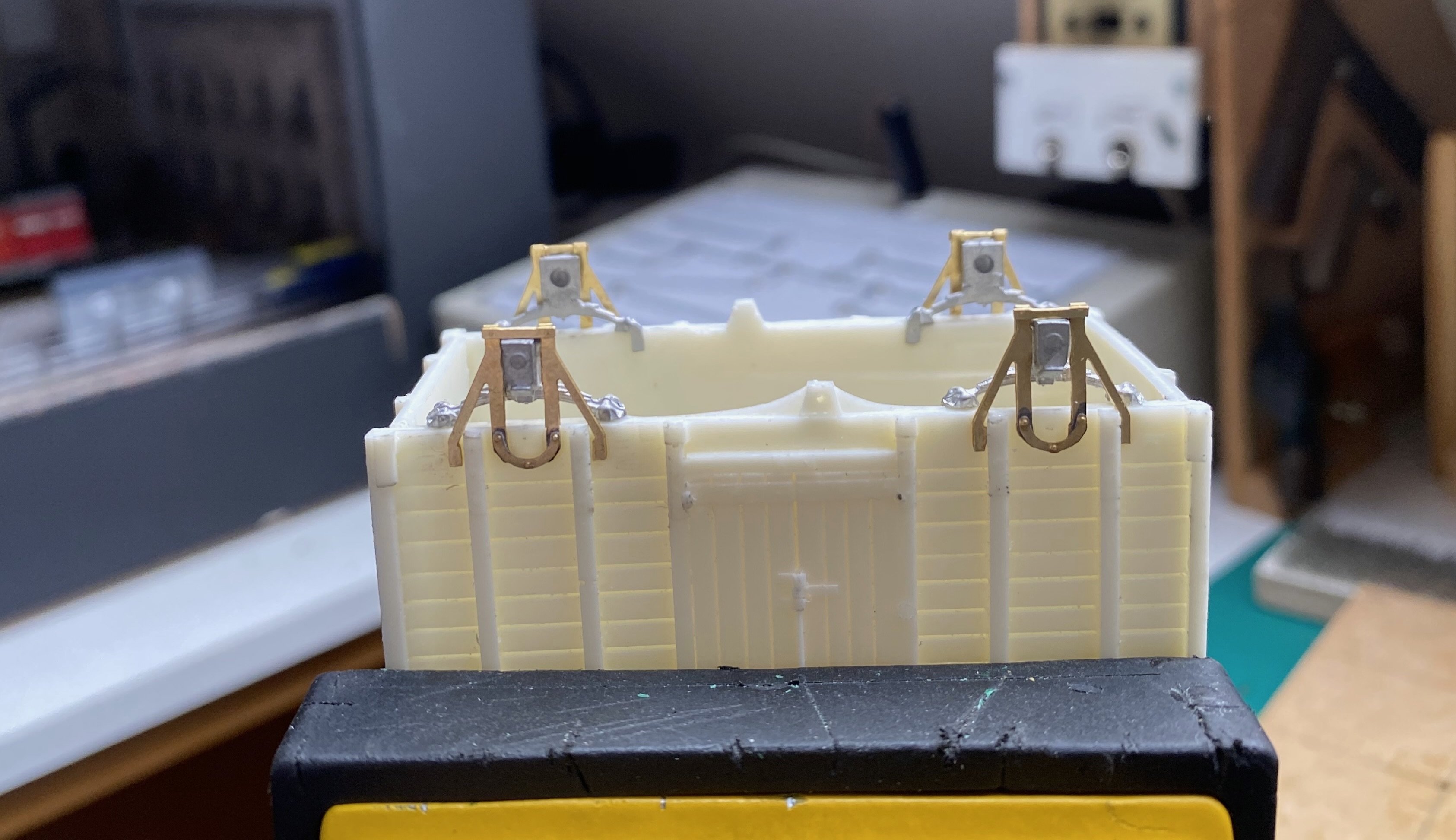

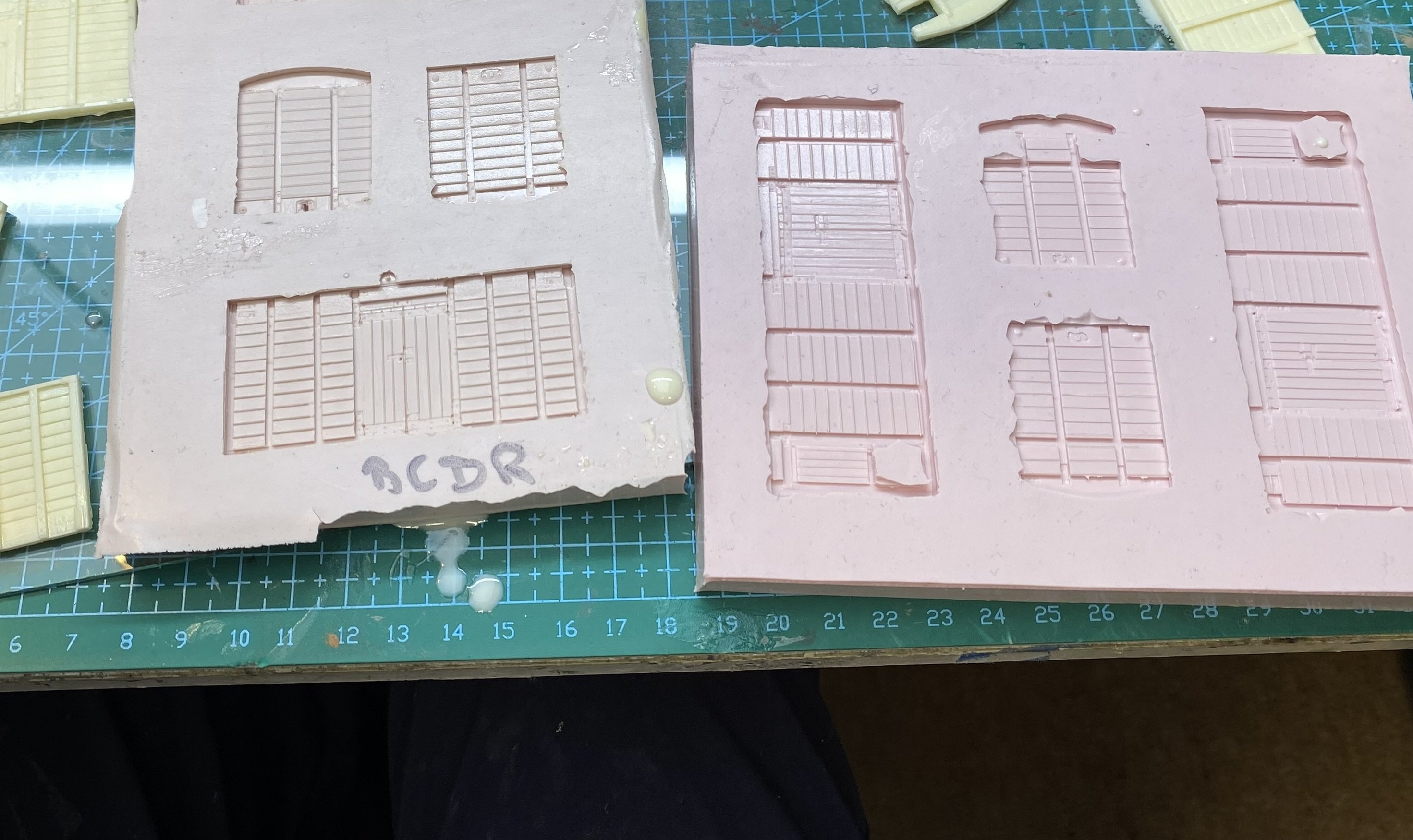

Tullygrainey Posted October 13 Author Posted October 13 Casting around for something to do at the weekend. I'll need a few more bits of rolling stock for Kilmore. I made these moulds from plasticard and brass masters a few years ago. The trick is to pour just the right amount of resin into the mould so it's fully filled but doesn't rise above the level of the top of the mould. I haven't mastered that yet so these castings need a lot of work with files before they can even be glued together to make a reasonably square wagon body. Provincial Wagons this ain't! Making the body is just the start. Chassis are the next challenge. In the past I've used hacked Dapol kit chassis and sprung etched brass kits from Brassmasters. In the case of the BCDR stock, outside W irons are an added hurdle. Currently, I'm using bits from MJT wagon compensation etches to make these but it's challenging, very time consuming and uses only a few modified bits of the etch and not in the way intended. Also, what's left of the etch isn't much use for anything. There must be an easier way! Alan 9 1 5
Dunluce Castle Posted October 13 Posted October 13 Lovely work. It’s going to be great to see a full rake of wagons running on the layout at future exhibitions. I have seen a sheet of outside W irons created by joint effort of modellers Gareth, Kieran and @Patrick Davey(?) a number of years ago on plasticard. If ever an etched sheet was to be produced on brass, containing only the outside W iron, I would definitely put my name down! 3
Patrick Davey Posted October 13 Posted October 13 13 minutes ago, Dunluce Castle said: Lovely work. It’s going to be great to see a full rake of wagons running on the layout at future exhibitions. I have seen a sheet of outside W irons created by joint effort of modellers Gareth, Kieran and @Patrick Davey(?) a number of years ago on plasticard. If ever an etched sheet was to be produced on brass, containing only the outside W iron, I would definitely put my name down! Nice to be thought of as being capable of this sort of precision Nelson, thank you, but I wasn't on this team
Tullygrainey Posted October 13 Author Posted October 13 48 minutes ago, Dunluce Castle said: Lovely work. It’s going to be great to see a full rake of wagons running on the layout at future exhibitions. I have seen a sheet of outside W irons created by joint effort of modellers Gareth, Kieran and @Patrick Davey(?) a number of years ago on plasticard. If ever an etched sheet was to be produced on brass, containing only the outside W iron, I would definitely put my name down! Me too Nelson!
Galteemore Posted October 13 Posted October 13 It’s quite possible to get that sorted. I have used 4D modelshop in London to draw up etches for me. If a few of you were chipping in that would be a cost effective way of paying off the design fee. I have no connection with the firm but they did me a fabulous job. Results of which I hope to post soon…. 2 1
Mol_PMB Posted October 13 Posted October 13 53 minutes ago, Galteemore said: It’s quite possible to get that sorted. I have used 4D modelshop in London to draw up etches for me. If a few of you were chipping in that would be a cost effective way of paying off the design fee. I have no connection with the firm but they did me a fabulous job. Results of which I hope to post soon…. I'm happy to do the artwork if you can provide a sketch of what is required. Although 4D Modelshop has withdrawn from the bricks&mortar shop business, Iain is still offering custom etches on the same basis as before. Quote Artwork From:artwork@modelshop.co.uk To:Paul Molyneux-Berry Fri 25 Jul at 11:16 Hi Paul, The new company will be called “Arch 60” and you can still use this email for all enquiries. We will be fully operational from the 1st August. Please send through any enquiries you have. Kind regards, Iain Arch 60 The Arches 120 Leman Street London E1 8EU Direct: +44 (0)20 7264 1295 Main: +44 (0)20 7264 1288 Fax: +44 (0)20 7264 1299 4
Tullygrainey Posted October 13 Author Posted October 13 55 minutes ago, Mol_PMB said: I'm happy to do the artwork if you can provide a sketch of what is required. Although 4D Modelshop has withdrawn from the bricks&mortar shop business, Iain is still offering custom etches on the same basis as before. That’s a very generous offer Paul. Will be in touch. 2
David Holman Posted October 13 Posted October 13 Fine work Alan. I think doing your own resin castings has lost out to 3D printing of late. Nothing wrong with the latter of course, but you don't need to know CAD to make a plasticard master, while materials to make the mould and the two part resin kit cost a lot less than a 3D printer. Add in the fact that a casting sets in well under an hour and if you want say, a rake. of wagons then taking the trouble to create masters for one side and one end has much to recommend it in terms of both time and money. 5 1 1
Mol_PMB Posted October 14 Posted October 14 (edited) 23 hours ago, Tullygrainey said: That’s a very generous offer Paul. Will be in touch. I was just having a look for photos of the prototype and found these, I assume this is the type of W iron you want: https://www.flickr.com/photos/irishrailwayarchive/53508778884/ https://www.flickr.com/photos/irishrailwayarchive/54253146283/ https://www.flickr.com/photos/irishrailwayarchive/53507575592/ https://www.flickr.com/photos/irishrailwayarchive/53507575597/ https://www.flickr.com/photos/irishrailwayarchive/53501071339/ https://www.flickr.com/photos/irishrailwayarchive/53508981899/ Whilst similar in style, this one is different in proportions: https://www.flickr.com/photos/irishrailwayarchive/53570644793/ Edit: this looks like the right type of W iron but the wrong railway. It's a good closeup though: https://www.flickr.com/photos/irishrailwayarchive/53507575262/ Based on your existing model, I assume you don't want a hole in the W iron to locate the axle bearing, because that will be in the cast axlebox. Any preferences on material (brass or nickel silver) or thickness? I can probably scale dimensions reasonably well off this photo, can you confirm the wheelbase of this wagon type for me to use as a basis for scaling? https://www.flickr.com/photos/irishrailwayarchive/53508778884/ Might be worth thinking if there are any other useful bits for these wagons that could be added to the etch... Edited October 14 by Mol_PMB marked in text
Tullygrainey Posted October 14 Author Posted October 14 I'll need to get a log on for flickr in order to see those pics Paul. I'll have a look tomorrow. As regards material, either brass or n/s would be fine. Thickness would need to be sufficient for half etched rivets. I think the average for etched kits is around 15thou, in old money. 1

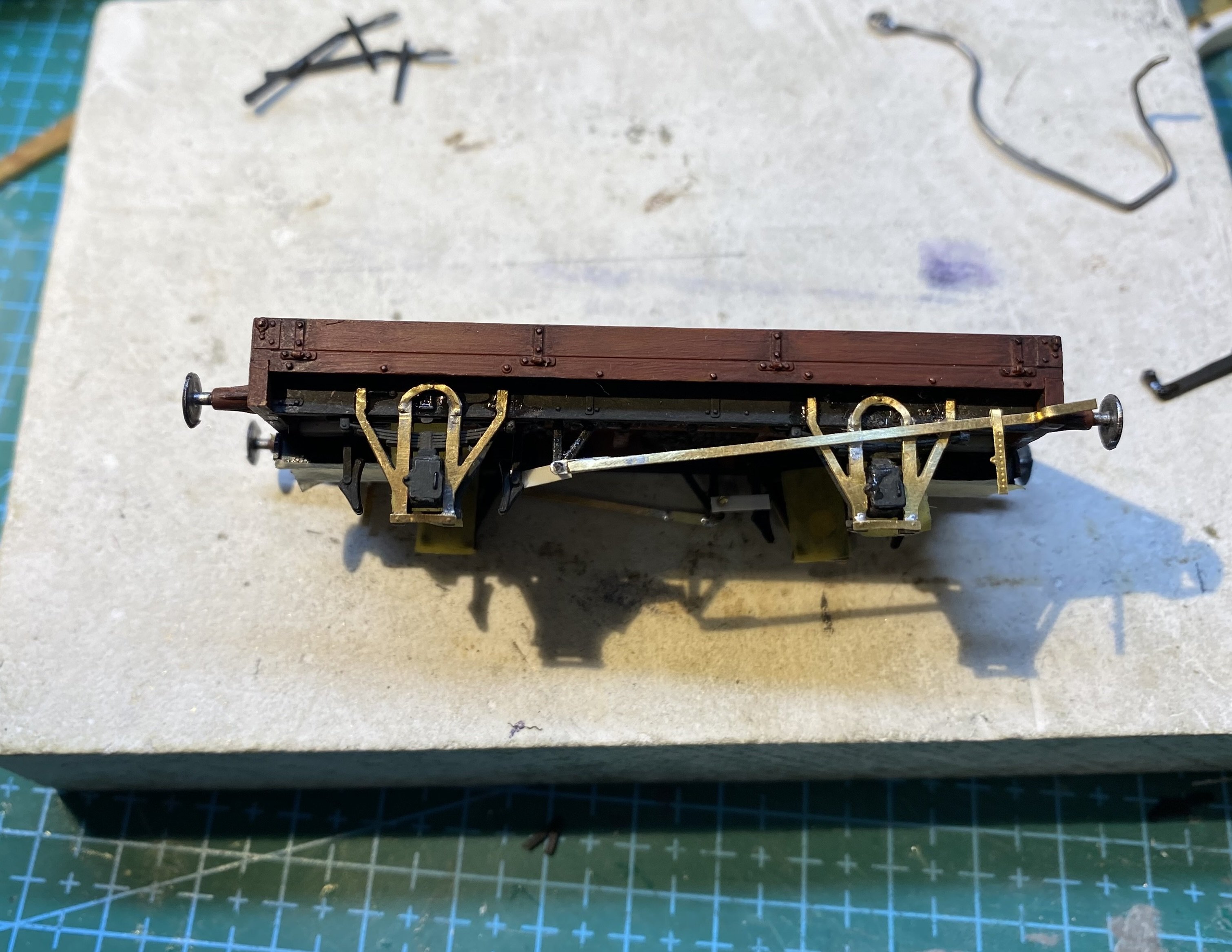

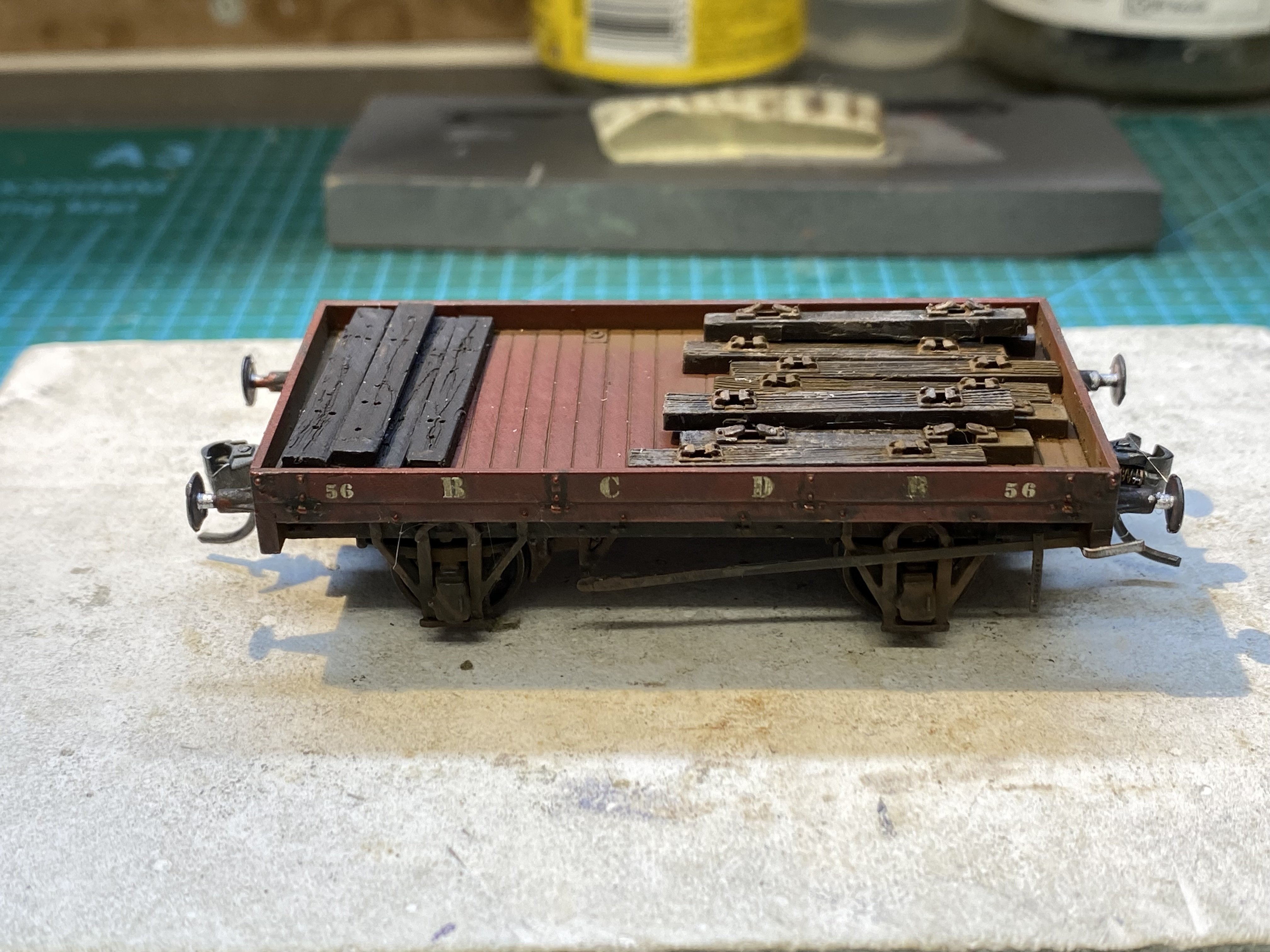

Tullygrainey Posted Sunday at 15:29 Author Posted Sunday at 15:29 I want to create a Permanent Way formation for Kilmore so an unsuspecting Parkside kits LNER 12T LowFit wagon (Parkside PC66) which I built a few years ago was selected for butchery... Original brake gear and levers removed, then some fabricated W irons and bits of scrap brass etch added... Transfers from Railtec... Then some weathering and a suitable load. 9 3
David Holman Posted Monday at 06:50 Posted Monday at 06:50 (edited) Simple, well fairly, but very effective! Edited Monday at 07:07 by David Holman 1
