[Mol_PMB]

Of the old wooden containers, the common larger types were classified 'B', or for those with side doors, 'BD'. Again, there were many variants on BR, and more on CIE.

The BR container diagram book can be found here:

http://www.barrowmoremrg.co.uk/BRBDocuments/BRContainerIssueB.pdf

These were quite common in Ireland and can be seen in some of the photos linked above, and a few more here:

https://www.flickr.com/photos/irishrailwayarchive/53511462788/

https://www.flickr.com/photos/irishrailwayarchive/53511606818

https://www.flickr.com/photos/irishrailwayarchive/53511583540

https://www.flickr.com/photos/irishrailwayarchive/53511614184

Models of BR (and 'Big 4') types available include a vertically-planked type B originally by Airfix, now seen in the Hornby range but there's also a near-identical one by Dapol:

Also a horizontally-planked type B with broad planks, in the Dapol Range. This is very similar to one of the CIE types as detailed a few posts back up this thread:

https://www.flickr.com/photos/irishrailwayarchive/53500993248

https://www.flickr.com/photos/irishrailwayarchive/54255303079

The one in the background here is slightly different but an attractive livery of 2-tone green:

Bachmann have one of the most common BR types also often seen in Ireland, the BD with narrow planking and side doors:

Parkside also make a kit for something very similar, some subtle differences in the door strapping:

Parkside also make the FM container, which was a bit smaller than the BD and was fitted with some insulation (though not heavily insulated like the AF). These were used for meat.

The Parkside FM kit is for the planked version; the ply-sided version can be seen in Ireland here:

https://www.kennellyarchive.com/media/39c56ad9-d5c2-4fcd-953e-c6112f4cf106

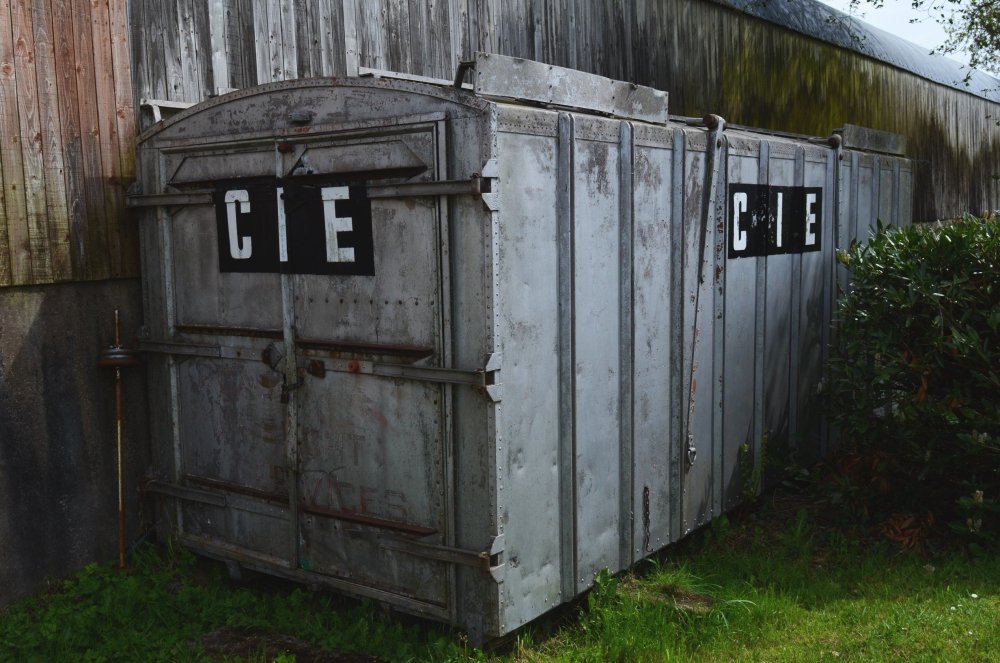

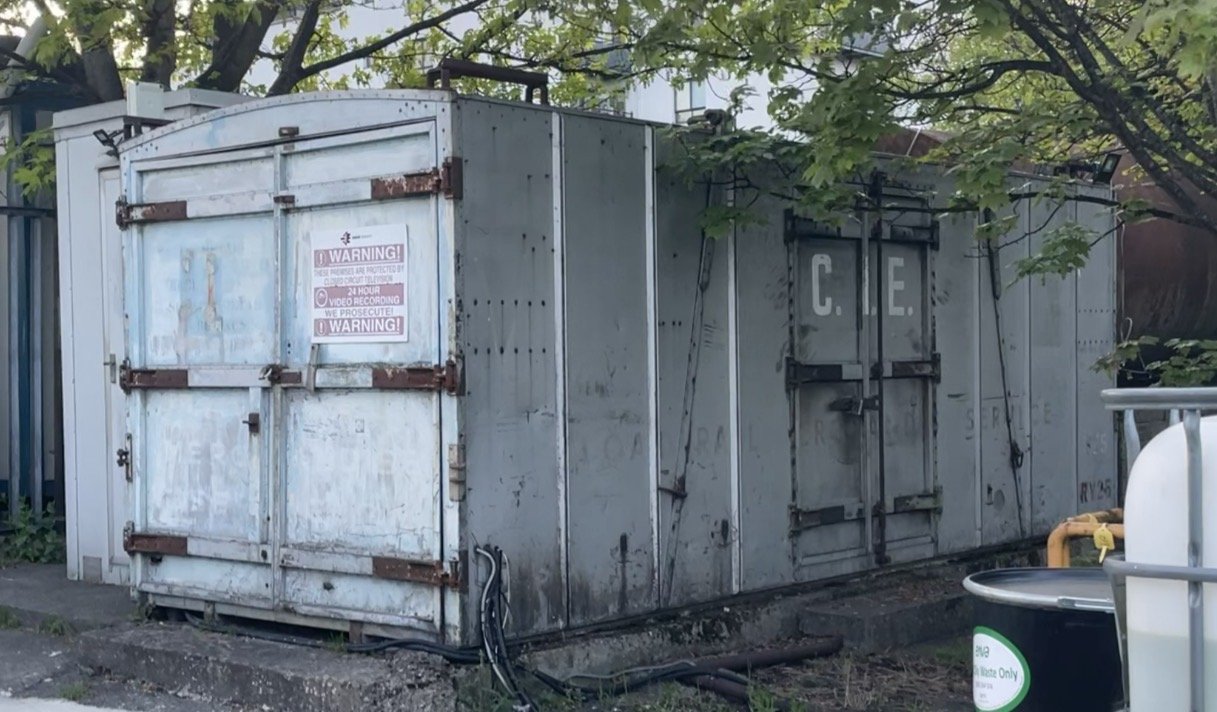

The CIE containers of the 'B' and 'BD' types were mostly made of alloy-faced ply rather than planks, as seen on this example which survived long enough to get a roundel:

https://www.flickr.com/photos/irishrailwayarchive/53498764321

(There's a rarer BR insulated container in the background of this shot too, but we can't quite see enough of it)

A few more in the backgound here in 1970, again these look to have roundels:

https://www.flickr.com/photos/irishrailwayarchive/53511639484

The grey ones in these two images:

https://www.flickr.com/photos/irishrailwayarchive/53570643358

https://www.flickr.com/photos/irishrailwayarchive/53570648873

And the three with yellow plastic sheets over them here, again at least one of these has a roundel:

These CIE containers don't seem to have a direct equivalent in model form, all the model ones are planked. This is a pity because BR did have ply-sided ones and they would be a good match to the CIE ones.



Some of the Irish planked containers had diagonal planks, either all in the same orientation or in a Vee pattern. I haven't seen any commercially available models with this arrangement of planks. Some real examples:

https://www.flickr.com/photos/irishrailwayarchive/54255495975

https://www.flickr.com/photos/irishrailwayarchive/54255299053

https://www.flickr.com/photos/irishrailwayarchive/54255303904

https://www.flickr.com/photos/irishrailwayarchive/54255072361



I'd imagine that these would be fairly straightforward as 3D prints but I'm afraid I don't have that expertise.

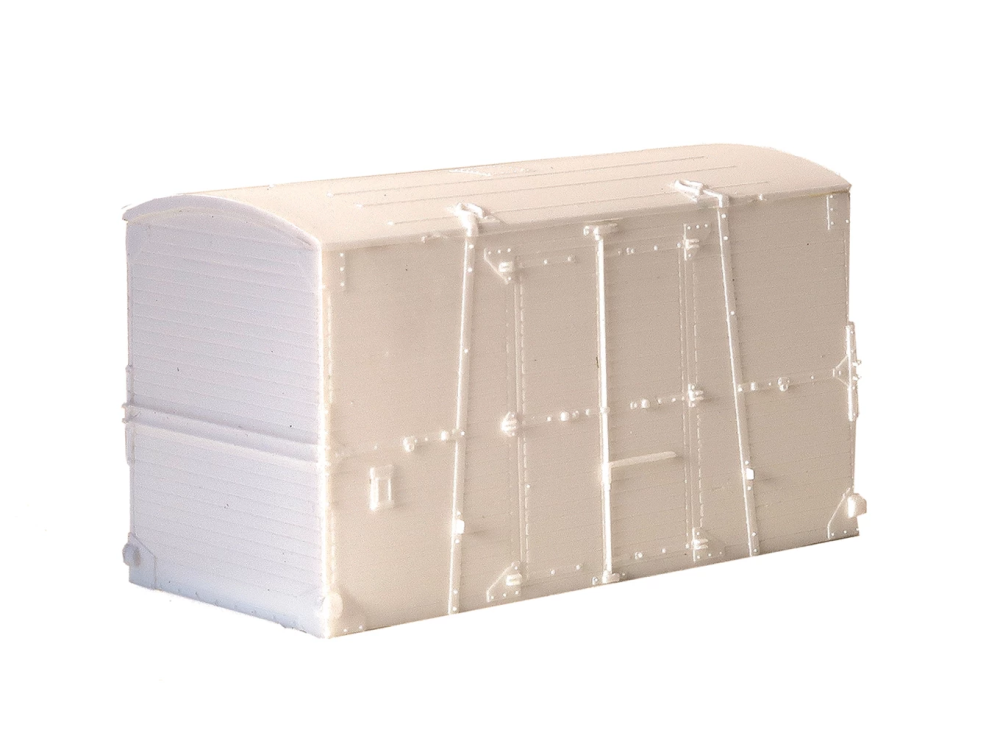

I also found a laser-cut kit for a BM container; I've not seen any of these in Ireland:

Peco used to do some OO card kits for containers. Not

Modelscene produce this, but probably not an improvement on the ones shown above:

This thread on RMweb shows some different 3D printed examples, all GB prototypes:

https://www.rmweb.co.uk/forums/topic/182716-big-4-pre-nationalization-container-diagrams



However, it may not be too hard to scratchbuild, kitbash or simply repaint CIE examples from what's available. Many of the BR types are pretty close as shown above.

33 minutes ago, commerlad said:

OK Not Irish I admit but The Bachman or Cambrian versions are close enough (for me at least)

http://www.island-images.co.uk/Rail/Railstock/SteamStock/Q290739.jpg



The livery, Simple DIY transfers.

https://us.docworkspace.com/d/sIMm70cYj54j_vAY

Help yourself to the design if you want a couple.



Very nice! There were and still are some interesting container services to/from IoM. Ronagency was one I was looking at a while back.

[Mol_PMB]

I found one more traditional container option - made by Replica Railways. I don't think these are in production any more but are available secondhand.

This has the diagonal timbers in a vee pattern, which (with a repaint) would be ideal for those wanting to model a GNR furniture removals container, as seen at Broadstone in the links below. They had a very attractive livery.

DSL_GNR_163_Broadstone_Dec_1960 (2) | [Photographer: Des Sca… | Flickr

https://www.flickr.com/photos/irishrailwayarchive/54255495975

Edit, still available here, new and unlettered, for a fiver:

Spares

Edited 1 hour ago by Mol_PMB
