status quo Posted July 27, 2017 Share Posted July 27, 2017 Hi everyone, I am in the process of building a 2 car worsley works park royal (pictures to follow). It will be painted in GNR royal blue and cream. I was wondering what colour the interior walls should be and the best colour to paint the seats ect. Has anybody got any pictures of the roof showing where the vent ducts go. Thanks in advance Steve Quote Link to comment Share on other sites More sharing options...
Glenderg Posted July 28, 2017 Share Posted July 28, 2017 JB should be along shortly with that info on colour. I might be able to assist on the roof vents....*roots furiously... As you can see from the photos, vents 1,2,5,6,7,8,9 & 10 are evenly spaced. Vents 3 & 4 are closer together. Why? CIE, lunar cycle, smellier folk used sit in that zone. Who knows... Richie. Quote Link to comment Share on other sites More sharing options...

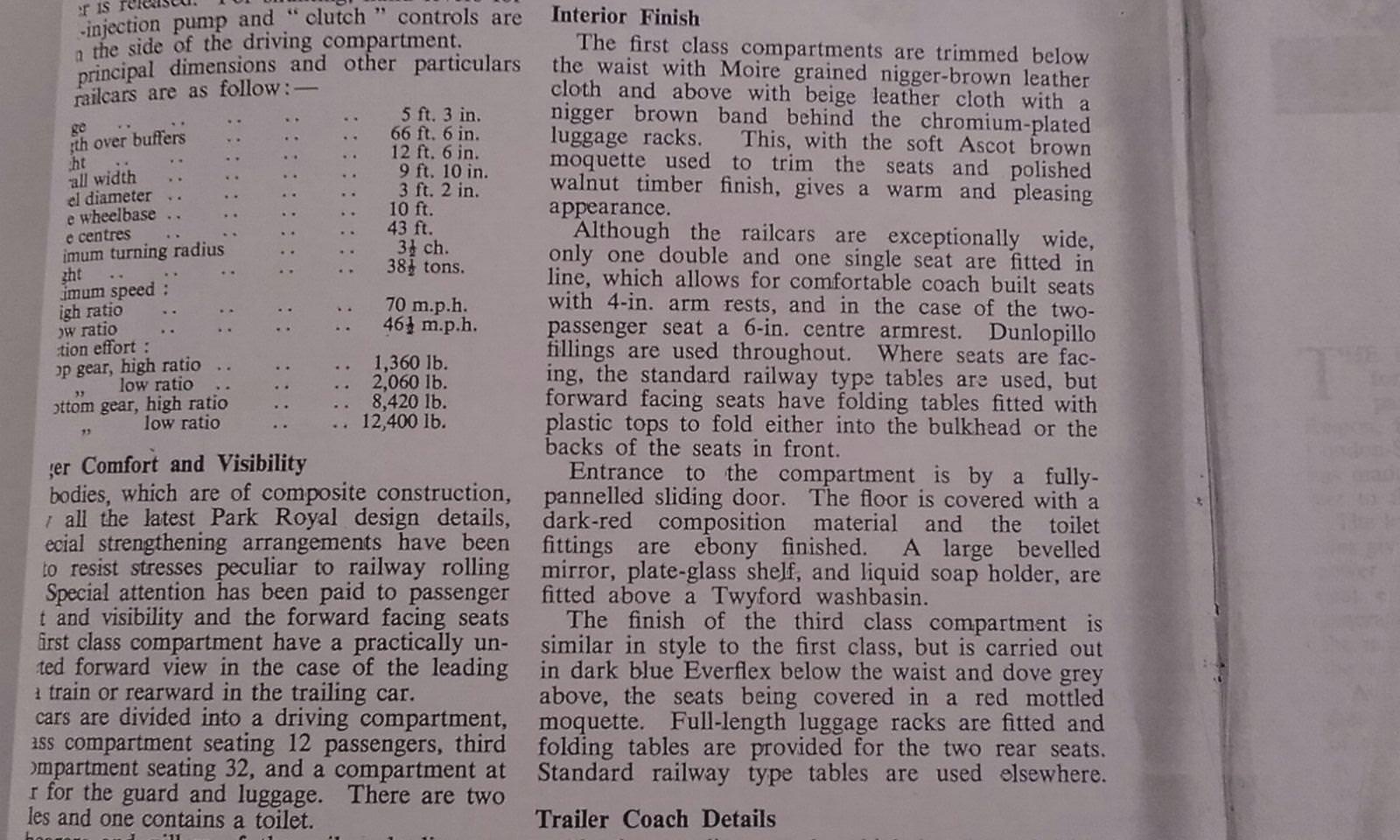

Mayner Posted July 28, 2017 Share Posted July 28, 2017 I think Status Quo is building a GNR600 Class AEC railcar set. Both the railcars and later coaches were assembled using parts supplied by Park Royal. Photos seem to be official GNR or Park Royal not sure where I got them Quote Link to comment Share on other sites More sharing options...
craven1508 Posted July 28, 2017 Share Posted July 28, 2017 mmmmmm. they were nice too, comfi!! Quote Link to comment Share on other sites More sharing options...
Weshty Posted July 28, 2017 Share Posted July 28, 2017 Bloody hell, that is some selection of photographic material, love the AEC interiors, very fancy. Very airy interiors altogether. Quote Link to comment Share on other sites More sharing options...
Old Blarney Posted July 28, 2017 Share Posted July 28, 2017 Hi everyone, I am in the process of building a 2 car worsley works park royal (pictures to follow). It will be painted in GNR royal blue and cream. I was wondering what colour the interior walls should be and the best colour to paint the seats ect. Has anybody got any pictures of the roof showing where the vent ducts go. Thanks in advance Steve Yes, it is the GNR 600 series and an intermediate coach that are being built by Steve. All help will be appreciated re the interior colours. Should the Blue be Oxford Blue? We are hoping to have these items running on Old Blarney at Warley 2017. Thank you in advance. Old Blarney. Quote Link to comment Share on other sites More sharing options...
Dhu Varren Posted July 28, 2017 Share Posted July 28, 2017 Yes, it is the GNR 600 series and an intermediate coach that are being built by Steve. All help will be appreciated re the interior colours. Should the Blue be Oxford Blue? We are hoping to have these items running on Old Blarney at Warley 2017. Thank you in advance. Old Blarney. According to E. M. Patterson's 1962 book on the GNR, he describes the railcar blue as Royal Blue. In another part of the book, the author also describes the railcar blue as being Oxford Blue? Quote Link to comment Share on other sites More sharing options...
leslie10646 Posted July 28, 2017 Share Posted July 28, 2017 (edited) According to E. M. Patterson's 1962 book on the GNR, he describes the railcar blue as Royal Blue. In another part of the book, the author also describes the railcar blue as being Oxford Blue? For what it is worth, Norman Johnson in his book on GN locos (which covers the diesel fleet) refers to the livery as OXFORD Blue and cream. I look forward to seeing the results at Warley, David - shall I bring my BUT set? Thanks for posting the interior photos, John - DON'T show them to modern British commuters who have to suffer rock hard seats in the much-trumpeted new EMUs. Leslie Edited July 28, 2017 by leslie10646 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted July 30, 2017 Share Posted July 30, 2017 An excellent project - looking forward to seeing it. Exterior blue was very dark - almost navy, and much darker than the royal blue shade used by the RPSI. It is often assumed that the RPSI Cravens are in GNR livery - they're not, nor was that intended to be the case. Intentions had white ceilings and from what I remember the inside walls were a creamy or light grey colour, though it's possible the grey was added in NIR days. Floors were of a light blown Lino. First class seats were patterned with mid green and greys being prevalent, while second class accommodation had light grey upholstery with red patterns through it. Coach ends were blue and cream, with gangways black. Quote Link to comment Share on other sites More sharing options...
Old Blarney Posted July 30, 2017 Share Posted July 30, 2017 Hi Gang, May I thank each of you for your replies, photographs and assistance. Steve,aka - Status Quo - (He is a massive fan of the Quo, has attended 30 Plus of their Concerts) is the person responsible for the construction, detailing and painting of these coaches. Two Driving Trailers and the Intermediate Coach. I'm looking forward to seeing the completed set and to testing its running both here at home and on Old Blarney prior to taking everything to Warley in November, 2017. Can anyone tell me the number the intermediate coach should carry when it is part of the set 600 and 601? Help please! Thank you. David. Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted July 30, 2017 Share Posted July 30, 2017 Further update on livery. Interior walls varied in colour under GNR, UTA and CIE. I'm just realising that the model is in GNR days - details earlier related to UTA / NIR / cIE. In GNR days I THINK - but can't be CERTAIN - that interior walls were a light browny colour. Other variants - UTA started using their own standard dark green mottled upholstery by degrees, though I remember original GNR grey / green first class upholstery remaining in some. CIE also used standard CIE seat coverings. But in GNR days, as above. The Quote Link to comment Share on other sites More sharing options...

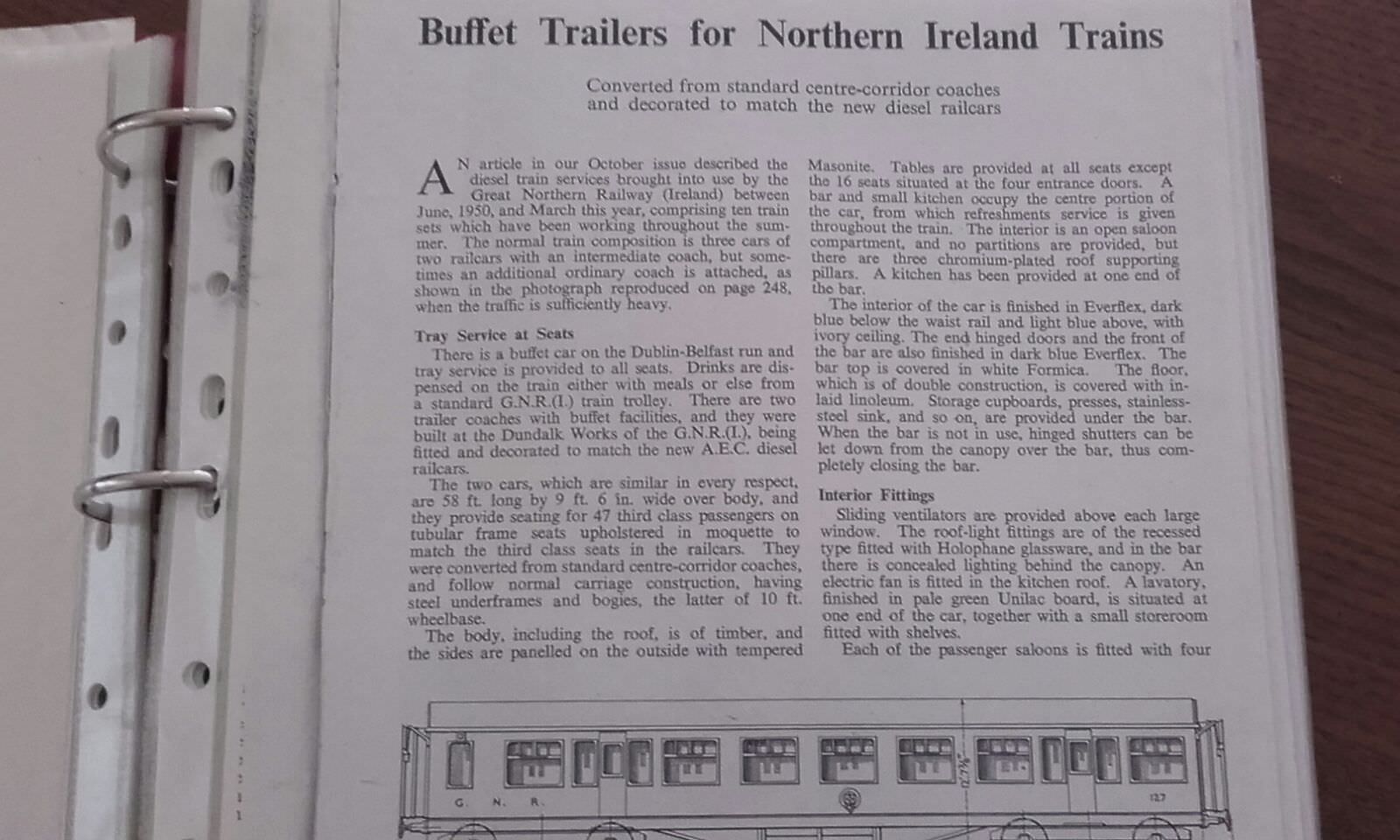

WRENNEIRE Posted August 3, 2017 Share Posted August 3, 2017 May be of some interest Quote Link to comment Share on other sites More sharing options...
Mayner Posted August 3, 2017 Share Posted August 3, 2017 (edited) May be of some interest The trailer coach looks like a K15 3rd Class. SSM do a complete kit for these coaches, Worsley Works have the option of a set of scratch builders parts or sides only to fit a rtr body. Interesting the note about the coach being panneled in Tempered Masonite (compressed cardboard) on timber framing which contributed to the short life of post WW11 GNR coaches compared to similar NCC/UTA & CIE stock Edited August 3, 2017 by Mayner Quote Link to comment Share on other sites More sharing options...
