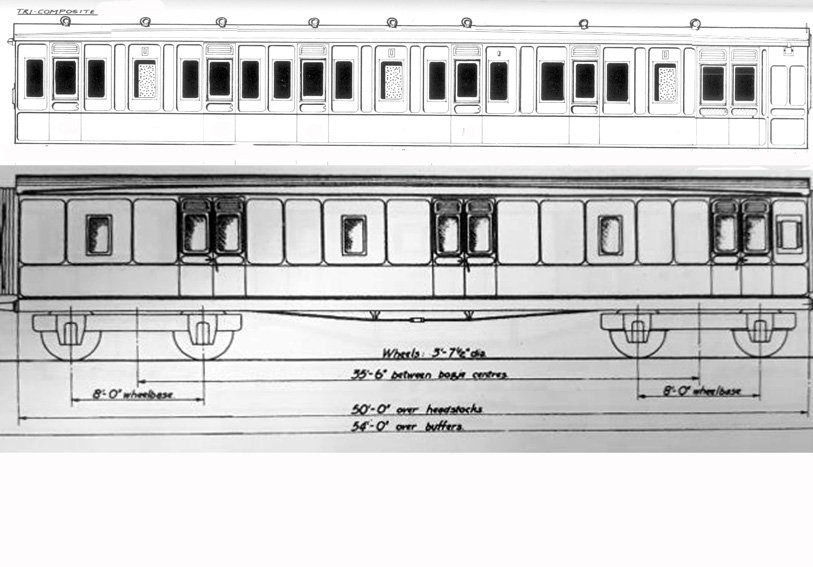

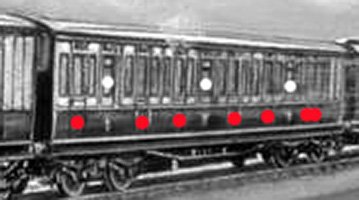

Didn't take long.... Here's the best I can get of the boat train painting by Piper - red spots are doors and white spots lavatories Here's a quick attempt to do this using David Jenkinson's drawings of 50ft stock as a base, with left to right 3 x 3rds, a 2nd and a 1st, with a guard's compartment on the end. LNWR designs were very standardised, so we can be moderately confident about the overall look of the drawing. This is the only version that fits well with a 50ft body length. You can roughly imagine some doors and windows lining up with the NCC diagram below, assuming the diagram is not exactly to scale. Only snag is that it doesn't fit the description in the HMRS journal completely. According to that, there should be another 3rd class compartment on the left. There was no way I could fit one in, even with a couple of half-compartments, so I suspect their description is slightly wrong. Maybe the painting was based on official records, as the general arrangement painted seems to make sense. There is no guard's ducket in the painting though, so not sure if that should be there or not. A minor, but obvious error is that Piper has put brake end windows in the wrong end of the coach in his painting. Anyway, no guarantees about complete accuracy with any information, or my interpretation. Good news is that the Ratio (now Parkside) LNWR underframe is perfect for the job, including the 8ft bogies.

Thanks, that confirms a few details. As an observation, the panelling is probably new but the position of the doors might give a clue about the position of some of the original doors. The ducket end in particular looks like it might be based on the original. The small intermediate windows look too small to be original though, based on the photo in Coakham's book p73 - different to your diagram. As it's not exactly going to be an action-packed weekend I may play around with LNWR carriage diagrams in Photoshop to see if I can work out what the original may have looked like.

It would make sense for the NCC to retain the original body framing as LNWR stock was renowned for being very solidly built.

Thanks, that's useful. There is actually a photo of one in Coakham's Irish Broad Gauge Carriages book that I missed before - page 73 second image from the top. Difficult to imagine what it looked like before!

A friend has kindly let me borrow a few books on the LNWR, some of which are informative re the DN&G stock. Most informative though is HMRS Journal Vol 14 no 7 p215 which gives details of the bogie coaches. 50ft 0in x 8ft 6in Lavatory Brake Composites Guard/Lavatory/1/2/Lavatory/3/3/Lavatory/3/3 Gas Lighting B129 a/c Drawing No 4380 Built 1899 Nos 23, 24 and 25. In 1933 these were sold to the NCC and converted into brake vans. Two were still extant in 1957. Having compared the number of compartments with various drawings in several publications I struggle to see how you could fit all those compartments and lavatories into a carriage of that length. Also, the number of 3rd class compartments seems large when Barrie states that there were only 24 3rd class seats. A typical 3rd class compartment with lavatory access seems to be 10 seats. Overall, it creates as many puzzles as answers. The HMRS article gives a full description of all the DN&G stock as well as a few drawings, but not one of the bogie coaches. In 'The LNWR Recalled' is a short article about Greenore in 1908. GNR loco No 74 Rostrevor was shedded there to operate the Belfast Boat Train,

My worry is that if the coaches were converted to brake vans as soon as the NCC got them Piper would not have had much to go on. That would be great - we might find out more about them!

A late visitor to this topic, but hopefully better late than never. I was curious about the DN&G bogie stock and found this thread. In the Coakham book, the other reference to the DN&G bogie coaches is on page 70. These coaches went to the NCC in 1933, not the GNR. According to Coakham they were immediately converted to brake vans and numbered 401-403. One was destroyed in WW2. The others survived into UTA service. The painting of the boat train may be wrong if the carriages depicted are based on ex-LNWR stock in the possession of the GNR.
