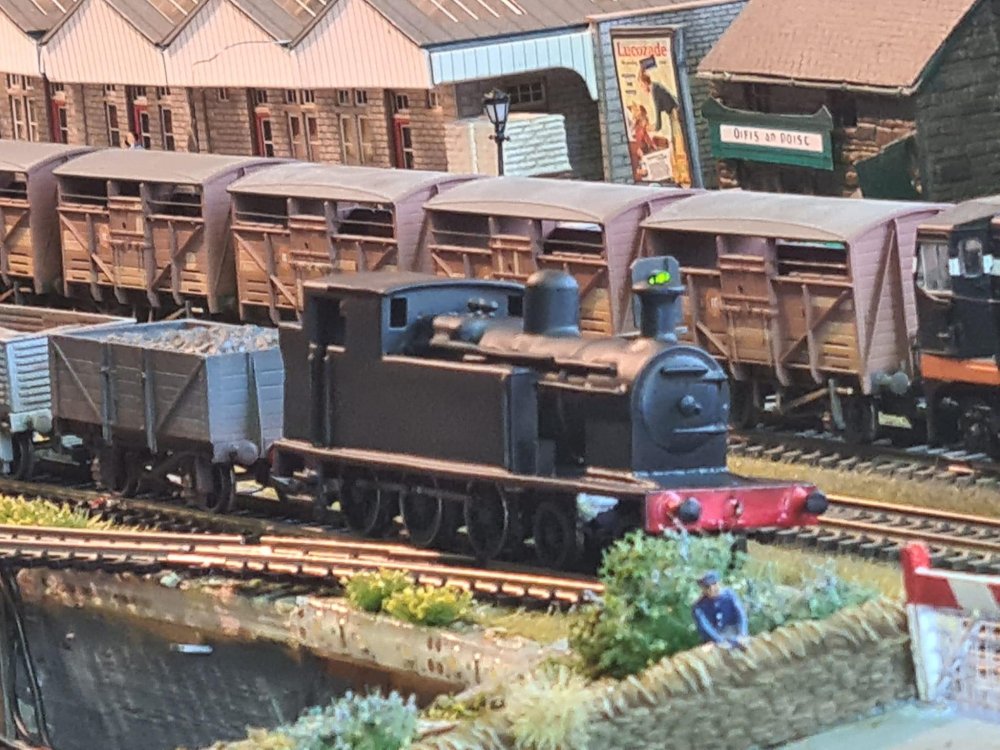

Westcorkrailway Posted December 18, 2022 Share Posted December 18, 2022 From Facebook Bandon tank nearly sorted. A big thank you to Cathal Deasy for loaner body. External body done on 3d print. Internal nearly sorted and should be printing bandon tanks in January 2023. I used terrier chassis with bogey from a hornby loco. It runs like a clock so I'm very happy with it. -Mark Dunlea 13 Quote Link to comment Share on other sites More sharing options...

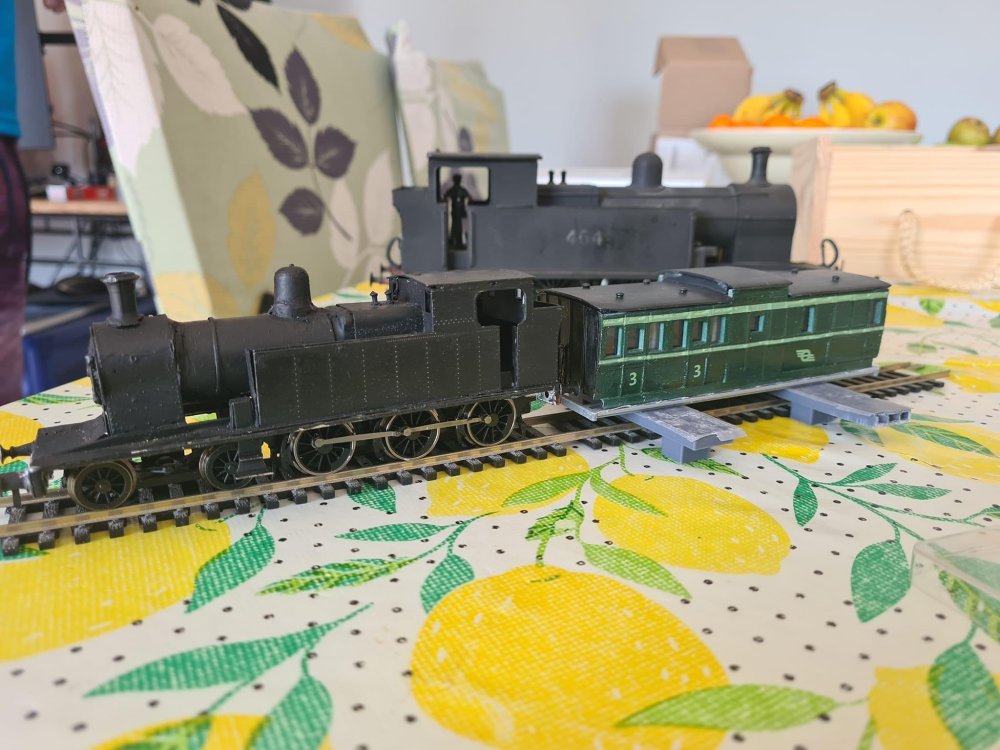

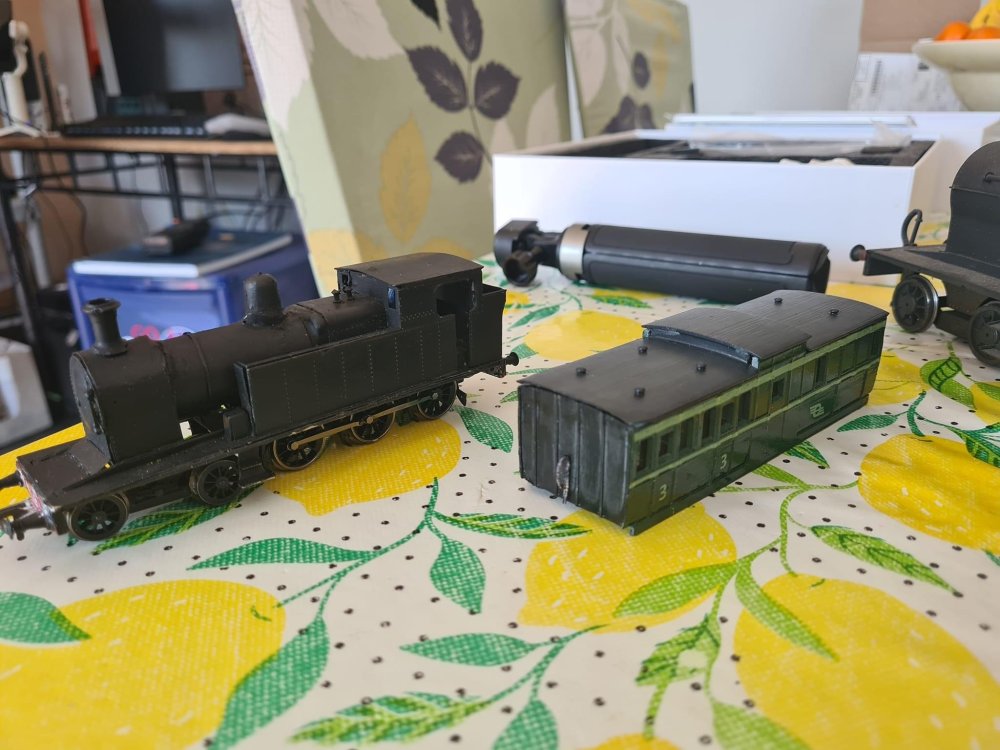

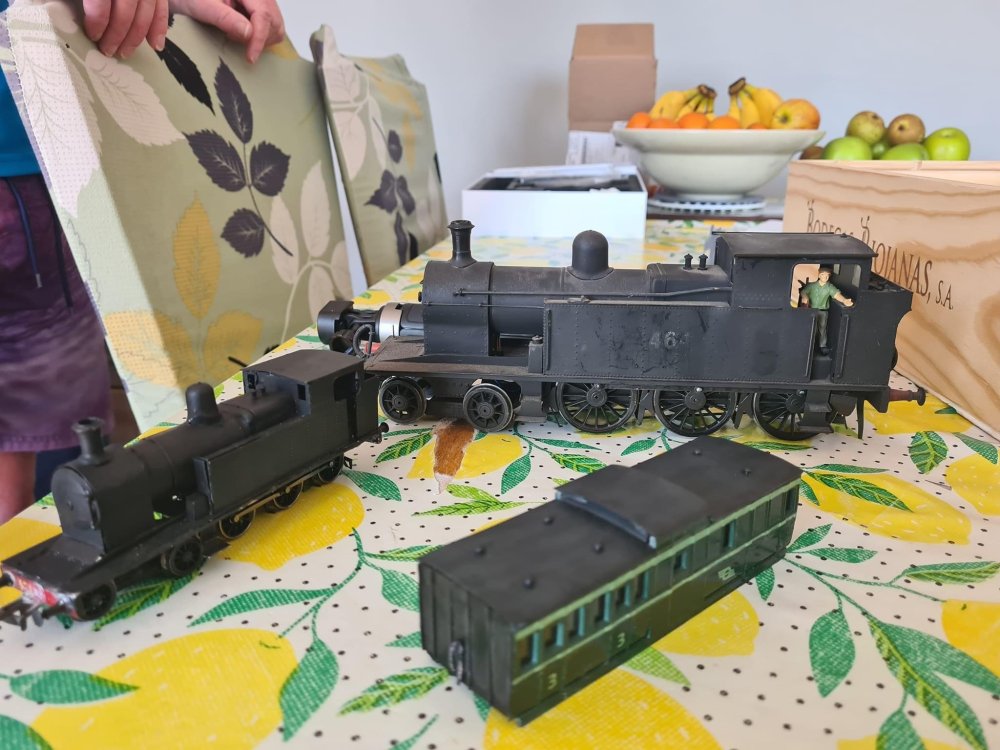

Westcorkrailway Posted April 20, 2023 Author Share Posted April 20, 2023 A few more things shifting through the gears today with 3Dprinting3Dcork and platform 4 7 Quote Link to comment Share on other sites More sharing options...

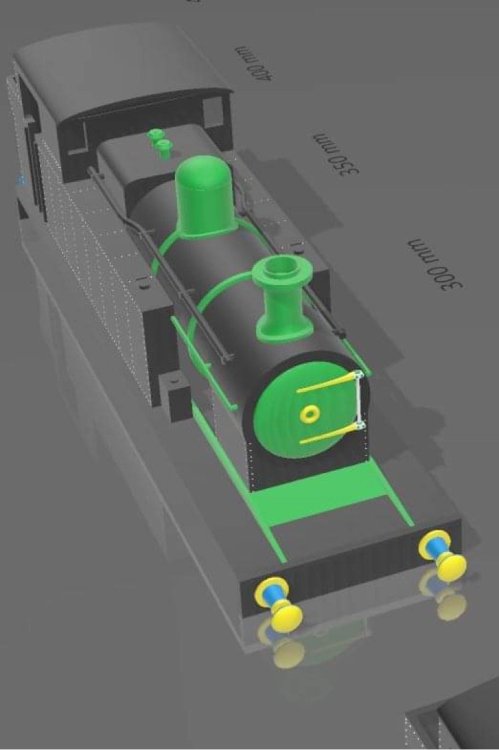

Westcorkrailway Posted April 21, 2023 Author Share Posted April 21, 2023 Some tasty looking photos from the CAD programme. A few things must be changed most particularly the cab for one. Owen has done a great job using an 0 gauge kit built bandon tank as his only reference but considering how many bandon tanks I have seen come and pass on my time. I think finnally this one will go to market soon enough 8 1 Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted April 23, 2023 Author Share Posted April 23, 2023 Even more work done tonight, infact other then chassis work it’s more or less complete. Owen and Mark will be at Wexford to show off this model. The rivets have quite litterally been counted here it seems! I have made requests for a few alterations but otherwise. It’s a rather good looking CAD isint it 8 1 Quote Link to comment Share on other sites More sharing options...

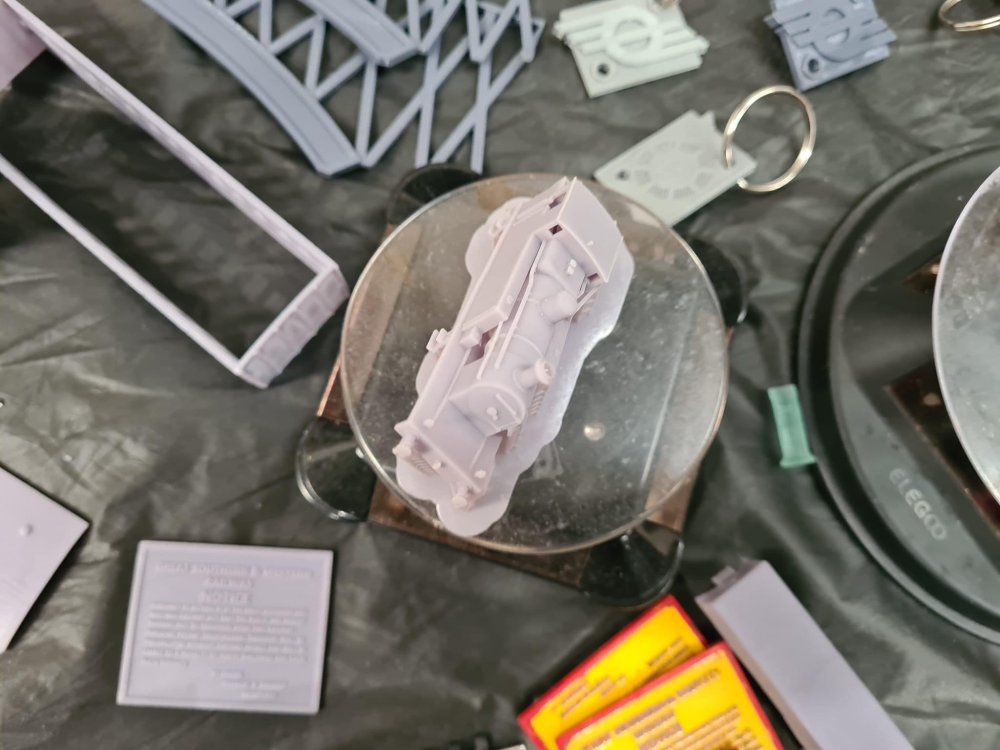

Westcorkrailway Posted April 25, 2023 Author Share Posted April 25, 2023 Sneak peek! It may have had an error while printing. But rivet counters will be well chuffed with this finish photo: Owen O Niell 7 Quote Link to comment Share on other sites More sharing options...
owen Posted April 25, 2023 Share Posted April 25, 2023 Thanks Cathal for putting this up here I really do appreciate it. Yes unfortunately the printer threw an error code five and a half hours in to a seven hour-ish print. I won't lie I was fuming, but such is life eh. Design time on CAD took me around 12 hours all in. I checked the USB for errors and windows cleared them as there was an error present so I have another print of the Bandon Tank 464 going as I type in the same printer and I am hoping that it does not stop at the same point as the last print because that means either the USB drive is on the way out or the .FDG file for the printer is somehow corrupted, or worse still its the printer. Fingers crossed and I will keep you posted. Thank you, regards Owen O' Neill. 4 1 Quote Link to comment Share on other sites More sharing options...
GSR 800 Posted April 25, 2023 Share Posted April 25, 2023 2 hours ago, Westcorkrailway said: Sneak peek! It may have had an error while printing. But rivet counters will be well chuffed with this finish photo: Owen O Niell 7 minutes ago, owen said: Thanks Cathal for putting this up here I really do appreciate it. Yes unfortunately the printer threw an error code five and a half hours in to a seven hour-ish print. I won't lie I was fuming, but such is life eh. Design time on CAD took me around 12 hours all in. I checked the USB for errors and windows cleared them as there was an error present so I have another print of the Bandon Tank 464 going as I type in the same printer and I am hoping that it does not stop at the same point as the last print because that means either the USB drive is on the way out or the .FDG file for the printer is somehow corrupted, or worse still its the printer. Fingers crossed and I will keep you posted. Thank you, regards Owen O' Neill. The detail looks excellent, top-notch; shame about the glitch. On the upside, you might be able to do a wee diorama of some of the inchicore sidings with a loco on the wrong end of a cutters torch 3 Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted April 25, 2023 Author Share Posted April 25, 2023 (edited) Bandon tank liveries 4 main liveries . CBSCR green, GSR grey, CIE lines green and CIE black. routes The CBSCR, kent station (shunting, pilot and even banking duties), cork to cobh, Dublin commuter services, possibly a station pilot in Dublin at one stage (?) but of course it could in theory work on any branch line or be a station pilot/shunter era percect for late steam era when the A and C class were in use along with possibly clashing buffers with B121s. Owens MGWR or hattons genesis 6 wheelers would make a good combo with these They lasted from 1906 to 1963 and weren’t cut up until 1966 with a very real possibility of one being preserved (they were 100 odd quid short) 55 minutes ago, GSR 800 said: The detail looks excellent, top-notch; shame about the glitch. On the upside, you might be able to do a wee diorama of some of the inchicore sidings with a loco on the wrong end of a cutters torch Funny enough. This was one of the reference photos I gave Owen…notice the pipe between the chimney and dome. This was added when in use as a stationary boiler at Inchicore. But Owen put it in one of the first drafts! (If you go through the previous images in this thread you will see it)So we are already halfway there! Edited April 25, 2023 by Westcorkrailway 6 2 Quote Link to comment Share on other sites More sharing options...
Flying Snail Posted April 25, 2023 Share Posted April 25, 2023 Nice work @owen. Do you have a website or a gallery of your 3d creations somewhere? Quote Link to comment Share on other sites More sharing options...
StevieB Posted April 25, 2023 Share Posted April 25, 2023 Back then 100 quid would have been quite some sum. What was the asking price? Stephen Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted April 25, 2023 Share Posted April 25, 2023 (edited) 5 hours ago, Westcorkrailway said: Bandon tank liveries 4 main liveries . CBSCR green, GSR grey, CIE lines green and CIE black. I think only one was black, and one or two green; the rest ended their days grey. The shade of CBSCR green is unknown, though is thought by some to have not been unlike the olivey-green shade that was used at one time by the Southern Railway of England. Edited April 25, 2023 by jhb171achill Quote Link to comment Share on other sites More sharing options...
owen Posted April 25, 2023 Share Posted April 25, 2023 (edited) I hope ye don't mind an update on 464 Bandon Tank. I have been successful in printing one and removing most of the supports and their left overs so to speak. Awaiting the second one off the printer that gave me trouble earlier on. The model still needs tidying up but I am super happy compared to earlier on today. There are a few minor tweaks I want to make to the design but nothing major. So here it is in all its glory the Bandon Tank 446. Thank you all. I will be showing the Bandon Tank 464 Body off along with a MGWR Brake 3rd body I have also recently completed at the Wexford show on Sunday and Saturday coming. Might see ye there. Thank you all, Owen. VID_20230425_212356.mp4 Edited April 25, 2023 by owen 7 1 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted April 25, 2023 Share Posted April 25, 2023 Amazing stuff, Owen - very well done! Quote Link to comment Share on other sites More sharing options...
owen Posted April 25, 2023 Share Posted April 25, 2023 thank you very much @jhb171achill will you be at Wexford?? PM/DM me if you prefer. Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted April 25, 2023 Share Posted April 25, 2023 16 minutes ago, owen said: thank you very much @jhb171achill will you be at Wexford?? PM/DM me if you prefer. I'm largely on babysitting duty this weekend, Owen - but I may make it on Saturday....... Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted April 26, 2023 Author Share Posted April 26, 2023 It’s looking superb Owen. I can’t make it to Wexford due to lack of transport but I’m sure the bandon (which ran on D&SE metals) will be well received! how well will the terrier chassis fit is the next question Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted April 26, 2023 Author Share Posted April 26, 2023 12 hours ago, StevieB said: Back then 100 quid would have been quite some sum. What was the asking price? Stephen Asking price was £300 (about €15k today) . Unfortunatly the fella leading the charge to buy it had fallen out with CIE and particularly andrews so the 200 as a deposit wasn’t accpeted and the rest is history. 1 1 1 Quote Link to comment Share on other sites More sharing options...

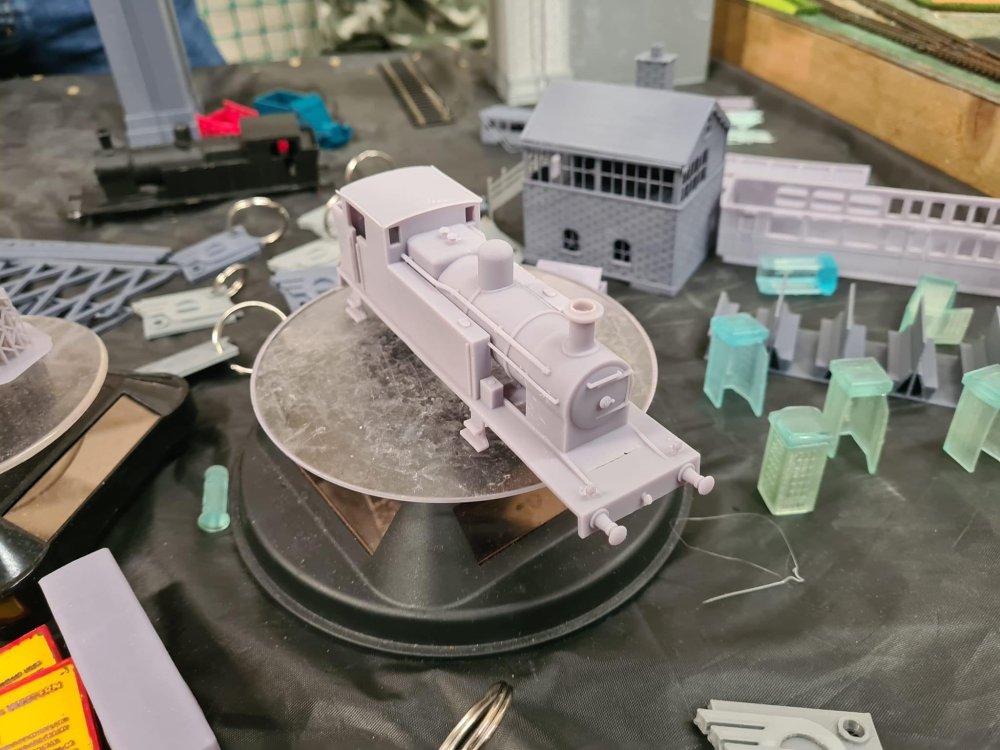

Westcorkrailway Posted April 30, 2023 Author Share Posted April 30, 2023 While many were looking at 3d prints of par royals and ICR’s (understandably) owens bandon, along with some of his other items were on display Including mark dunlea showing off owens Chetwynd viaduct kit 7 2 Quote Link to comment Share on other sites More sharing options...

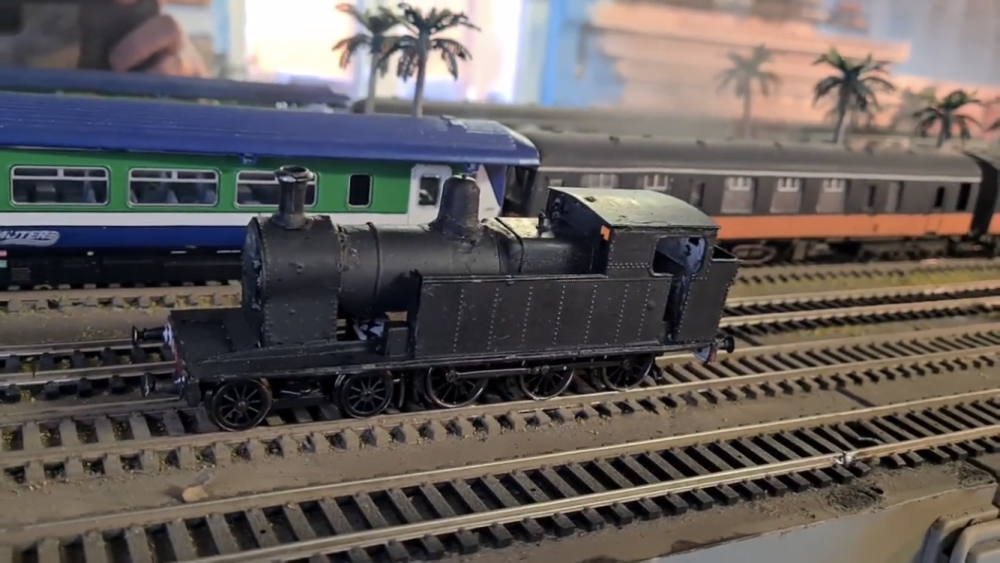

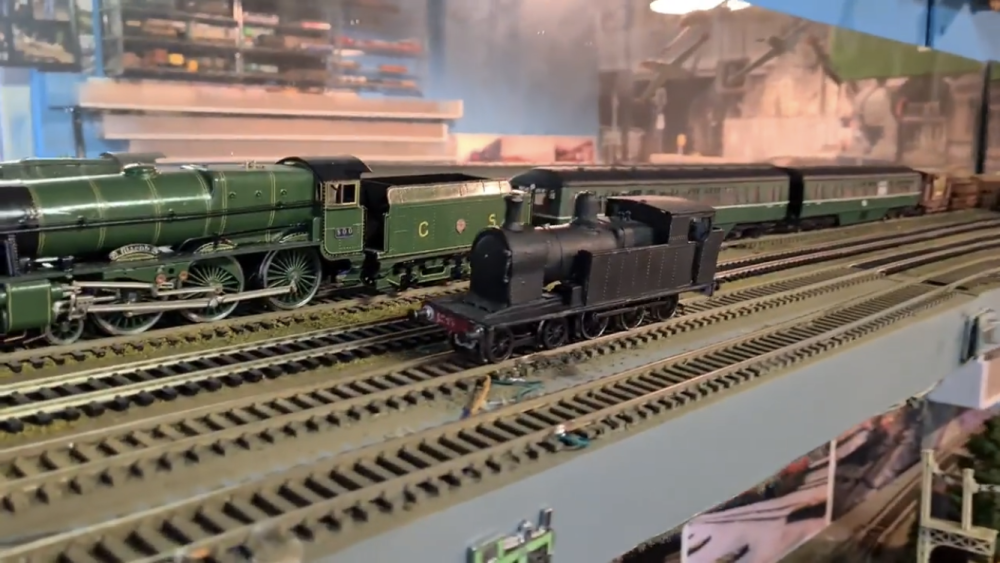

Westcorkrailway Posted May 7, 2023 Author Share Posted May 7, 2023 offical release is coming soon. And it’s not looking too bad… 8 1 Quote Link to comment Share on other sites More sharing options...
Colin R Posted May 8, 2023 Share Posted May 8, 2023 On 30/4/2023 at 8:17 PM, Westcorkrailway said: While many were looking at 3d prints of par royals and ICR’s (understandably) owens bandon, along with some of his other items were on display Including mark dunlea showing off owens Chetwynd viaduct kit Dire I ask about the Chetwynd viaduct kit and which parts of the body do I need to get removed to pay for it . Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted May 8, 2023 Author Share Posted May 8, 2023 13 minutes ago, Colin R said: Dire I ask about the Chetwynd viaduct kit and which parts of the body do I need to get removed to pay for it . Depends on the size. That one above is In N gauge. Somewhere in the region of 100 quid I think 1 Quote Link to comment Share on other sites More sharing options...
Colin R Posted May 8, 2023 Share Posted May 8, 2023 14 minutes ago, Westcorkrailway said: Depends on the size. That one above is In N gauge. Somewhere in the region of 100 quid I think Really! It looks bigger than that. I guess that if I wanted one it would need to be done in 4mm scale. But just out of interest do you have an approximate size length wise in 4mm? Thanks Quote Link to comment Share on other sites More sharing options...
Westcorkrailway Posted May 8, 2023 Author Share Posted May 8, 2023 (edited) 23 minutes ago, Colin R said: Really! It looks bigger than that. I guess that if I wanted one it would need to be done in 4mm scale. But just out of interest do you have an approximate size length wise in 4mm? Thanks A propper 1:76 one was my my plan. It has been done before….however it would End up being 2.5 meters long!!! Edited May 8, 2023 by Westcorkrailway 1 Quote Link to comment Share on other sites More sharing options...
Colin R Posted May 8, 2023 Share Posted May 8, 2023 24 minutes ago, Westcorkrailway said: A propper 1:76 one was my my plan. It has been done before….however it would End up being 2.5 meters long!!! Just over 8ft long. Oh well another thing to put on the Lottery win wall of must haves. Quote Link to comment Share on other sites More sharing options...
