Si2020's Workbench

[Si2020]

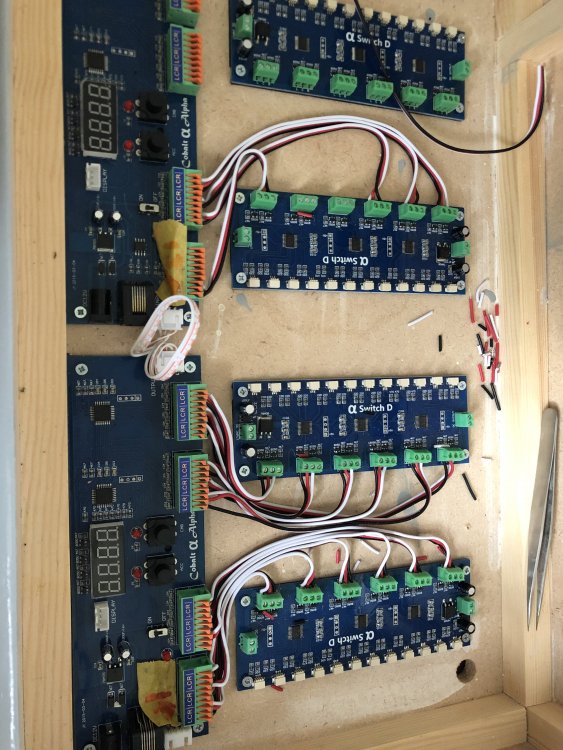

A bit of panel work on the bench, well the office table as the panel won't fit on the bench with all the bits on there at the moment.

[Si2020]

hello,

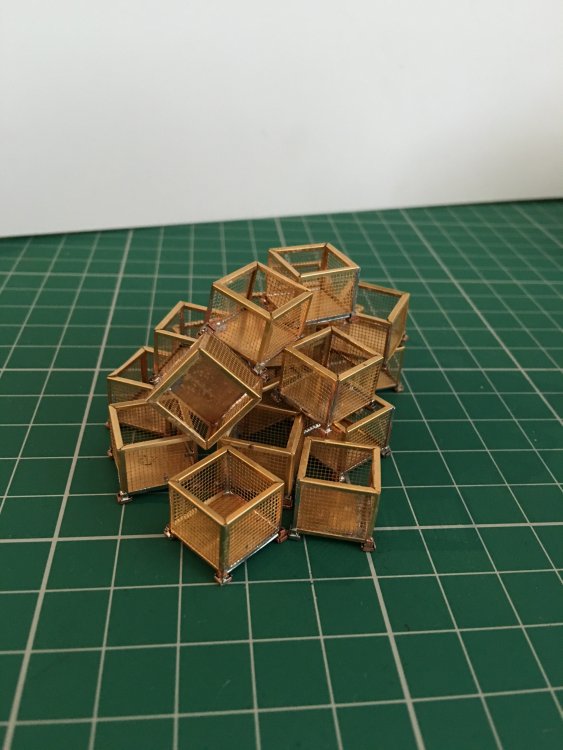

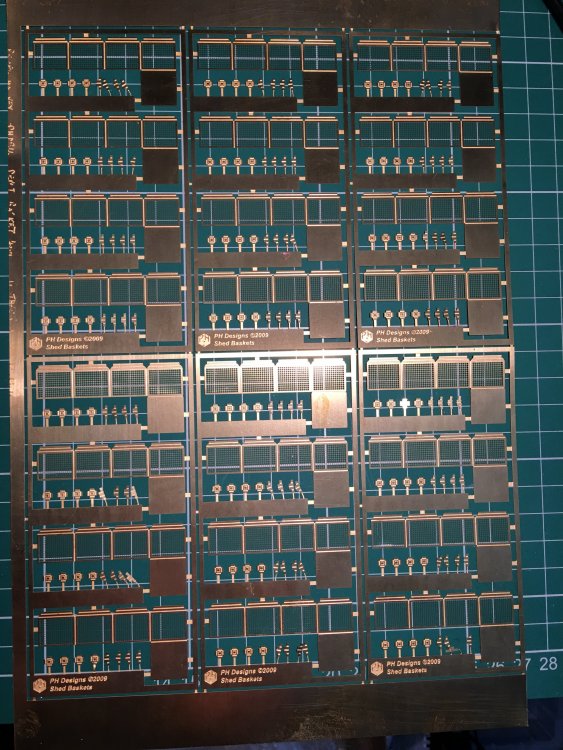

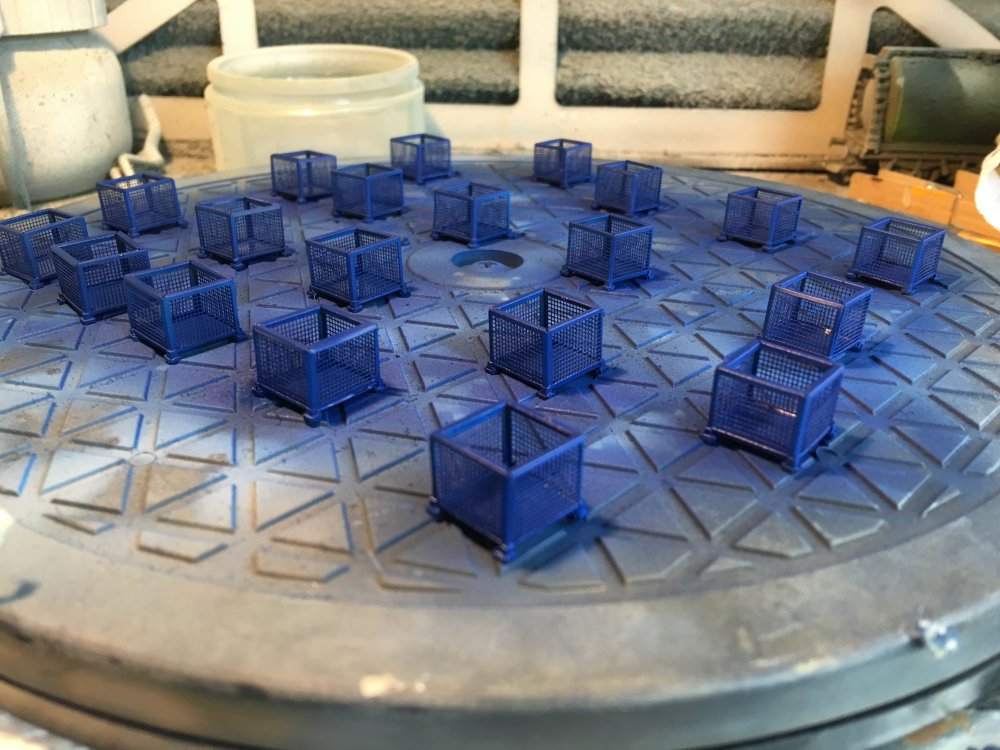

So had a few of these to make next

There was about 60 odd in total which kept me busy for a few days.

[jhb171achill]

1 hour ago, Si2020 said:

hello,

So had a few of these to make next

There was about 60 odd in total which kept me busy for a few days.

Glad to see they're socially distanced.........

[Si2020]

HI all,

Had these come in on the bench to be cleaned up, painted and mounted on custom cradles.

[Si2020]

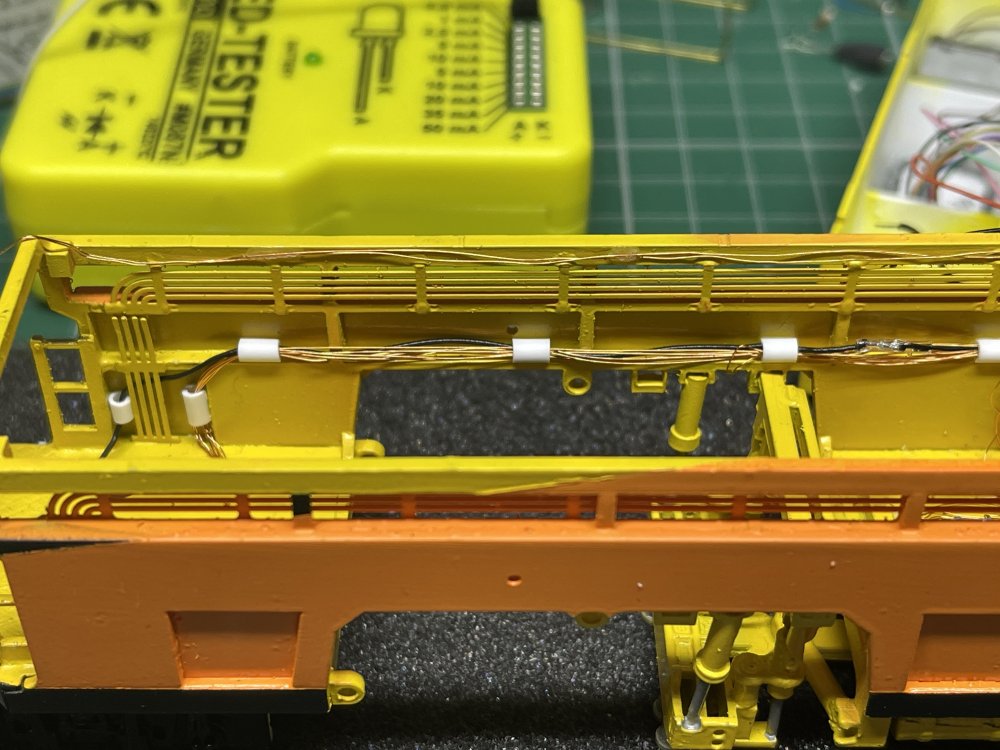

A bit of wiring going on

[Robert Shrives]

Wowser! That looks a job for the loom shop, hate to have to test all the cables !  I guess all for leds on the ends and in the tool hole. The finished job will be brilliant.  Thanks for sharing.   I think you deserve a lie down!



Robert



[Si2020]

21 hours ago, Robert Shrives said:

Wowser! That looks a job for the loom shop, hate to have to test all the cables !  I guess all for leds on the ends and in the tool hole. The finished job will be brilliant.  Thanks for sharing.   I think you deserve a lie down!



Robert



Thanks Robert,

Yes its for lights with each end having the following

2 x Marker lights

1 x Day light

1 x Night light

2 x Tail lights

1 x Cab

2 x external working lights

1 x Top light

So around 20 wires for the leds to be threaded back to the decoders. There are some more wires ie pick up etc to add even more in to the mix.

The job has been made a bit more difficult as it was sent to me to install the lights with no thought to how the wires would run etc. When i get roud to building my two then it will hopefully be a little bit a lot easier to install the lights.

Thanks

Edited October 4, 2021 by Si2020

[Robert Shrives]

Hi

5Ps and all that - proper planning prevents poor performance !

Can you fit a master and slave decoder one in each cab area and just link pick up wires?

Robert

[Si2020]

On 4/10/2021 at 6:33 PM, Robert Shrives said:

Hi

5Ps and all that - proper planning prevents poor performance !

Can you fit a master and slave decoder one in each cab area and just link pick up wires?

Robert

I wish it was that easy Robert, The model has a sound decoder and a function decoder fitted inside what would be the engine housing. The main issus is the sound decoder only has a few powered outputs with the remaining ones being logic and there isn't enough room to fit a ESU 21 pin board that enables the logic ones to be converted into a power ou put. Plus the marker lights are controlled by the sound decoder to make best use of the outputs as this thing looks like a christmas tree when its lit up



[Si2020]

[Si2020]

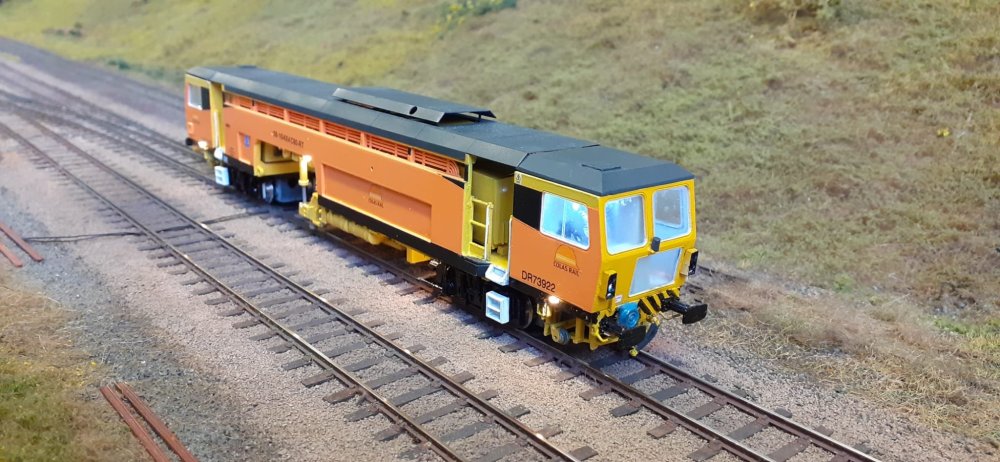

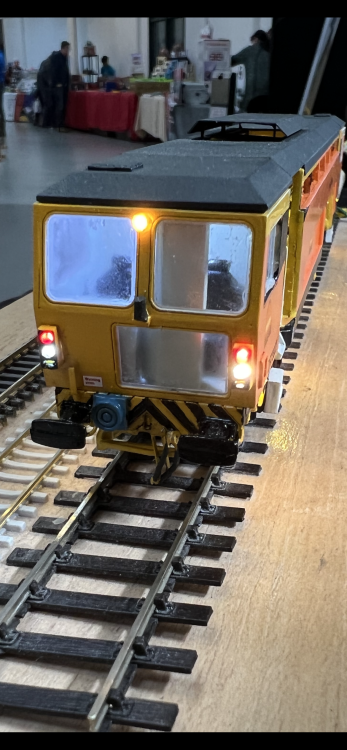

Another view of the tamper with the upper light fitted and under going testing at a recent show that I demonstrated at.

Now making a start on another one which will be one of mine for a change.



[Robert Shrives]

That looks very good , and I am sure more reliable than the real thing - but they do live and work in a hostile world of dust, vibration and the human hand/boot !  I like the way it looks as only the 2mmfs track it stands on gives the game away the fine scale z track is also very good.  It is a mark of a model or work of art in this case is that the gauge/ scale of model is not instantly definable. It shows how the fidelity of the hobby has moved on in the last decade or so.

Mind you doing it in 2mm would test the most saintly of us ...  thanks for showing.



[Si2020]

On 9/11/2021 at 7:50 AM, Robert Shrives said:

That looks very good , and I am sure more reliable than the real thing - but they do live and work in a hostile world of dust, vibration and the human hand/boot !  I like the way it looks as only the 2mmfs track it stands on gives the game away the fine scale z track is also very good.  It is a mark of a model or work of art in this case is that the gauge/ scale of model is not instantly definable. It shows how the fidelity of the hobby has moved on in the last decade or so.

Mind you doing it in 2mm would test the most saintly of us ...  thanks for showing.



Hi,

Thanks for the kind comments.

If someone did a kit of it in 2mm then I would give it a go (with the lights too), but for me personally its too modern for my eras that I model. Having said thst I still have my 2 to build.

Now if a 07-16 was in 2mm then that would be a must to add to the collection. Got a couple of those to build in 4mm but thats for another post.

[Robert Shrives]

In the last century a supplier to the model trade did a 2mm/ N etched 07 -16 but what with all the issues only a few were delivered and some angst caused.  The 1:160 model without  central roof is a reasonable model and some have added a central roof section to  make fit the common UK version ( Not that many if any left in traffic now.)

It might be something that Revolution models might have on the pad given it is working up a drive train for a LT 1938 tube train model which would suit a tamper .

Robert

[Si2020]

On 10/11/2021 at 8:21 PM, Robert Shrives said:

In the last century a supplier to the model trade did a 2mm/ N etched 07 -16 but what with all the issues only a few were delivered and some angst caused.  The 1:160 model without  central roof is a reasonable model and some have added a central roof section to  make fit the common UK version ( Not that many if any left in traffic now.)

It might be something that Revolution models might have on the pad given it is working up a drive train for a LT 1938 tube train model which would suit a tamper .

Robert

I heard of that etched model but didnt know any more about it. May have to sit down and draw up my own etches for one. Best add it to the project list.

You never know what might turn up from certain manufacters these days but if one certain one brings out a 4mm verison before I've built mine there will be trouble

Edited November 13, 2021 by Si2020

[Si2020]

HI all,

So lots has been happening on the bench since I last posted on here so thought I had better start updating, First up is this,

[Si2020]

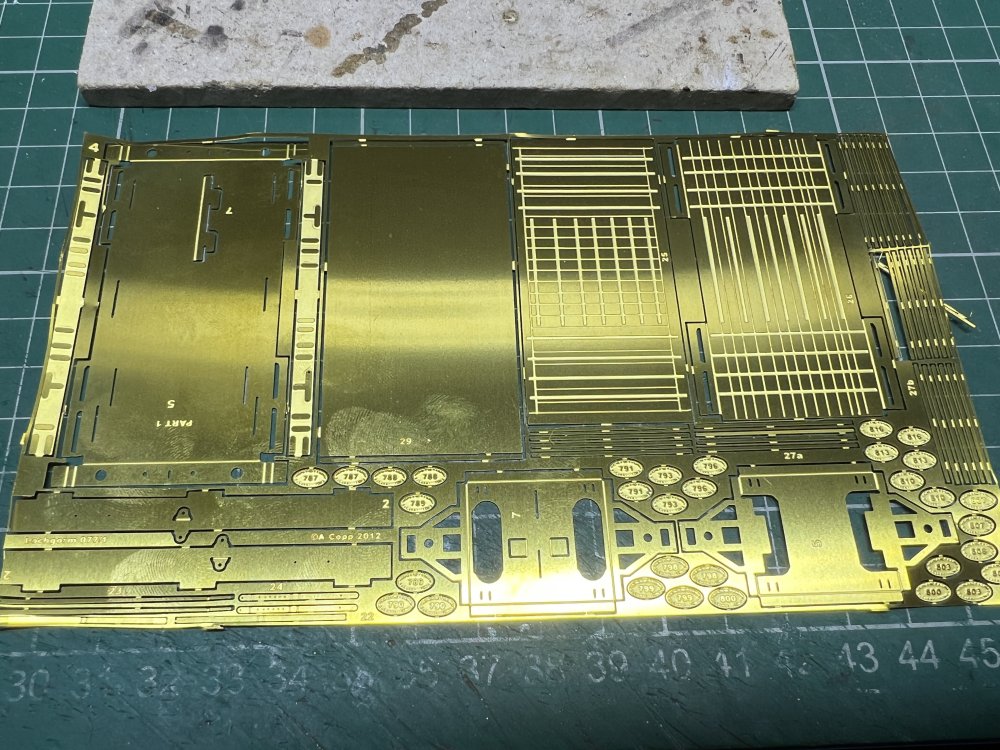

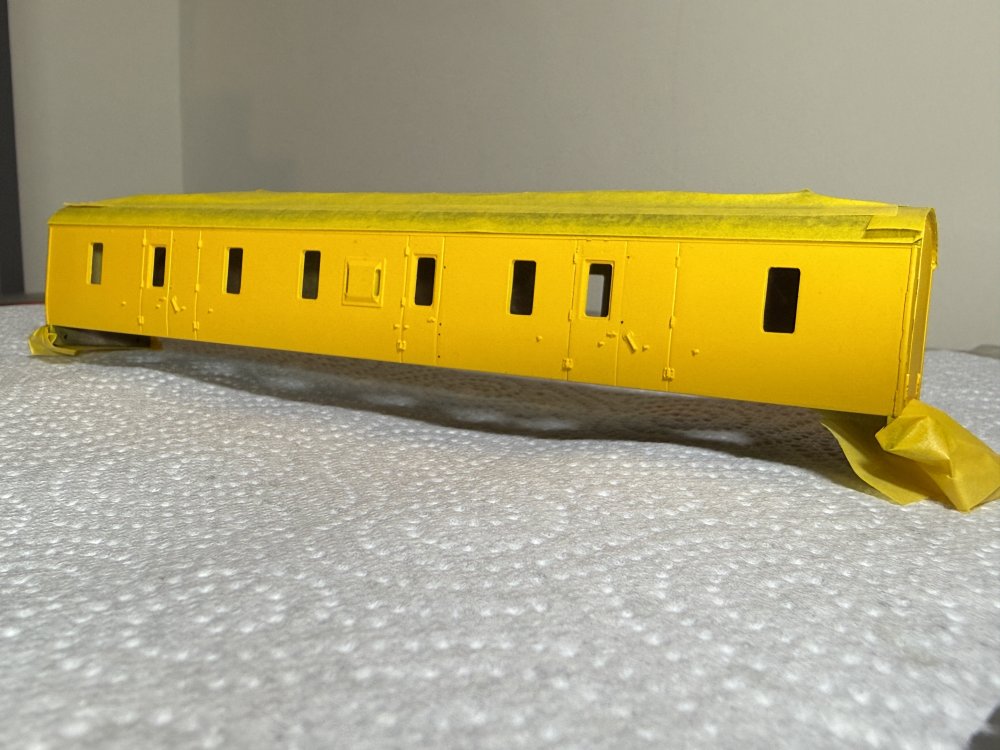

A couple of coach kit builds have been on the bench recentley.

And here a few hours later.

[Si2020]

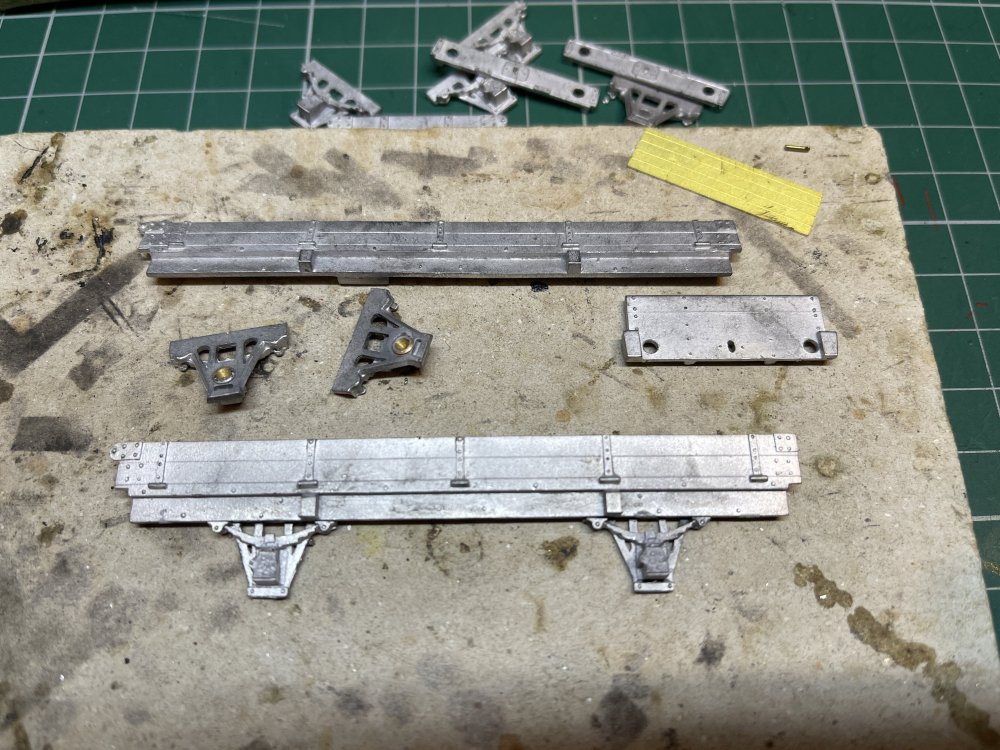

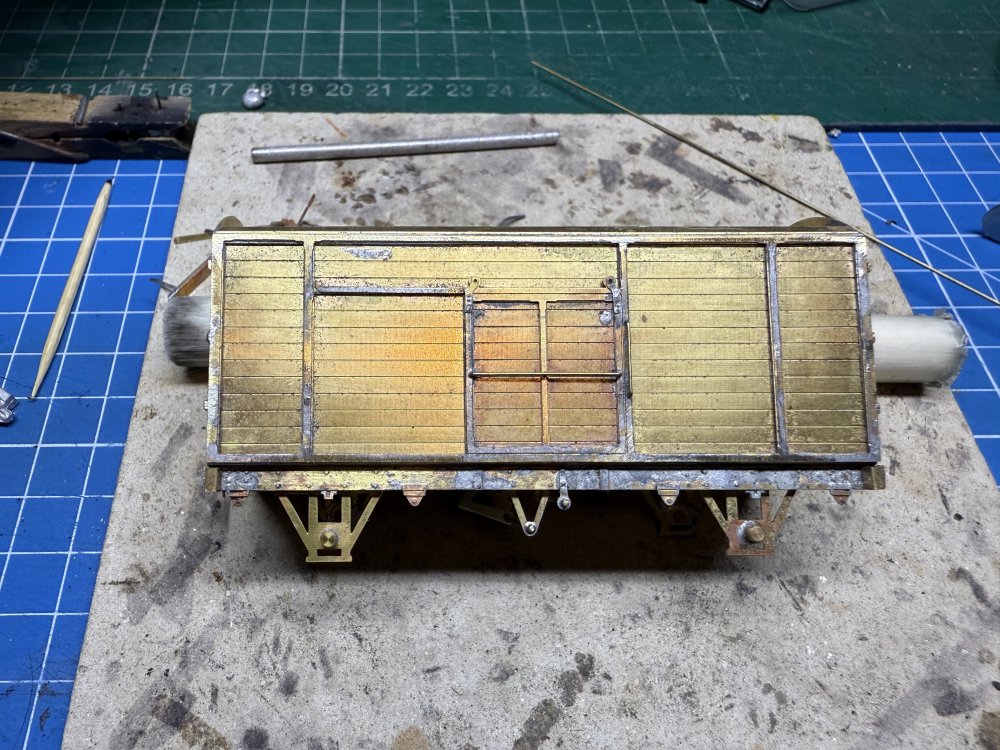

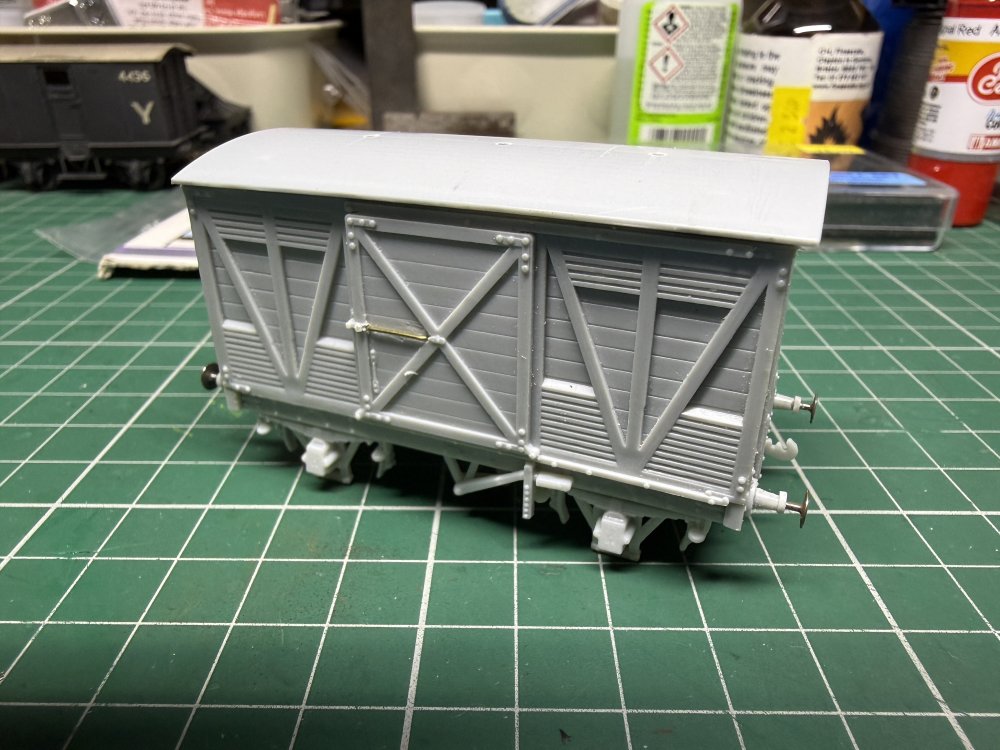

A GER cattle wagon. Ready for painting.



[Si2020]

[Si2020]

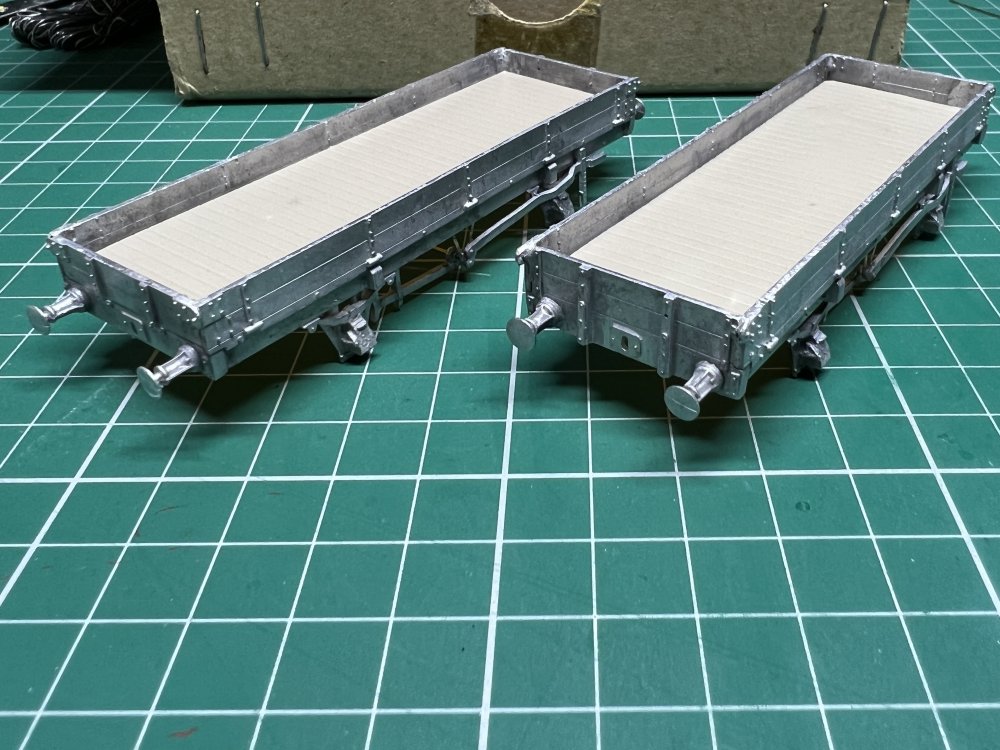

A couple of GER 2 plank ballast wagons built from a D&S set.





[Si2020]

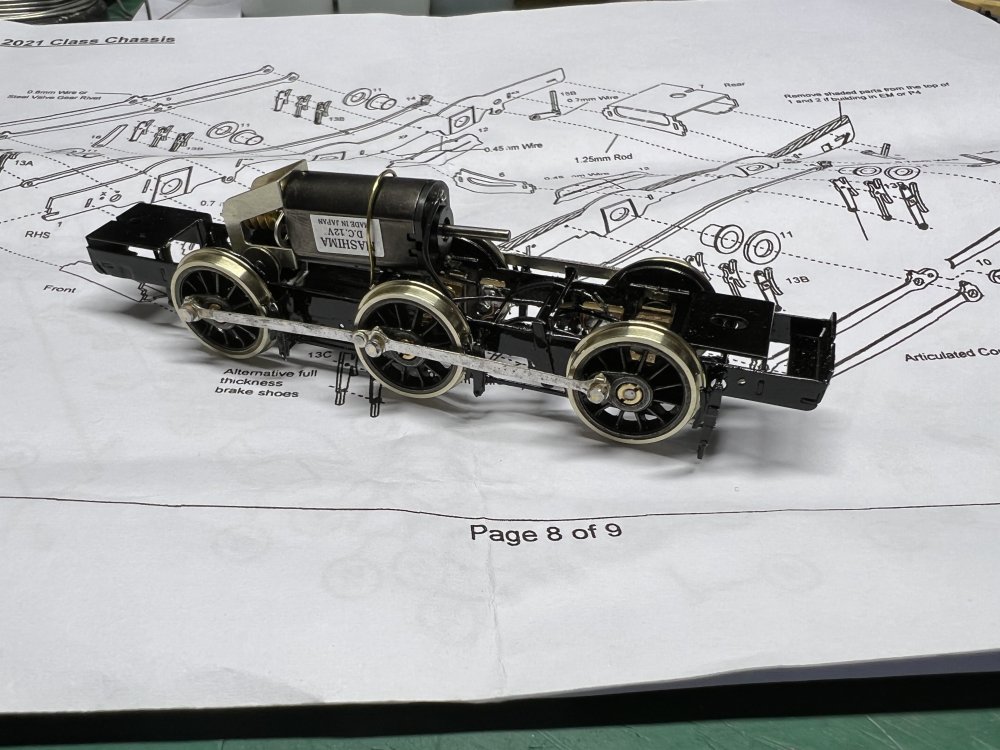

The bench has been a bit busy recently with a few things going on. So first up, I have been building a couple of EM gauge chassis. This is for a GWR 2021 class.

[Galteemore]

Very nice - what kind of hornblocks are you using ?

[Joe Keegan]

Tasty

Will you be fitting a flywheel ?

cheers

Joe

[Si2020]

On 25/3/2022 at 8:00 PM, Galteemore said:

Very nice - what kind of hornblocks are you using ?

Thanks, They are standard High Level kits hornblocks. I personally I don't use anything else.

On 25/3/2022 at 8:30 PM, Joe Keegan said:

Tasty

Will you be fitting a flywheel ?

cheers

Joe

Hi Joe,

At this moment in time I'm not sure as it will depend on how much space is avaible in the bolier area as its been fitted with sound and a stay alive so a bit of stuff to fit in there.

Thanks

[Si2020]

Hello all,

Hope you are all having a nice weekend.

Its been another busy week on the bench with a few things done.

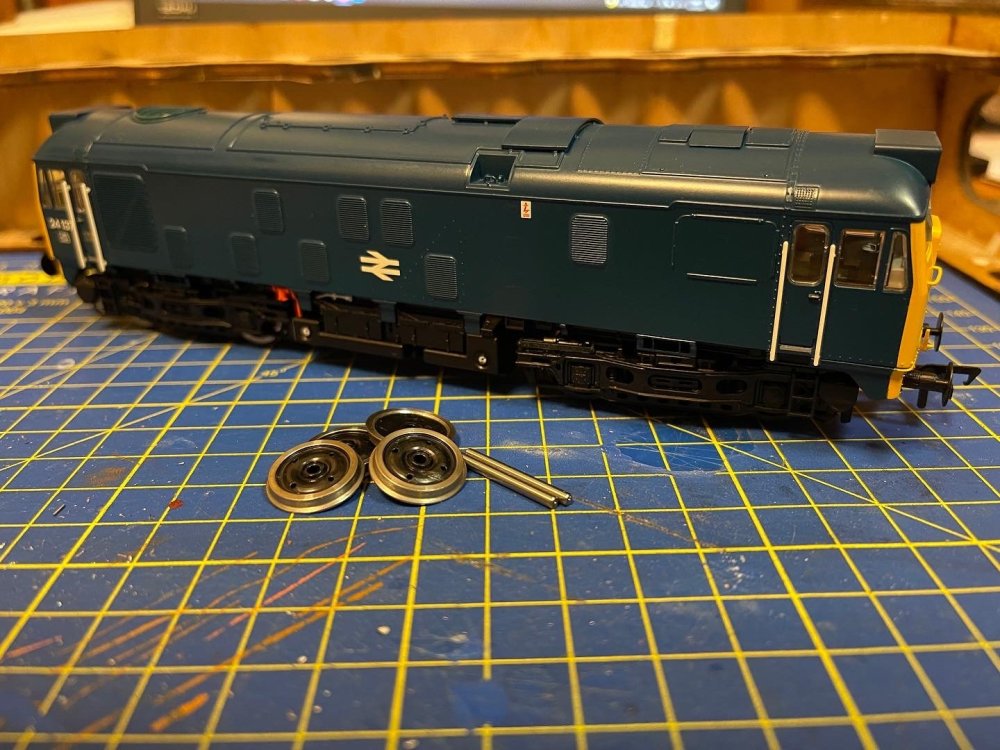

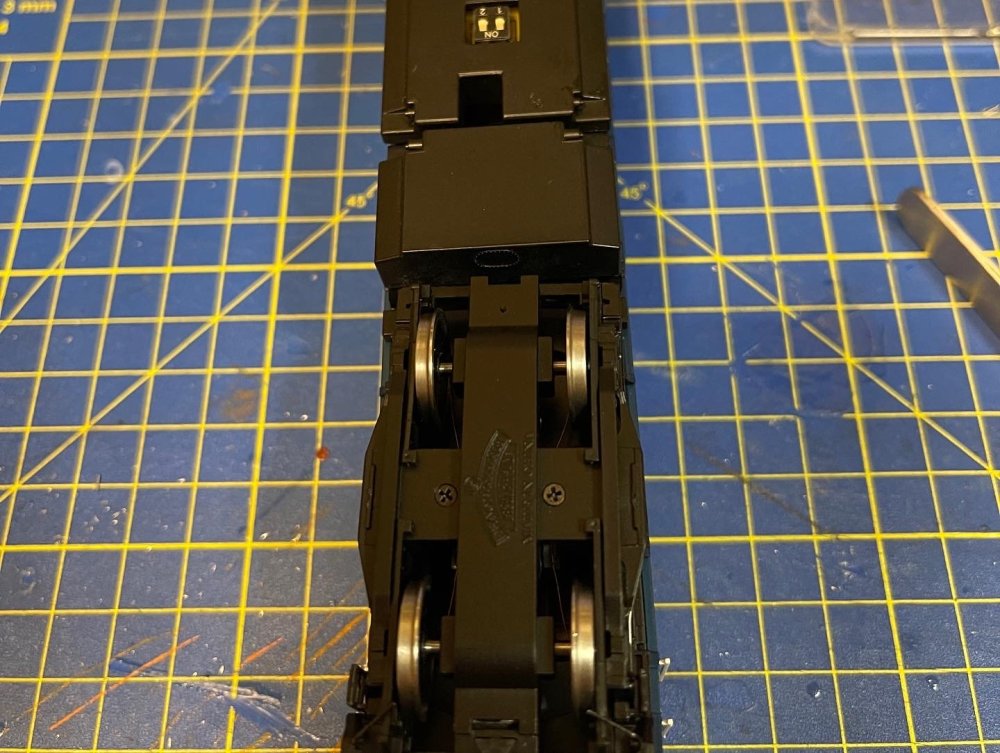

First up is a Em conversion of a bachmann class 24 using AG wheels.





[Si2020]

Hi all,

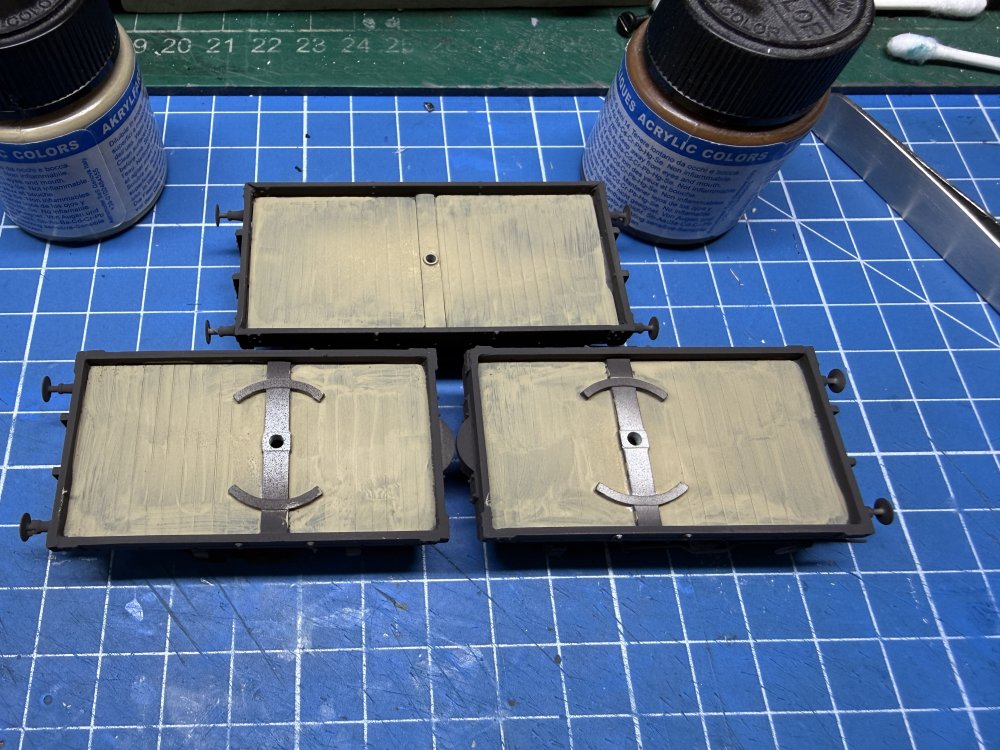

Some more ballast wagons on the bench. I'm sure they are breeding when I leave the bench.

[Si2020]

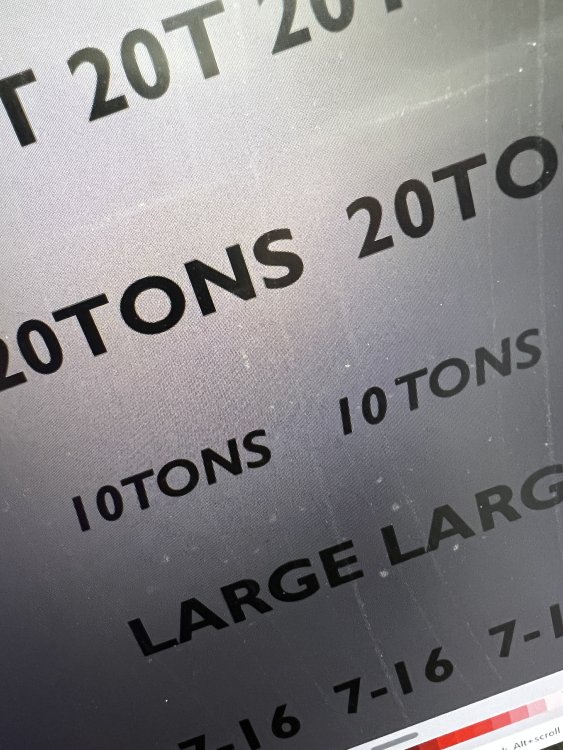

A bit of design work has been done recently. One of the issues when kit building is the lack of the right transfers in some cases, so that leaves desgining your own to fill the gaps.

Spent a pleasent couple of hours working out sizes and styles, fonts etc.

Looking forward to seeing how they turn out





[Si2020]

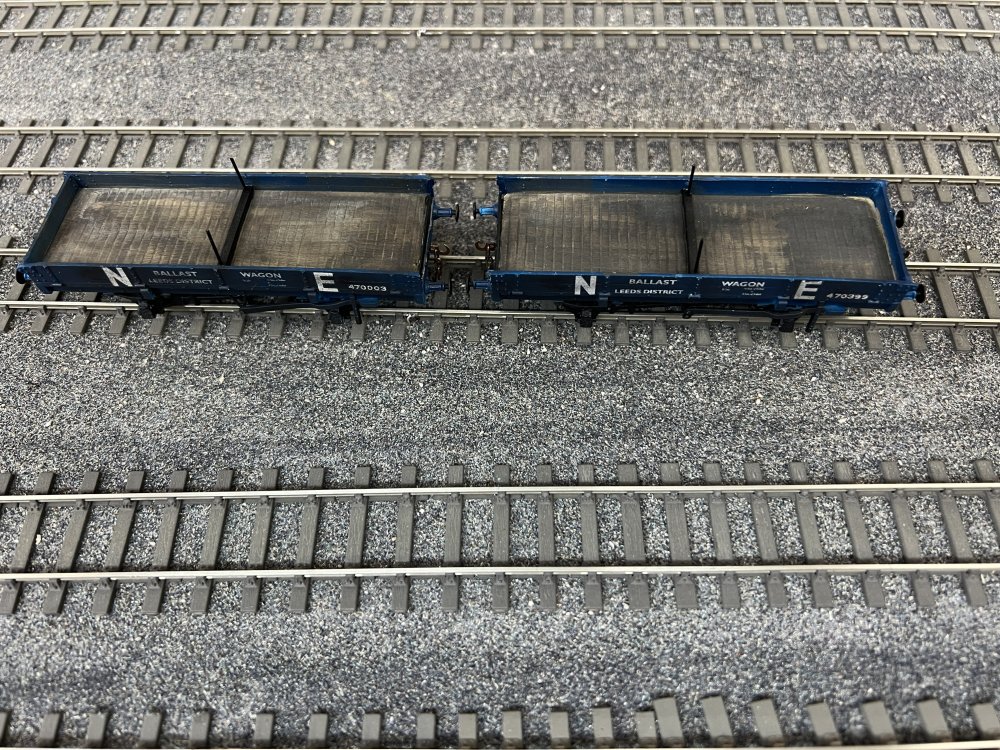

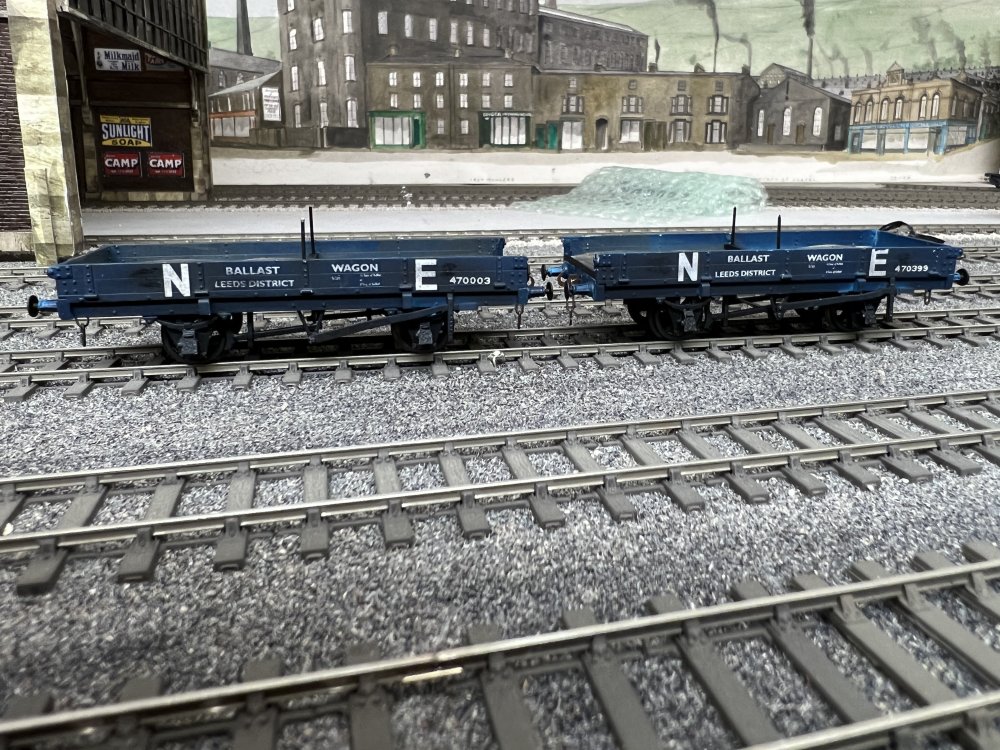

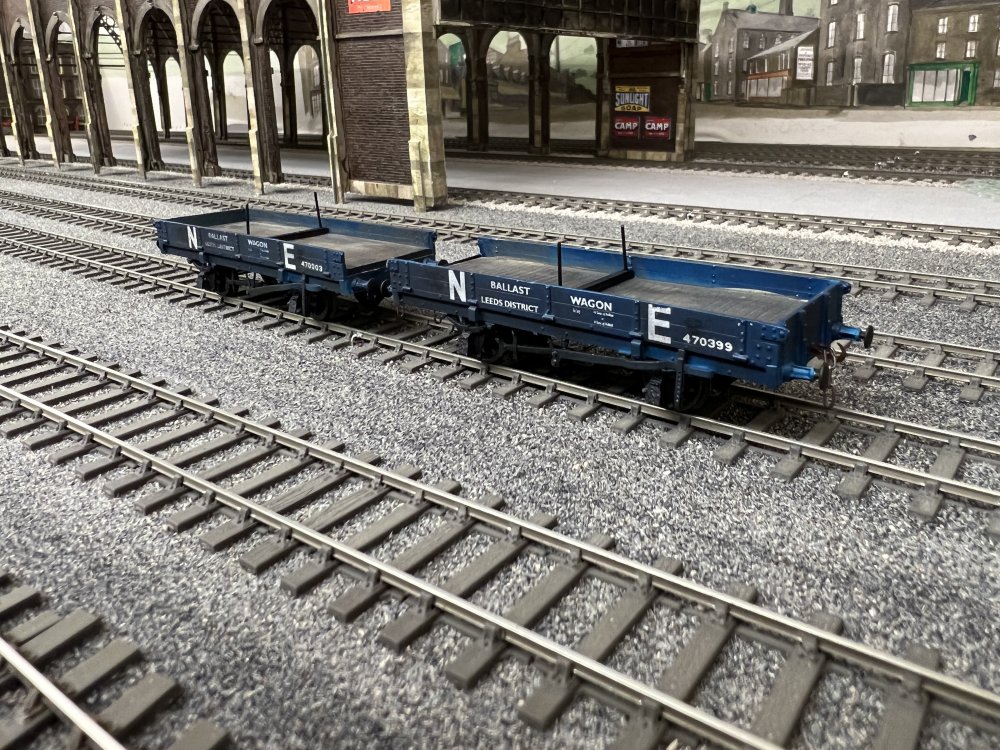

The end result for the ballast wagons with the custom transfers



These have been built in the rail carrying version.

Thanks

[Si2020]

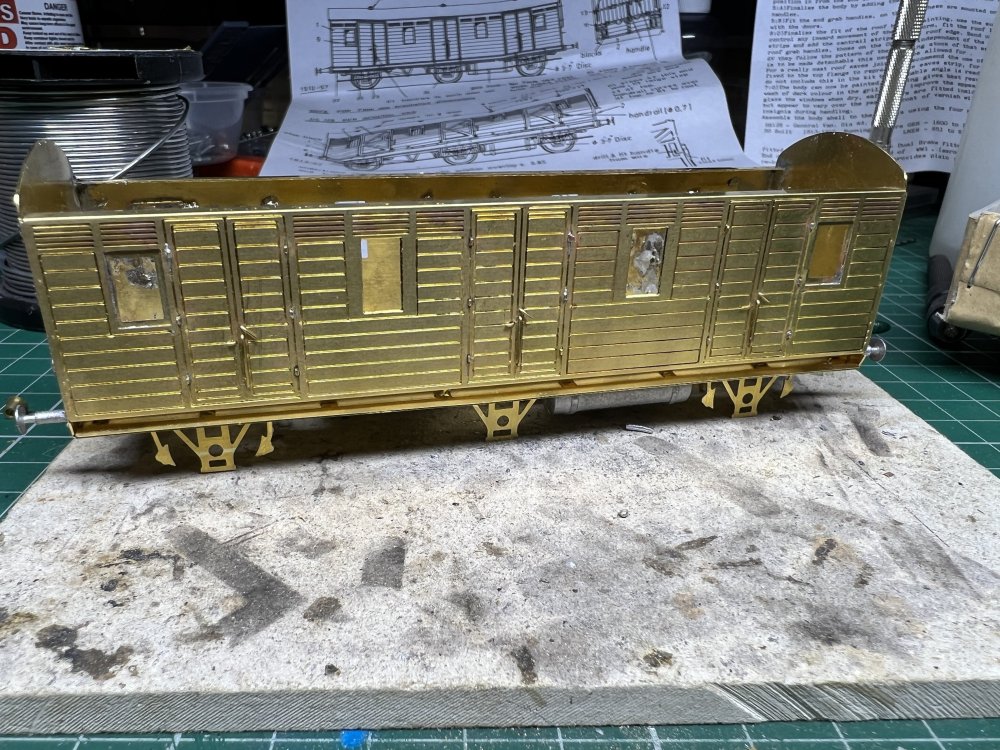

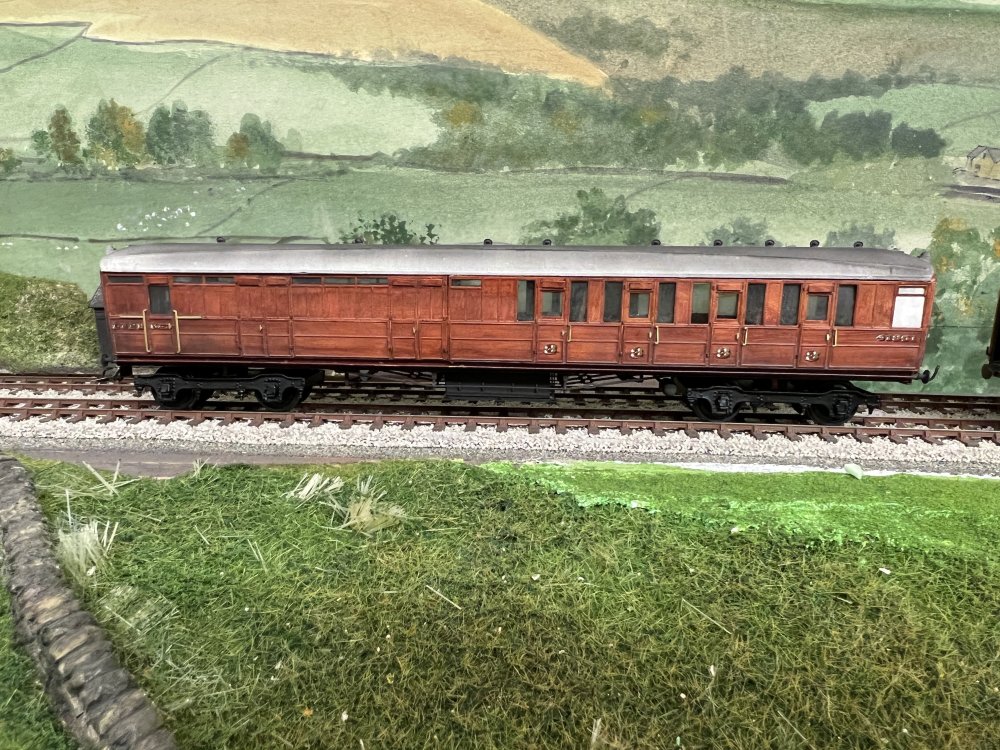

Next up was a Gresley brake 3rd, built from a MJT bits

[Si2020]

Thought I would pop in for a quick update whilst the securrty code for work comes through to access the system.

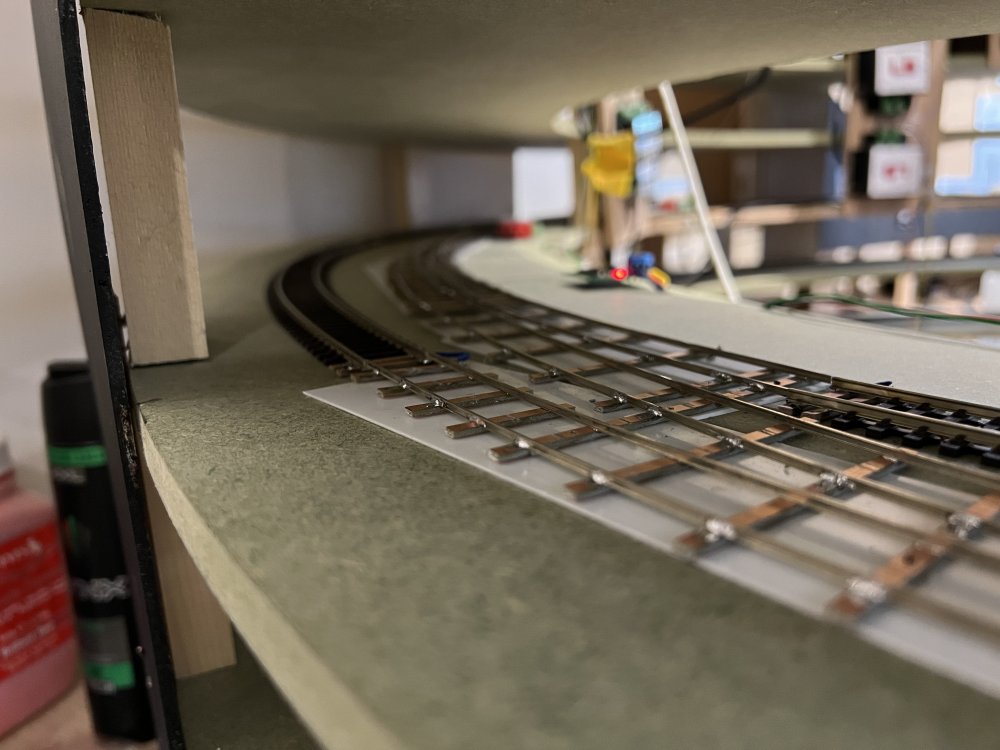

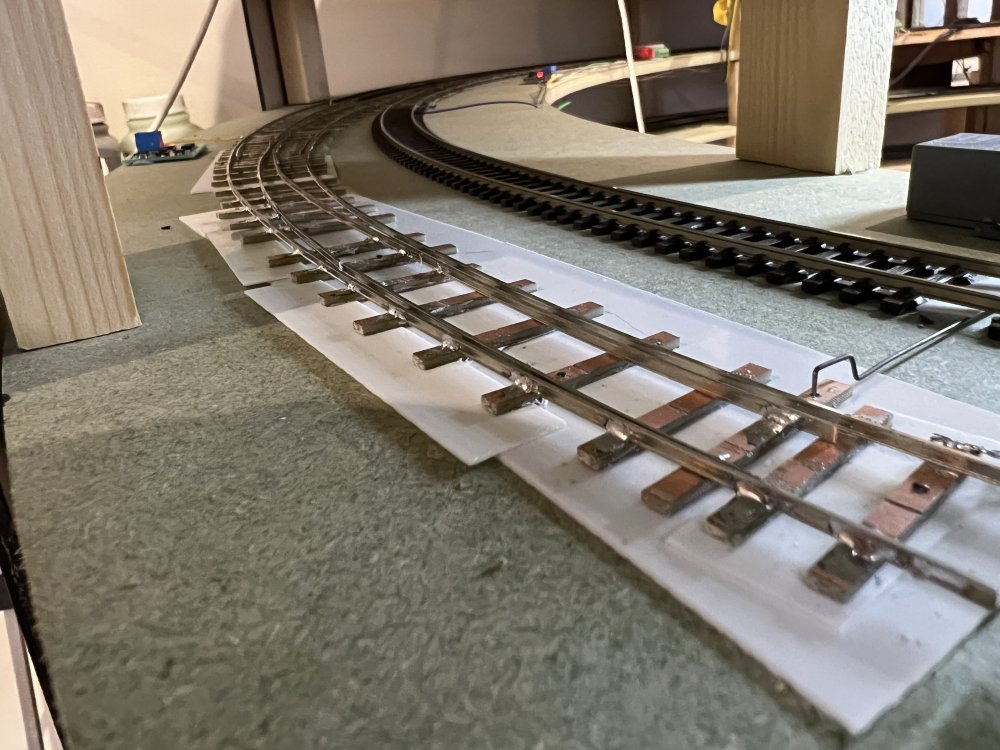

Been building some track work for a friends layout. The crossover is in a helix and has 2 points that are curved D12s and are 30" and 27" radius.

[Si2020]

Where did the summer go

A recent item that i had on the bench was this,

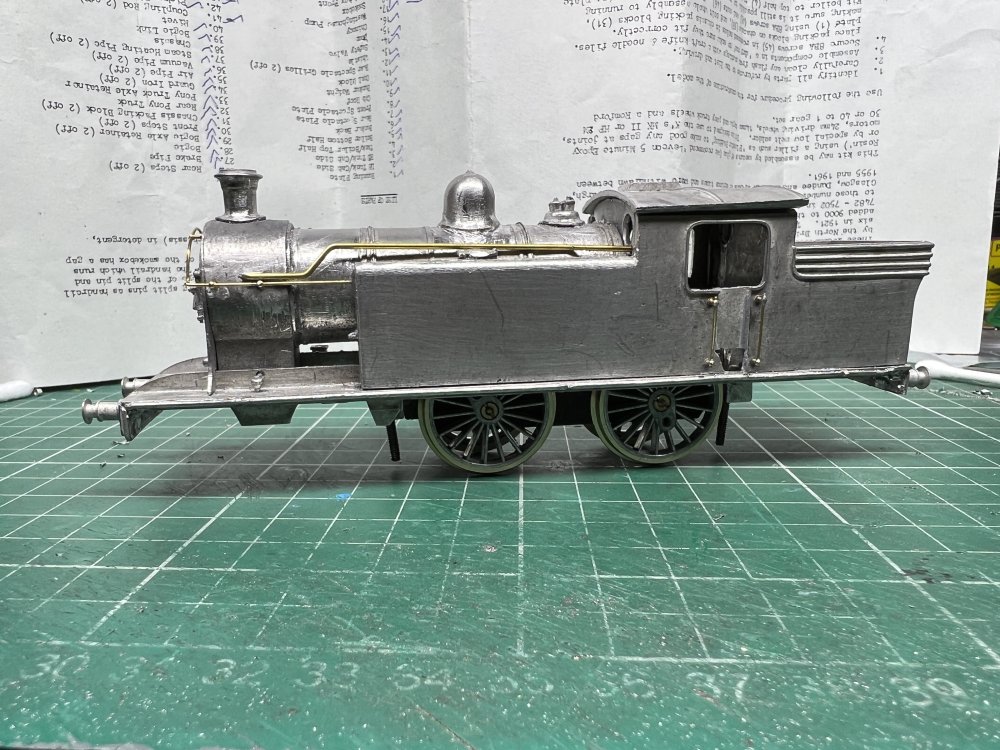

A C16 in the process of cleaning the body before a coat of primer.

[Galteemore]

Very nice. Whitemetal?

[Si2020]

On 1/10/2022 at 3:16 PM, Galteemore said:

Very nice. Whitemetal?

Hi,

Yes mostly white metal with a brass chassis.

[Si2020]

HI all,

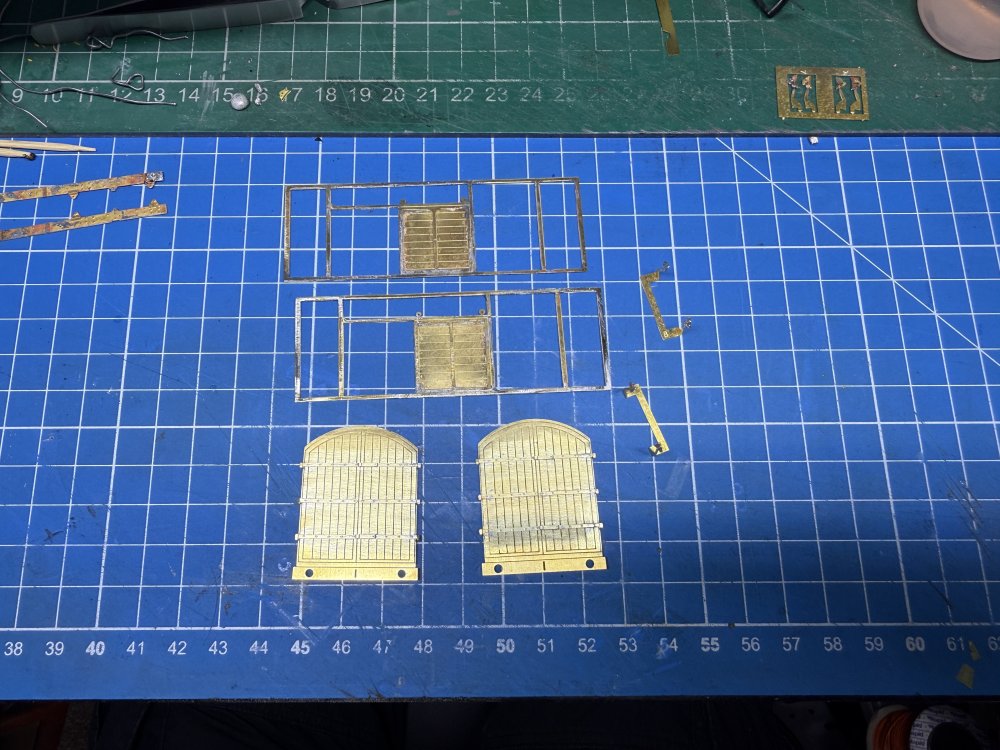

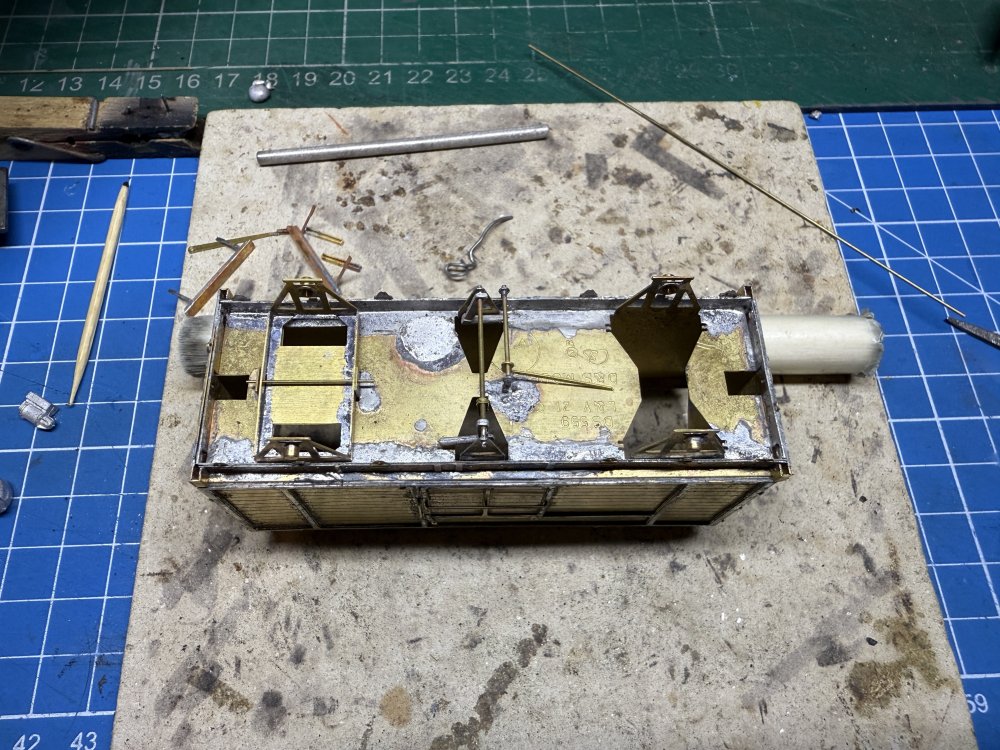

Another etched kit build on the bench. This time a Highland Railway double deck sheep van

[Si2020]

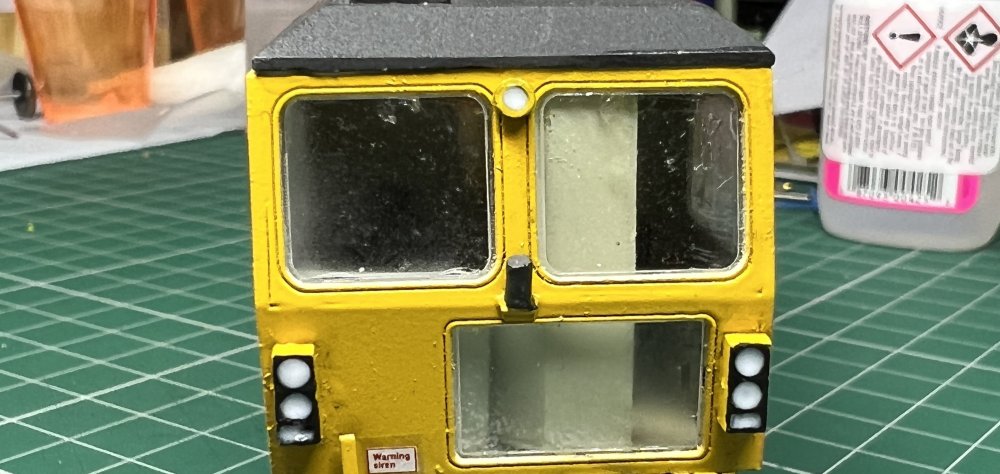

So its been a while since I posted, not sure where the time has gone. so to start back, here is the cab of the next Tamper I'm on with. I'm doing 2 versions the 80 and the 100. The white glue is the glue and glaze to produce some sort of lens for the lights. On the next one im going to try a different method of fitting the lights and will try using some clear resin, which if it works will make another project easier to do.
