Darragh Posted March 19 Share Posted March 19 I am looking for help with how to signal my layout with semaphores 2 Quote Link to comment Share on other sites More sharing options...
David Holman Posted March 19 Share Posted March 19 Suggest you provide a sketch plan of the layout. Need to know which are the running lines and which are just sidings. Is the station a terminus, or part of a continuous run? From this it should be possible to work out what signals are needed and where. 2 Quote Link to comment Share on other sites More sharing options...
derek Posted March 20 Share Posted March 20 23 hours ago, Darragh said: I am looking for help with how to signal my layout with semaphores Hi Darragh and welcome to the forum. First thing I would do would be to get your layout off the attic floor and on to some kind of baseboard. You're looking for trouble. Your knees must be wrecked. Don't know the first thing about signals, but plenty on here who do. 1 Quote Link to comment Share on other sites More sharing options...

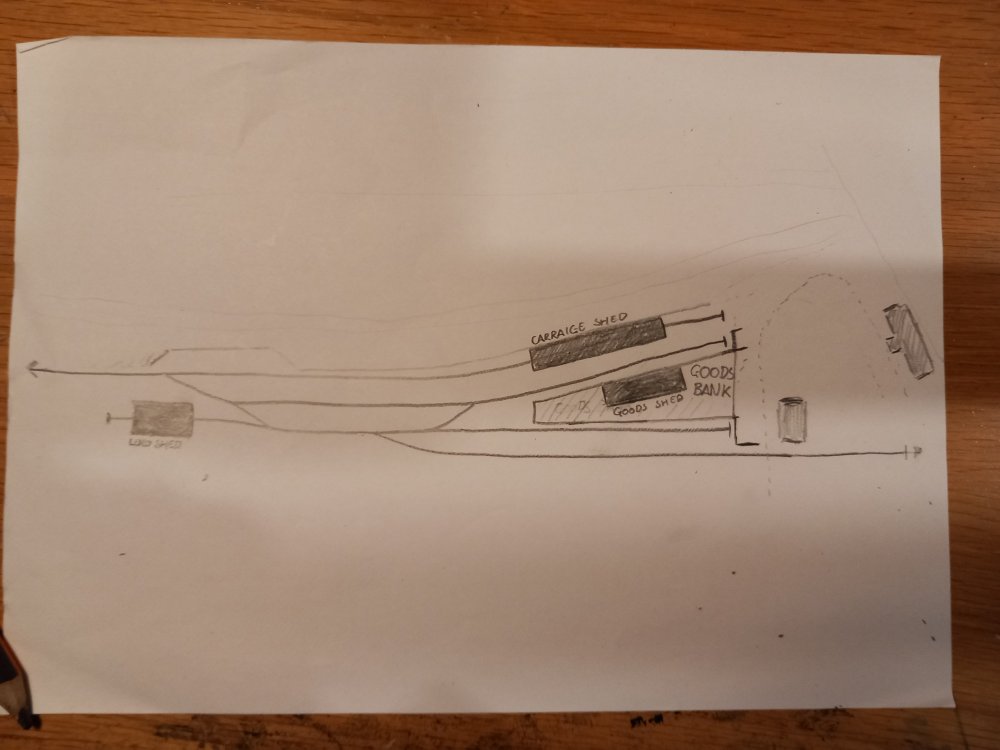

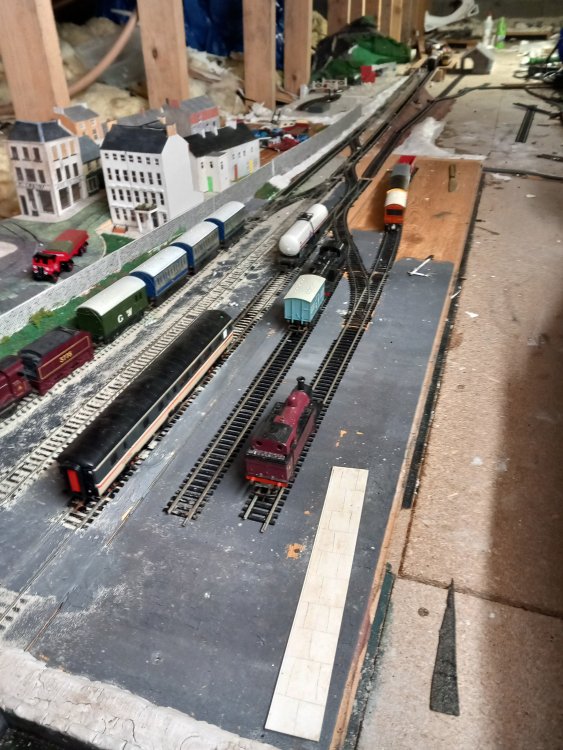

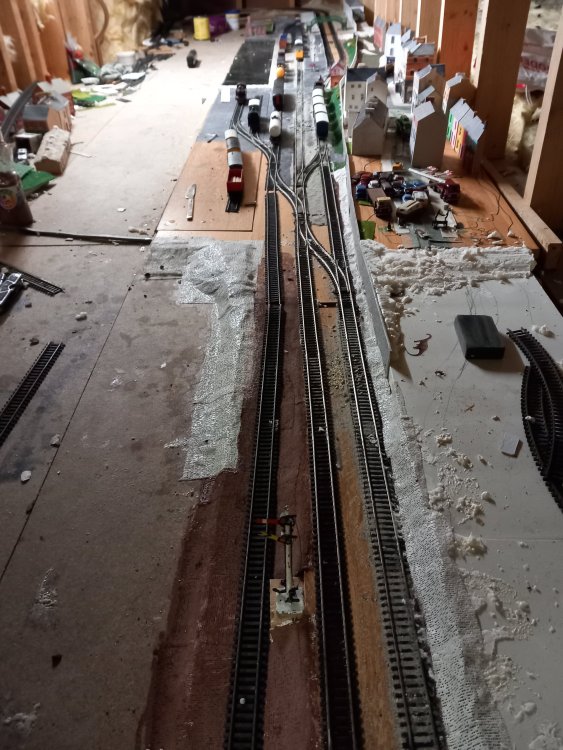

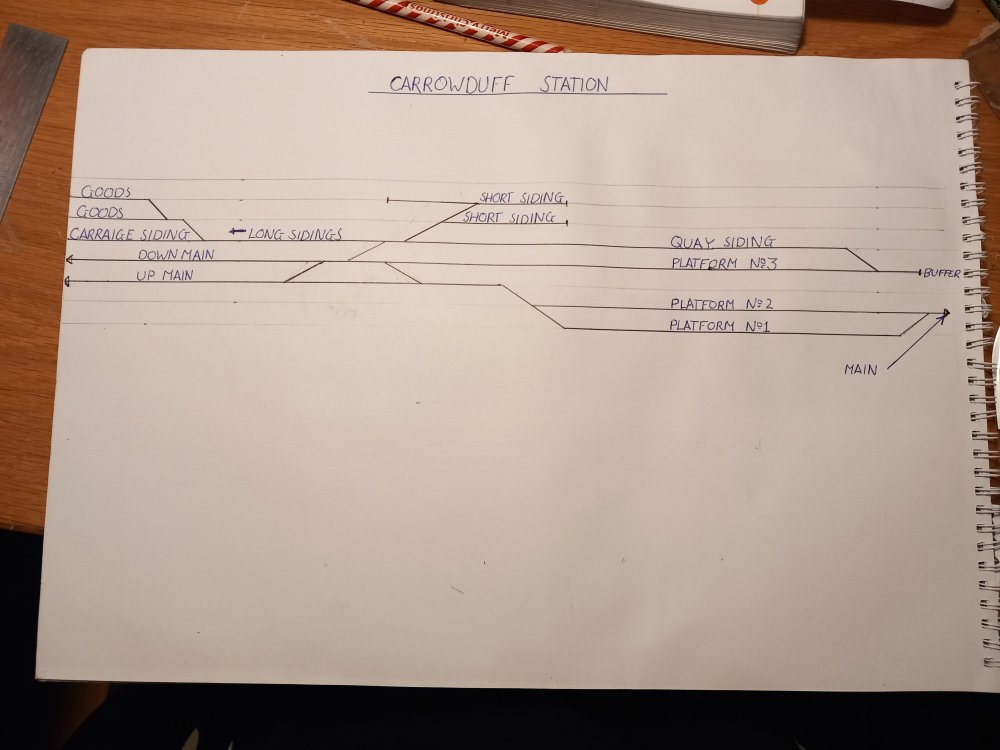

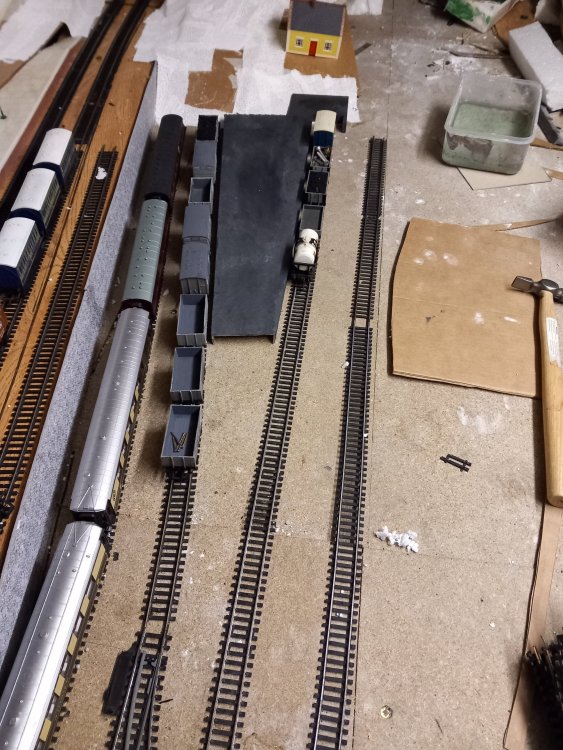

Darragh Posted March 20 Author Share Posted March 20 Here's the layout of the station. Ill be delighted with any help I can get. Thanks 2 Quote Link to comment Share on other sites More sharing options...
David Holman Posted March 22 Share Posted March 22 So, double track main line coming in from the left. Single track line entering from the right. Will platforms one and two be just up and down separate, or will you want them both signalled for each direction? Potential for a multiple doll gantry across the three tracks where you have written "long sidings", with arms controlling entry to the quay and platforms 1-3 in one direction, plus starters from the quay and all the platforms in the other. That's before adding shunt signals to the long sidings. Could be positively bristling, but a serious job to build, let alone make work. Something simpler with several, separate posts probably better. Another question - will they be hand operated, remotely controlled or just decorative? Either way looks an interesting project. 2 Quote Link to comment Share on other sites More sharing options...
Darragh Posted March 23 Author Share Posted March 23 17 hours ago, David Holman said: So, double track main line coming in from the left. Single track line entering from the right. Will platforms one and two be just up and down separate, or will you want them both signalled for each direction? Potential for a multiple doll gantry across the three tracks where you have written "long sidings", with arms controlling entry to the quay and platforms 1-3 in one direction, plus starters from the quay and all the platforms in the other. That's before adding shunt signals to the long sidings. Could be positively bristling, but a serious job to build, let alone make work. Something simpler with several, separate posts probably better. Another question - will they be hand operated, remotely controlled or just decorative? Either way looks an interesting project. Something with separate posts would definitely be more suited to me, i don't have access to any laser cutters or 3D printers so these will be handmade as I'm on a budget They will probably be hand operated, in the future i might try to get them remotely controlled, but Ill have to see what I can do. Thanks for the help, but could you send us a drawing or something like that to get a better understanding of it please Thanks again Quote Link to comment Share on other sites More sharing options...

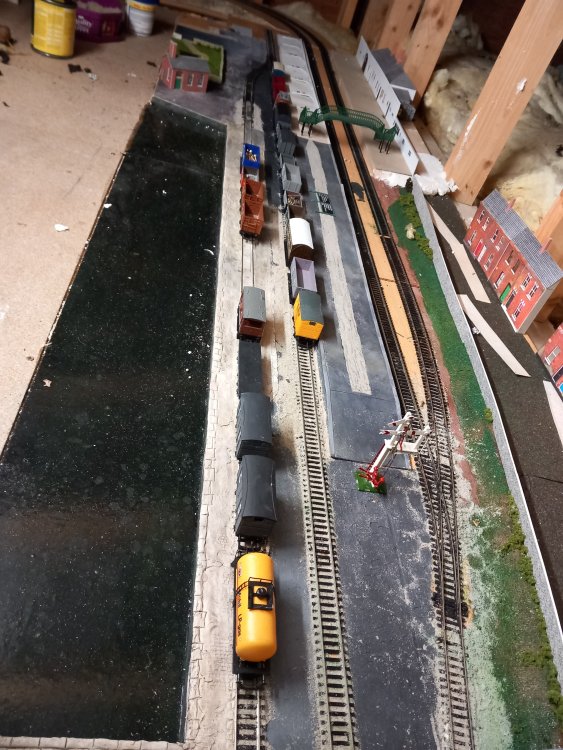

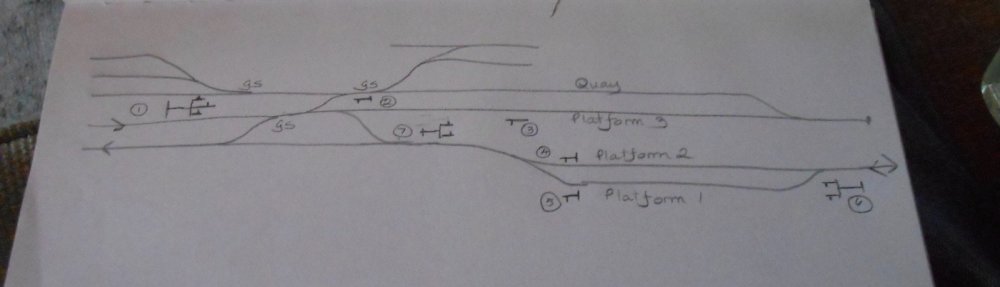

David Holman Posted March 24 Share Posted March 24 Above is just one take on how you station might be signalled, but no doubt there are other options: Signal 1 is a three doll unit. The left arm signals a train from the main line to the quay. The middle arm controls entry to platform 1, while the right hand one is for platform 2 or 3. The left doll would probably be shorter than the other two. Signal 2 is a starter, with a single arm and will sit at the entry to the quay siding, for a train leaving this Signal 3 is also a starter and will sit at the end of platform 1 Signals 4 and 5 are also starters for platforms 2 and 3, should they been used for both directions, otherwise signal 4 is not needed. Similarly, signal 6 has two dolls on its post, although if only up trains use platform 1, then just a single signal is needed. However, there will then need to be a starter signal at the other end of platform 2, for down trains to start. There will need to be a starter at this end of platform 1 as well, if both lines lines are bi-directional Three possible sets of ground signals might be included, as marked GS on my sketch. These would cover entry to/from the sidings, though only the middle one is essential, as it is on the main running lines and would guide a train from platform three on to the up main line. The other two ground signals, to the quay and other sidings probably aren't needed as these points would like as not be controlled by hand levers adjacent to the track. Hope this helps - other options are possible, while you then need to decide what sort of signals you want and there is plenty of choice for that! 2 1 Quote Link to comment Share on other sites More sharing options...
Darragh Posted March 25 Author Share Posted March 25 Thank you David. I couldn't have asked for a better explanation. This has been very helpful. I'll keep you posted with the progress. Thanks again 1 Quote Link to comment Share on other sites More sharing options...
Signal Post Posted March 26 Share Posted March 26 (edited) Just a question David (@David Holman), in reading the text above and referring to the diagram I wonder if you are have inadvertently swapped platforms 1 and 3 in your thoughts?, The explanation seems to make more sense if platform 3 is considered as the bay platform (adjacent to the siding) and platform 1 as the up platform. Anyhow I'm glad you did put this up as I was going to post a diagram myself and you have saved me some work! btw my suggestions would have been somewhat similar to yours (great minds etc...!) Edited March 26 by Signal Post Quote Link to comment Share on other sites More sharing options...
David Holman Posted March 26 Share Posted March 26 Oops! You are correct. Have indeed swapped 1 & 3. Well spotted. Quote Link to comment Share on other sites More sharing options...
David Holman Posted March 27 Share Posted March 27 A further thought is that where I suggested a ground signal on the crossover leading from platform 3 to the up main line, this isn't needed. On the real railway, this move would be protected by interlocking the signals and points - the signal could only be pulled off/clear, once the points were set for this move. Signal enthusiasts in the model world will take great delight in replicating such things (and why not, if that is your thing), though as in the real world, such things are complicated. Quote Link to comment Share on other sites More sharing options...

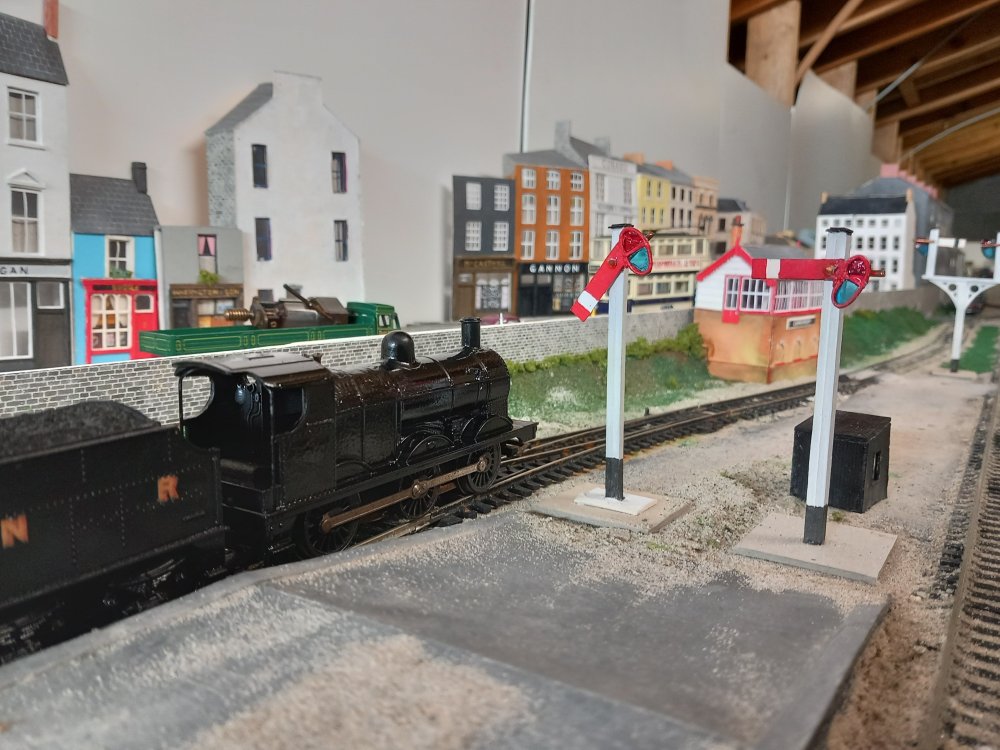

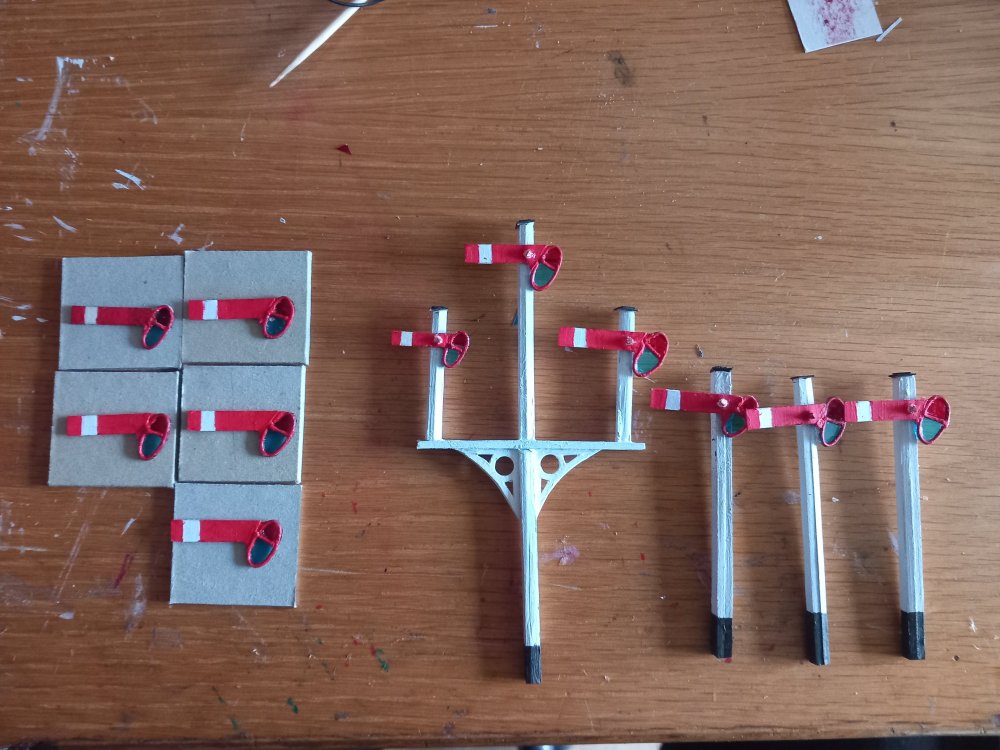

Darragh Posted March 29 Author Share Posted March 29 I think I might as well include the ground signals David, it'd make the layout a little bit more interesting. Here's where I'm at so far 5 Quote Link to comment Share on other sites More sharing options...
David Holman Posted March 29 Share Posted March 29 Splendid! Quote Link to comment Share on other sites More sharing options...
Signal Post Posted March 29 Share Posted March 29 They're coming along very nicelyI As regards ground signals it's not unknown for some exhibition standard layouts to include non-functioning ground signals, the small size of these compared with the much larger signal arms means that the fact that they don't move isn't terribly noticeable, however the presence of the (fixed) ground signal does add to the overall impression. 1 Quote Link to comment Share on other sites More sharing options...
DSERetc Posted March 29 Share Posted March 29 Congratulations! These are excellent models of Great Northern Railway signals. The white posts with the black cap and the spectacle plate the same colour as the signal arm. This was the practice of the GNR. On CIE and Irish Rail, the posts were white (or sometimes silver on round steel posts}, with the top of the post painted black down to about level with the bottom of the spectacle plate and the bottom of the post was also black to about three feet above the ground. The spectacle plate was painted white. On the GWR and on parts of British Rail, the spectacle plates were painted black. See the thread: Irish Railway Modeller/Questions and Answers/Irish Railway Signals, June 11, 2019 1 2 Quote Link to comment Share on other sites More sharing options...
Darragh Posted March 31 Author Share Posted March 31 After a bit of searching I couldn't seem to find any indication of what GNR ground signals look like. Are they much the same as the ground signals in the rest of the country? Thanks Quote Link to comment Share on other sites More sharing options...

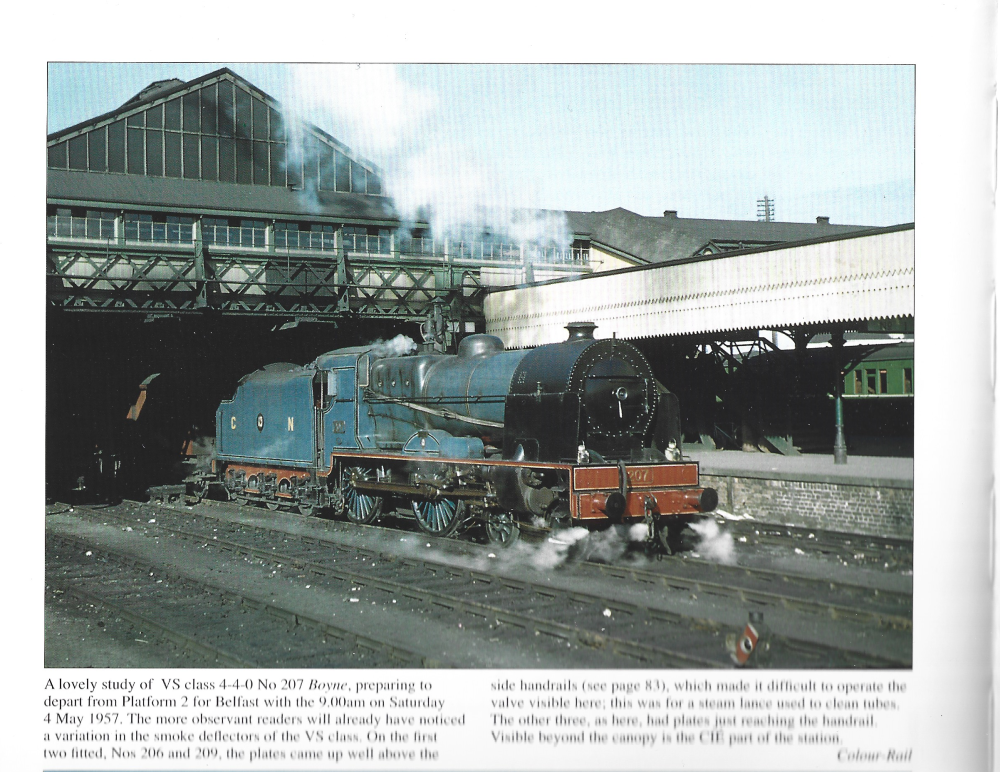

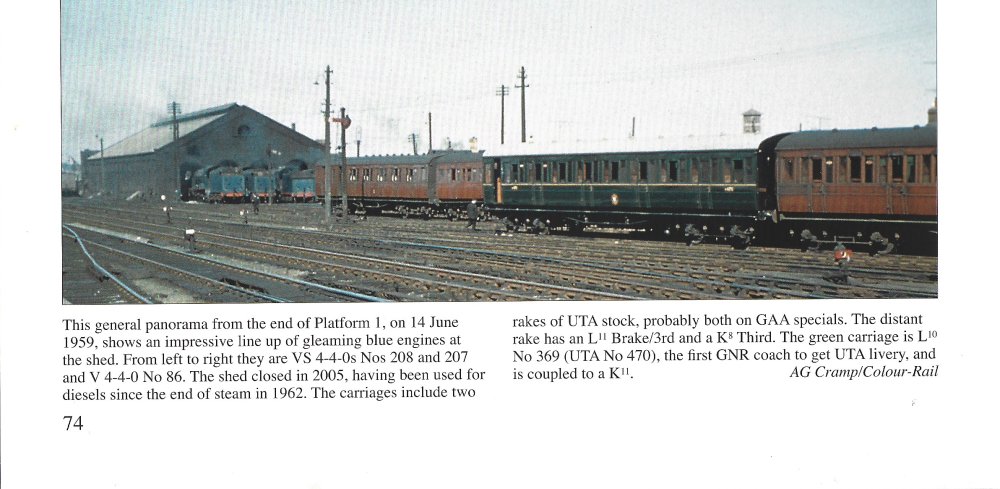

DSERetc Posted April 1 Share Posted April 1 These photos are from The Great Northern Railway (Ireland) in colour by Norman Johnston Colourpoint Books, Amiens Street Station. it includes rotating ground signals with a horizontal white 'on' or stop signal and a red 'off' angled signal also a back light for the on position. T 2 Quote Link to comment Share on other sites More sharing options...
DSERetc Posted April 3 Share Posted April 3 I just noticed this red ground signal . DSERetc 1 Quote Link to comment Share on other sites More sharing options...
David Holman Posted April 4 Share Posted April 4 Worth checking out the Wizard Models website, as he stocks a good range of such things. 1 Quote Link to comment Share on other sites More sharing options...

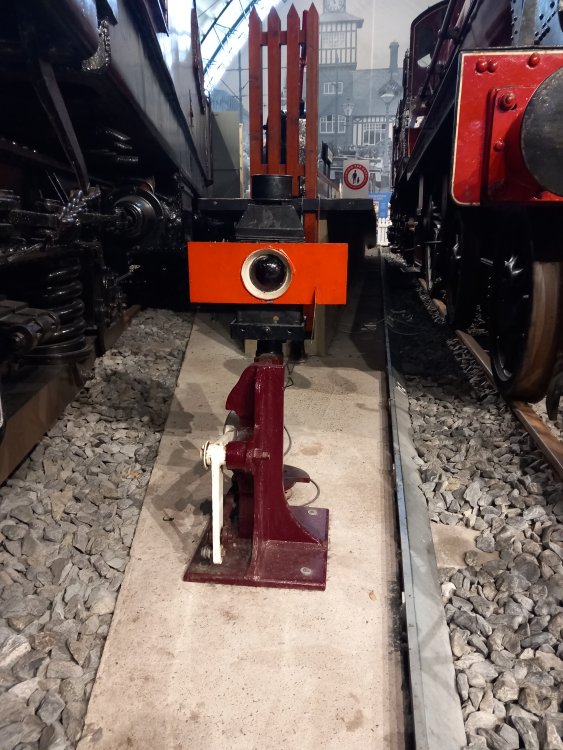

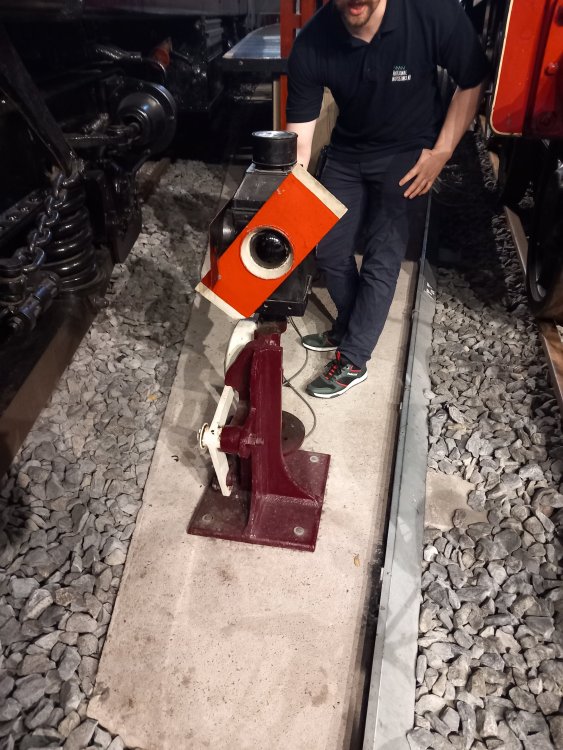

Darragh Posted April 6 Author Share Posted April 6 I was after paying a recent visit to the transport museum and found a GNR ground signal, much to my delight. 3 Quote Link to comment Share on other sites More sharing options...
David Holman Posted April 6 Share Posted April 6 Nice! Tiny models, it always amazes me how big the real things are. 1 Quote Link to comment Share on other sites More sharing options...

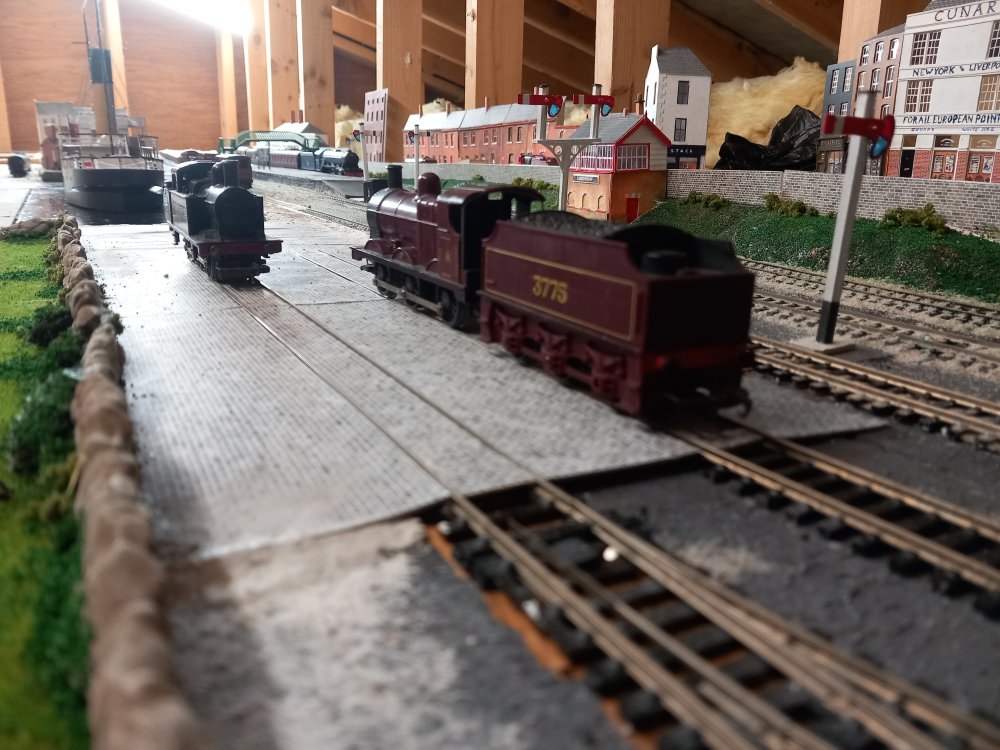

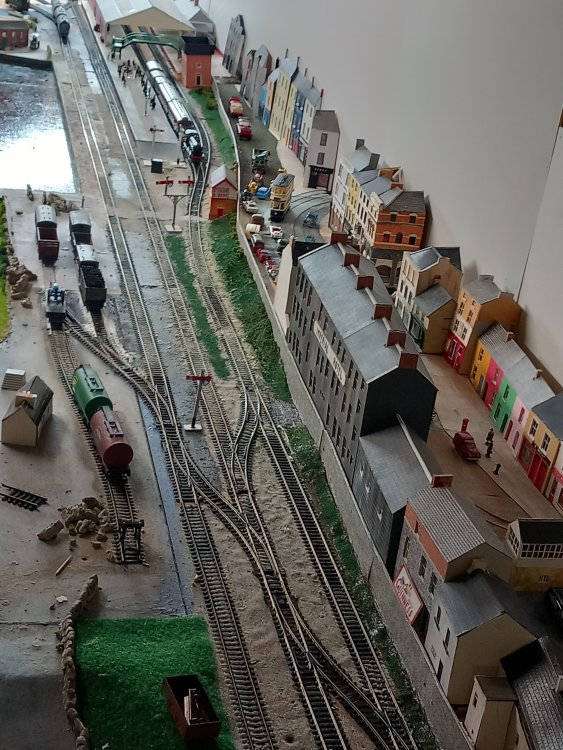

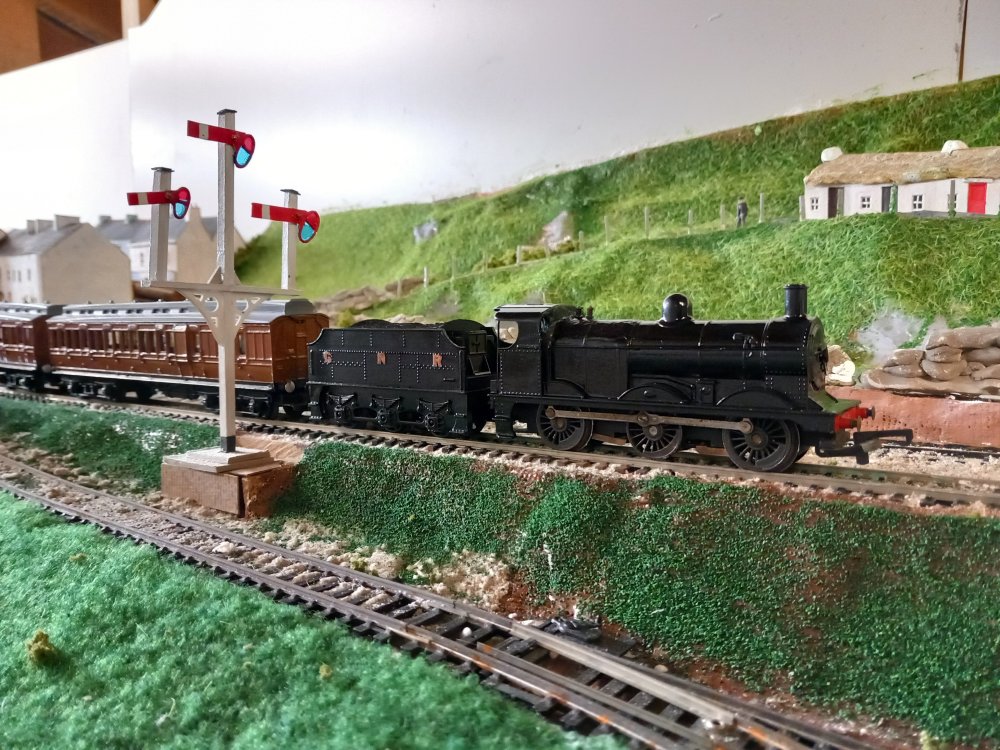

Darragh Posted April 16 Author Share Posted April 16 I have most of the signals now in position on the layout 9 Quote Link to comment Share on other sites More sharing options...
