Georgeconna Posted December 21, 2017 Share Posted December 21, 2017 Hi Lads, I broke into my stash or MIR models recently and I am building 10 Curtain Sided Cement Wagons and 4 of the Larger wheels and chains wagon. I know you chaps are fonts of knowledge and was wonder if any one has a piccy of the Chain arrangement for both ends or even a diagram for same as for the life of me I cannot work how it works out. Most photo when zoomed in loose their clarity and the instructions don't even depict the chain set up The Piccy below is the best one I can find on the net. II'll lash up some piccys when I get a moment. 2 Quote Link to comment Share on other sites More sharing options...
Glenderg Posted December 21, 2017 Share Posted December 21, 2017 2 Quote Link to comment Share on other sites More sharing options...

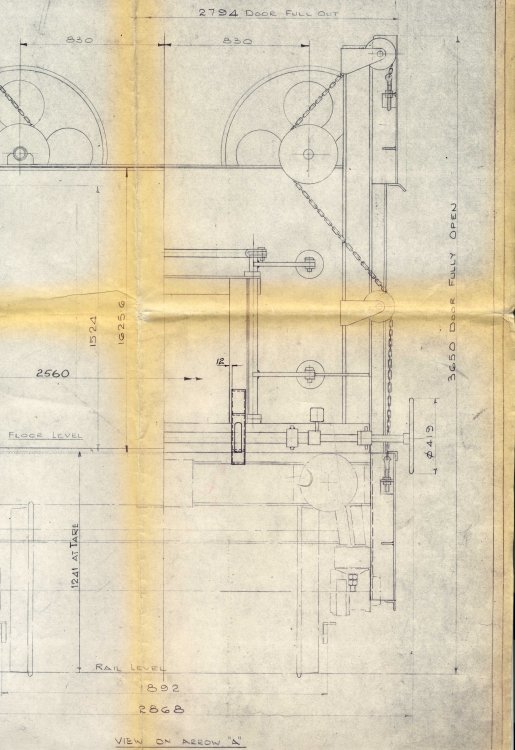

Georgeconna Posted December 22, 2017 Author Share Posted December 22, 2017 (edited) Oh wow, just what the Doctor ordered When looking at this no chain actually goes around the Large wheels at the other end? Ever in Debt! tks Much. Edited December 22, 2017 by Georgeconna Quote Link to comment Share on other sites More sharing options...
Mayner Posted December 22, 2017 Share Posted December 22, 2017 I once had a copy of the Weekly Notice that had the operating instructions for loading/unloading these wagons. The wagons were originally built with vertical balanced doors operated by a chain and pulley arrangement as modern freight curtains had not been invented. The big wheels were part of a hand operated chain and pulley system for opening the doors. The big wheels were chain operated by a Depotman from ground level in a similar way to a block and tackle hoist or a roller shutter door. The big wheels transferred motion to the pulley drive shafts on top of the wagon and simultaneously raised and lowered to top and bottom sections of the door. The chains at the operators end was draped around the big wheel and hung loosely below solebar level. The handwheel and lever arrangement through the bulkhead at the opposite end of the wagon was part of the load restraint system. These wagons would be a nice challenge to IRM especially if they had working doors 2 1 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted December 22, 2017 Share Posted December 22, 2017 19 hours ago, Mayner said: These wagons would be a nice challenge to IRM especially if they had working doors No pressure, Glenderg and Garfield! :-) 1 1 Quote Link to comment Share on other sites More sharing options...
Garfield Posted December 23, 2017 Share Posted December 23, 2017 3 hours ago, jhb171achill said: No pressure, Glenderg and Garfield! :-) Pressure is for tyres, JB! 2 Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted December 23, 2017 Share Posted December 23, 2017 16 minutes ago, Garfield said: Pressure is for tyres, JB! No, no, Garfield! It's for steam engines! 1 Quote Link to comment Share on other sites More sharing options...
Noel Posted December 23, 2017 Share Posted December 23, 2017 5 hours ago, jhb171achill said: No, no, Garfield! It's for steam engines! An esteemed member of this forum asked me why I wanted a "kettle" when I informed him I was planning to run a GSWR steam loco? Quote Link to comment Share on other sites More sharing options...
jhb171achill Posted December 23, 2017 Share Posted December 23, 2017 Was it Garfield? ;-) Quote Link to comment Share on other sites More sharing options...
Irishrailwayman Posted December 23, 2017 Share Posted December 23, 2017 5 hours ago, Noel said: An esteemed member of this forum asked me why I wanted a "kettle" when I informed him I was planning to run a GSWR steam loco? As opposed to an "oil burner" for a diesel outline... 1 Quote Link to comment Share on other sites More sharing options...
