Georgeconna Posted August 13, 2020 Share Posted August 13, 2020 (edited) Hi Folks, Kinda wanted a rest from Modelling due to many failures with painting and Family taking up a lot of my time but the big 50 hit the other week and the folks kindly bought me this as a pressie. The ol fella prefers giving something physical than cash. (would of been handy for A Class or 6!) Any way the yoke is big, Maybe too big but I'll give it a go. I need to plan this one carefully due to limited access with the narrow superstructure so that presents a fairly big challenge along with quite a bit extra to buy to get it over the line. For a start I've run some P38 car filler around the Bulwarks and these need to be sanded smooth at some stage when I can be bothered to go shopping for Sand Paper. Pictures below in the sitting room, no comments about the curtains please Dave. Cheers George Edited September 26, 2020 by Georgeconna 4 1 1 Quote Link to comment Share on other sites More sharing options...
popeye Posted August 13, 2020 Share Posted August 13, 2020 You could sit in it or use it for a bath. That will keep you busy till your 100th Birthday. 1 Quote Link to comment Share on other sites More sharing options...

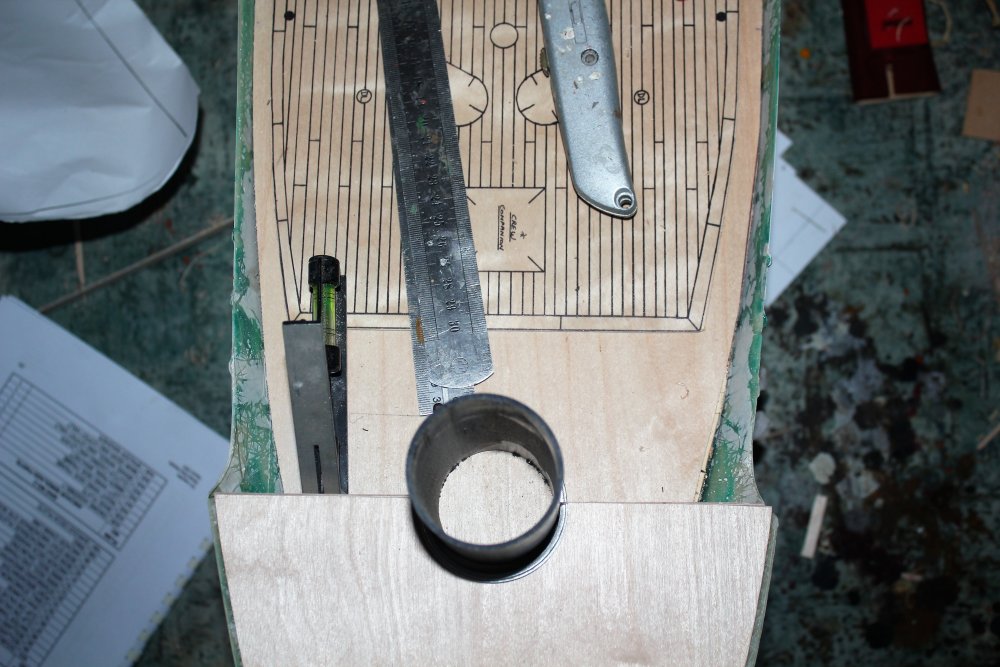

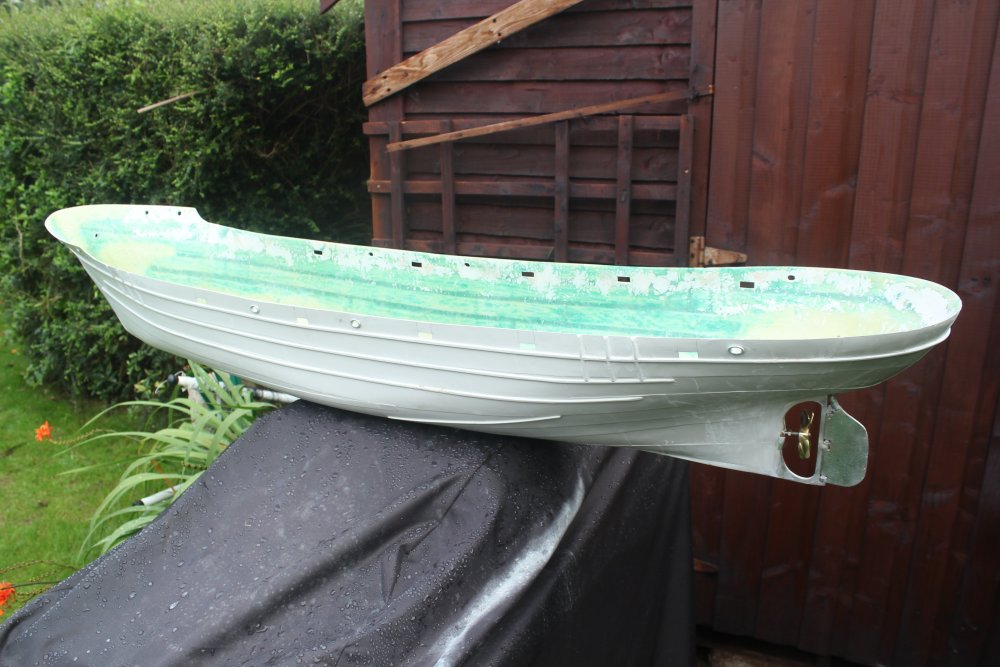

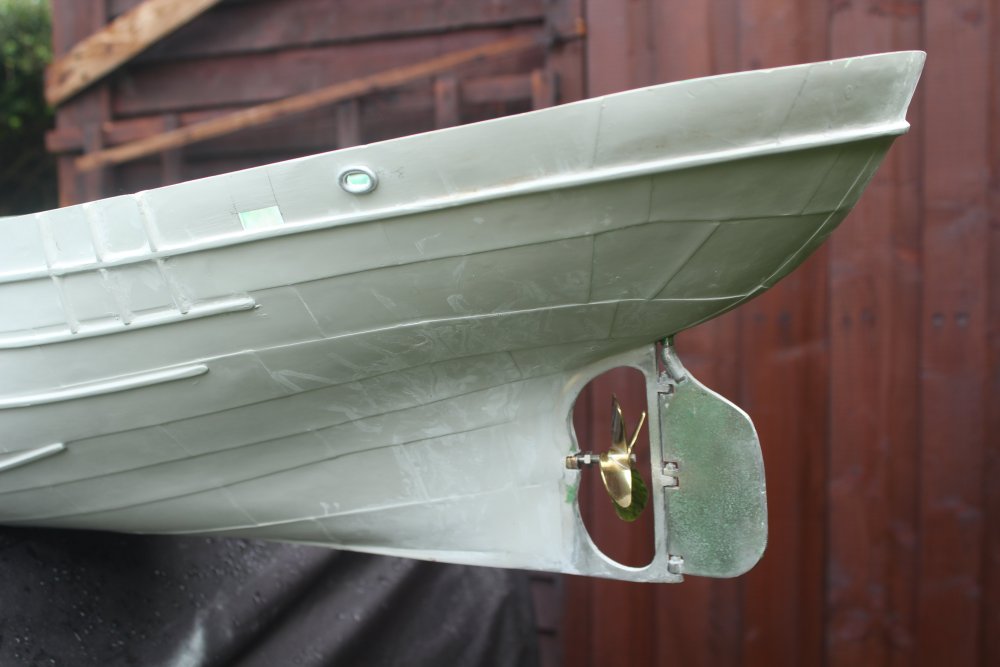

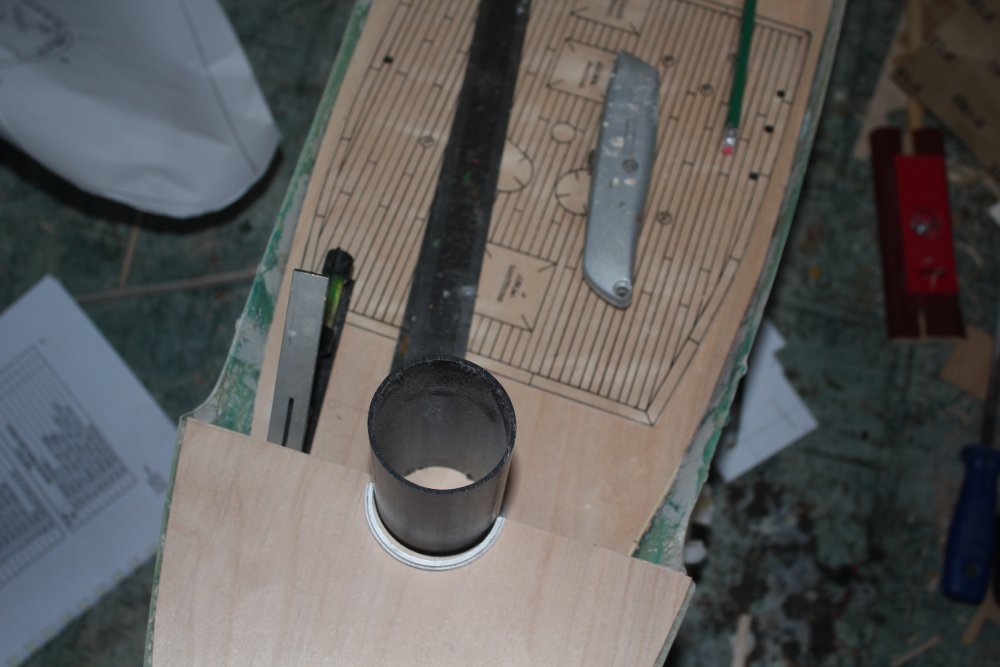

Georgeconna Posted September 1, 2020 Author Share Posted September 1, 2020 Managed to kick this into gear over the past 2 weeks, P38 car filler used around the Bulwarks and sanded smooth, the Deck drainage holes and the prop shaft hole drilled and filed out, the Skeg and rudder are put on and fill used to blend the whole lot in and again sanded along with the white metal rope and Anchor eyes. Now waiting for a motor and universal coupling to arrive in the post and I can set the prop shaft in for good. 4 Quote Link to comment Share on other sites More sharing options...

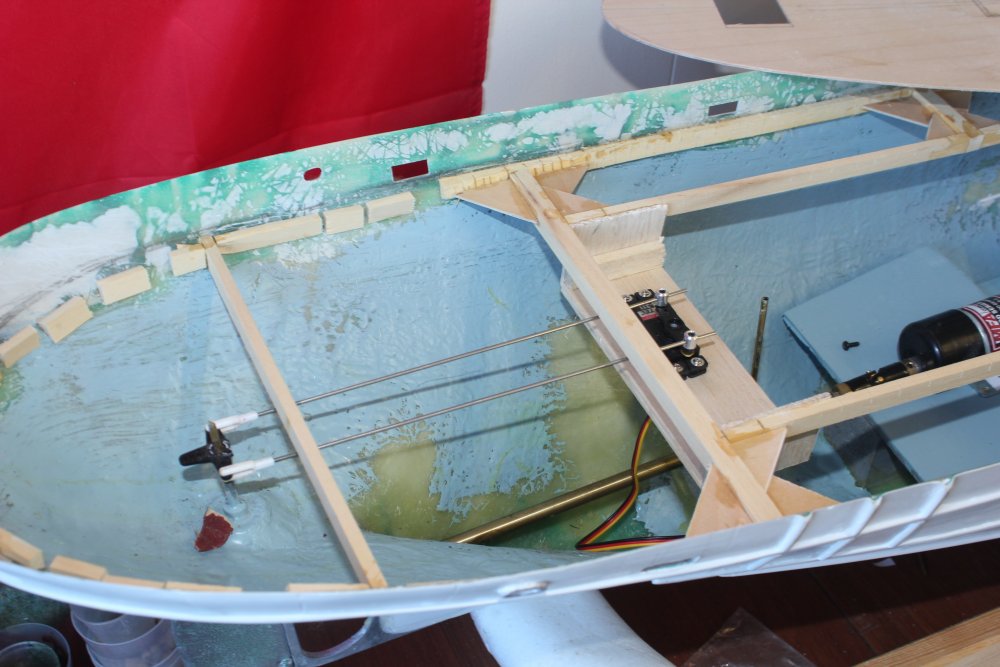

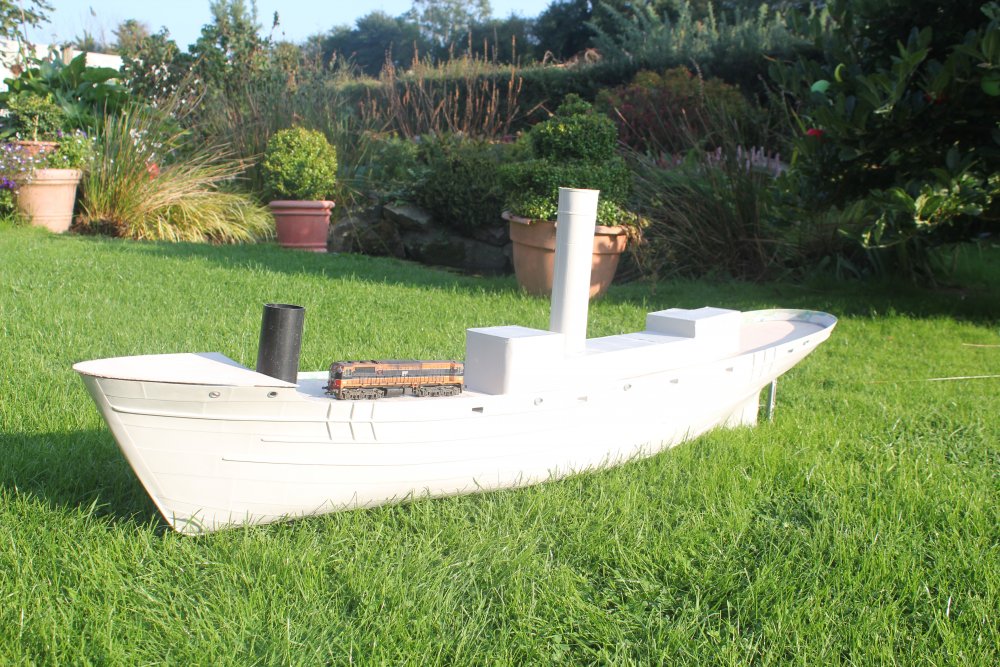

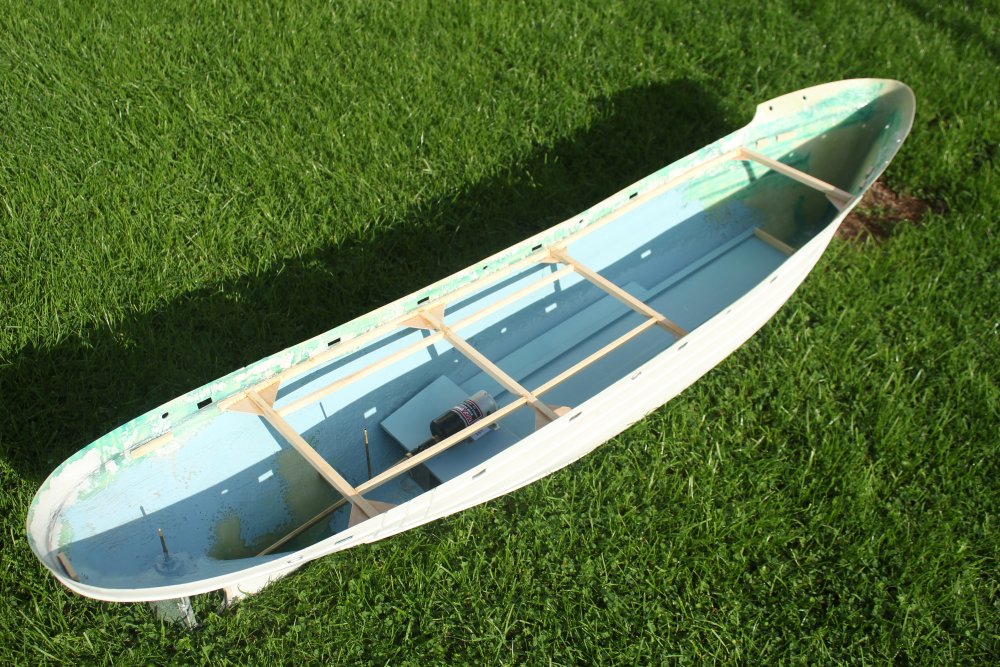

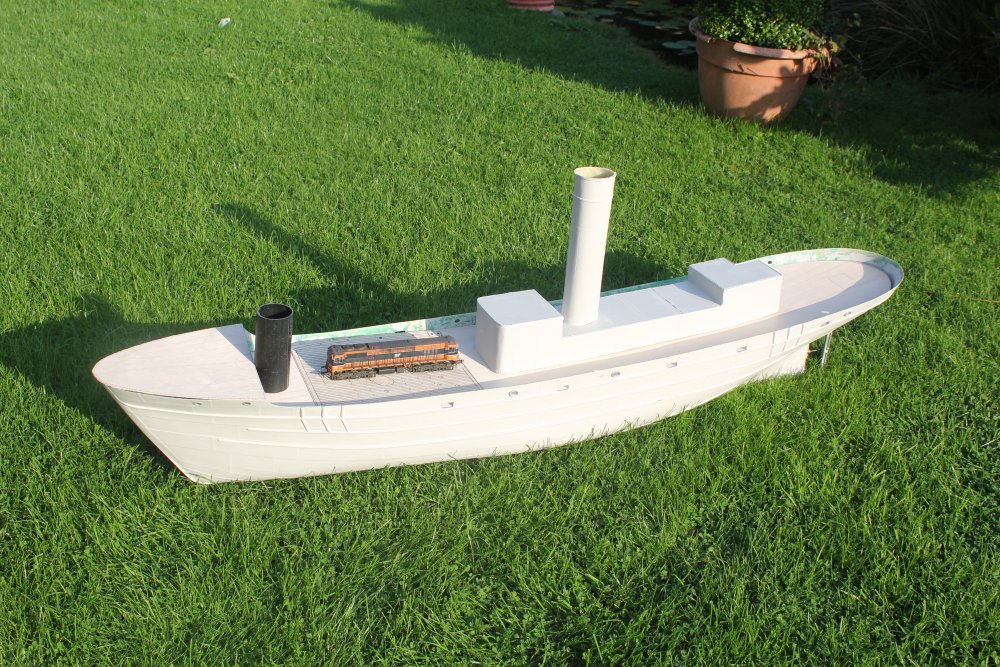

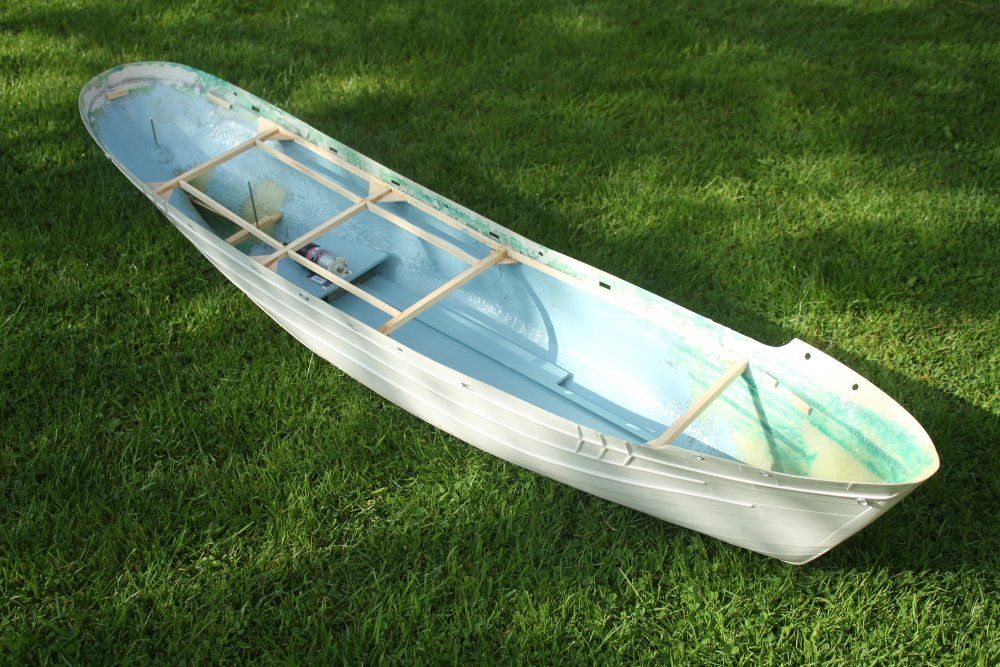

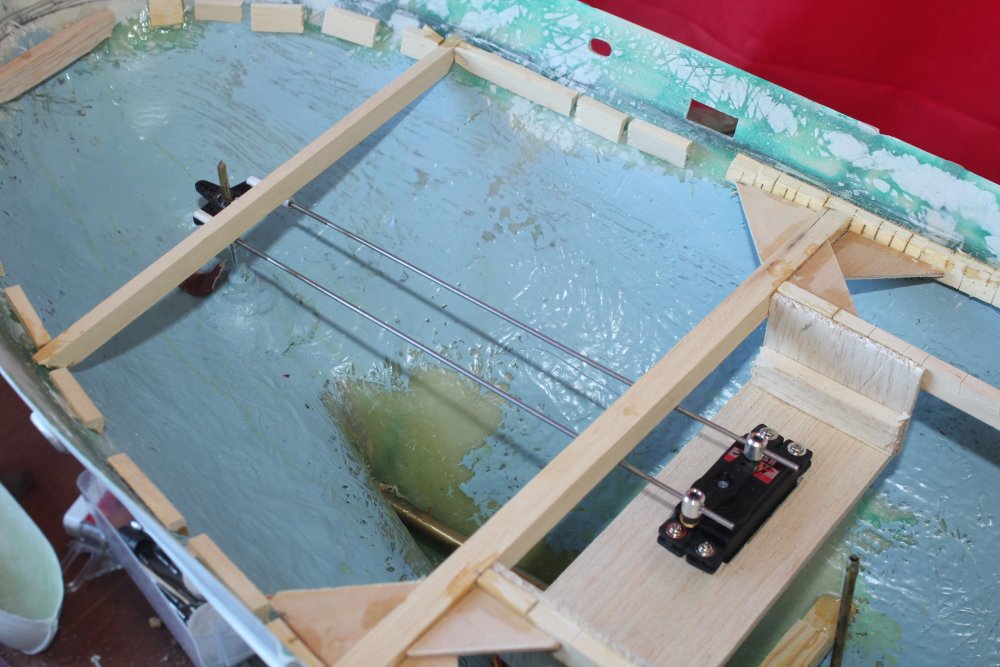

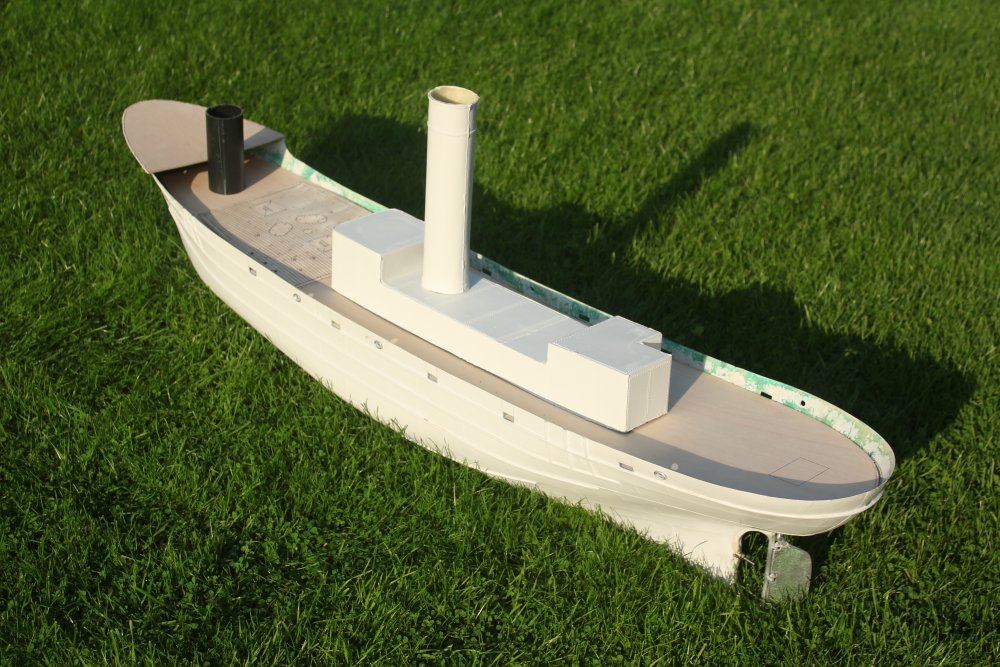

Georgeconna Posted September 18, 2020 Author Share Posted September 18, 2020 Rumbling along on this one, most of the work being done outside as the model is so big. Deck supports mostly in, Motor and shaft Secured, Battery and weight tray has been made, I will be able to slide batteries along this using the guides on each side. Deck and superstructure just plonked on for a test fit. Note the 071 for Size comparison 6 Quote Link to comment Share on other sites More sharing options...
popeye Posted September 18, 2020 Share Posted September 18, 2020 The 071 looks great and so does the grass. Oh and the boat is really nice and big. Quote Link to comment Share on other sites More sharing options...

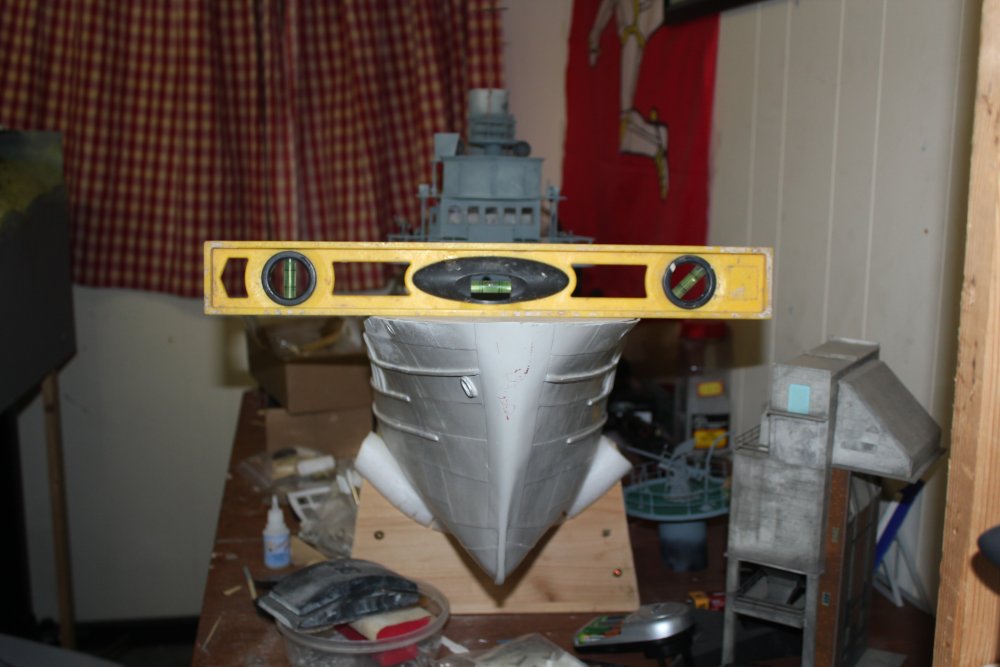

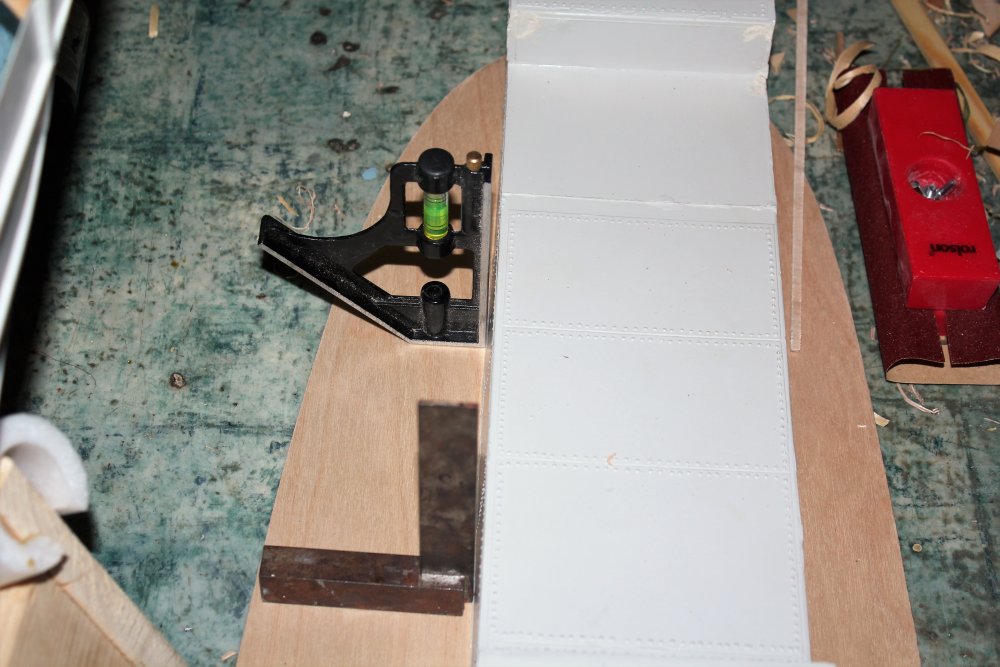

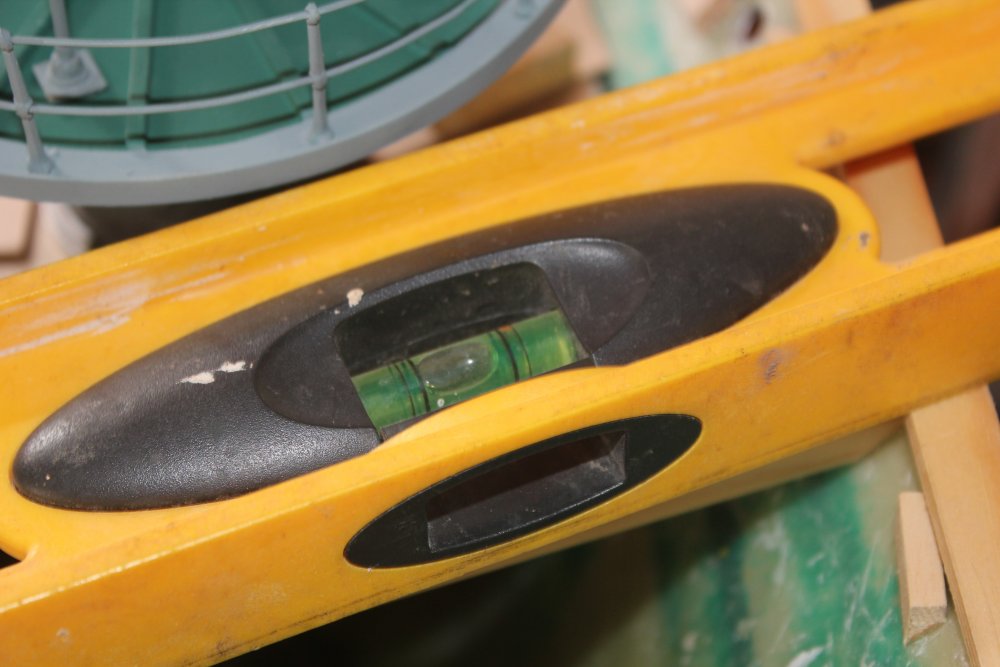

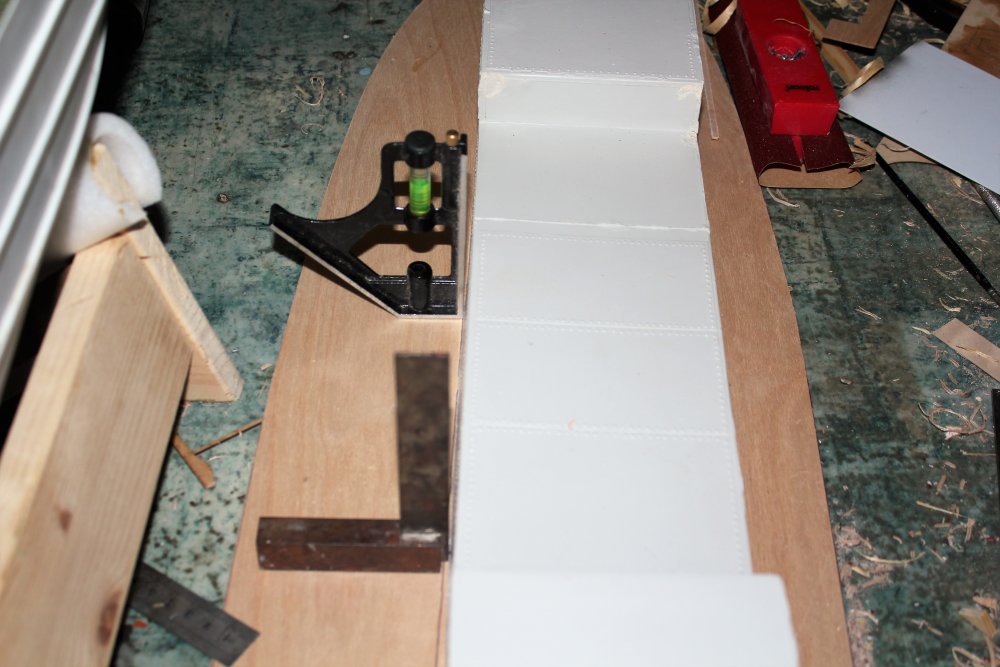

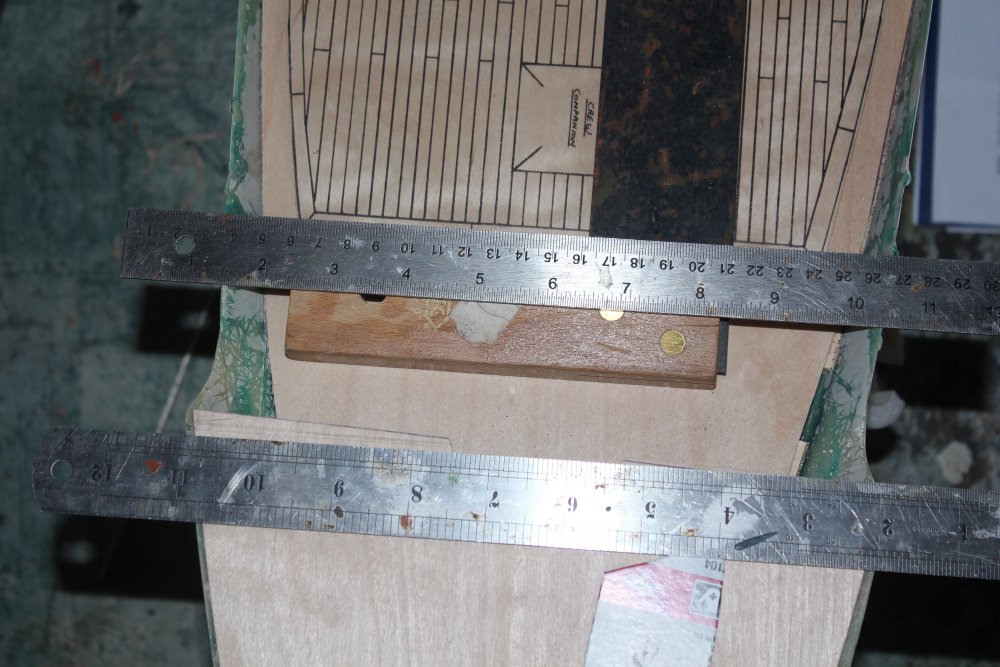

Georgeconna Posted September 26, 2020 Author Share Posted September 26, 2020 Hi Lads, while me 121 is busy running in I thought I might update this. Tipping along on this one and I noticed that the hull is not symmetrical, there is a about a 5mm difference and you can see this here with the ruler, after some thought I decided to re profile one side with a file to it would be square to the other. being a boat and you can only see one side the difference should not be too noticeable, not much I can do about it any how. I was just about to cut the access hatch for the main deck bit also notice on side of the fiberglass superstructure is splayed out about 4mm, I will have to think about how to fix this now next, Will it be surgery or a simple brace but I will have a combing in place so a brace may not be possible. Arse anyway, 5 1 Quote Link to comment Share on other sites More sharing options...
Georgeconna Posted November 8, 2020 Author Share Posted November 8, 2020 Bit more work done over the past weeks. Some Short shot Bits that needs some brass pin a some rework. pretty Pleases the way the Wood went around the curves on the compass deck! 5 Quote Link to comment Share on other sites More sharing options...

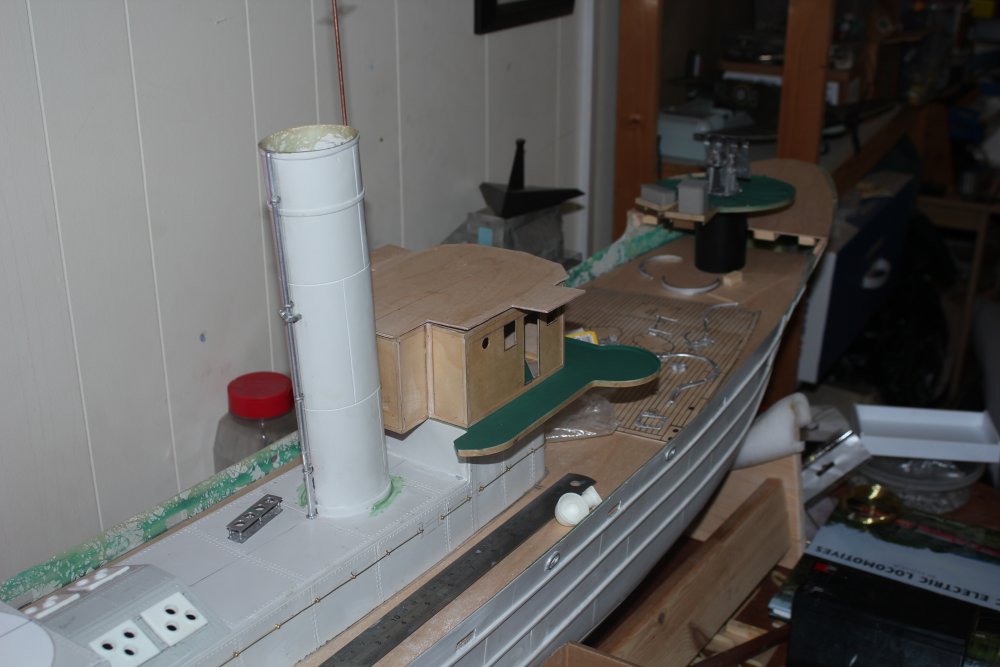

Georgeconna Posted November 17, 2020 Author Share Posted November 17, 2020 Small bit more done over the past while, Taking a bit of shape now! Cabin done and compass deck starting to take shape now. 5 1 Quote Link to comment Share on other sites More sharing options...

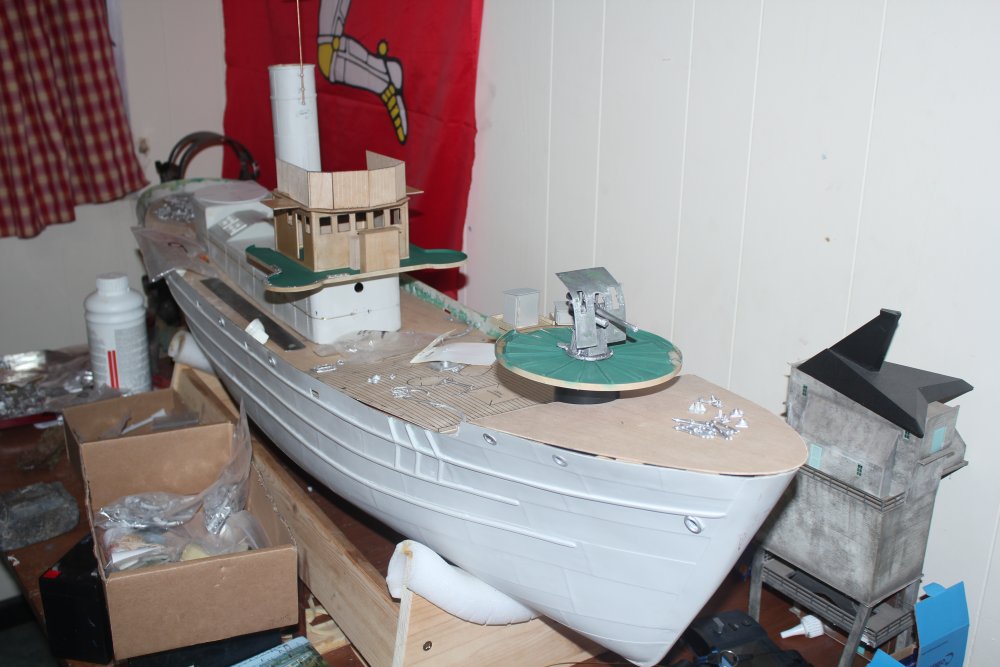

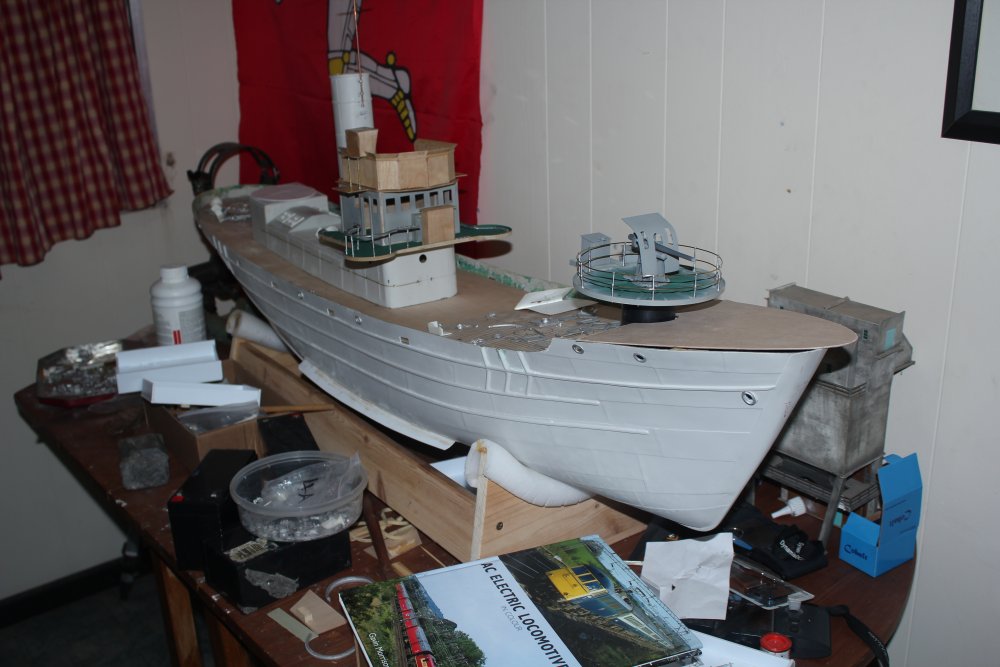

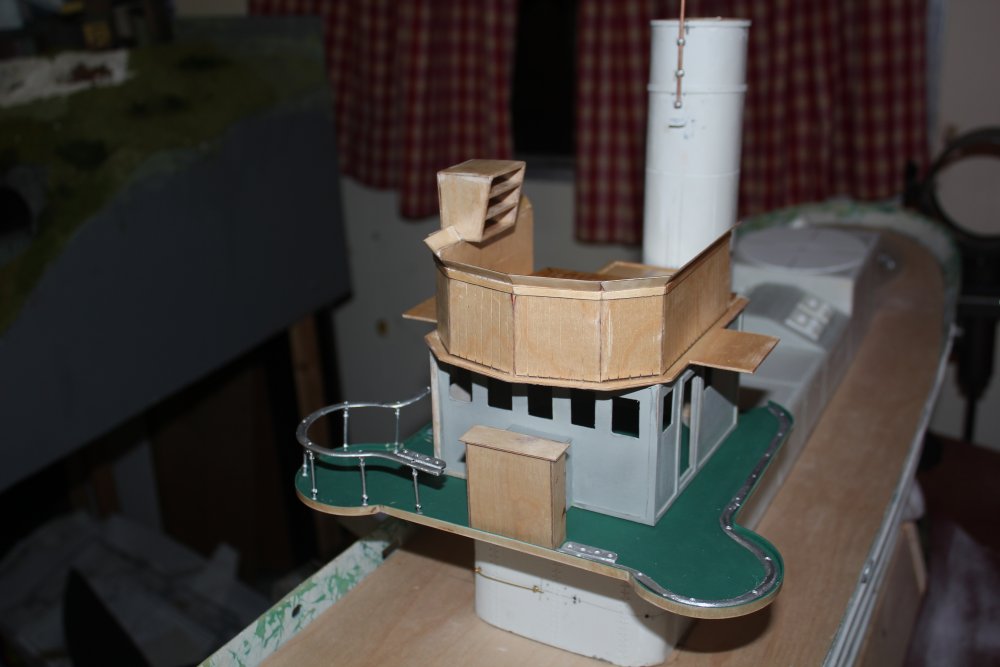

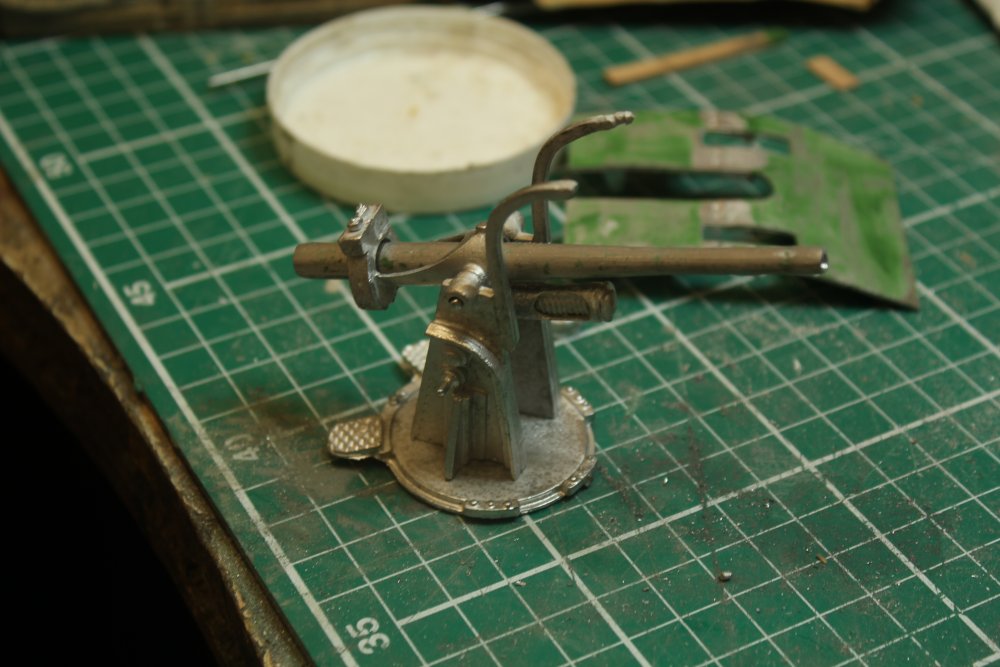

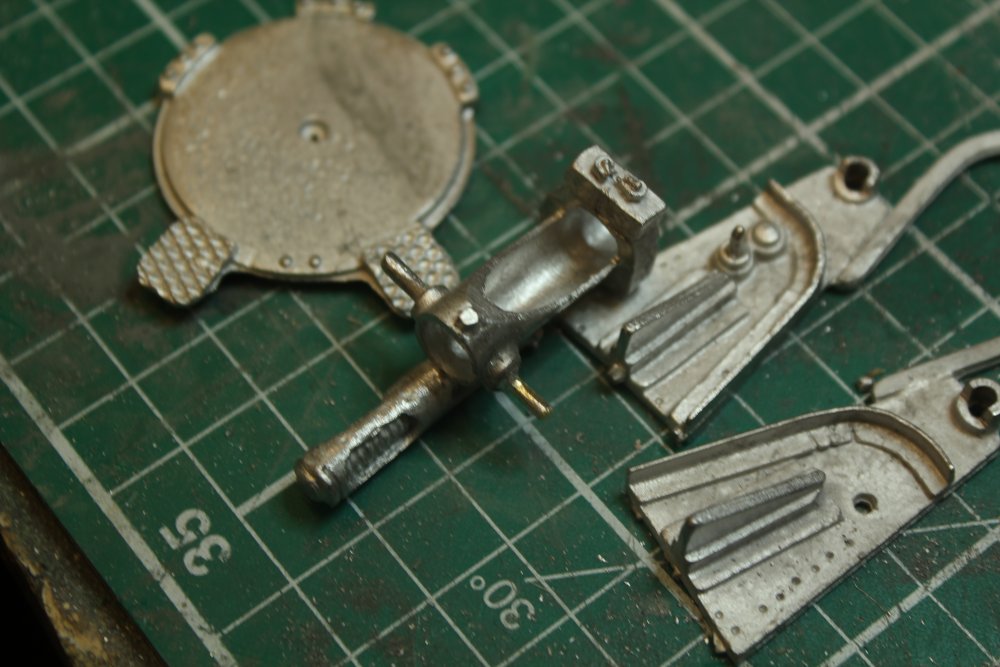

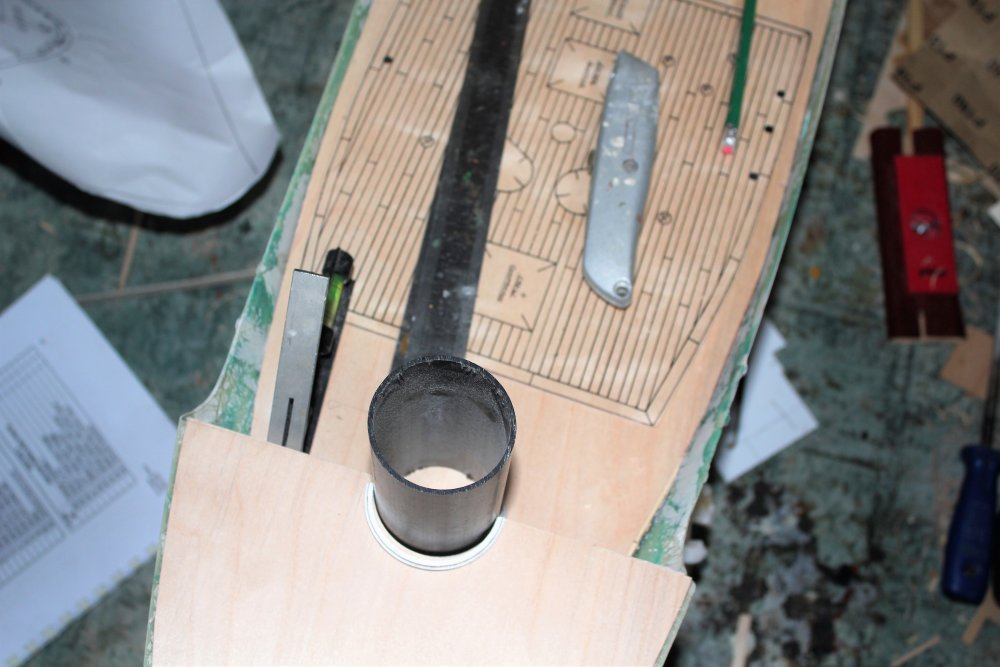

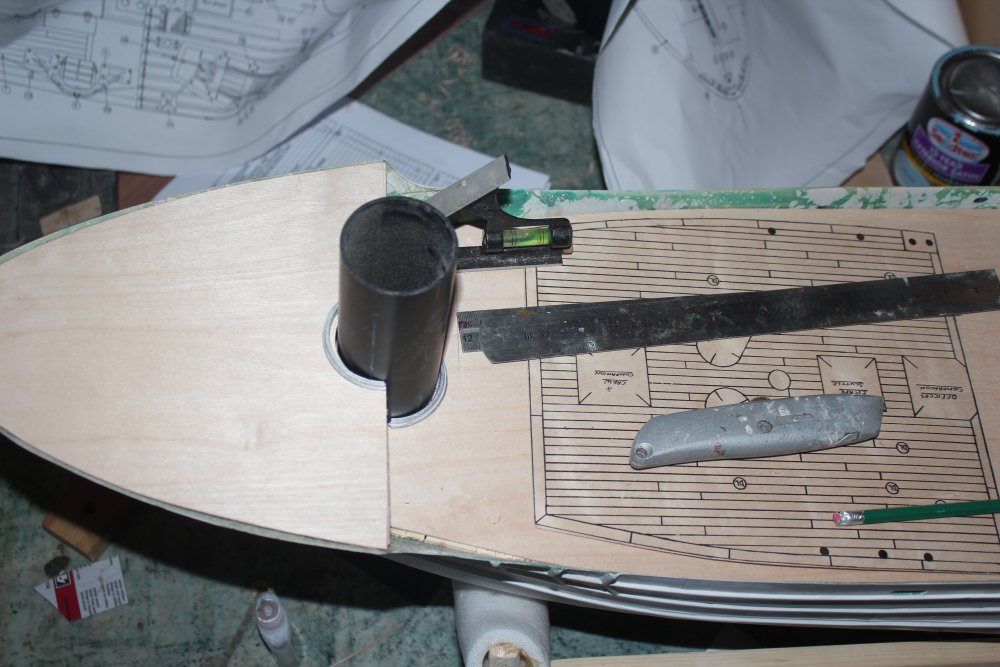

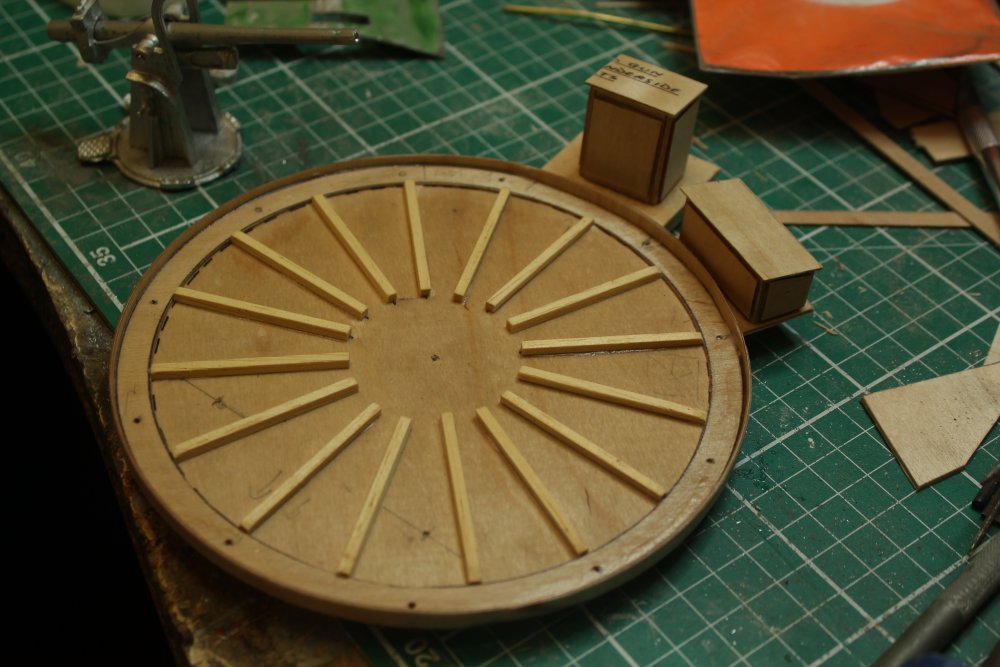

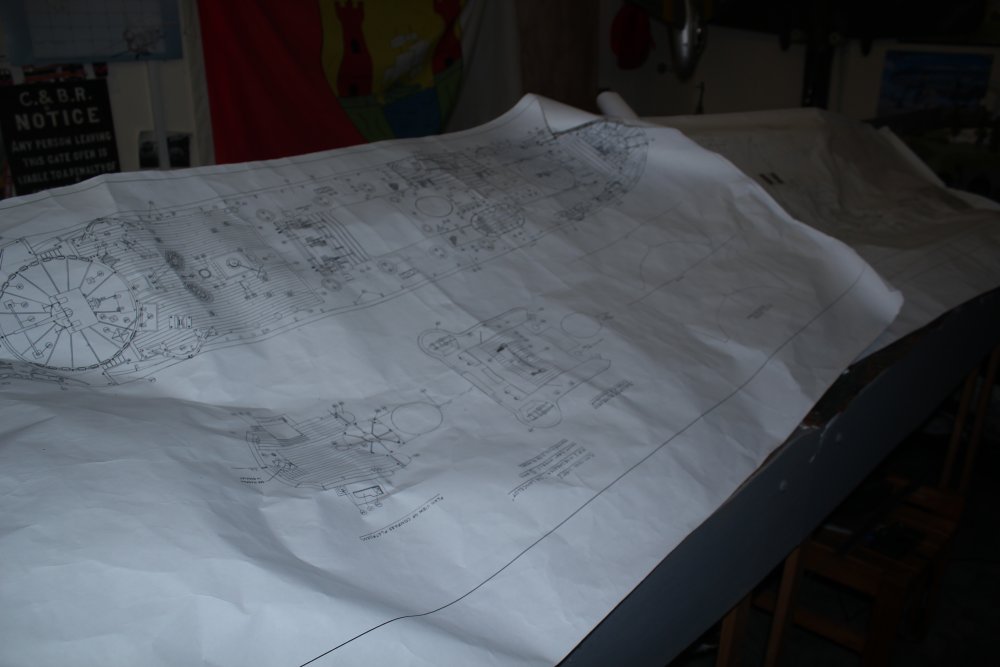

Georgeconna Posted December 4, 2020 Author Share Posted December 4, 2020 Still Waiting for the Sound unit so the deck cant be glue down, The Compass deck is mostly built, Need to put on another coat of paint and the windows and doors, The bridge about is made up along with the Bilge keels. White strips on side of hull, The plans along are 12ft long! The Font Gun platform Railings went on during the week. Some little issues when you cut out the printed sections and make them the end result ends up wrong, IE the Flag box on the green platform is too small and should but up against metal hand rails so will have to cut out and built correctly. Time to get the Gluhwein out. Tis Cold enough Brrrr. 8 1 Quote Link to comment Share on other sites More sharing options...
Robert Shrives Posted December 6, 2020 Share Posted December 6, 2020 Looking good - a slow correcting build can be more fun that a drops together. The gun should scare the local ducks on the pond! Not sure the research book will help much with this one. The wine should help iron out defects after a couple of glasses.. 2 Quote Link to comment Share on other sites More sharing options...

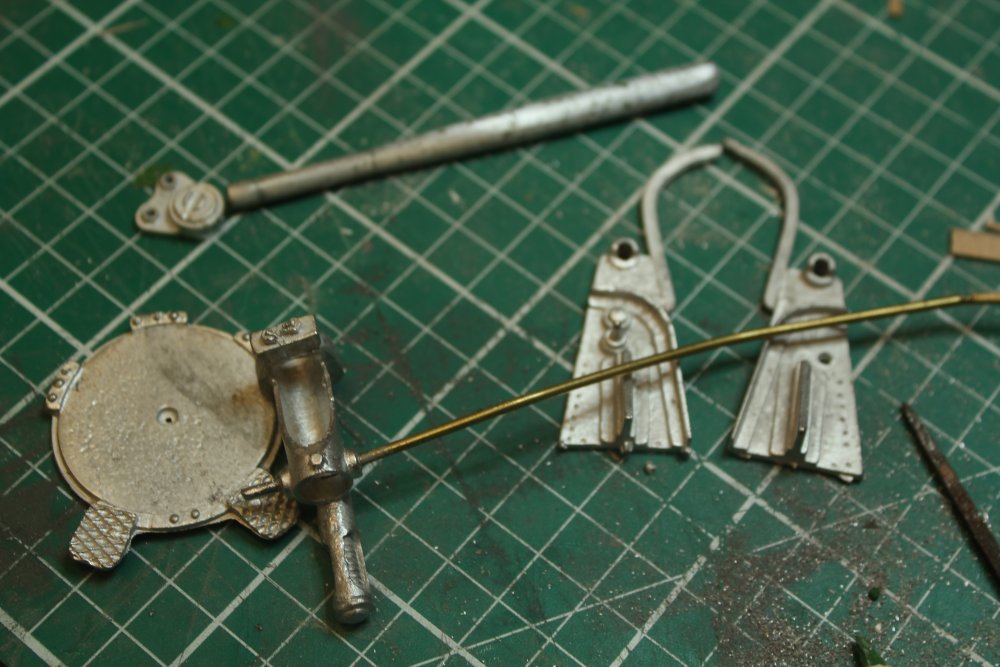

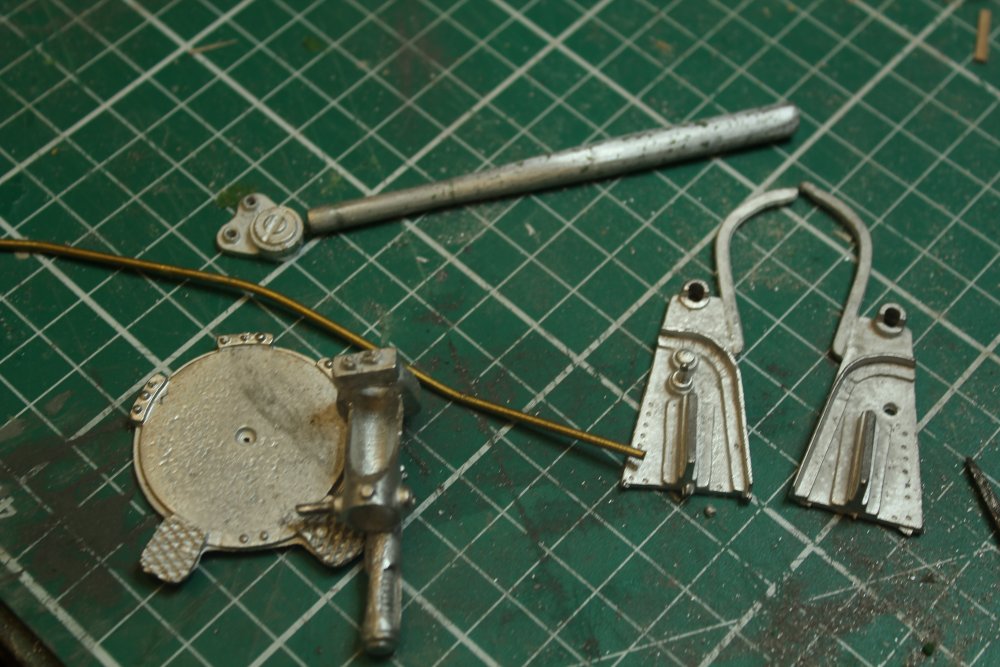

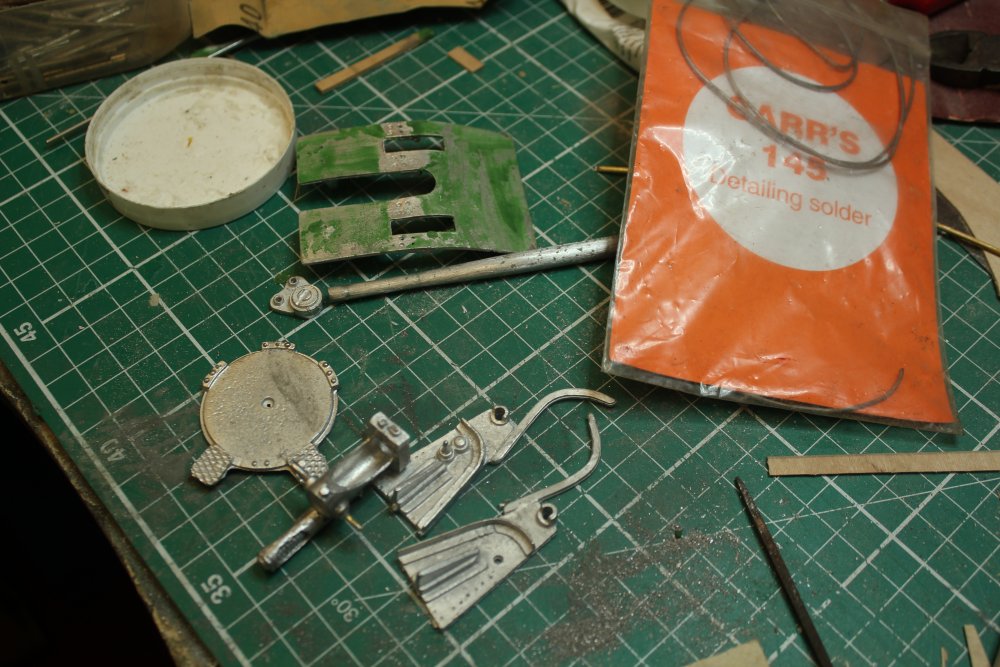

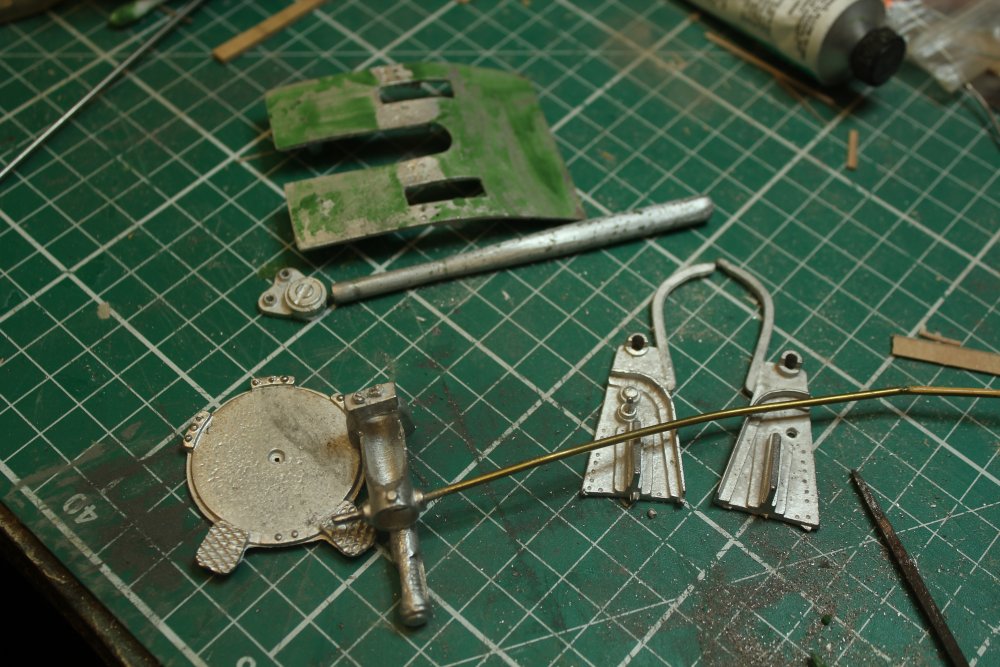

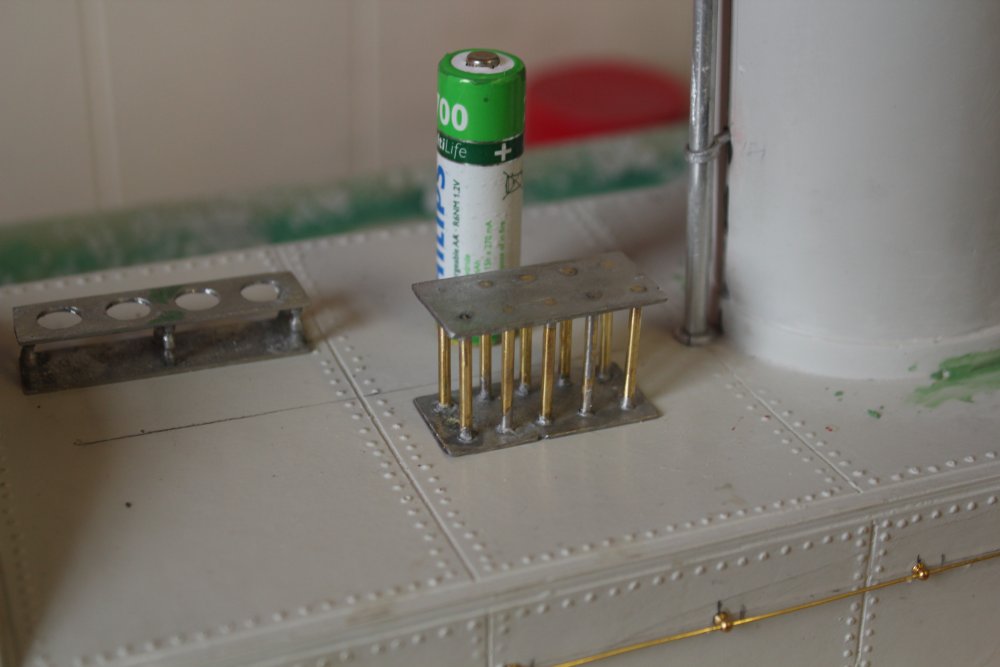

Georgeconna Posted January 27 Author Share Posted January 27 (edited) Not quite hitting the quite yet, Still waiting to stick the decks down as I am waiting for the sound unit for the past 3 months Also it been flipping Baltic in the shed these past weeks so not even venturing out much. Bit Mild last night so managed to escape and spent 1.5 hours soldering up the 1 life belt rack, Brass rod cut up to 25mm lengths and white metal top and base. Wooden top to be cut next. The Lifebelts go in between the brass rods. Edited January 27 by Georgeconna 7 Quote Link to comment Share on other sites More sharing options...
Galteemore Posted January 27 Share Posted January 27 Nice work George. Something deeply satisfying about a nice soldered fabrication job like that. 1 Quote Link to comment Share on other sites More sharing options...

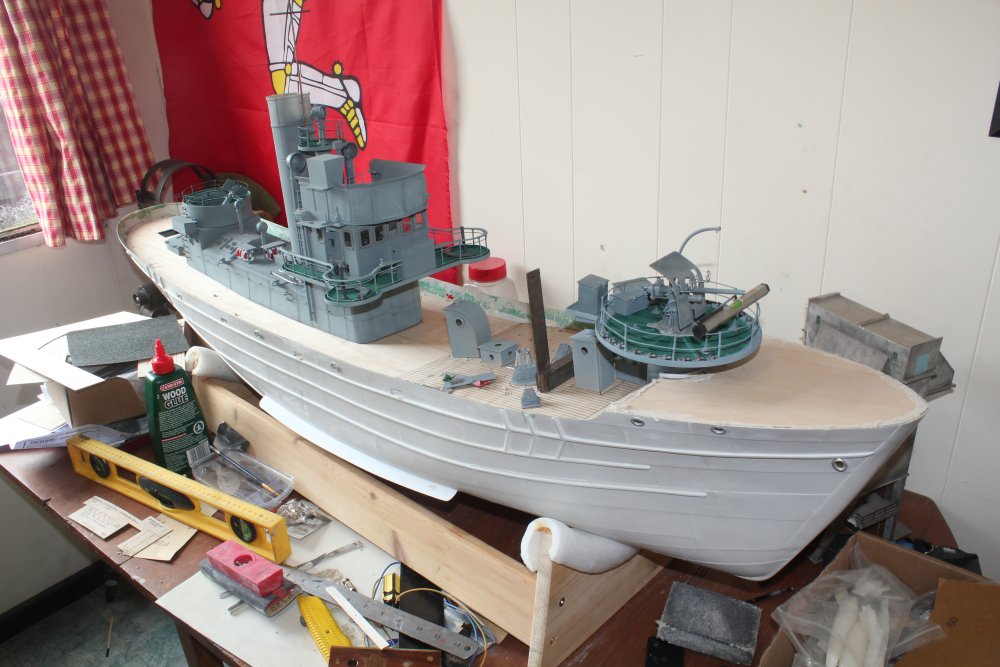

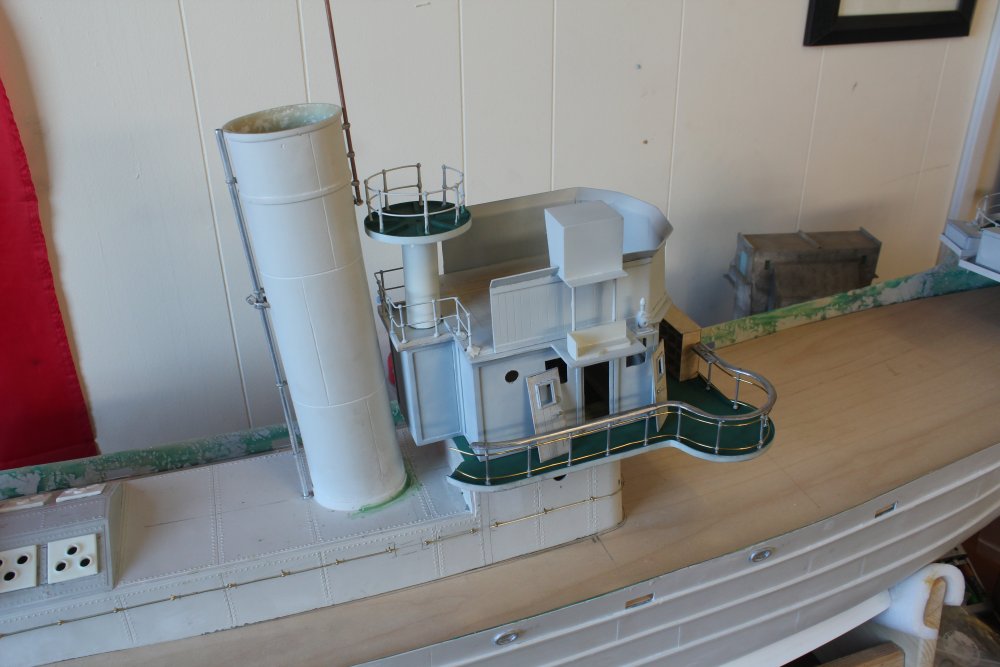

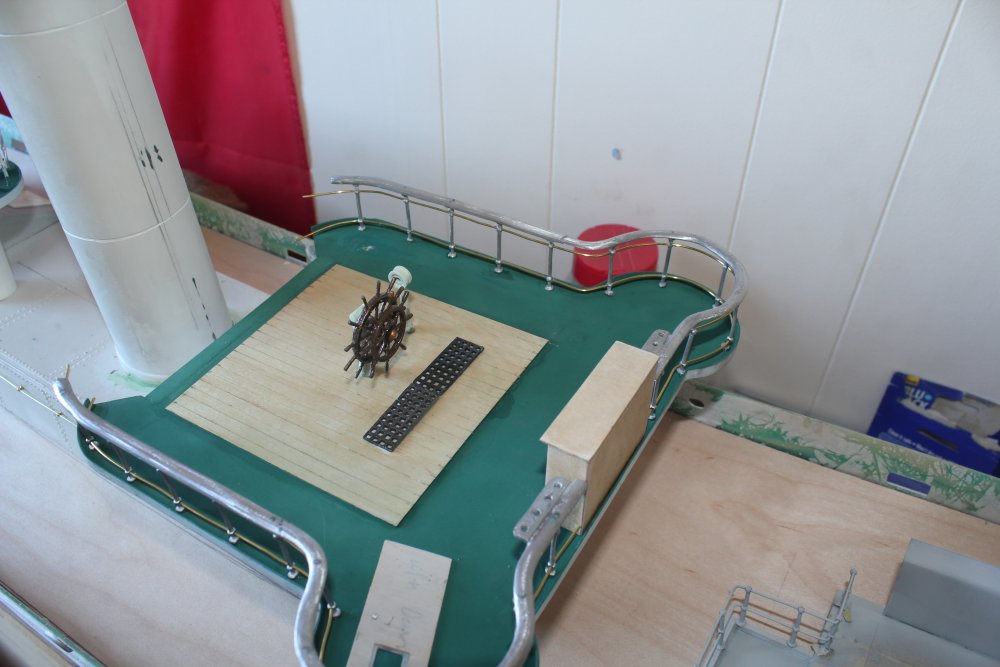

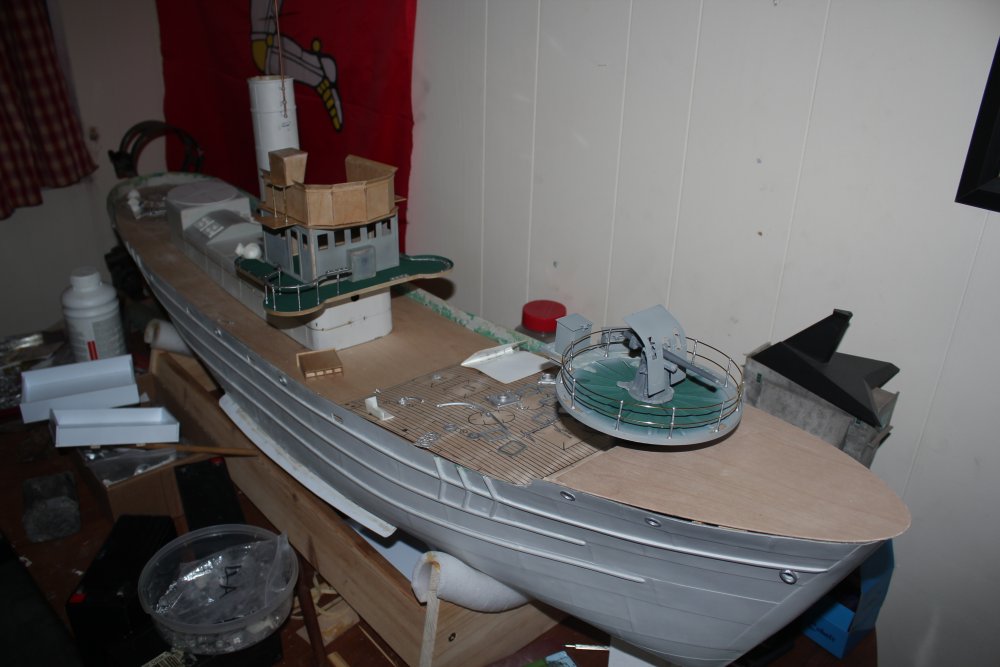

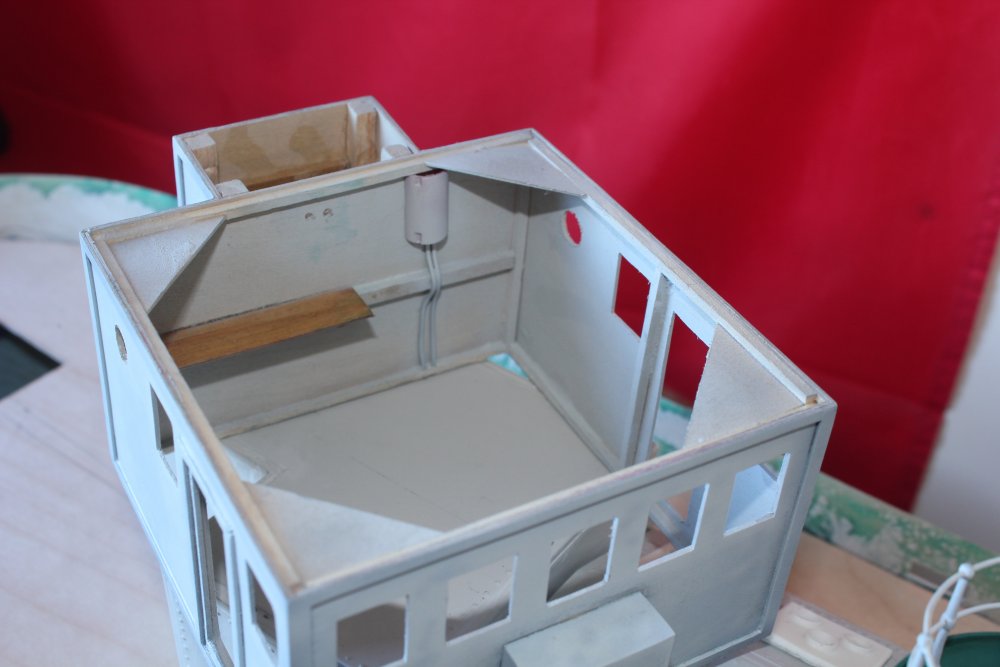

Georgeconna Posted March 19 Author Share Posted March 19 Slowly working away on this now the nights are a bit warmer! Tried a few different grey paint on this one and will settle of the grey shown here. I have put down a floor and scribed the floor boards on the ply and the Steering wheel and Steam powered wheel is installed and I will add some details in the wheel house walls to add a bit of interest not that there was much in there anyhow! The Hand Rails took flipping ages to get right, Lots of curves and bends plus the White metal handrails were pretty badly molded. A new Flag locker was made as the one laid out on the plans was too small. I either did not get the white metal steering arm or lost it so a plastic one was attached to the Rudder post, Hope it holds! The Searchlight platform was also constructed. 6 4 Quote Link to comment Share on other sites More sharing options...
murrayec Posted March 19 Share Posted March 19 Amazing George, I was wondering about progress..... Eoin Quote Link to comment Share on other sites More sharing options...
popeye Posted March 19 Share Posted March 19 Beautiful, the hand rails make all the difference. 1 Quote Link to comment Share on other sites More sharing options...

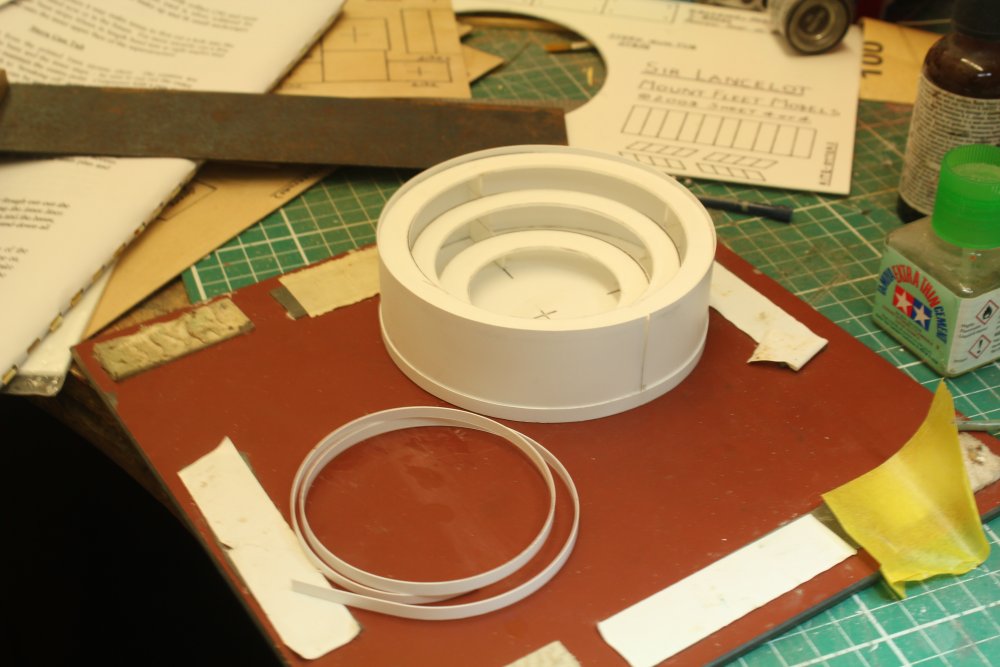

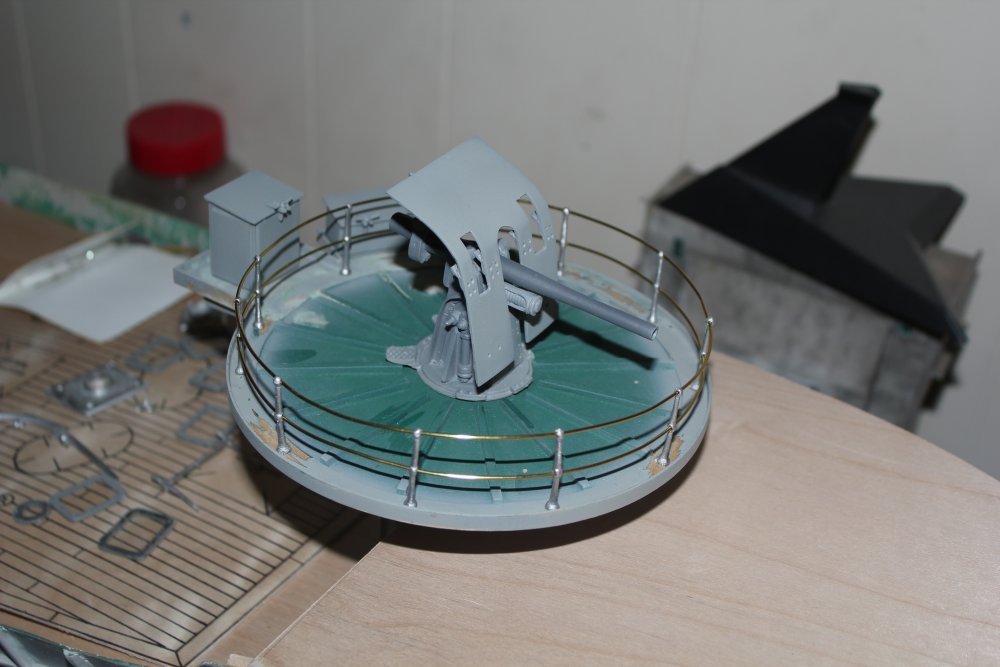

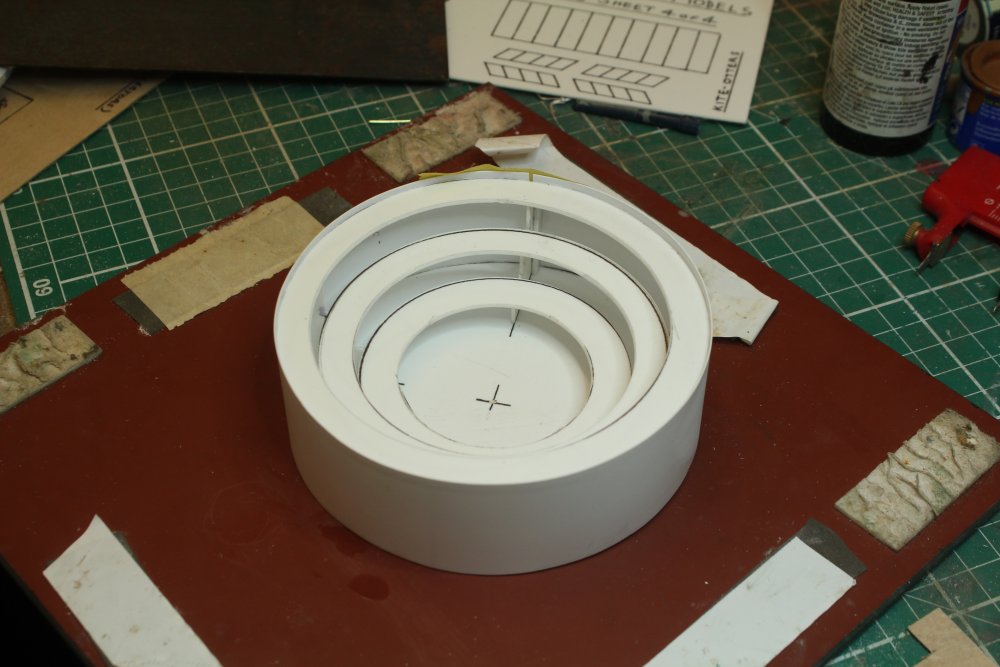

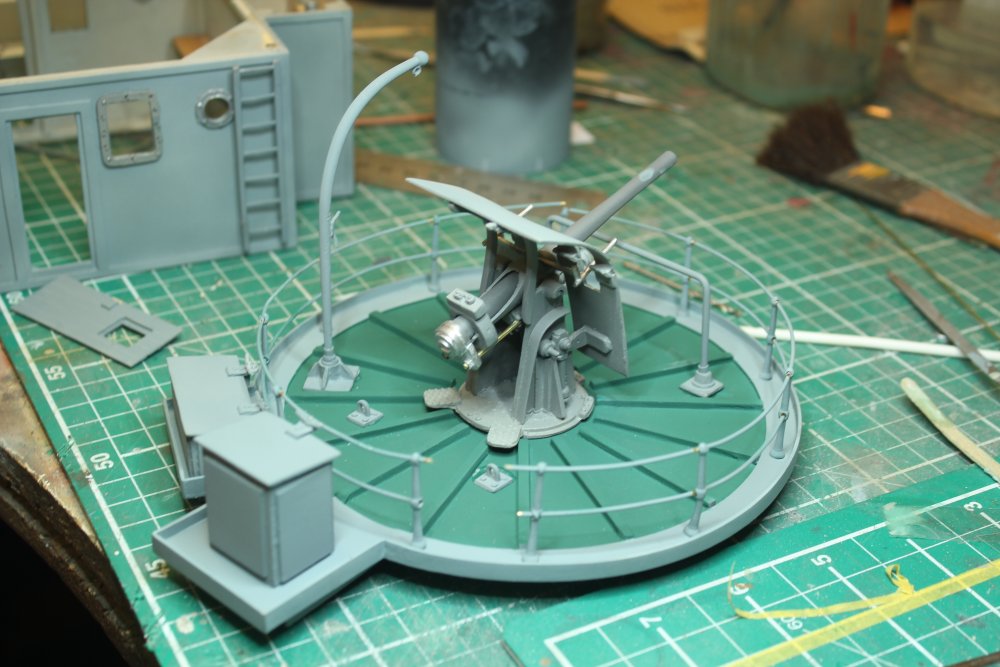

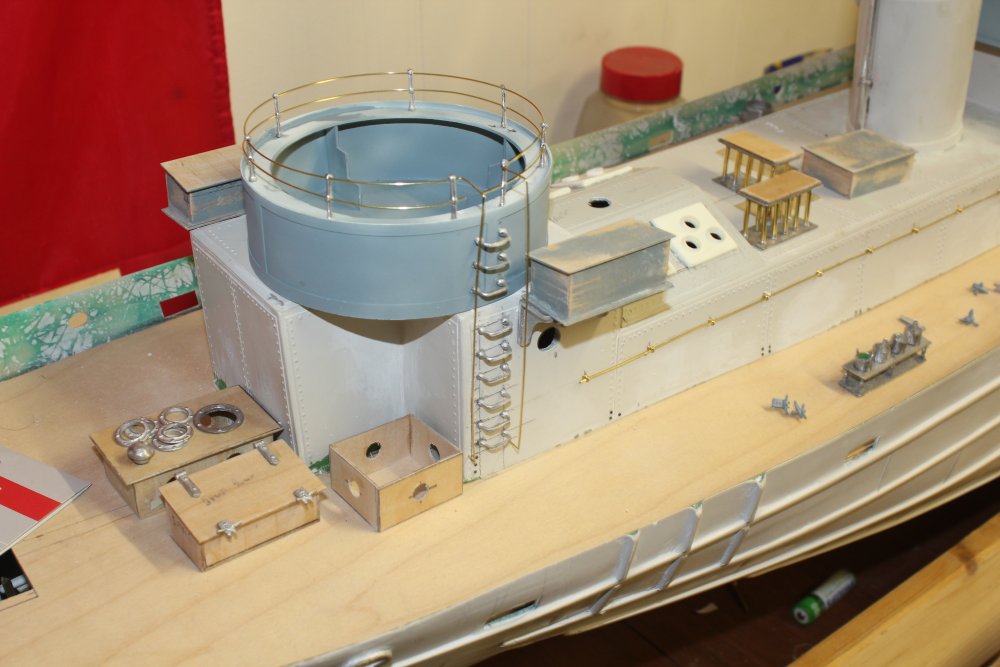

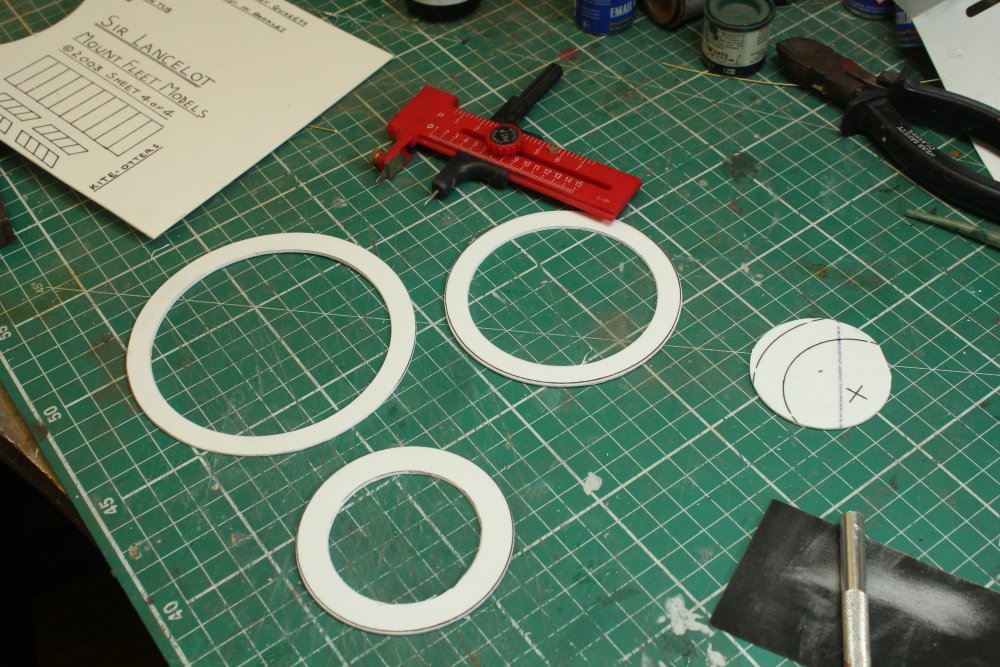

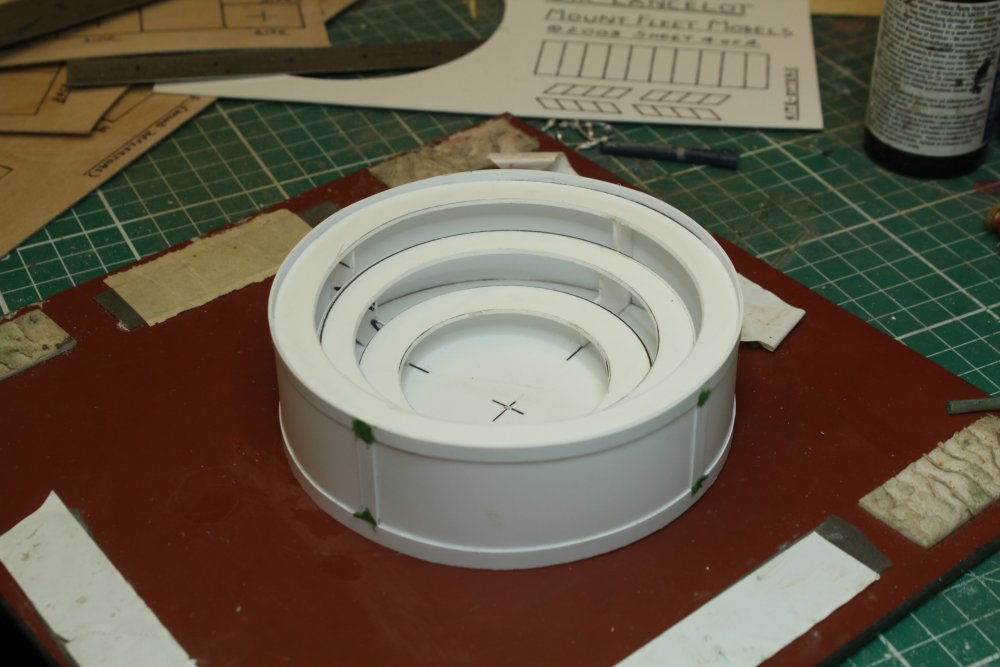

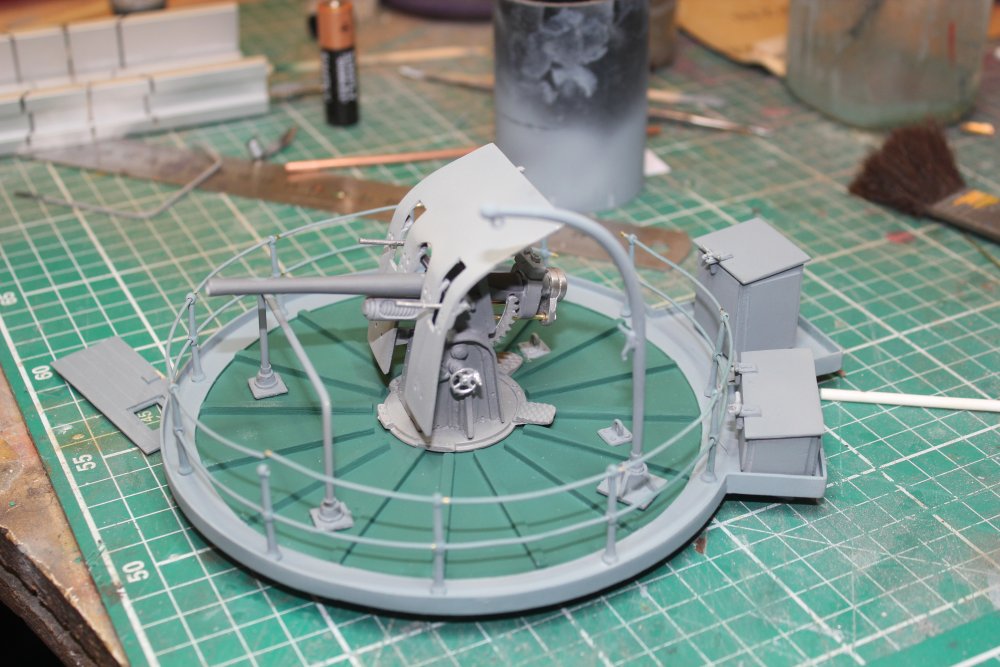

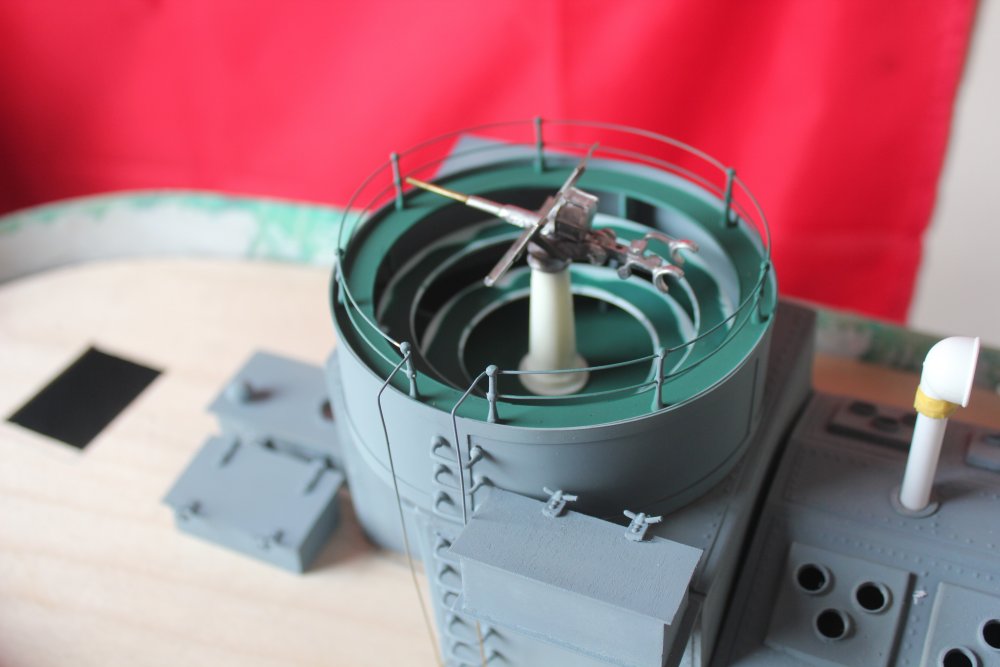

Georgeconna Posted March 21 Author Share Posted March 21 (edited) Reporting from the Man Cave, Bit more done over the last day and a half. Stern Gun Tub is built and some Ammo Lockers. Edited March 22 by Georgeconna 5 Quote Link to comment Share on other sites More sharing options...
Galteemore Posted March 21 Share Posted March 21 Nice work George - what material is gun tub made out of ? Quote Link to comment Share on other sites More sharing options...

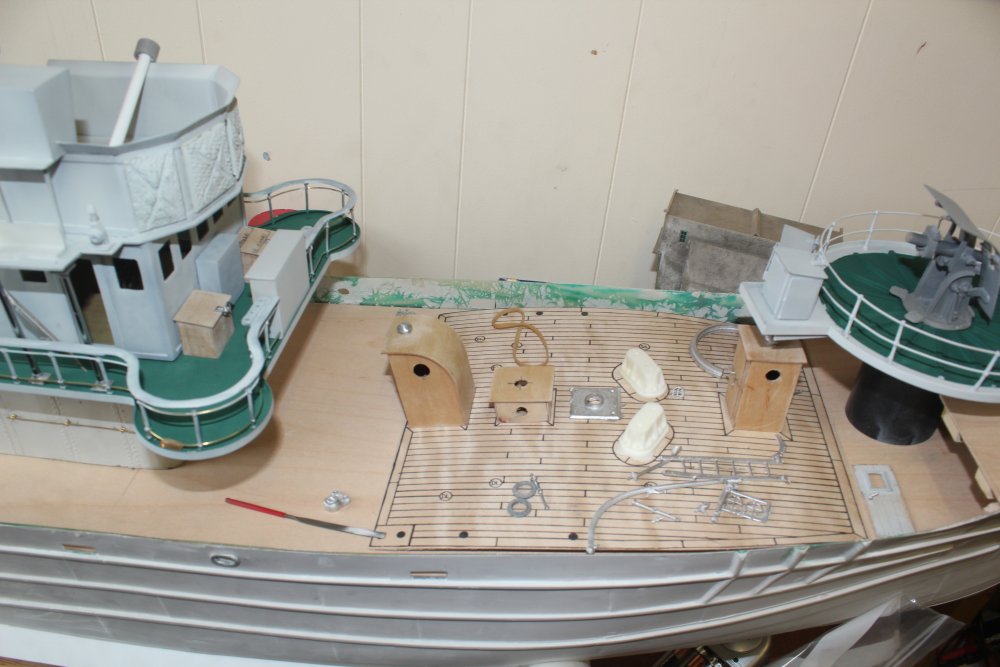

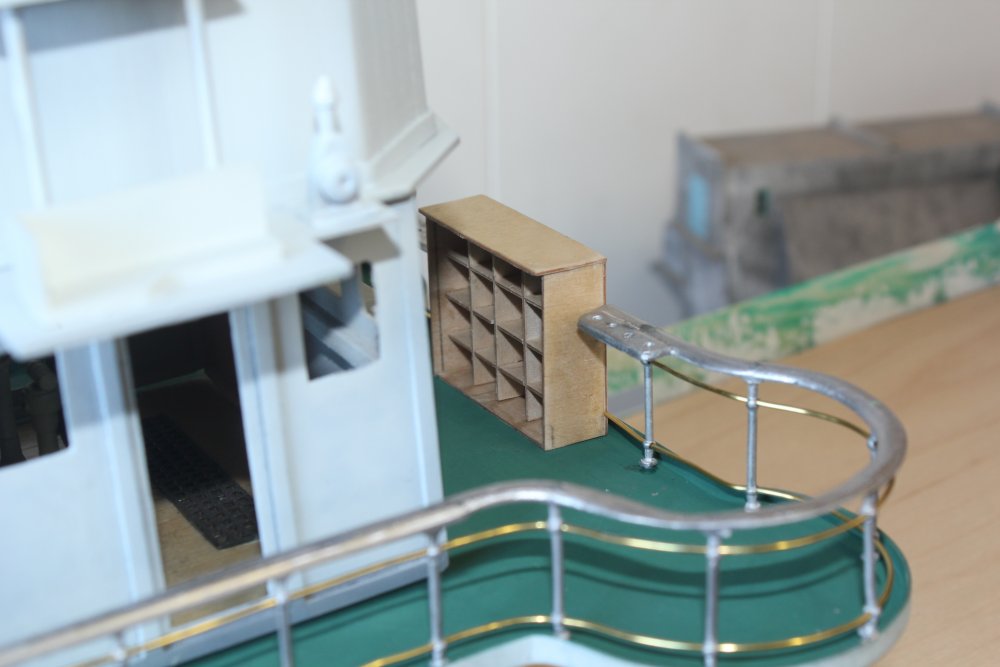

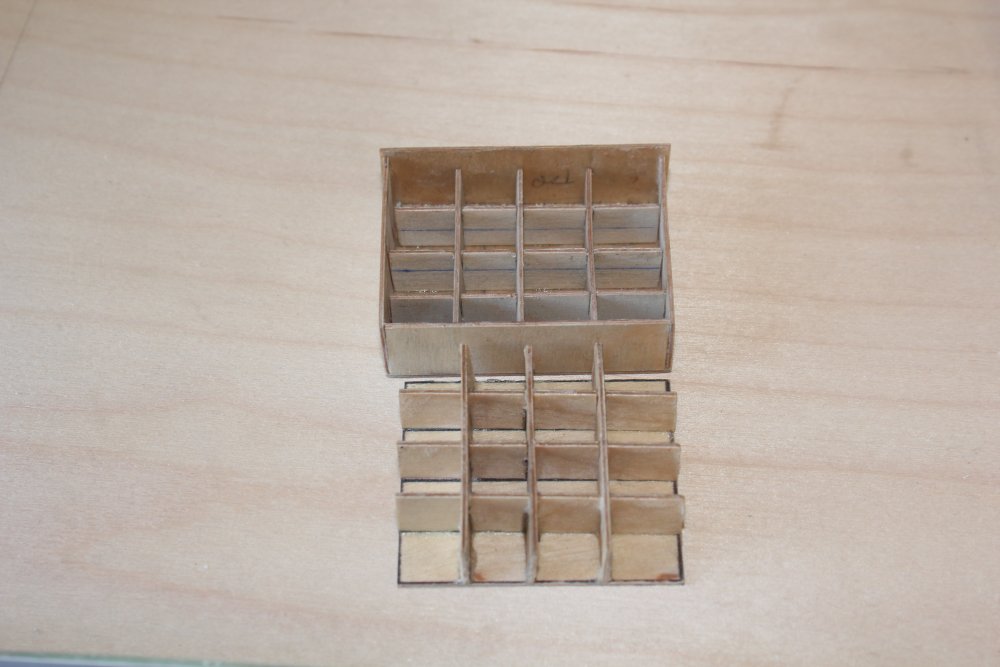

Georgeconna Posted March 22 Author Share Posted March 22 19 hours ago, Galteemore said: Nice work George - what material is gun tub made out of ? Gun Tub is Styrene Galtemore, Quite pleased on how it turned out TBH! Here are some more pics showing the stowage boxs and the Companion ways build, Sealed and sanded ready for a splash of colour. Its starting to look a bit busy now! 6 Quote Link to comment Share on other sites More sharing options...
Galteemore Posted March 22 Share Posted March 22 Should be well pleased George - I find styrene hard enough to score and snap in straight lines ! Quote Link to comment Share on other sites More sharing options...

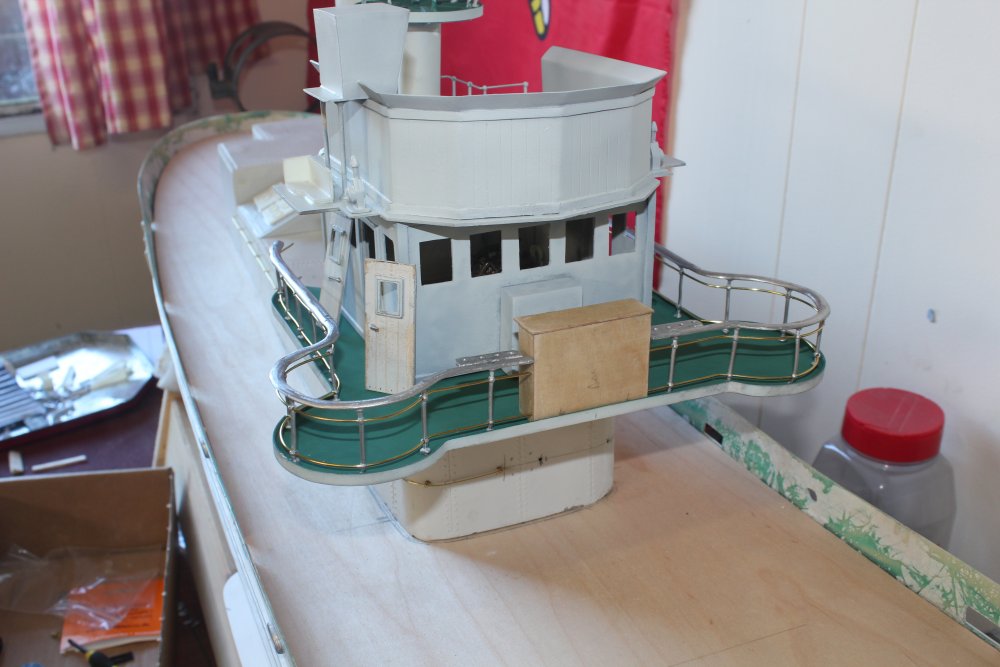

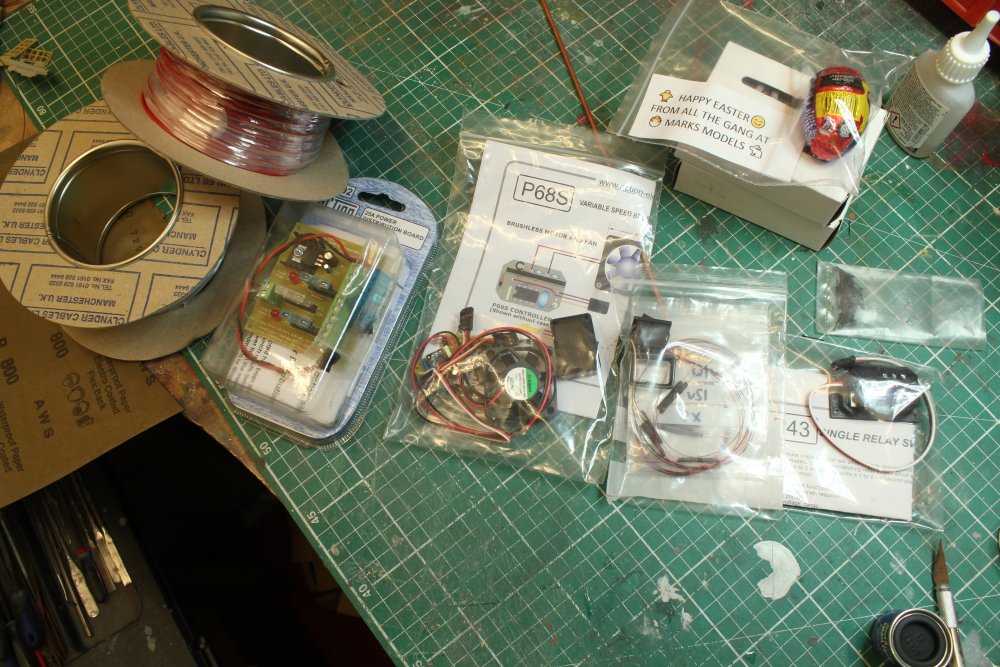

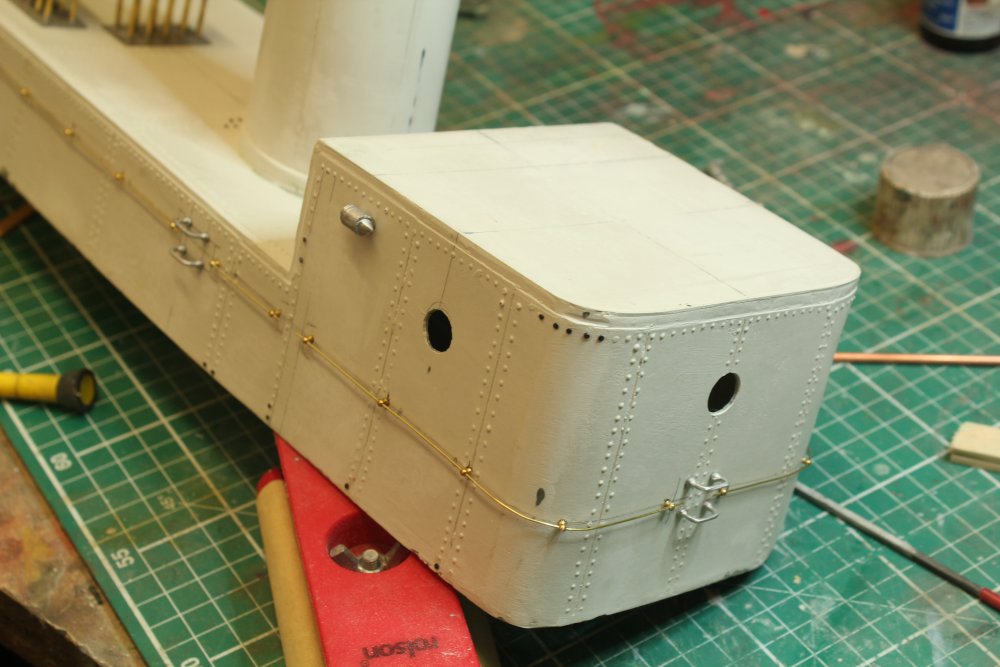

Georgeconna Posted March 24 Author Share Posted March 24 (edited) Some bits came through from Blighty today, No Customs so managed to save 20 notes! Speaker, Relay switch of the Searchlight, Power board and a variable speed Fan unit. Got a nice surprise from Marks Models to, Will be having this with a cuppa at 9PM Also the grab rails and Stanchions with handrails were done for the gun tub. Edited March 24 by Georgeconna 8 Quote Link to comment Share on other sites More sharing options...
Noel Posted March 24 Share Posted March 24 Yes I got one of those little 'gift's from Marks today with their latest delivery. Have to wait until Lent is over before testing for level of chocolateness! Quote Link to comment Share on other sites More sharing options...
Georgeconna Posted March 25 Author Share Posted March 25 11 hours ago, Noel said: Yes I got one of those little 'gift's from Marks today with their latest delivery. Have to wait until Lent is over before testing for level of chocolateness! Lent..whats that....:) 1 Quote Link to comment Share on other sites More sharing options...

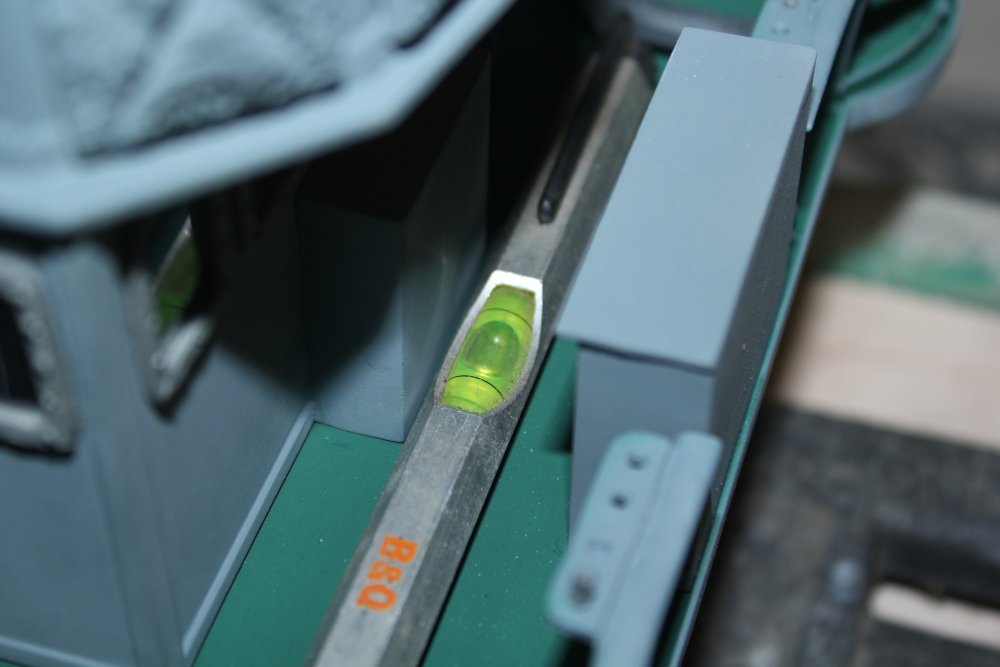

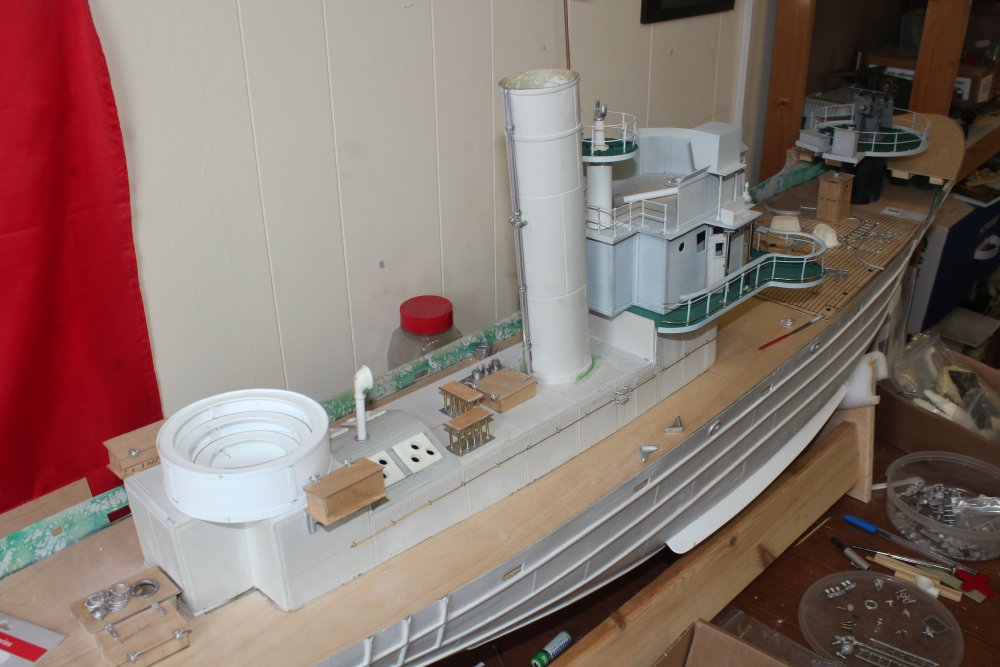

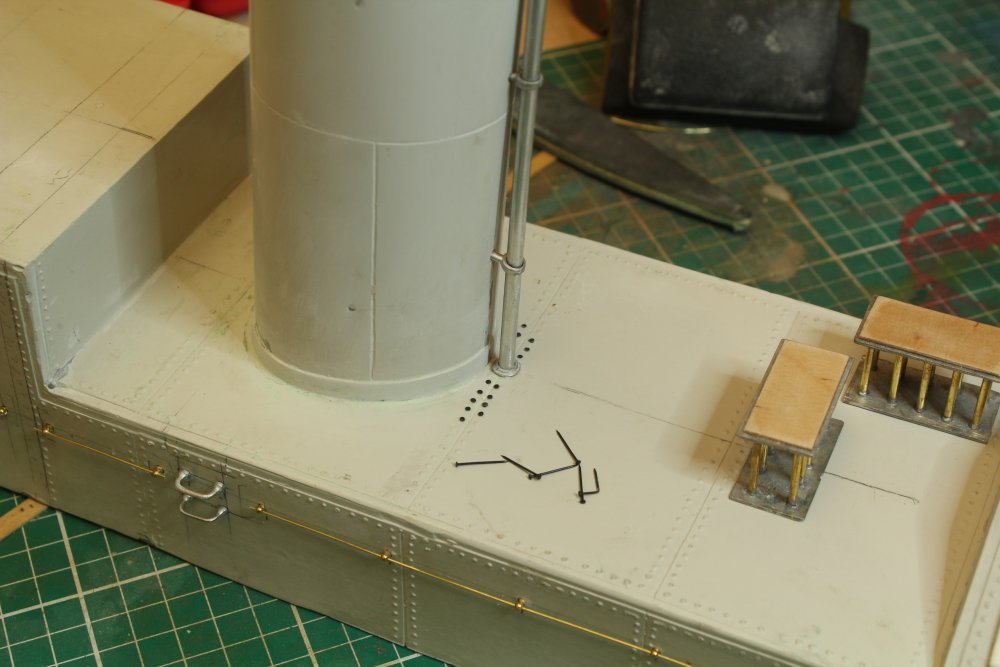

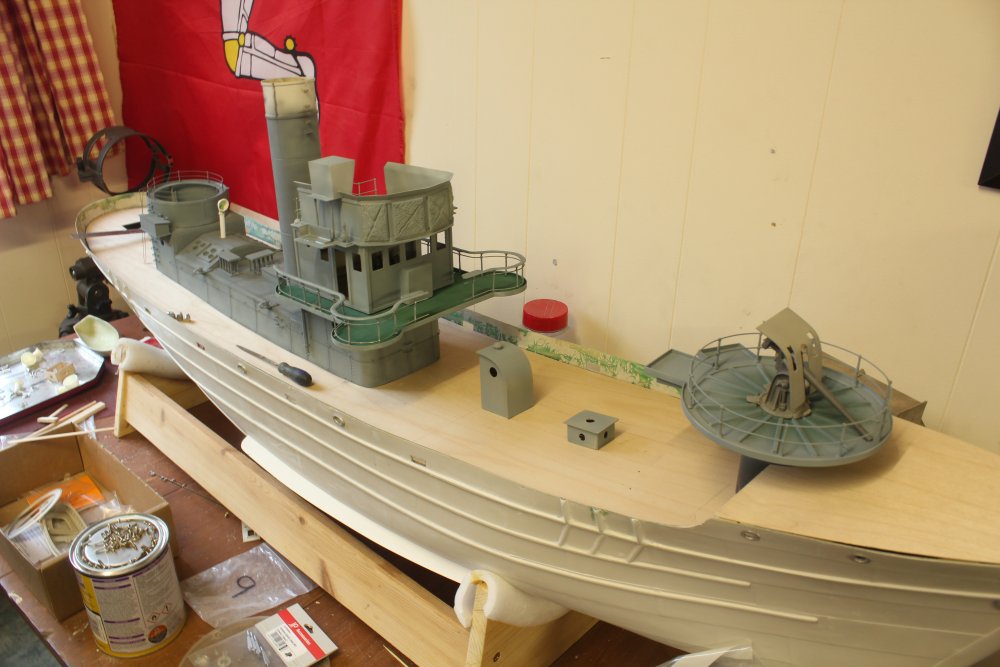

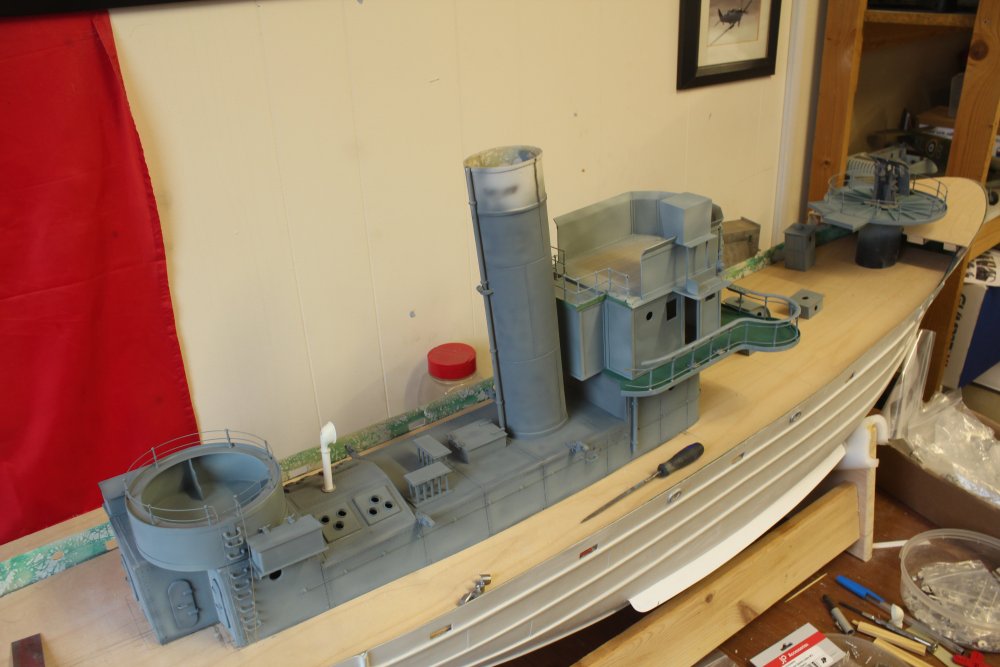

Georgeconna Posted March 26 Author Share Posted March 26 With a week off managed to tip away between the Garden and the Shed so a good jump in progress. I had to replace the lost rivets and used snipped Peco track pins for the Rivet heads. With some consultation and research I have discovered these ships were painted in Home Fleet Grey which was a much darker shade which now makes the ship more sinister and war like! Humbrol 145 was used, initial coat with pre shading done. 5 Quote Link to comment Share on other sites More sharing options...
popeye Posted March 26 Share Posted March 26 WOW, it's looking good now. 1 Quote Link to comment Share on other sites More sharing options...

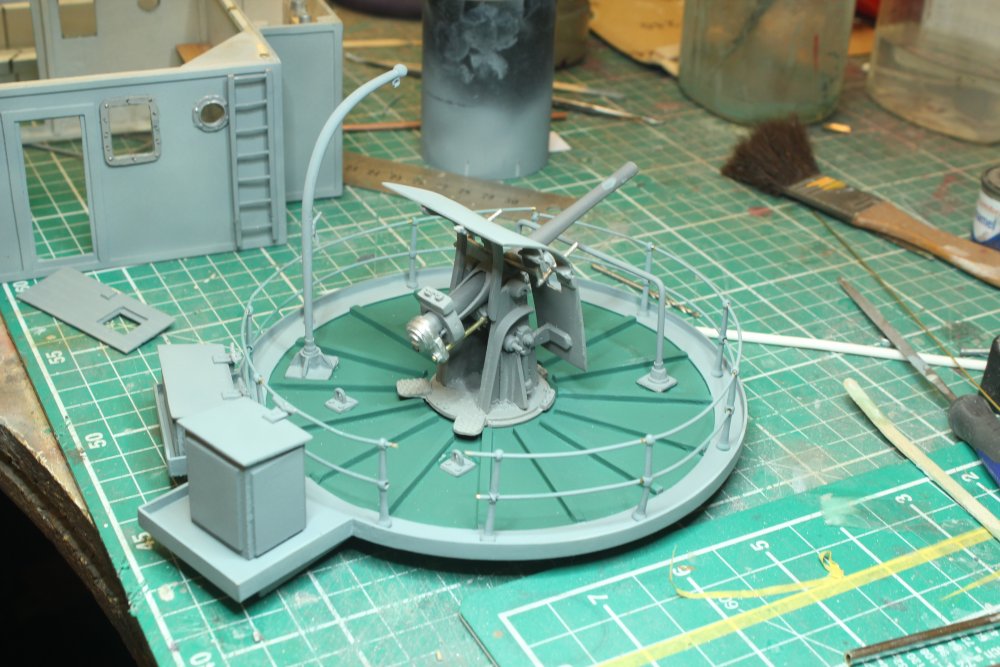

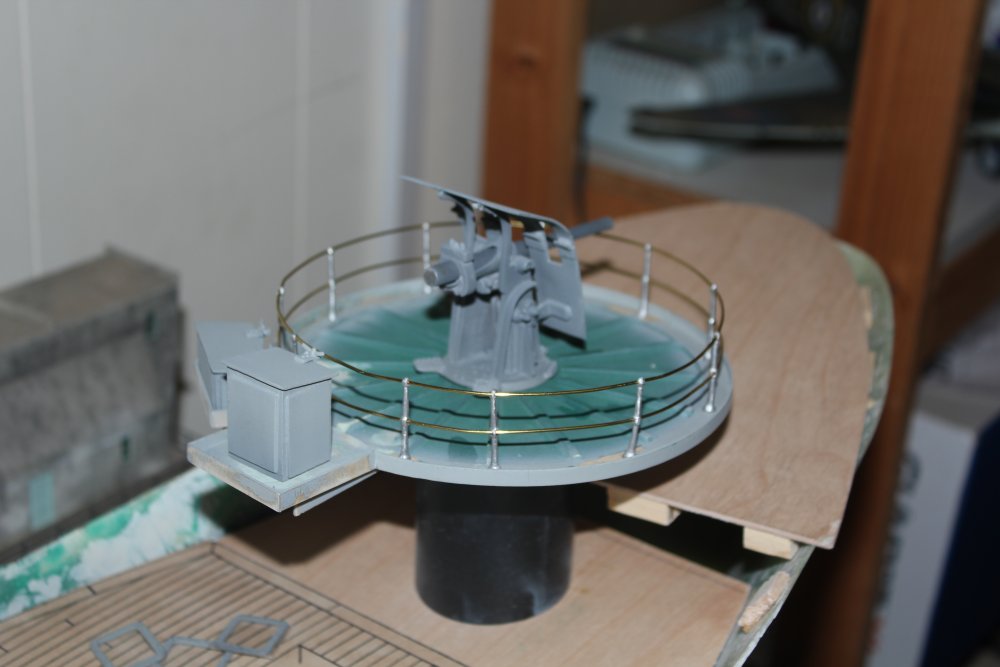

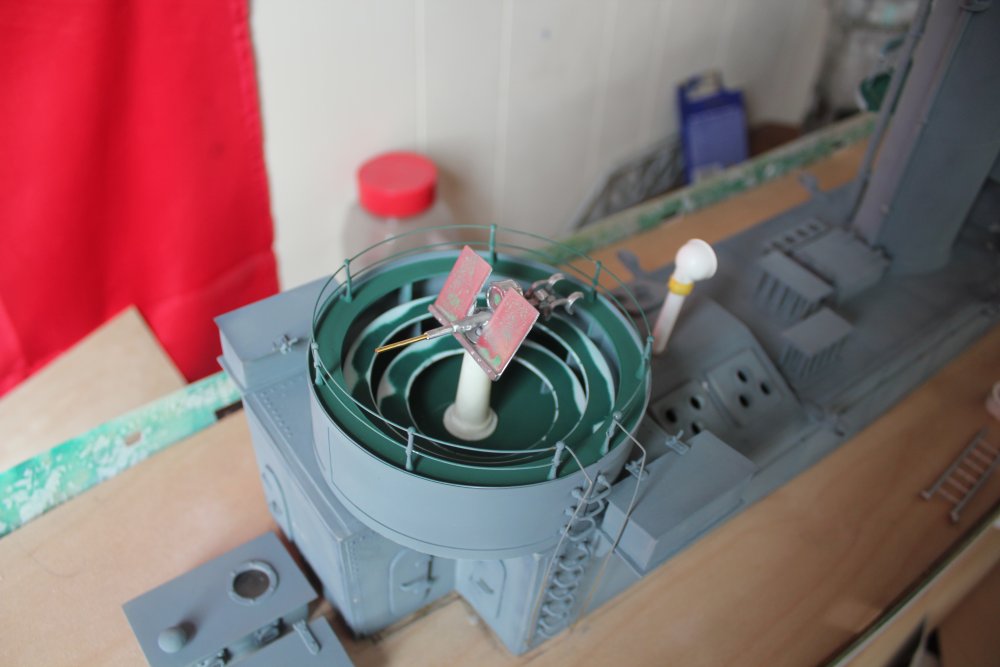

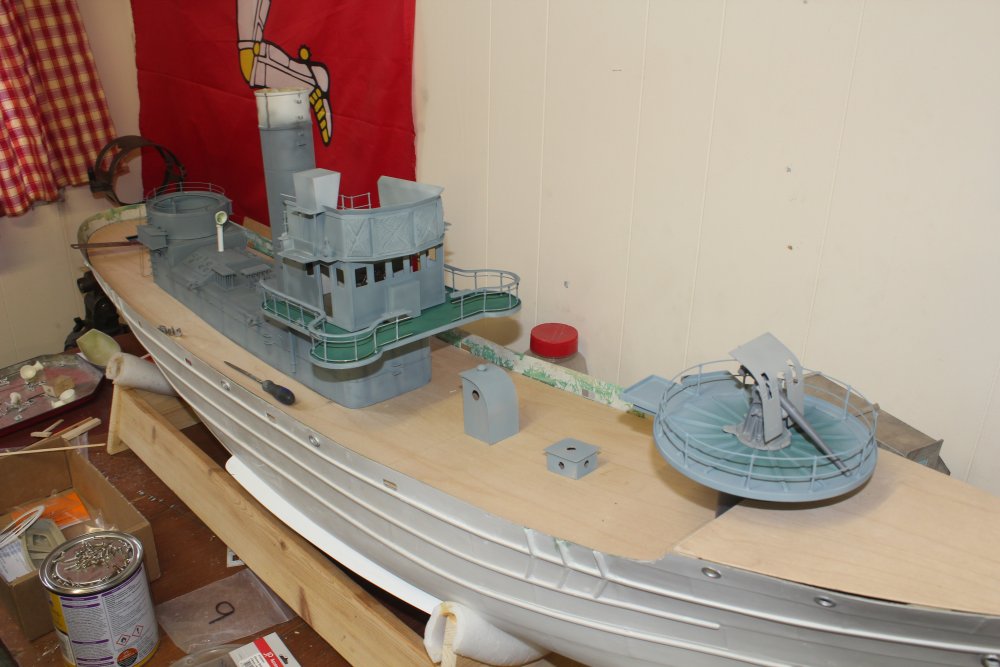

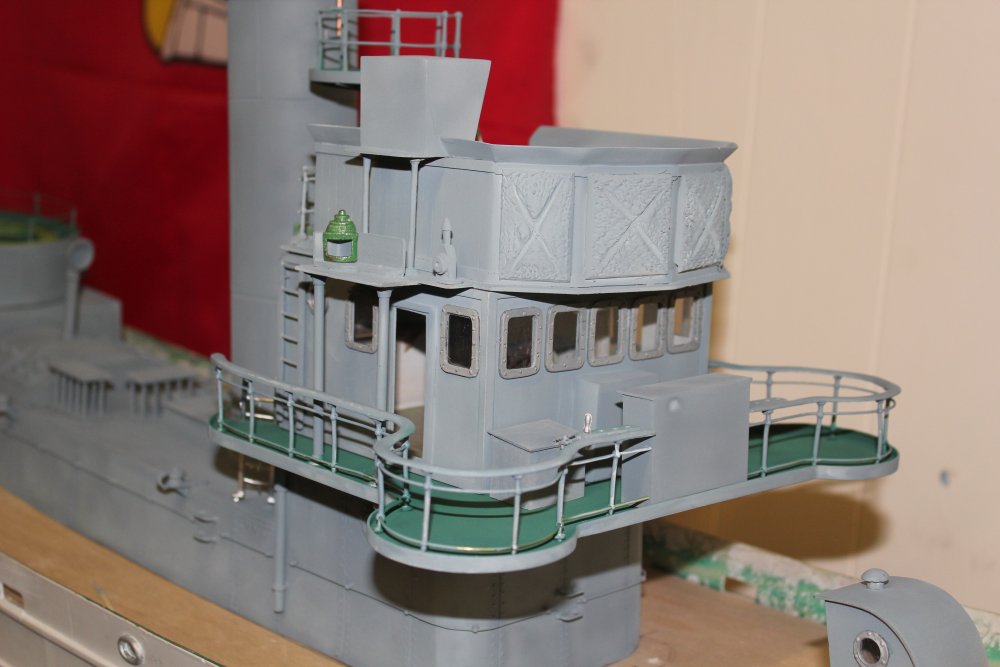

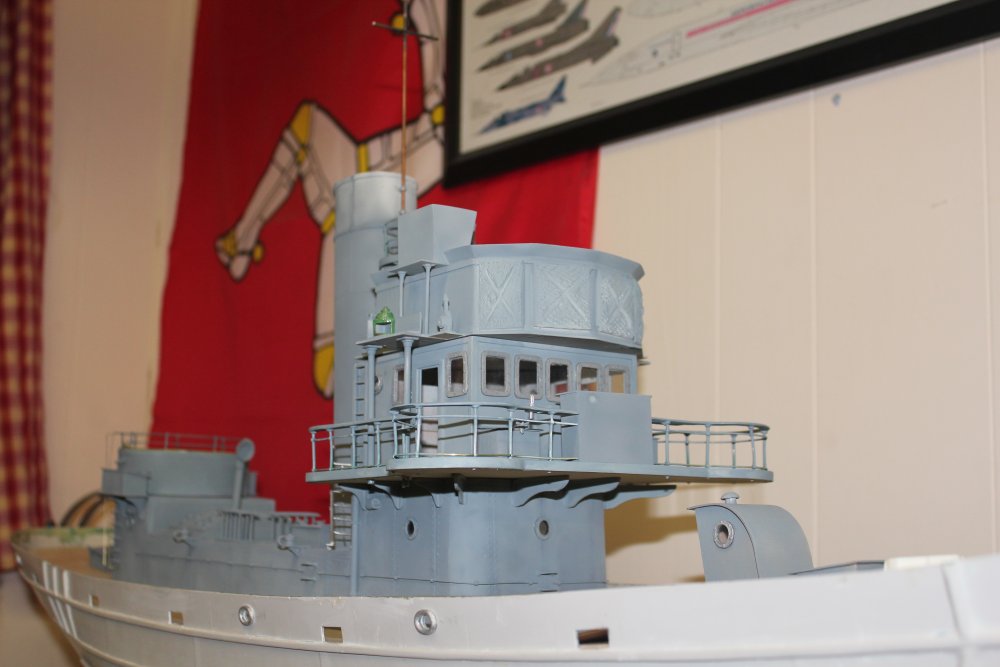

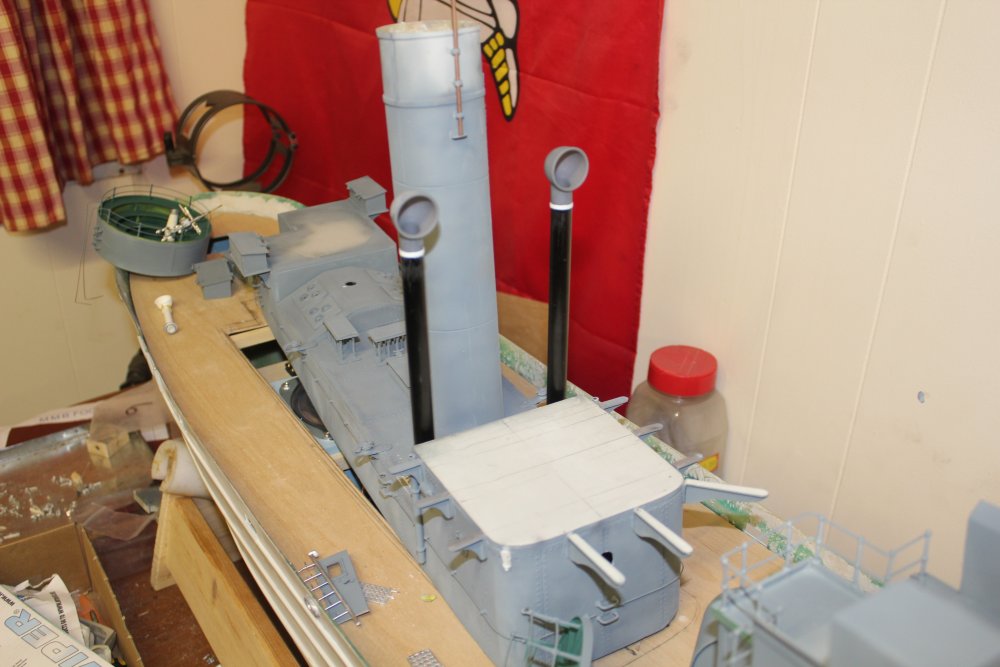

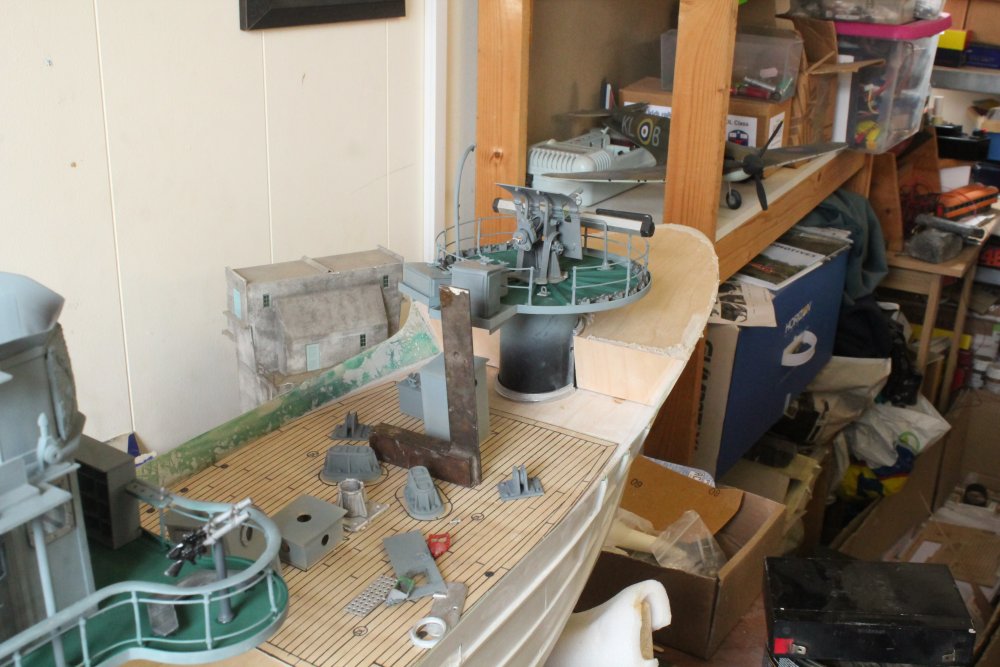

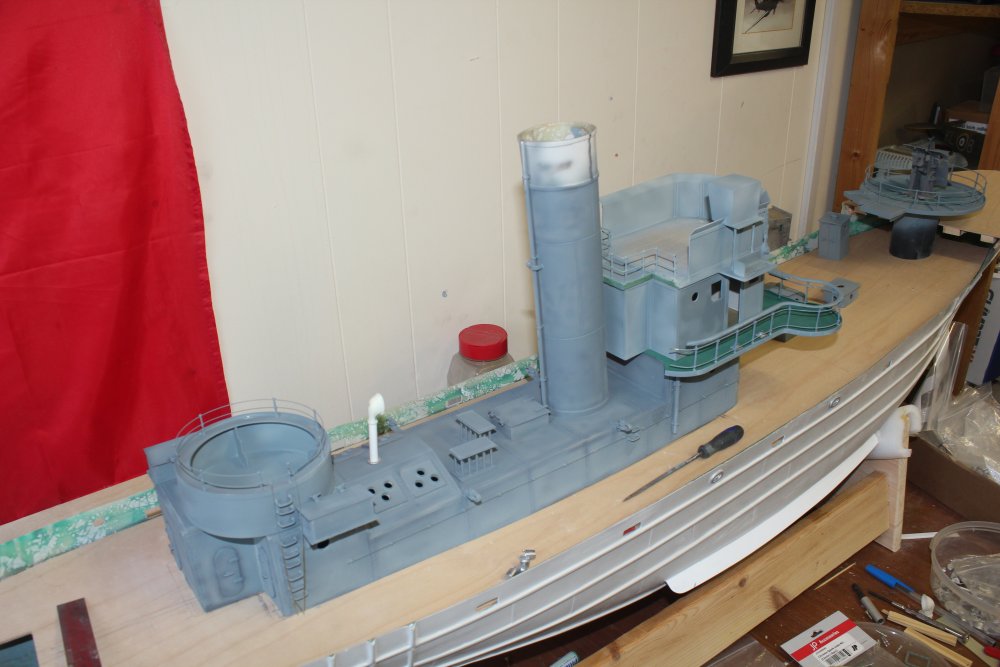

Georgeconna Posted March 28 Author Share Posted March 28 (edited) And the Boat Yard is on O/T this week. Windows in, Gun Platform more or less done I need to get better cowl vents and the ones supplied are just very poor and too thin to tidy up as per the pics and the hole that has appeared in the one I tried to do. and the leccy stuff is being worked on and where best to place what is needed where, Although it is s huge hull the batteries and smoke unit take up Edited March 28 by Georgeconna 5 1 Quote Link to comment Share on other sites More sharing options...

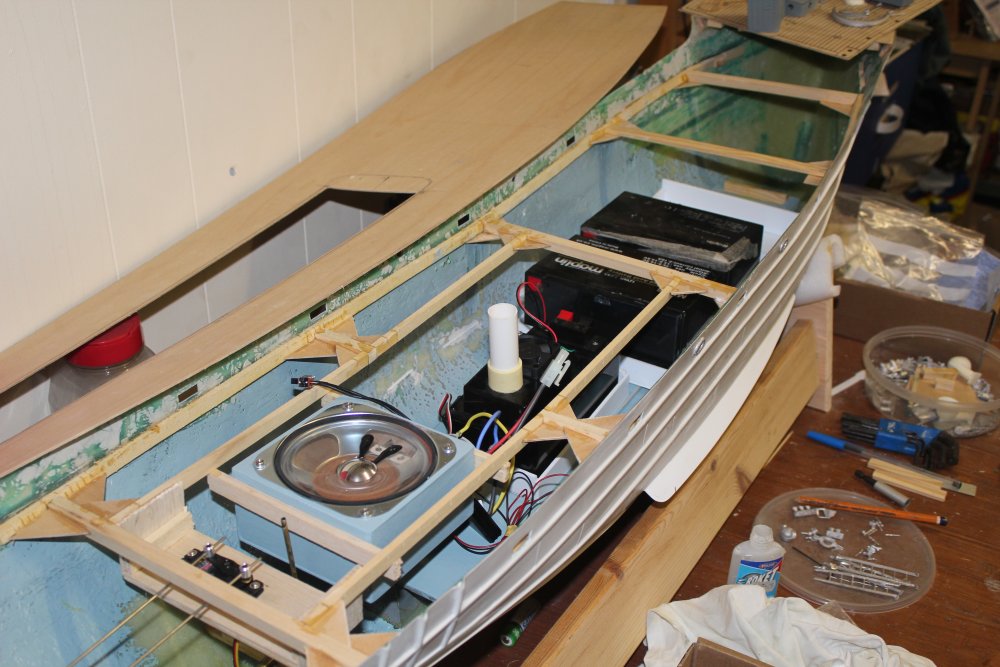

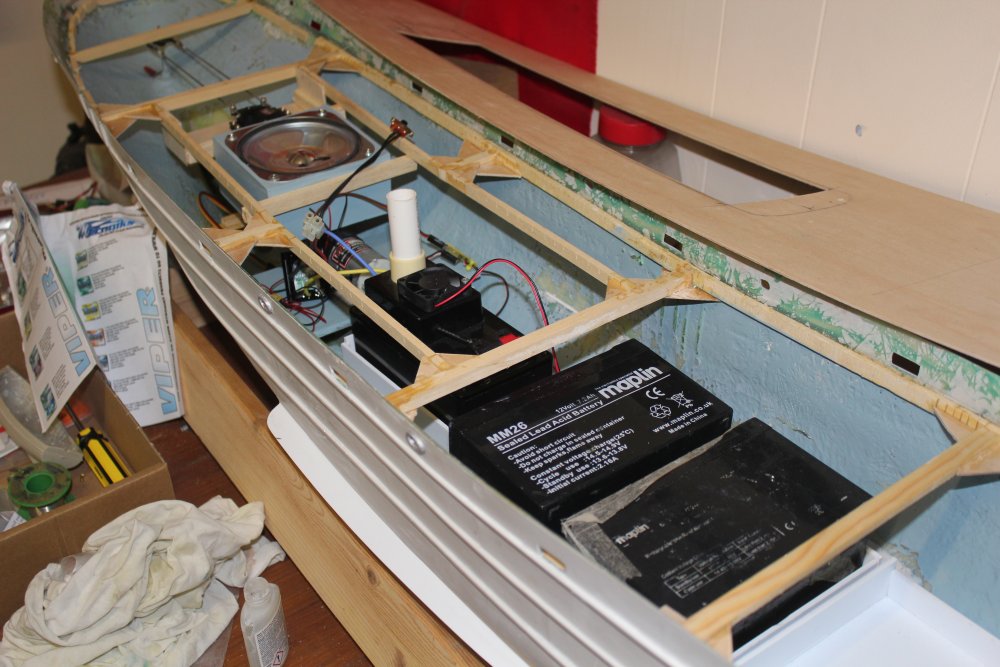

Georgeconna Posted March 28 Author Share Posted March 28 (edited) I started also on the leccy side with a sound box for the speaker being made and installed, I need to work on the where will the best place will be for the other leccy bits n bobs I need. Edited March 28 by Georgeconna 6 Quote Link to comment Share on other sites More sharing options...

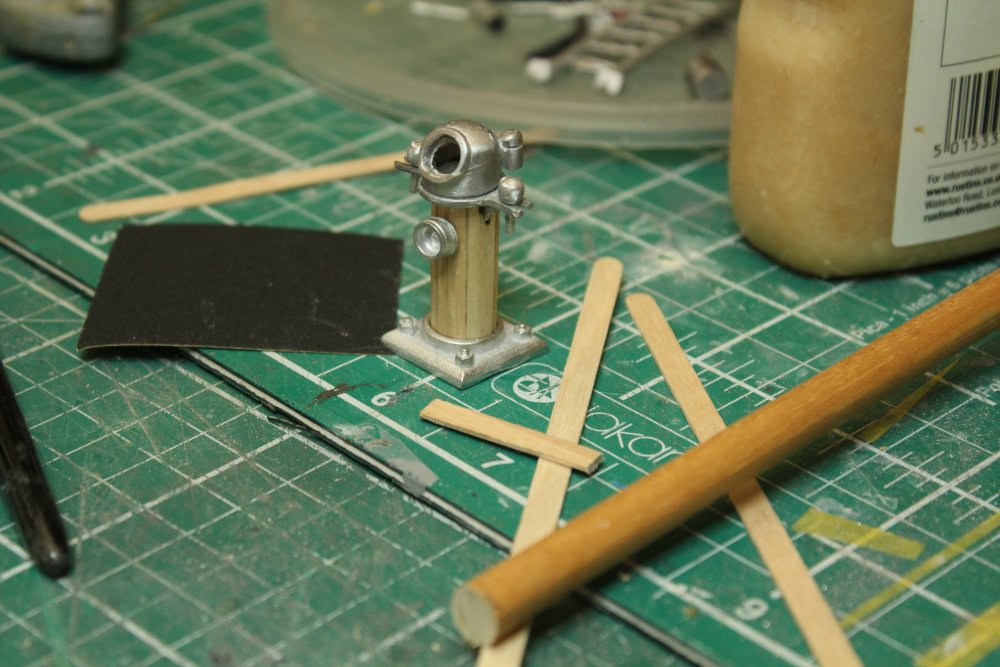

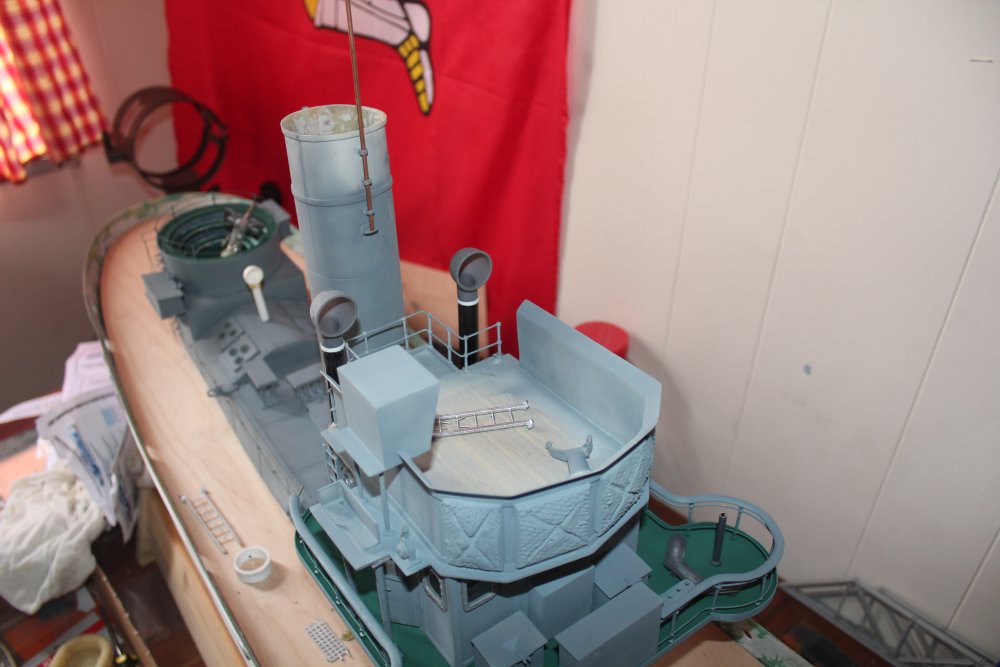

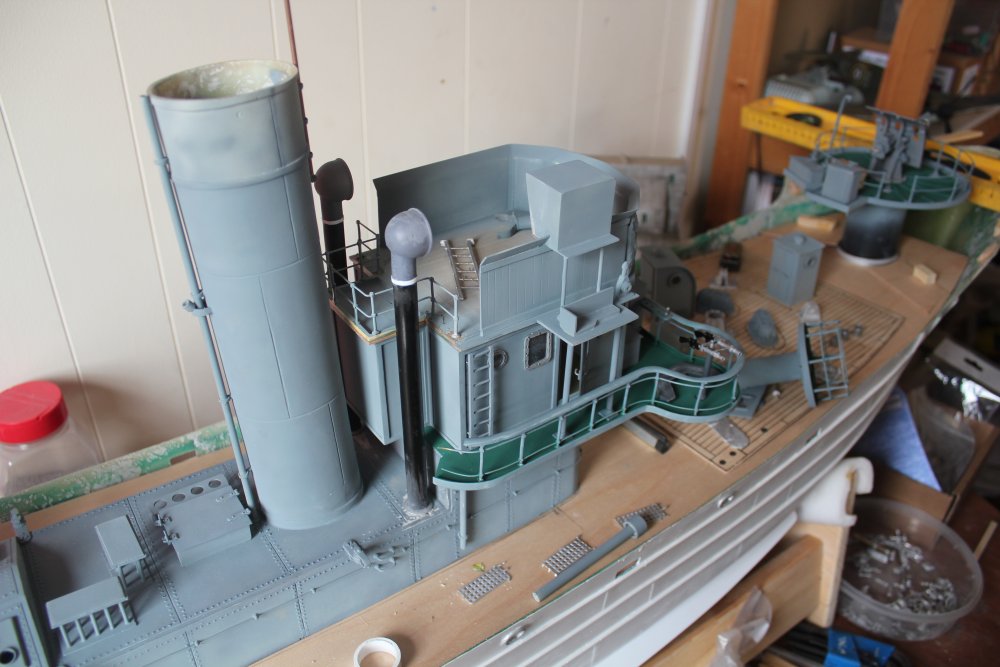

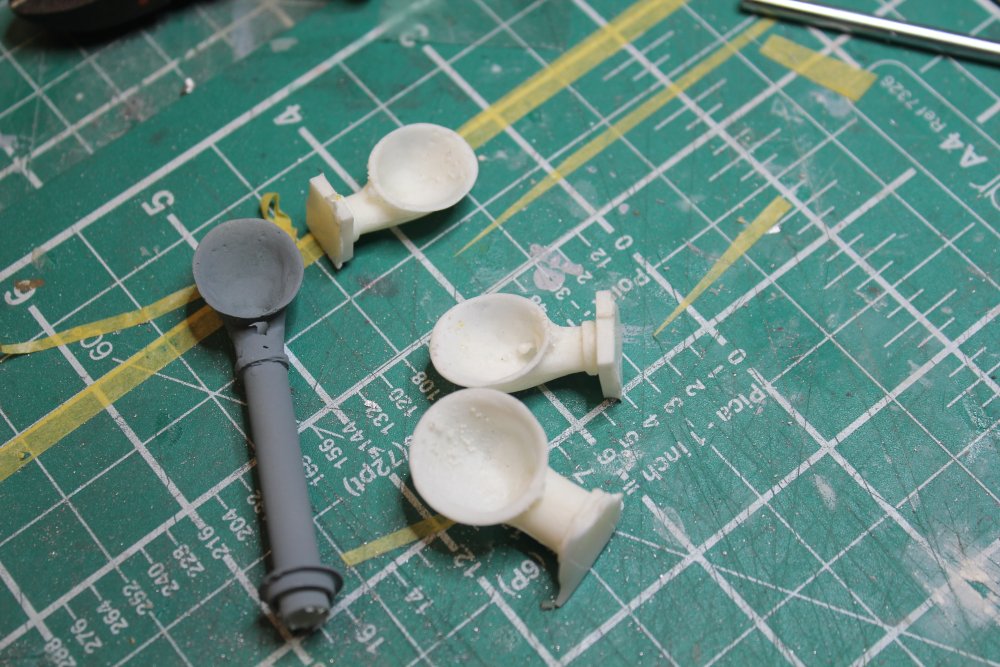

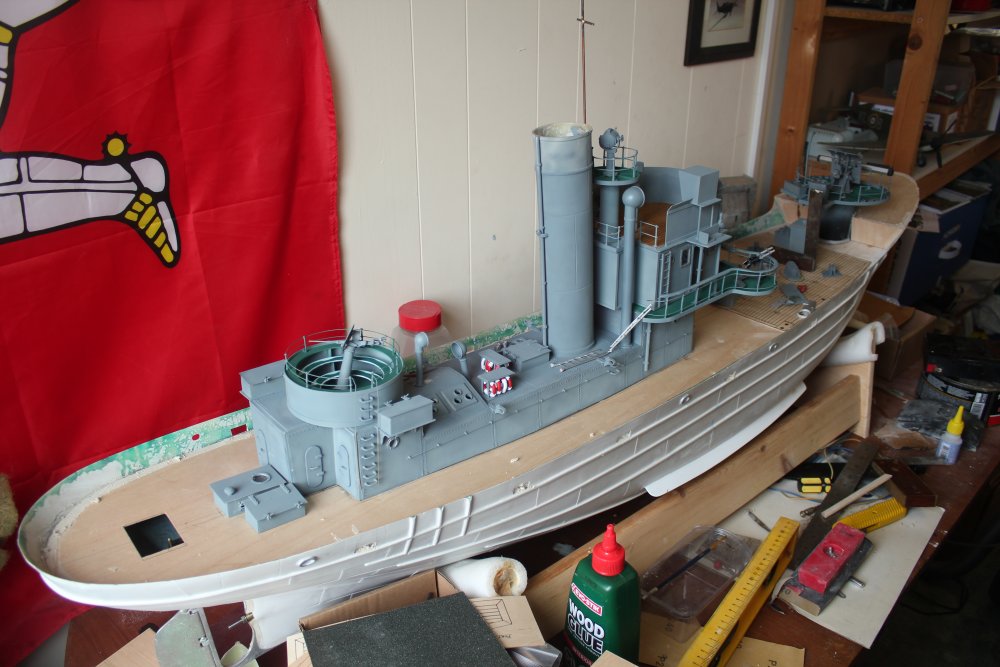

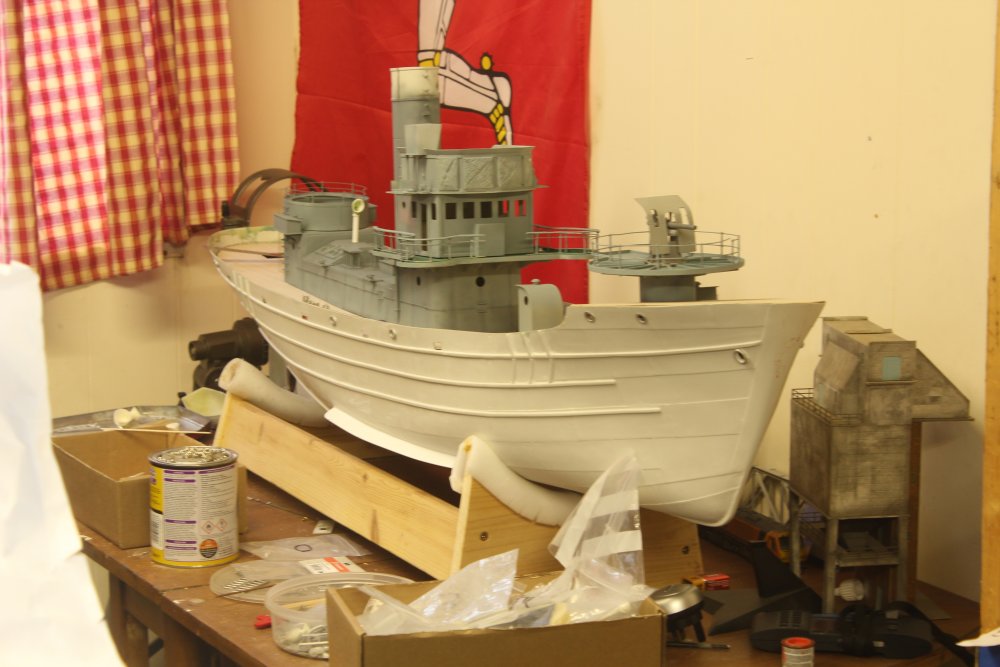

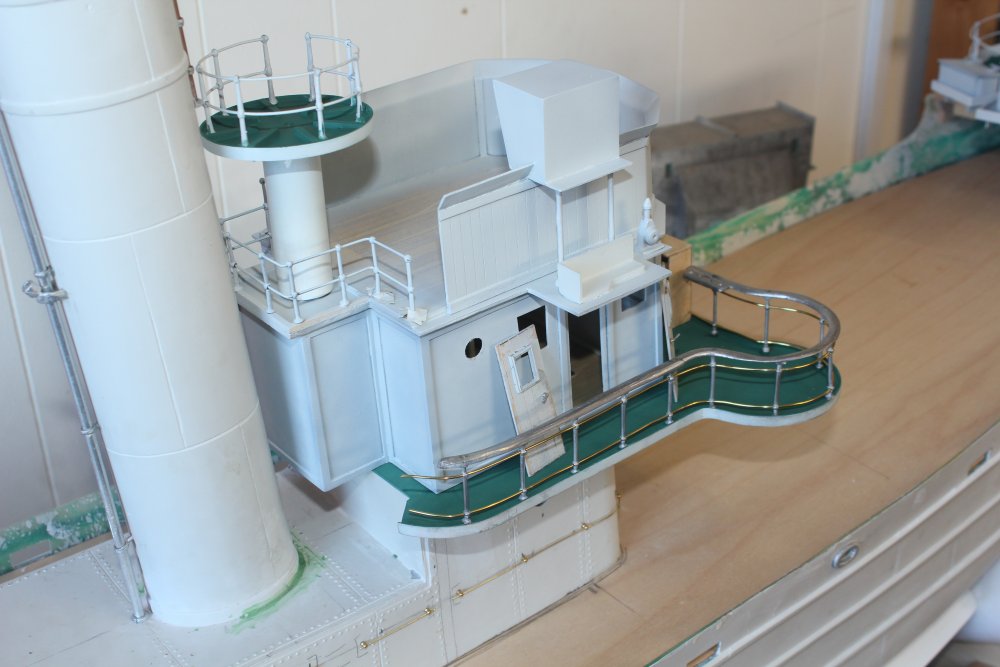

Georgeconna Posted April 9 Author Share Posted April 9 Good Afternoon Gents, Looking forward to the weekend now! Still working away on this one, Lots of tidying up with the white metal parts and my order from Cornwall Model Boats arrived with the replacement cowl vents which look fab, I think they look to be 3D printed. I was hoping to have the sound unit installed but these are not able from Action just yet so I have installed the speaker and I will work on how to install the other wiring but the next big step will be the deck and after placing all the bits n bobs on the deck I noticed something is just not right....... As per the photo I have the Main Deck Level as the bubble indicates (these are not calibrated BTW!) Also the Superstructure stuff is not glued on so don't panic! (just yet!) 3 2 Quote Link to comment Share on other sites More sharing options...
Galteemore Posted April 9 Share Posted April 9 Really impressive George 1 Quote Link to comment Share on other sites More sharing options...
popeye Posted April 10 Share Posted April 10 WOW So much detail. It will be nice to see it in action. 1 Quote Link to comment Share on other sites More sharing options...
Noel Posted April 10 Share Posted April 10 Wow spectacular model. Loving this thread and watching her progress. 1 Quote Link to comment Share on other sites More sharing options...

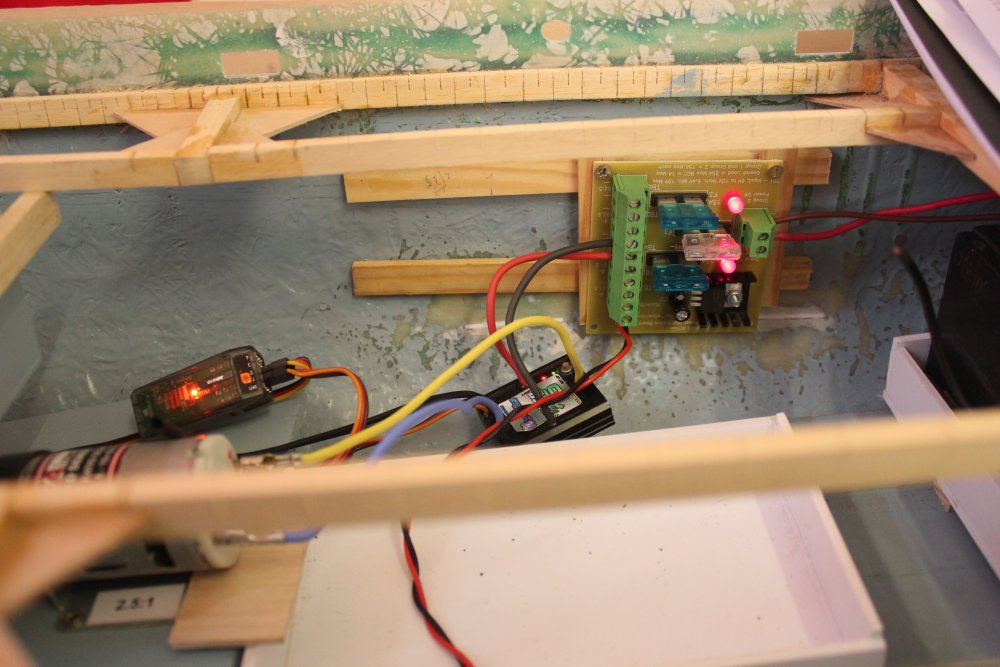

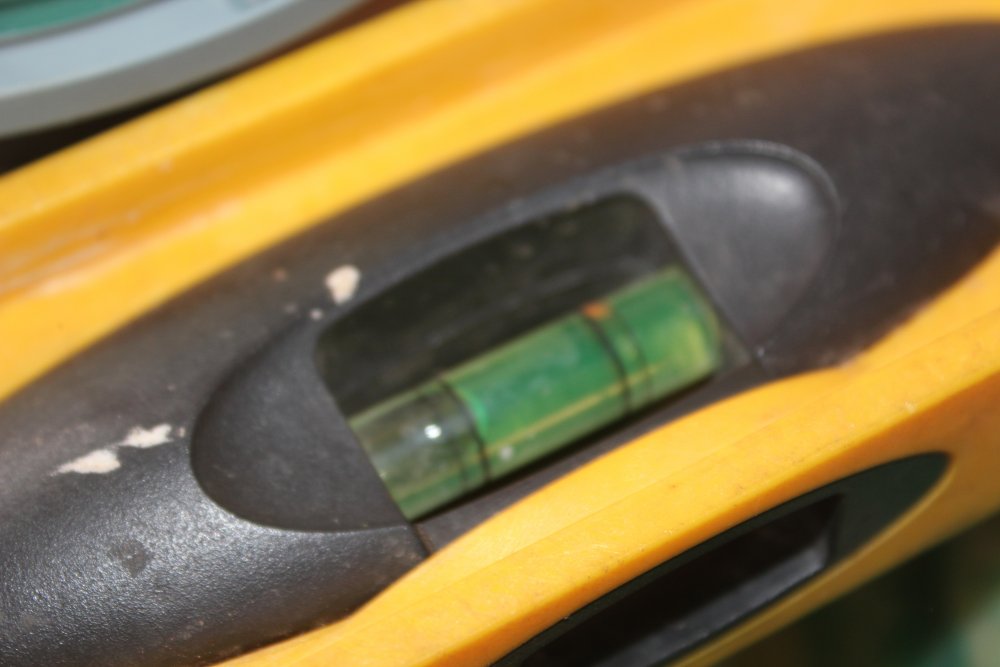

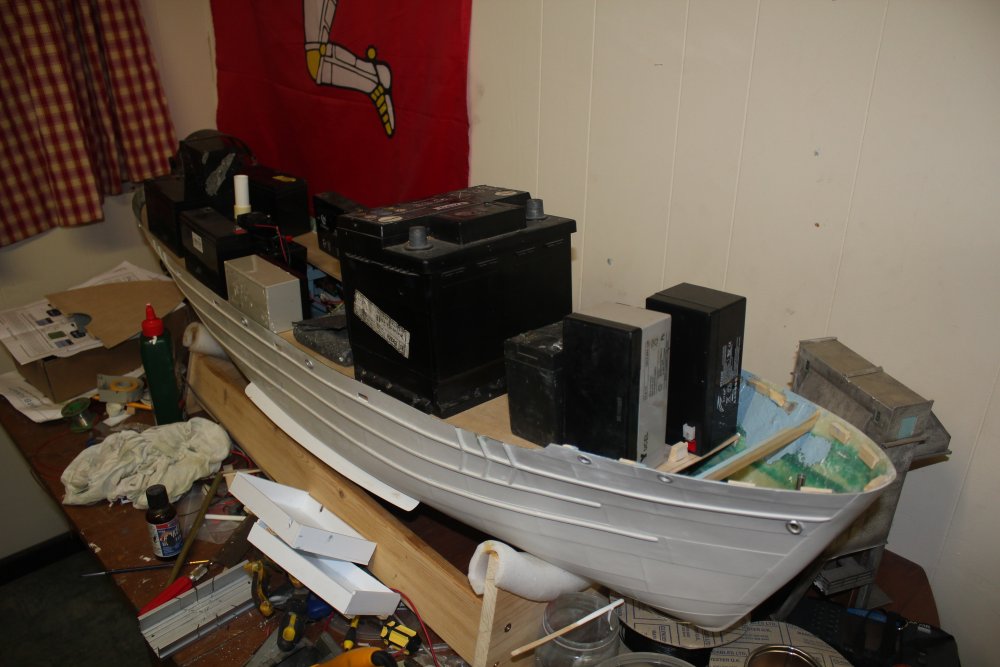

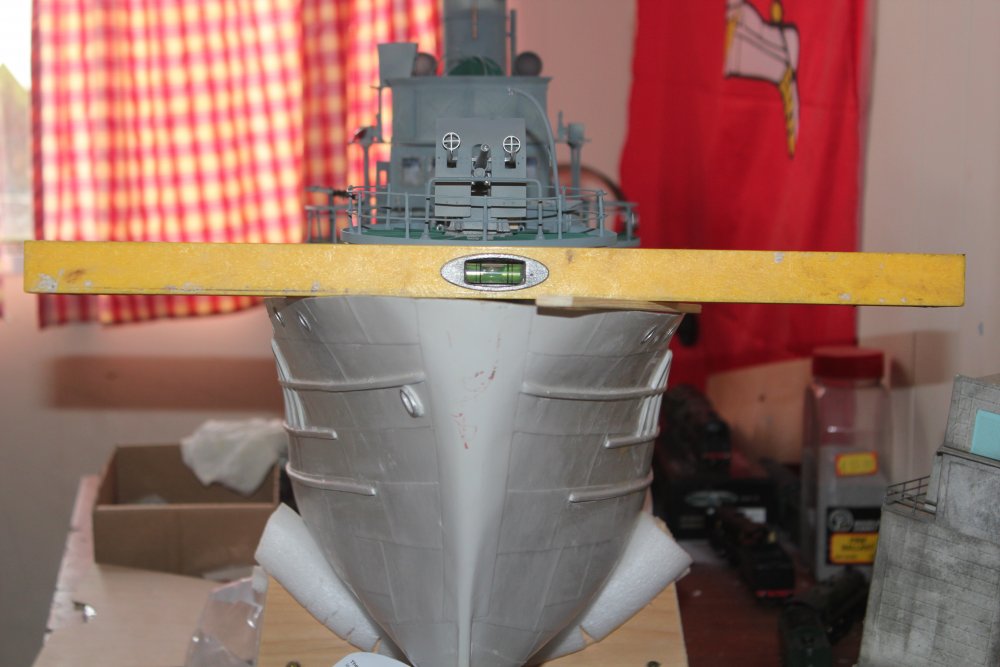

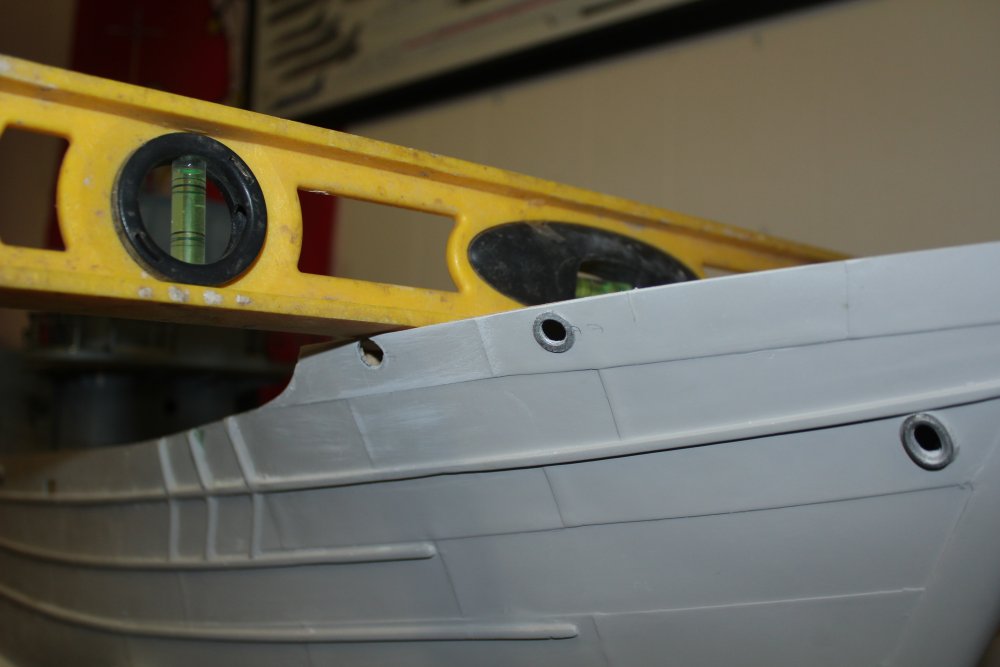

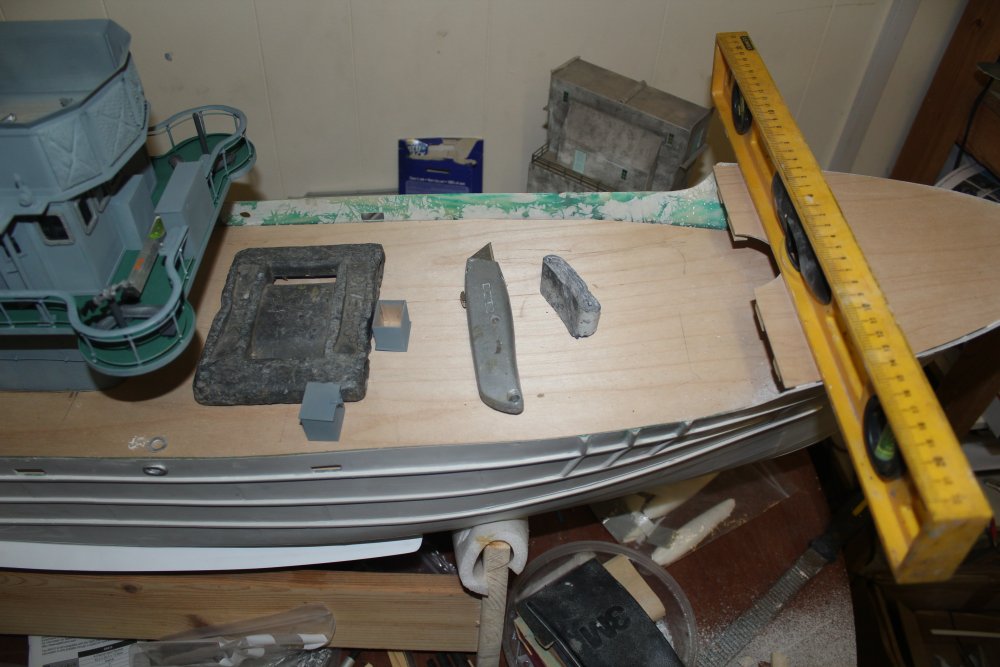

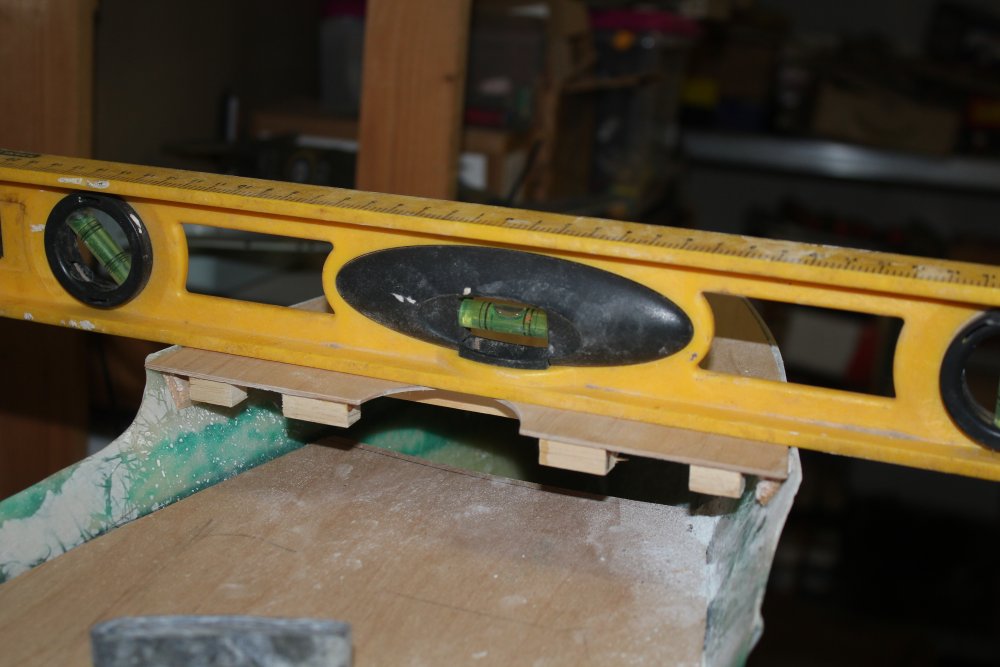

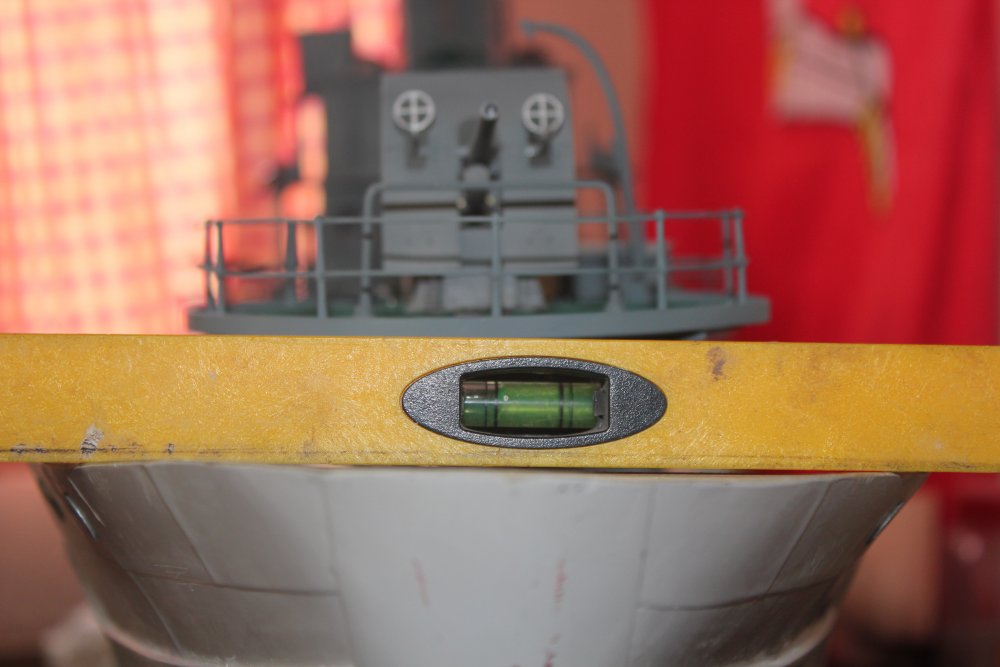

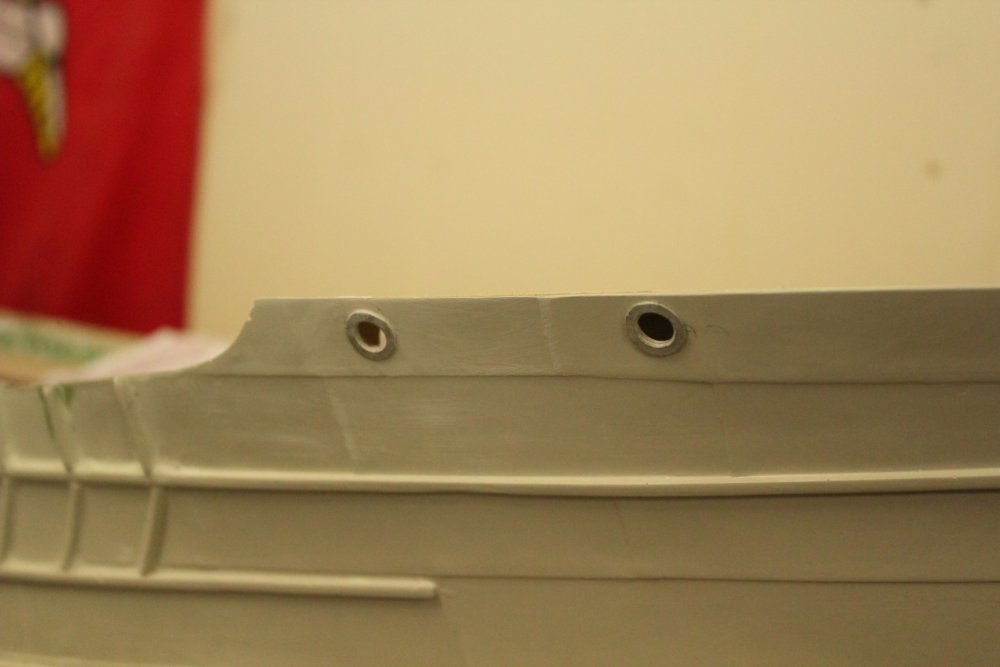

Georgeconna Posted April 11 Author Share Posted April 11 Its Alive!!! Managed to bring down the port hole after lowering the deck, Happy with that. Leccy were being worked on today before I had to do some garden work and another change in the Receivers where they have an in built button to bind to the transmitter, No more little bind plugs! There is telemetry also on this receiver for 24 quid, Unreal price. I have run everything through a power board from Action electronics, at first the there was no power, Lots of head scratching before I noticed to on off switch on the speed controller, Ah great, Went to hit that and the switch fell apart, I bared the wires and have power that way for now until I get another better switch. I'll be making little tray to hold the Receiver, speed controller and Fan control unit Another step forward now to getting that deck on. 7 Quote Link to comment Share on other sites More sharing options...

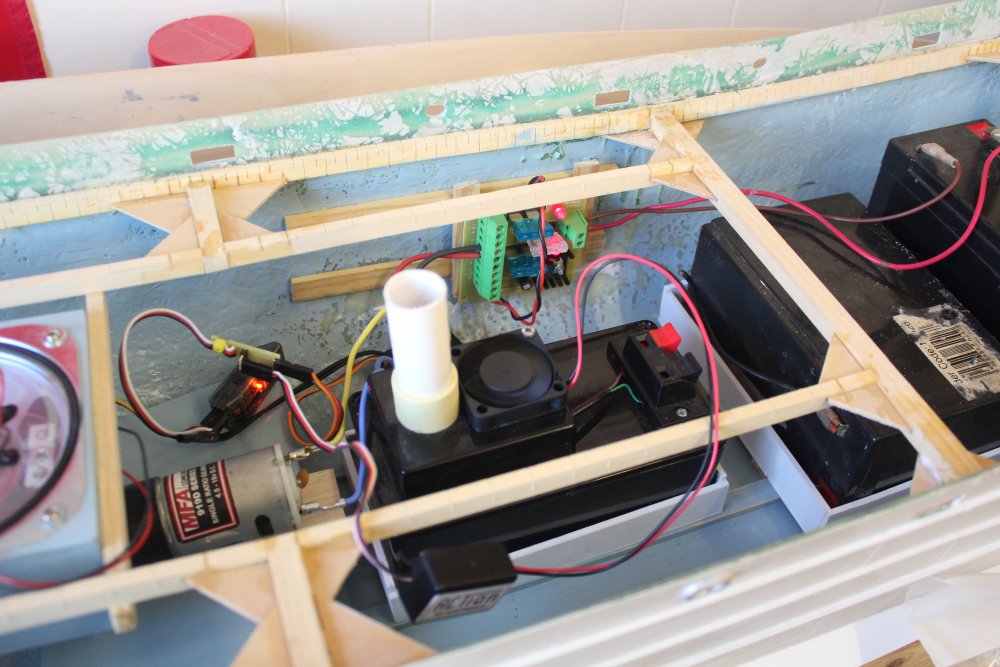

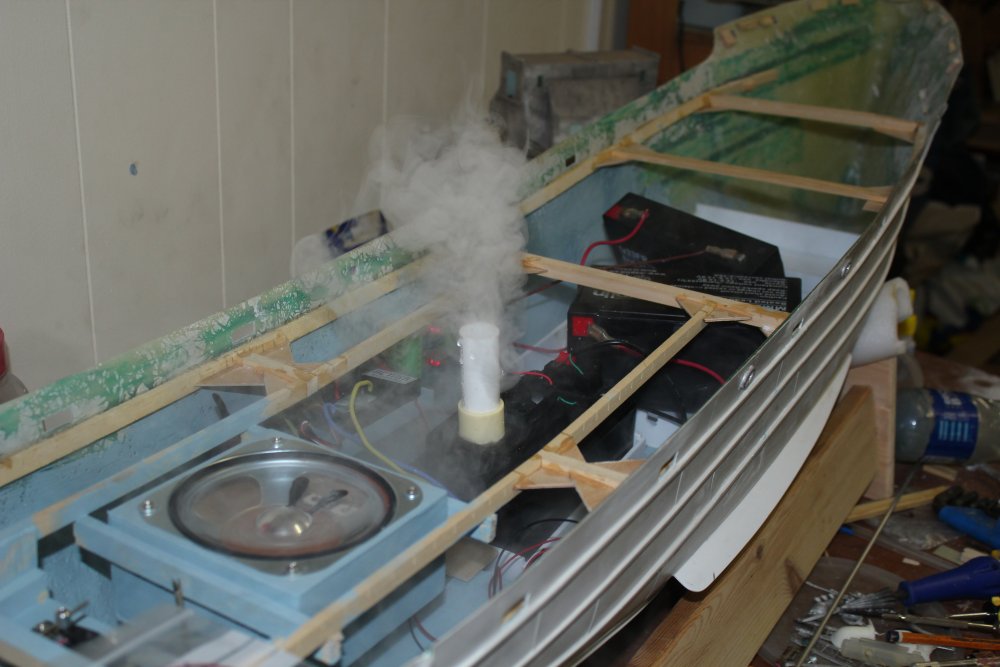

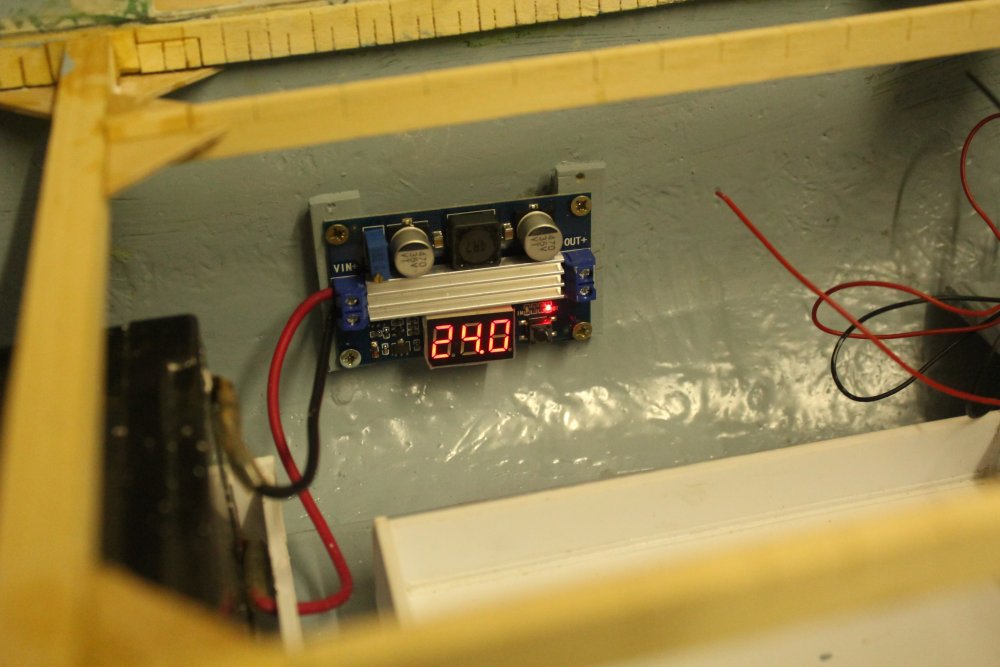

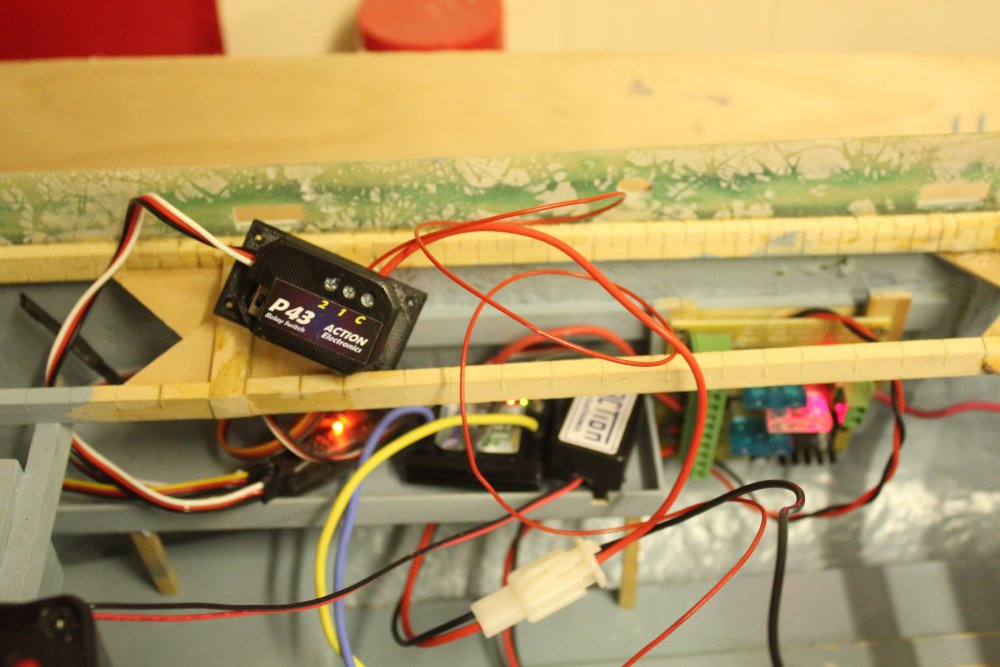

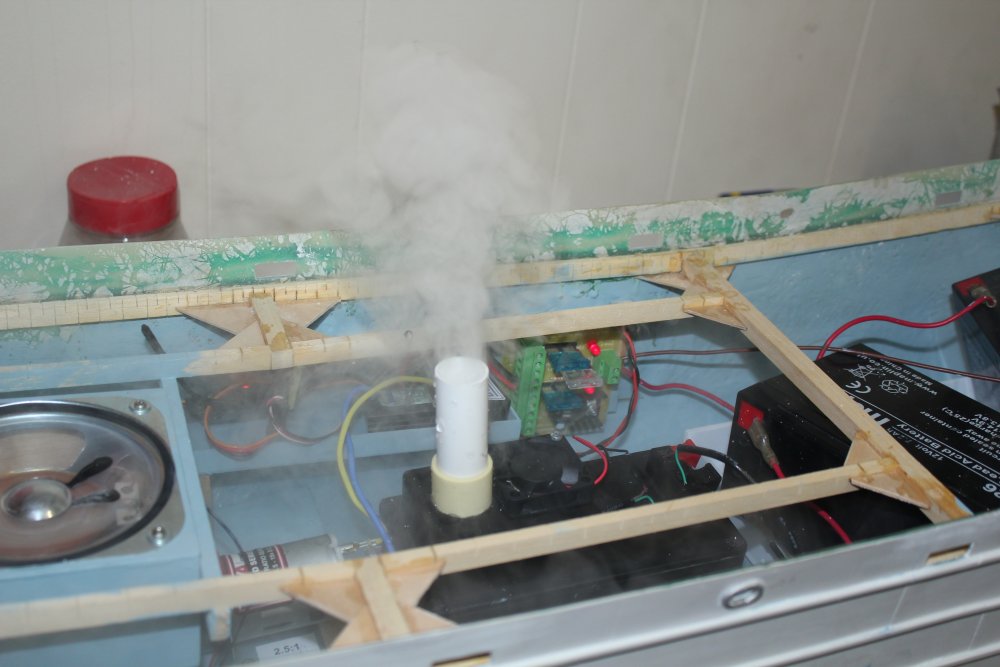

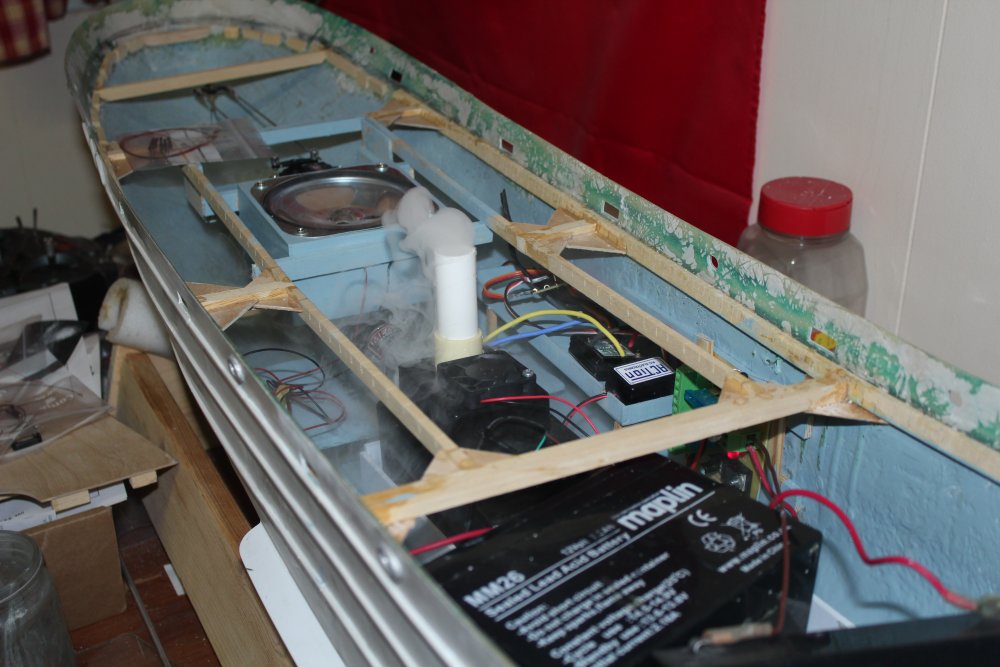

Georgeconna Posted April 13 Author Share Posted April 13 As the Red Arrows say during their display Smoke on Go! Step up 12 to 24V wizardry installed, Luckily I had a few spare as one or two have gone up in smoke. ran off a 12V battery it steps up the Voltage to run the smoke Generator which runs using water. Need a tad more pipe though to run this up the funnel. 3 Quote Link to comment Share on other sites More sharing options...

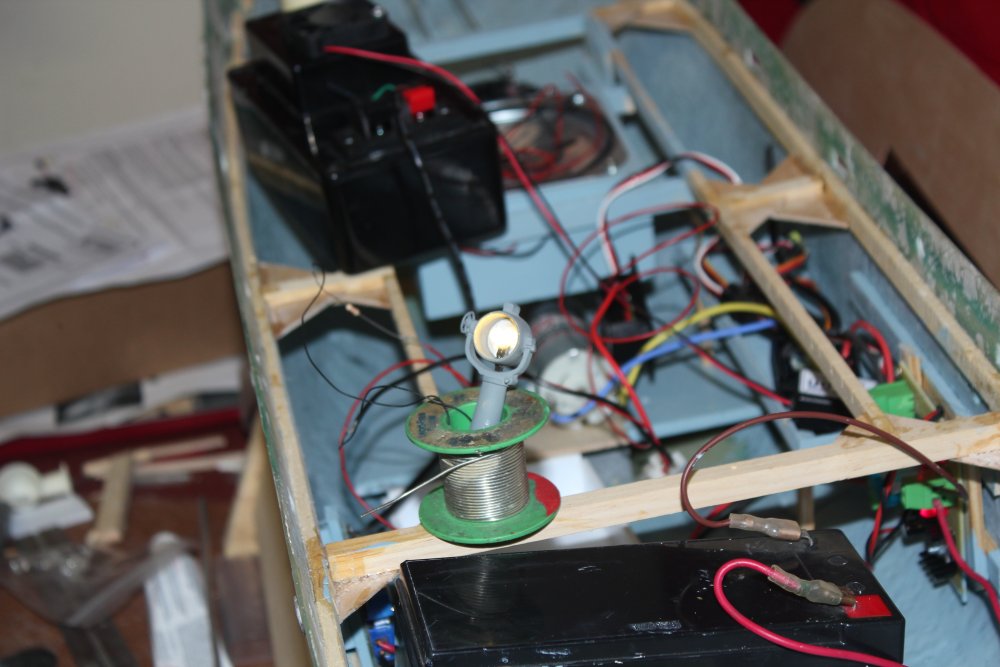

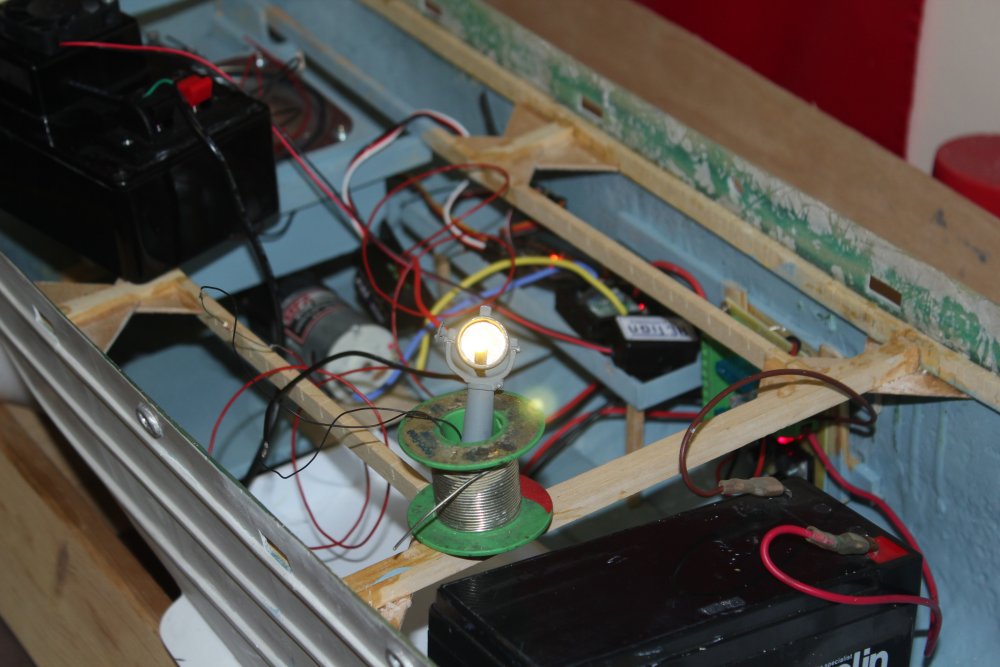

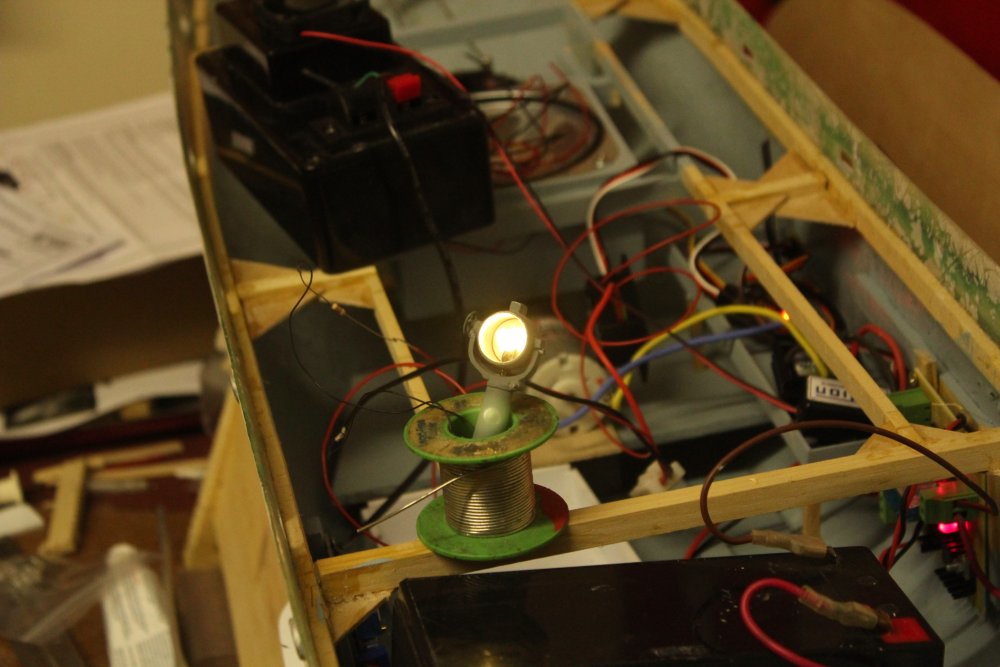

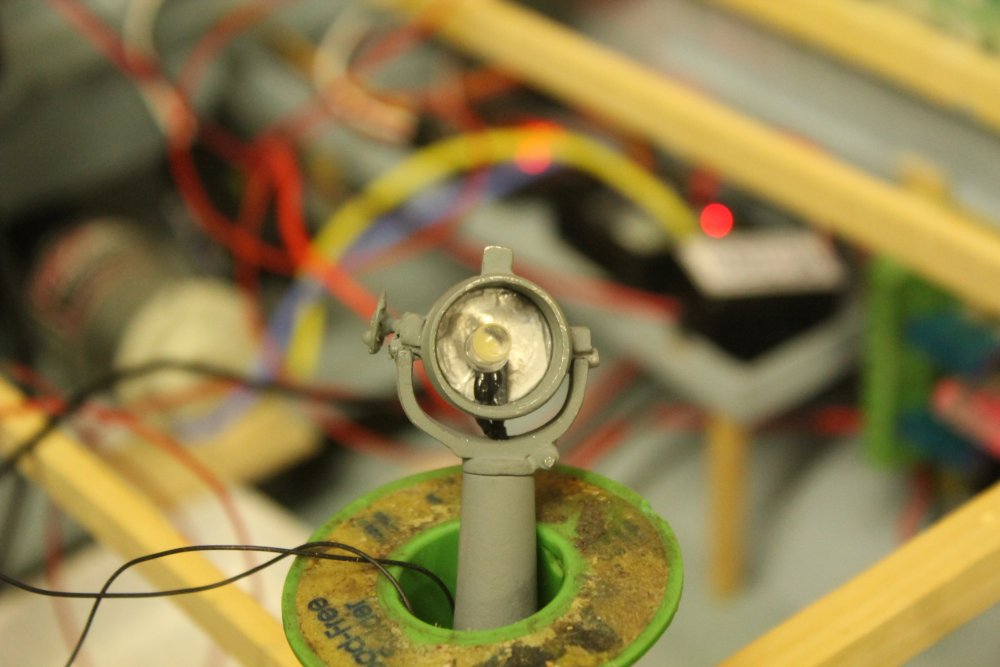

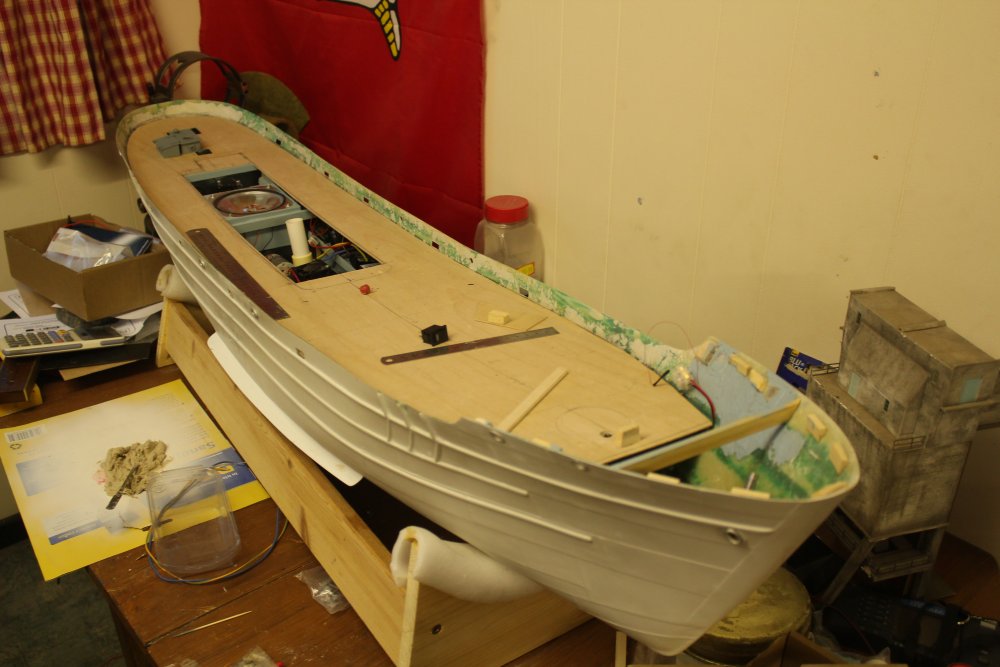

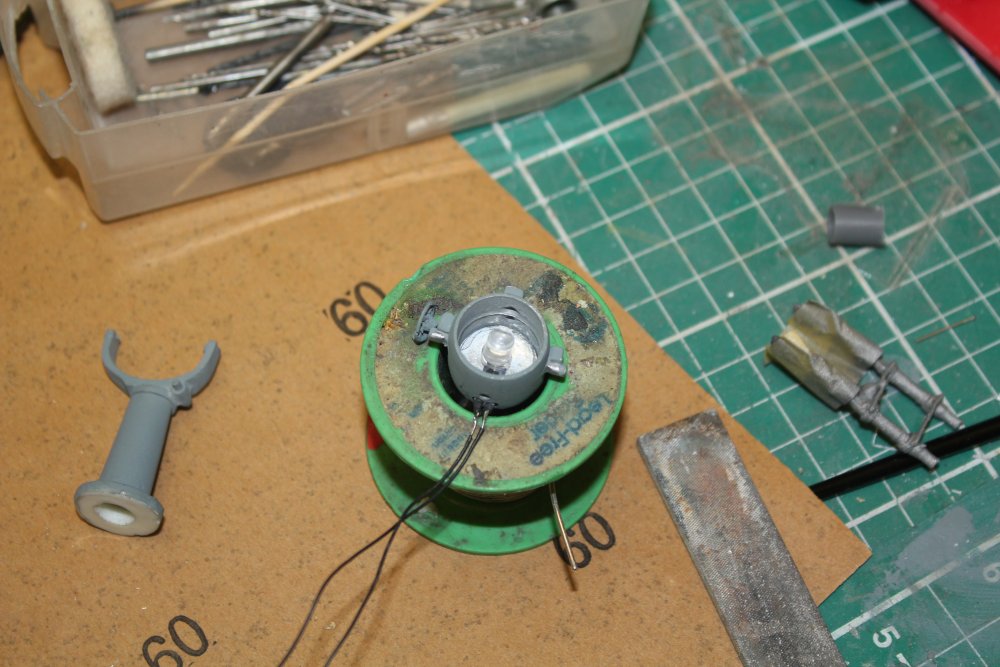

Georgeconna Posted April 14 Author Share Posted April 14 Work in the dockyard continues with some massive step taken, all the wiring is complete internally for the lights in the hull , Superstructure, mice little Prewired LED were installed. Also work on installing a Bright LED into the Search light and this was completed and tested as well as a Reed switch operated by the transmitter, its not latching so I used the off option with the on happening at the flick of a lever on the tranny. At the rear of the light Silver foil at the back was glued on to give a Mirror appearance. And finally I plucked up the courage and decided to stick the deck on used copious amounts of wood glue so the next step will be to probably paint the hull and then to the Deck Armour plating. Flying along here! 2 Quote Link to comment Share on other sites More sharing options...

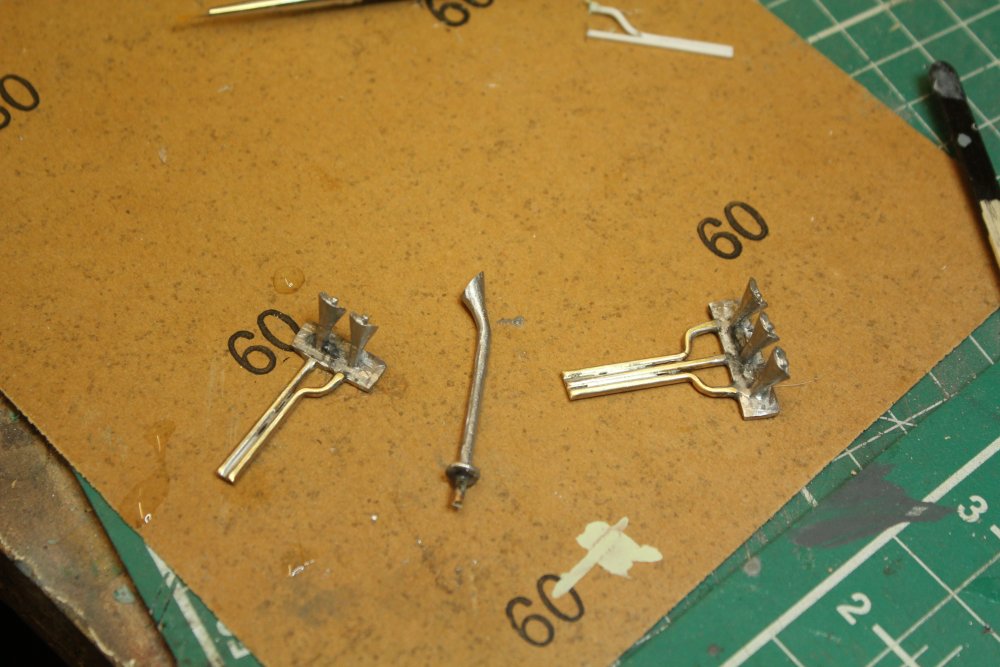

Georgeconna Posted April 16 Author Share Posted April 16 Well that went well except I glued a LED wire under the Deck and a cross beam but that sorted now and the little Light rewired and the LED working under the Bow which will look nice on Sailing a dusk which I have never done! I then soldered up some White metal and Brass rod for the voice pipes for the Bridge and started on the Binnacle using some 9mm dowl and coffer sticks sanded smooth! Needs to be Paint next. The Bow plate was also glued down with PVA and Left to Dry and then the edges were filled in with P39 Car Filler and then sanded smooth, Well the front part anyhow. I need to adjust one of the tall air intake pipes and one seemed to of moved and has set slightly off which is a balls but thems the breaks! . 6 1 Quote Link to comment Share on other sites More sharing options...
Georgeconna Posted April 16 Author Share Posted April 16 Well that went well except I glued a LED wire under the Deck and a cross beam but that sorted now and the little Light rewired and the LED working under the Bow which will look nice on Sailing a dusk which I have never done! I then soldered up some White metal and Brass rod for the voice pipes for the Bridge and started on the Binnacle using some 9mm dowl and coffer sticks sanded smooth! Needs to be Paint next. The Bow plate was also glued down with PVA and Left to Dry and then the edges were filled in with P39 Car Filler and then sanded smooth, Well the front part anyhow. I need to adjust one of the tall air intake pipes and one seemed to of moved and has set slightly off which is a balls but thems the breaks! . Quote Link to comment Share on other sites More sharing options...
