  1. Dhu Varren

    Heritage Irish Stock

    I too have the UFTM list of drawings, obtained many years ago. Since then I have obtained many of the drawings by contacting Mark Kennedy at the UFTM, and he kindly supplied the drawings required for a small remuneration per drawing. I also managed to arrange a visit to the UFTM archives, where I was able to search through the drawings collection, and obtain copies of drawings that were not on the list.
  2. Dhu Varren

    Video Website Updates

    The last vehicle in the train is a Brake Generator coach.
  3. Dhu Varren

    Silver Fox A Class body kit

    It's not an A Class. Its a Maybach engined C Class.
  4. Dhu Varren

    GNRi Brake Van

    When drilling holes for handrails, I always mark the exact location for the hole with a sharp point, like a needle, or the point of a compass. When 100% satisfied with the position of the hole, then make a indentation with the sharp point. This then acts as a pilot hole for the fine drill required for drilling the hole, and ensures it drills in the exact spot..
  5. Dhu Varren

    Grounded Bodies

    I have not seen this van in the flesh, just close up pics taken off the Google image. However, the end framing is more akin to the NCC than the GNR. The images below show the differences quite clearly. The first image is a snip from the Google image, and clearly shows that the two centre vertical frames continue past the horizontal frame at the top. The centre picture shows an NCC van end, which has the same frame arrangement on the end. The third picture is of a standard GNR van end, which clearly shows the difference between NCC and GNR van end framing.
  6. Dhu Varren

    Grounded Bodies

    Close up inspection of the external framing would suggest that it could be an NCC van, rather than a GNR van.
  7. Dhu Varren

    Dutch gen van

    The train is comprised of Mk 2a & b coaches which, being ex BR, have a different electrical system to the Mk2d coaches of IE. Three Dutch Vans were converted from steam heat to electrical generators to run with the Mk 2a & b coaches. Presumably two Dutch Vans were required in the formation in the clip, due to the number of coaches.
  8. Dhu Varren

    Operating Dapol Semaphore Signals

    I have never used the Dapol semaphore signals, but from what I have read, all that is required is a momentary power connection , or pulse, to operate the signal. The simplest way for operation is a push button. The first press of the button moves the signal one way, the next press moves it the other way, and so on. The Peco point switch provides two such pulses, one for each position of the lever. Unfortunately, as it stands, this is no use whatsoever for the Dapol signals. However, today I dissected a Peco point switch, to see how it operated, and discovered that if the two outer terminals are connected together and then to one wire from the signal, and the middle terminal is connected to the other wire, the Peco switch will provide one pulse to the signal each time the lever is moved. By an ingenious lever mechanism, the pulse only happens towards the end of the lever movement, so it is very unlikely that the signal will get out of sequence with the lever, as the lever has to be moved fully before the pulse is created..
  9. Dhu Varren

    Track Cutting Razor Saw

    It is sometimes better to have a slightly wider gap than that left by a razor saw, particularly where the gap is used for isolation purposes. In hot weather the track can expand sufficiently for the gap to close and cause a short circuit, or continuity where it is not required. Last week's hot weather did exactly that on an automated layout in a museum I am involved with. A train on a certain track kept overshooting it's stopping point, and a second train would ram into the side of it, causing a derailment. Investigation into the control equipment did not reveal any fault, and it was purely by accident that the closed up rail joint was found. Once the joint was opened up again, all trains ran normally.
  10. Dhu Varren

    UTA "Brown Van" from Provincial Wagons

    Whilst admiring Nelson’s excellent work on the brown van, I happened to notice that on one side the doors opened to the left, while on the other side the doors opened to the right. Having assumed for many years that all the doors opened to the left, and never having seen anything to the contrary, I decided to do some research. I looked at dozens of pictures of brown vans, and in none of them did any doors open to the right, which I thought was a bit strange. Surely all the pictures cannot be of the same side of so many different vans. There was, however, one exception to this, and that was the recently restored brown van at Whitehead, which has doors opening to the right, at least on one side. I then checked a drawing which I have, and lo, the drawing shows doors opening to the left on one side, and doors opening to the right on the other. Now we all know how inaccurate drawings can be, so could it be that in this case, since I have not found any pictures showing doors opening to the right, that the drawing is incorrect, and the restorers have restored the brown van at Whitehead as per the drawing, and Leslie’s brown van kit is based on the restored van. I am sure, and hopeful, that someone will come up with an answer to this.
  11. Dhu Varren

    Little models for little money

    Judging by the contents of the sets, these would date from the early 1960s.

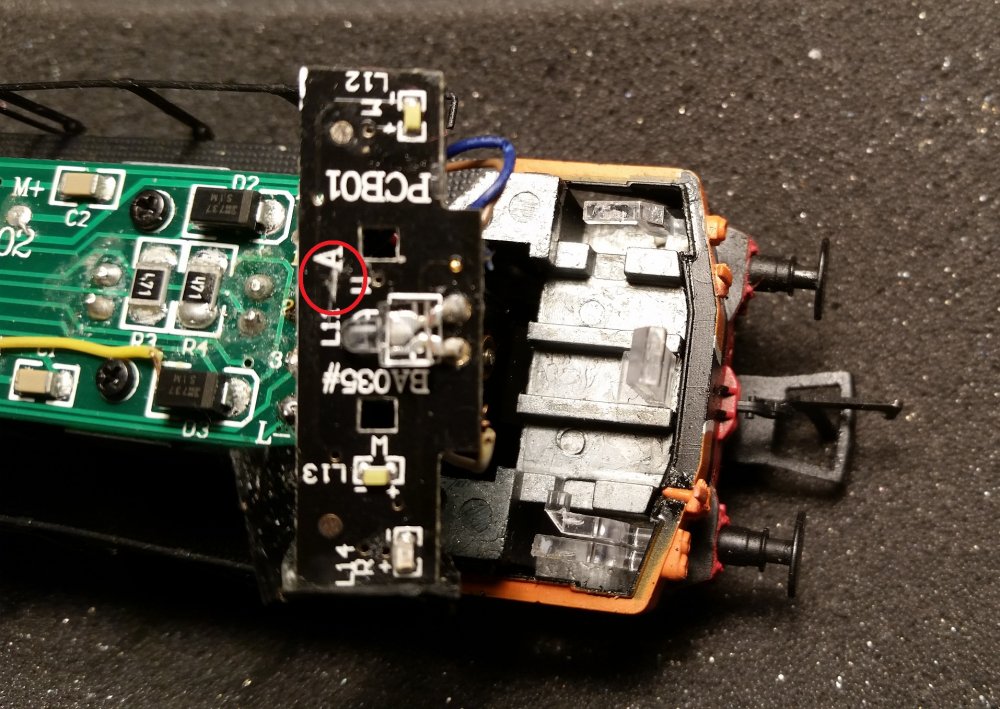

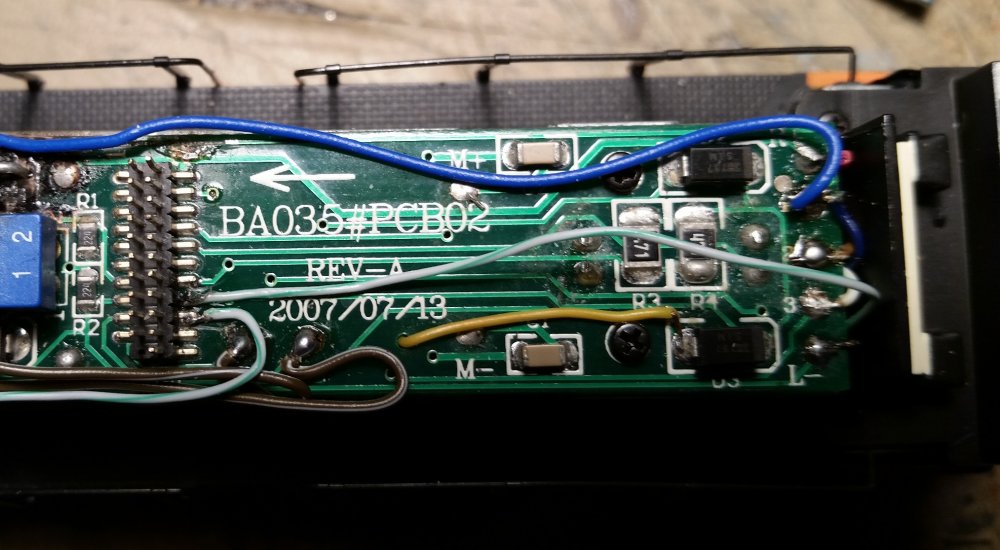

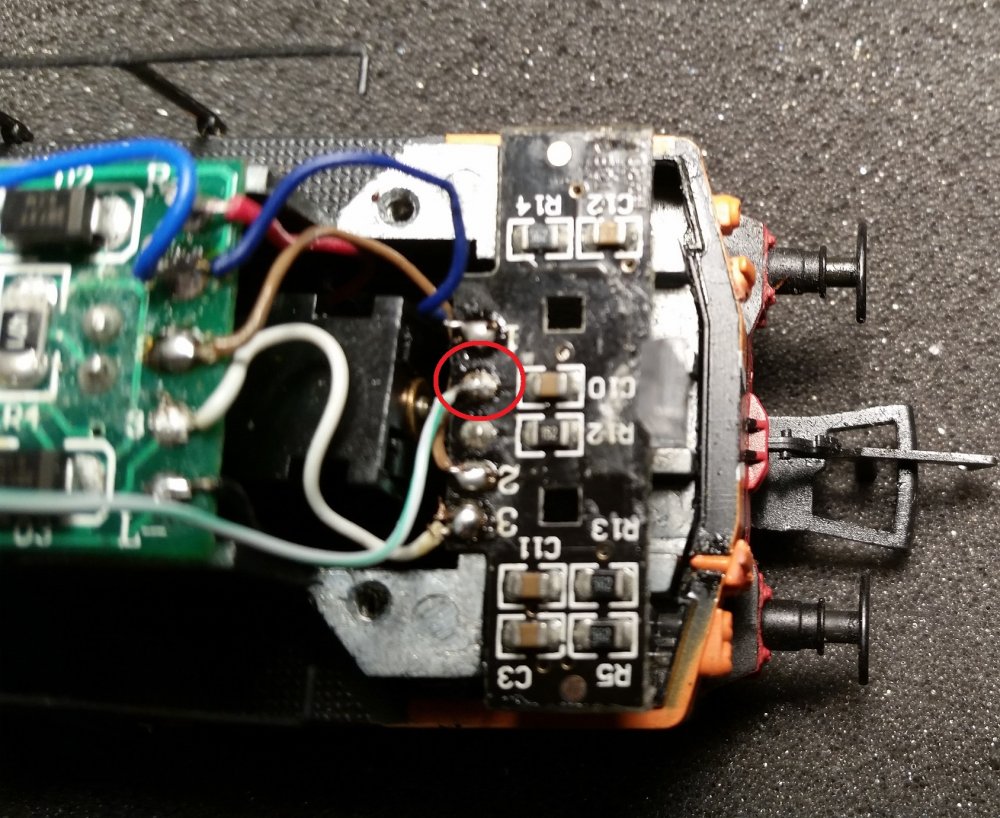

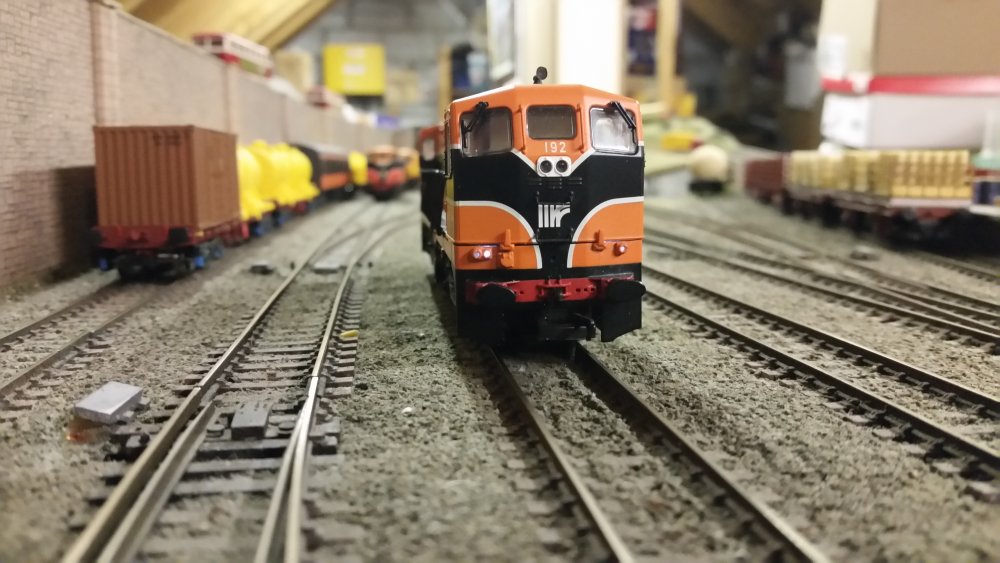

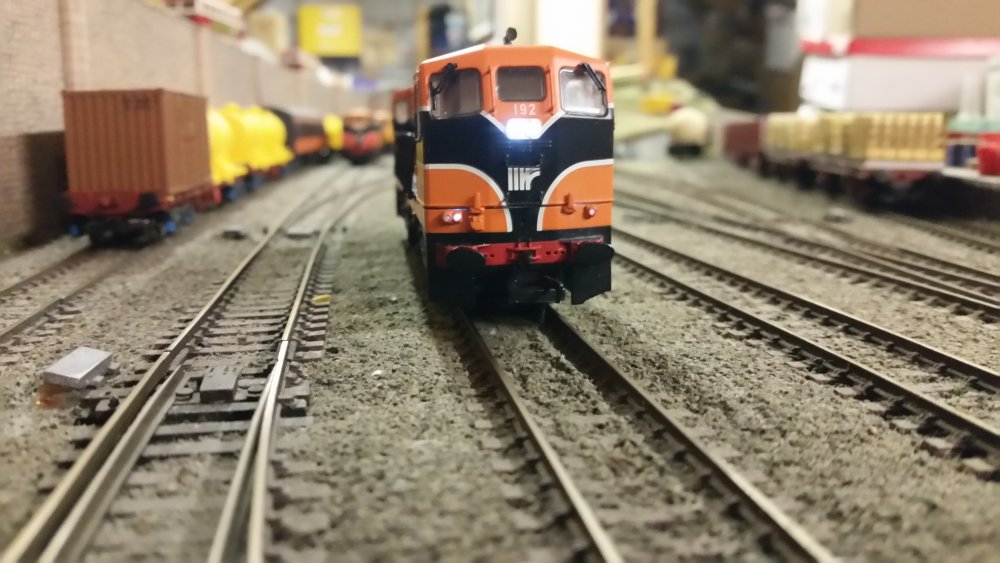

  12. Dhu Varren

    Murphy Model 086-no cab lights working

    Just checked a servo on a baby GM. Plenty of room above the coupling pocket, but care would be required in routing the thread so that it does not foul the buffer beam. There is also room underneath the pocket, but the servo would be visible from the side, although a touch of black paint would help to hide it. Better on top I think.
  13. Dhu Varren

    Murphy Model 086-no cab lights working

    I would say that there is an error in the description for the 6 pack. The six pack would seem to be a multiple pack containing enough parts to fit out three locos (6 couplings). I would also suggest making the connection to the function output on the loco circuit board, rather than the decoder. Much less expensive if you make a mess of it. I still have a 2 pack left from the original installation, so I will have a look at the implications of installing one in a baby GM. The friend I did the work for moved away shortly after the installation in the 2-6-4T, and left me with a second loco to do. I had said I would not start the second installation until after he provided me with a suitable decoder, which he hasn't so far. That was nearly three years ago.
  14. Dhu Varren

    Murphy Model 086-no cab lights working

    Noel, having installed two of those setups, I can't see any reason for any wear or chaffing to occur. After all, there is next to no tension required to pull the coupling open, and certainly, on the installations I did, there was no contact with anything to cause wear or chaffing. In the extremely unlikely event of the thread breaking, it would be easy enough to replace it anyway. I would have no hesitation in using that system, if I was using Kadee couplings.
  15. Dhu Varren

    Murphy Model 086-no cab lights working

    I hadn't seen that type before. Below is a link showing the type I fitted. The servo can be fitted anywhere as long as it is 90 degrees to the coupler. It operates by pulling on a length of fine thread.
  16. Dhu Varren

    Murphy Model 086-no cab lights working

    A couple of years ago a friend asked me to fit DCC remote uncouplers for Kadee couplings to a BR 2-6-4T locomotive. I don't use Kadees myself, but once I had installed the necessary servos and carried out functional tests, I found it was brilliant. Being able to uncouple a locomotive from stock, anywhere on the layout, was fascinating. No magnets required. I tested the loco for hours, just to make sure it worked, you understand..
  17. Dhu Varren

    Travelogue of Northern Ireland

    Pre war nostalgia on the NCC
  18. Dhu Varren

    Silverfox Models NI 101

    I had the same problem a few years ago, getting paint of a suitable shade. Below is a link to my original question, and the results.
  19. Dhu Varren

    Dutch Van

    I just used 5 thou plasticard cut to shape and size, and glued in position with solvent. When totally set, the hole for the grille was carefully opened up and filed out, leaving a thin surround. A grille was then fitted into the hole.
  20. Dhu Varren

    Dutch Van

    Some time ago, I decided to build a Dutch Van to go with my rake of RPSI Mk 2 coaches. A couple of years ago, at an exhibition, I picked up an old Triang Track Cleaning wagon, with no roof and a broken bogie, for £1.00. Later in the year at another exhibition, I picked up an old Triang Transcontinental Reefer Boxcar with a broken roof also for £1.00. The bogies were used to repair the track cleaning wagon, and the roof, after repair and adjustment, was also used on the track cleaner. That left a perfectly good Reefer body in my junk box. After checking the dimensions, it was found to be 1mm longer than a Dutch Van would be, but the width was fine. A bit of work with a fine saw and a file, saw the height reduced and the raised detail on the sides and ends removed, leaving a very useable shell for a Dutch Van. This van was to be one of the original steam generator type, one of which is now running with the RPSI as No 462. A new roof was fabricated, using two Triang Hornby LWB goods brake van roofs to get the basic arc for the roof, plastic strip makes up the extra width. Ribbing was added using plastic rod flattened on one side, and roof detail made from plasticard, and bits of scrap plastic. This is a picture of the roof of an EGV Dutch Van under construction using the two Triang roofs. Windows and doors were either cut out, or scribed where appropriate, and handrails and other detail added. The van is currently sitting on Jouef MK3 coach bogies, which surprisingly don’t look too much out of place, but these will ultimately be replaced with something more suitable at a later date. After priming with grey primer from Halfords, which would normally reveal any imperfections in the construction of the vehicle, I am glad to say the primer revealed nothing worth talking about. The next step was to finish it off in RPSI livery, glaze it and finish the underframe. Almost completed. Just glazing and underframe detail to do. I have to say, I am really pleased the way it has turned out, even down to only having the lining on one side, as the prototype had at one time. From refrigerator van to heating van:-
  21. Dhu Varren

    Dutch Van

    I don't have any actual dimensions for the added headstocks. It was simply a case of taking measurements from photographs, and adjusting the ends of the model until they looked right. If it is any help, I have made my extensions 5.5mm each end.
  22. Dhu Varren

    Celbridge

    Interesting circuit. But what happens when the red loco reaches the crossing first and is on the crossing when the green loco activates the stop circuit? I think a 'first come, first served' circuit would be a better option.
  23. Dhu Varren

    Modelrail Glasgow.

    Just back home after an exhausting three days working and exhibiting at Modelrail. Good to meet numerous familiar, and some not so familiar faces, including Patrick and Fran of the IRM team who were wandering about. Did not get to speak to them, as I was otherwise engaged at the time. For those who found me repairing the turntable on the Friday, it worked flawlessly for the rest of the show. Thanks to everybody who stopped to chat.
  24. Dhu Varren

    Modelrail Glasgow.

    How it works Bear in mind that the mechanism is upside down in the picture, so down in the text means up in the picture, and so on. The turntable consists of 3 main parts. The turntable deck. The deck is not rigidly attached to the centre spindle, but lightly rests on a brass plate, which has two pins sticking up which engage with two holes in the bottom of the deck. It is then secured loosely to the plate with a shouldered screw. The deck is therefore free to follow any fluctuations in the level of the pit without binding. The weight of the deck, and locomotive, are carried on the four wheels which run on the circular rail round the outside of the pit. The turntable pit. The floor is made from a circle of 9mm plywood to ensure there is no warping. It is edged with card to form the pit. The operating mechanism. The Relay The Motor & Gearbox. The Control Board Relay Arm Extension The Locking Pin. 3mm brass rod. The control board is a disc of copperclad paxolin with two 2mm isolated strips 180 degrees apart, which line up with the point at which the turntable should stop. Underneath the deck at each end is a flat brass strip, across the width of the deck, with a 3.2mm hole at the centre point of each strip. Pin E rests in this hole to ensure that the deck lines up correctly, and does not move. Wire F acts as a spring to ensure the pin enters the hole quickly. Also underneath the deck are two phosphor bronze pickup strips which contact two brass screw heads in the pit near the centre. These provide power to the rails when the deck is lined up, but lose contact once the deck starts to move. This prevents a locomotive moving during the turning cycle. When the start button is pressed, the relay A closes and Switches on power to the motor B. Switches on power to itself via the control board C (which is missing in the picture. The white disc is actually the last gear in the geartrain. The control disc fits on the spindle below the gear) to keep itself switched on until completion of half a revolution of the turntable. Rod D is rigidly attached to the relay arm and the end at pin E moves down to pull Pin E out of the location hole in the bottom of the turntable deck, thus allowing the deck to move. Once the deck has started to move, the pickups on the disc will contact the copper part of the disc, and supply power to the relay to keep it on. On completion of half a revolution, the pickups on the disc enter the isolated strip and cut the power to the relay. The relay starts to open, but the pin E rises slightly and hits the brass strip on the bottom of the deck thus preventing the relay opening fully. The deck continues to rotate until the pin enters the hole, which allows the relay to open fully and cut the power to the motor. The deck stops and the pin ensures the deck is correctly aligned and will not move. Power has also been restored to the rails, and the loco can drive off.
  25. Dhu Varren

    Modelrail Glasgow.

    Nice picture Joe. Didn't realise you had taken a picture while I was trying to fix the contact disc, which is missing in the picture.
×
