TTN3 - 3’ gauge in 3mm scale.....

Rate this topic


Galteemore
 Share

Recommended Posts

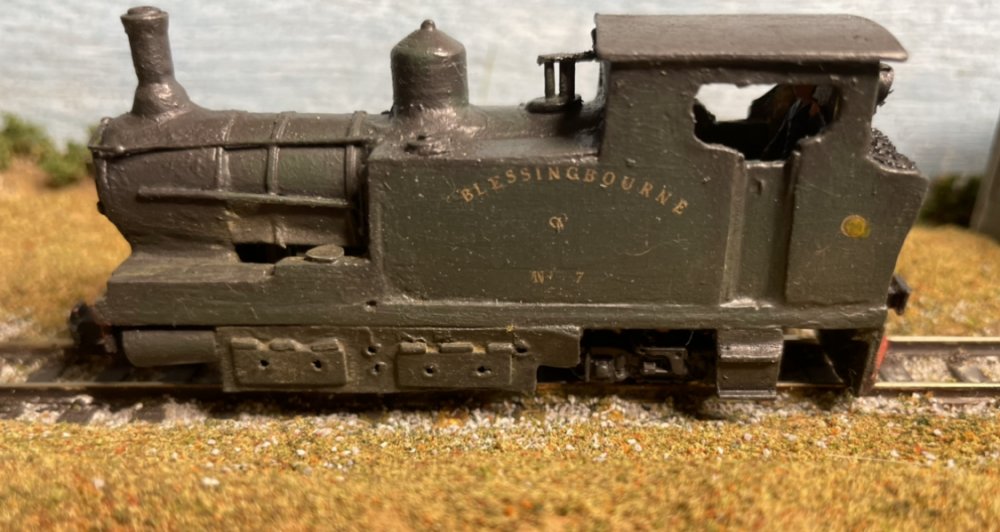

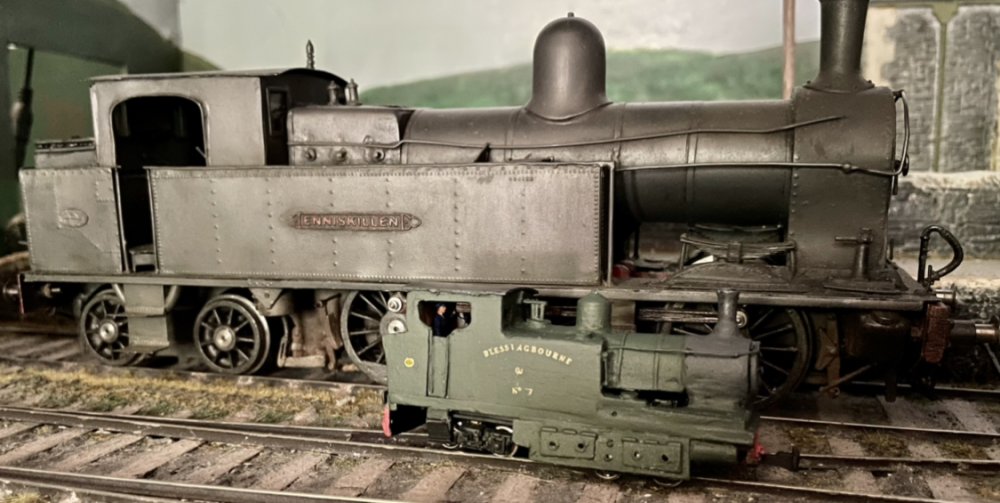

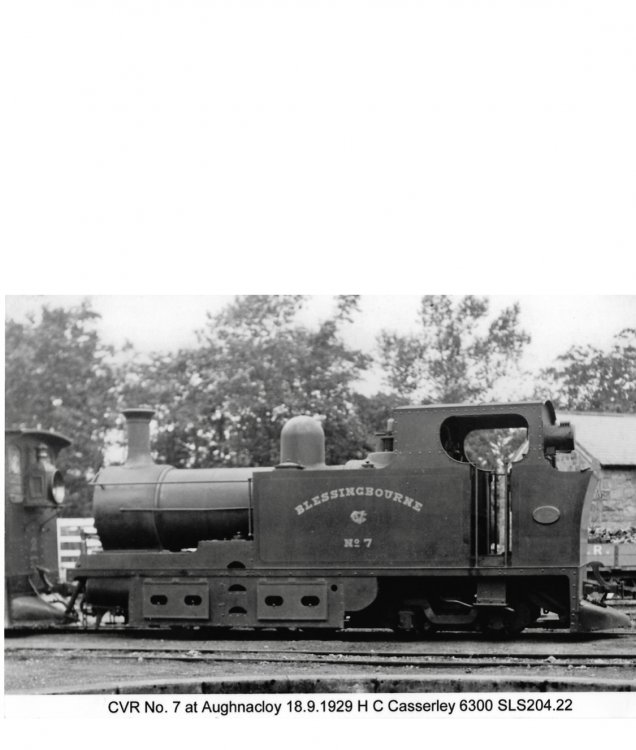

Inspired by @J-Mo Artsrecent photo of an 009 Clogher Valley  ‘Blessingbourne’ I thought I’d best finish off mine - although in fairness I did only start it 10 days ago! The real thing was a disaster with appalling adhesion - but a very smart loco. An ideal fit for a Kato bogie chassis - almost! The motor is wide just where the boiler is meant to curve inwards, but I have tried to disguise that. All scratch built -bar the handrail knobs. I turned up the dome and chimney from brass bar. She has separate wire handrails, glazing fore and aft, real coal and a crew. The lettering is a distinct feature of the real thing. Although mine is a little high on the tank sides it hopefully captures the arc of the original. It’s a bit crude but for a first 3mm effort I’m happy enough. In this scale the emphasis is more on trains in the landscape than microscopic detail - I hope....As you can see, she’s a bit smaller than the 7mm loco I have just built ! And she does sit nicely on scale 3’ track.






Edited by Galteemore
  • Like 9
Link to comment
Share on other sites

  • 2 weeks later...

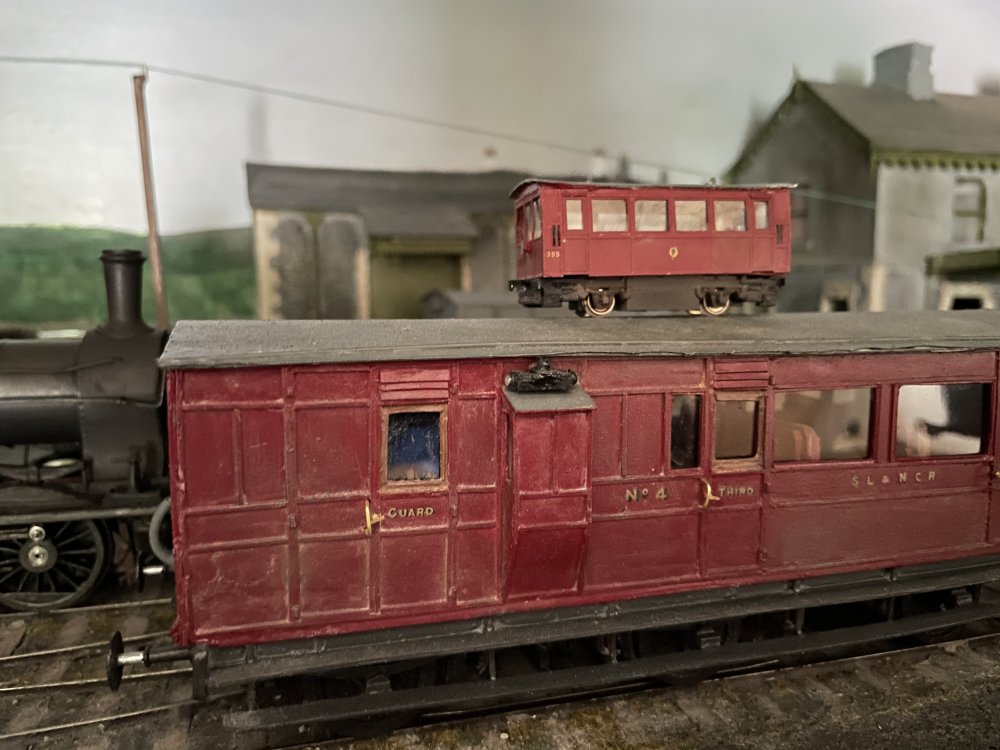

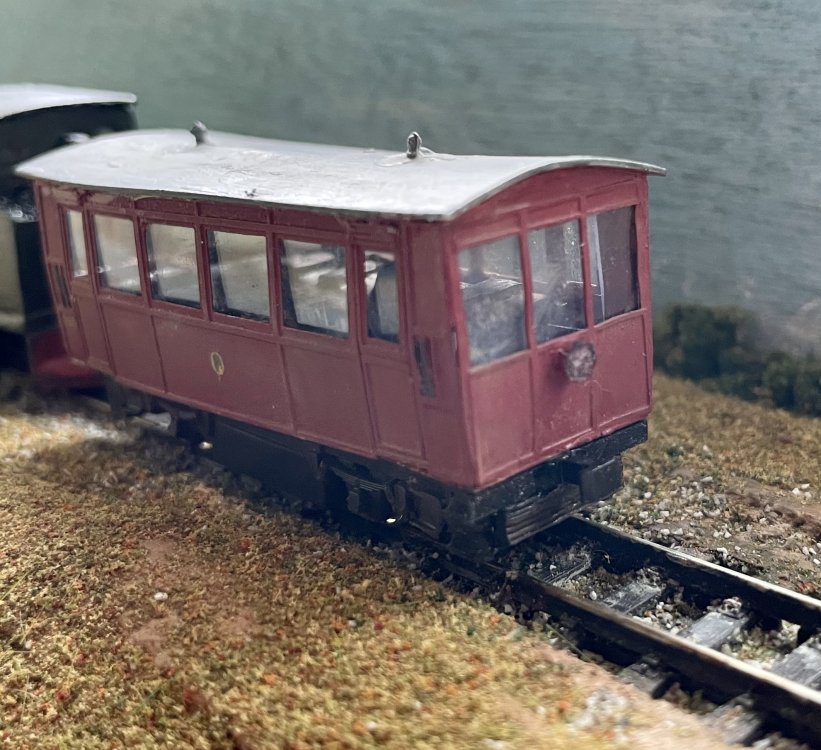

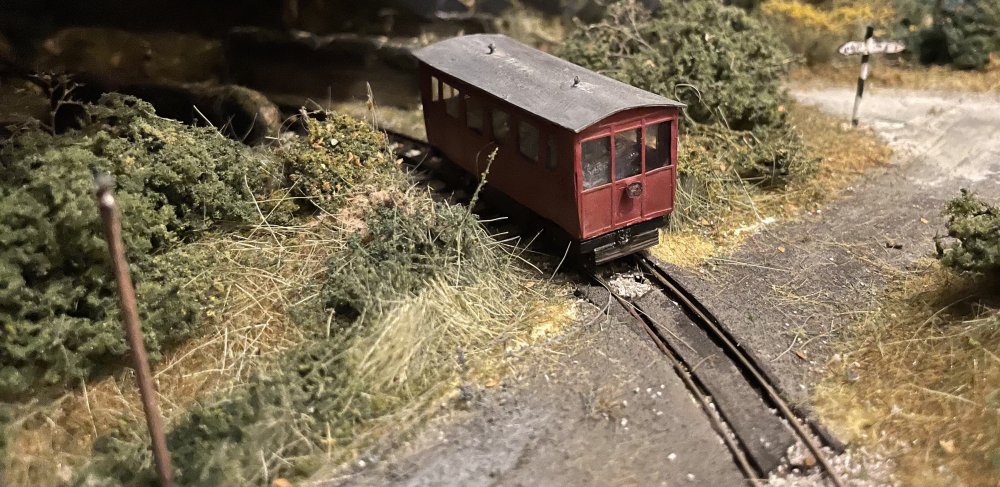

Dragged on a few weeks now but more or less finished this West Clare Drewry railcar. Worsley Works etches provided sides ends and floor, most of the latter being cut away to fit in a little Kato motor. It’s far from perfect but runs like a dream. Finished in weathered GS colours. It’s small compared to a 7mm coach !



  • Like 8
Link to comment
Share on other sites

I like that, nice job on the kit, and you can't go wrong with a Kato chassis.  I have one of those Worsley Works railcars in my stash of kits to build one day.

I have always thought TTn3 is ideal for Irish narrow gauge, and not perhaps as popular as it could be.

He's not on this forum, but one of my mates built a TTn3 Irish layout called 'Caher Patrick' about 25 years ago.  He was using Graham Farish Compound 4-4-0 chassis for Cavan & Leitrim & Cork, Blackrock & Passage tanks, & Minitrix 2-6-2 chassis for Tralee & Dingle 2-6-0 tanks.

I think it appeared in Railway Modeller sometime around 2002-2004 (sorry can't find my copies of RM to confirm exact dates).

He was using things like the smaller Dundas Models Festiniog 'style' 009 coaches like DM59, DM61 & DM64 as Irish coaches in 3mm scale (without the end balconies), they were surprisingly effective.

There aren't many photos online of his layout and stock, there are some on the NGRM Online forum, but there's no point in me posting links to that forum as you need to sign up to it in order to see the photos.

Edited by Moxy
Spelling mistake
  • Like 2
Link to comment
Share on other sites

Thanks - I’m in touch with that gent ! It was June 2003. Mark Fisher has also done some nice stuff http://s116425720.websitehome.co.uk/MemberLayouts/FinnegansCrossing/FinnegansCrossing.htm

The advent of 3D printing has opened up a lot of stuff on Shapeways in TTN3, so it’s a good time to start. You’re right though - should be more popular than it is!

  • Like 2
Link to comment
Share on other sites

  • 2 weeks later...

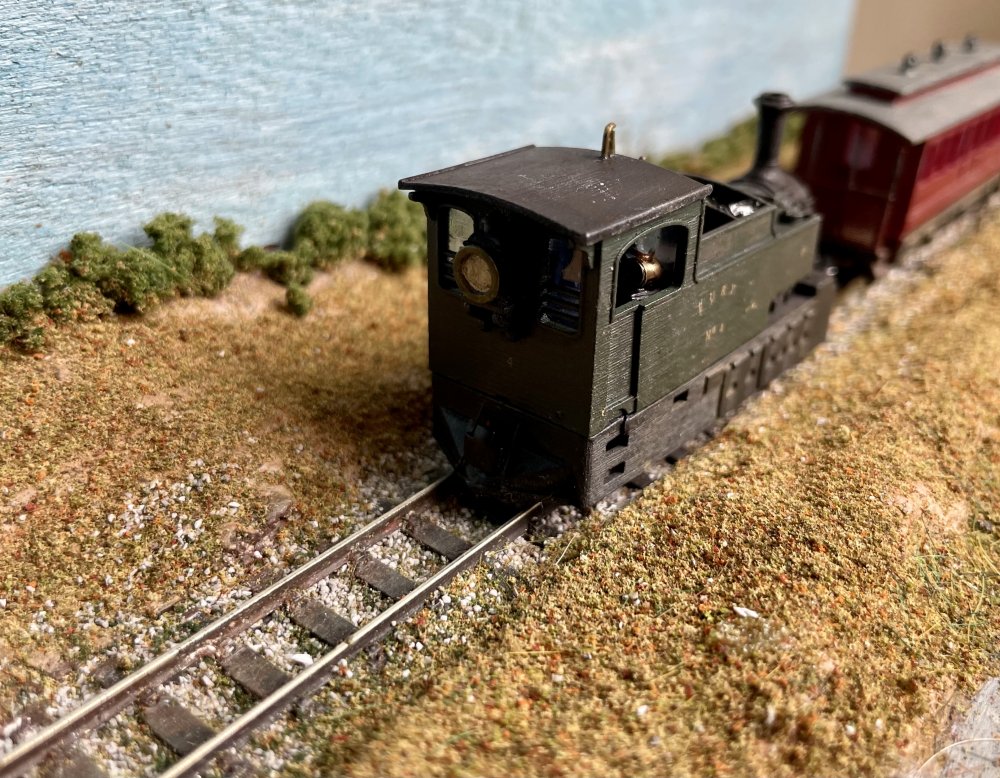

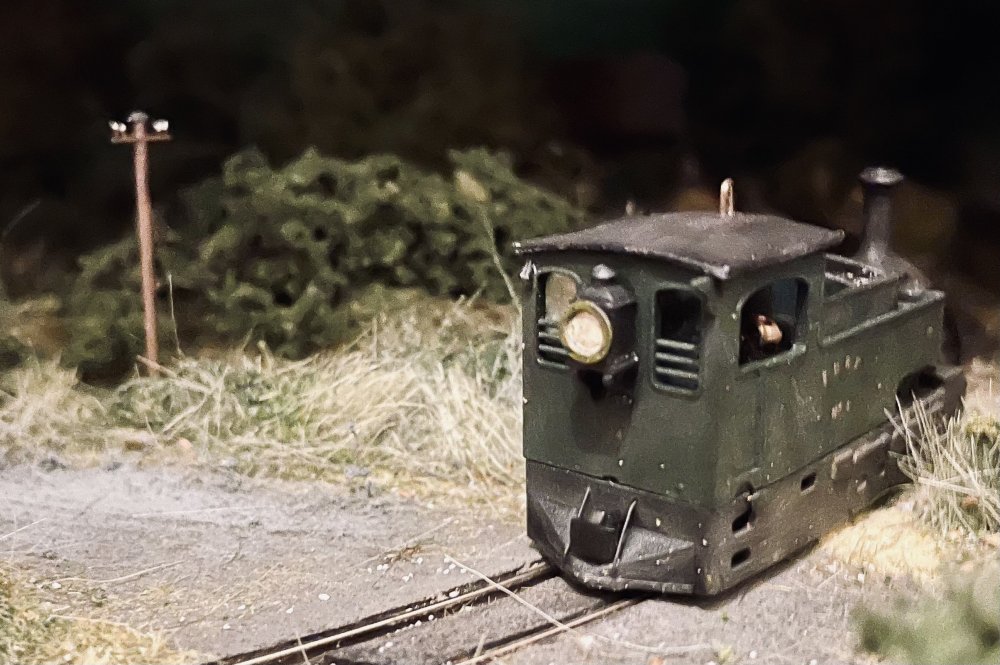

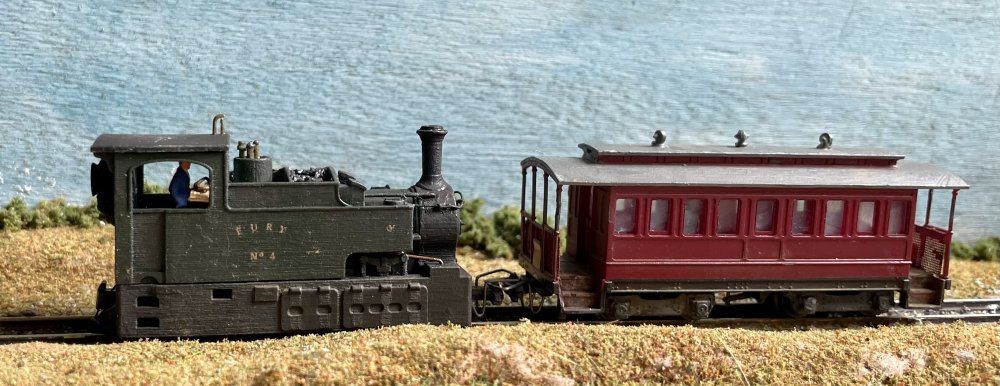

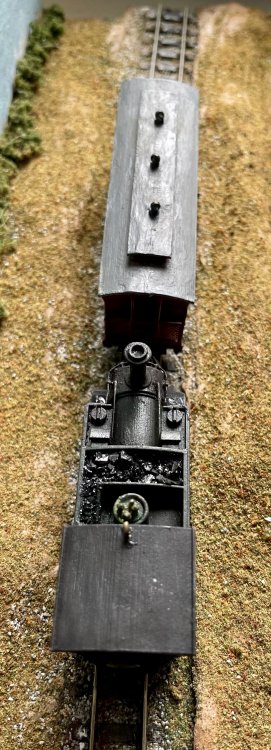

Shapeways prints fettled, detailed, and painted. Clogher Valley No4 ‘Fury’ and coach. Hopefully pass the 2’ rule. The driver is a Preiser TT German station master who is not at all happy to find himself demoted from Hauptbahnhof to hedge-hopping tramway !







Edited by Galteemore
  • Like 7
Link to comment
Share on other sites

Is the CVR coach Worsley Works or did Andrew Mullins produce a 3mm scale version of the Branchlines CVR coaches

I am tempted to build a CVR 0-4-2T & a 4w Passenger Brake in 4mm myself to go with a pair of Branchlines Coaches & a Horsebox I bought/built about 30 years ago.

  • Like 1
Link to comment
Share on other sites

36 minutes ago, Mayner said:

Is the CVR coach Worsley Works or did Andrew Mullins produce a 3mm scale version of the Branchlines CVR coaches

I am tempted to build a CVR 0-4-2T & a 4w Passenger Brake in 4mm myself to go with a pair of Branchlines Coaches & a Horsebox I bought/built about 30 years ago.

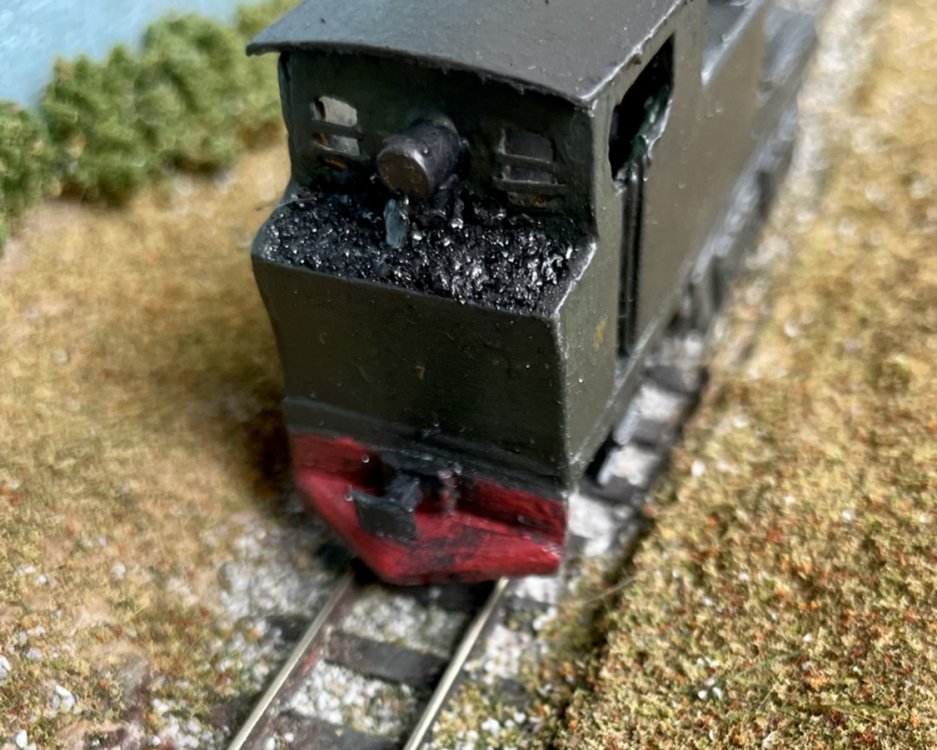

The CVR loco and coach are both Shapeways, John, from David Hurst. Loco runs on Kato pocket line chassis drastically cut down, and  has had handrails, whistle, pipework, cab interior, glazing, and real coal added, with my own fabricated smoke box dart. Transfers are Fox 1mm lettering. The coach is a simple Shapeways, almost clips together, albeit with brass mesh added to the ends to replicate the original. Runs on Peco Welsh NG bogies. He also does the loco in 00n3, which may interest you: I think it was a collaboration with Paul Titmuss. The Clogher valley locos are a bit of a trap for the unwary 009 modeller as they will look far too big on 2’ scale track, so he also does a scaled down version for 009 !

Edited by Galteemore
Link to comment
Share on other sites

  • 3 weeks later...

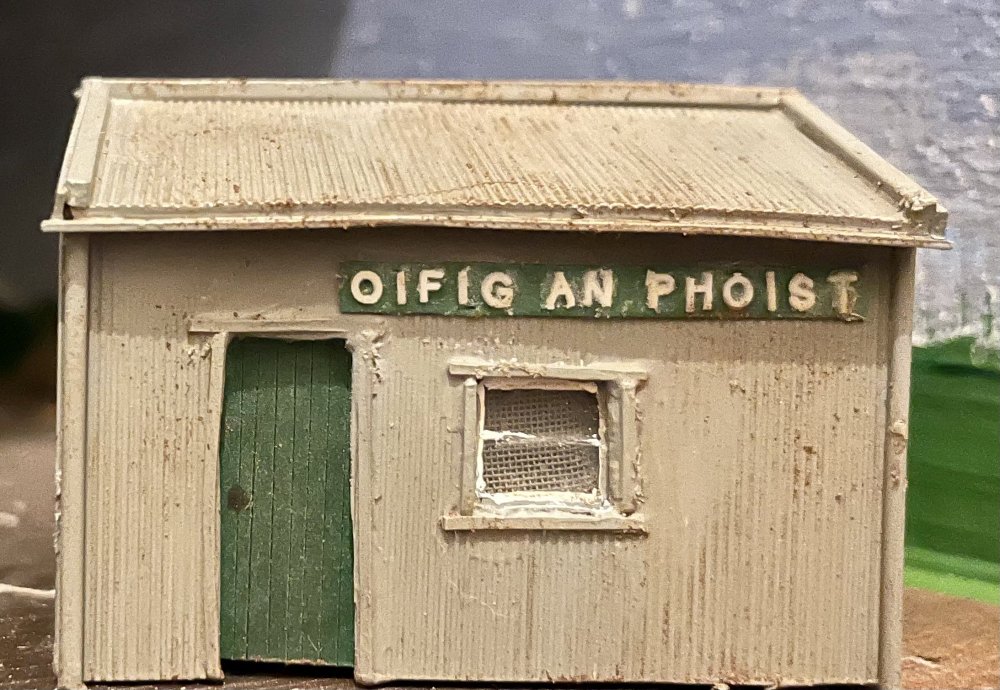

One of my earliest memories of trips to Leitrim in the 70s involves the corrugated iron shops - now closed - between Belcoo and Manorhamilton. That’s shops made out of the stuff, not retailing it…..For Drumkeeran Road, I’ve tried building one from plastic sheet etc. Crude but 2’ rule and all that - it’ll be at the back of the layout. First pass with some weathering today.


Edited by Galteemore
  • Like 6
Link to comment
Share on other sites

  • 2 weeks later...

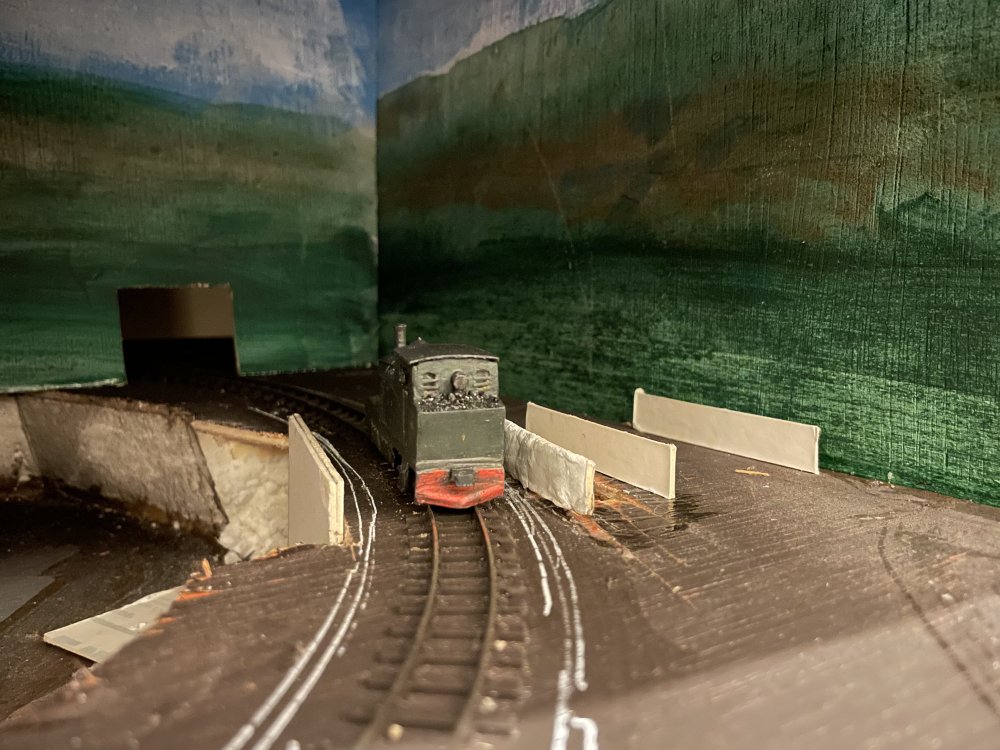

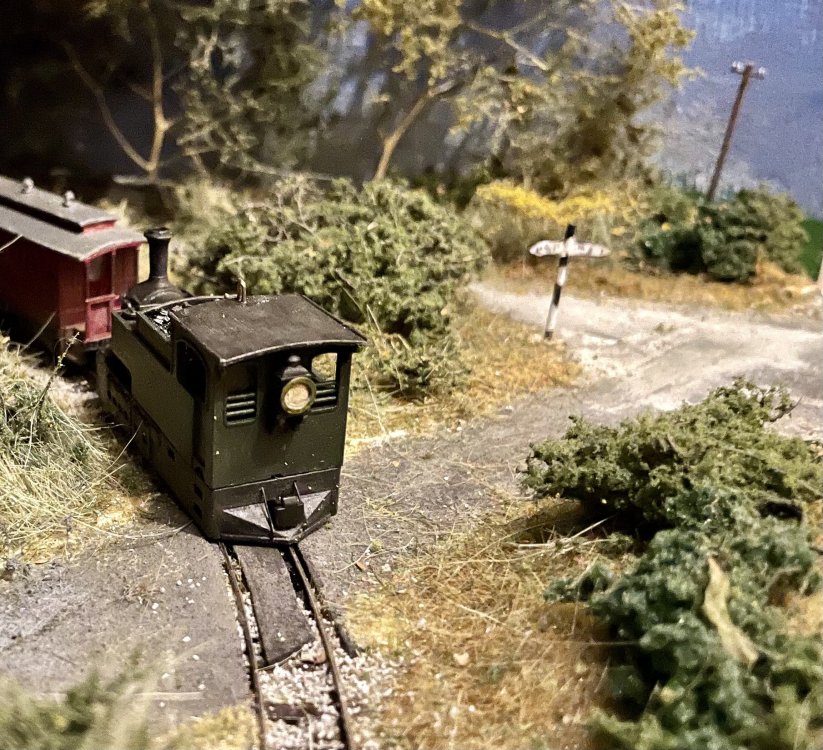

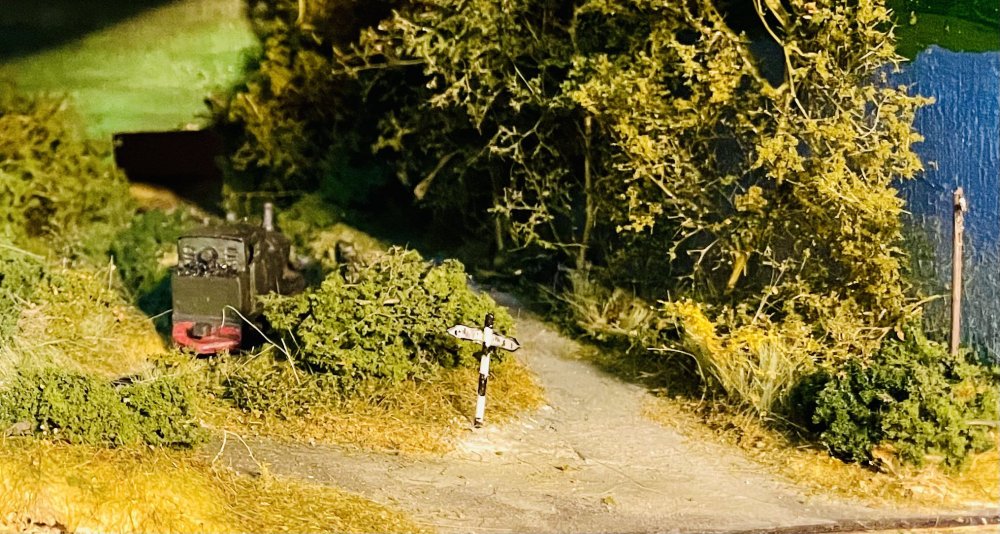

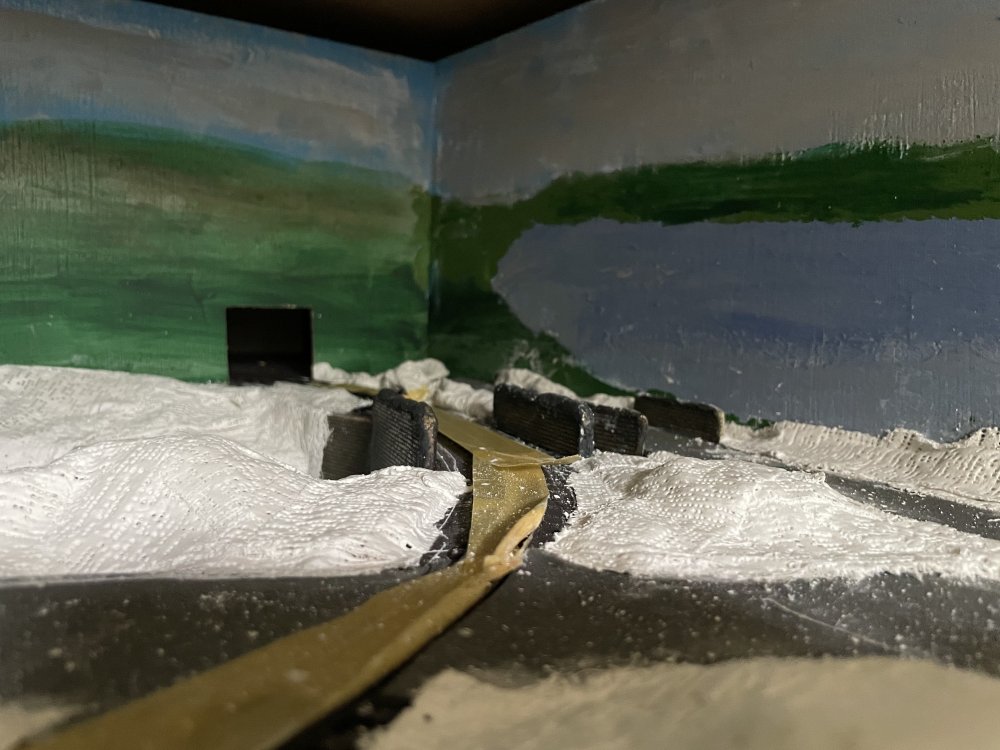

Some scenic stuff progresses - some views of the same location several days apart - including the addition of a lake stage right ! The sequence illustrates how the backscene gradually fades into obscurity as detail is added. Fair bit of tidying up to do but getting there. Picture 1 proves there really is a railway somewhere in there !








Edited by Galteemore
  • Like 11
  • WOW! 4
Link to comment
Share on other sites

2 hours ago, Galteemore said:

Some scenic stuff progresses - some views of the same location several days apart - including the addition of a lake stage right ! The sequence illustrates how the backscene gradually fades into obscurity as detail is added. Fair bit of tidying up to do but getting there. Picture 1 proves there really is a railway somewhere in there !








Now THAT is dense vegetation

Stunning

  • Thanks 1
Link to comment
Share on other sites

  • 2 months later...

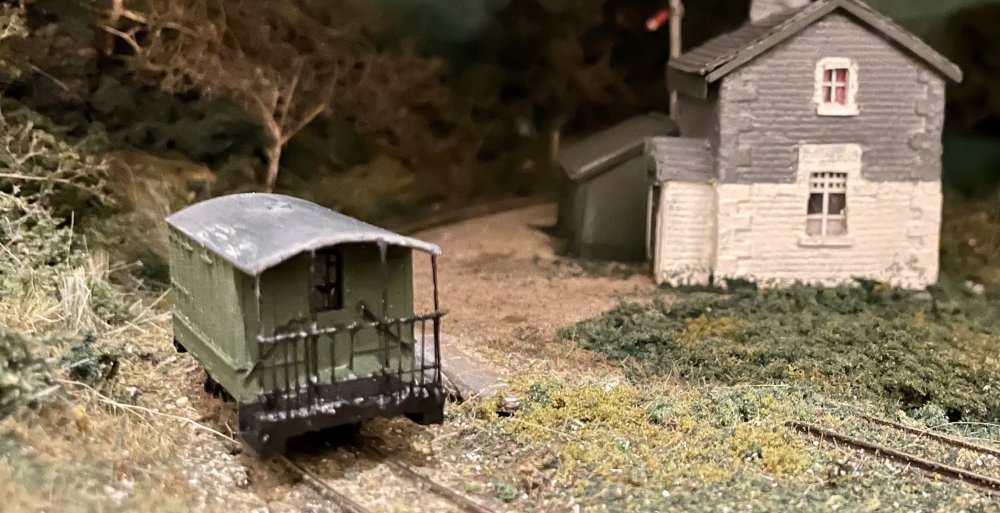

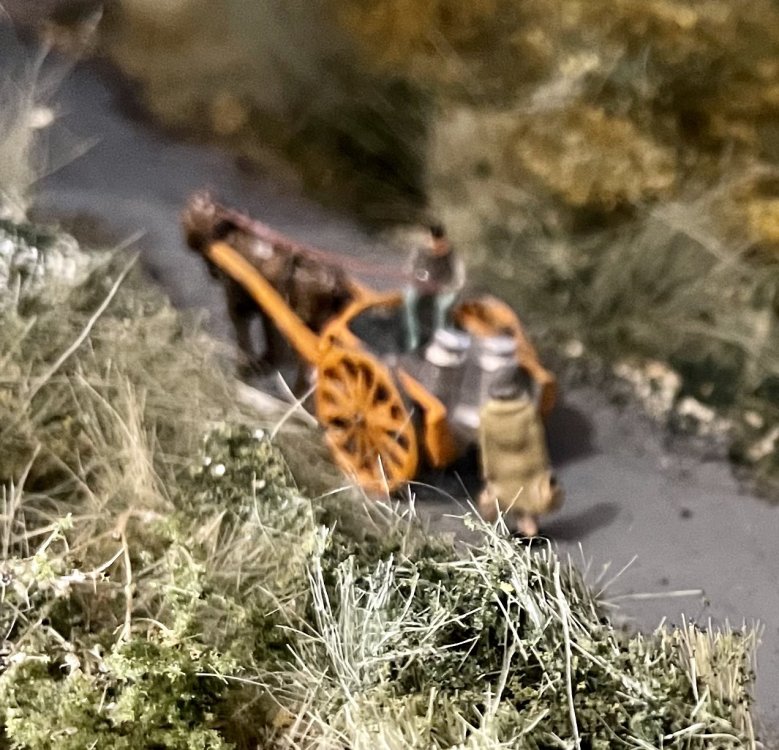

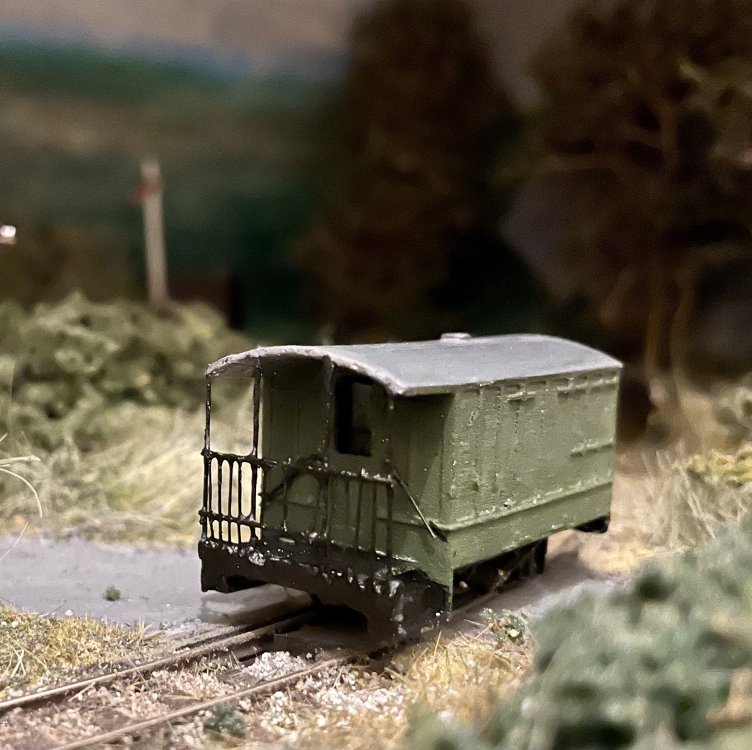

First item of C and L stock - brake van. Body is a 3D print mounted on an old Farish chassis - the built in moulded chassis was a bit sub par and needed broken off! Railings built up from plastic rod and entomological pins. Needs a bit of weathering but priority right now is building stock for Saturday’s show !! Have also created a little cameo of two locals chatting on the road….




Edited by Galteemore
  • Like 5
Link to comment
Share on other sites
