buildings for a railway yard in the 50s

Rate this topic


GSR 800

Recommended Posts

Hi guys.Since im building a yard for kedleston i knew it needed some buildings.But very few layouts are set in the 50s in ireland,so im not sure what to put in the yard(par an engine shed,water tower and turntable)



Ballybrophy had everything - https://plus.google.com/photos/105618325540295927305/albums/5222995821547314129?banner=pwa - the remains of the turntable were still visible up to recently -

.
Link to comment
Share on other sites

Check out the Alphagraphix catalogue GSR. He advertises in Railway Modeller & you need to send him some stamps, as it is all by post. There is a wide range of model building kits for Irish prototypes in both 4mm and 7mm scale. Cheap too - often 5 euro or less. They can make into decent models, or if you prefer [like me], you can use them as a plan for your own scratch builds. Note too that signal boxes in Ireland were often 'off the shelf' jobs, mainly from Saxby & Farmer. Wizard Models do many fittings.

Link to comment
Share on other sites

Thanks Broithe.Do you have any pics of it back in the day?



Not really, there's a good few about on the net, though - little has changed, really - the footbridge has been replaced, the signal box and the engine shed have gone. The track layout has been radically simplified. I've never seen a picture with the engine shed in view...

Link to comment
Share on other sites

Ballybrophy had everything - https://plus.google.com/photos/105618325540295927305/albums/5222995821547314129?banner=pwa - the remains of the turntable were still visible up to recently -
.

Very nice set of photos, Jim. GSR, I think you're likely to find a lot of similar buildings in the O' Dea collection that would help you reconstruct this 'in the day'

Link to comment
Share on other sites

Check out the Alphagraphix catalogue GSR. He advertises in Railway Modeller & you need to send him some stamps, as it is all by post. There is a wide range of model building kits for Irish prototypes in both 4mm and 7mm scale.

Anyone have contact details from Railway modeller or otherwise?

Link to comment
Share on other sites

Station Master's house adjacent to the station in some cases, or "above the shop" i.e. a second storey in the station building. Signal box, goods shed, loco shed, possibly a carriage shed if it's a terminus, goods shed, and often little storage sheds like a lamp room, bicycle shed, coal / turf shed, PW men's hut, etc.

Link to comment
Share on other sites

Bachmann do a depot hoist crane, as seen here http://www.ehattons.com/60736/Bachmann_Branchline_44_181_Depot_Hoist_168mm_x_75mm_x_105mm_/StockDetail.aspx and also a hand crane, seen here http://www.ehattons.com/52740/Bachmann_Branchline_44_146_Highley_Station_Yard_Crane_60_x_45_x_75mm_/StockDetail.aspx

You can also buy kits similar to the RTP models above if your into kit building.....

Link to comment
Share on other sites

Anyone have contact details from Railway modeller or otherwise?



Alphagraphix,

23 Darris Road,

Selly Park,

Birmingham, B29 7QY,

England.



Enclose a stamped addressed envelope for replies in the UK, or 2 International Reply Coupons for overseas.

Link to comment
Share on other sites

Bachmann do a depot hoist crane, as seen here http://www.ehattons.com/60736/Bachmann_Branchline_44_181_Depot_Hoist_168mm_x_75mm_x_105mm_/StockDetail.aspx and also a hand crane, seen here http://www.ehattons.com/52740/Bachmann_Branchline_44_146_Highley_Station_Yard_Crane_60_x_45_x_75mm_/StockDetail.aspx

You can also buy kits similar to the RTP models above if your into kit building.....

Thanks Nelson the bachmann hoist crane will be on my to buy list!

Link to comment
Share on other sites

Good looking hoist, Nelson. GSR, also more locally, same price

http://www.themodelshop.ie/depot-hoist.html

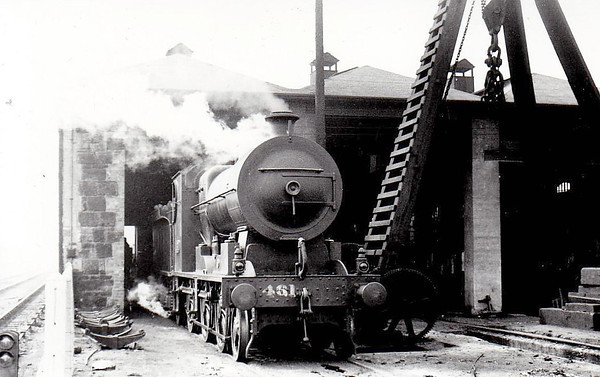

The depot hoist is more suited to a large loco depot than a railway goods yard. Waterford had a hand operated gantry outside the shed, Grand Canal Sheet had a sheerlegs Class K 2 - 461 - 2-6-0, built 1922 by Beyer Peacock as Dublin & South Eastern Railway No.15 - 1925 to GSR as No.461, 1945 to CIE - withdrawn 1961 - seen here at Dublin Grand Canal Street in 1938.



Most goods yards had a simple hand operated crane the Wills Kit is based on the crane at Castlerea on the Mayo Line http://www.buffersmodelrailways.com/products/kits-192/station-195/wills-ss51-yard-crane-plastic-kit-oo-scale/item



Most Irish goods yards were relatively small usually with a siding serving a goods shed and loading bank often with a hand operated crane for sundries and less than full wagon load traffic, larger yards usually had a separate siding with a loading bank for wagon load and cattle traffic.



Coles Cranes appear to have been introduced in larger depots the 1960s to mechanise the loading/uloading of wagons, gantries started to appear with widespread containerisation from the mid 1960s onwards http://www.corgi.co.uk/coles-argus-6-ton-crane-yellow.html



The goods shed operated in a similar manner to a modern couriers depot wagons as a warehouse and distribution centre goods could be delivered by the railway road delivery service or picked up by a customer.



With wagon load the customer was responsible for loading or unloading the wagon, a farmer or merchant might by a wagon load of cement or fertiliser and sometimes use the wagon as storage unloading the wagon at his or her leisure.



Beet was originally loaded by hand, in the late 50s ramps were built on many cattle banks to allow loading by tipper lorries sometimes carters sometimes CIE owned trucks.

Link to comment
Share on other sites

Hi John.In my opinion,as my goods yard is serving a terminus it would be large and would possibly need a depot crane.



If this is the one you're referring to: http://www.themodelshop.ie/depot-hoist.html ...the depot hoist is more suitable for a railway workshop where they were used for lifting wheels and frames, etc. I've never heard of such a crane being used in a goods yard.

Edited by Garfield
Link to comment
Share on other sites

The buildings and facilities in a goods yard reflect the type of goods handled. Rathkeale for instance had a gantry crane to handle containers from a nearby co op, Fenit had a scale for weighing wagons loaded on the pier, the North Kerry yard in Tralee had among other facilities, a platform for washing out cattle wagons, a small building used by Liptons for tea shipments, a tar depot and a number of private sidings which over the years handled fertilizer, grain, coal and possibly more. Figure out what traffic your yard handles and work from there.

Link to comment
Share on other sites

One of my favourite threads on RMweb and funnily enough the current topic is about overhead hoists/crane. So with a few bits of balsa wood, you can make quite a convincing model..http://www.rmweb.co.uk/community/index.php?/topic/58826-grantham-the-streamliner-years/?p=1879358
