Irish Railway Models A Class Re-wheeled to 21mm

Rate this topic


JohnMcGahern
 Share

Recommended Posts

They look totally different IMO. I'm gonna try to relay my little test oval in 21mm (though for functional purposes only, so I'll only solder in a PCB sleeper in every 5th position to save wasting them) and then I want to regauge an A. Did you just push the original wheels out?

Oh and welcome to the forum John!

Edited by murphaph
  • Like 2
Link to comment
Share on other sites

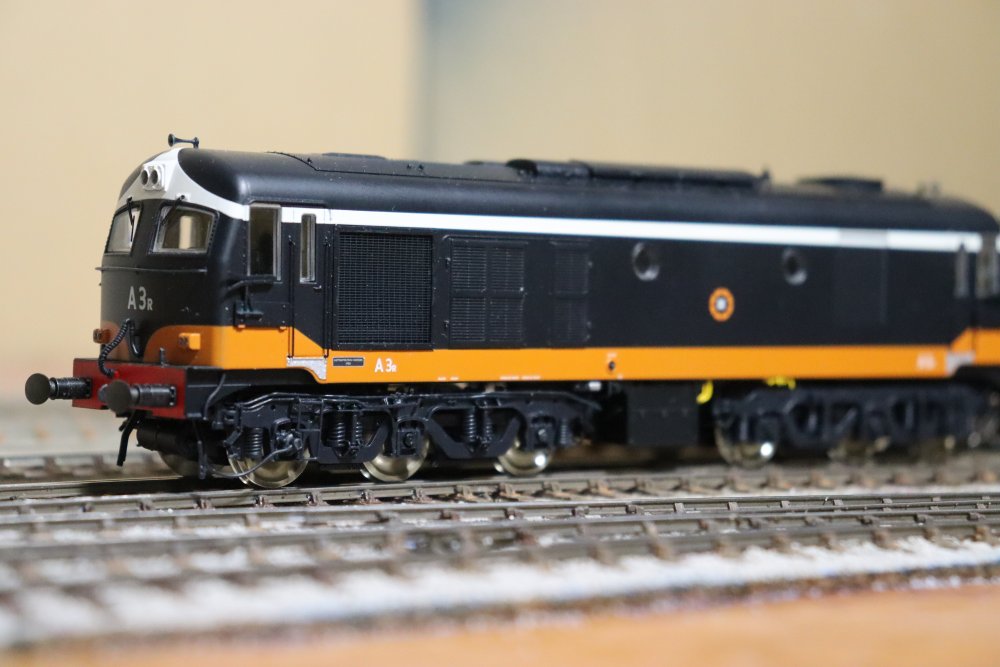

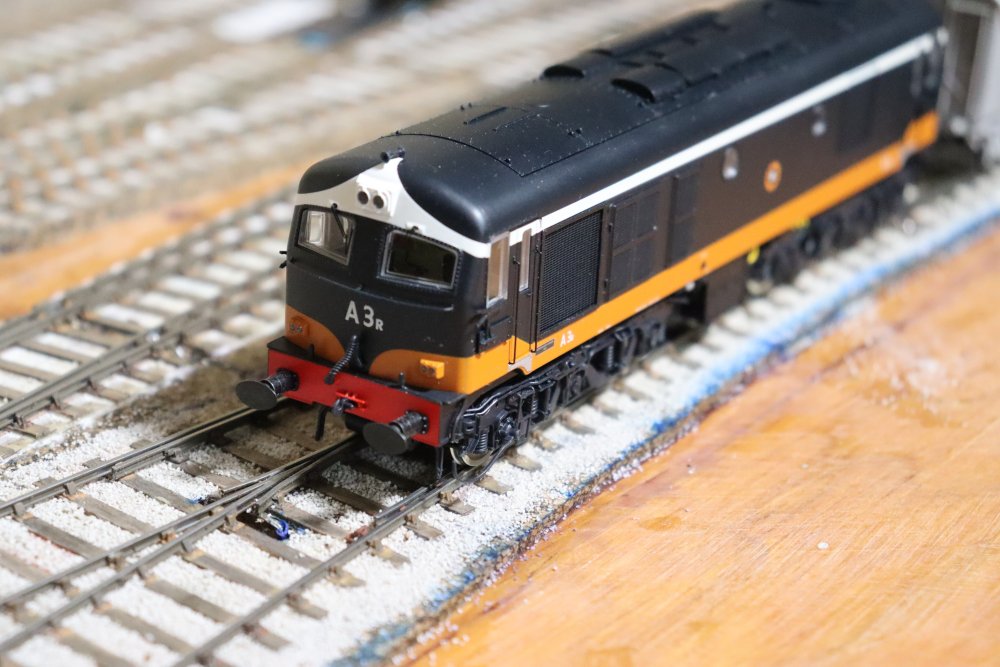

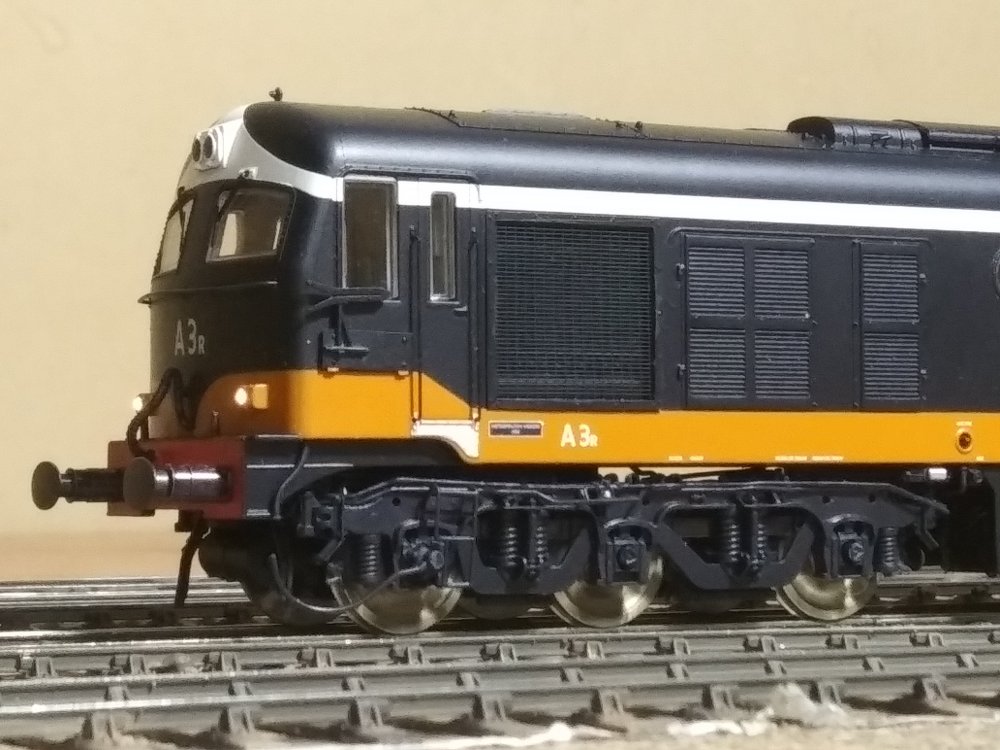

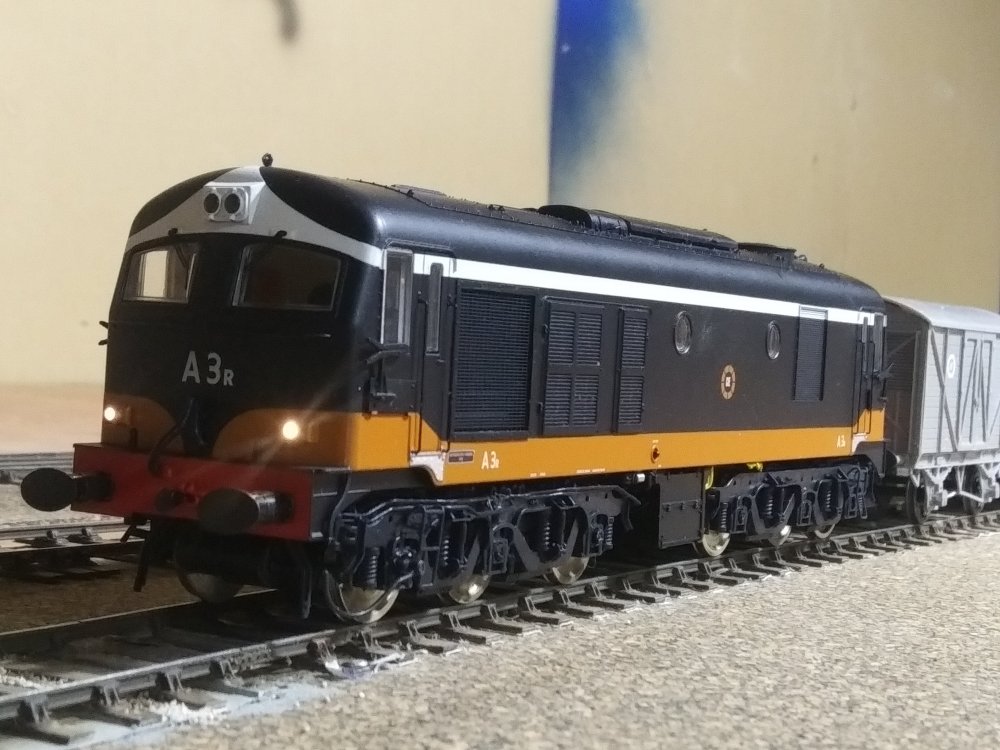

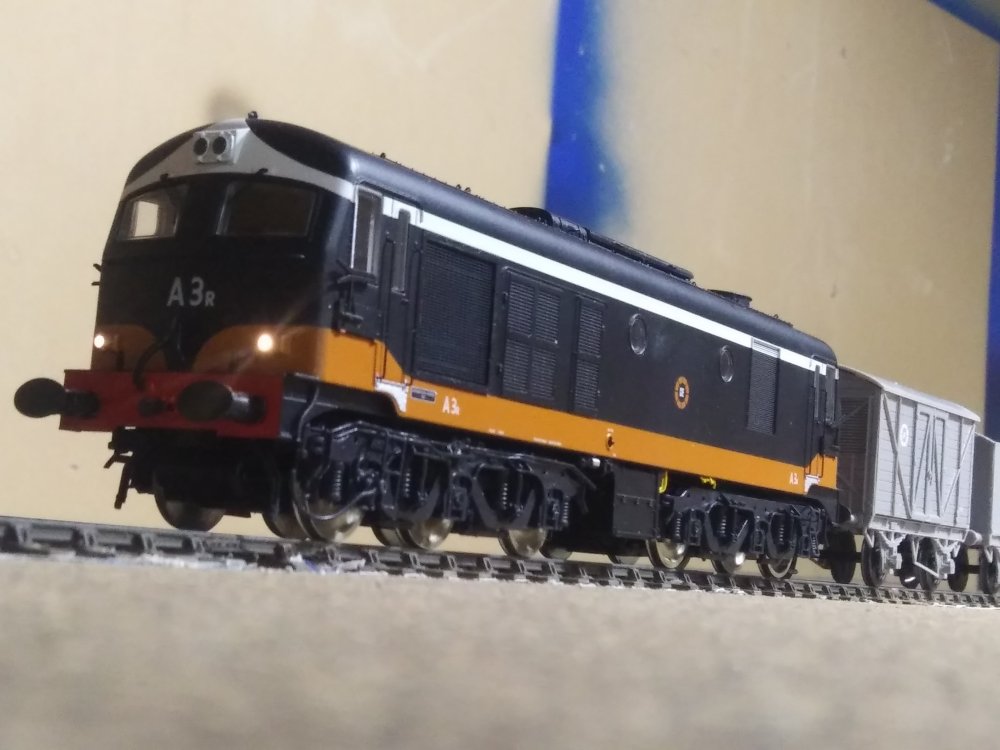

Thanks for the welcome Murphaph!  Yes I did, just pushed them out and slid on the P4 wheels.  The nice thing about the IRM A Class is one, they give you the wide axels and two, because of that you also get to keep the rotating axel boxes.  I re-wheeled my MM 121 last year but since the axels are standard narrower 00 width I had to cut and install my own wider axels as I did in the past with the 141, 181 and 071s and as of yet have not figured out a way to attach them to the ends.  Having said that, I honestly don't even focus on the rotating boxes on either model so I'm thinking of just permanently fixing them to the outside of the bogies, unless someone on here has got any suggestions?

  • Like 3
  • Informative 1
Link to comment
Share on other sites

Ah so you have replaced with P4 wheels and retired the IRM ones? I intend just pushing out the IRM ones and keeping them. Would it be an option with the 121 to cut the original axles and sheath them with brass tube so you keep the ends somehow?

  • Like 1
Link to comment
Share on other sites

Yes, I replaced with P4 wheels as the profile (flanges and tyre width) are too big to fit through the point crossings, so if you have P4 track then you won't be able to keep the original wheels. Hmm, now there's something worth trying.  The problem is getting them to sit perfectly without any wobble.  Like I said before though, as I forget they're even rotating half the time, I'm not sure I'd be willing to put in the effort.  In fact, the only time I've looked at the rotation recently on the A Class recently was watching the video I made 🙂

  • Like 3
  • Informative 1
Link to comment
Share on other sites

John,

           That looks superb as does your trackwork.

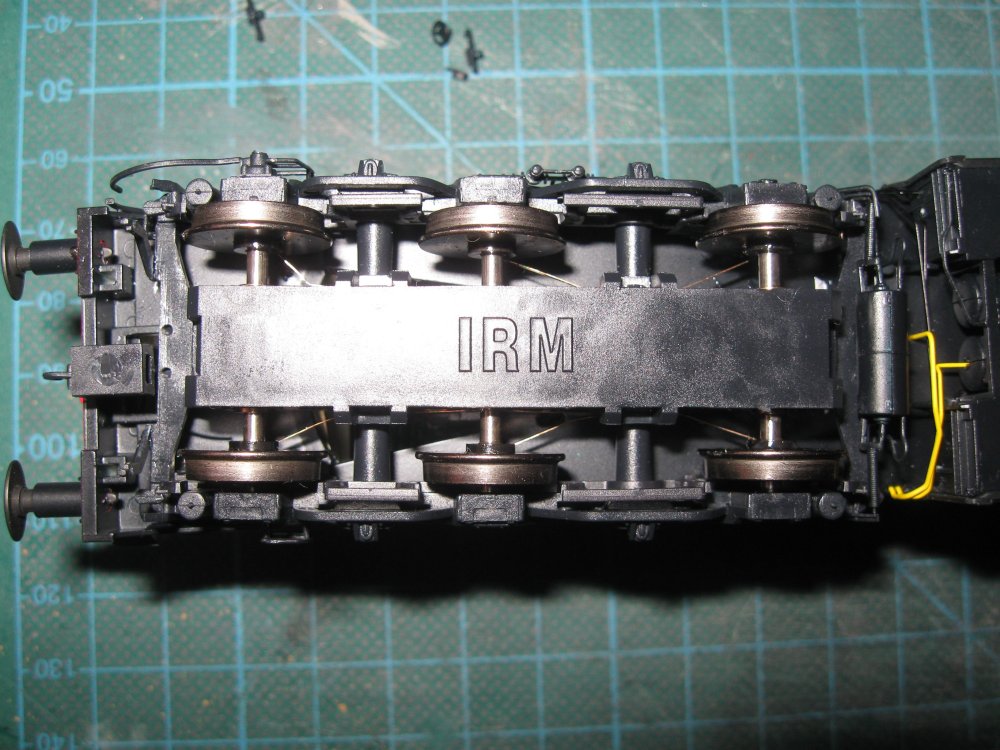

Phil, I have re-gauged an A using the original wheelsets and axles. It really was easy and the axle ends still rotate. The hardest bit was carefully taking out the wheelsets and re fitting the bogie sides afterwards. Also if fitted with the speedo cable (top left in below picture) make sure that wheelset goes back in the correct place in the bogie, as it has the rotating hub on one end only.


  • Like 3
  • Informative 3
Link to comment
Share on other sites

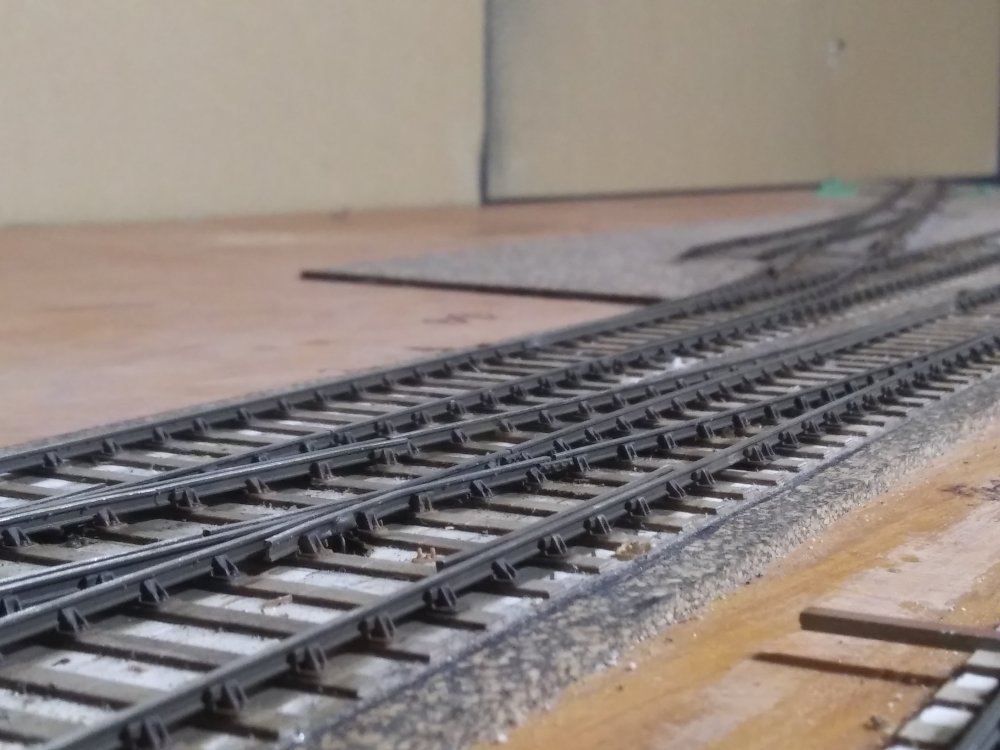

Regarding the P4 profiled wheels yes, as any standard 00 will not fit through the crossings.  As far rolling stock is concerned.  Since my layout is a 6 x 2.5 shunting yard there no coaches, just wagons.  Compensation:  Ironically, I found that the wagons I did compensate derail more than the ones that I didn't.  Having examined the bottom of the compensation I have since realized that I didn't aline the two sets of wheels perfectly, and I believe this is the problem.  With the uncompensated ones, it's just a simple case of gluing the sole bars to the body approximately 1.5 - 2mm out from center.  FOr some strange reason they work perfectly fine.  So in future I won't be bothering with that extra step.   Based on that I strongly believe that the most important factor is as close to perfectly laid track as possible.  ie; joints should be as flush as possible and the overall track as flat as possible.  I don't build in situ but construct each piece on a piece of glass (can't get any flatter than that) over Templot templates, test run them on the glass with a loco/wagon then transfer them afterwards.  I dod "cheat"  with the crossings however (purchased from C+L Finescale)  as I found trying to construct my own far too frustrating.  Everyone has a different level of patience I suppose.     I found the best route was to buy some Parkside Dundas kits as I found trying to manipulate a standard Hornby or Bachman model was too difficult.  Just to add,  I'm not so much a P4 stickler that I have to have everything perfect and the odd elitist may not approve of my methods but I care more about making it work mechanically well rather than going against the "allowable tolerances".   Example: You may have noticed a wobble on my A Class video, yes that bothers me and I will try to fix it, but other stuff I can live with.   II'll take some more pictures/videos when I get the chance.

  • Like 4
Link to comment
Share on other sites

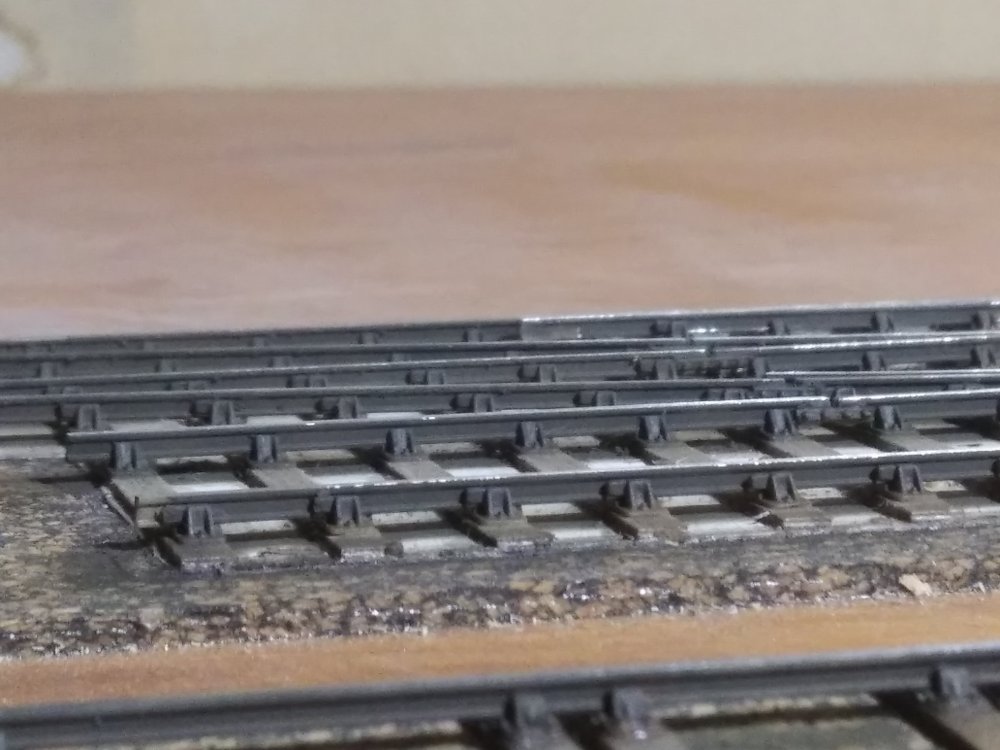

Furthermore to an example of my not so fussy P4 ways...If you look at the beginning of the video you can see one of my rail joints.  I'm using a standard Peco joiner as opposed to having nothing but the P4 soldered scale fishplate.  I do like to  use those wherever I can, but that depends on the accuracy and flushness of the two adjoining rails.  If the two rails aren't sitting flush for whatever reason then I simply use a Peco rail joiner which would make for a nice flush connection and thus smoother running of rolling stock.  Honestly speaking at my age and deteriorating vision, the scale fishplates are only there for the benefit of better photos. 🙂

  • Like 2
Link to comment
Share on other sites

John,

          Your pointwork is so realistic, I have done plain track with C&L and Peco parts but still stick to copperclad for points, so they lack the detail of yours.

Here is another picture of the gauge change to 21mm. I am doing an article for "New Irish Lines", those who have yet to  subscribe should consider doing so, as it is an inspiring read for Irish modellers of all gauges and scales.




  • Like 4
  • Agree 1
Link to comment
Share on other sites

Great work Brendan. Another vote for NIL from me. It’s a brilliant resource which includes many fine Irish modellers who don’t post on here. When I sold my 3’ layout this week, I also gave the young purchaser a back copy of NIL to encourage him to sign up!

Edited by Galteemore
  • Like 4
Link to comment
Share on other sites

11 hours ago, jhb171achill said:

Track looks amazing too. Perhaps colour the shiny wheels? Overall, excellent job.

Thanks!  Yeah, I only just installed the wheels and still trying to correct a couple of wobbly ones so once I'm happy with it I'll spray paint then.

3 hours ago, Brendan8056 said:

John,

          Your pointwork is so realistic, I have done plain track with C&L and Peco parts but still stick to copperclad for points, so they lack the detail of yours.

Here is another picture of the gauge change to 21mm. I am doing an article for "New Irish Lines", those who have yet to  subscribe should consider doing so, as it is an inspiring read for Irish modellers of all gauges and scales.




Thanks for the compliment, always great to get feedback positive or negative as we sometimes wonder what kind of a job we're doing.  So what kind of spacing do you have at your crossings?  It must be like 00 right?  If that's the case I almost wish I'd have known that years ago as it would be a lot less hassle! 🙂

  • Like 2
Link to comment
Share on other sites

5 hours ago, scahalane said:

The track looks amazing. Work of art.

Thank you!

5 hours ago, Patrick Davey said:

Simply jaw dropping, both loco and trackwork!

Thank you!

2 hours ago, Mike 84C said:

The extra width in track gauge seems to give a more "beefy" presence, muscular! Track and loco look very good. And welcome to the forum.

Thank you!

1 hour ago, StevieB said:

The track looks the part.

Stephen

Thank you!

Link to comment
Share on other sites

1 hour ago, Brendan8056 said:

John,

          I have a few posts about trackwork, here is one relating to some points I built last year, I hope that is helpful.

           https://irishrailwaymodeller.com/topic/8752-freelance-mixed-gauge-handbuilt-trackwork/?do=findComment&comment=138410



Awesome work Brendan.  It actually reminds me of a technique used by a company here in North America called Fast Tracks.  I had tried their 00 point work years ago and loved the smoothness of the crossover with no "drop" as the vee and adjacent rails were a lot closer together than a standard Peco point.  I still have their point jig which is made out of some sort of metal which you would solder the sleepers to the rails in.  I'll throw in a pic so you can see it.  Anyway I had actually contacted the company years ago and inquired about a custom point jig in 21mm - needless to say the price was ridiculous so I decline and that's how I got started in P4.  Actually I still have a bag of copper clad sleepers which I use for my 'tiebars" on the points.  A complete fluke as they fit under the bullhead rail and slide back and forth with just enough resistance to keep the point rails tight against the stock rails.  I solder the point rails to the copper clad tiebar.  I then use a push rod from underneath the layout to switch the points as well as an electrical switch to change the polarity.

  • Like 4
