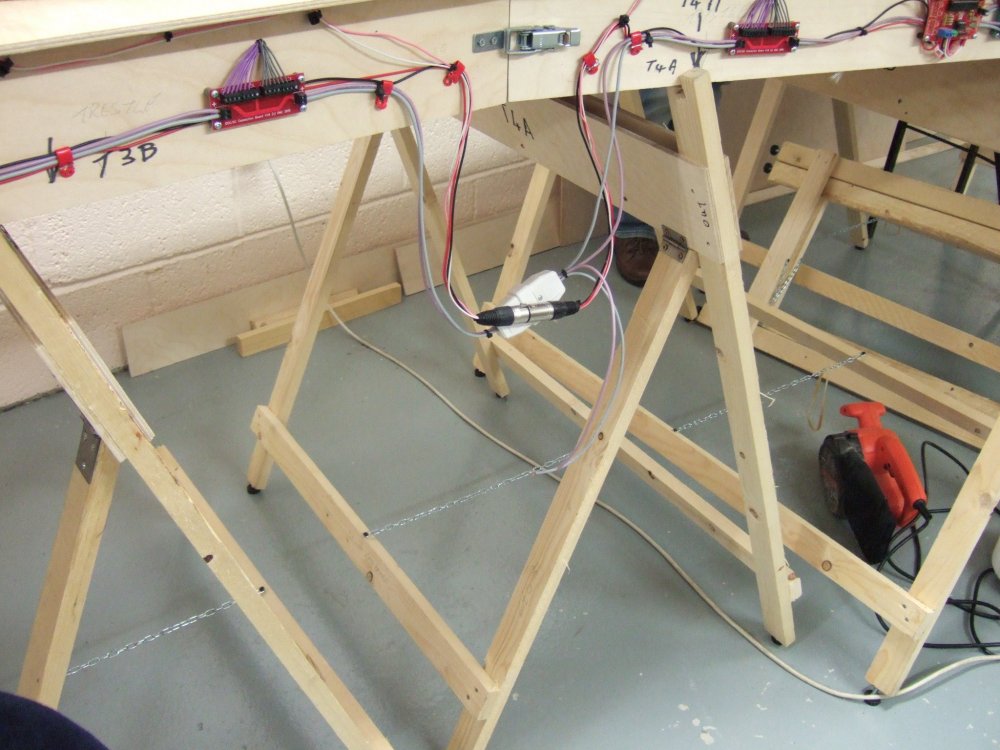

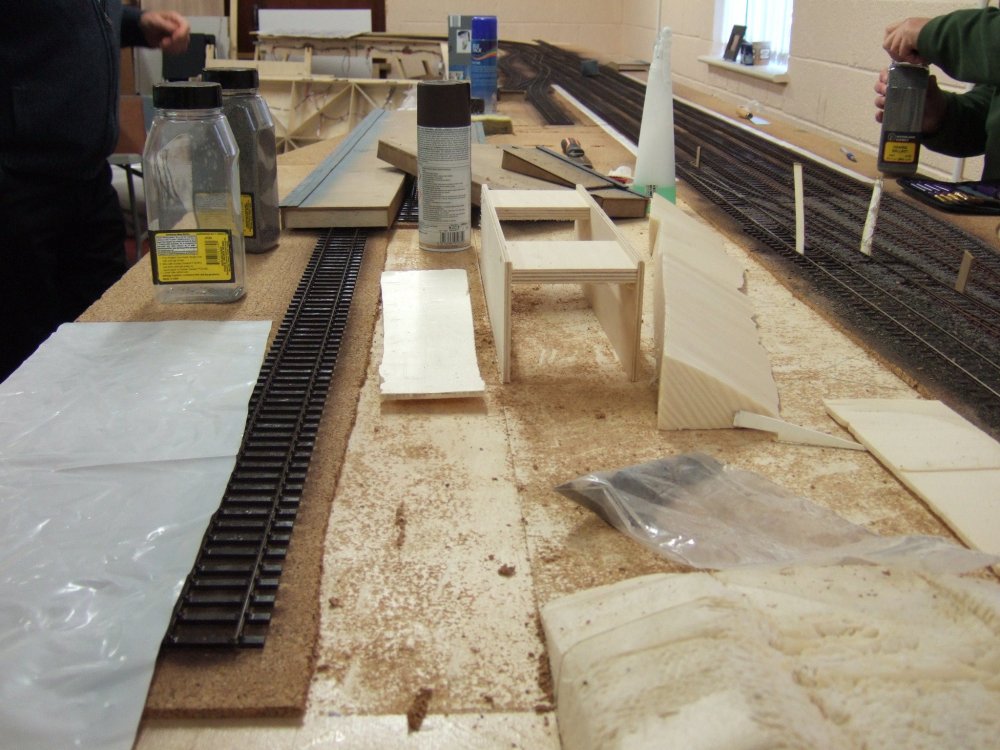

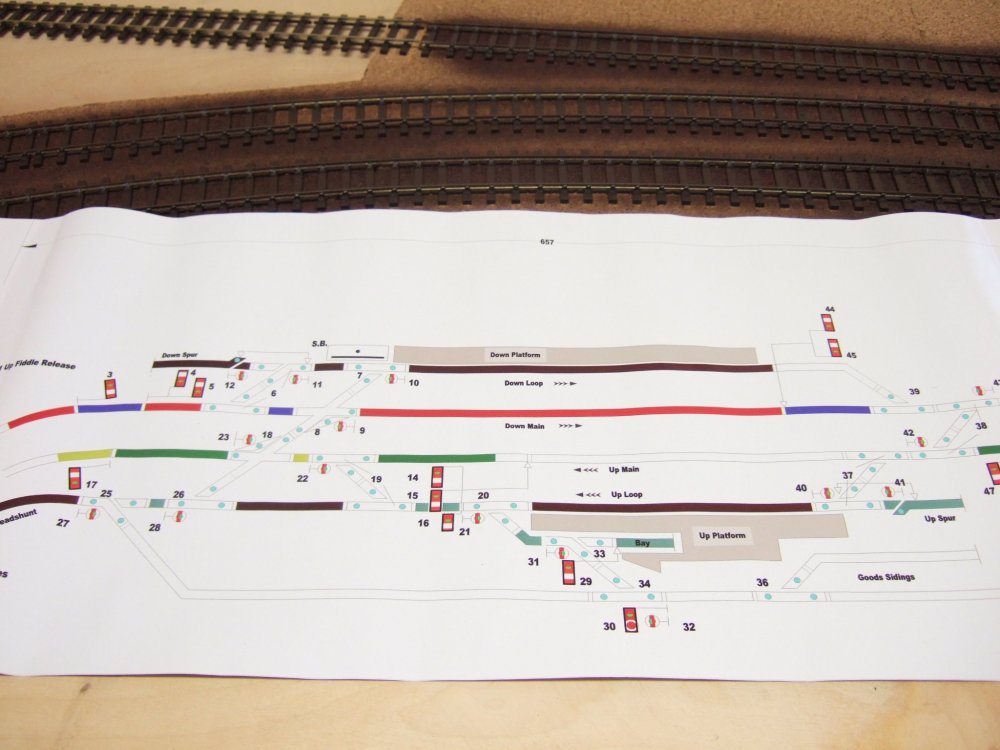

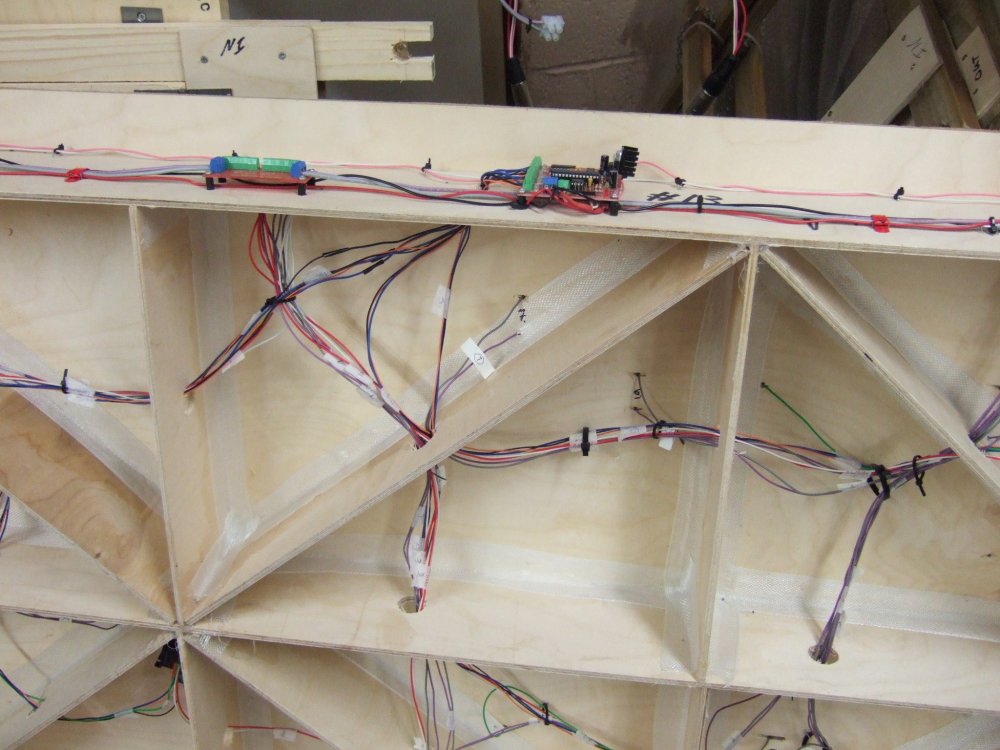

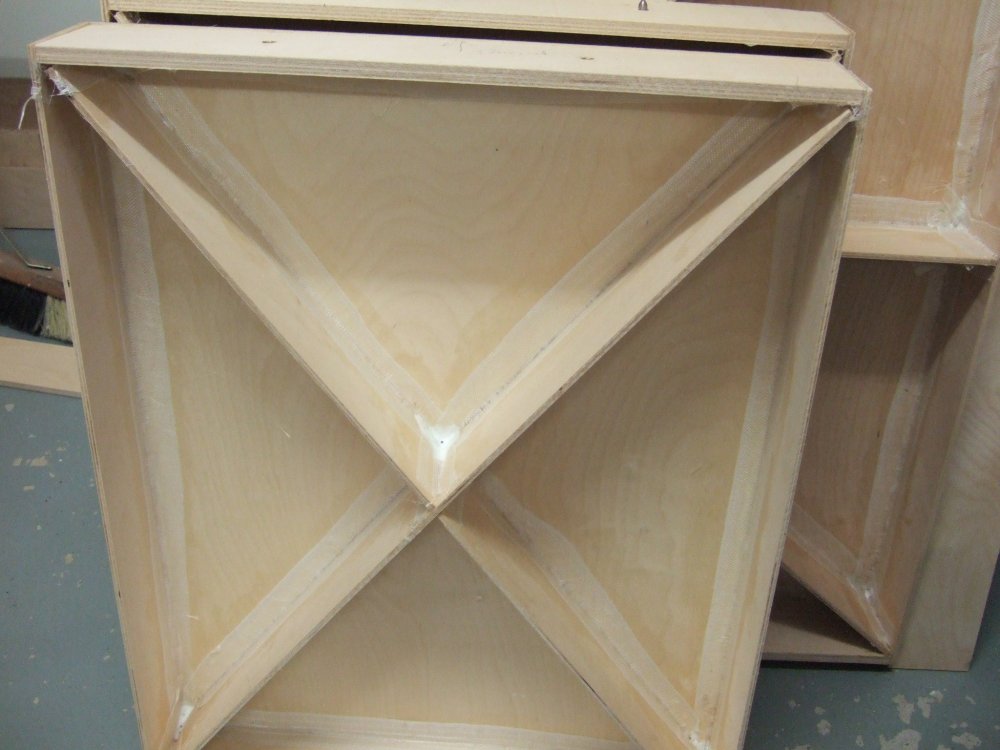

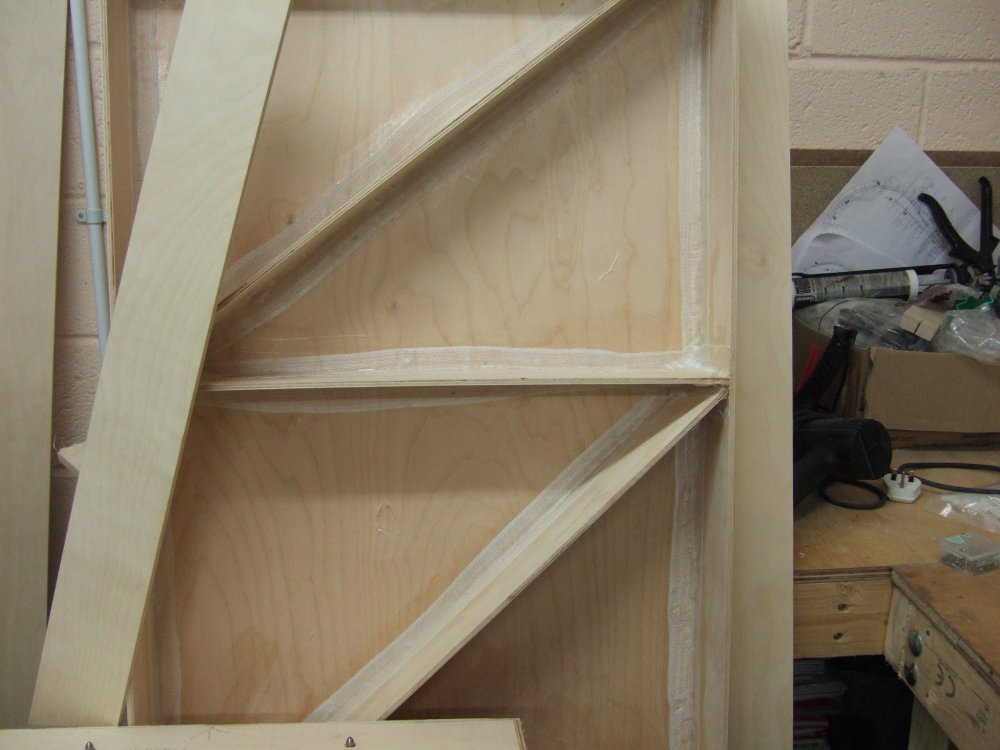

Early in 2018 Wexford Model Railway Club started an ambitious project to develop a modular exhibition layout in O gauge. New techniques were deployed for building base-boards using Scandinavian 6mm birch-ply  hot-glued to the baseboard which are then strengthened with glass fibre/PVA. Advanced wiring and custom electronic control boards were used. Simple but robust trestles were developed which fold flat. A couple of photos for the record:



DSCF2300.thumb.JPG.a5267e40e2c6e788230c6089c457910e.JPGDSCF2301.thumb.JPG.a87e2a4cf343d911c5354bd5a82bf267.JPGDSCF2309.thumb.JPG.0c1c4b85b79deaa5dc3388a4e73535c0.JPGDSCF2310.thumb.JPG.aa14249b5dfeb05e2c7ffb7509666b50.JPG

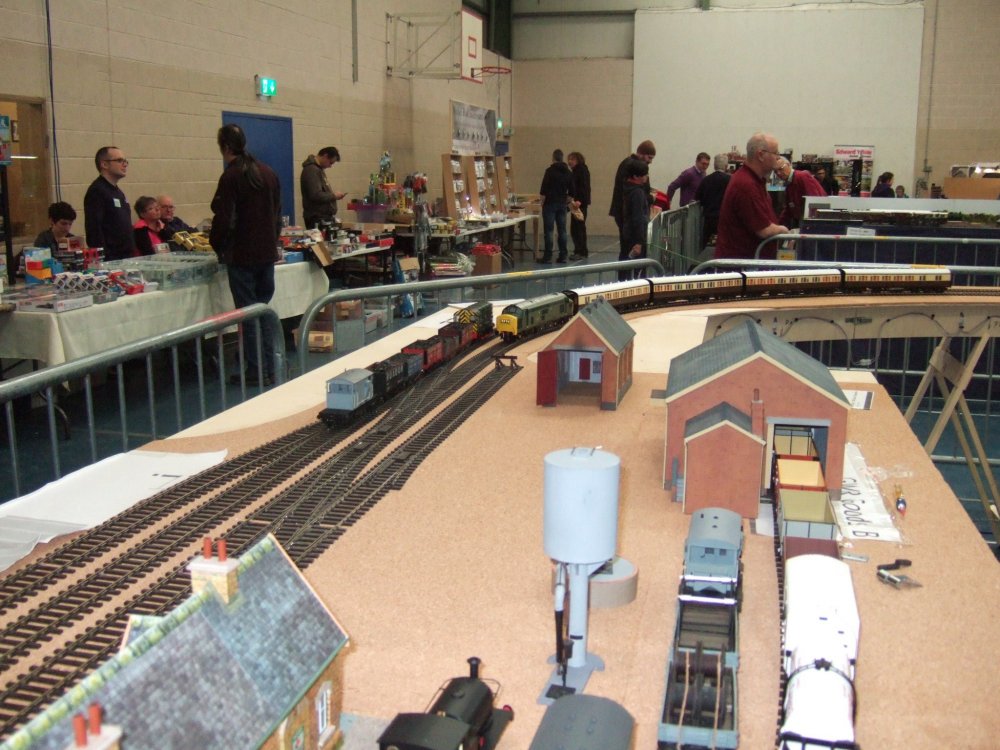

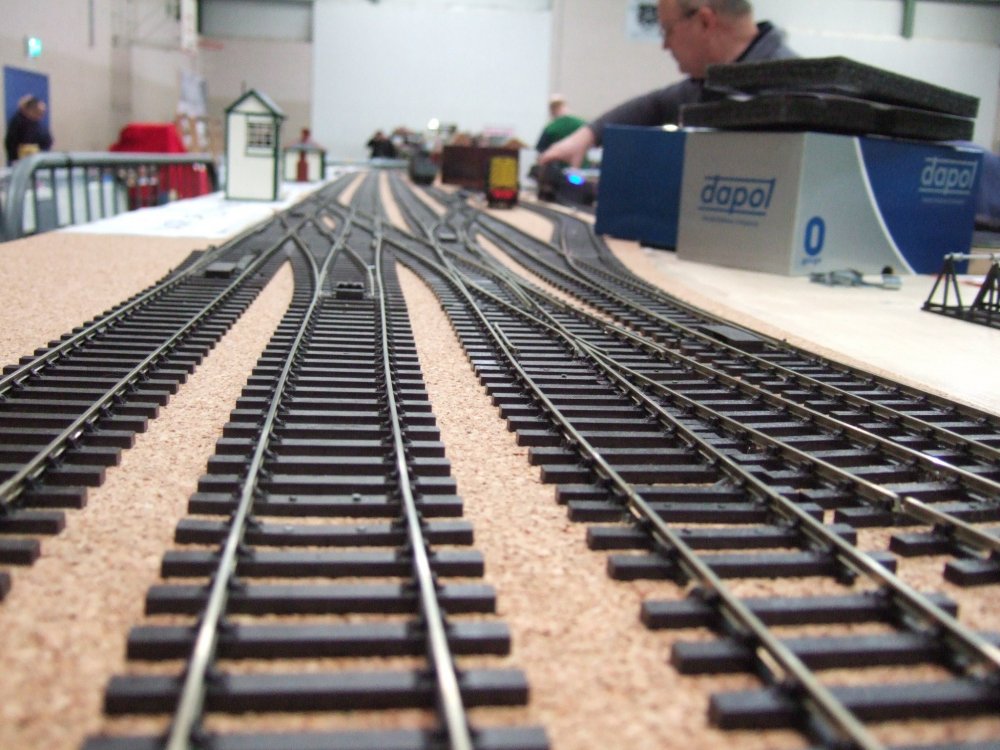

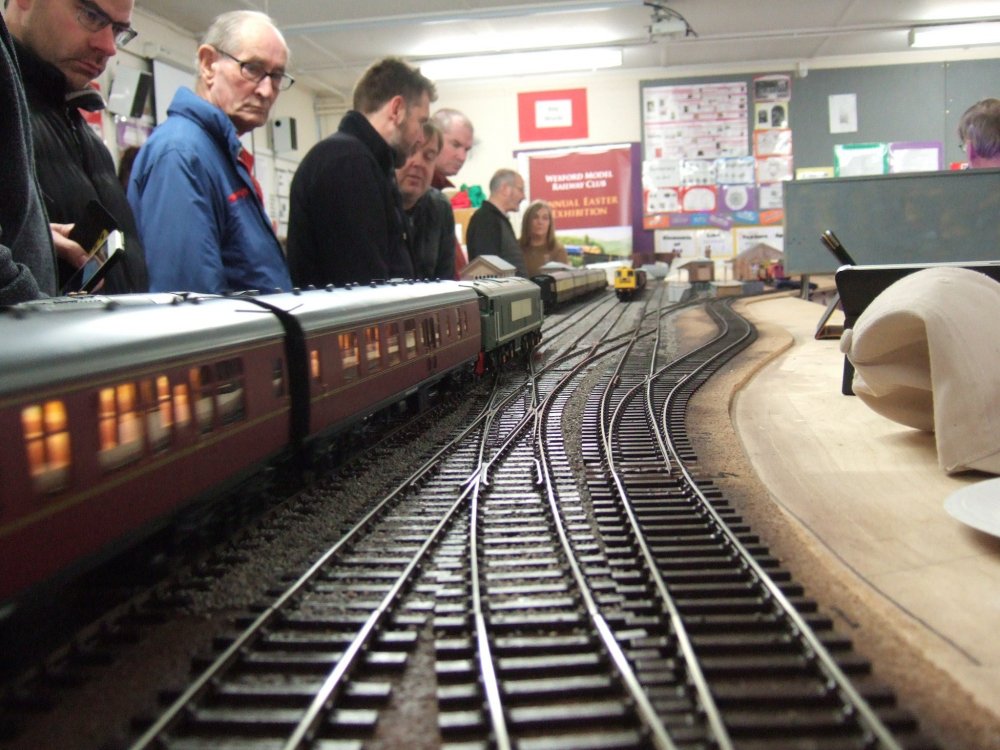

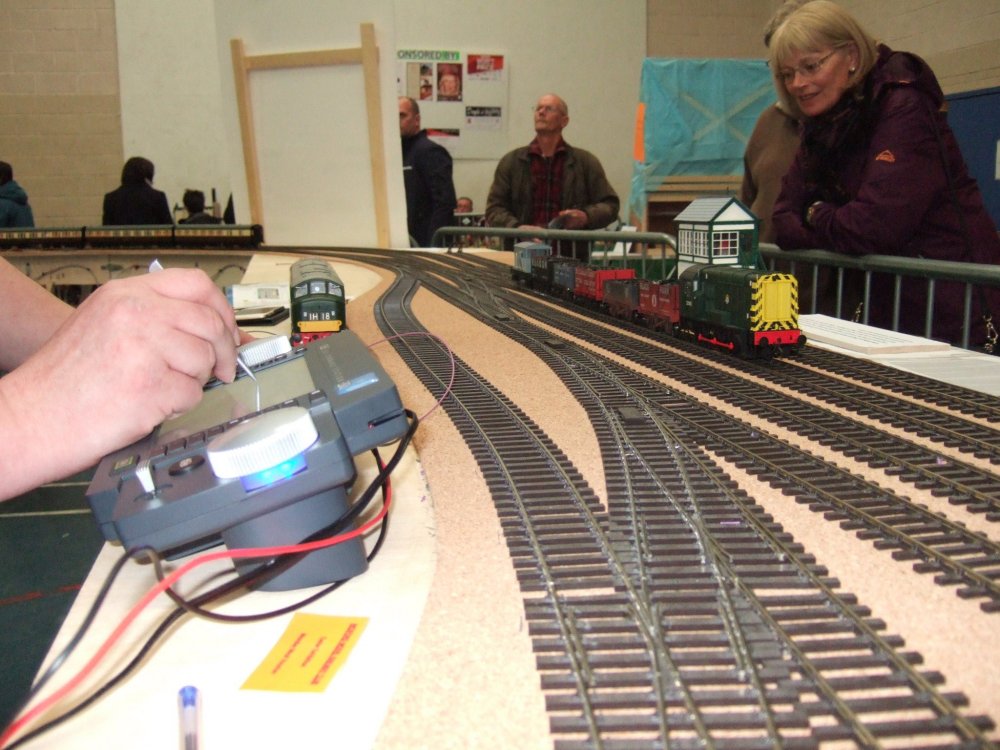

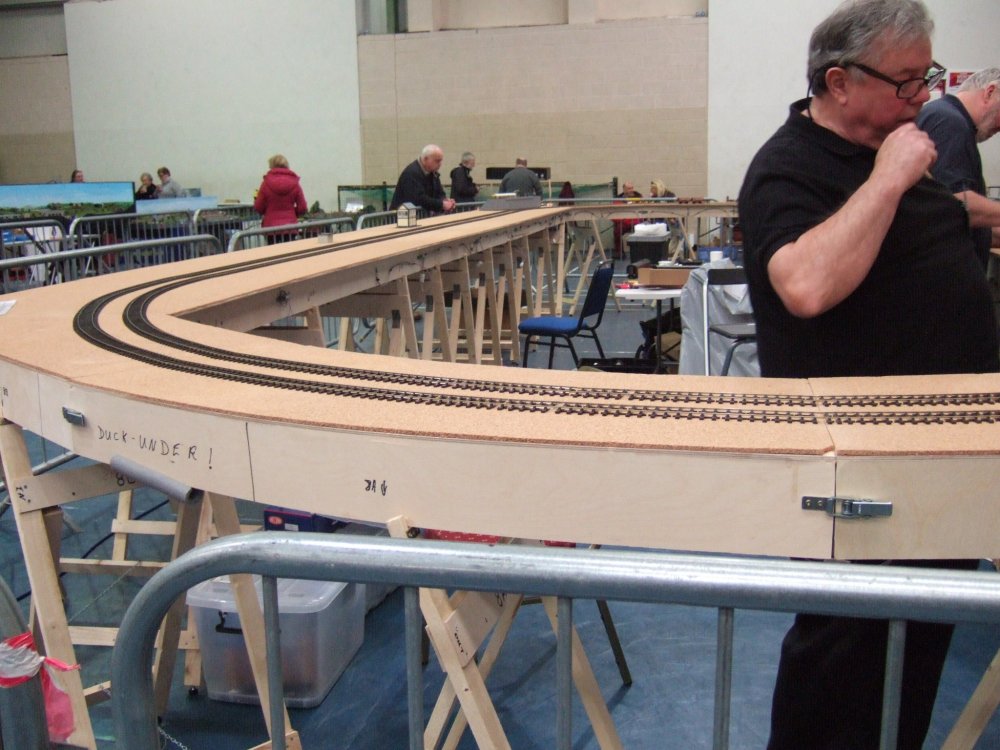

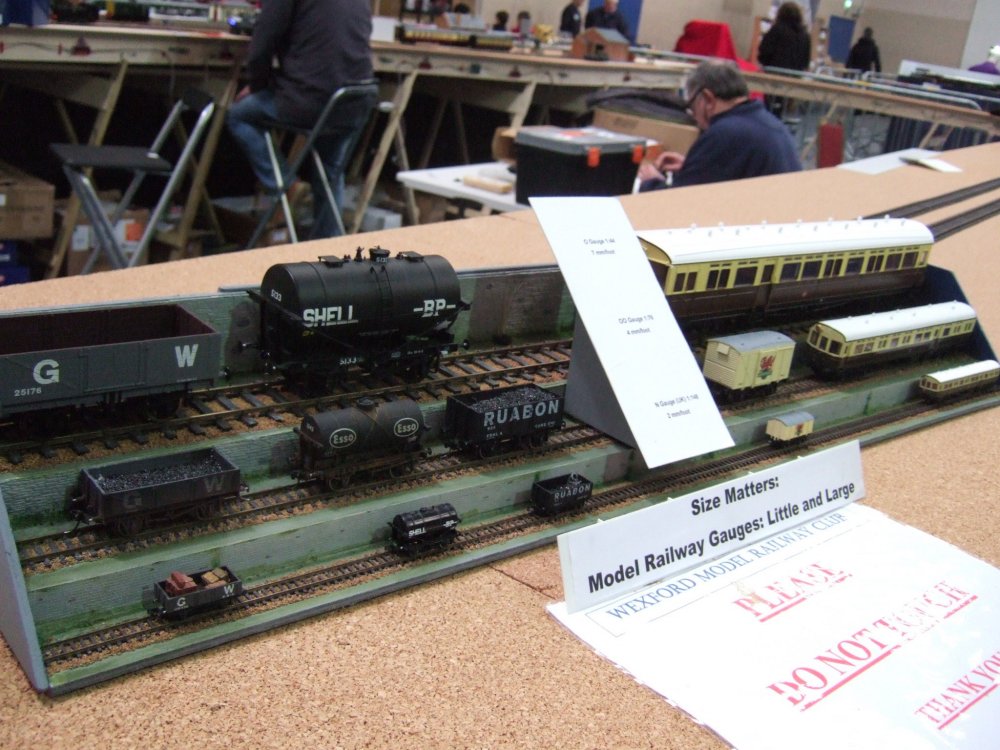

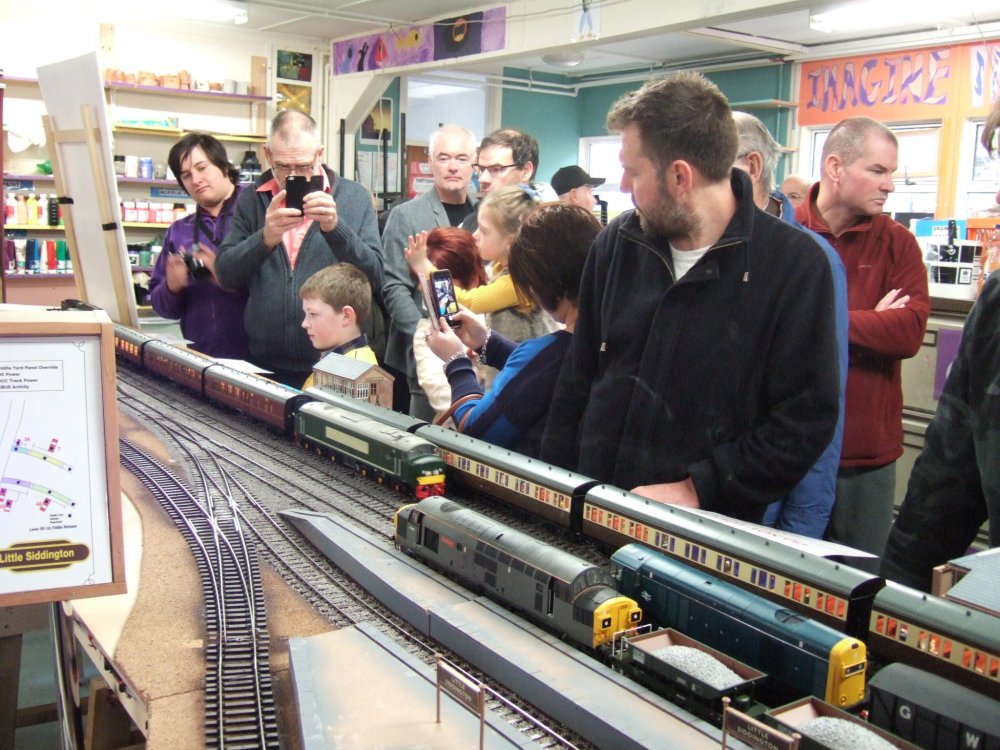

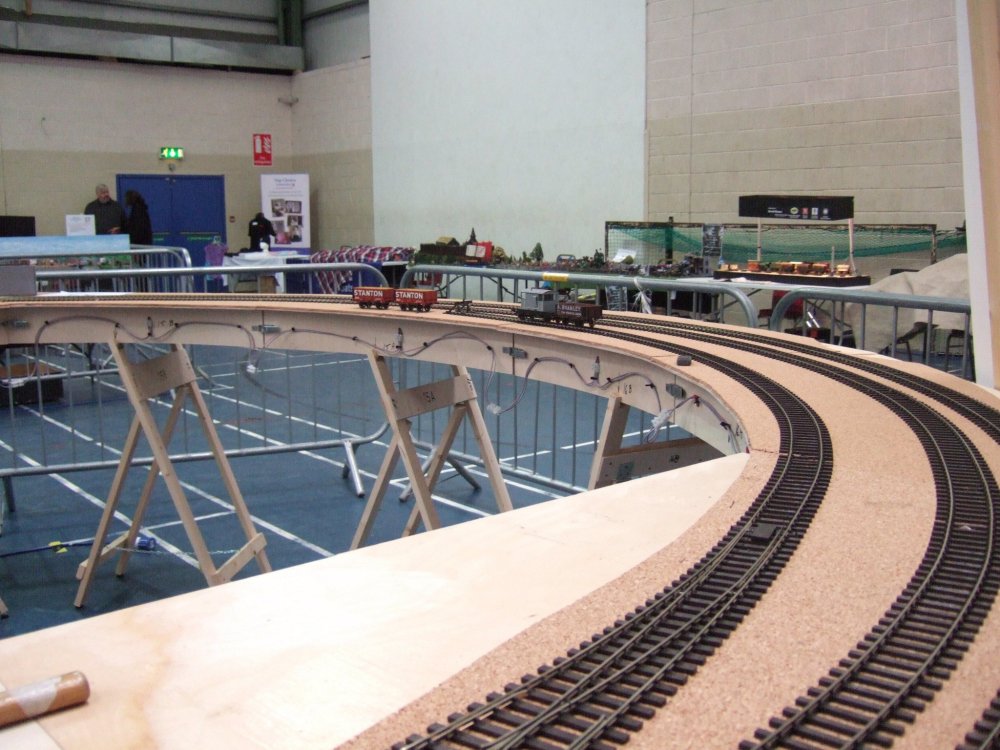

By Easter 2018, the early stages of the project were in place and exhibited at the Wexford Exhibition:

DSCF1995.thumb.JPG.24eda1c6a37a7cec64f53fa7c1717017.JPGDSCF1996.thumb.JPG.292406fe8d5af091be3416ba398e06d5.JPGDSCF1997.thumb.JPG.6c2c3e3d1705707e4bab7446d942efa2.JPGDSCF1998.thumb.JPG.a13a7fdded663b494b3bc0eaaeeaa4da.JPGDSCF1999.thumb.JPG.09f6cffef33e814bb76fead38803b602.JPGDSCF2000.thumb.JPG.23fee73862a3d62a73e1da4dd64e0dd9.JPGDSCF2001.thumb.JPG.d5ae9d14c33e0d6274296d5763de38e2.JPGDSCF2004.thumb.JPG.cb1cf7985d9a9a1e6ffd1d69cacab37b.JPGDSCF2005.thumb.JPG.169f81a7408d9d84b42e3f7389e8f70a.JPGDSCF2006.thumb.JPG.1a44b42247acf34641616b99a46931b6.JPG



Edited by Irishrailwayman
  • Like 2
Link to comment
Share on other sites

  • 2 weeks later...

O Gauge and larger scales have  a great "presence" as exhibition layouts, the sheer mass and momentum of the models means you need to model very little outside of the railway fence, just tracks and trains. Multiple tracks and complex pointwork add to the main line atmosphere, somewhere on the Western Region judging by the buildings and structures.

  • Like 1
Link to comment
Share on other sites

11 hours ago, Mayner said:

O Gauge and larger scales have  a great "presence" as exhibition layouts, the sheer mass and momentum of the models means you need to model very little outside of the railway fence, just tracks and trains. Multiple tracks and complex pointwork add to the main line atmosphere, somewhere on the Western Region judging by the buildings and structures.

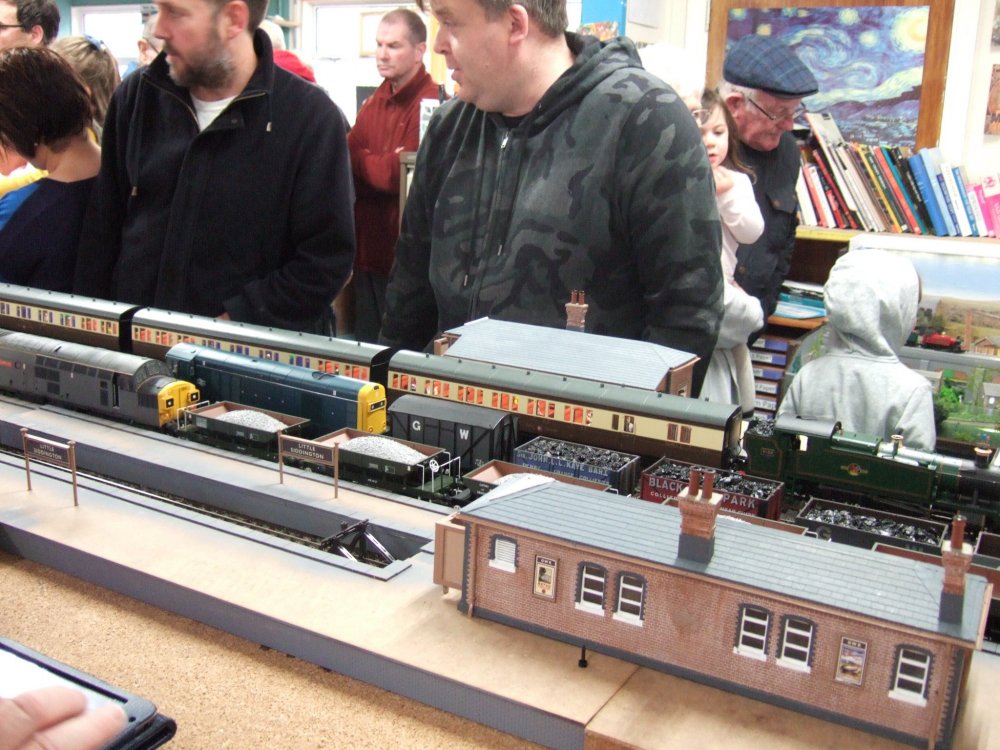

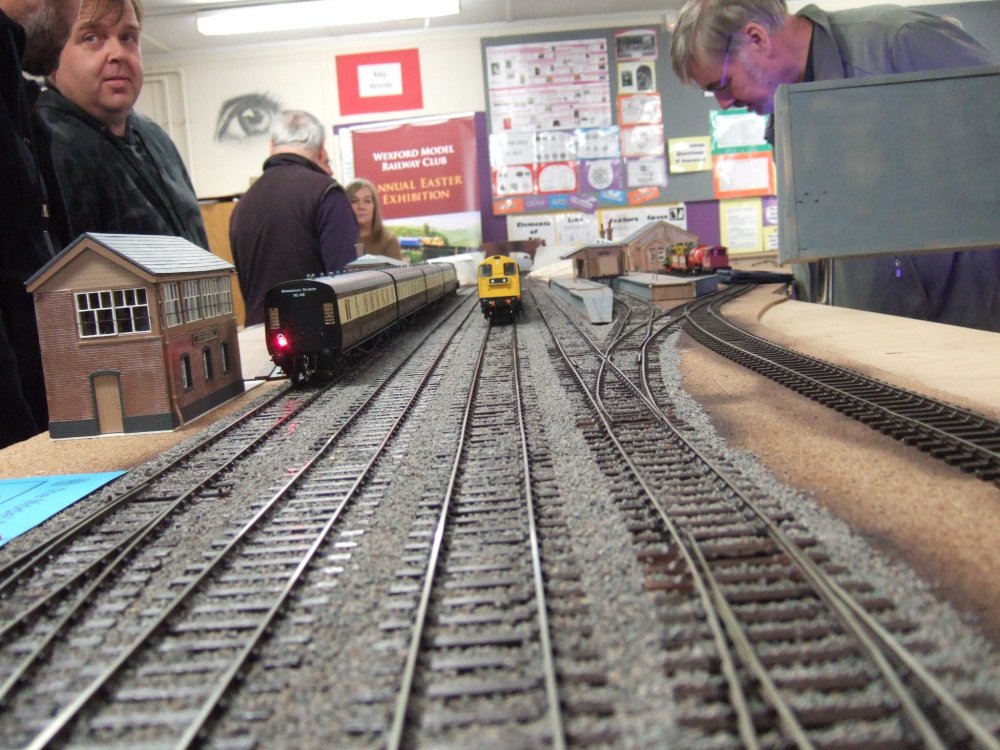

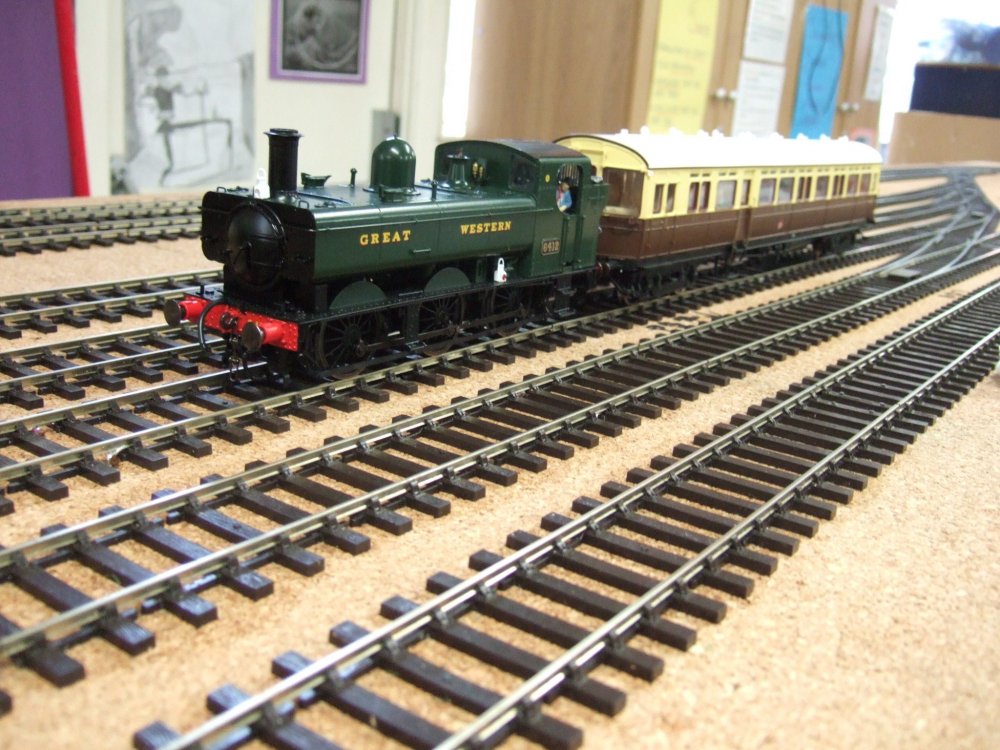

Totally agree. The complex track-work on Little Siddington is based on the classic GWR/BR WR prototype stations between Bristol and South Wales. Obviously in time we will be adding more detail including working semaphoresDSCF2332.thumb.JPG.e364179e5d2c9381de2abc8ad204fadd.JPG and scenery. Showing the lay-out as a work-in-progress allows us to explain how we put the innovative base-boards/electronics together (before they get covered), road-test the layout as well as getting feedback from modellers and the public.

  • Like 3
Link to comment
Share on other sites

Ah I see some Steamers on show!. All I I saw was a Solo Class 15 and a 37 bombing around. TBH it did not hold my interest too long.

However the layout should be some set up when it is complete. Some nice LNER pacific's Clattering down the P/way I hope at some stage would be sweet.

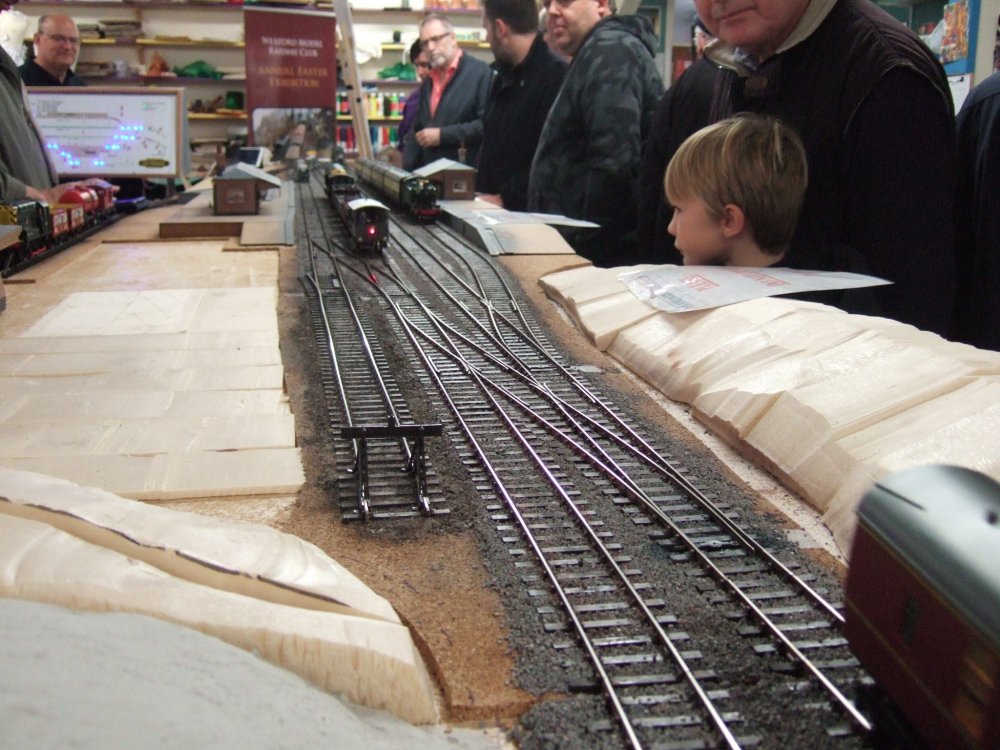

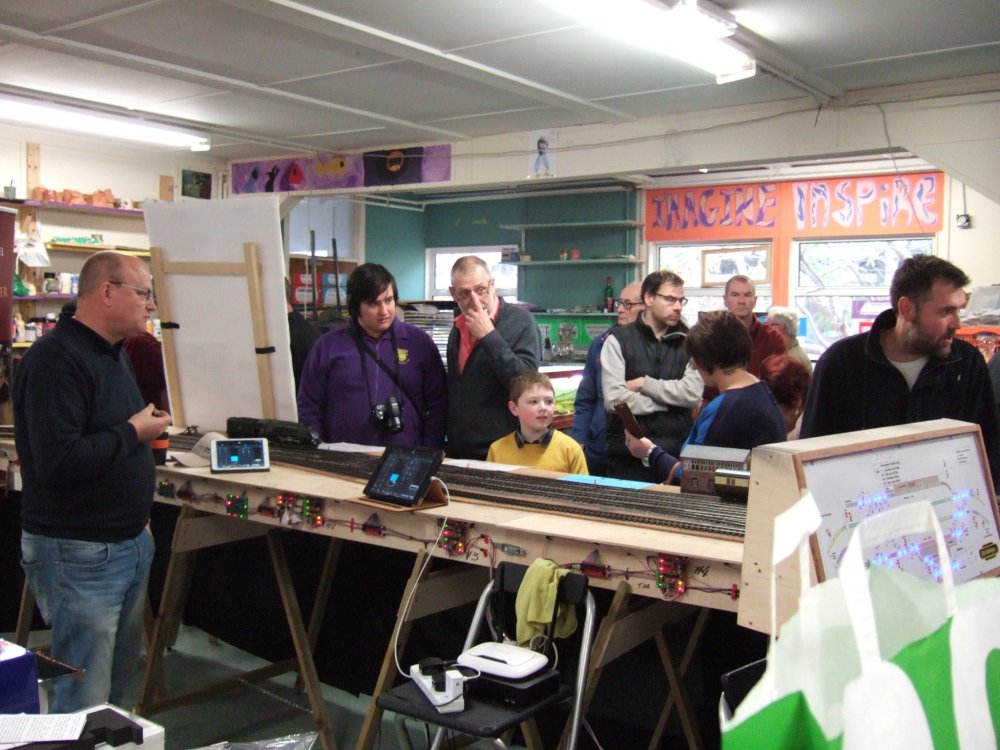

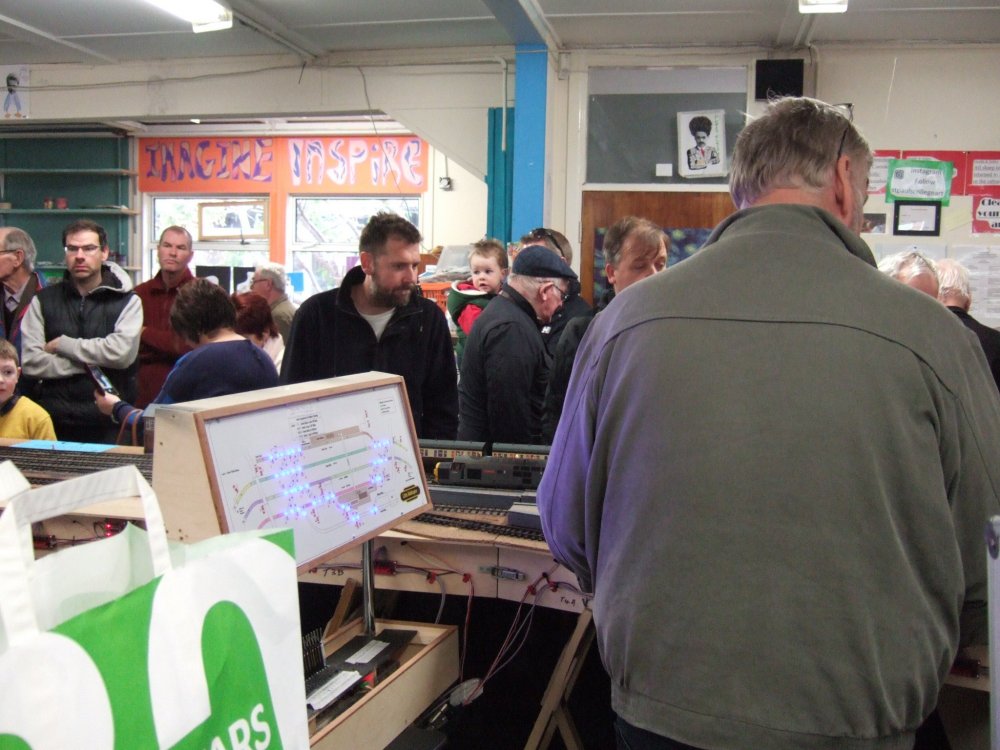

The Control Panel is some set up too.



  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...
  • 1 month later...
  • 2 weeks later...
  • 3 weeks later...

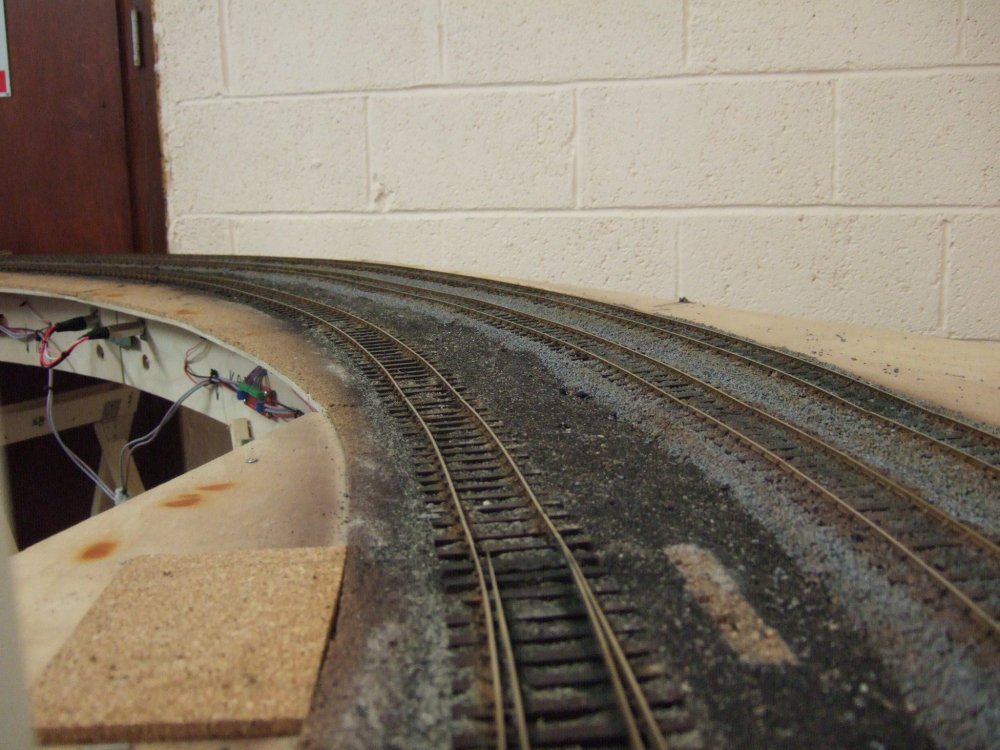

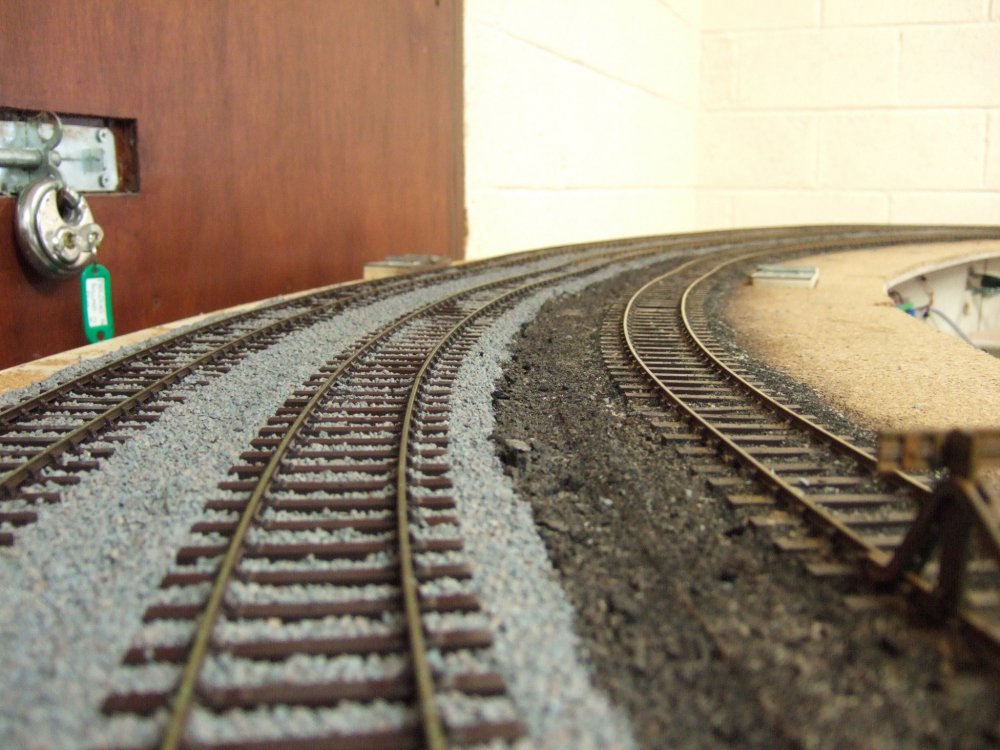

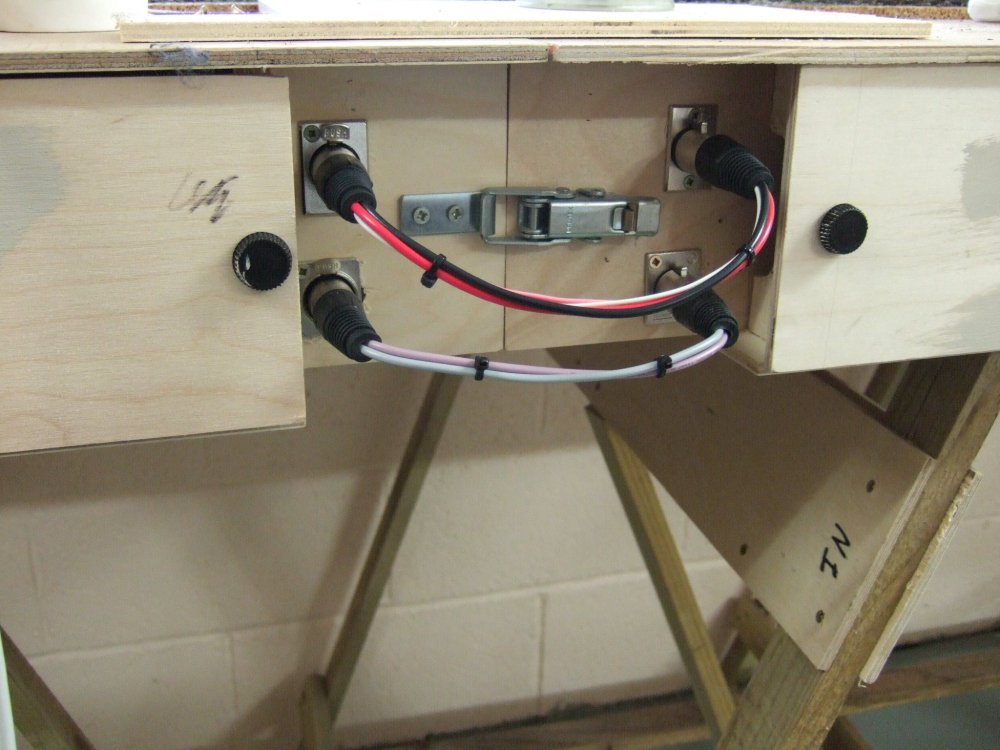

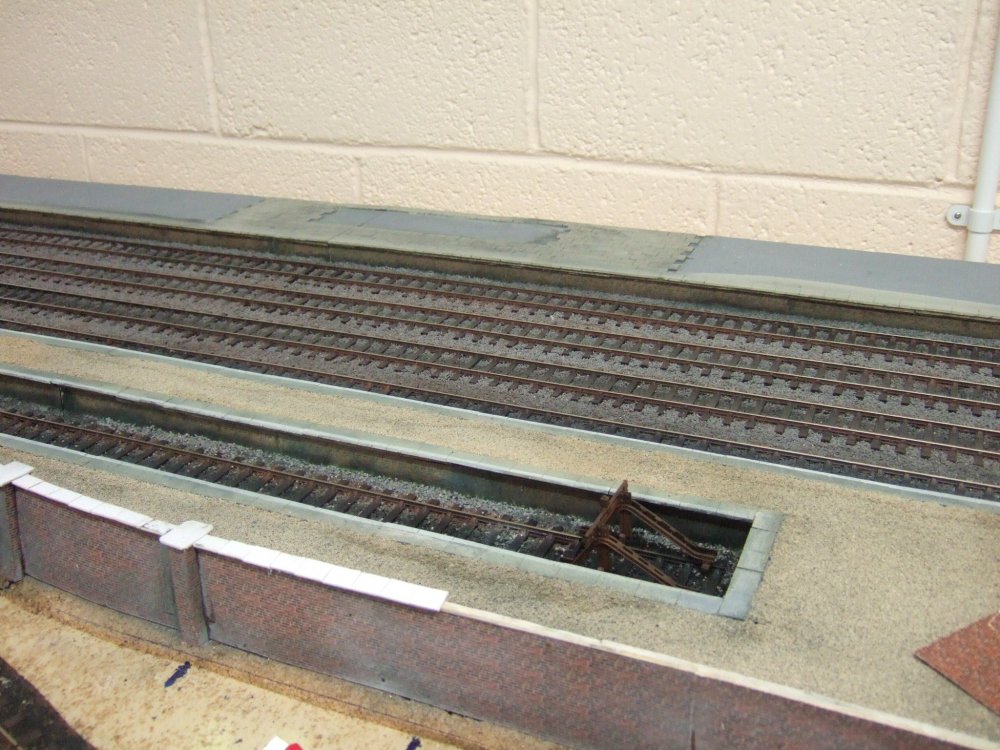

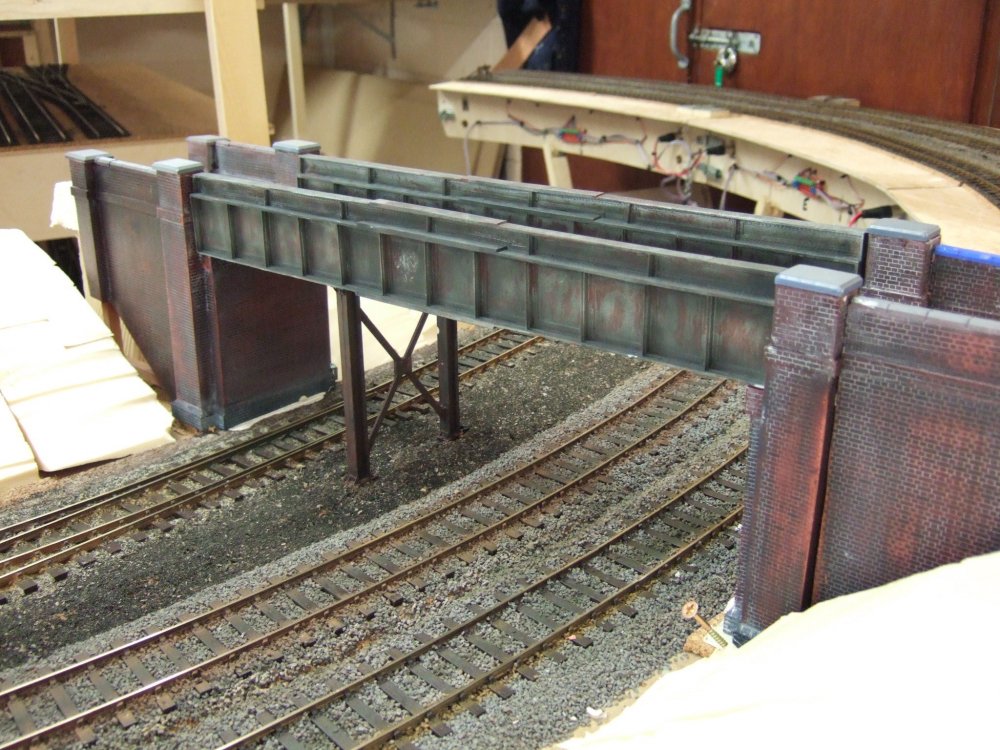

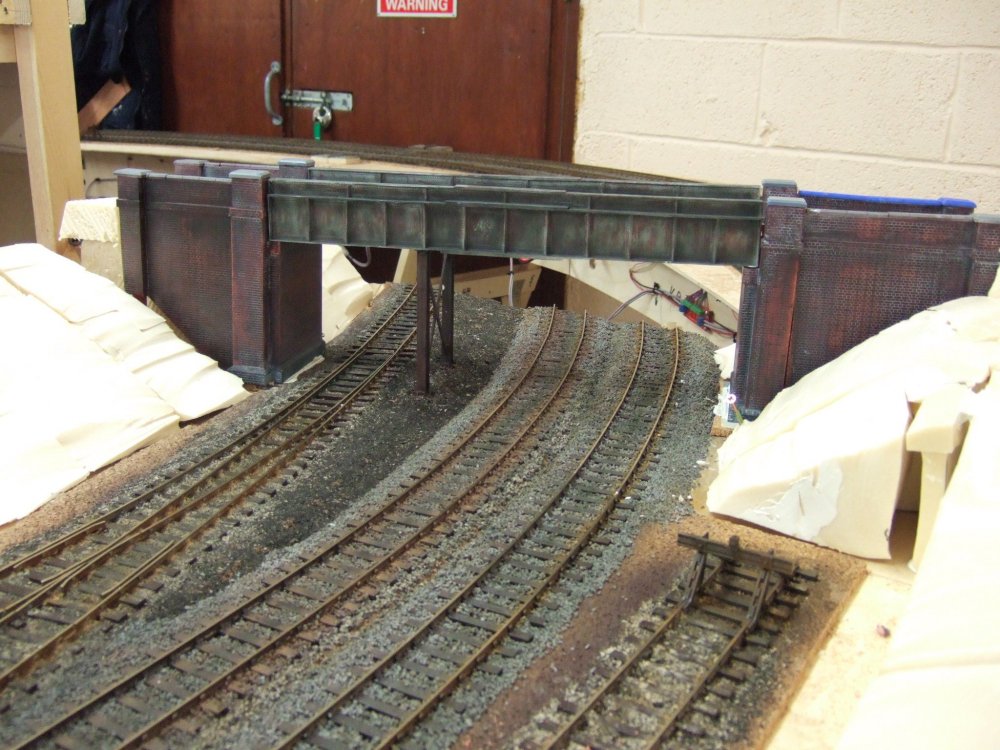

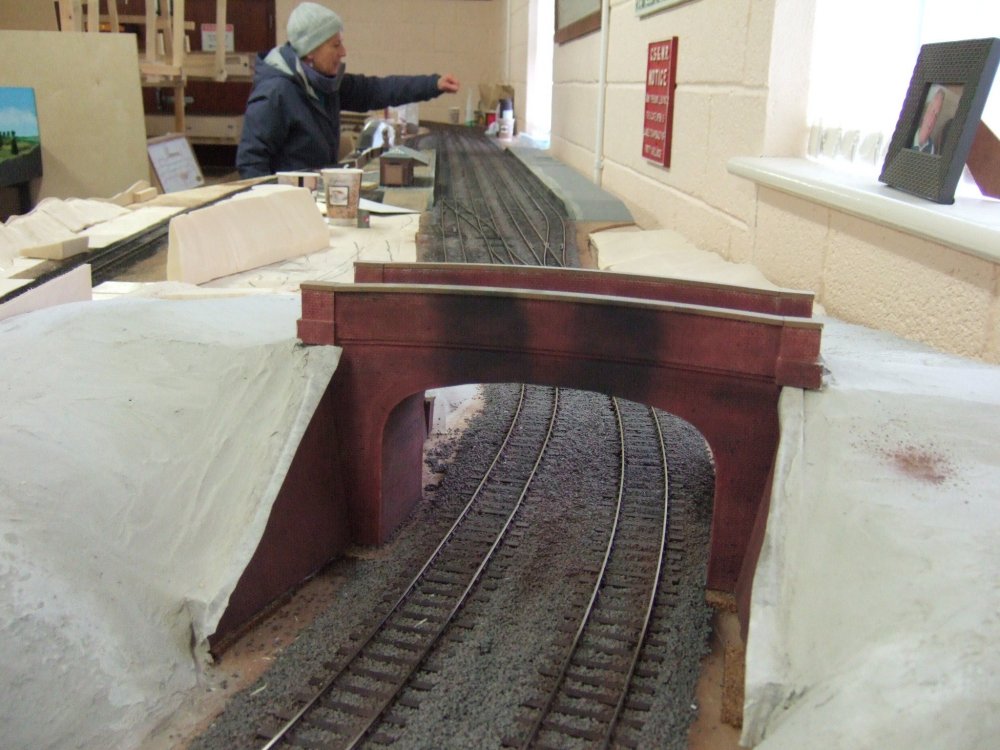

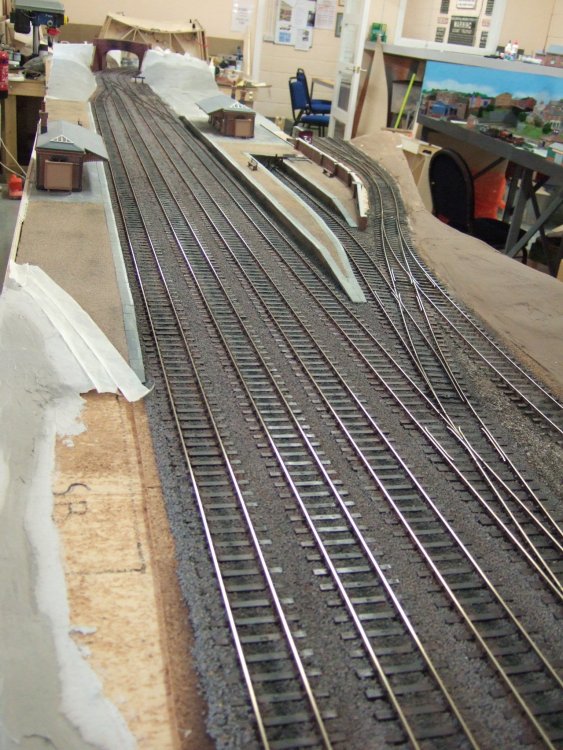

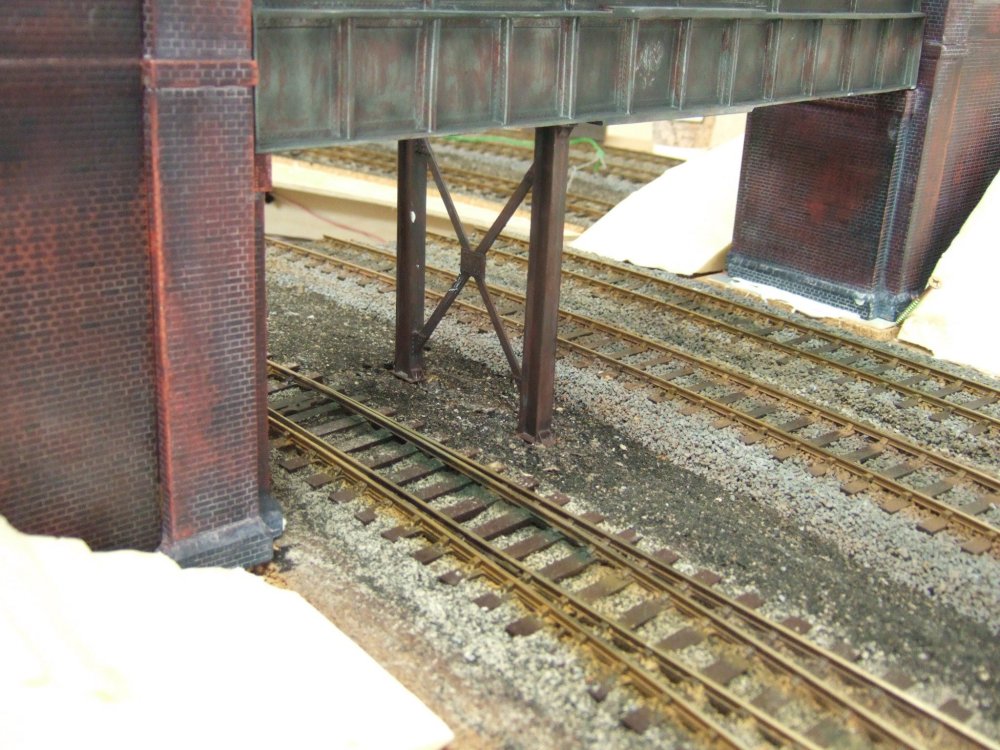

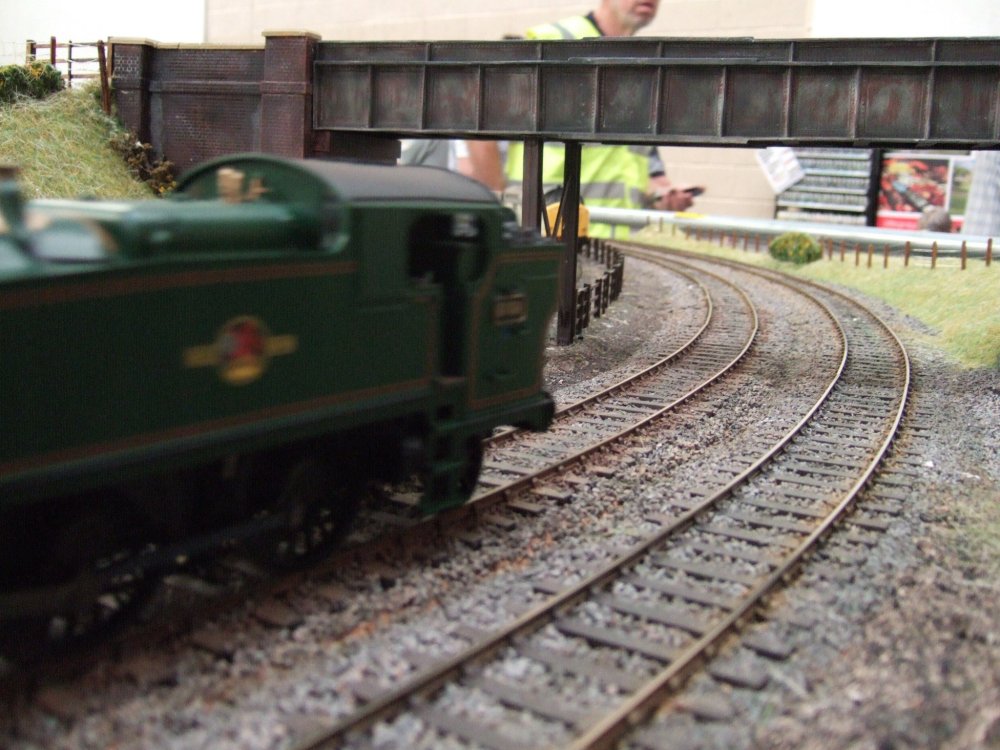

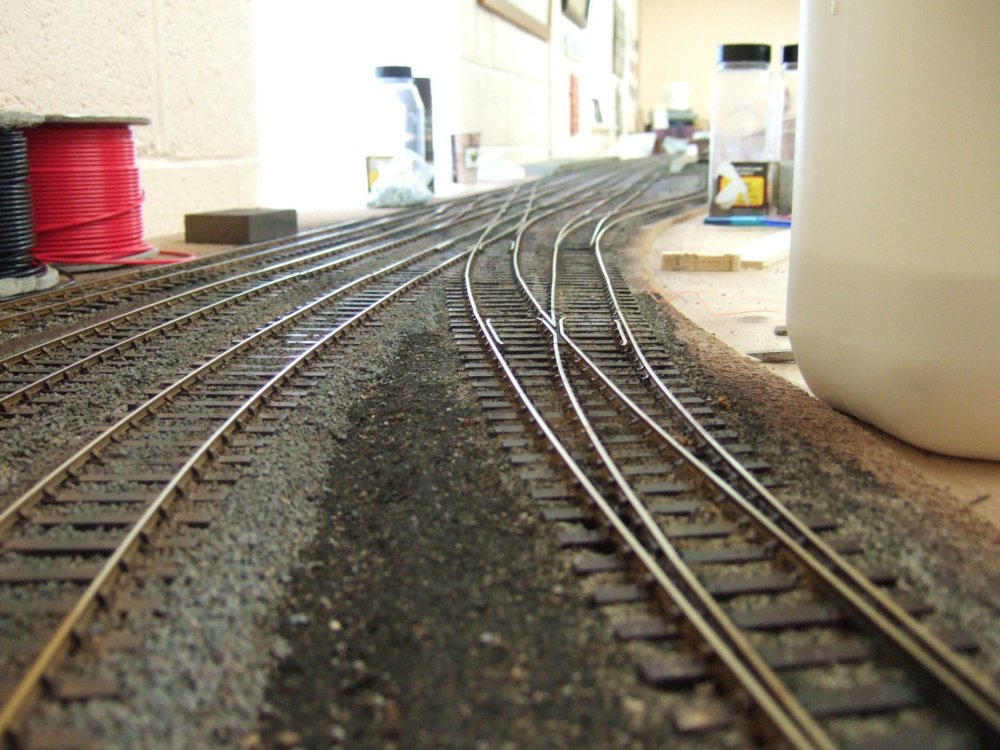

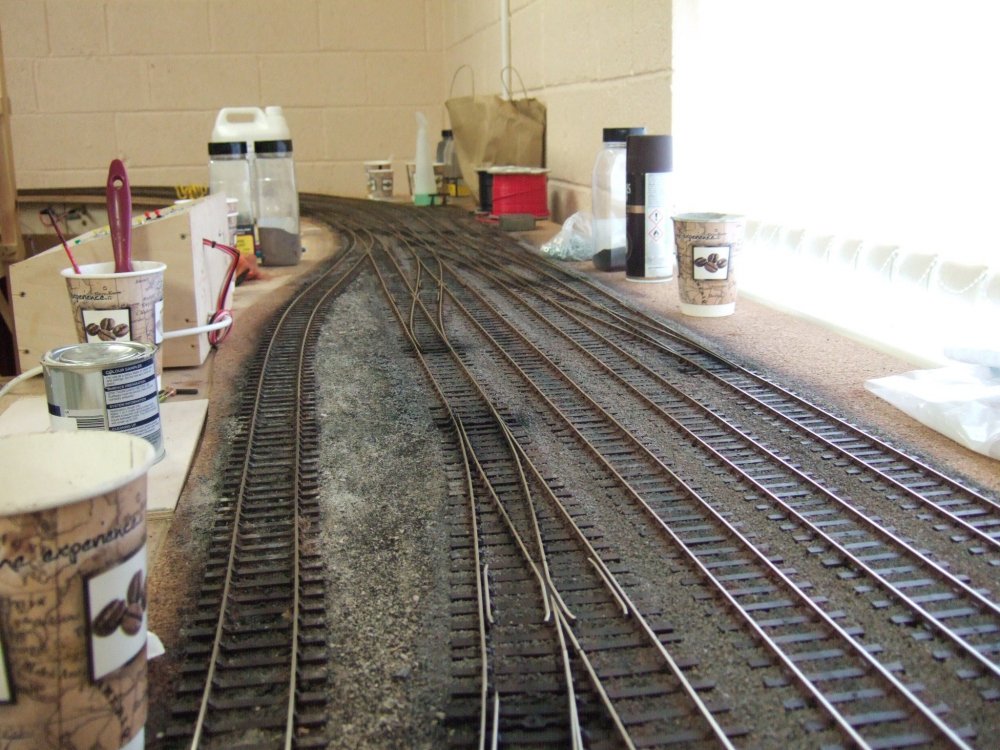

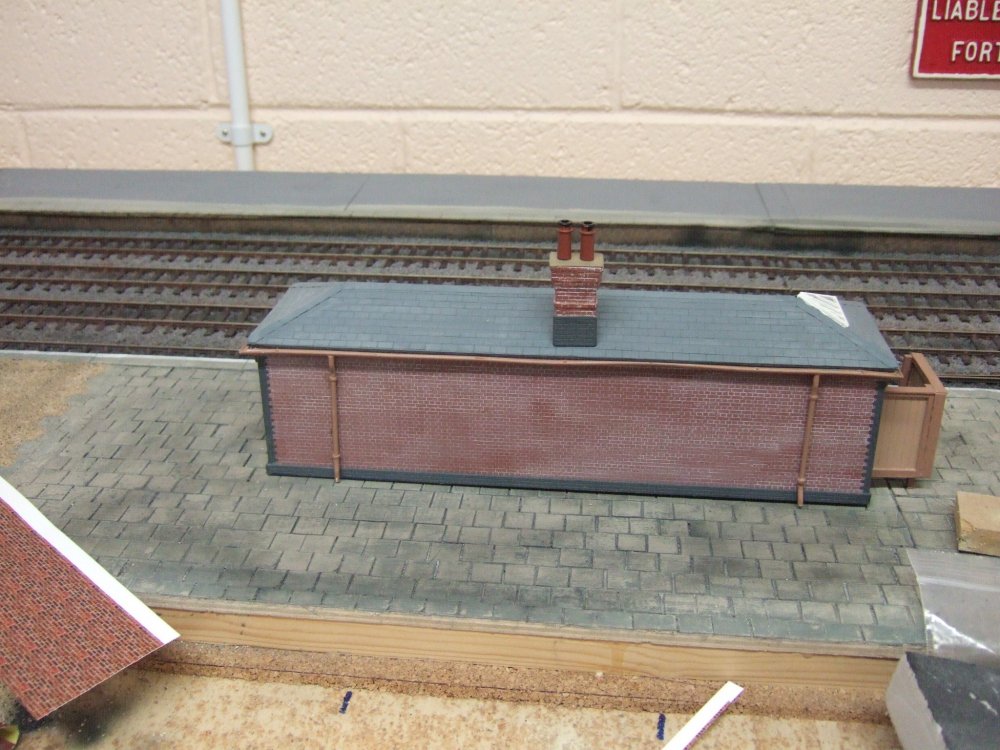

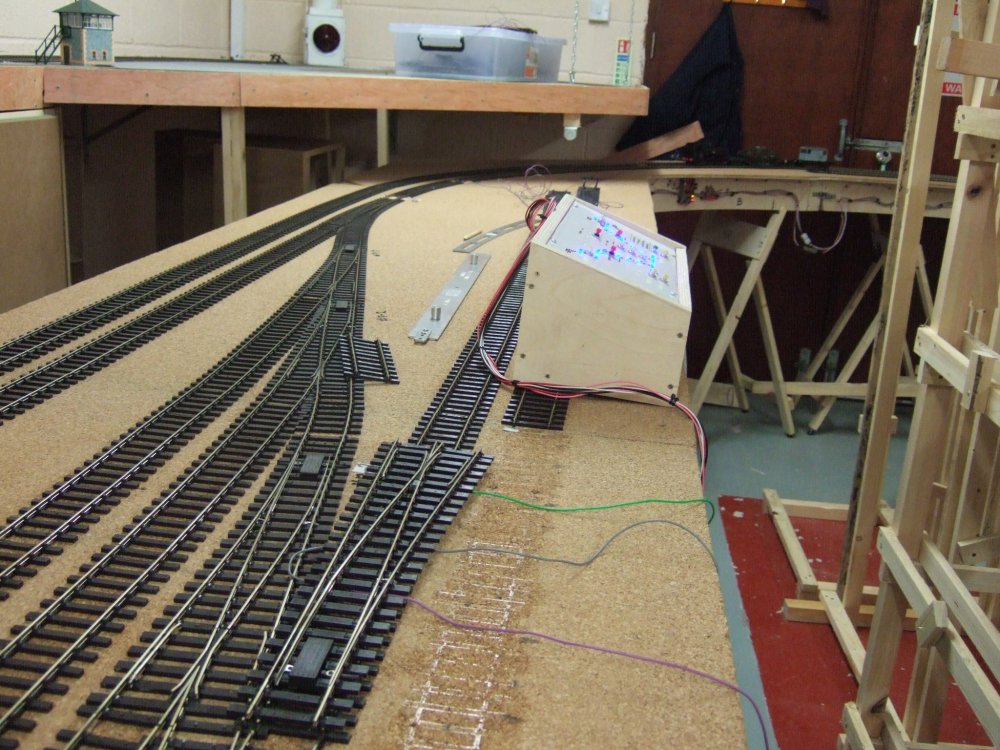

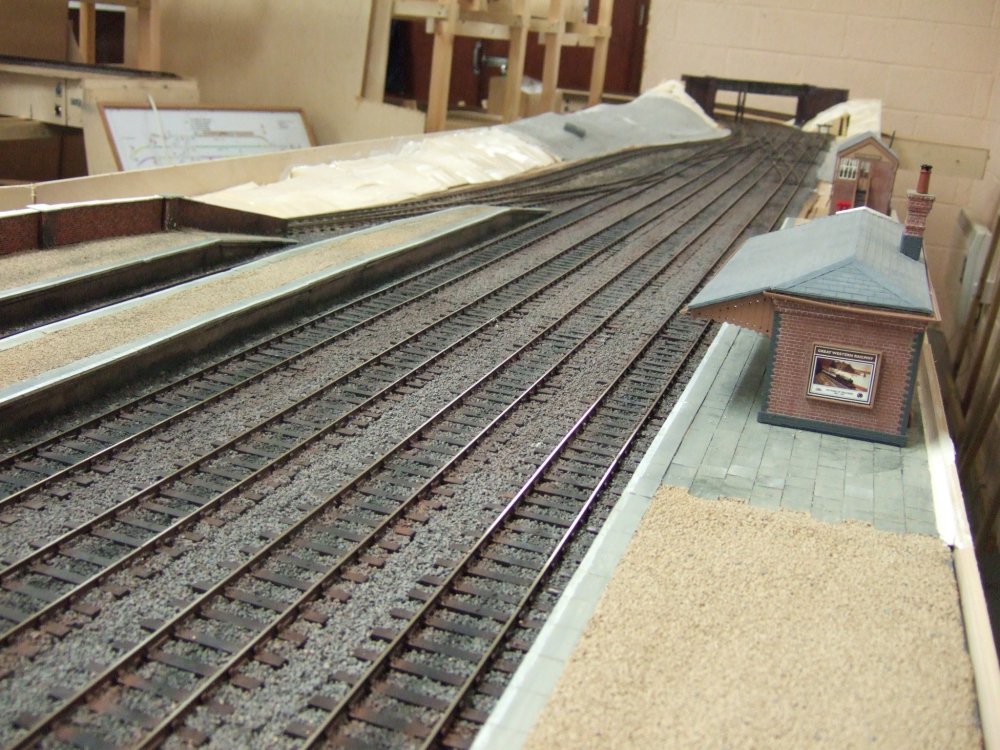

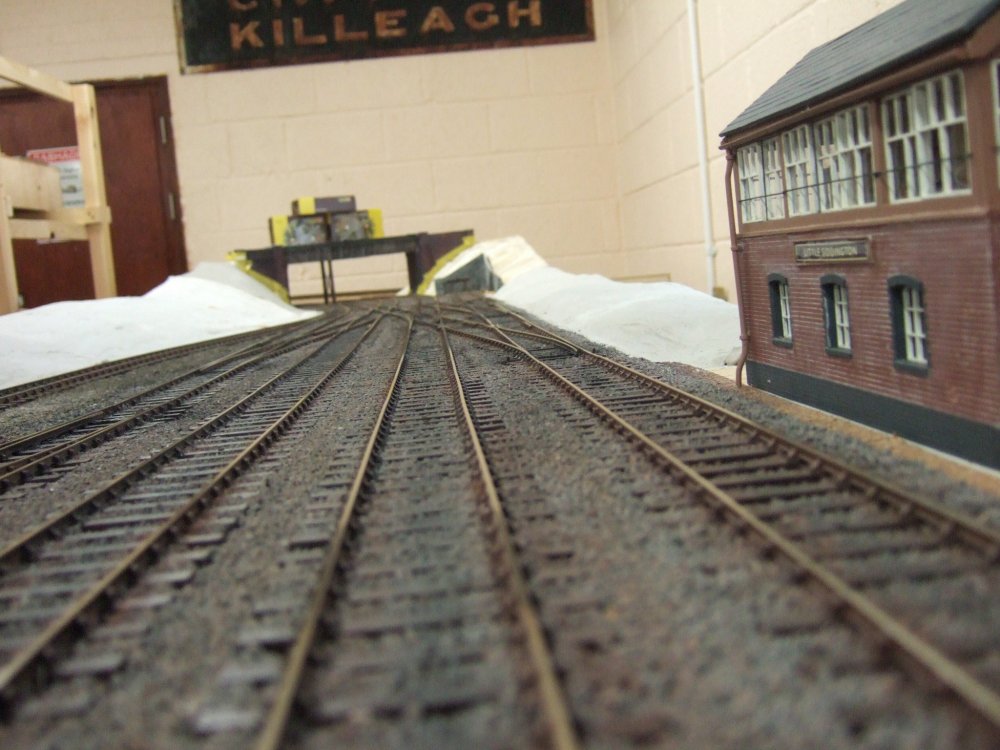

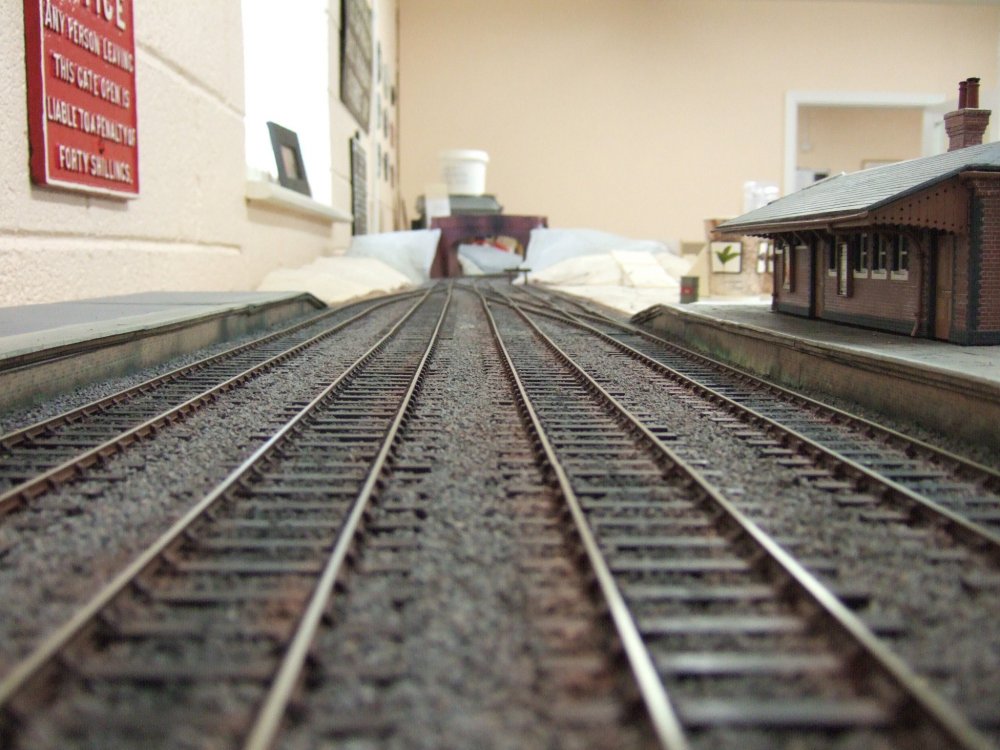

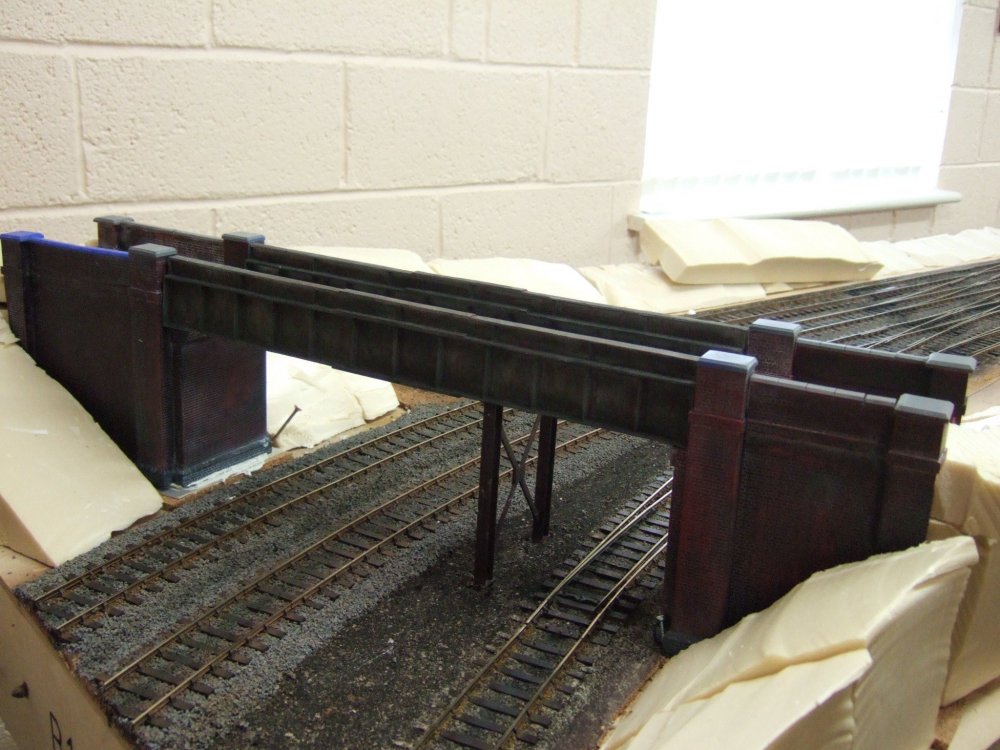

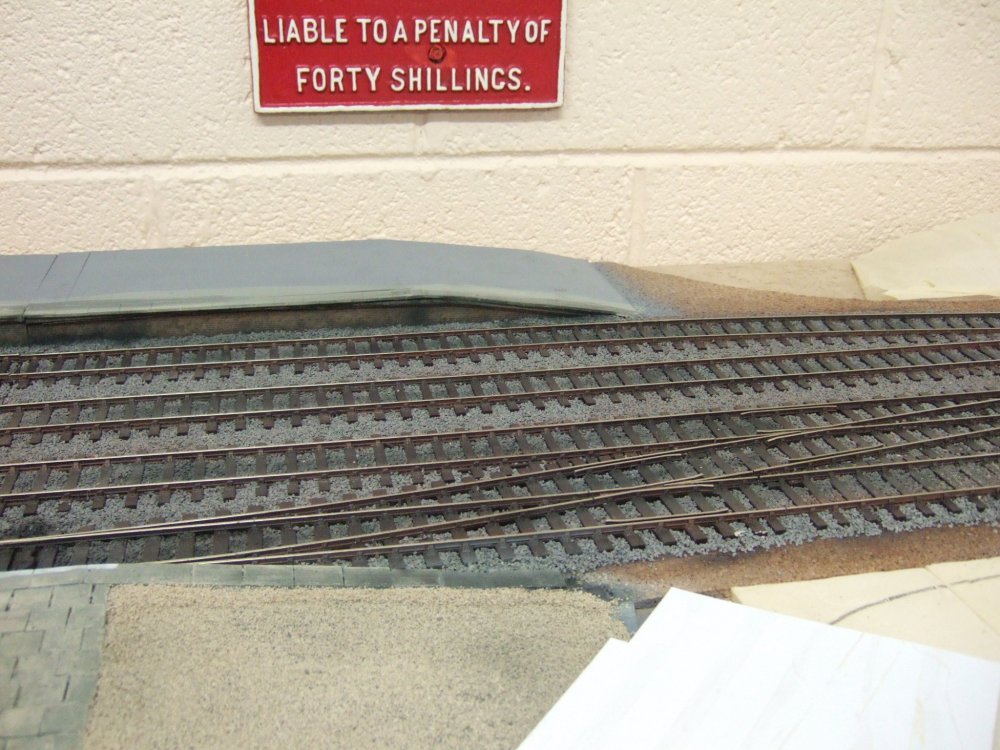

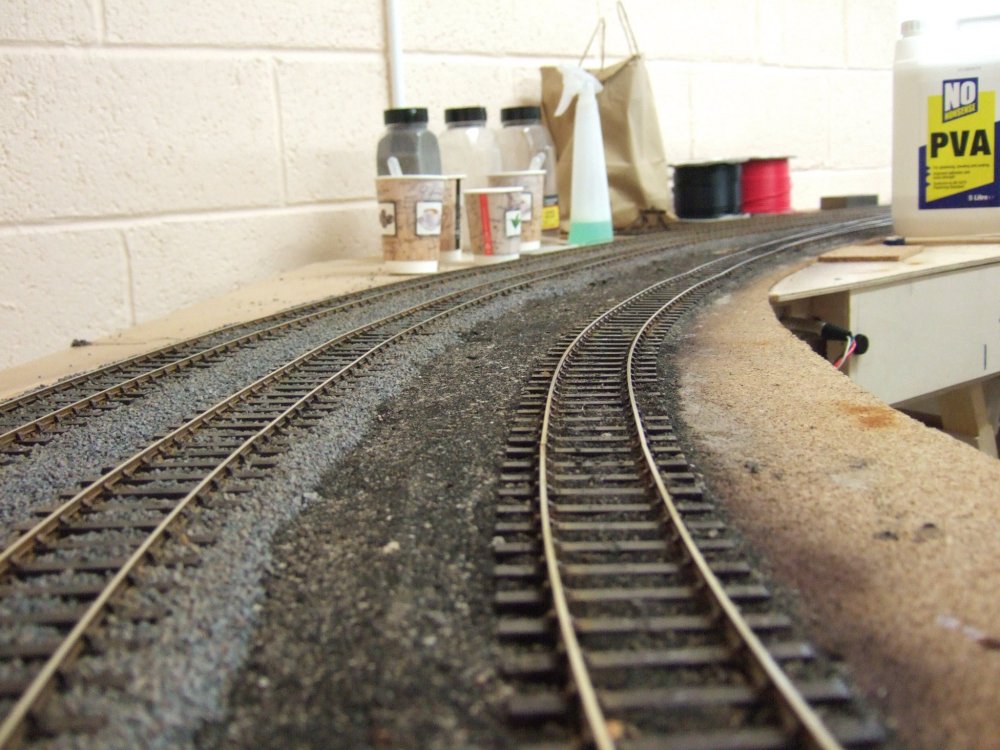

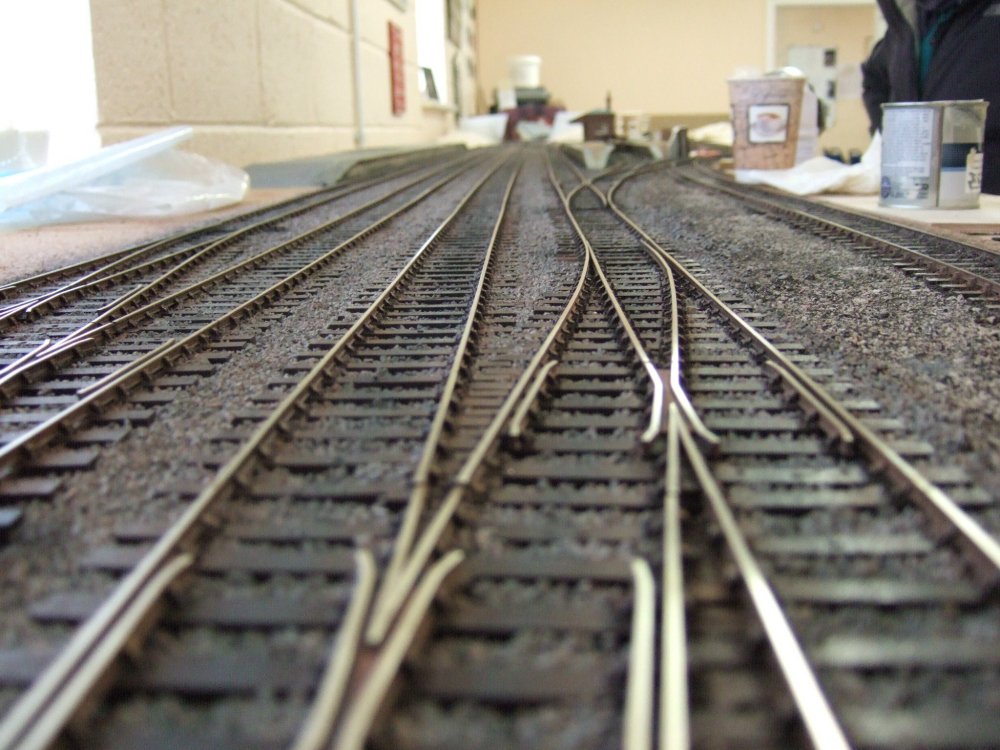

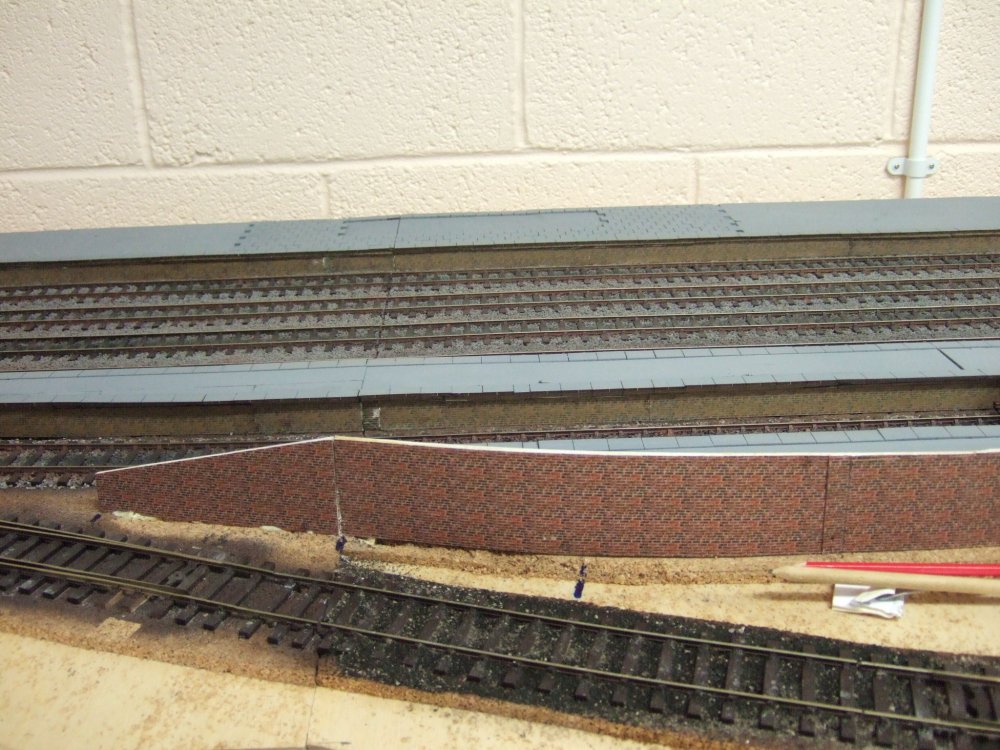

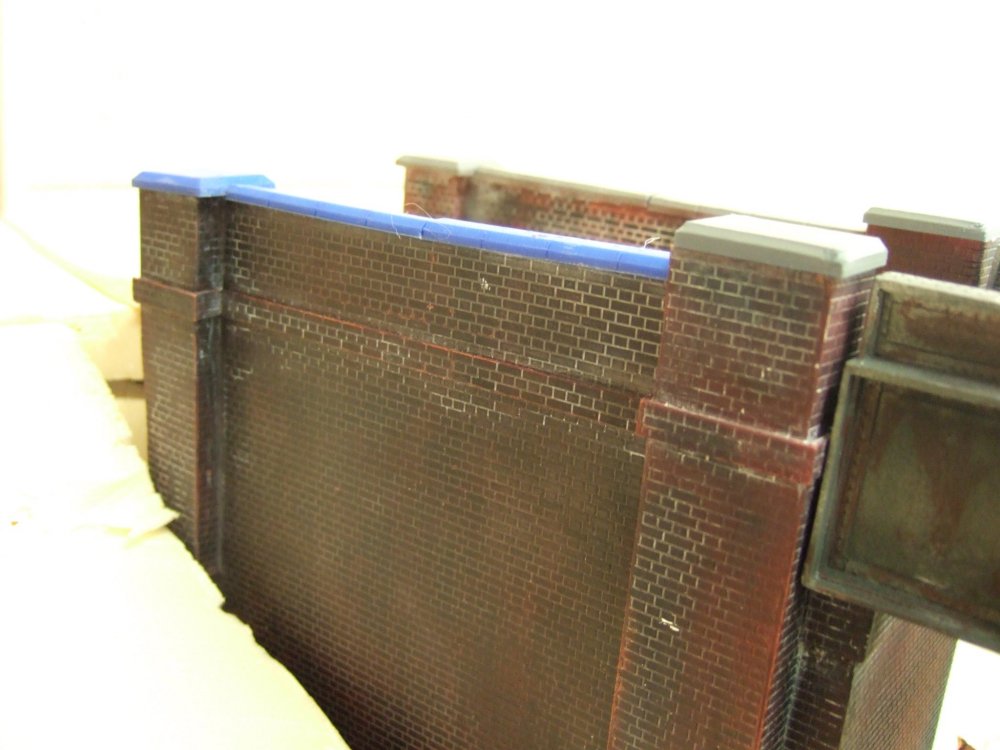

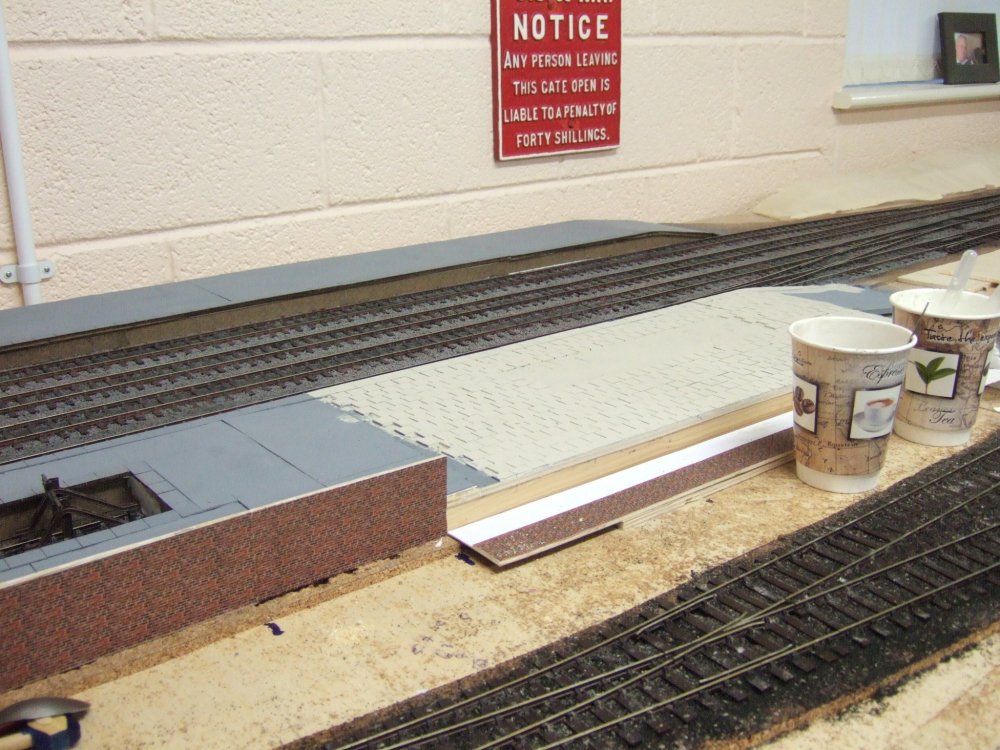

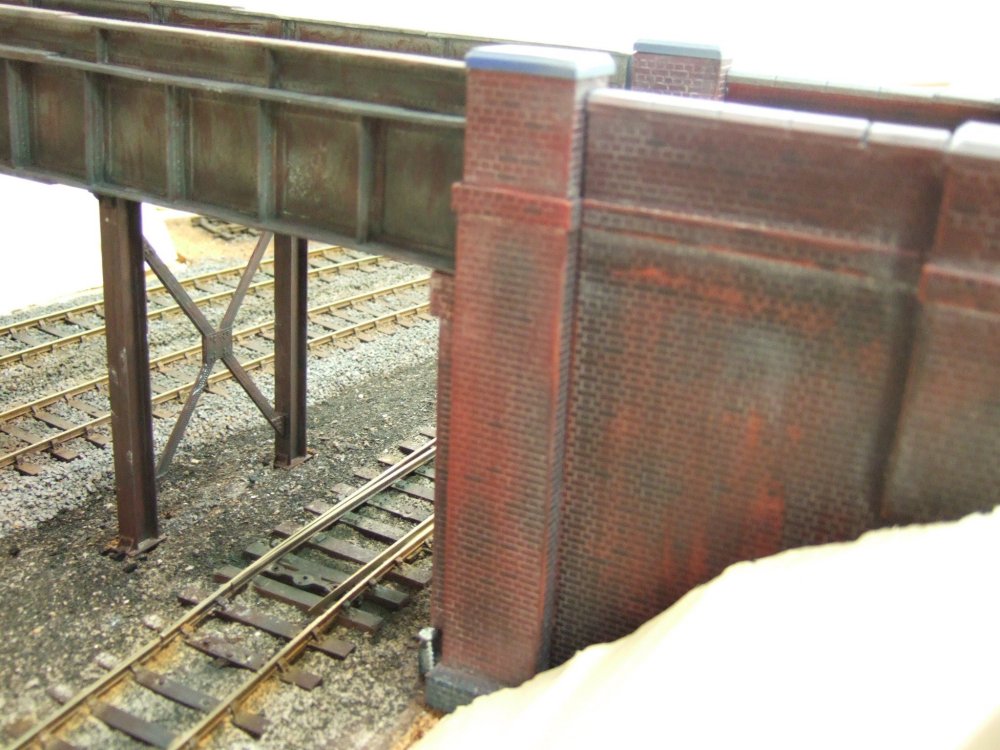

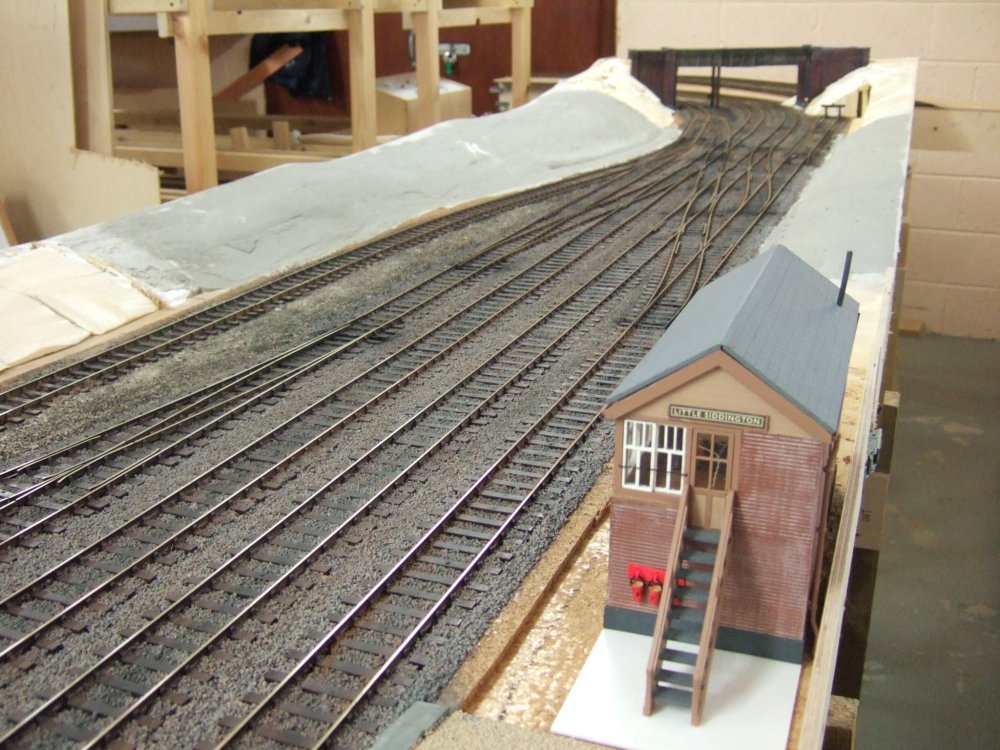

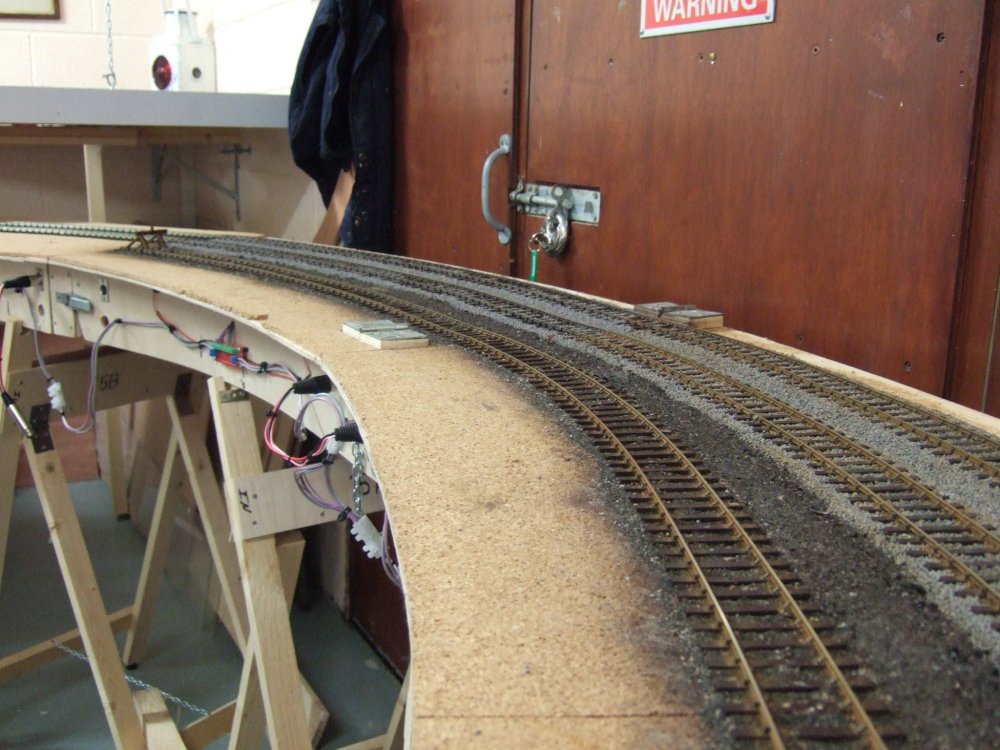

More progress on Little Siddington in preparation for the Exhibition at Easter 2019 in Wexford. Plans are in place also to exhibit at the Ulster MRC Exhibition at end-August 2019. Note that the electrical connections are being simplified for transport by putting panel plugs/sockets on each board to be connected by flying cables during set-up! The work on the fiddle-yard has since been completed also and a second bridge and signals are in preparation off-site. So, a photographic tour up and down the line:

DSCF2495.thumb.JPG.ba765ffbc0dc95bea77e63818c373d17.JPGDSCF2496.thumb.JPG.5664c4f695ac1e5c96a779df20d0a13d.JPGDSCF2497.thumb.JPG.597d1de024e955bae04d30320c41c17d.JPGDSCF2498.thumb.JPG.5eb7606975a95d4c94be0729a1a4dcd6.JPGDSCF2499.thumb.JPG.f57b806d5b56dc2c59cc5d9607745f46.JPGDSCF2500.thumb.JPG.b0742fd39b5f0dd40ccd7214648c88a0.JPGDSCF2501.thumb.JPG.f25e9d6440fa2573e9a11fa7af2ef8e2.JPGDSCF2502.thumb.JPG.8759a52b86a9142ba642c58e26fc015d.JPG
DSCF2503.thumb.JPG.d44c5c3b64d272eaa2ccee80cab52e7a.JPGDSCF2505.thumb.JPG.34cc9f141a9ec8c610ff154d58b3c827.JPGDSCF2506.thumb.JPG.543a091977cde59c5b36708b0cd3f538.JPGDSCF2507.thumb.JPG.9ccc33e95ee67fce3b2b1be311ddf04d.JPG





Edited by Irishrailwayman
  • Like 8
Link to comment
Share on other sites

  • 3 weeks later...
10 hours ago, Rob said:

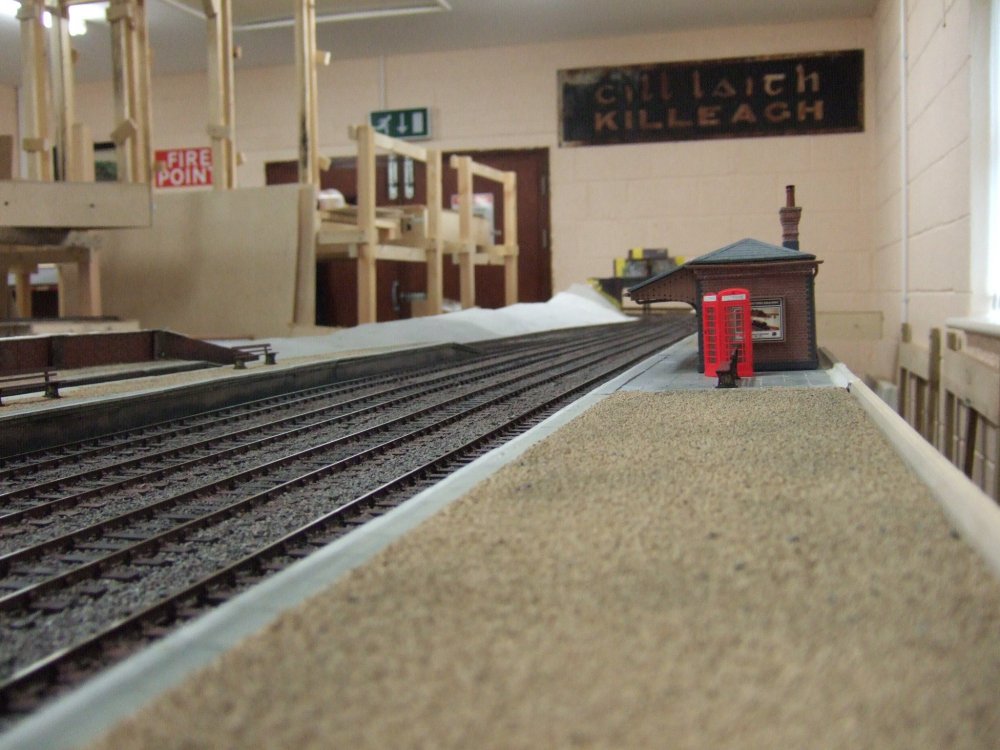

Looks great allright-    what have you used for the scenery banks base here?

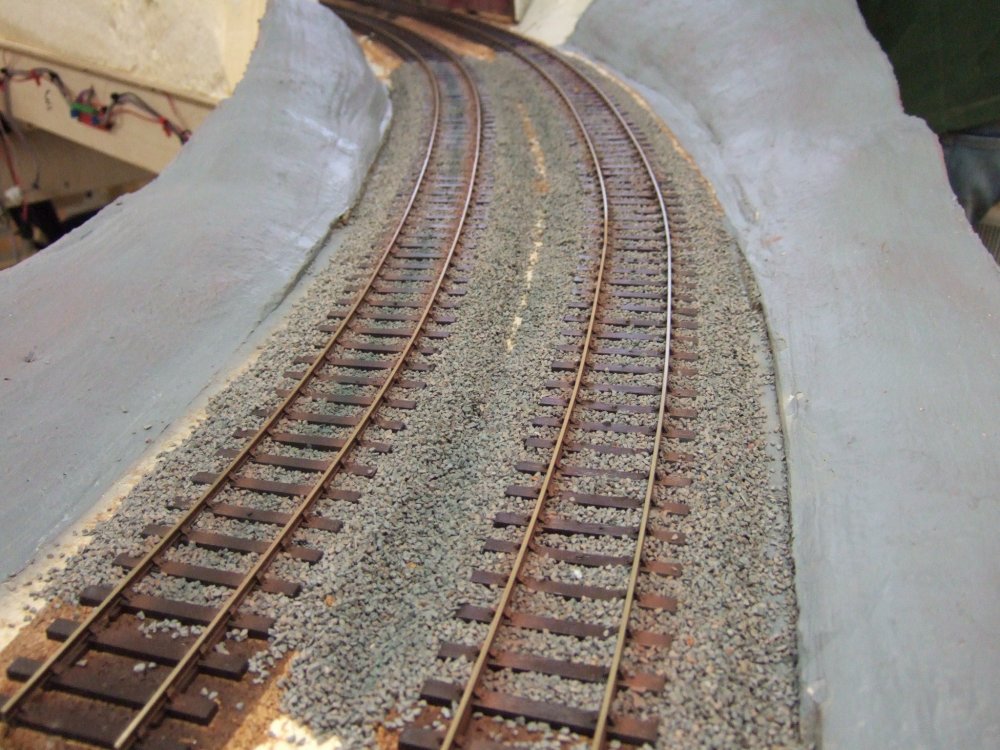

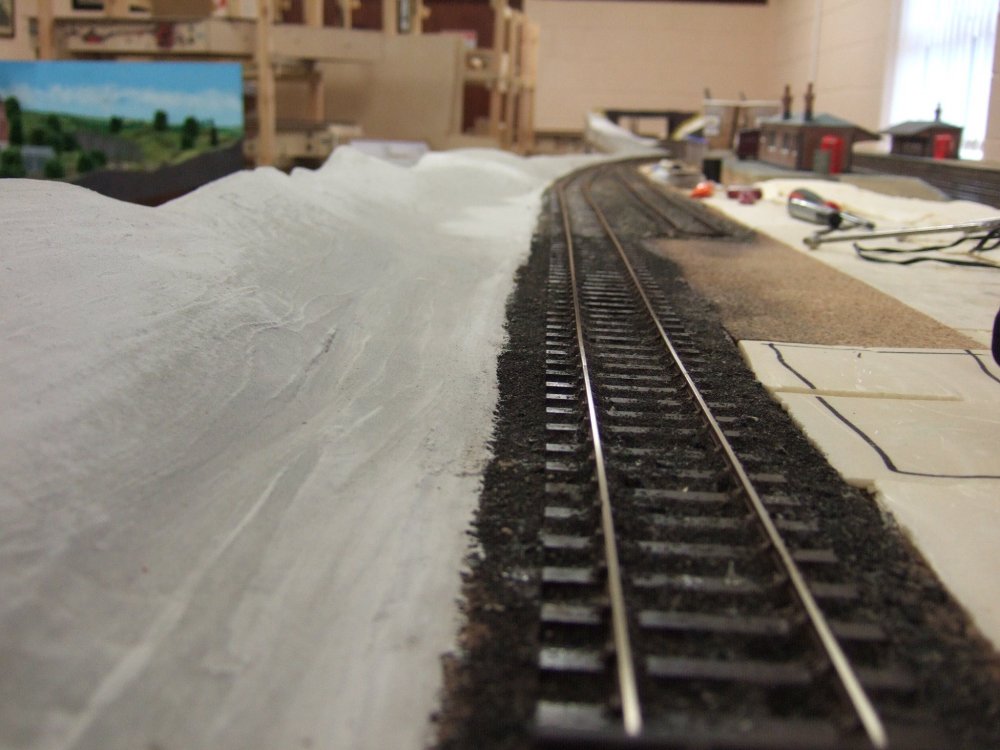

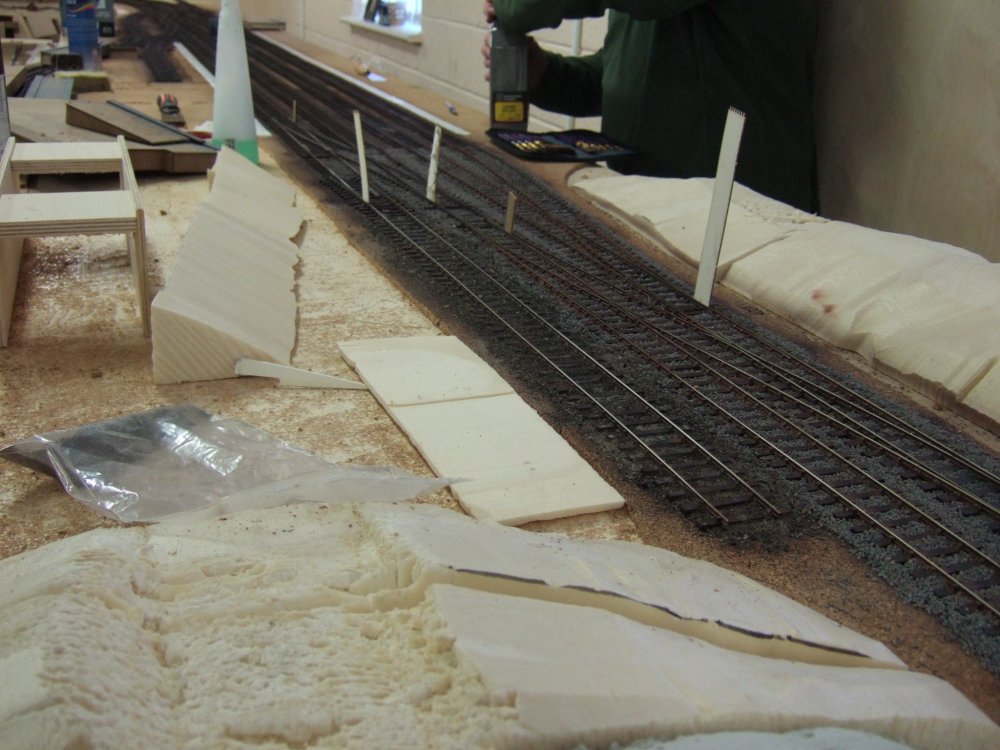

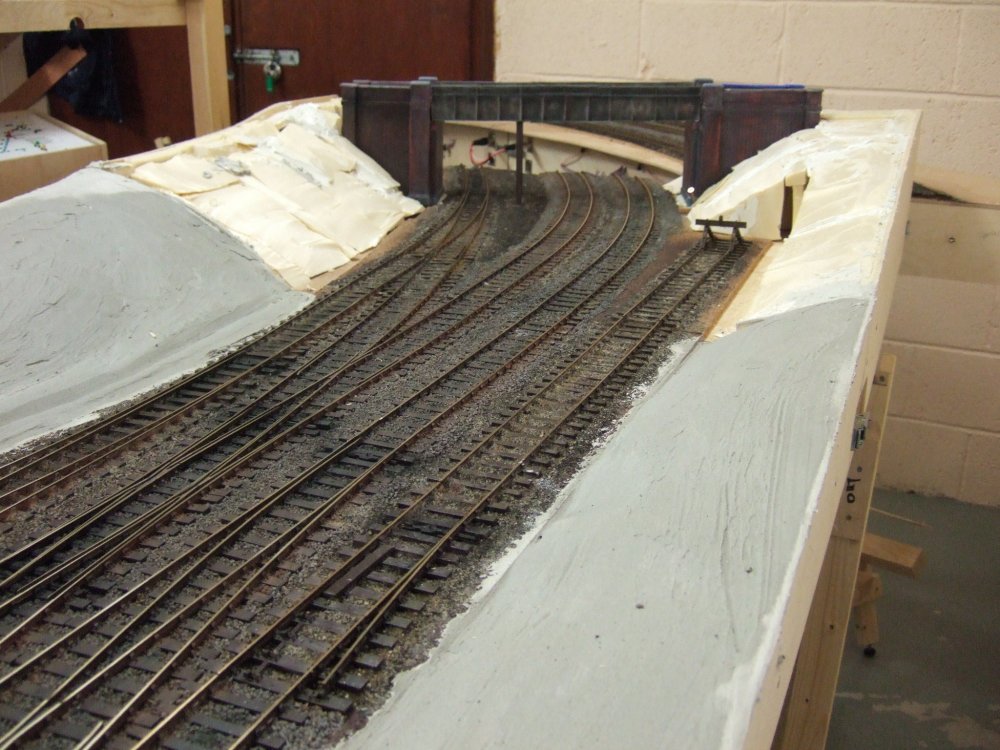

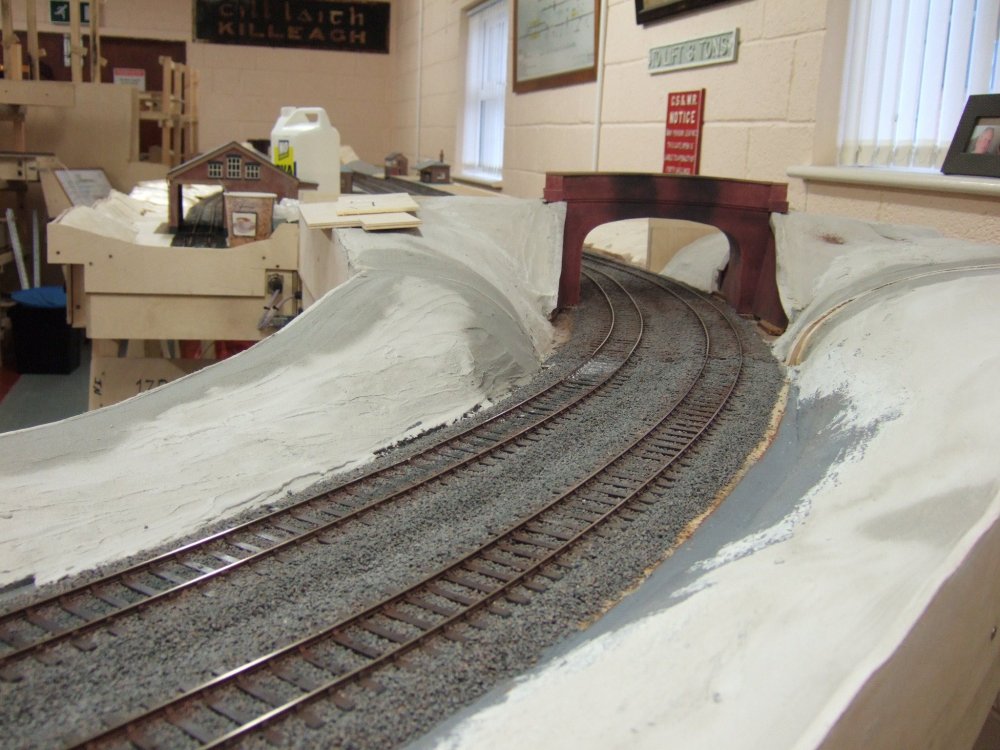

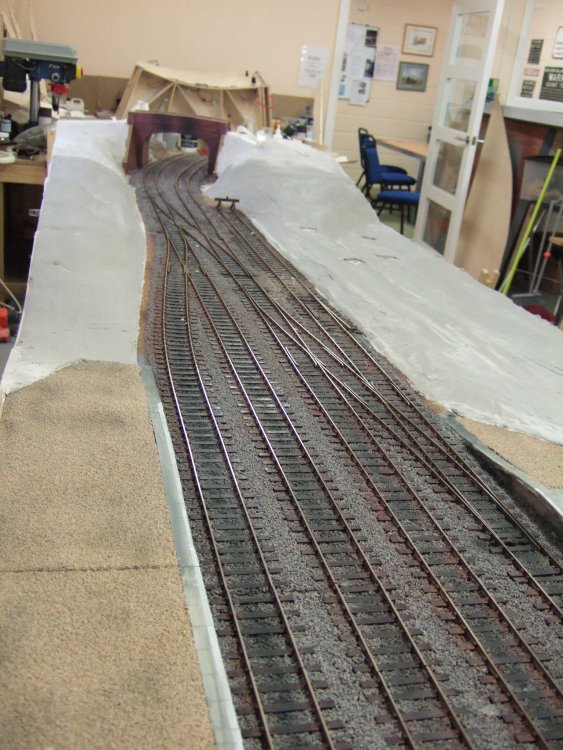

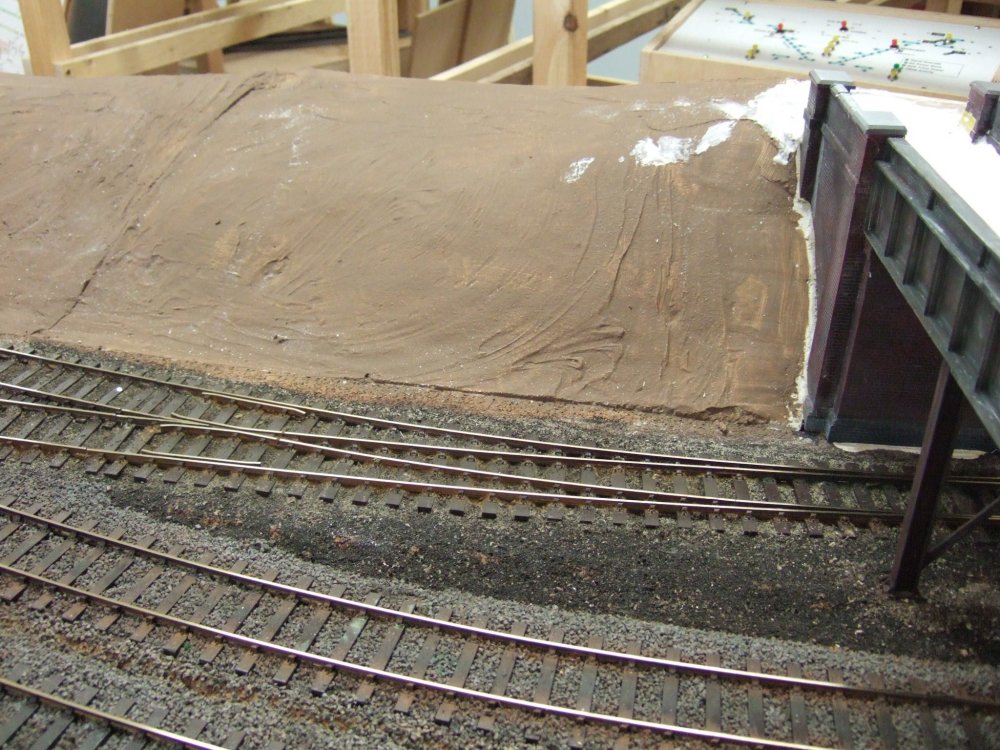

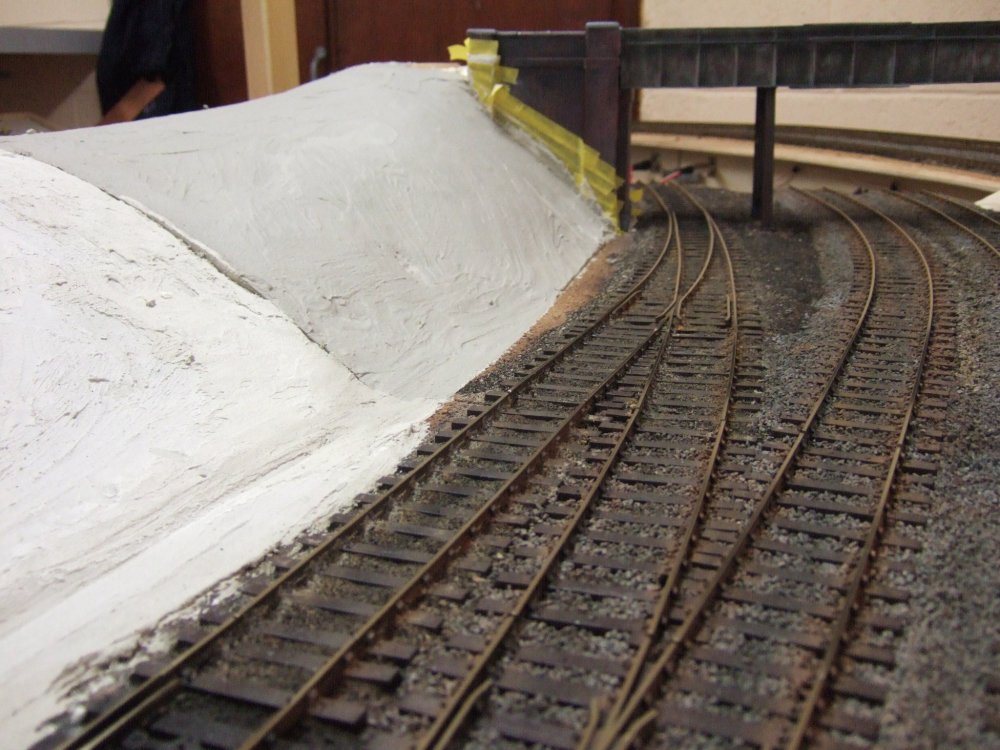

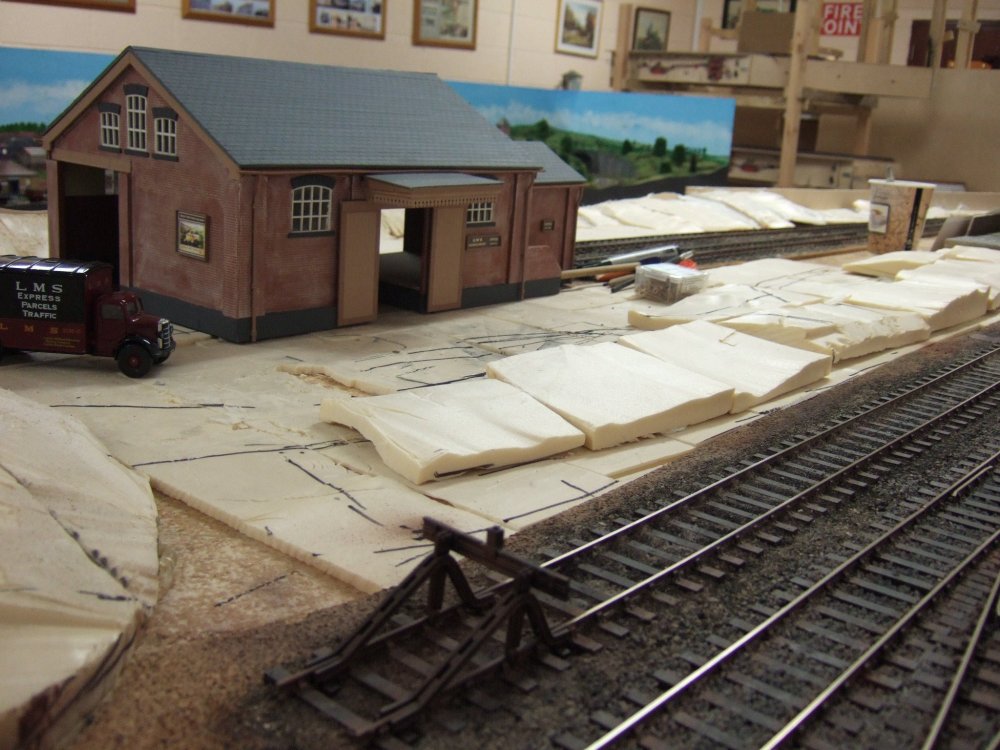

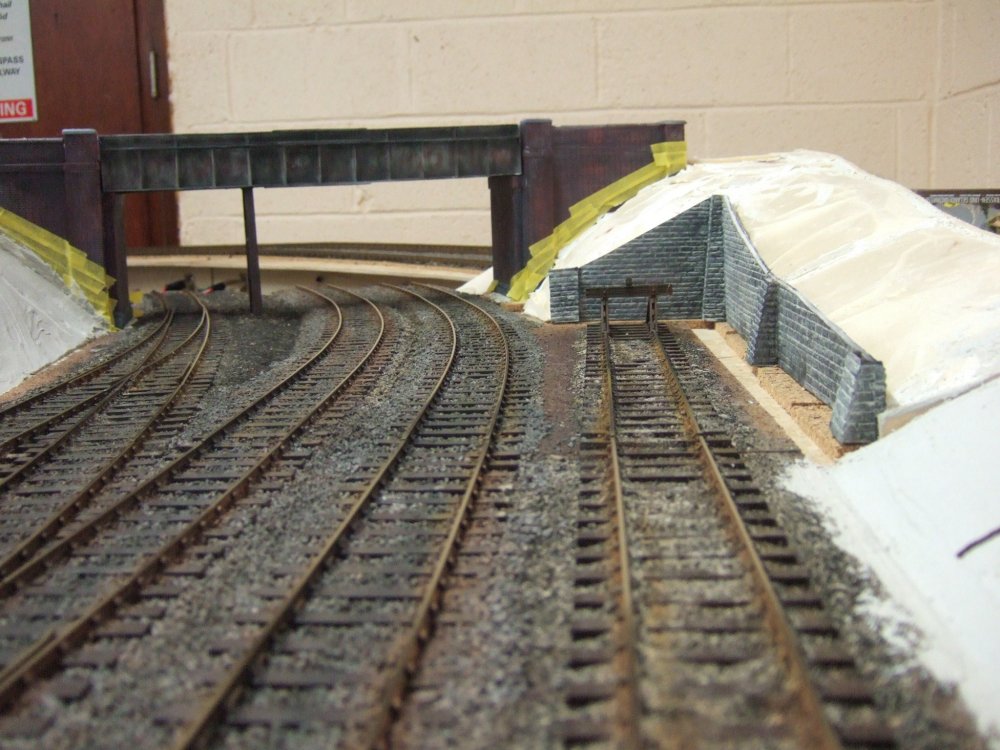

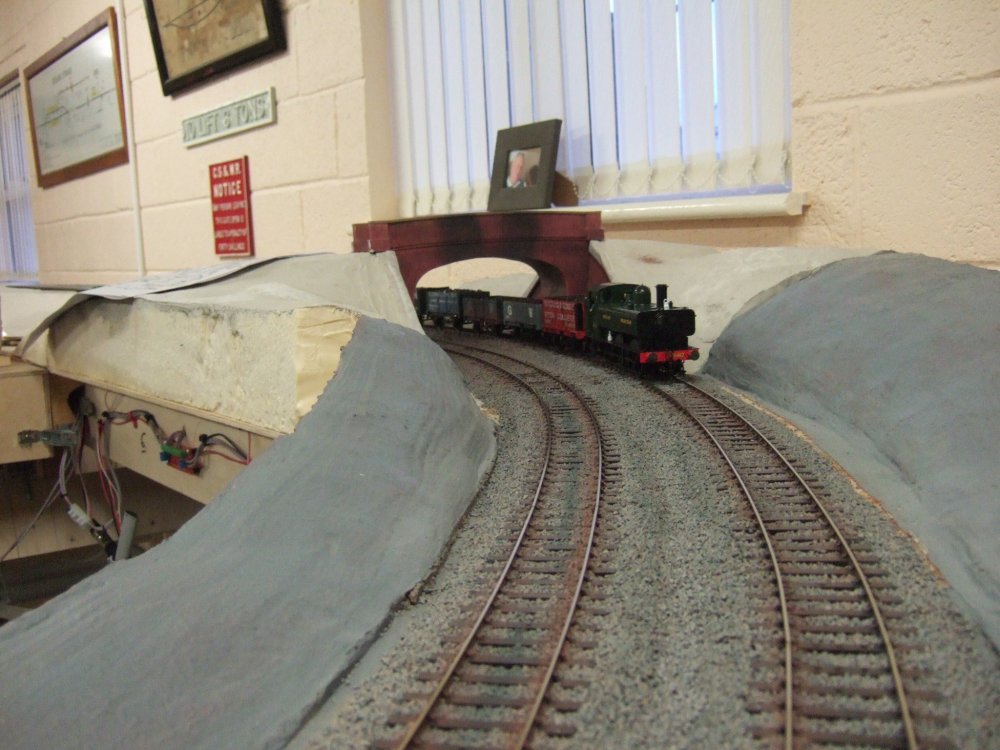

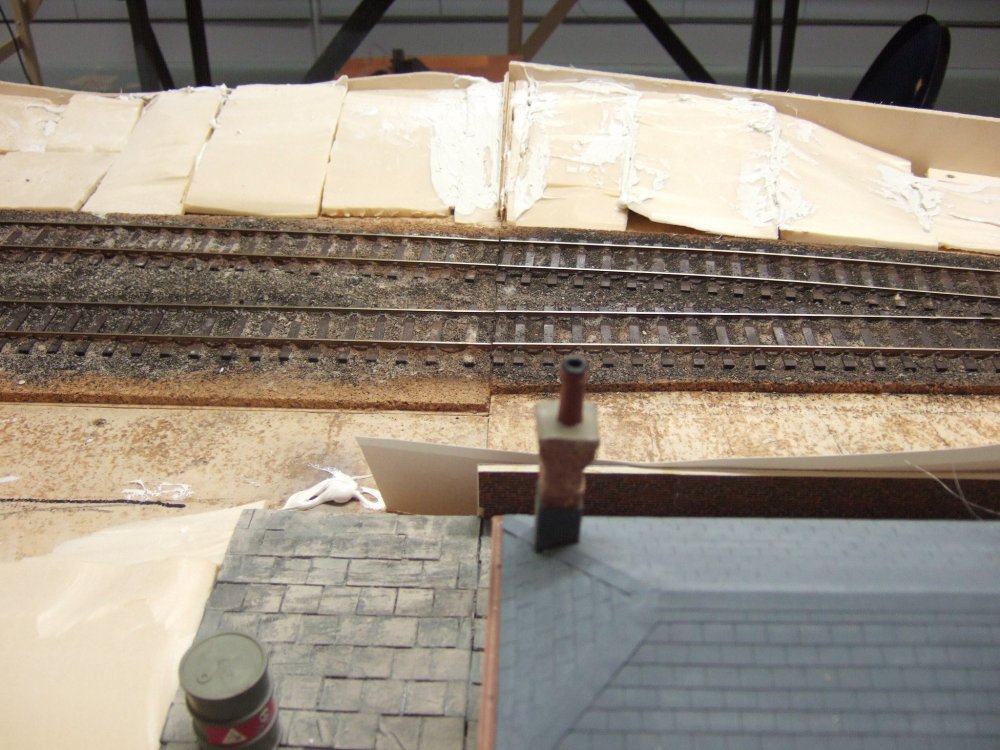

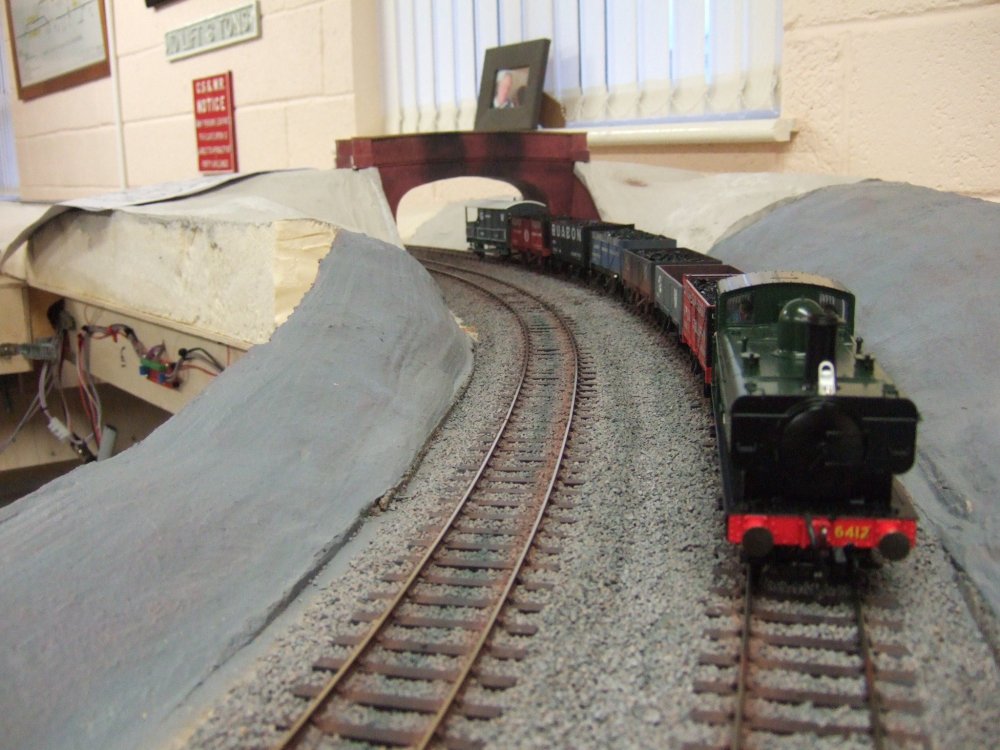

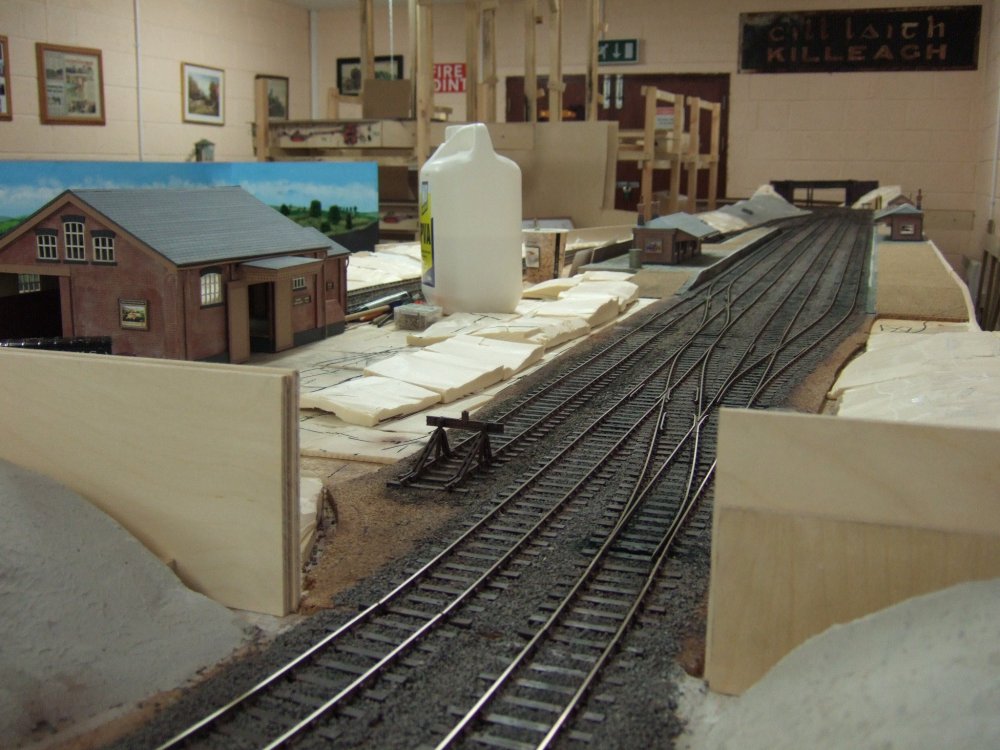

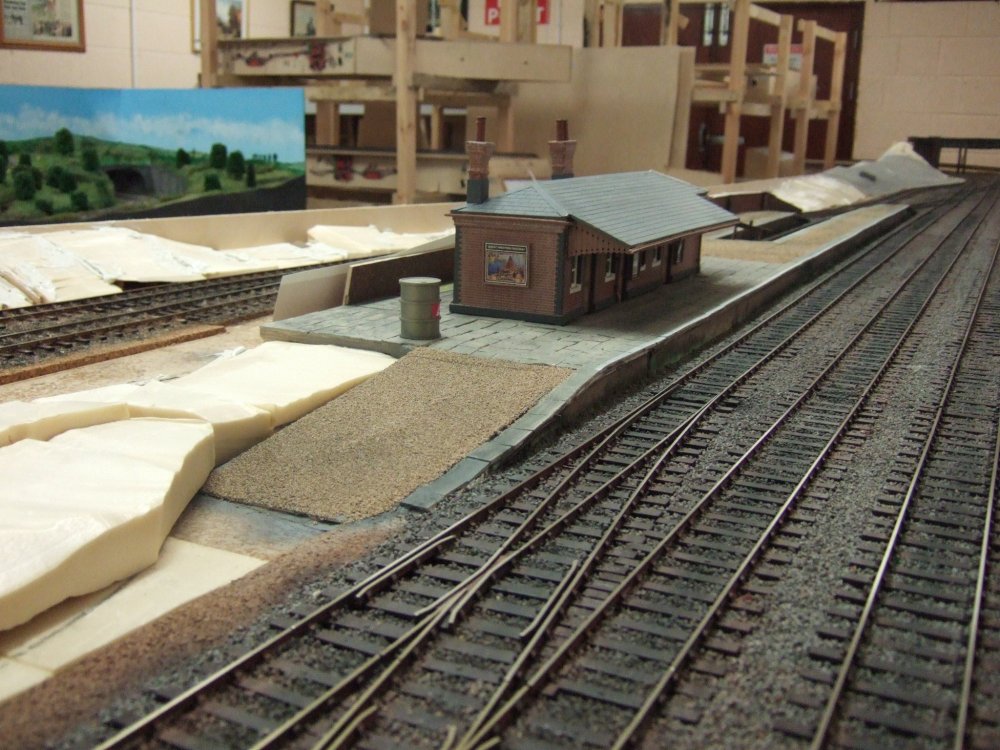

Its a form of builders expanded polystyrene (I must check the brand) that is very robust, doesn't crumble, yet is easily cut with a saw or a hot-wire tool. Plasterers cement is then used on top to form the landscape. The result is a rock-hard sub-stratum that is also very light! Finally, an emulsion paint will form the basis for the static-grassing stage.

  • Like 1
  • Thanks 1
Link to comment
Share on other sites

On ‎10‎/‎19‎/‎2018 at 1:46 PM, Irishrailwayman said:

Early in 2018 Wexford Model Railway Club started an ambitious project to develop a modular exhibition layout in O gauge. New techniques were deployed for building base-boards using Scandinavian 6mm birch-ply  hot-glued to the baseboard which are then strengthened with glass fibre/PVA. Advanced wiring and custom electronic control boards were used. Simple but robust trestles were developed which fold flat. A couple of photos for the record:



DSCF2300.thumb.JPG.a5267e40e2c6e788230c6089c457910e.JPGDSCF2301.thumb.JPG.a87e2a4cf343d911c5354bd5a82bf267.JPGDSCF2309.thumb.JPG.0c1c4b85b79deaa5dc3388a4e73535c0.JPGDSCF2310.thumb.JPG.aa14249b5dfeb05e2c7ffb7509666b50.JPG

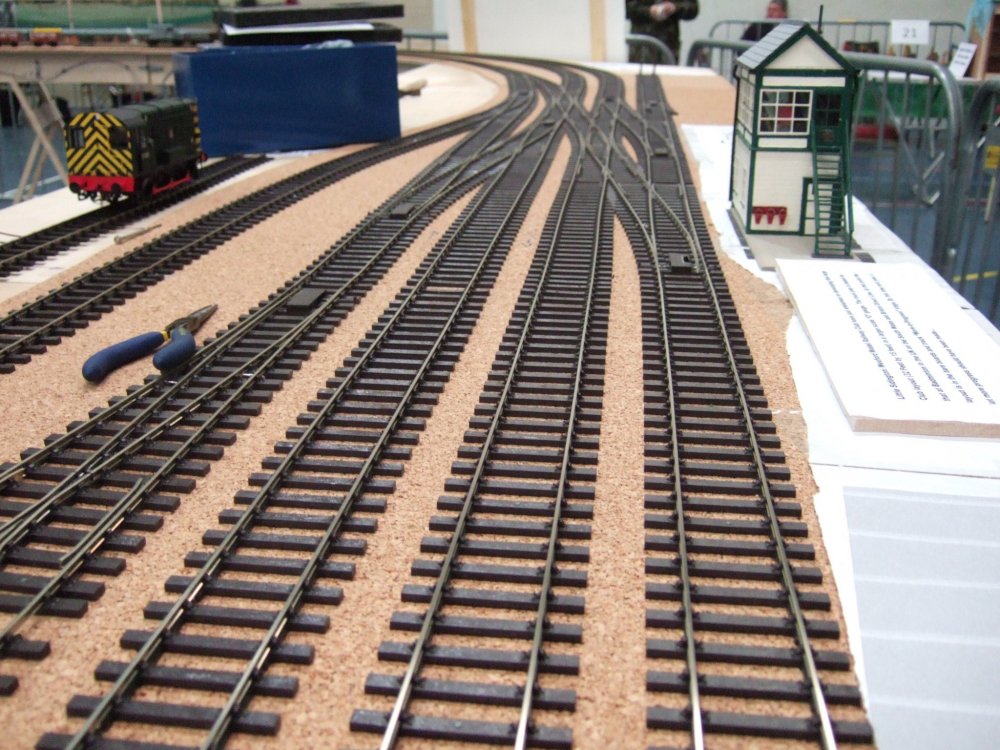

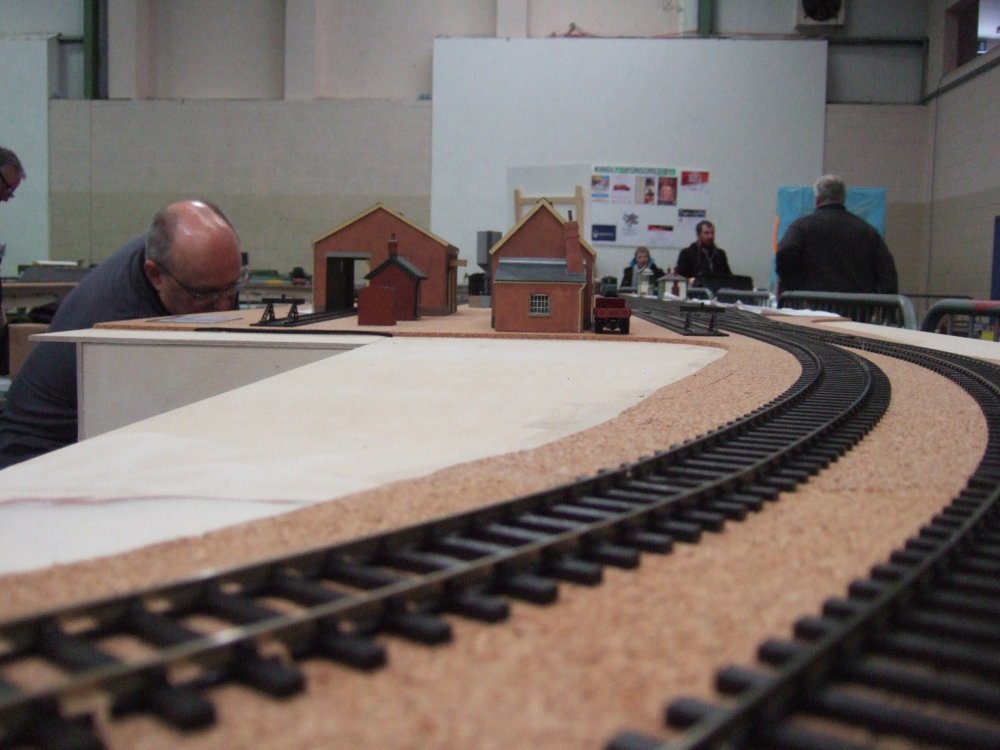

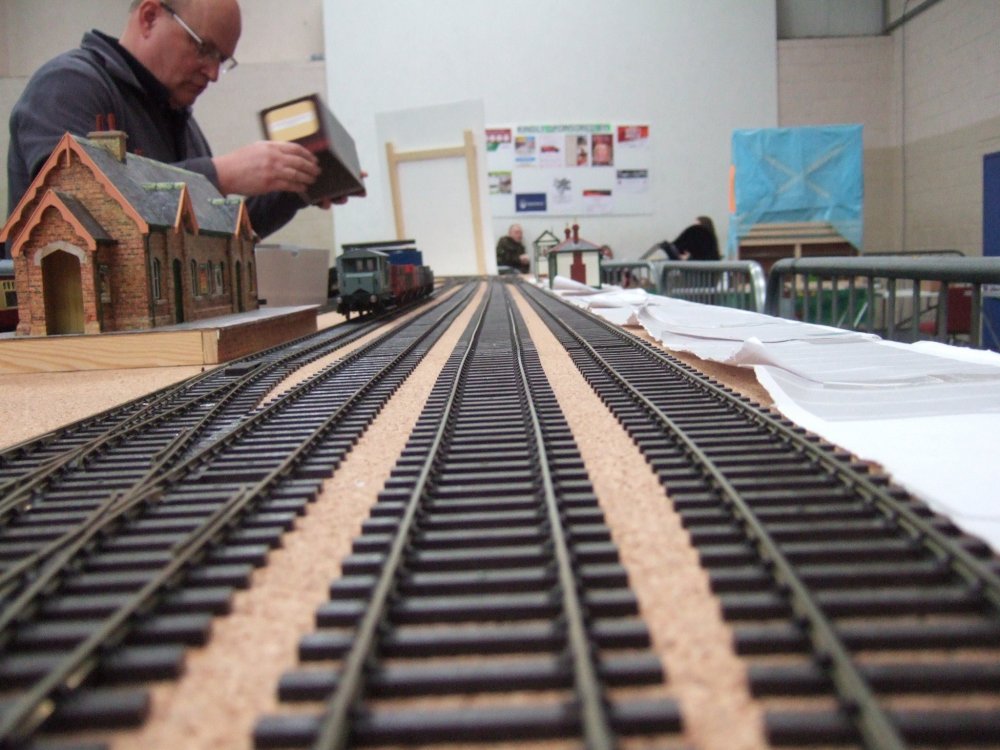

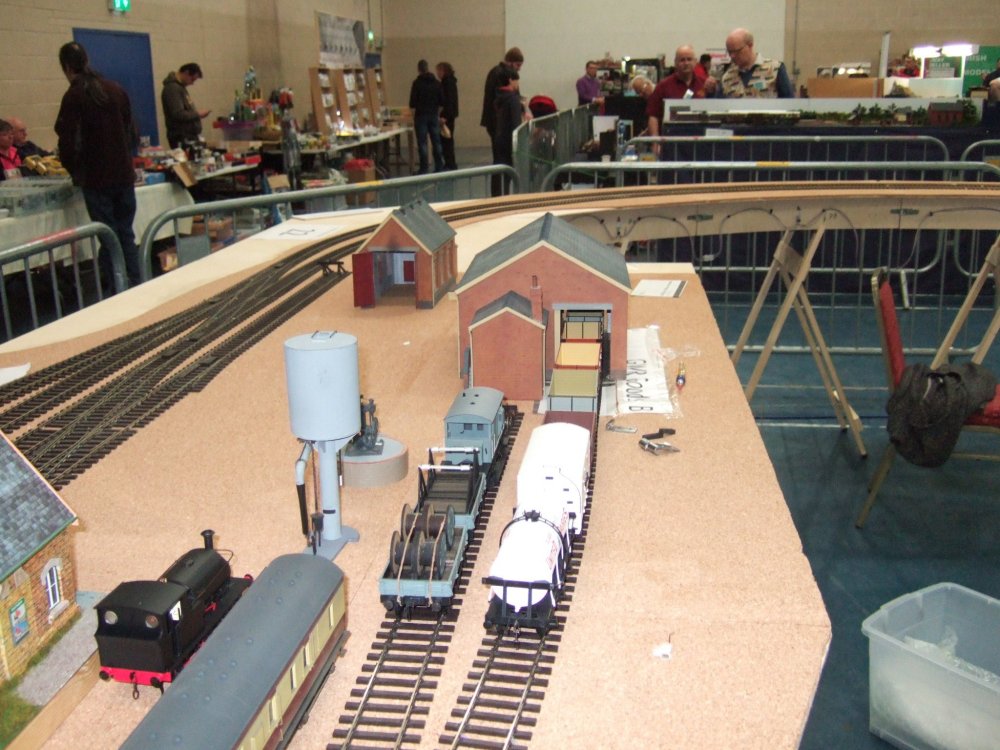

By Easter 2018, the early stages of the project were in place and exhibited at the Wexford Exhibition:

DSCF1995.thumb.JPG.24eda1c6a37a7cec64f53fa7c1717017.JPGDSCF1996.thumb.JPG.292406fe8d5af091be3416ba398e06d5.JPGDSCF1997.thumb.JPG.6c2c3e3d1705707e4bab7446d942efa2.JPGDSCF1998.thumb.JPG.a13a7fdded663b494b3bc0eaaeeaa4da.JPGDSCF1999.thumb.JPG.09f6cffef33e814bb76fead38803b602.JPGDSCF2000.thumb.JPG.23fee73862a3d62a73e1da4dd64e0dd9.JPGDSCF2001.thumb.JPG.d5ae9d14c33e0d6274296d5763de38e2.JPGDSCF2004.thumb.JPG.cb1cf7985d9a9a1e6ffd1d69cacab37b.JPGDSCF2005.thumb.JPG.169f81a7408d9d84b42e3f7389e8f70a.JPGDSCF2006.thumb.JPG.1a44b42247acf34641616b99a46931b6.JPG



Yes Plywood is the Job

  • Like 3
Link to comment
Share on other sites

On 3/2/2019 at 10:18 AM, Irishrailwayman said:

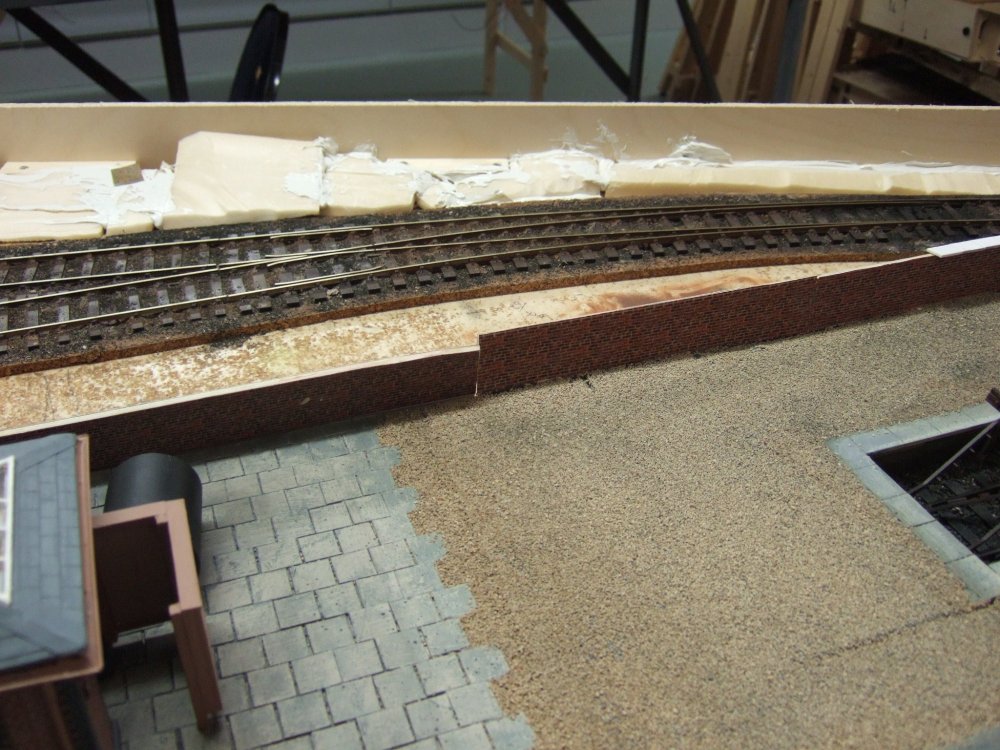

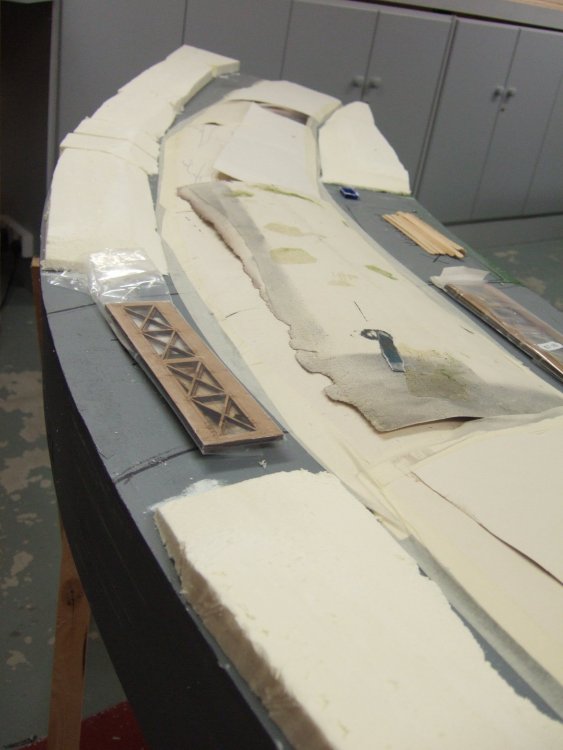

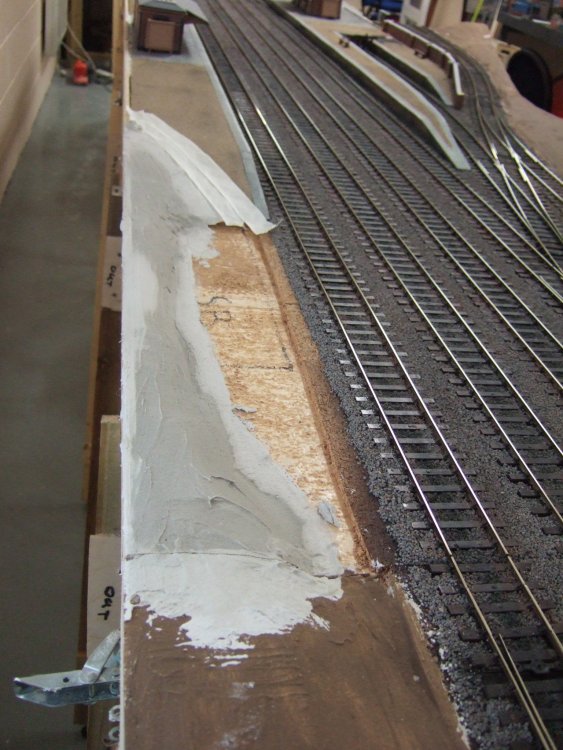

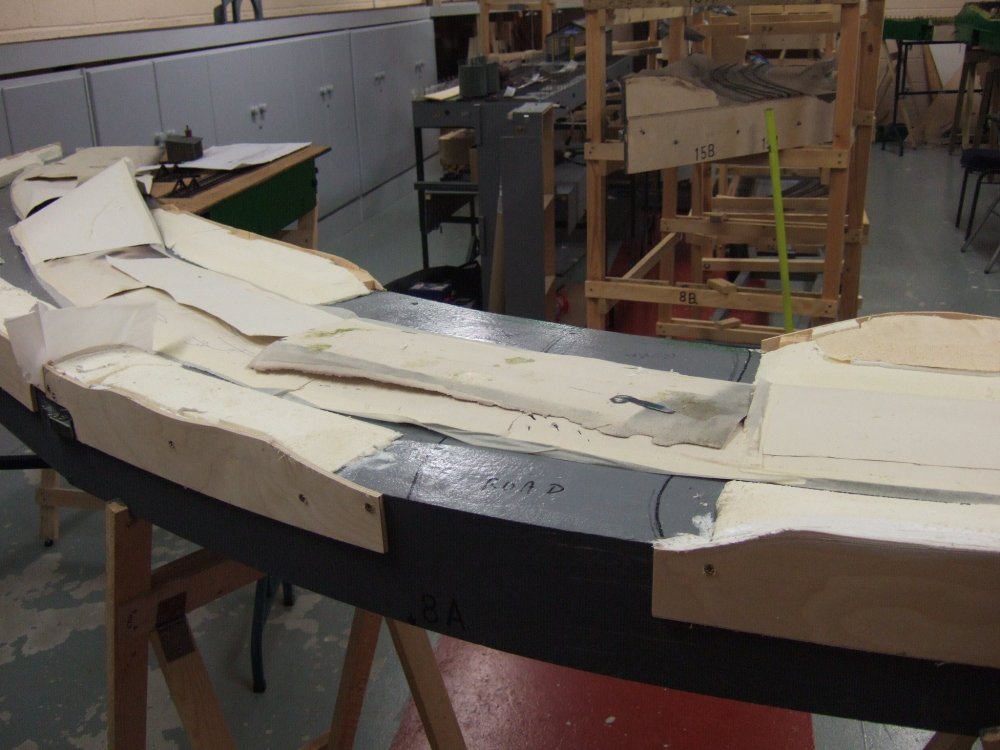

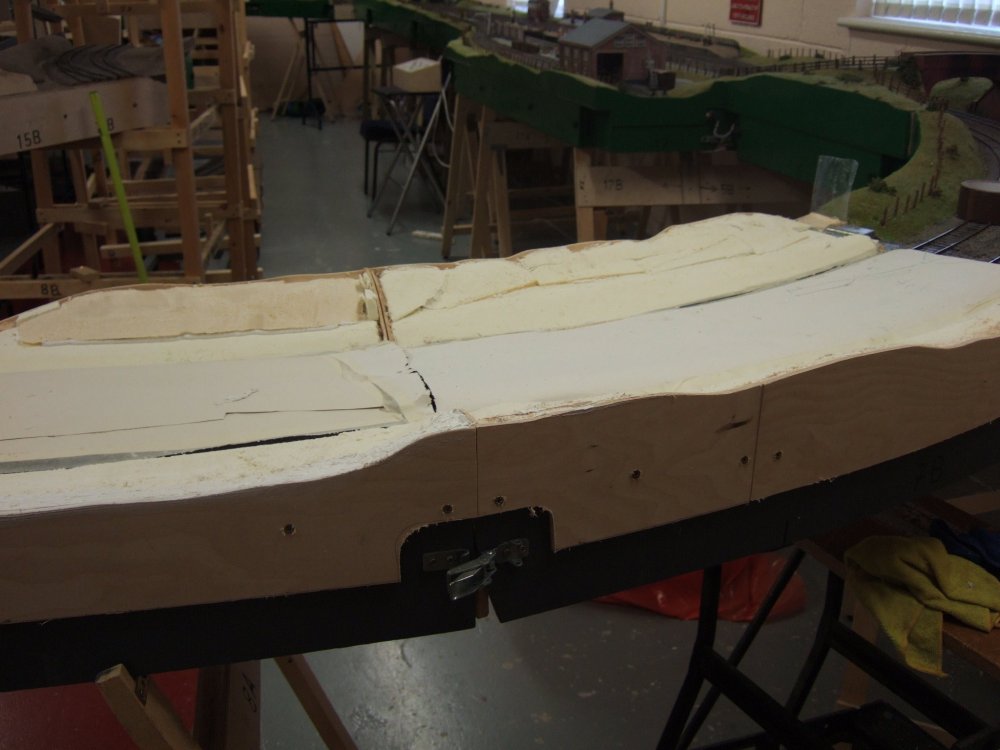

Its a form of builders expanded polystyrene (I must check the brand) that is very robust, doesn't crumble, yet is easily cut with a saw or a hot-wire tool. Plasterers cement is then used on top to form the landscape. The result is a rock-hard sub-stratum that is also very light! Finally, an emulsion paint will form the basis for the static-grassing stage.

Ive been asked this several times , so heres a longer description

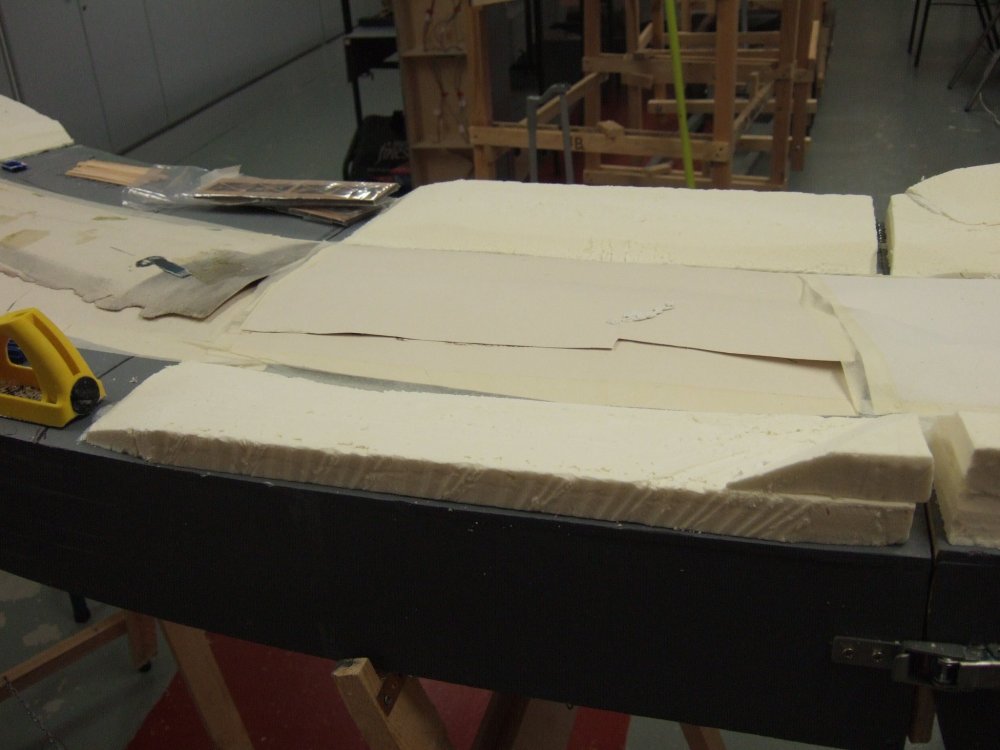

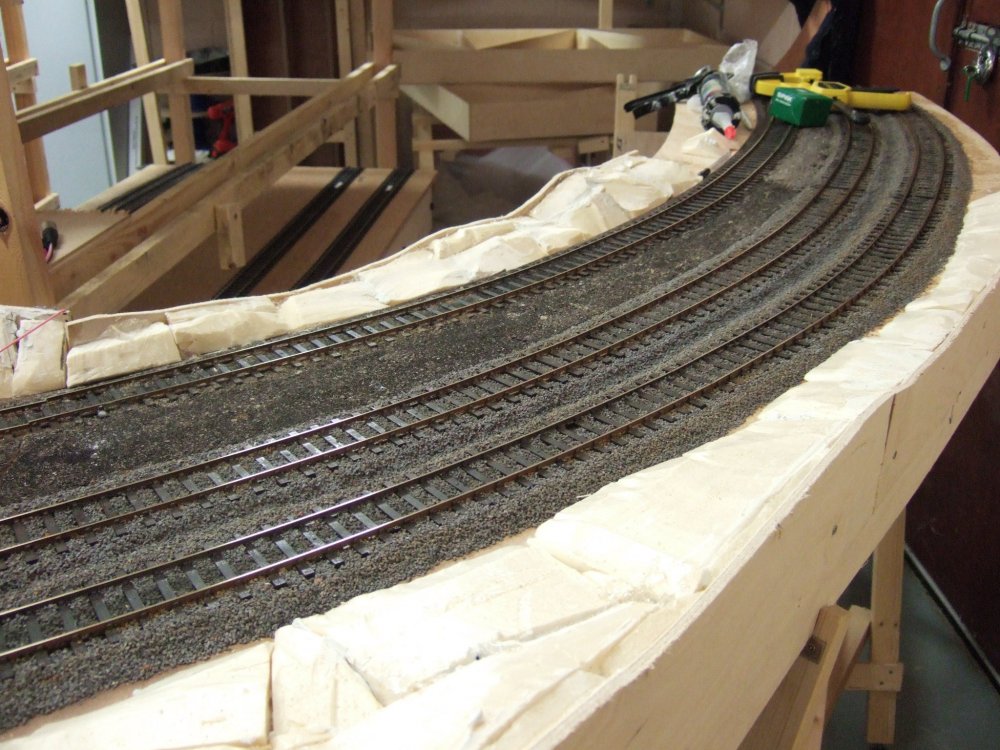

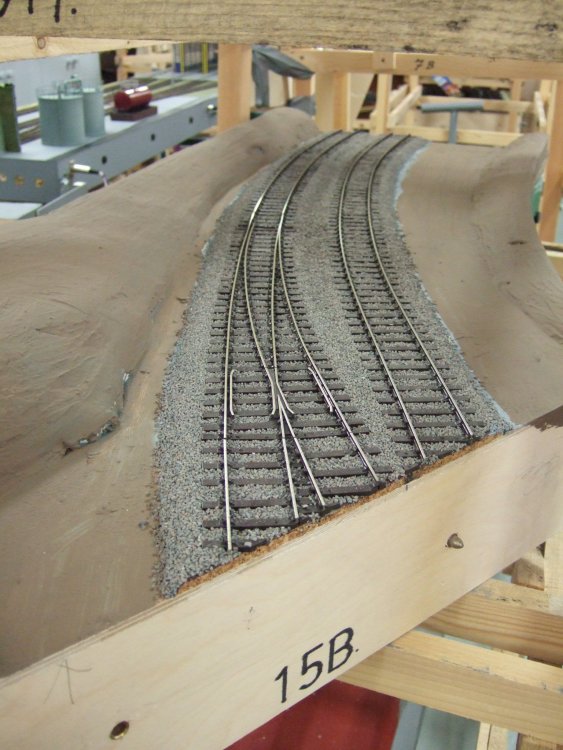

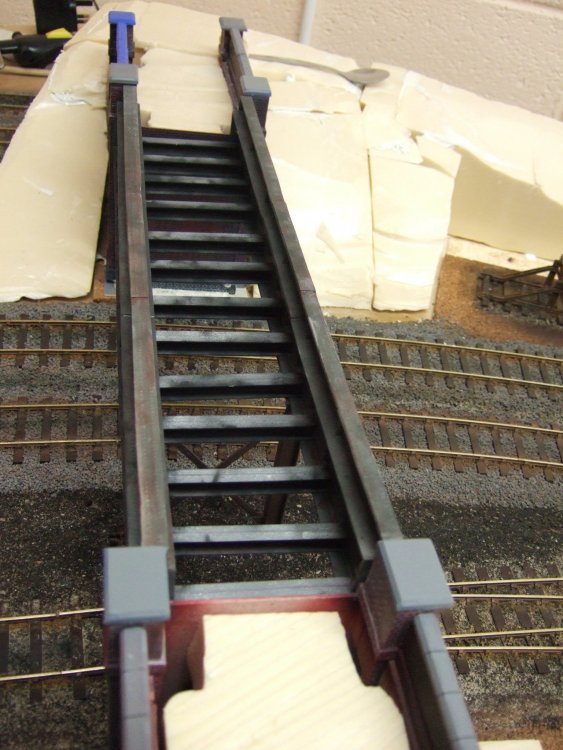

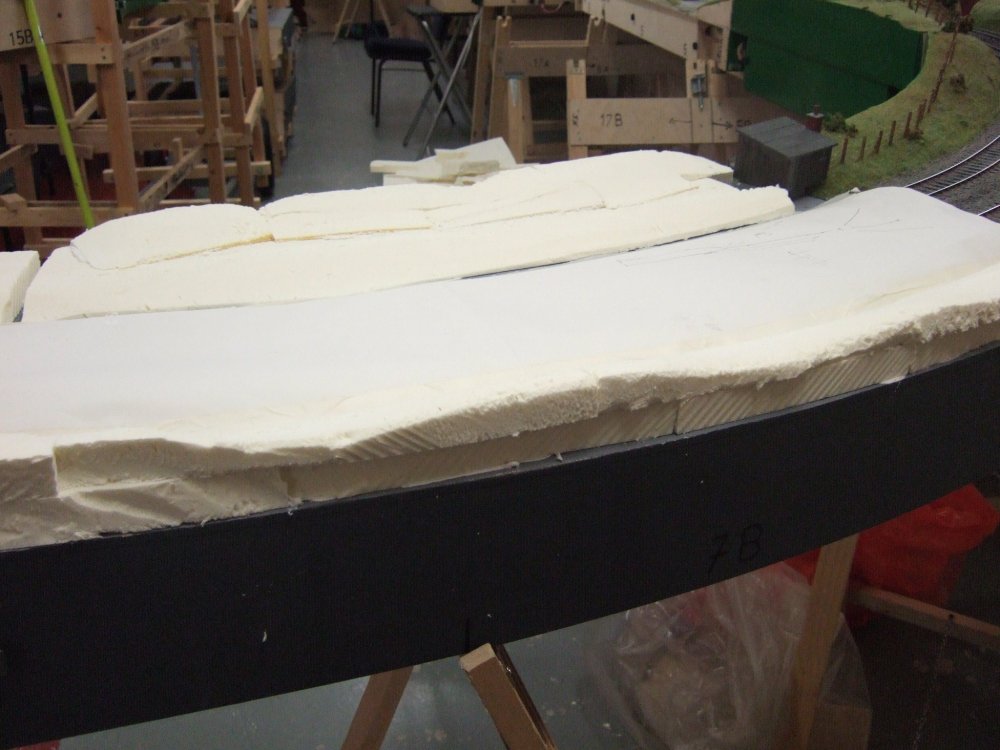

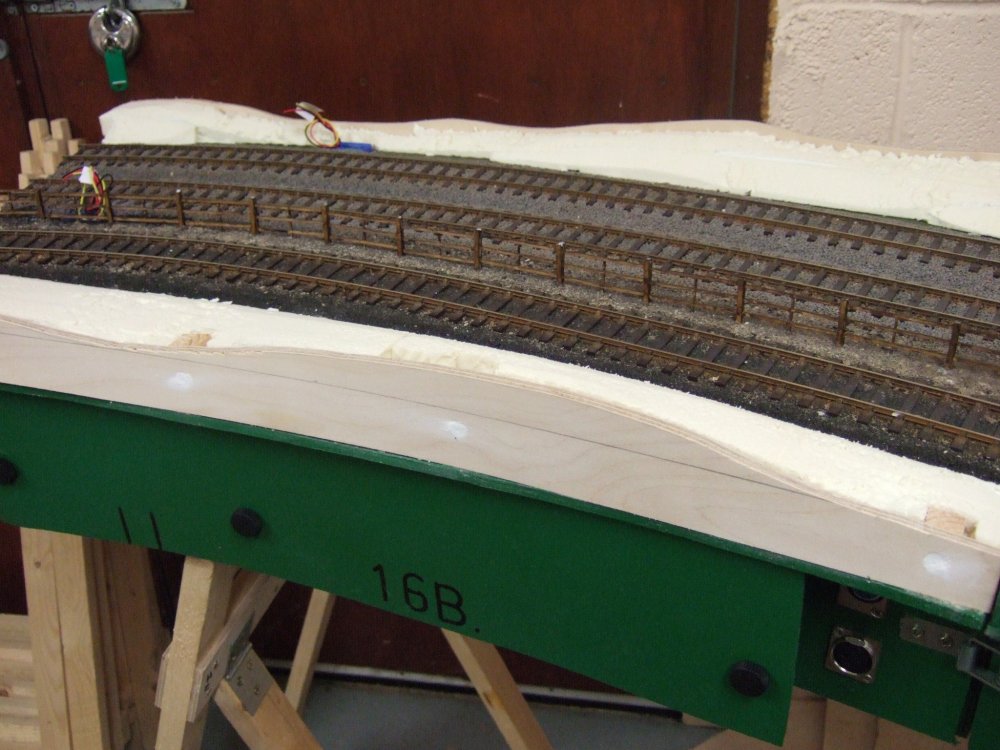

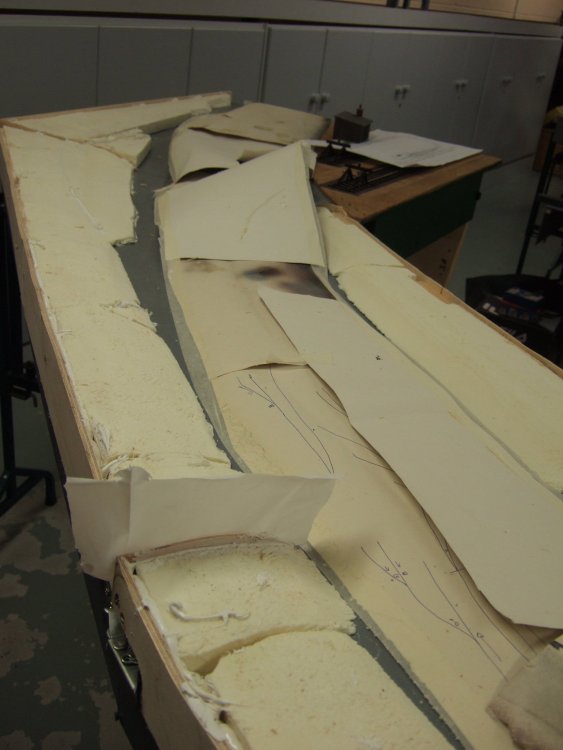

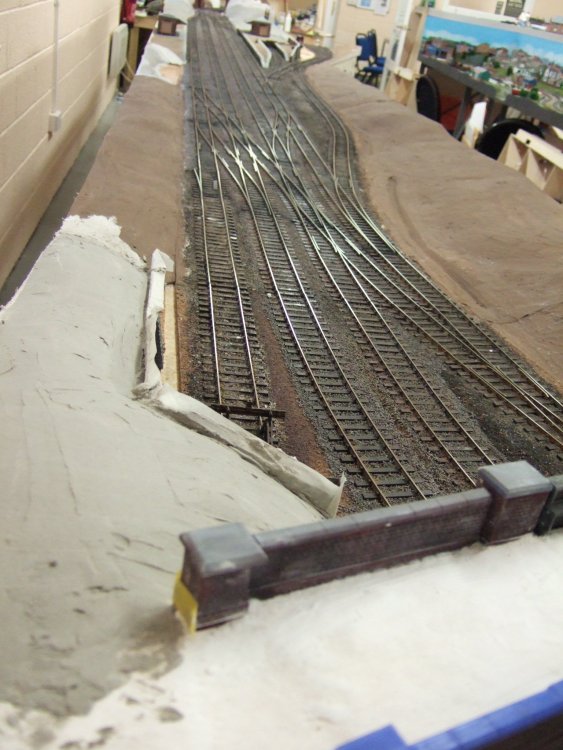

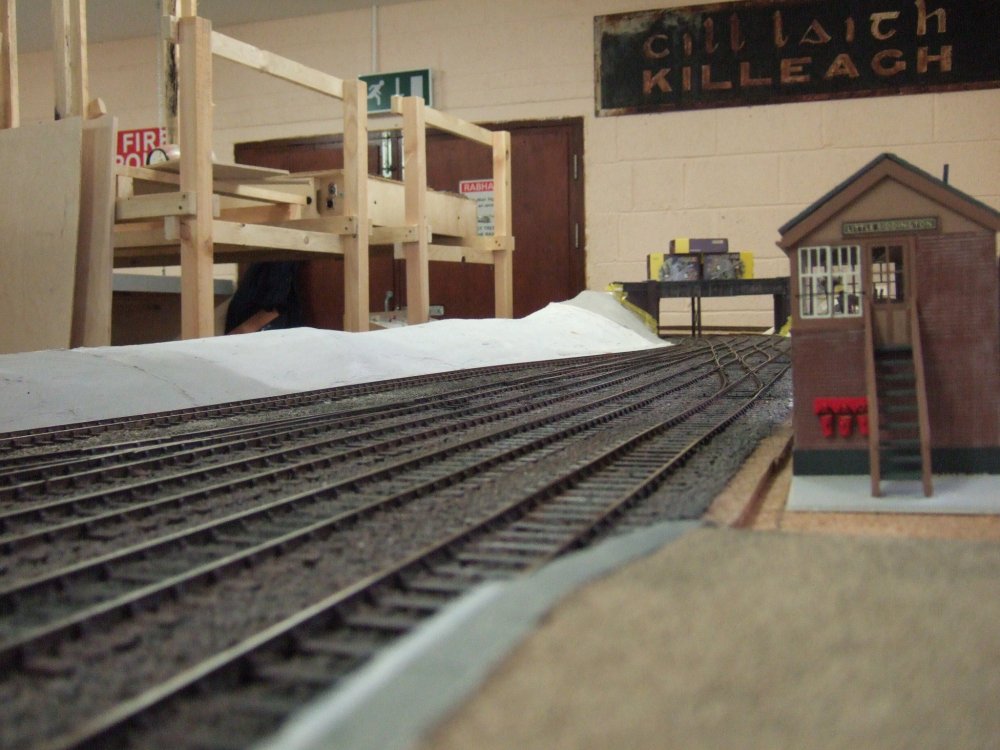

The foam is extruded Polystrene underfloor insulation , XPS300 , typically known as "XPS" insulation and is available in typically three densities XPS100, 200,300 , 300 is capable of withstanding concrete walls being built on top of it , so is a "bit" overkill here , XPS100 would be fine

Its a good bit dearer then expanded polystyrene ( which is the nasty white  crumbly stuff)

XPS is cut with a " Knife saw " a handsaw shaped like a wood saw but with a form of knife blade . It can be cut with a conventional saw.  we use a hot wire cutter and it can be shaped quite nicely with "surfoam " tools  or or a sharp cheese grater on a handle

It will not deform under thumbprints and create far less mess that the very inferior ( by comparison ) expanded polystrene ( which is often referred to by its Dow trade name , Styrofoam ) Most smaller builder providers may not stock it , but will order its from Kingspan or Quinn Insulation



Note the stuff with the silver foil installation is somewhat different as its a very low density ( because its designed for non structural applications in walls etc )  and can crumble and deform ( even if it is extruded )

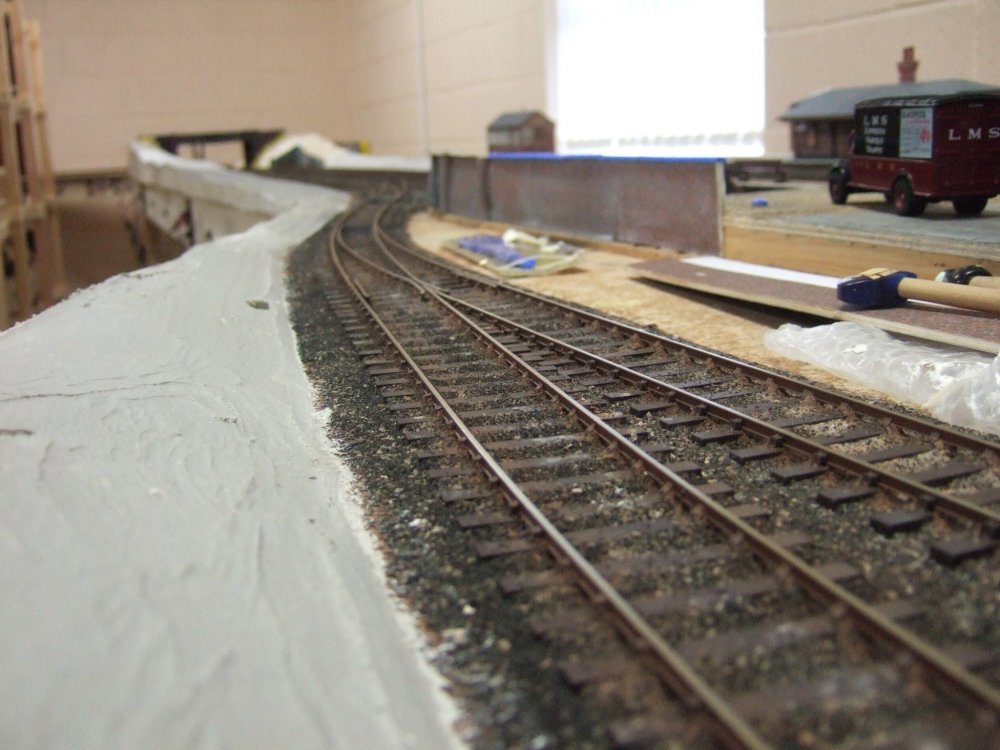

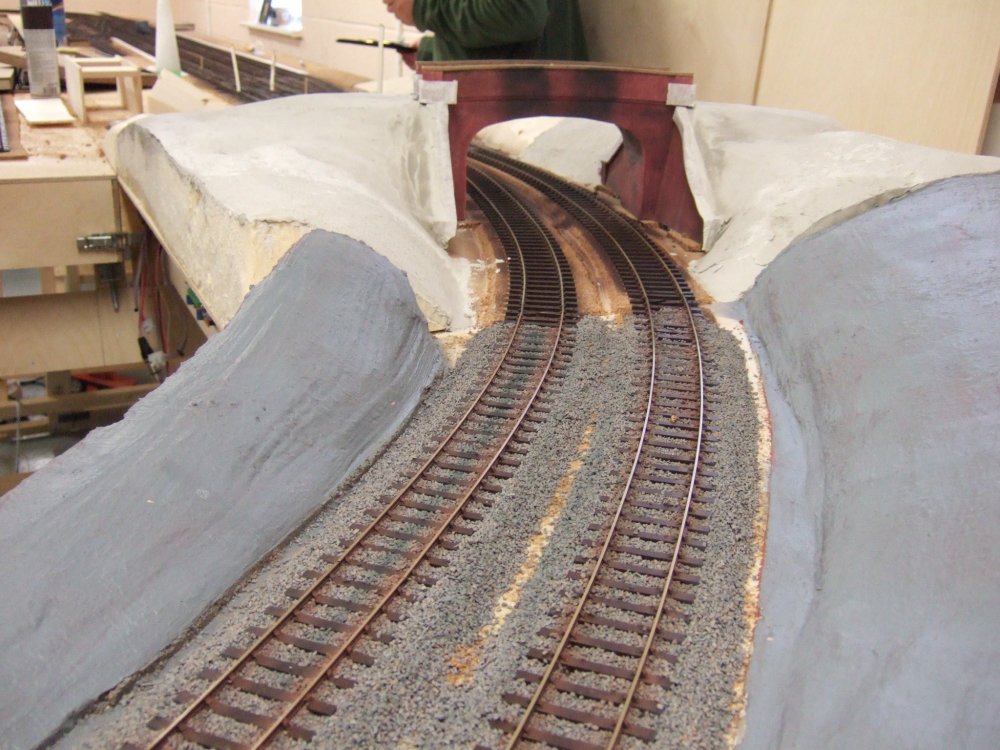

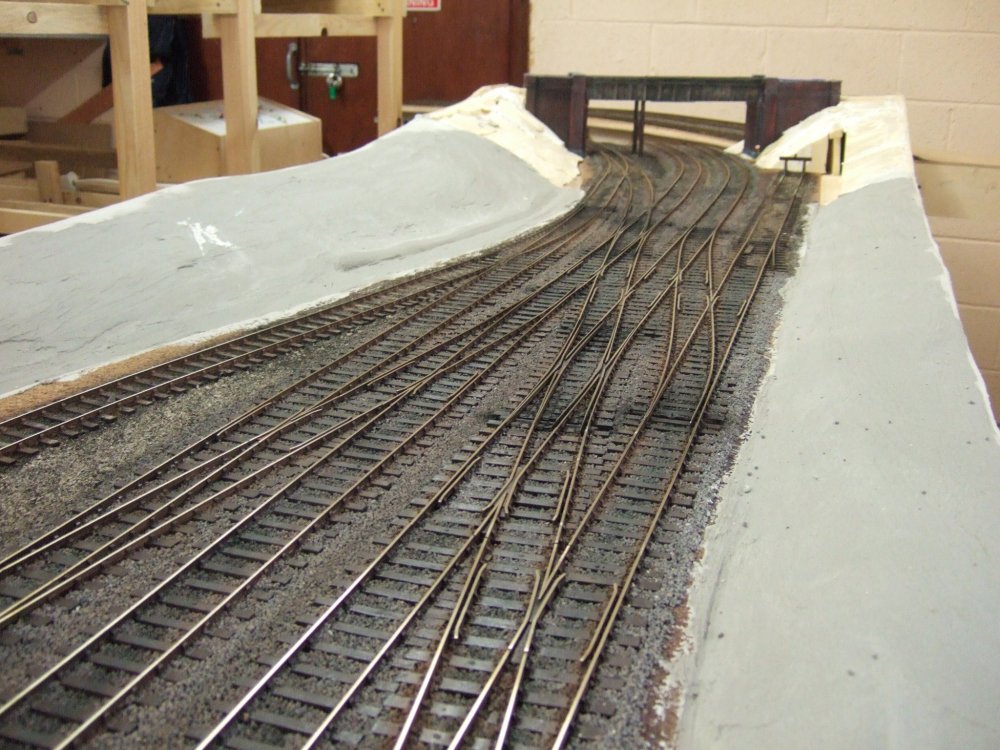

Its then covered in a thin layer of patching plaster ( mixed with PVA )



we expect to be doing the initial static grass next week , so some pics soon , Signals being installed thereafter



Edited by Junctionmad
  • Like 1
  • Informative 1
Link to comment
Share on other sites

  • 1 month later...
  • 10 months later...
  • 3 weeks later...
  • 3 weeks later...
  • 3 months later...

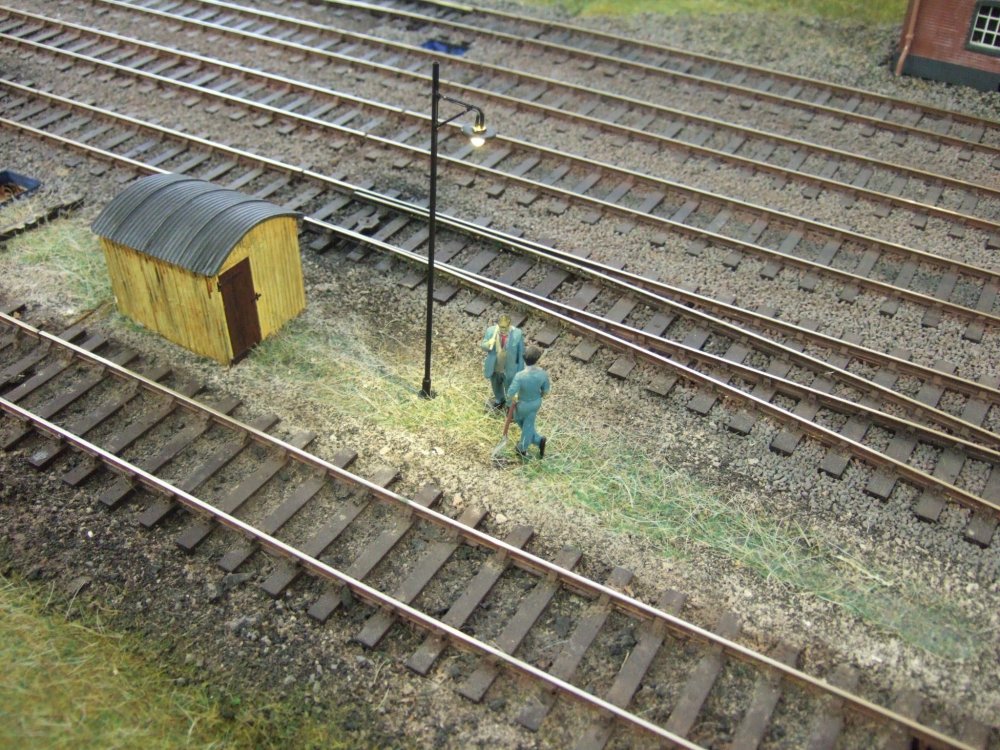

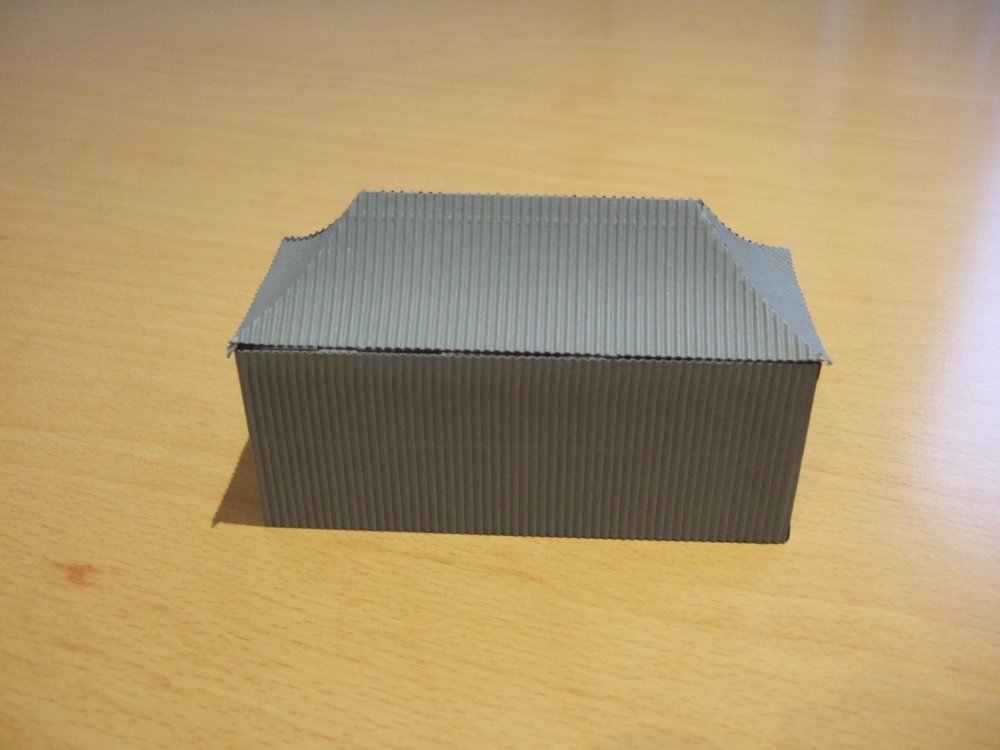

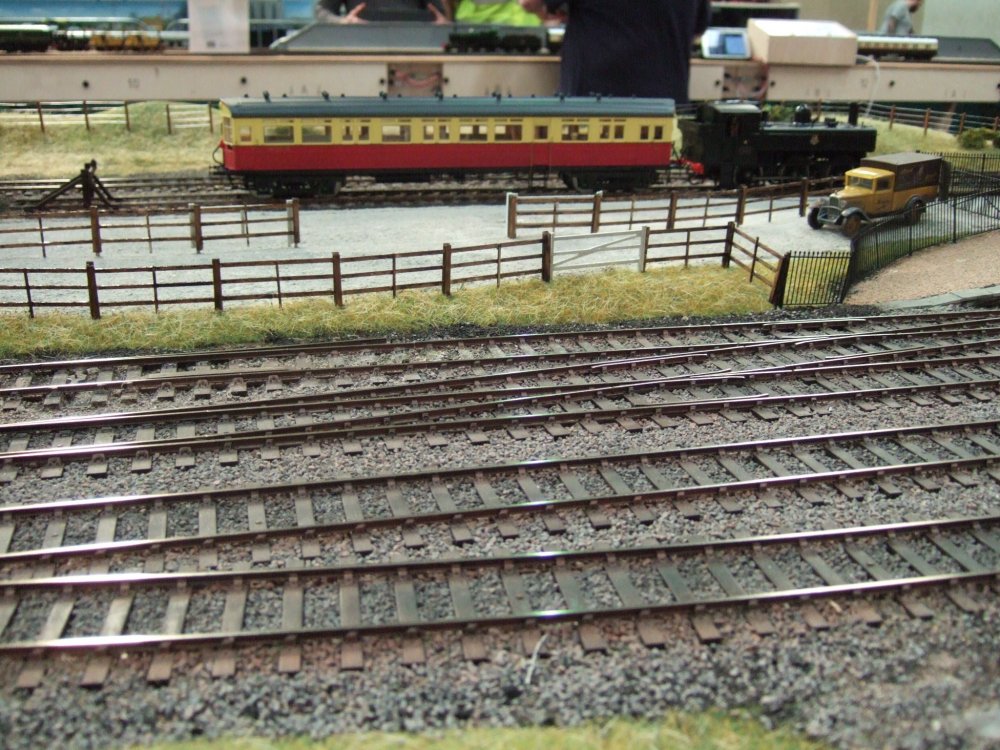

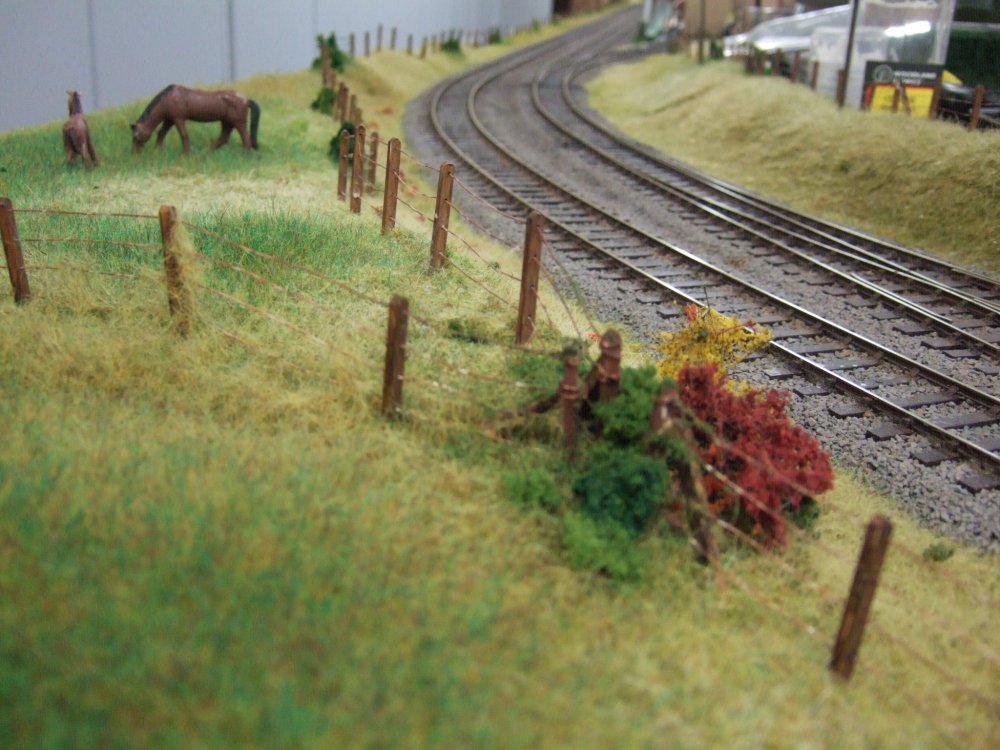

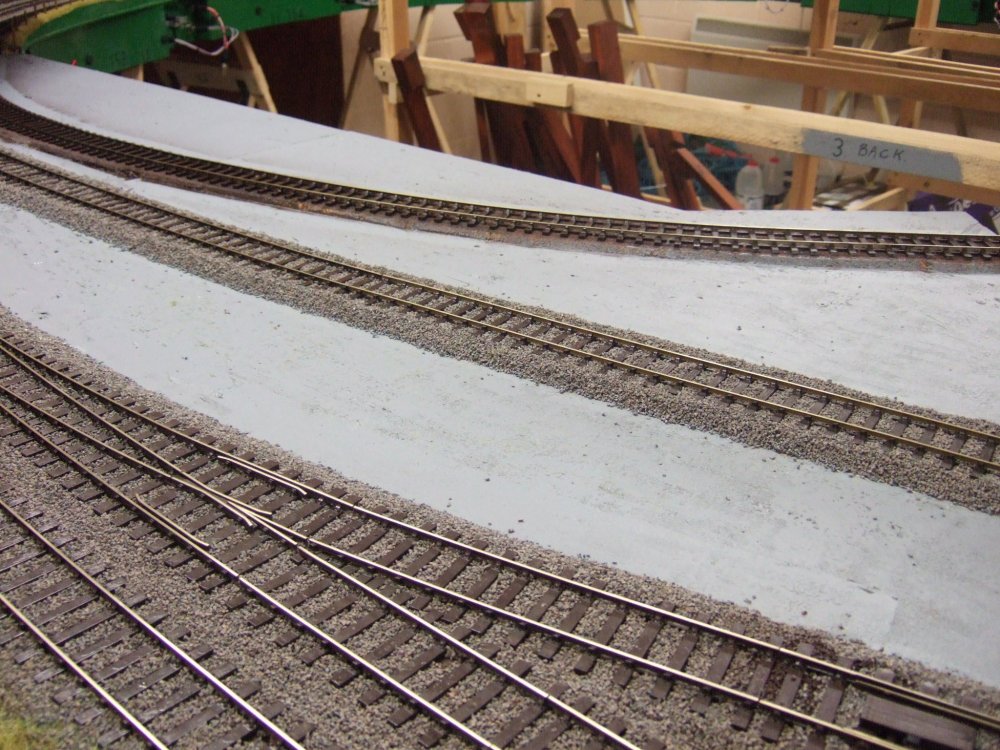

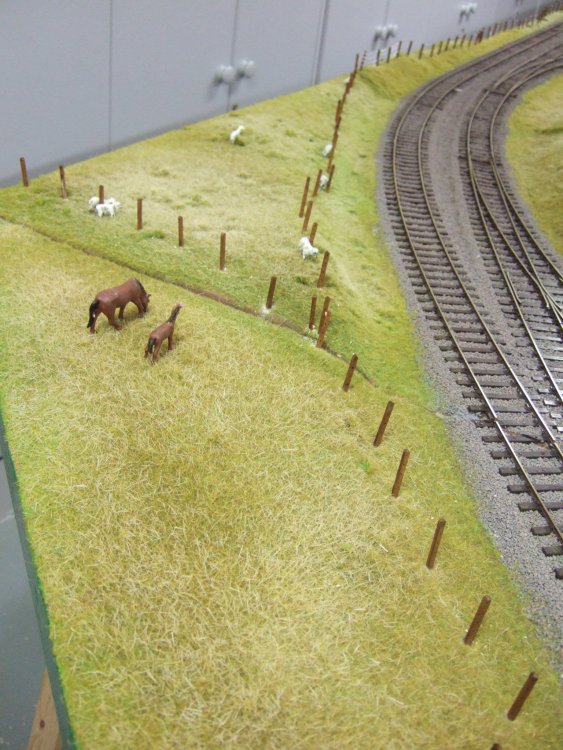

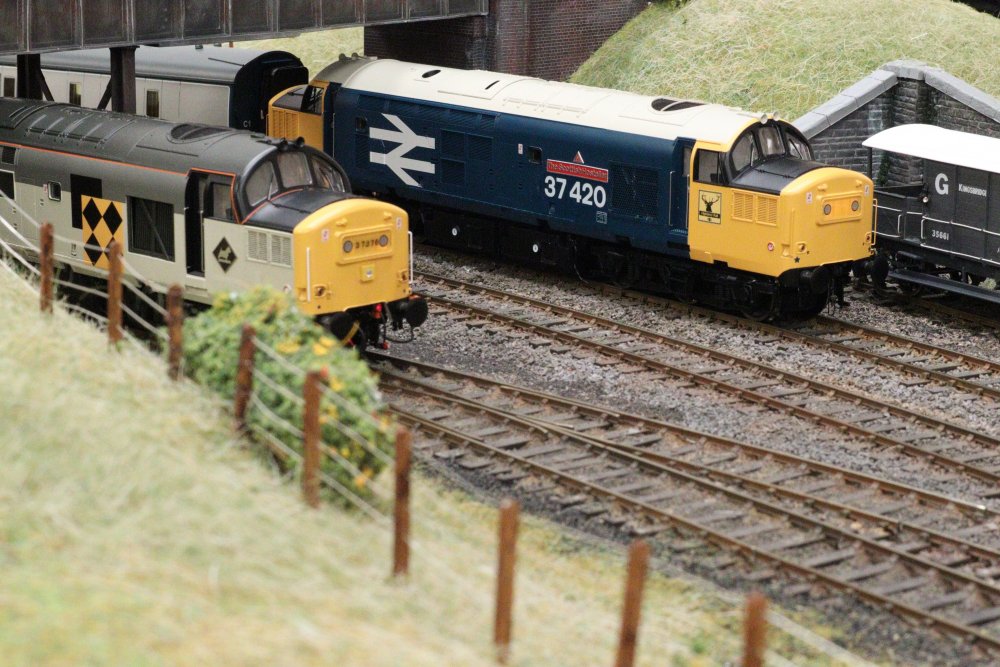

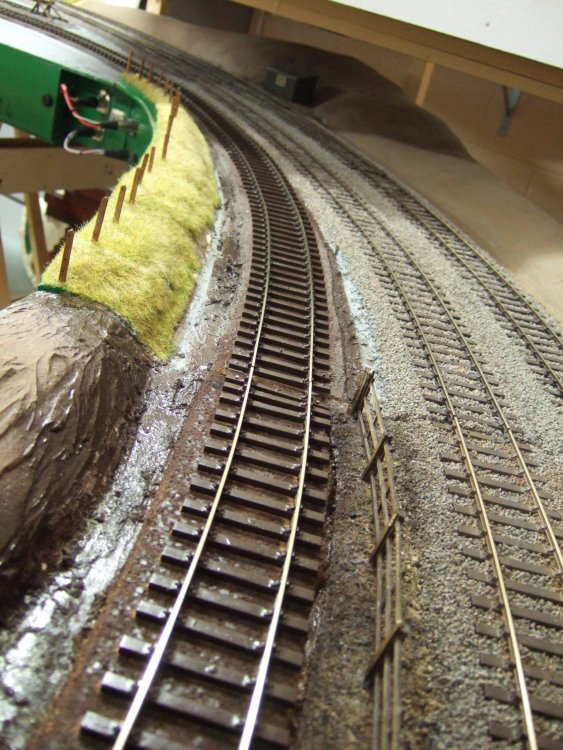

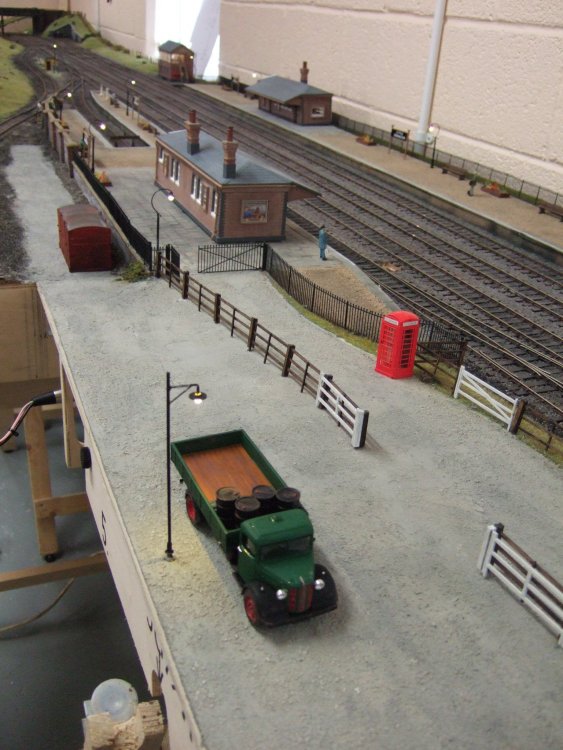

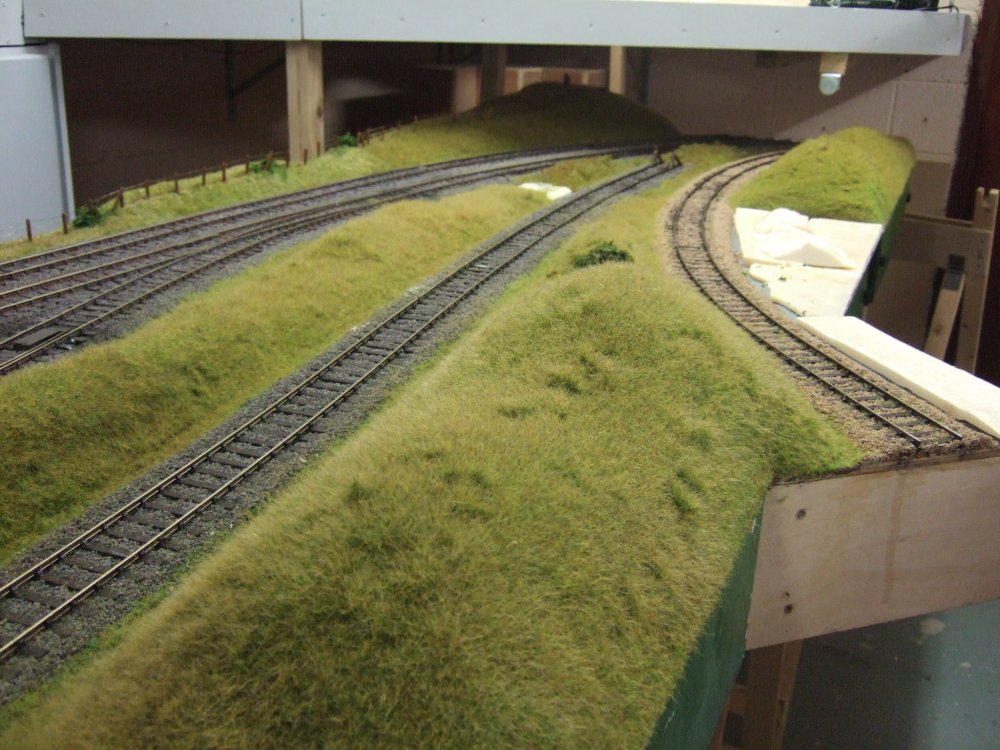

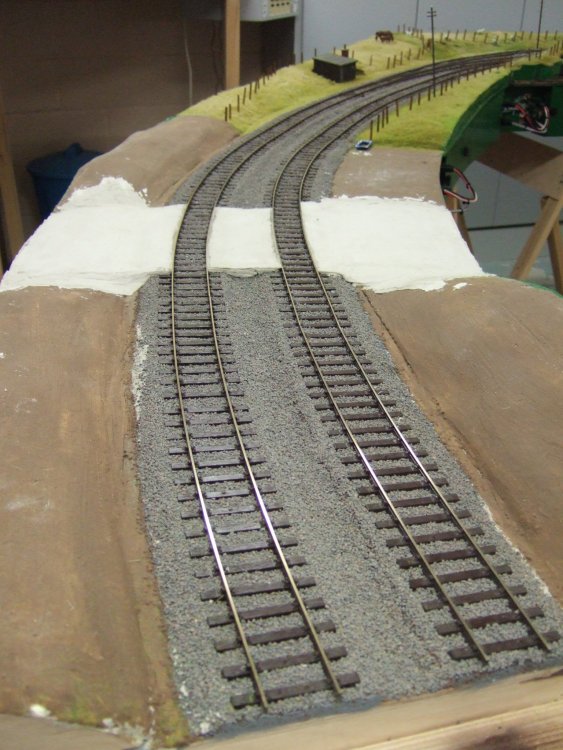

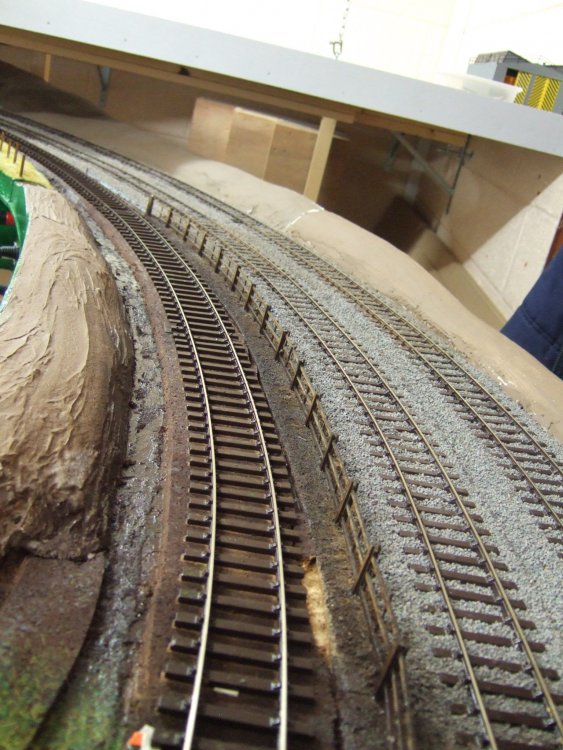

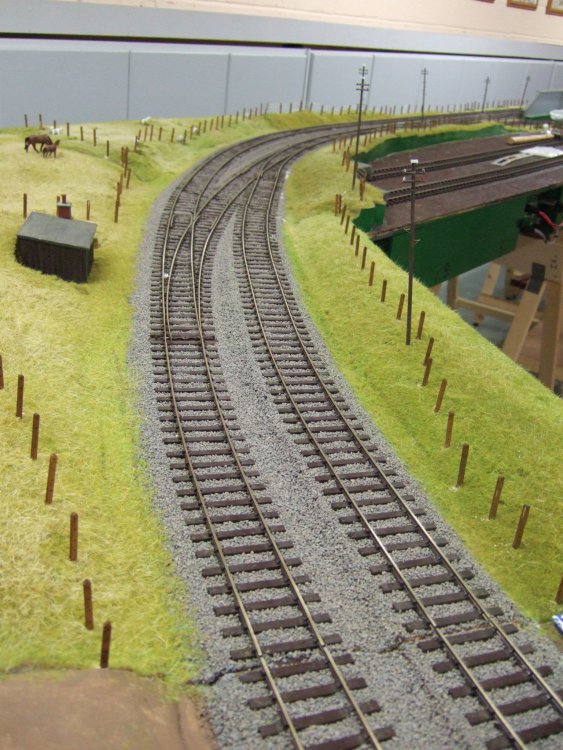

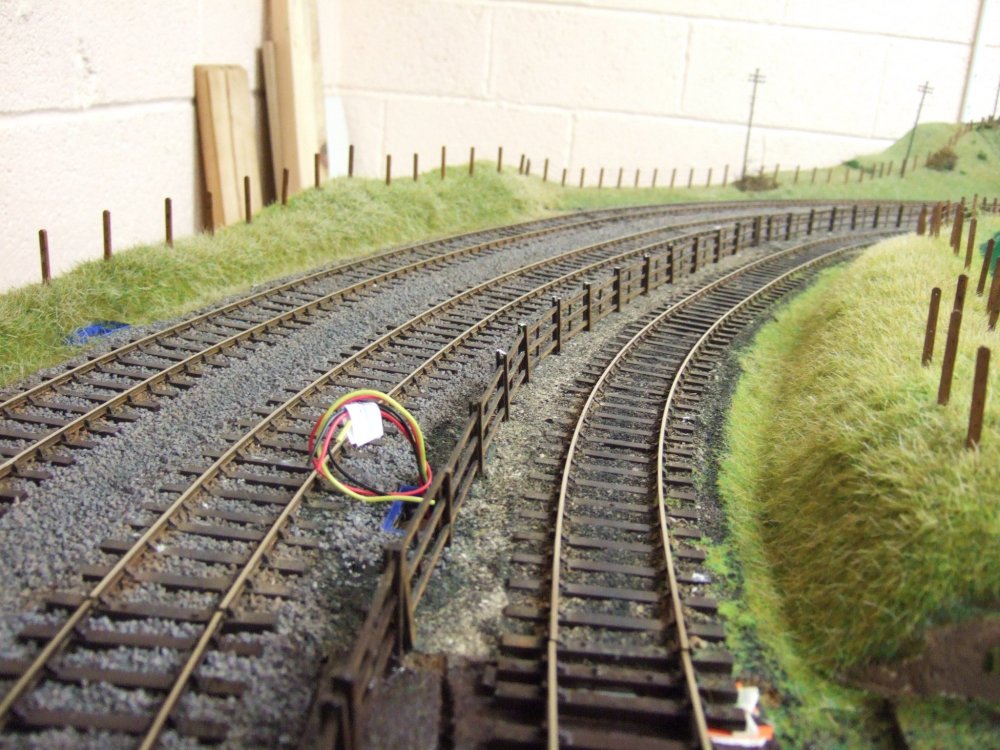

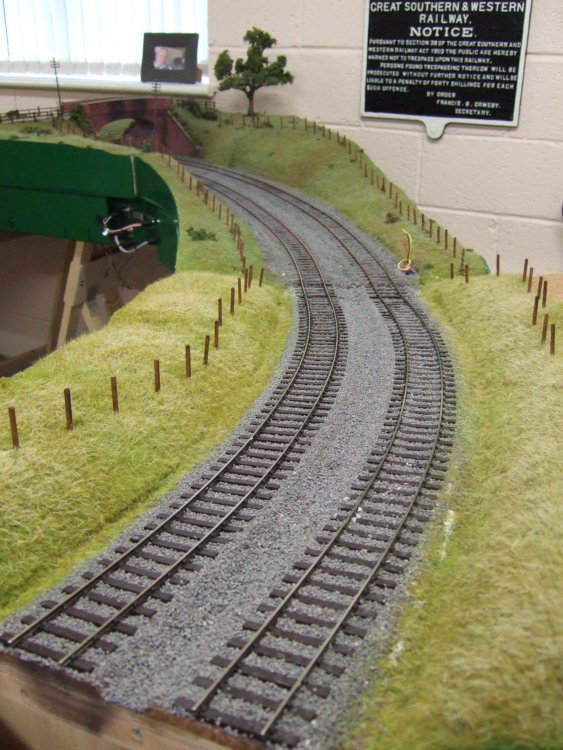

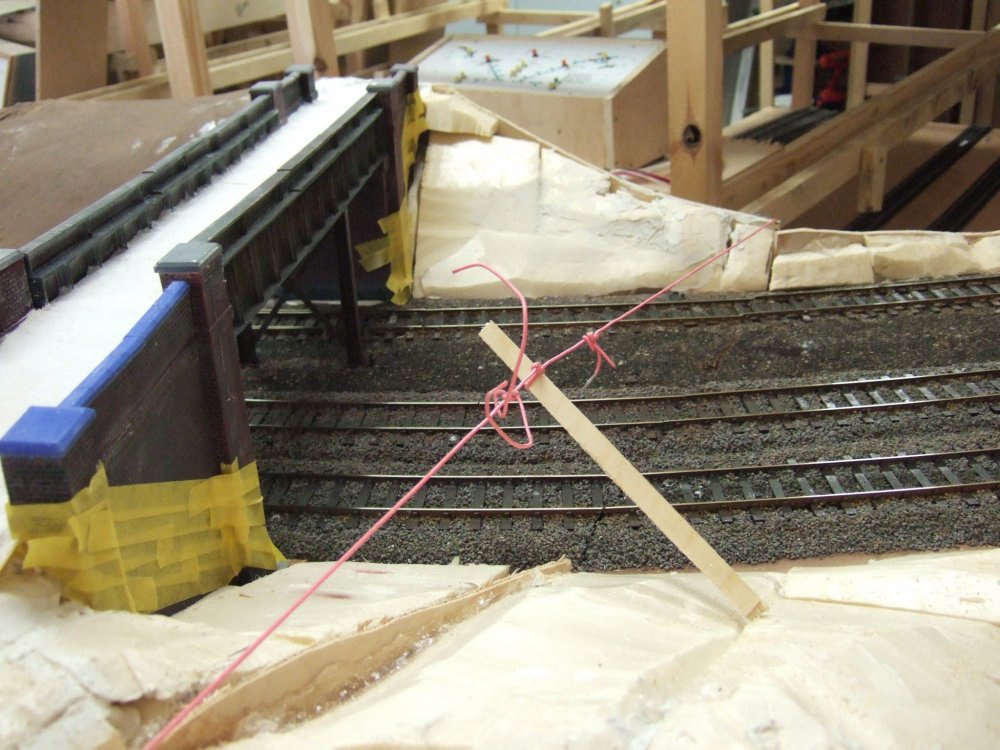

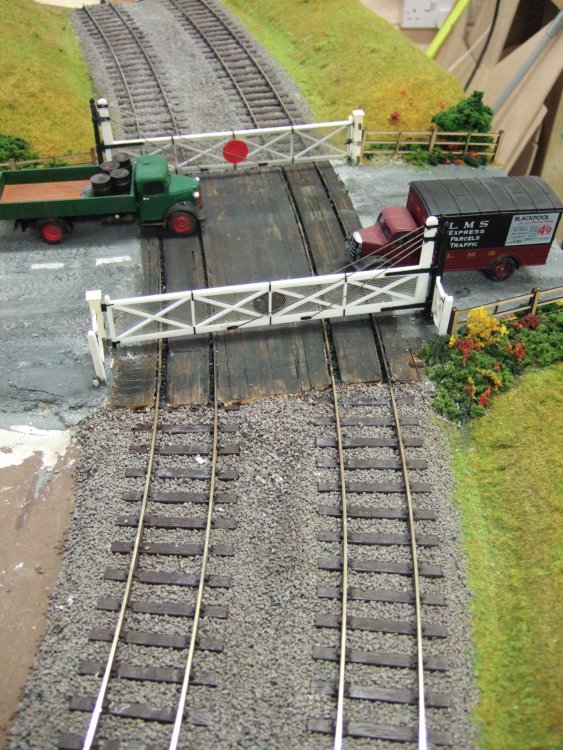

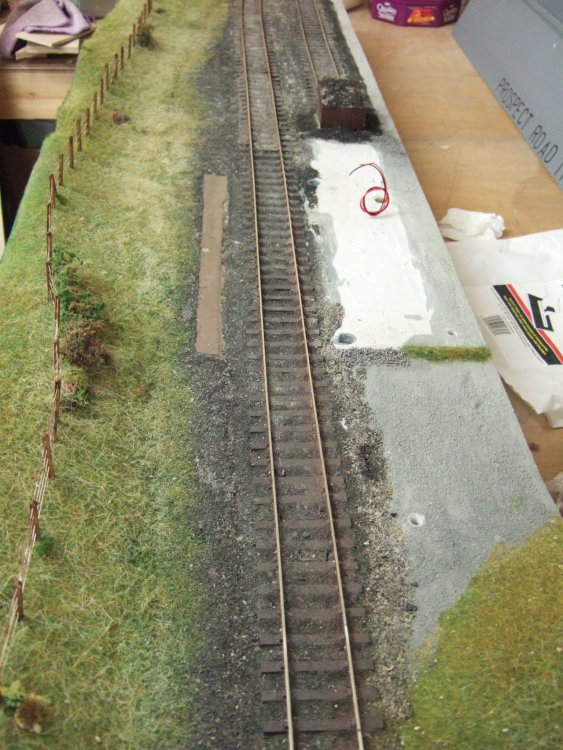

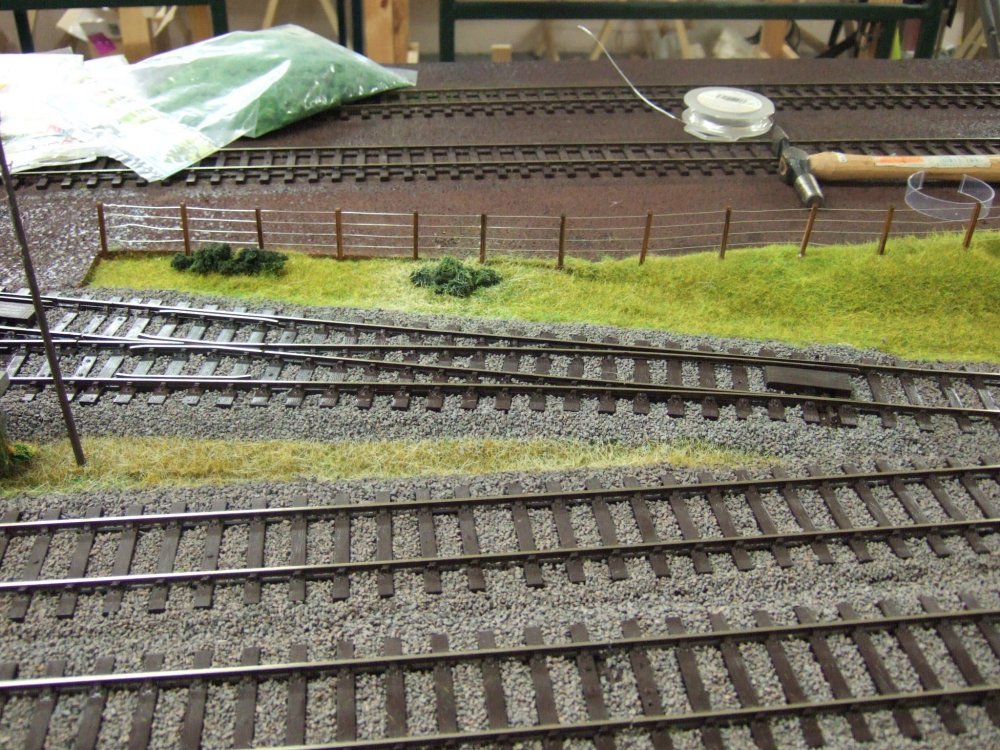

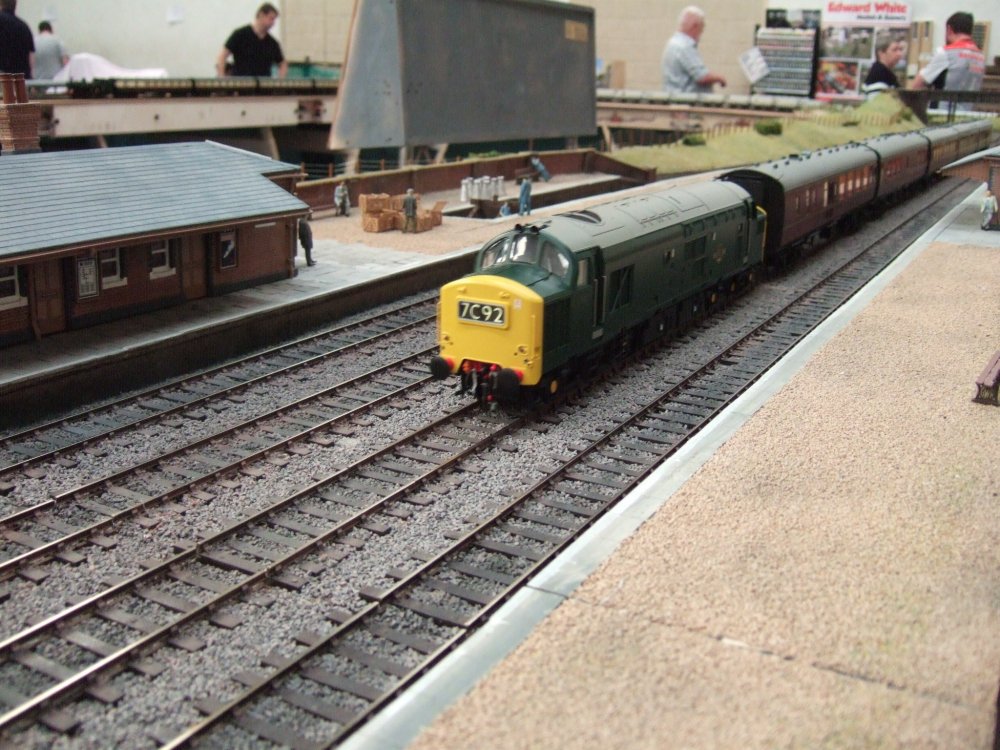

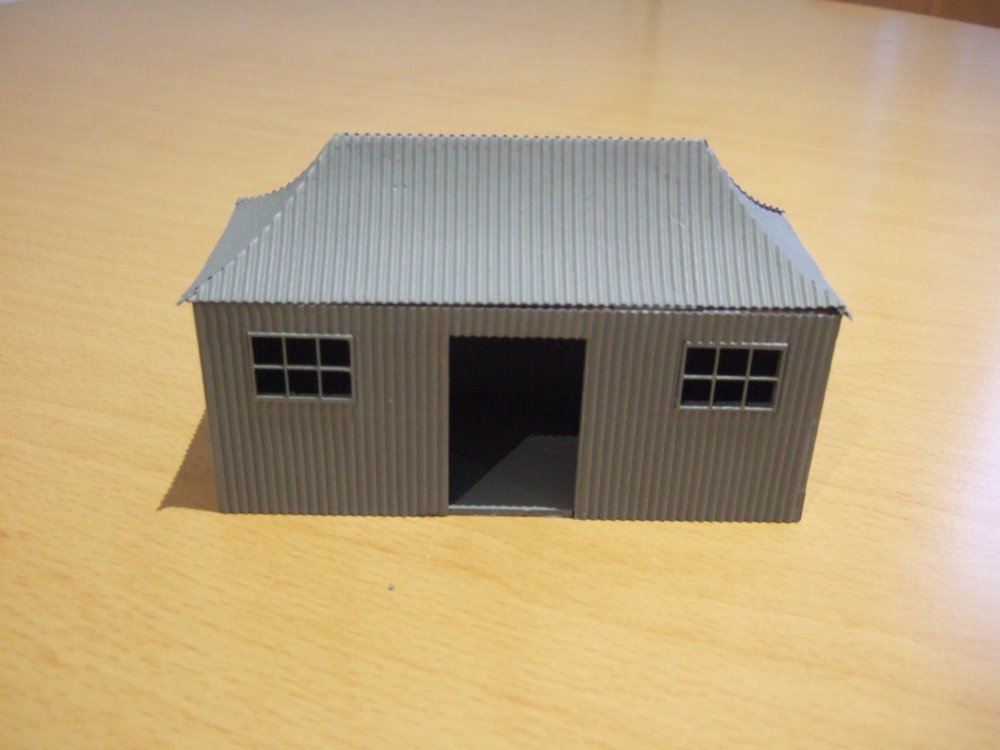

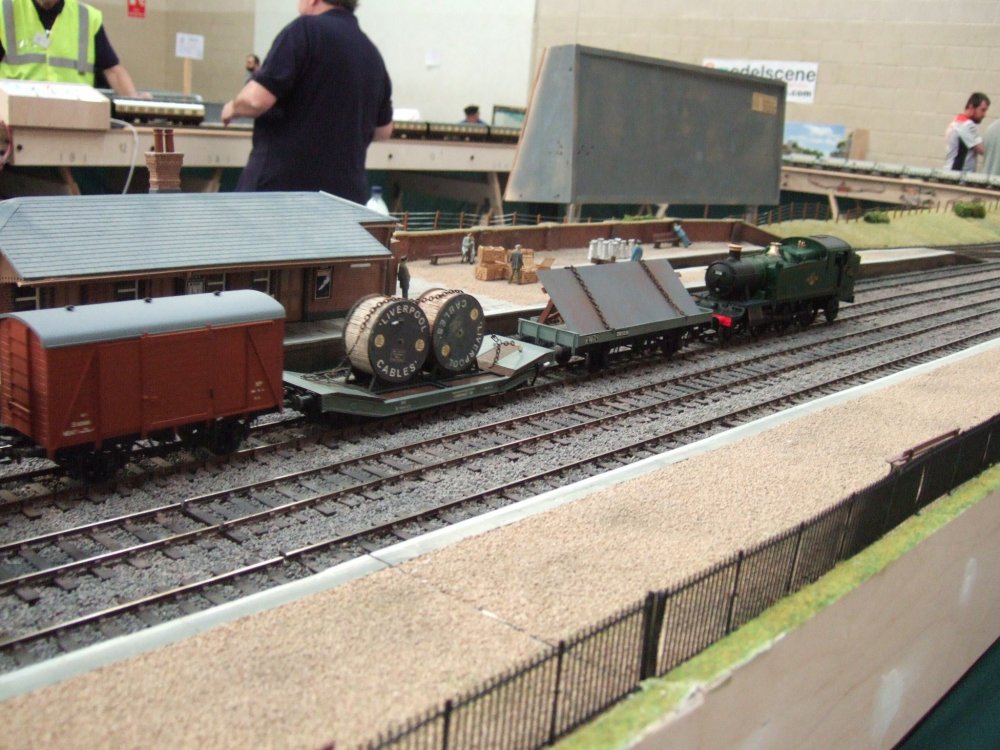

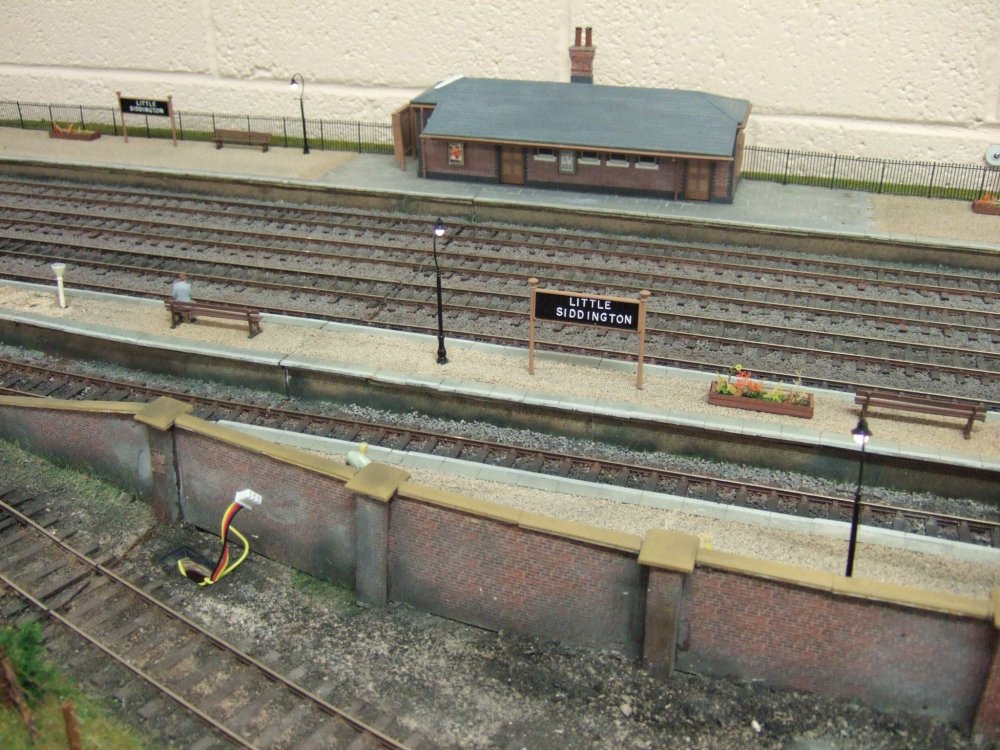

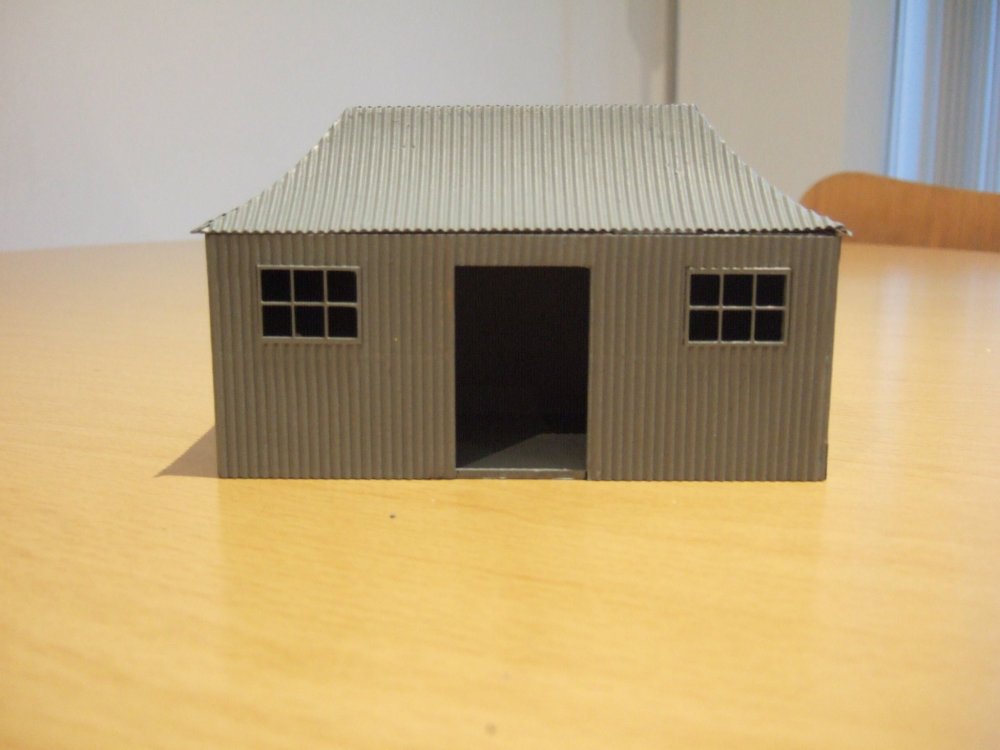

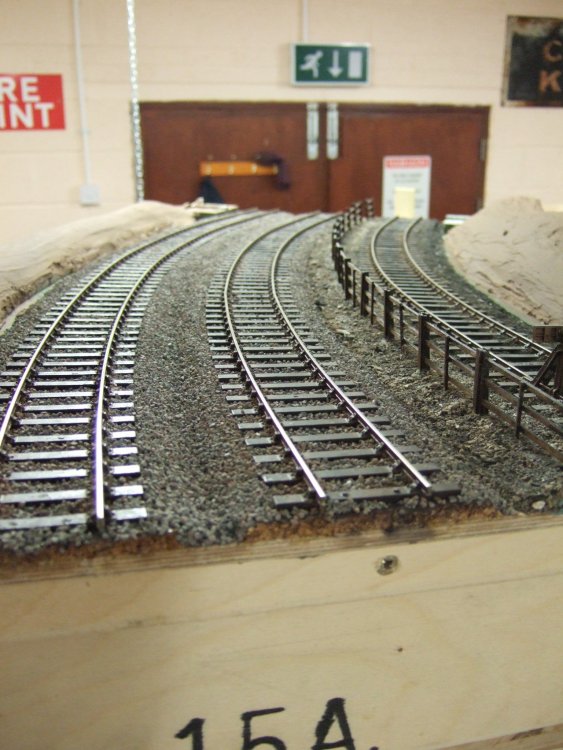

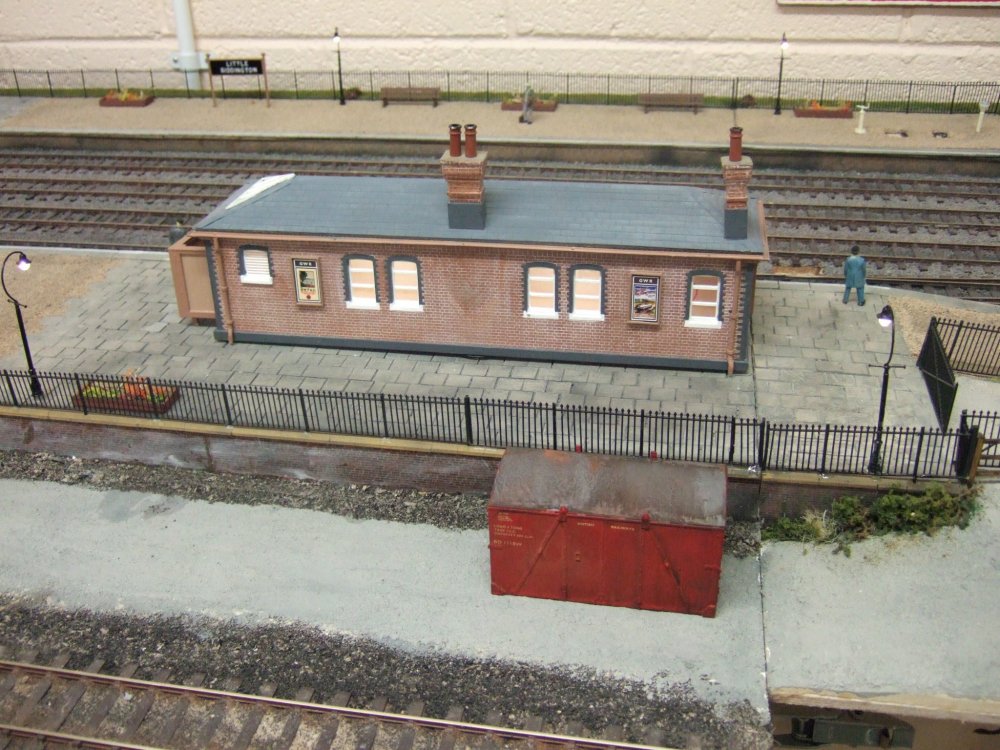

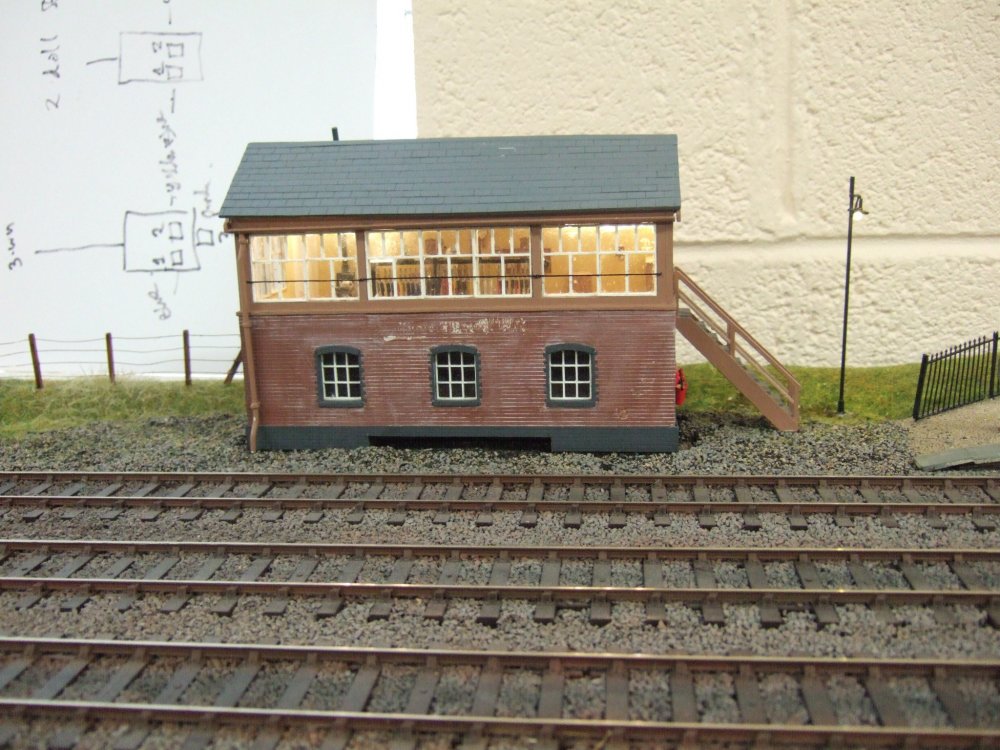

Update on Little Siddington: work continues to develop more of the countryside areas around the layout with plaster contouring, painting, static grass application, wire fencing and telegraph pole installation, addition of extension to head-shunt to form a branch in the centre of the layout (which will be adaptable to take a variety of club/members' layouts) etc.

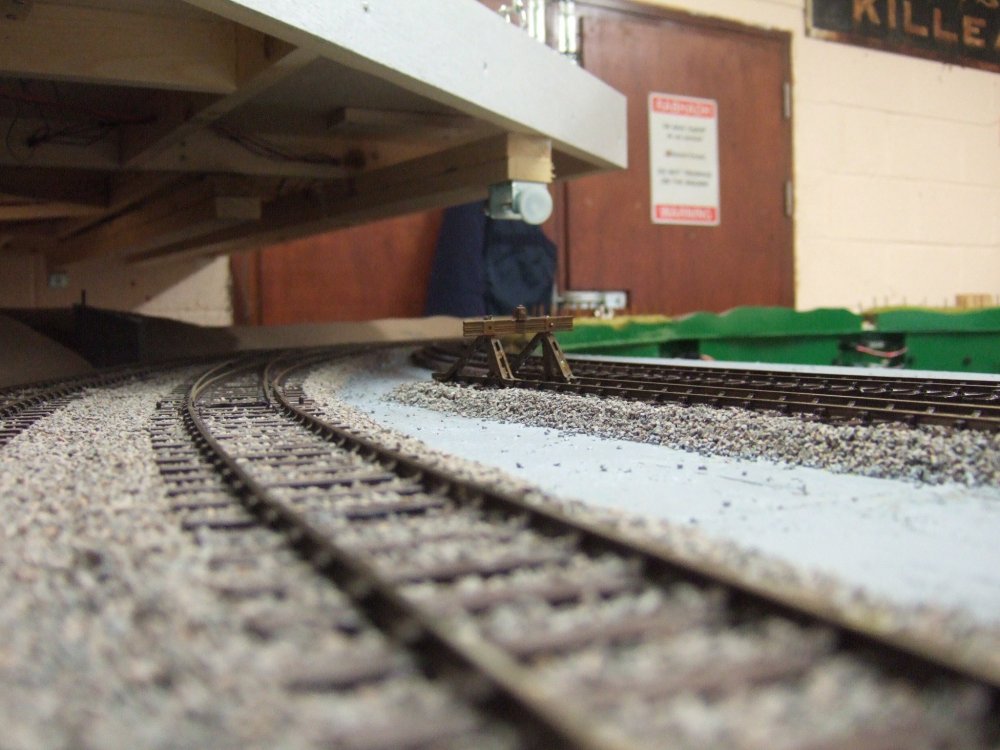

DSCF3769.thumb.JPG.e64ef8c280ddfb8c6edecab9c5203e1d.JPGDSCF3770.thumb.JPG.d0fa2e5c1078c7bcc4b374214e26517b.JPGDSCF3771.thumb.JPG.0c12382f81319f687eb8d93535bd2265.JPGDSCF3764.thumb.JPG.06e6d0488cf66248e5203a40a253daf7.JPGDSCF3767.thumb.JPG.64fd74e923c60127749b8cf878db2ff2.JPGDSCF3768.thumb.JPG.1d5049b9122f3045eeeb1b521b1d8c3e.JPGDSCF3759.thumb.JPG.da016d00a7550601ea7782b85147a706.JPGDSCF3761.thumb.JPG.5e907d83e124f9ff0268e5f0c02ddc45.JPGDSCF3762.thumb.JPG.65a3451df60192d4c4d02e3a97ba206d.JPG


  • Like 3
  • Thanks 1
Link to comment
Share on other sites

  • 4 weeks later...

I have been very impressed with this layout since I first saw it at Wexford on its first outing. Progress since has been continual and always worth more study. I noted from the start that you used cork as a base under the rails so with this and the 6mm plywood base a lot of “baseboard” noise might be expected. I don’t recall any so I am wondering what adhesive you used for both the cork and the rails?

The work on the scenery contours looks very neat and I think justifies your use of the XP300 foam as explained earlier.

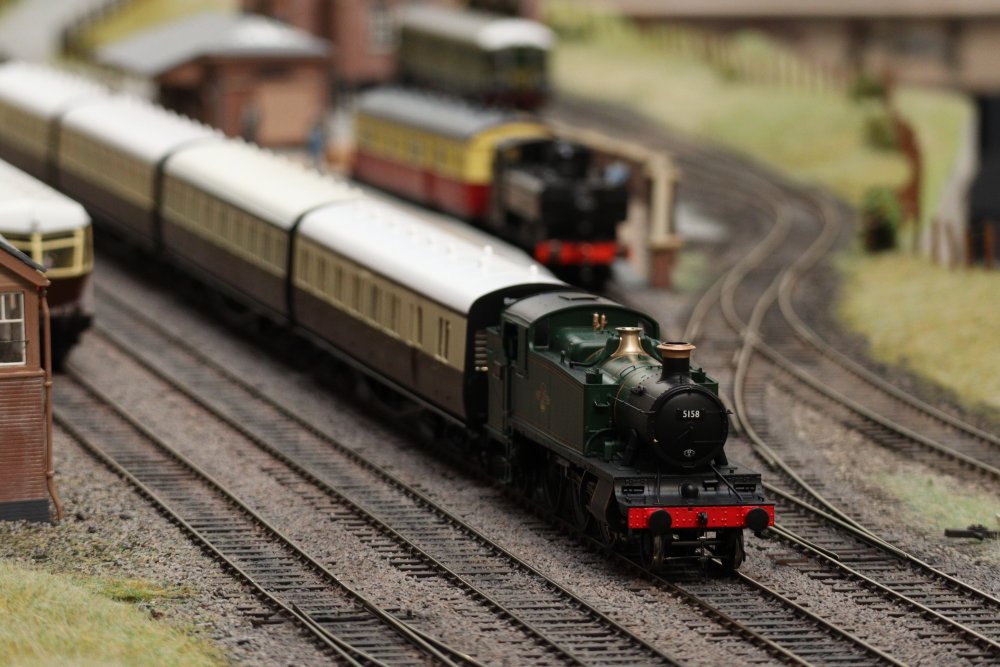

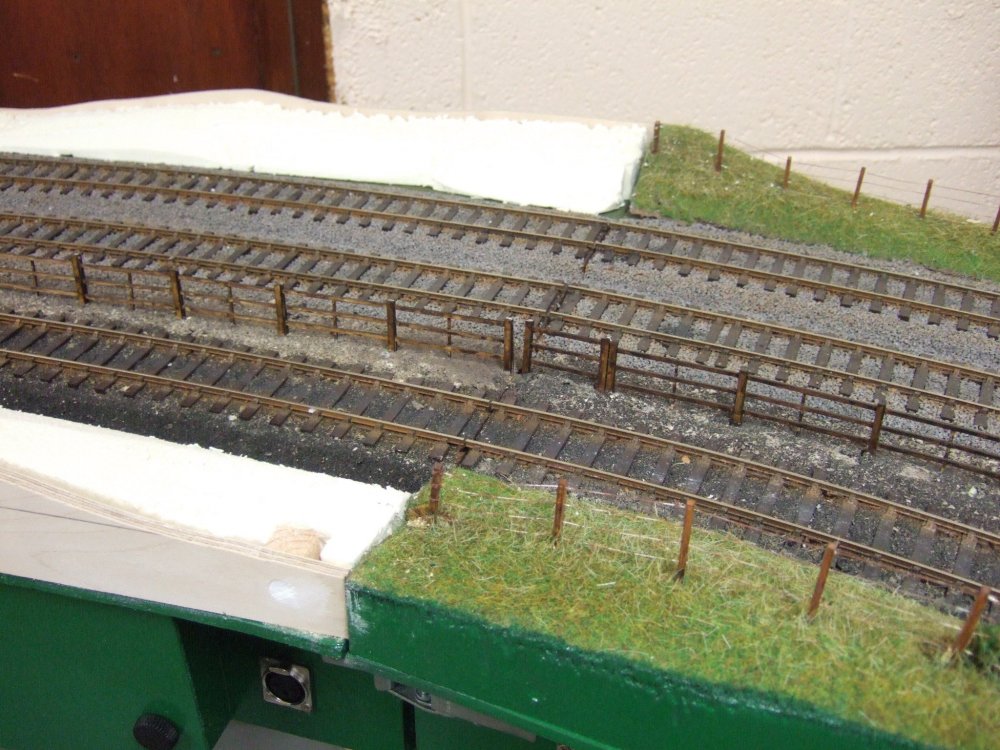

I have also noted in the recent photos that you seem to have painted some of the baseboard edges in green. This will add another level of professionalism to the finish.

Link to comment
Share on other sites

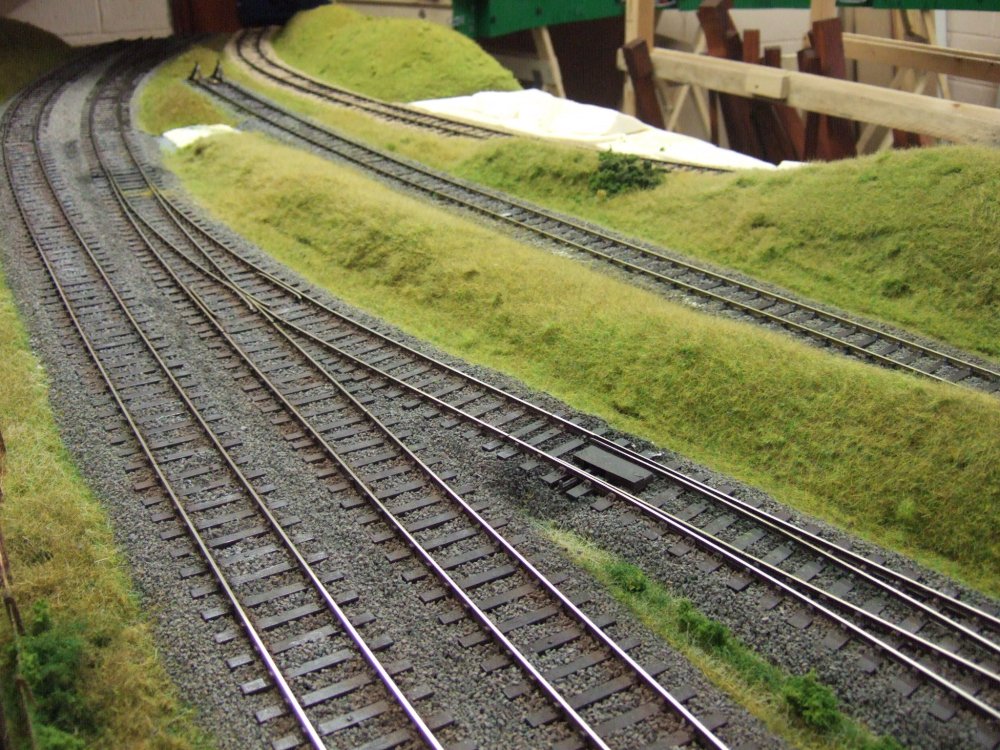

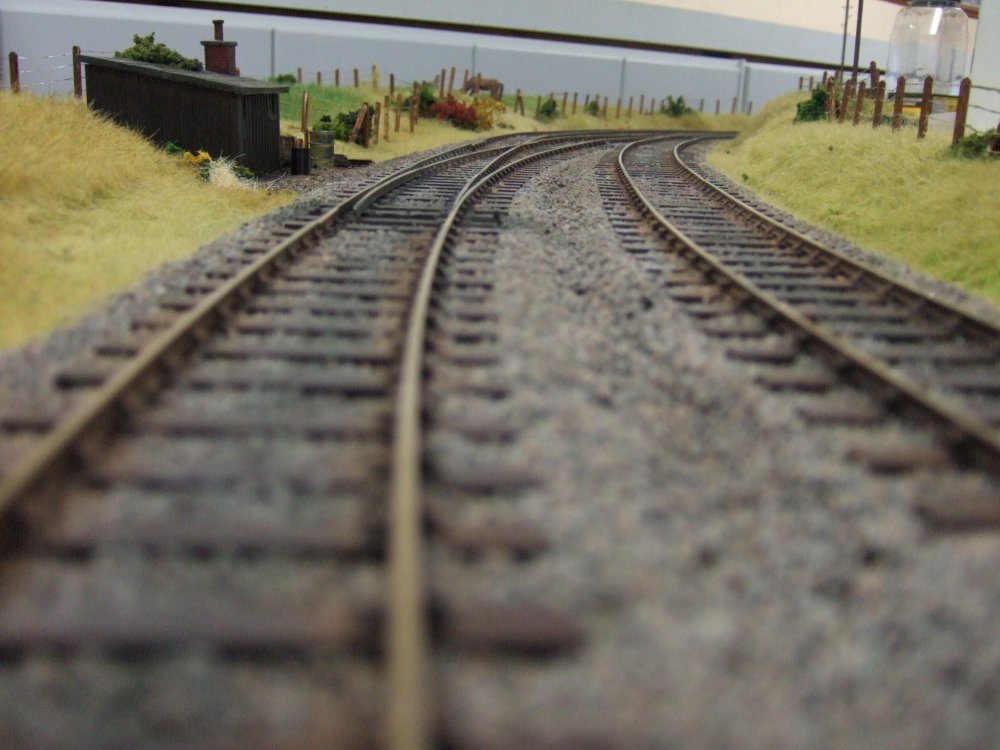

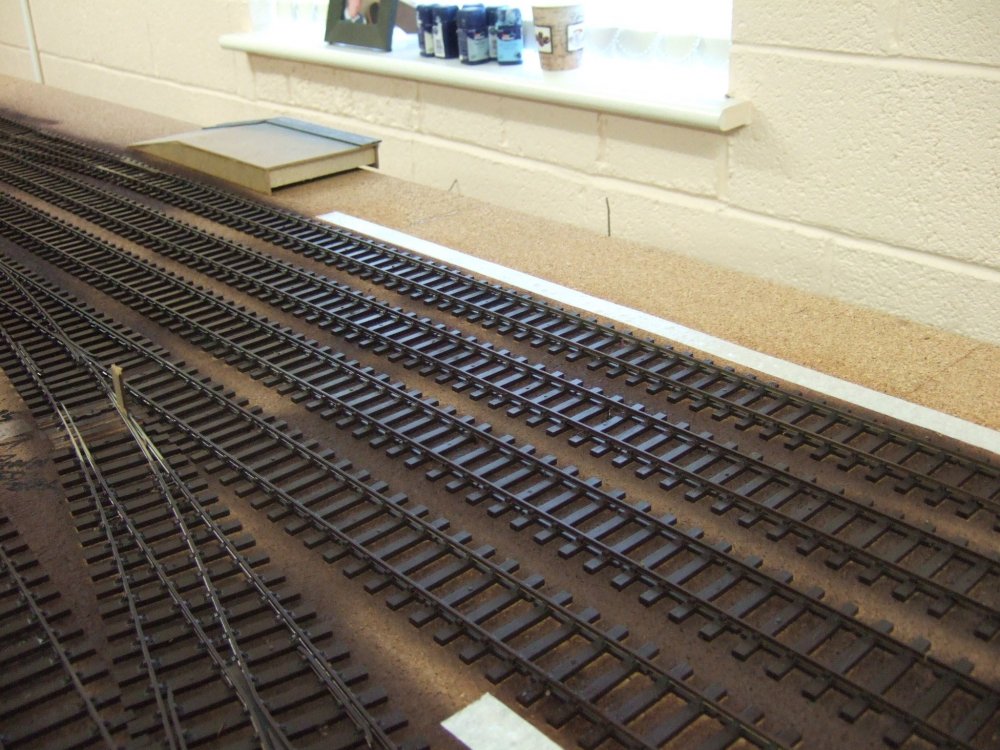

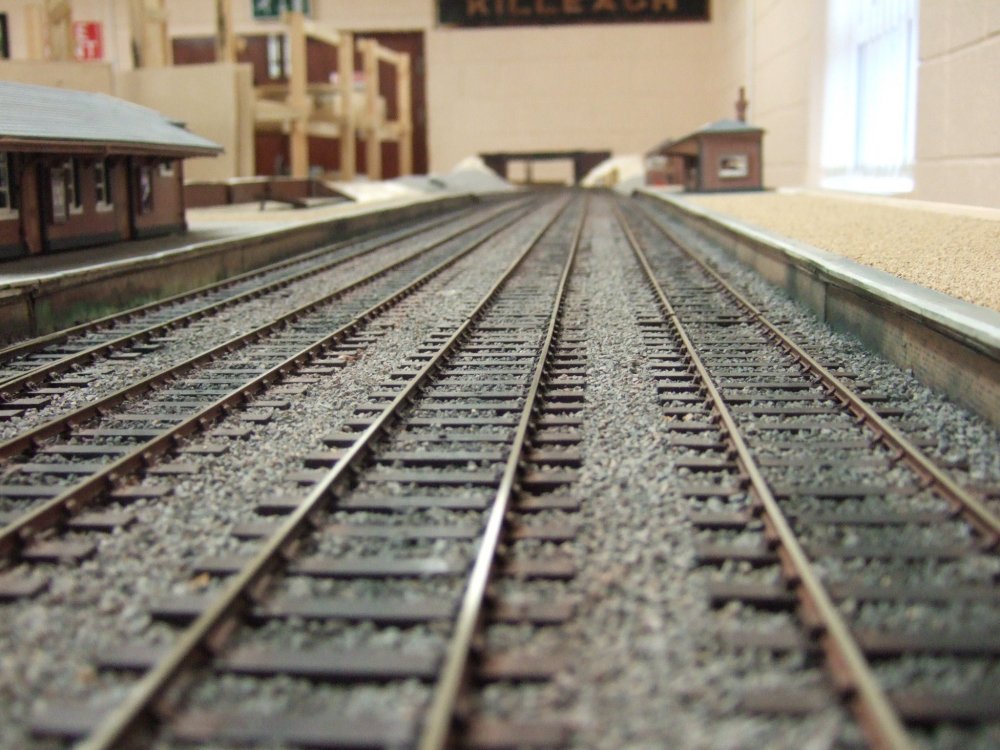

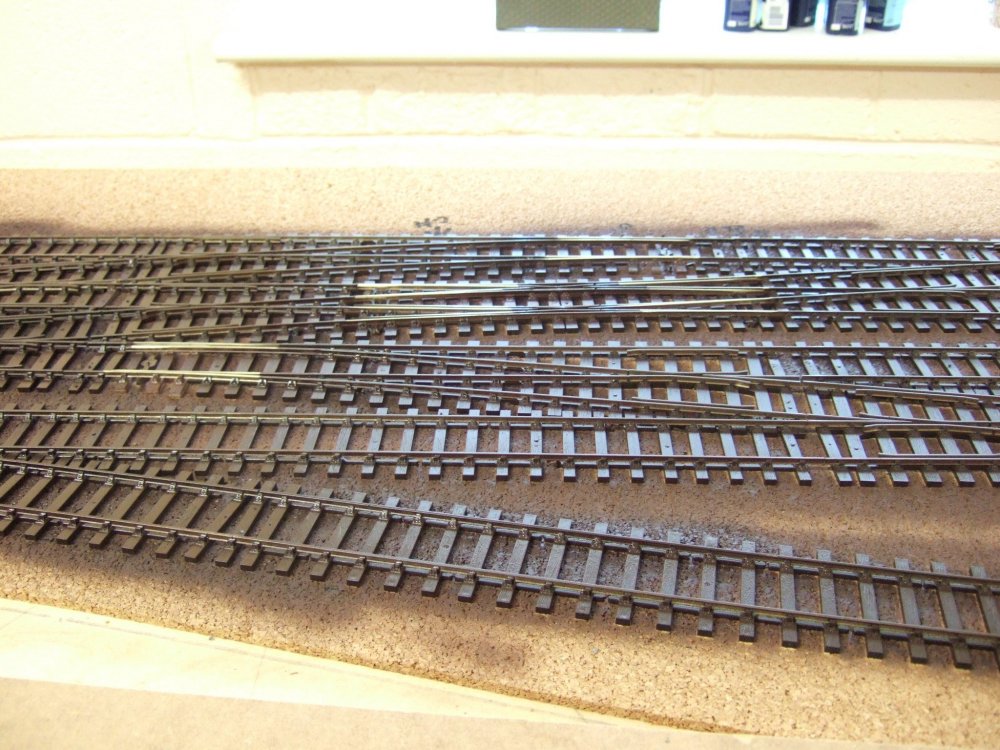

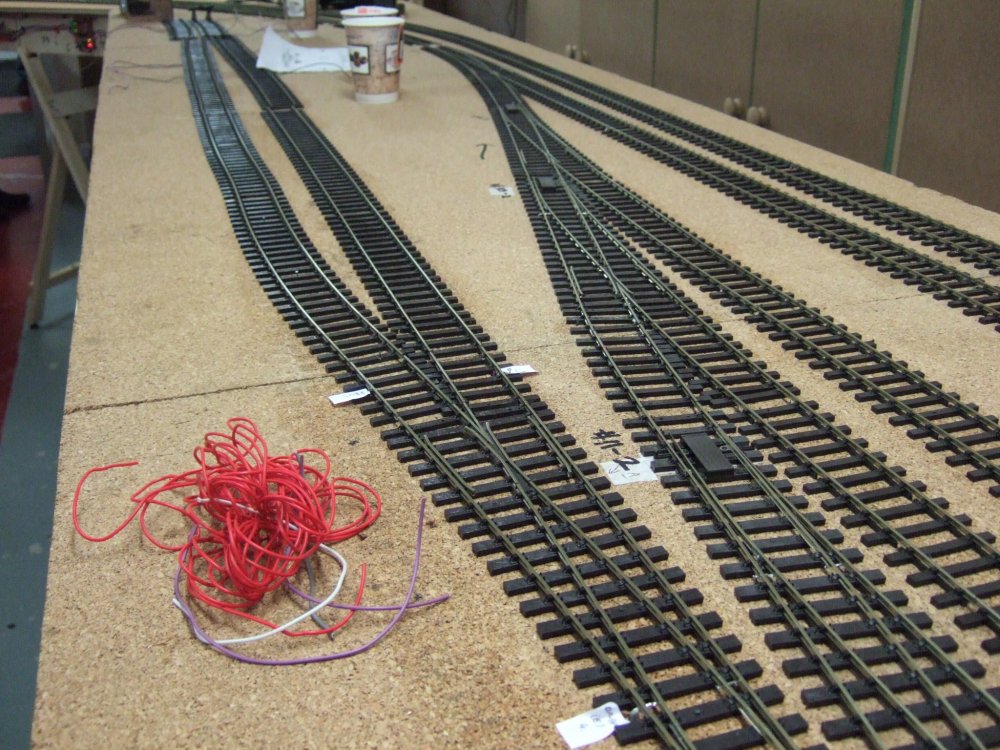

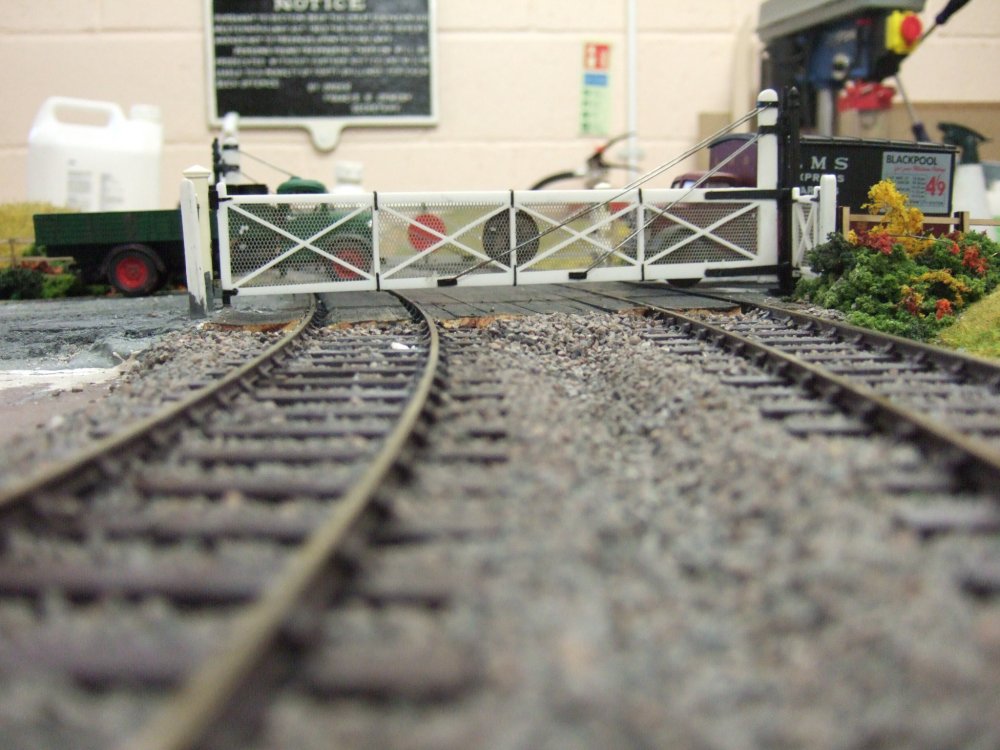

Thanks Tim. The 6mm cork was glued down with strong builders' neat PVA and weighed down until set over a few days. The rails were laid down precisely in accordance with printed templates (Templot) placed directly on the baseboard cork. The rails were then tacked in place with track nails mainly on the outer sleepers to avoid compacting them. The cork was cut away at an angle to provide a shoulder for the ballast. Finally, dry ballast was dusted over the rails and distributed/shaped with a fine brush. This was then wetted by spraying with much water/wash-up liquid mix and a strong solution of builders' PVA was added by dropper. Once set over a few days this holds the rails in place in a concrete-like grip!

  • Like 1
Link to comment
Share on other sites

  • 3 weeks later...
