DJ Dangerous Posted August 10 Share Posted August 10 1 minute ago, GSR 800 said: 00 gauge 3d printed 800 class (cat not included) I'm in! Quote Link to comment Share on other sites More sharing options...
Galteemore Posted August 10 Share Posted August 10 (edited) Hope she’s better at publicity than plate laying - that’s a seriously staggered joint…. Edited August 10 by Galteemore 4 Quote Link to comment Share on other sites More sharing options...
LNERW1 Posted August 12 Share Posted August 12 On 28/6/2024 at 9:25 PM, Metrovik said: Any news on the WLWR loco? The 800s are far too big for my little branchline. Although it is looking VERY good. WLWR a bit away from my setting, but honestly I'd love one too. What chassis is it made for? Quote Link to comment Share on other sites More sharing options...

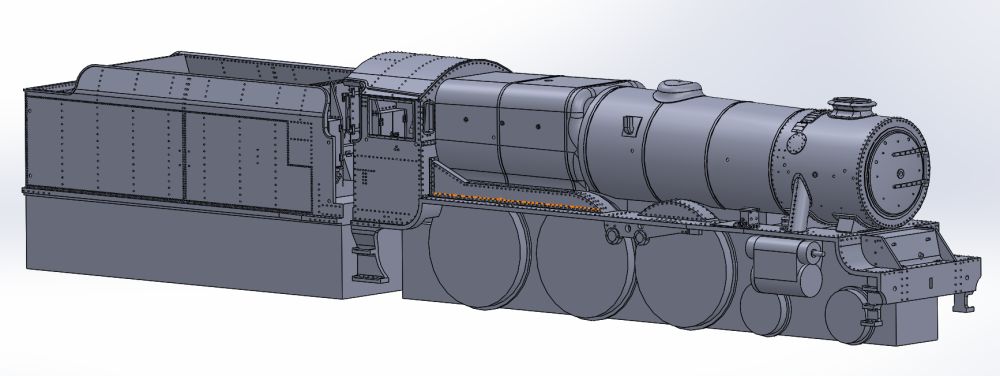

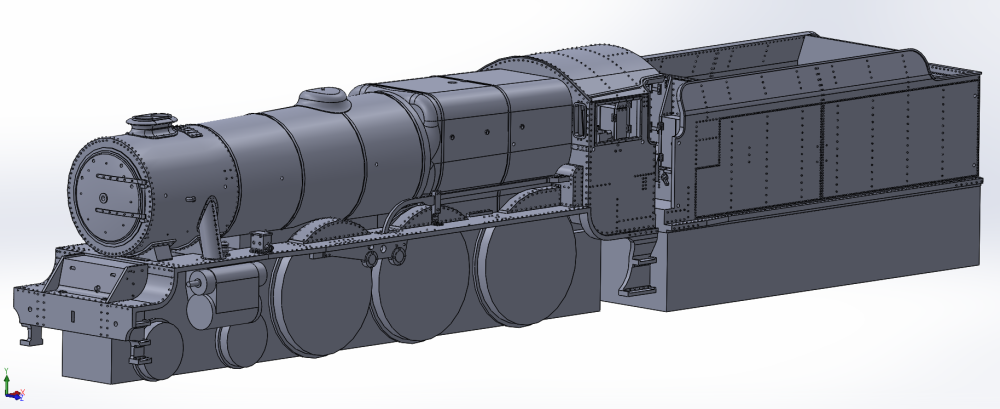

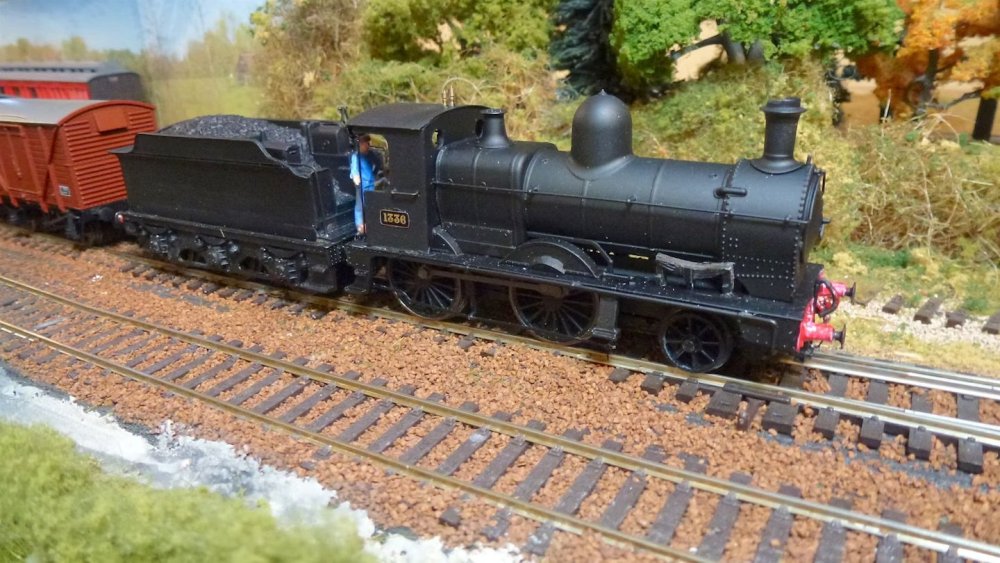

Killian Keane Posted August 12 Author Share Posted August 12 30 minutes ago, LNERW1 said: WLWR a bit away from my setting, but honestly I'd love one too. What chassis is it made for? Oxford Dean Goods, which is within 1mm of the prototype wheelbase and perfect wheel diameter, the wires connecting the tender pickups to the loco will need to be soldered together to enable it to run without the tender The 800 class is officially finished awaiting the first test print 9 1 1 Quote Link to comment Share on other sites More sharing options...
DJ Dangerous Posted August 12 Share Posted August 12 That 800 Class looks excellent, @Killian Keane! 1 Quote Link to comment Share on other sites More sharing options...

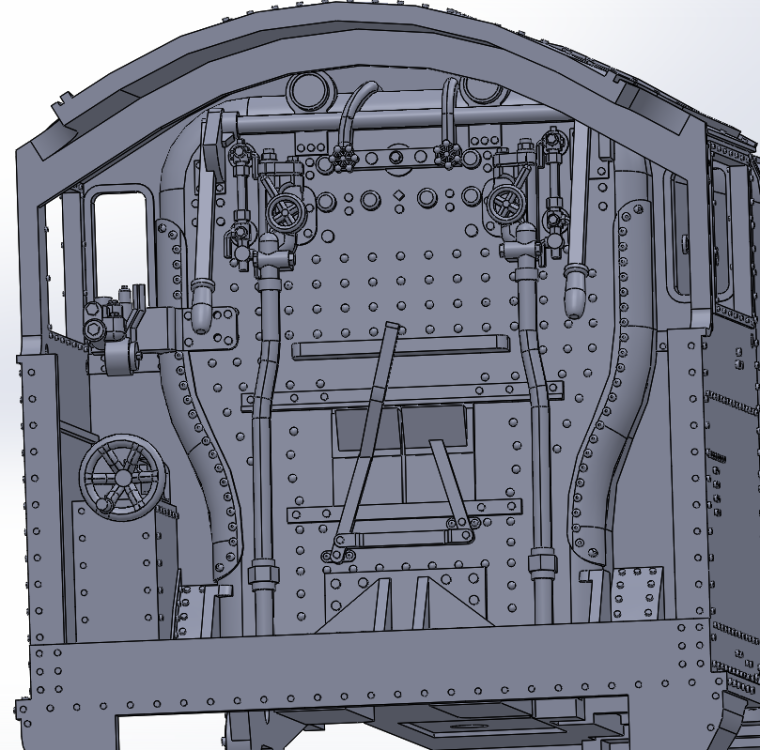

GSR 800 Posted August 13 Share Posted August 13 Still cant get over the backhead detail! Truly wonderful! 1 Quote Link to comment Share on other sites More sharing options...
Killian Keane Posted August 28 Author Share Posted August 28 The first test of the finished model started printing at 1am last night, it should be ready in approximately 2 1/2 hours and be ready to show tomorrow all going well 6 Quote Link to comment Share on other sites More sharing options...
skinner75 Posted August 29 Share Posted August 29 (edited) On 10/8/2024 at 1:16 PM, GSR 800 said: An effective marketing strategy perhaps.. Worked for this restaurant in Japan!: https://www.youtube.com/watch?v=z329Rg4VP2c Edited August 29 by skinner75 1 Quote Link to comment Share on other sites More sharing options...

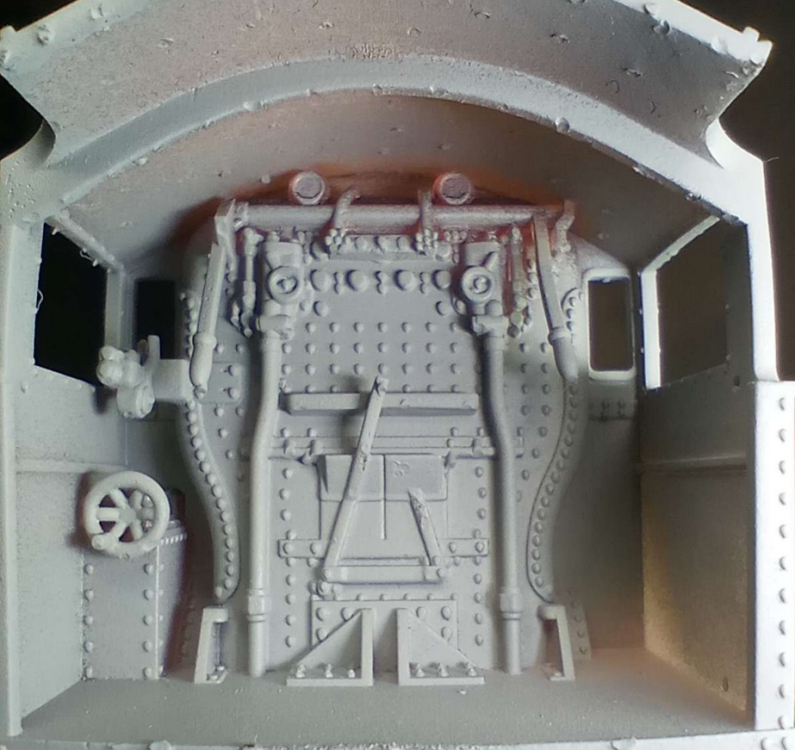

Killian Keane Posted August 29 Author Share Posted August 29 (edited) Cab detail from the first finished model, it will be tomorrow before Im able to take proper photos Edited August 29 by Killian Keane 9 8 Quote Link to comment Share on other sites More sharing options...
David Holman Posted August 30 Share Posted August 30 Can barely begin to comprehend the amount of work and planning that goes into such a creation. 1 1 Quote Link to comment Share on other sites More sharing options...
GSR 800 Posted August 30 Share Posted August 30 Truly magnificent! 1 1 Quote Link to comment Share on other sites More sharing options...

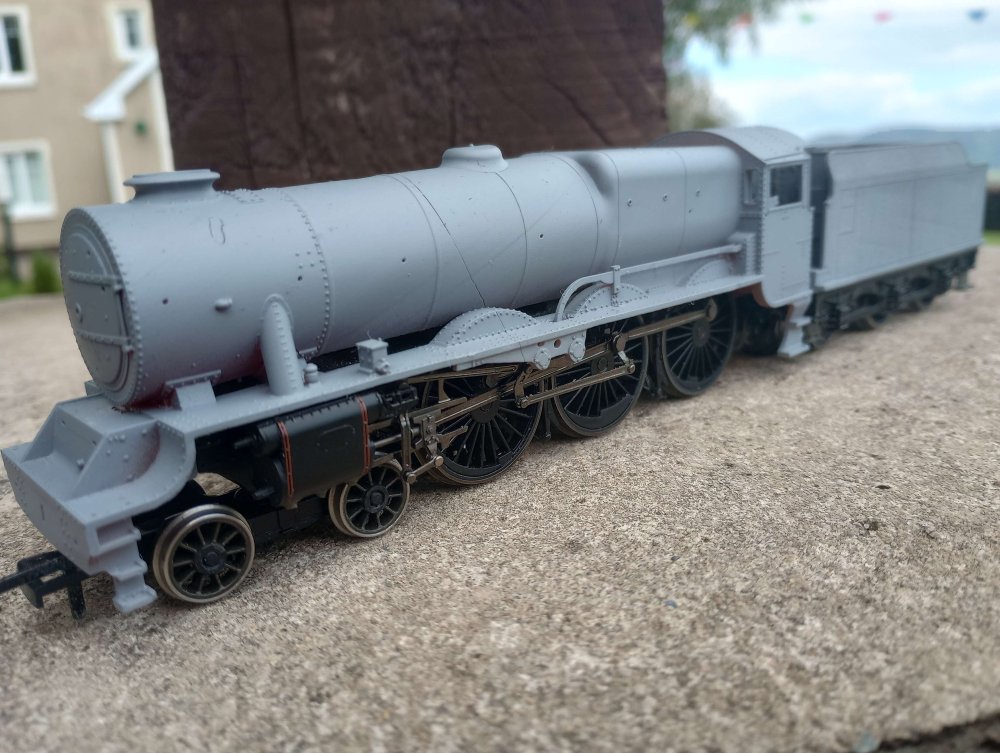

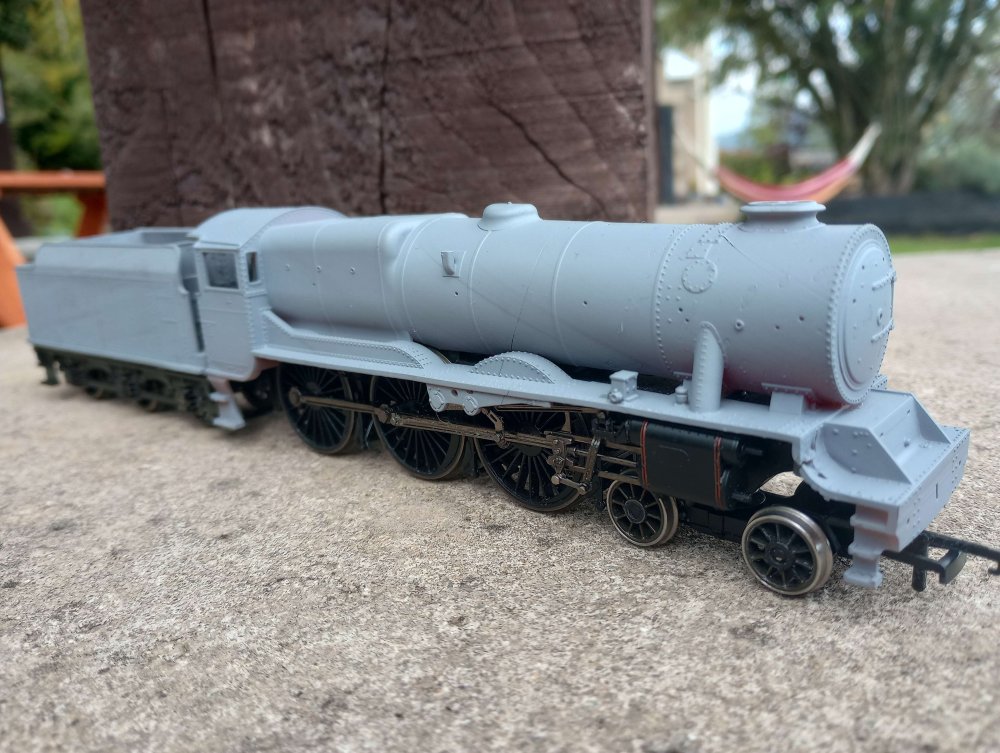

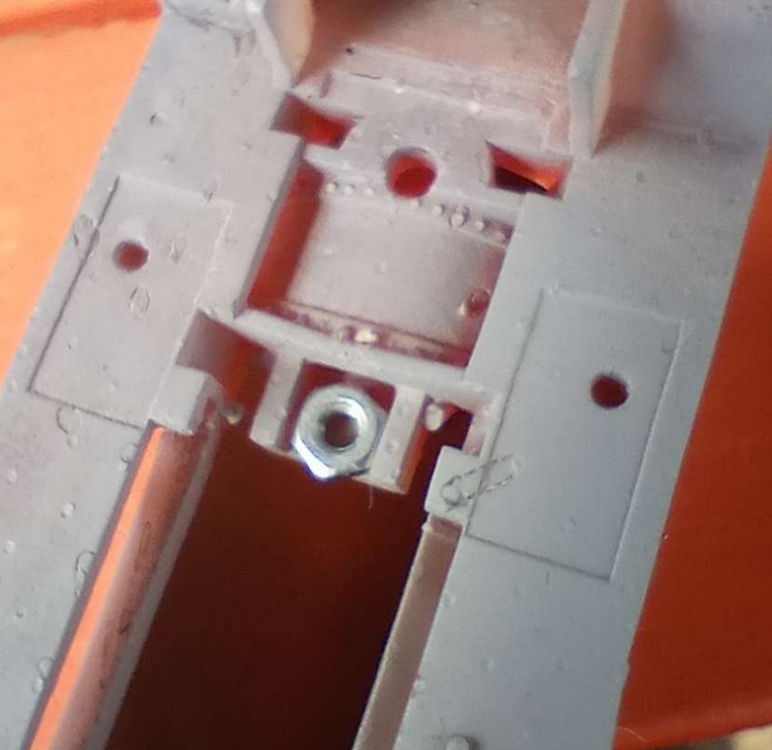

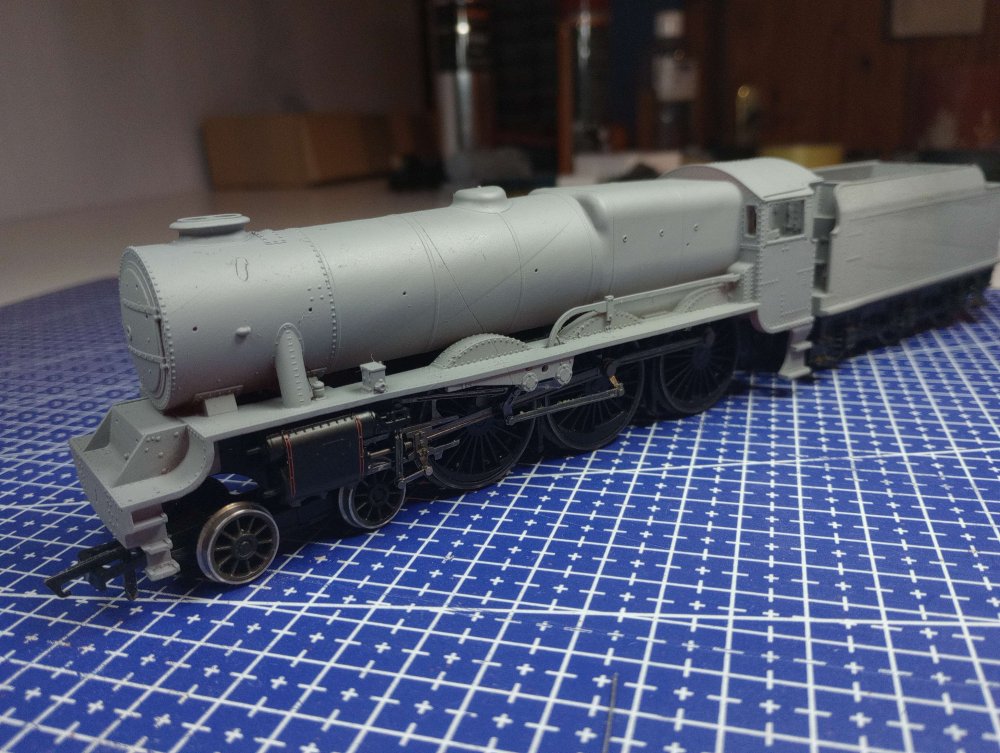

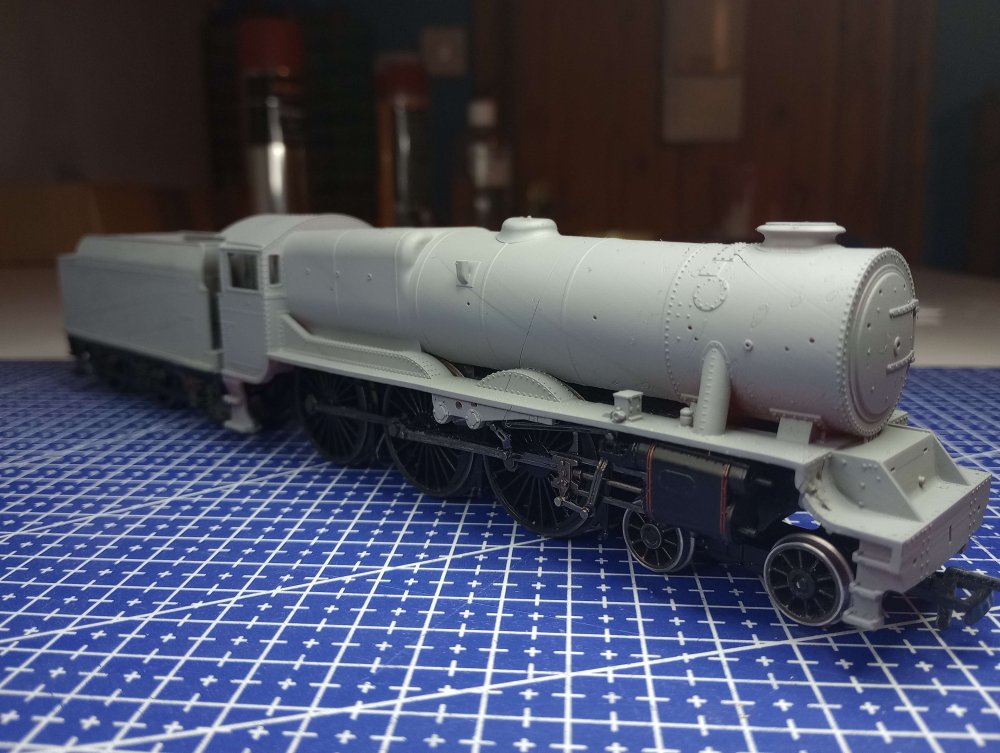

Killian Keane Posted August 30 Author Share Posted August 30 Thanks very much all! truly praise from Caesar The surface finish in person is significantly better than the last sample, however there were some unfortunate marks on the boiler and smokebox which are down to the printer having to be cleaned out, as well as a small hole in the running board on the front right side I am particularly pleased with the way the M2.5 nut is held, it goes in this little trough as shown, the model is tipped forward to line it up with the hole, and then the chassis can be inserted, and the original mounting hole used 11 2 Quote Link to comment Share on other sites More sharing options...
Flying Snail Posted August 30 Share Posted August 30 26 minutes ago, Killian Keane said: I am particularly pleased with the way the M2.5 nut is held, it goes in this little trough as shown, the model is tipped forward to line it up with the hole, and then the chassis can be inserted, and the original mounting hole used Very elegant solution 1 Quote Link to comment Share on other sites More sharing options...
