20 hours ago, JasonB said:

I encountered the same problem when working on mine. I over complicated things, and ended up going around in circles on an 18 wagon rake.

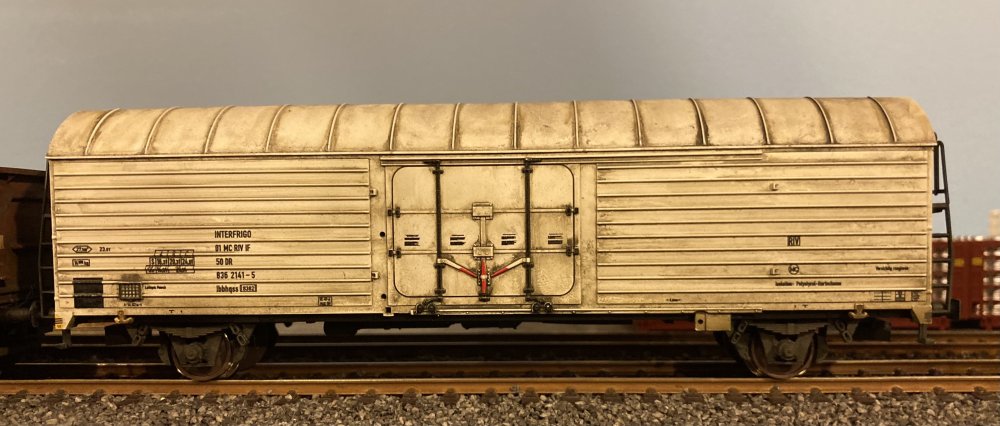

The dusting you've given them with the airbrush has blended everything together very nicely. Great work.

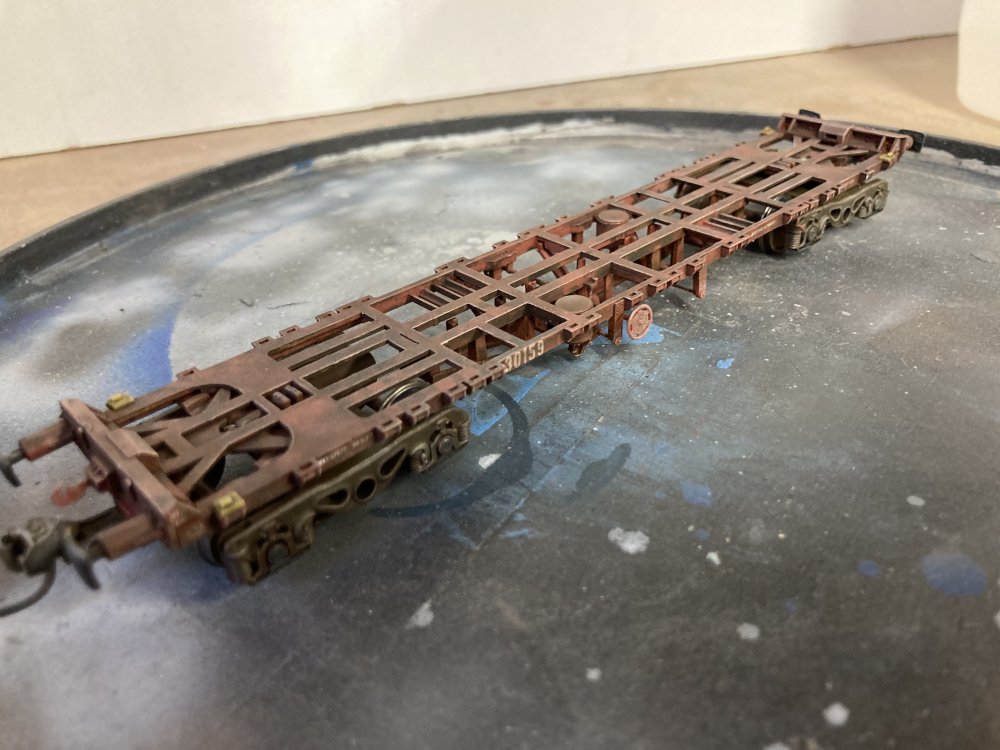

Yeah I found these hard work! Like yourself, I though they only looked convincing when they are really filthy with layer upon layer of grime and cement. The only way to get that effect was to apply layer upon layer of weathering! I ended using every technique I could think of....

I found the streaking effects particularly hard to get right. Removing the paint with a fibre pencil was way too aggressive. I ended up letting the Tamiya paint dry for several days before scrubbing at it with a stiff brush moistened with isopropyl. The effect is quite convincing.

The chipping cement was done using Maskol before the paint was airbrushed on. The cement dust is REAL cement. It's as fine as any weathering powder and looks great when sealed with varnish.

  • Like 3
Link to comment
Share on other sites

51 minutes ago, irishthump said:

Yeah I found these hard work! Like yourself, I though they only looked convincing when they are really filthy with layer upon layer of grime and cement. The only way to get that effect was to apply layer upon layer of weathering! I ended using every technique I could think of....

Your perseverance definitely paid off! They look fantastic.

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
Posted (edited)

A present from the wife and kids, a Piko M62 in DB livery.

Fitted with a Loksound V5.

Still some tweaking to be done with the various sound levels, but overall delighted with it. Can’t wait to detail and weather it as these locos got pretty grubby in real life.



Edited by irishthump
  • Like 5
Link to comment
Share on other sites

1 minute ago, Georgeconna said:

Beats my 160 pairs of Socks big time.....



Have to say I never saw it coming! One of my sons noticed me watching Youtube videos of the real loco then found the model on Modellbahne Lippe. Even ordered the correct decoder for it!

  • Like 3
  • WOW! 1
Link to comment
Share on other sites

Posted (edited)

So I’m stuck at home now for the next week or so. Both my youngest sons have tested positive for Covid!
I seem to have escaped it for the moment so that leaves  modelling as just about the only thing I can do right now. A flurry of activity has been the result!

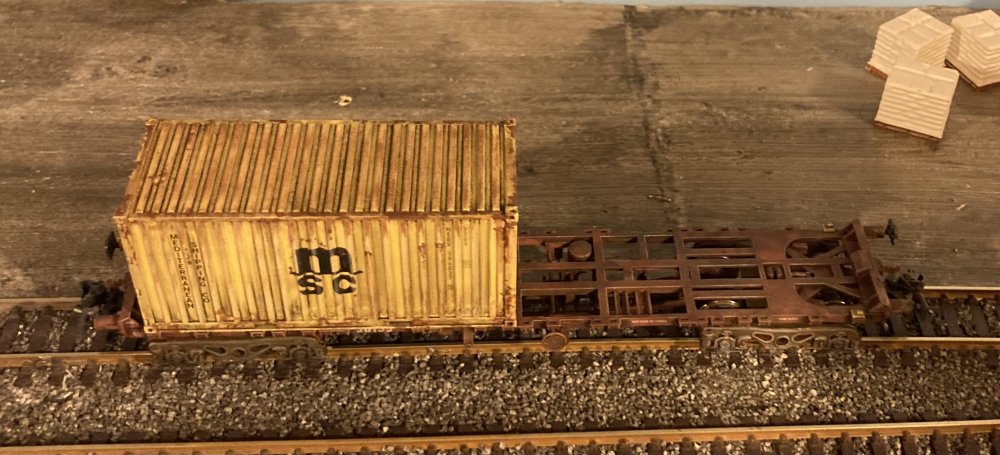

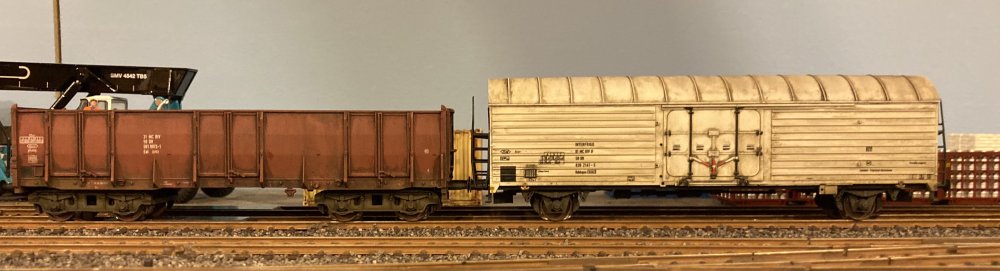

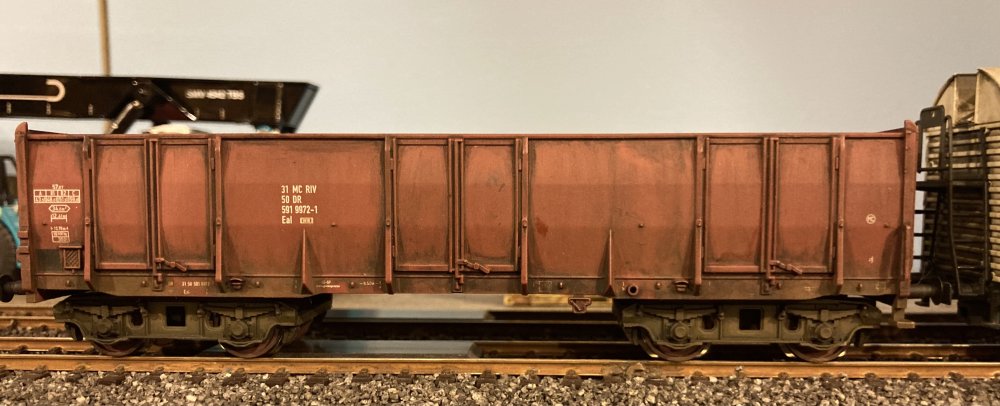

First up some US freight cars got hit with the weathering stick…









Next was something I have been pondering for a while. I prefer to fit Kadee draft box couplers to my all my locos but my Heljan Class 26 was proving to be a pain. As you can see there is no room to fit a draft box on the underframe because it would interfere with the bogies…




Edited by irishthump
  • Like 3
Link to comment
Share on other sites

So I removed the bogie mounted NEM pocket and built a bracket and new pocket to fit to the back of the buffer beam….





I used brass angle strip and box section tube to create the bracket. After cleaning up my dodgy soldering it was fixed to the buffer beam.




A quick test proved it was at the correct height.






Although the couple now protrudes further past the buffer than o would like some  black paint should make it far less noticeable.

  • Like 2
Link to comment
Share on other sites

6 minutes ago, Galteemore said:

Nice, these really need a subtle weather like this to lift the detail.

Yes, any photos that I could  find of the prototype were'nt very mucky so I went easy!

1 minute ago, murphaph said:

Very impressed with the boxcars especially. The rusty roof in particular is excellent.

Thanks! The rust effect is simple enough; various weathering powders mixed with thinned down matt varnish and simply stippled on.

  • Like 1
Link to comment
Share on other sites

1 minute ago, JasonB said:

Excellent stuff. You can tell that some serious time and effort was put in to achieve that finish. Time consuming no doubt, but always beats just giving the model a blast of an airbrush.

Not as time consuming as you might think. I used MIG washes on the body and roof, let in run into the crevices then feather the streaks with a brush moistened with thinners. Underframe was stippled with track dirt and brake dust acrylics.

  • Like 1
Link to comment
Share on other sites

On 3/1/2022 at 9:57 PM, irishthump said:

So I removed the bogie mounted NEM pocket and built a bracket and new pocket to fit to the back of the buffer beam….





I used brass angle strip and box section tube to create the bracket. After cleaning up my dodgy soldering it was fixed to the buffer beam.




A quick test proved it was at the correct height.






Although the couple now protrudes further past the buffer than o would like some  black paint should make it far less noticeable.

Could the pocket be turned to face the other way without hitting the bogie and then attach the coupling.

Link to comment
Share on other sites

3 minutes ago, popeye said:

Could the pocket be turned to face the other way without hitting the bogie and then attach the coupling.

Unfortunately not! If you look at the bogie side frames they actually wrap around a little so they’ll hit anything mounted behind the buffer beam.


  • Informative 1
Link to comment
Share on other sites

  • 3 months later...
Posted (edited)

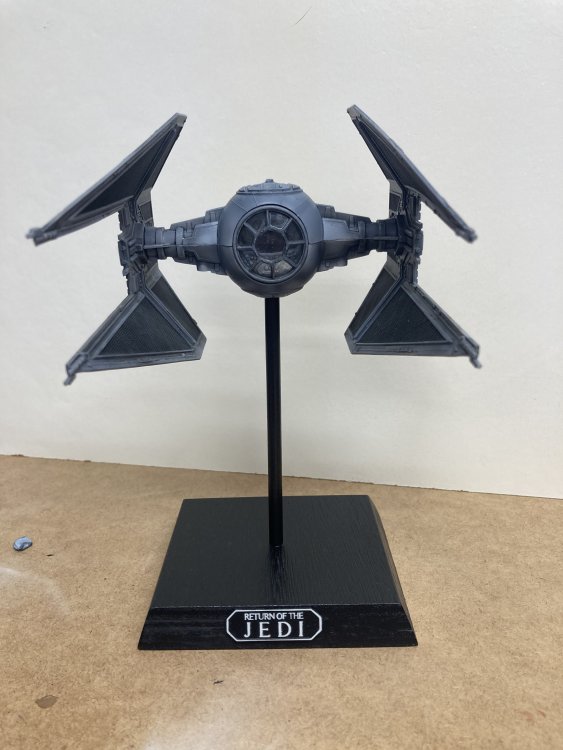

Something a little different….

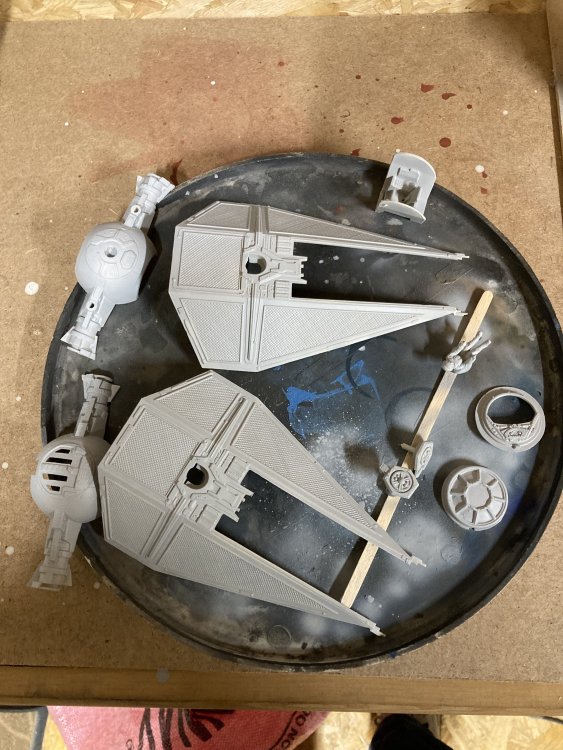

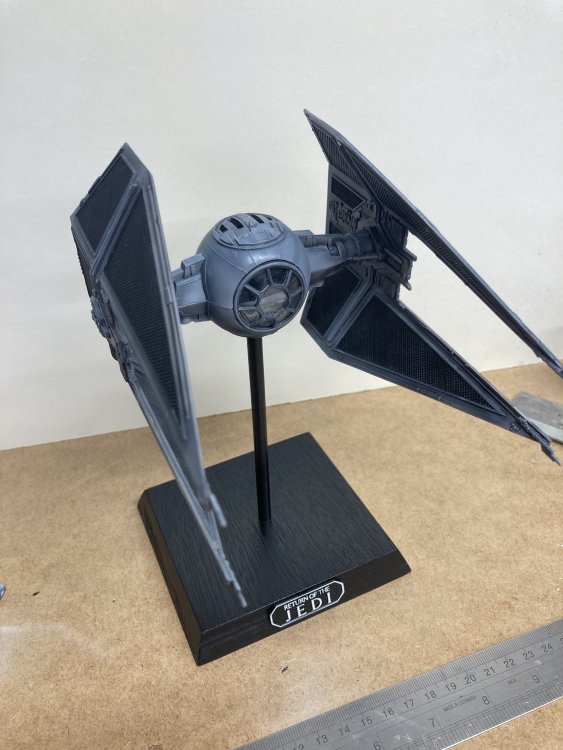

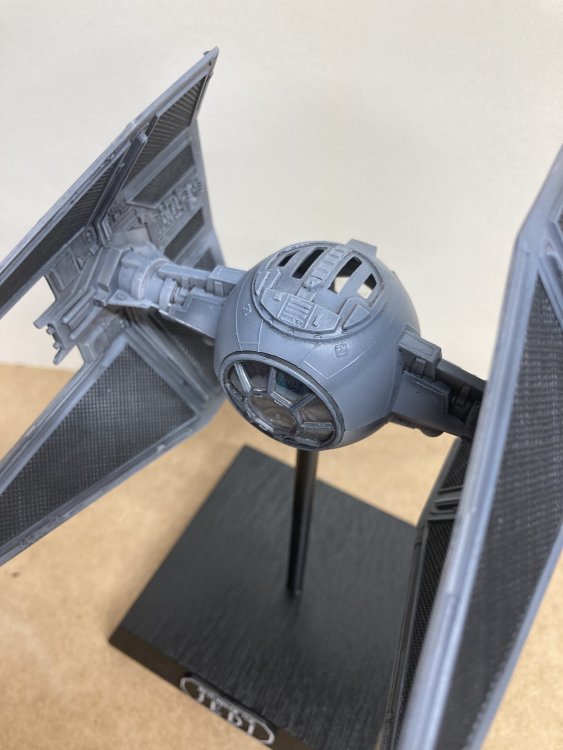

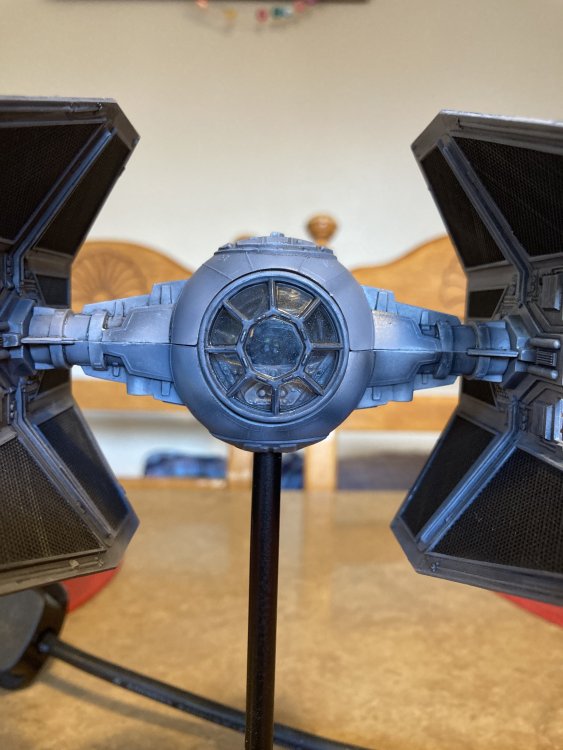

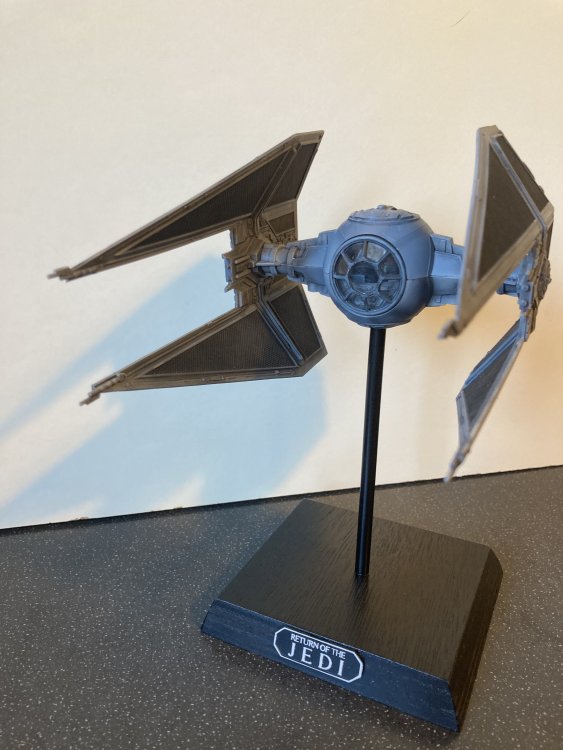

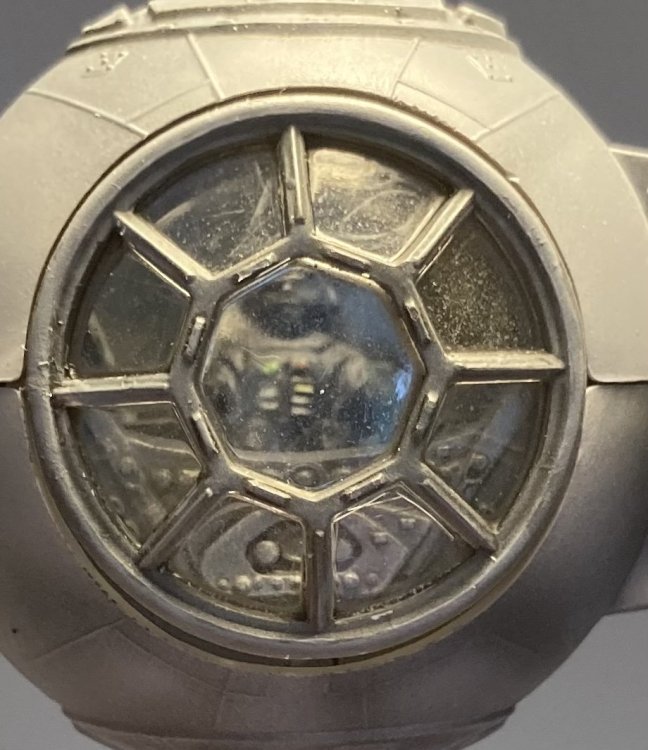

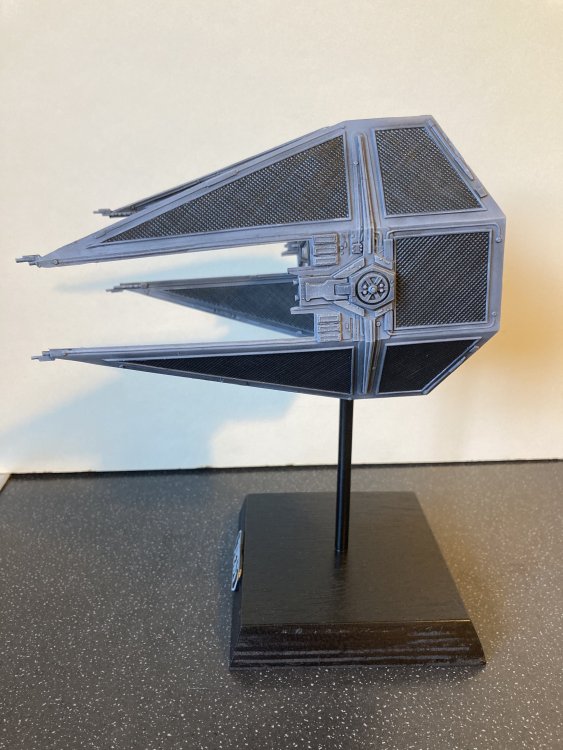

A 20+ year old Star Wars TIE Interceptor kit that has been kicking around in my attic since I bought it.

Its one of those dreadful “snap” kits but I was bored so decided to throw it together. The fit and finish was pretty bad as it just snapped together, so I didn’t bother with filling and sanding any gaps but it’s passable and I’m happy with the paint job.













Edited by irishthump
  • Like 1
Link to comment
Share on other sites
