My first and second attempt at making the bubble wagons. The first one was built using a spare chassis and by moulding the bubble from a kinder egg using resin, the second wagon is made from the shorter ends of the hinge type kinder egg glued onto a pipe of similar diameter and rounded using revell putty, the chassis and pipes were made from a dapol prestwin kit which is awaiting gangways and ladders.









Share this post


Link to post
Share on other sites

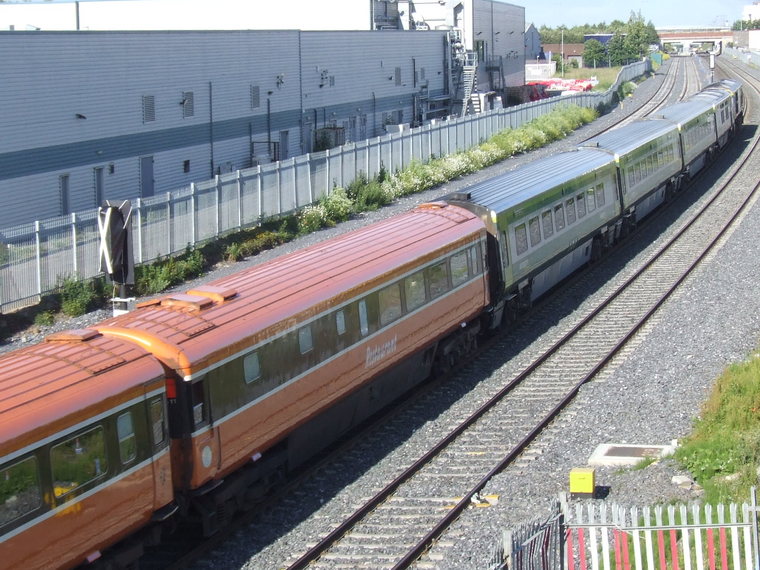

Could someone please post a picture of the roof of an mk3 restaurant car. I'm struggling to find pics of the roof vents on the internet.

Share this post


Link to post
Share on other sites
Thanks, what part of Kilkenny are you from?



I'm around the outskirts of Bennettsbridge, not far from the City. It's good to see someone else from Kilkenny into Irish train modeling! :tumbsup:

Share this post


Link to post
Share on other sites

This is an MIR beer keg container wagon I am building. It doesn't seem too difficult but I am having a tiny bit of trouble.



Am I supposed to cut off the back part of the bogies because it does not fit underneath the chassis and will prevent the movement of the bogies?









  • Like 1

Share this post


Link to post
Share on other sites
Guest hidden-agenda

The bogies are designed to fit a 42 foot 6 inch (your version by the looks of it) or a 47 foot 6 inch wagon. The coupling mounts at each end of the bogie are for each version.You need to cut off the long version if its a 42 foot wagon you have and to be honest you should have done this before you built the bogies as there is a chance of knocking the bogies out of true. If you have a drill with a cutting disc you can carefully cut them off baring in mind to take your time and do it with the bogies on a flat surface ( glass kitchen work saver) and remember white metal gets hot so mind your fingers.This is my cure but wait a while to see if any one else comes up with something better. I hope this helps.

Regards Gareth.

Share this post


Link to post
Share on other sites

I got another MIR wagon which was a 40ft container flat to go with the two 45ft beer container flats I have. Here are some pictures of the three wagons assembled.













  • Like 1

Share this post


Link to post
Share on other sites


I am having a lot of trouble with derailing with these wagons. My curved track are 2r and 3r hornby fixed curves and the wagons definitely cannot run and the 2r curves at all. But they seem to manage the 3r curves a bit better with the occasional derailment. I put this down to the bogies not having the room to swivel enough to run on the curves.

Anyway, i found other uses for the keg containers until I can get this sorted.




  • Like 1

Share this post


Link to post
Share on other sites

Lovely work GM, and nice little bench layout. A pity 'bout the derailing. Is it a weight issue over the bogies or just a swivelling problem?

Share this post


Link to post
Share on other sites

I'd say its the swivelling Glenderg as when one of my locos are pulling them they seem to struggle a small bit and you tend to hear a kind of scratching sound and the paint underneath gets pealed off. So I fear I may have to cut a chunk out somewhere, or at least take a file to the frame to wear down the part thats grinding off the wheels. Thanks for the positive feedback lads.:tumbsup:

Share this post


Link to post
Share on other sites

Nice job on the wagons and trucks gm171,I had the same problem with my MIR bogie flat wagons,I changed the wheels to Bachmann-and filed down the angled section on the frame underneath and behind the bogies-and have had no problems since.

Edited by ttc0169

Share this post


Link to post
Share on other sites
Guest hidden-agenda

Them trucks look the dogs GM and try a Dremil with a sanding barrel and gently does it as it will leave a nice curve in the resin to allow clearance for the wheels to pass through.

Share this post


Link to post
Share on other sites

GM, where do you get the MIR kits? I have tried searching the net to no avail

Share this post


Link to post
Share on other sites

There are five taras, an 071 and a hunslet left on donedeal, the rest have sold. They were a joy to build despite all the trouble I had because of my mistakes.

Share this post


Link to post
Share on other sites

I got bored today an decided to have a go at making a bogie fertilizer wagon out of a Hornby container flat. It is far from finished but here is the start of the contruction.




  • Like 1

Share this post


Link to post
Share on other sites

That looks like an evening well spent. It's coming together nicely and should like great when it's finished.



Rich,

Share this post


Link to post
Share on other sites
Guest hidden-agenda

More pics i love seeing a job like this taking shape well done so far.

Share this post


Link to post
Share on other sites
Will definetly keep an eye on the fertilizer scratchbuild, great work so far keep it up!!



dam straight! beautiful work..what is the type of hornby donor? might get a few!

Share this post


Link to post
Share on other sites
