Hunt couplings

[bhoulihan]

Hi wondering if hunt couplings would work with Irish coaches on your model layout as they are a uk company that makes them as they are new on the market and would you try them



[Georgeconna]

Eh? Course they would. Have a Gawk at the online Videos from the numerous influencers. Mind you they could do most Vids in 3 mins, not 30.

[gm171 kk]

I'm wondering if they'll work with the swivel type couplings that MM and IRM used for Bogie rolling stock.

[BosKonay]

5 hours ago, gm171 kk said:

I'm wondering if they'll work with the swivel type couplings that MM and IRM used for Bogie rolling stock.

We provide coupling bars with our kinematic stock. These work the same way.

[Ironroad]

Looks like a very interesting product that should work for the most part with rolling stock fitted with tension lock couplings with or without NEM sockets and it seems they cater to rolling stock that has NEM sockets that are not at the correct height. However,  coupling is achieved with magnetic attraction which means stock must always be placed on the track with opposing magnetic poles which is a limitation I don't like. It means for example that ideally for complete flexibility in the use of locos, they should have the same polarity at each end which means that rakes of rolling stock should also have the same polarity at each end (opposite to that of the locos) which means one item of rolling stock in each rake will have the same polarity at both ends.







[Noel]

2 hours ago, BosKonay said:

We provide coupling bars with our kinematic stock. These work the same way.

Kadee no 18s works a treat with your Taras, Container Flats and the Fertiliser Wagons. Much closer than the tension lock. The kinematic stock really benefits layouts with tighter curves.



[DiveController]

13 hours ago, bhoulihan said:

Hi wondering if hunt couplings would work with Irish coaches on your model layout as they are a uk company that makes them as they are new on the market and would you try them



Always good to post a link for those not familiar with the devices

This maybe?

 https://www.westhillwagonworks.co.uk/couplings-new-c-2/hunt-couplings-close-coupling-10-pairs-for-nem-sockets-p-23



[WRENNEIRE]

Not a fan of the coupling bars provided with the Taras, I think the fine detail on the wagons would suffer if rakes were to be

handled while coupled together

These Hunt yokes look like a great answer



[skinner75]

Grand for a full rake, but they wouldn't allow for remote decoupling the way the kadees can. A simple way around this would be to use a kadee coupler on both outermost  ends of the rake.

Very clever product though - I had only watched that Hornby vid the other night too

[irishthump]

I'd hardly call them "game-changing".... they're bloody magnets!

[WRENNEIRE]

Nobody at the Glasgow show has heard of them!!!

[Tarabuses]

1 hour ago, irishthump said:

I'd hardly call them "game-changing".... they're bloody magnets!

Which makes it surprising that no one has produced this type of coupling before.

[irishthump]

16 minutes ago, Tarabuses said:

Which makes it surprising that no one has produced this type of coupling before.

Not commercially. But I've seen homebrew versions like this.

[Georgeconna]

Lego did.

[murrayec]

I make me own for the toy DARTs

[Noel]

3 hours ago, Tarabuses said:

Which makes it surprising that no one has produced this type of coupling before.

I've seem them on O gauge coaching stock. Many of the RTR O gauge coaches in WMRC have magnetic couplings. The idea doesn't blow my skirt up as I cannot see how they would work with a shunting layout, but good alternative perhaps to Roco close couplers and Kadees



[Irishrailwayman]

1 hour ago, Noel said:

I've seem them on O gauge coaching stock. Many of the RTR O gauge coaches in WMRC have magnetic couplings. The idea doesn't blow my skirt up as I cannot see how they would work with a shunting layout, but good alternative perhaps to Roco close couplers and Kadees



Correct, Wexford MRC use the equivalent in O for fixed rakes of coaches but use 3-link or screw-link couplings to the locomotives with a magnetic rod or fine tweezers to lift the links onto/off the hooks. Goods wagons in O tend to use 3-link couplings in the same way allowing hand assisted shunting.

[gm171 kk]

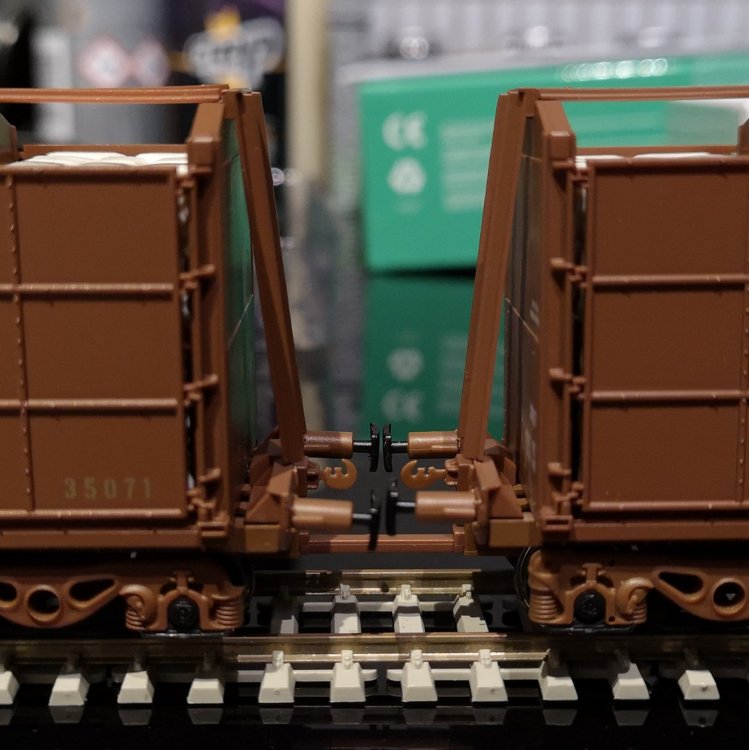

The bar coupling that comes with the Ferts. Nice and close but the kinematic couplings allow too much movement

Edited February 21, 2020 by gm171 kk

[RedRich]

2 hours ago, Noel said:

I've seem them on O gauge coaching stock. Many of the RTR O gauge coaches in WMRC have magnetic couplings. The idea doesn't blow my skirt up as I cannot see how they would work with a shunting layout, but good alternative perhaps to Roco close couplers and Kadees



Make sure the undies are clean the last thing you want is the wind blowing up your skirt and the jocks looking like Brands Hatch

Rich,
