On 21/10/2022 at 7:33 PM, David Holman said:

Another aspect was how to do water - both colour and material.

One option you might consider is the toilet tissue and glue solution as demonstrated by Marklin of Sweeden on Youtube which I used to good effect on the micro port layout.  A somewhat better representation of the water in a port affected by waves & weather than flat perspex.  Just a thought!



  • Like 1
  • Informative 3
Link to comment
Share on other sites

That looks interesting - thanks Ken.

The model boat shop in Chatham Dockyard yielded a few goodies on Saturday, including some nicely printed ventilators and a likewise 3D 'lifeboat'. These have been added to the Acla, along with a bit more tidying up of the hull, ready to start painting. This is proving challenging, mainly because the model is actually quite heavy, so needs careful handling.

 Talking to Gordon, another tip he shared is that he never uses black when painting, so the hull of the Acla is actually a dark grey. Am using Humbrol enamels & it is nice to see more of the model emerging with the addition of some colour.




  • Like 10
Link to comment
Share on other sites

I would think that the boiler was in front of the wheelhouse because it put the weight of the boiler further forward, helping stability and gave more room for the engine and prop shaft behind. I'm almost certain the boiler was a vertical type which  would have a smallish footprint but a higher centre of gravity. The funnel position often seemed to change when puffers were converted to diesel power

  • Like 1
  • Informative 1
Link to comment
Share on other sites

You may well be right, Mike. Various drawings below show the interior detail of two different Puffers - an early 'Vital Spark', with just a tiller and no wheelhouse, plus a later one - the Skylark. Interesting to see the berthing arrangements on the Vital Spark. the skipper had a rear cabin to himself, with a couple of berths for crew in the bow, along with basic cooking facilities. No ensuite bathrooms though!



 The Skylark drawing gives basic details of the wheelhouse controls, along with the arrangements in the boiler/engine room, which show the importance of weight distribution & why the funnel is where it was. Am hoping the built up forecastle on my Acla allows the boiler & funnel to be behind the wheel house! Meanwhile, much as it would have been nice to include all this interior detail, the fact that none of it will be seen means it just aint going to happen.







Edited by David Holman
  • Like 3
  • Informative 3
Link to comment
Share on other sites

Thanks for posting those drawings David. Helps make a few construction details clear.

One photograph in the Puffers book I mentioned does show an early puffer with just an open "wheelhouse" area with canvas "dodger" about chest high to protect the steersman!

I had'nt realised most of the early ones were built to fit locks of the Forth and Clyde canal and built in boatyards at Kirkintilloch. The design is said to have originated from unpowered boats called "scows" which I presume is a local term.

Link to comment
Share on other sites

1 hour ago, Mike 84C said:

The design is said to have originated from unpowered boats called "scows" which I presume is a local term.

'Scow' would be a widespread term for all sorts of boats of a barge/lighter style, from the Dutch word, but with an anglicised spelling - you'll hear it in a lot of the English speaking world - I suspect even 'schooner' is a development from it.

  • Informative 1
Link to comment
Share on other sites

 Recently added handrails to the forecastle of the Acla, thanks to Gordon Gravett who kindly sent me some spare etches he had from previous projects. Since then, have been trying to complete the general painting. Not entirely successfully as every time I think I've got everything covered, the next day I am still finding areas of primer showing through! Am starting to think that using an airbrush might be better, though the amount of masking required would still take a lot of time.

 However, slowly getting there, after which there is the weathering [essential to giving the model more texture], plus lettering and the dreaded rigging. Model ships, I'm finding, cannot be done quickly...








  • Like 14
  • WOW! 2
Link to comment
Share on other sites

 The last few bits and pieces for a few days, as I need to transfer my attentions to getting Fintonagh ready for Cultra. Always best to go through preparations and servicing a few days early - just in case!

 Anyway, as I'm sure most of you know, it is the little things that seem to take longest, especially when they need painting as well. So, did the four lifebelts and got them fixed this afternoon. Also shortened the mast by 3cm, as it was higher than the backscene, while the derrick's boom now has a bracket on the main superstructure to rest on.

 Spent the most time on a bit of lettering - though not sure if the yellow text [all I had] is correct, or indeed if Westport is an appropriate place for Acla to be registered, so it may be temporary... As already mentioned, the name is Gaelic for Achill, which seems appropriate as this is a key part of the little coaster's territory. Oh yes, there are photos of the other side too.





  • Like 16
  • WOW! 2
Link to comment
Share on other sites

  • 3 weeks later...

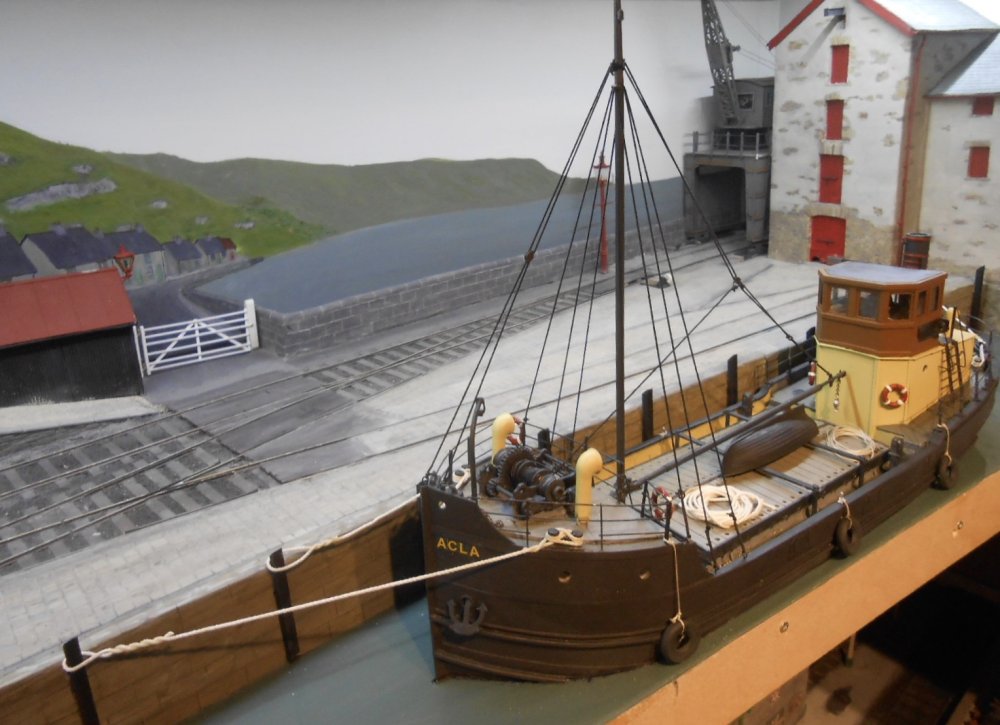

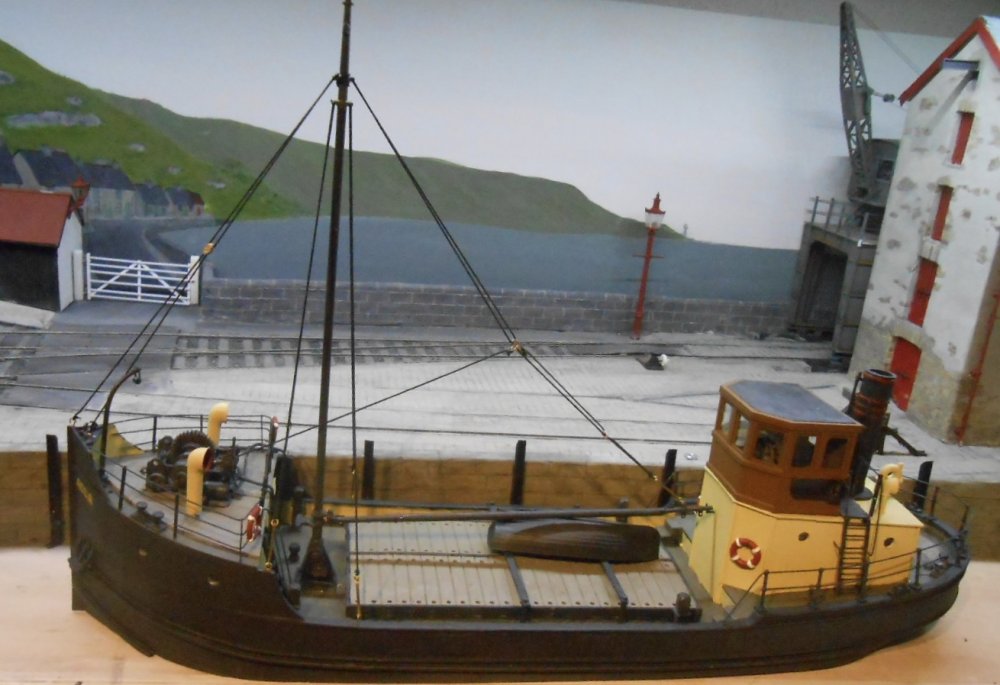

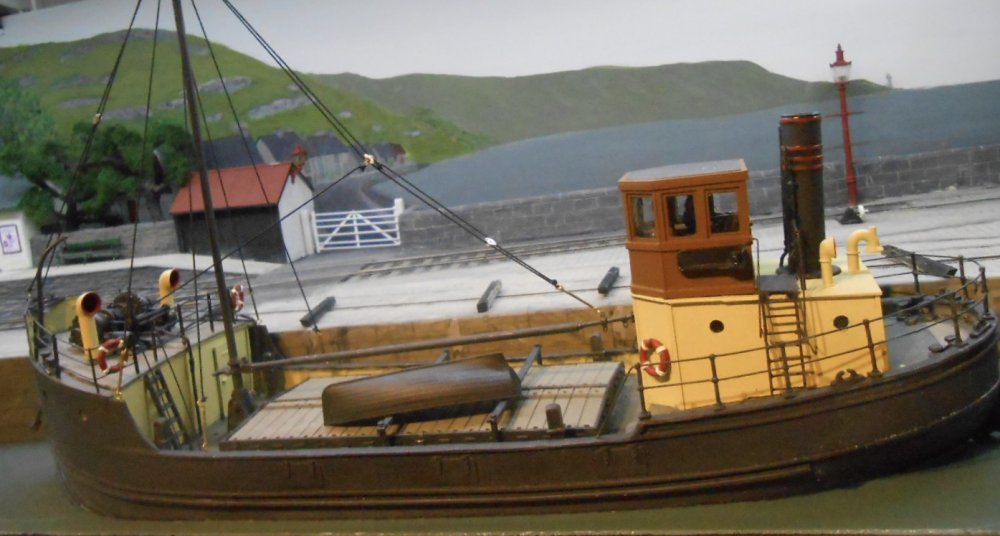

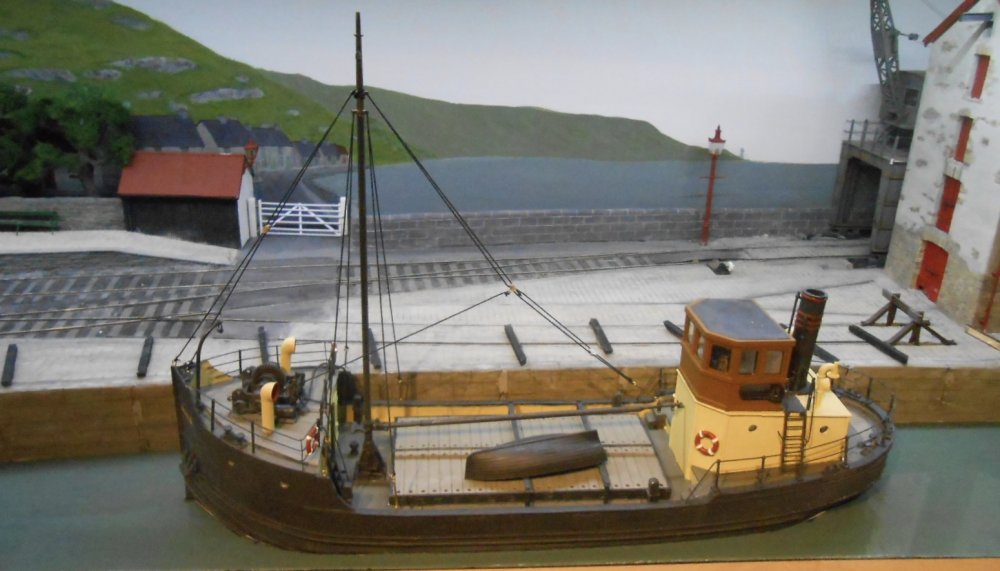

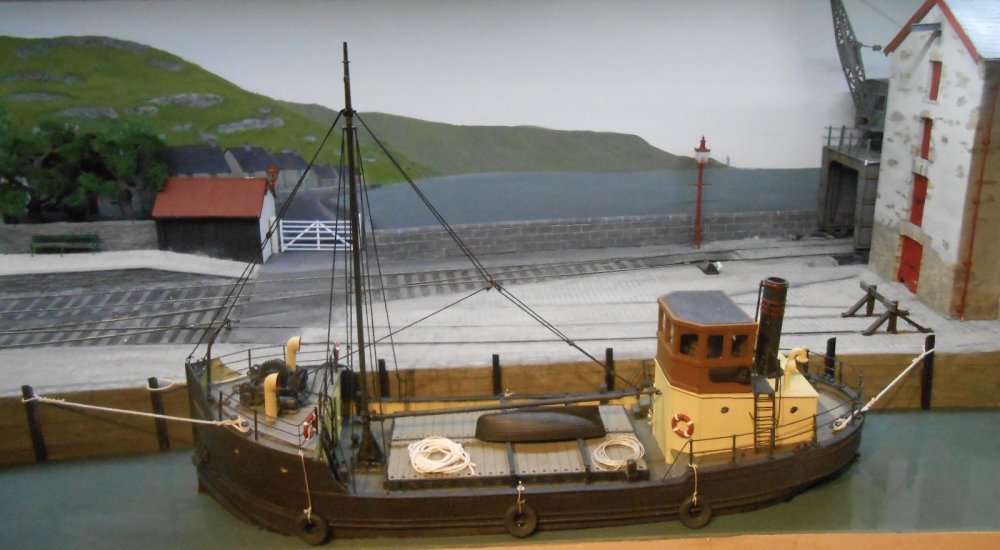

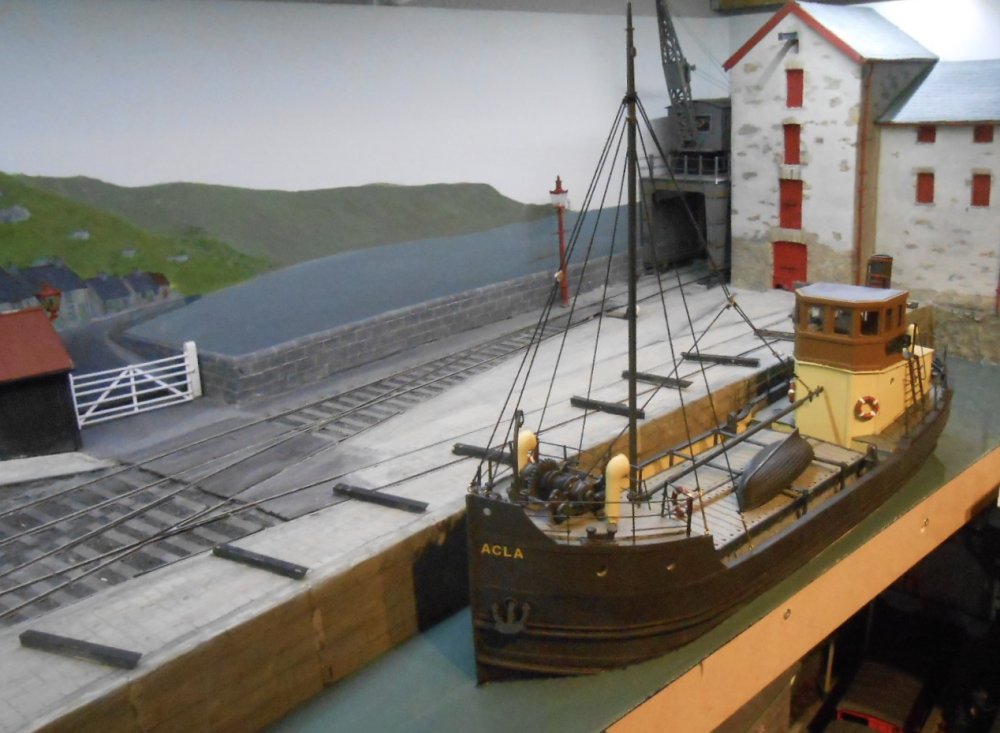

Frigging in the rigging

 No, not the name of one of the local beers produced in the Chatham Dockyard Brewery, though I could do with a bottle or three after trying to set up rigging on the Acla. Indeed, compared to a three hour crossing in a Force 9 between Cairnryan and Belfast a week last Friday, it would be a hard choice on which I'd do again in a hurry...

... and this is just a simplified version! The Langley instructions use the term "plumber's nightmare" to describe what doing the whole lot can be and looking at scale plans, am afraid I've taken the easy way out. Goodness knows what it must be like to include it all, let alone in 4mm scale!


 I've used elasticated thread, so that I can unplug the main mast for transport. There should be six lines [three each side, but I've only done two] from the mast, plus one to the bow and then the cabling to the derrick. Most of these lines use a type of adjustable "turnbuckle" affair to secure them to the hull. The model boat shop in the Historic Dockyard does sell working versions of these - and very nice they are too - but at £3.50 each, that wasn't going to happen. Instead, I fabricated [bodged] alternatives by flattening the end of some 1mm brass wire and then drilled holes in each end to take loops of .5mm brass wire to which I could then attach the thread. Those a 1cm squares below.


 To say that all of this was a bit of a faff is an understatement - likewise drilling out tiny white metal castings of pulley blocks, while threading elasticated thread through all of this was challenging to say the least. Ultimately though, it all came together [ish], as can be seen from the two main pictures. I would hate to have to rig a sailing ship!


  • Like 15
  • Agree 1
  • WOW! 3
Link to comment
Share on other sites

15 hours ago, David Holman said:

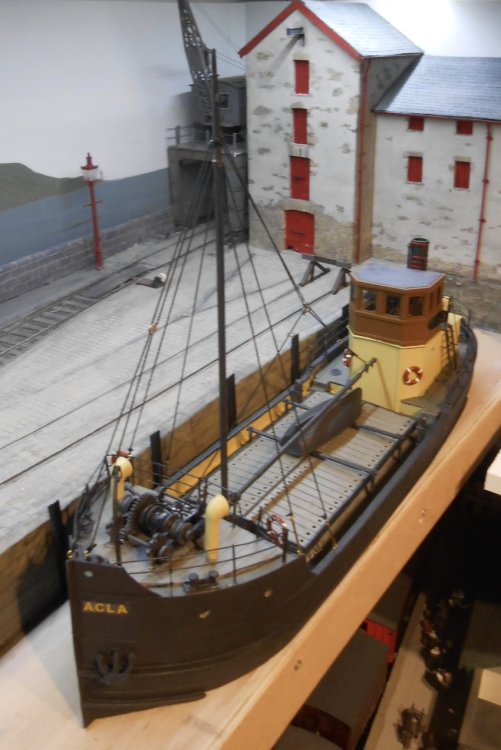

Ultimately though, it all came together [ish], as can be seen from the two main pictures

Looking good David.  It is a bit of a pain and the rigging does get in your way as you progress, however it is worth doing as it really gives presence to the model.

Well done for sticking with it!!

Link to comment
Share on other sites

16 hours ago, David Holman said:

Frigging in the rigging

 No, not the name of one of the local beers produced in the Chatham Dockyard Brewery, though I could do with a bottle or three after trying to set up rigging on the Acla. Indeed, compared to a three hour crossing in a Force 9 between Cairnryan and Belfast a week last Friday, it would be a hard choice on which I'd do again in a hurry...

... and this is just a simplified version! The Langley instructions use the term "plumber's nightmare" to describe what doing the whole lot can be and looking at scale plans, am afraid I've taken the easy way out. Goodness knows what it must be like to include it all, let alone in 4mm scale!


 I've used elasticated thread, so that I can unplug the main mast for transport. There should be six lines [three each side, but I've only done two] from the mast, plus one to the bow and then the cabling to the derrick. Most of these lines use a type of adjustable "turnbuckle" affair to secure them to the hull. The model boat shop in the Historic Dockyard does sell working versions of these - and very nice they are too - but at £3.50 each, that wasn't going to happen. Instead, I fabricated [bodged] alternatives by flattening the end of some 1mm brass wire and then drilled holes in each end to take loops of .5mm brass wire to which I could then attach the thread. Those a 1cm squares below.


 To say that all of this was a bit of a faff is an understatement - likewise drilling out tiny white metal castings of pulley blocks, while threading elasticated thread through all of this was challenging to say the least. Ultimately though, it all came together [ish], as can be seen from the two main pictures. I would hate to have to rig a sailing ship!


Have a look at my RC puffer for the rigging, might be a bit clearer do decipher.



  • Like 1
Link to comment
Share on other sites

Wow, what a fabulous model, George! That is a ridiculous amount of detail, but then suppose in 1:24 stuff becomes ever more noticeable - right down to the toilet pan. Not sure I'm going to be chasing all that rigging, but looks like I need to add at least some now you've shown me.

 Fantastic work - thank you.

 Slapped wrist for me in not keeping an eye on other threads too.

Link to comment
Share on other sites

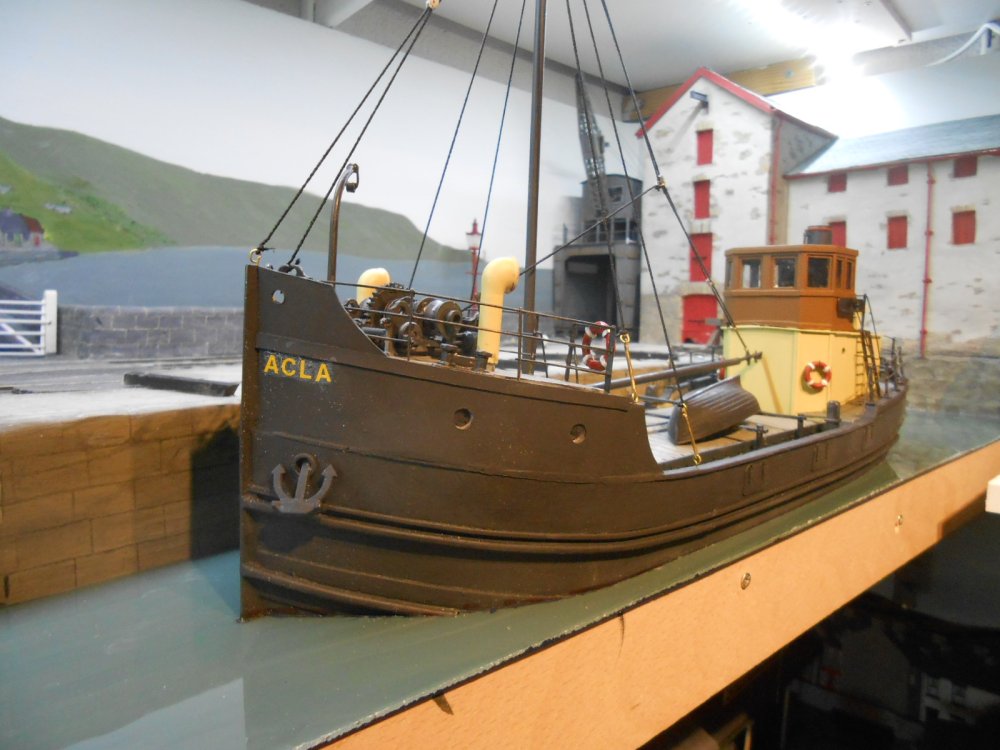

Have taken a break from the rigging to try another task I wasn't exactly looking forward to - the water. The options included:

  • base colour covered with multiple layers of varnish
  • commercial resin water kit
  • papier mache, as per KCME's suggestion earlier

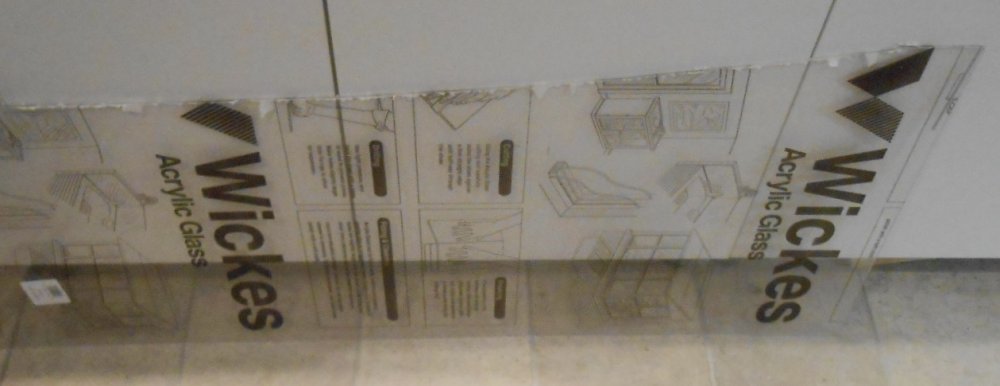

  • acrylic sheet, as suggest by ace ship modeller Gordon Gravett, indeed just ace modeller

 In the end, decided to go for the last one, mainly because the Acla is very heavy and its mast & derrick rather fragile, meaning a need to be able to remove it from the layout for transport. So, a trip to my local Wickes DIY store resulted in the purchase of a sheet of 1.8mm clear acrylic glazing.

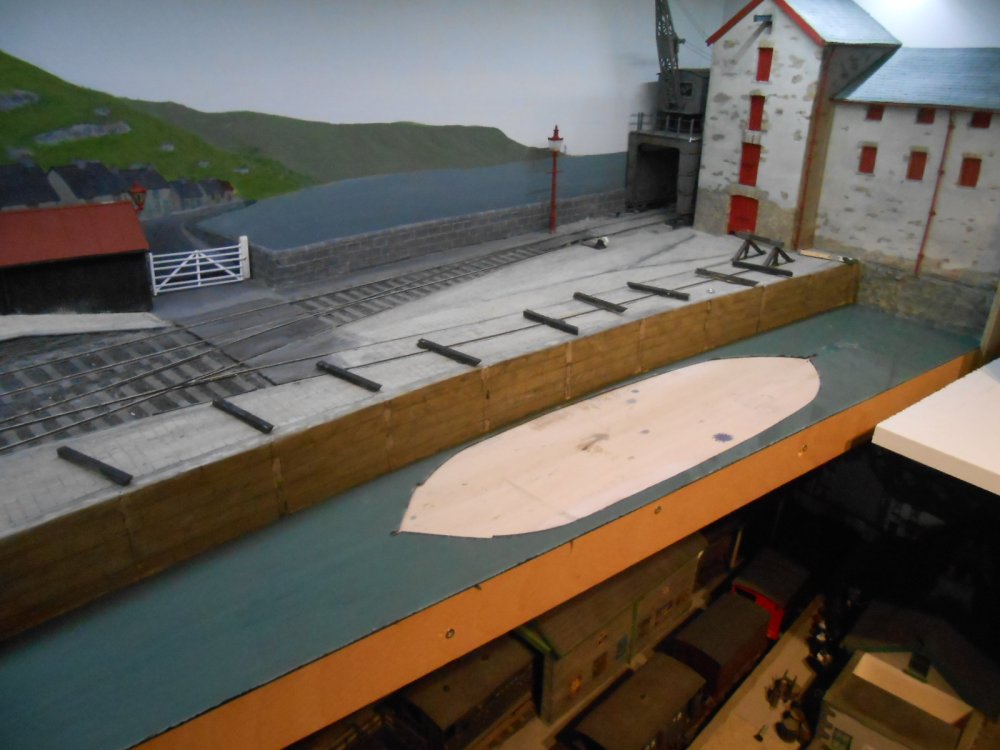

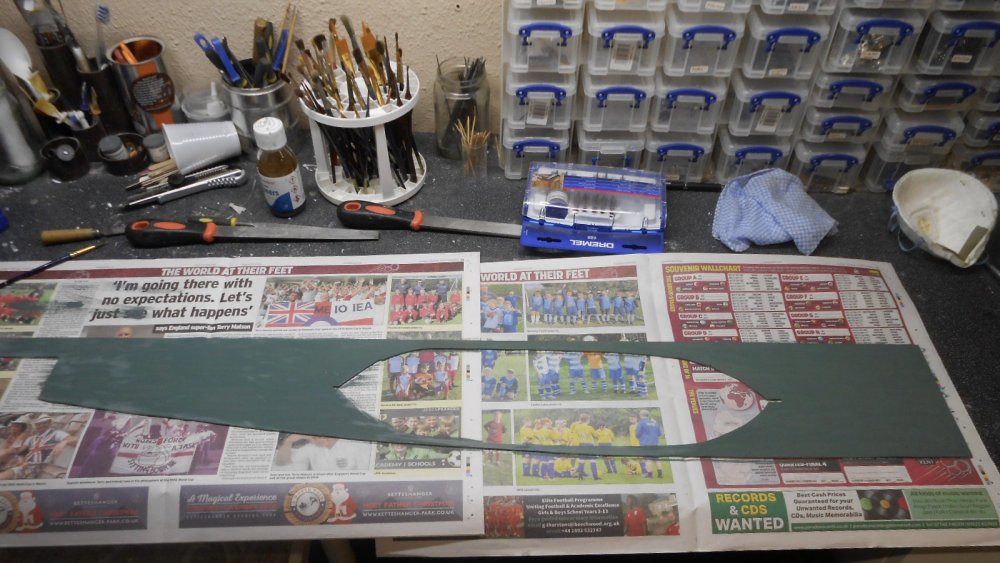

 This then needed a suitably shaped piece to fit the space where Acla sits, along with a cut out for the hull. The acrylic is similar in structure to plasticard, in that you can score it and then snap off the piece you want. However, the method isn't suitable for the complex shapes I required, so instead used a heavy duty slitting disc in the Dremel, along with a heavy duty face mask to avoid the fumes generated. I also decided to remove the wooden rubbing beams from the  quayside wall, as it is easier to put these back later, rather try to cut out the acrylic to round them.


 Once this piece was cut and filed to shape, it was then a case of putting the Acla on it and then drawing round it to create a space for the hull to sit in. A fair bit more filing was required for this, though it turns out that a perfect fit isn't required - just the front edge, as the back is sandwiched between the hull and quay wall, so can't be seen. Also, a small gap isn't nearly as noticeable as a a space under the hull.


 Once the hull shape was cut out, I then painted the underside, first with a coat of Humbrol 31 [a sea grey/green], then 104 [navy blue], though the latter doesn't seem to make a lot of difference. The water is yet to be stuck down and I also need to get back to Gordon, to find out how he adds ripples to the surface of the acrylic, but for now, the Acla looks a lot better sitting in some 'water', instead of on a sheet of plywood.





  • Like 17
Link to comment
Share on other sites

 Not a lot of progress it must be said - or perhaps that should read much messing about for little apparent progress! Following George's wonderful pictures of his 1/24 Puffer, I've been scouring them and various web pages to see what additional rigging I might include. I've also been trying to see how the ship would be moored to the quayside, plus what other bits and pieces might be found on deck for added detail.

 Overall though, in truth feel I'm none the wiser, so I'm throwing myself upon the mercy of the court of the More Knowledgeable! What I've done is add a third rigging line on each side of the mast, plus a short chain and hook to the business end of the derrick. Can't for the life of me work out whether there would be an extra cable to the winch [along the derrick beam], or if the hook would be connected by rope to whatever was in the hold, with just the boom going up & down?

 Raising & lowering the anchor is also the cause of much head scratching. On the VIC96, the chain seems to go over a large fully on the steam winch and down below deck. A Puffer seems to have an anchor chain davit, though quite how this works I again have no idea.

 At the moment, the mooring ropes are looped over the vertical rubbing beams, though it may be more sensible to turn up a few hefty bollards to set into the quayside. A couple of loosely coiled ropes complete the picture, along with some old tyres as fenders. Quite how many more ropes/rigging I'll add, I'm not sure. My photos of VIC96 in Chatham Dockyard show any number, the purpose of which I haven't clue - while actually doing what I have so far has been far from enjoyable!




  • Like 17
Link to comment
Share on other sites

  • 2 weeks later...

 A couple of distractions came my way this week. The first was the latest copy of Model Railway Journal, which arrived by post on Monday. On the front cover is a fine picture of one of Gordon Gravett's recent creations - a pair of Somerset and Dorset Colliers, one in 4mm scale and one in 2mm. I can take a [very] small amount of credit for these, after sending Gordon a photo of VIC96 in Chatham Marina, though he'd been thinking about building one for ages, while the 2mm scale version was built for another master modeller, Jerry Clifford.


 A bit bigger than a VIC and certainly over 30 feet longer than a Puffer, the heritage is clear to see from both. Needless to say, both models are completely scratchbuilt and stunningly good in the flesh, as anyone who went to this year's Uckfield show will testify. However, what also stands out is that Gordon has included ALL the rigging, for the mast, derrick, anchor, etc, etc. I hadn't really appreciated this at Uckfield, but now, haven't done a very limited, hamfisted version on Acla am feeling somewhat inadequate at his exquisite work. This is 4mm scale, remember - though I don't think he's done anything like as much on the 2mm version, so the man is human after all...

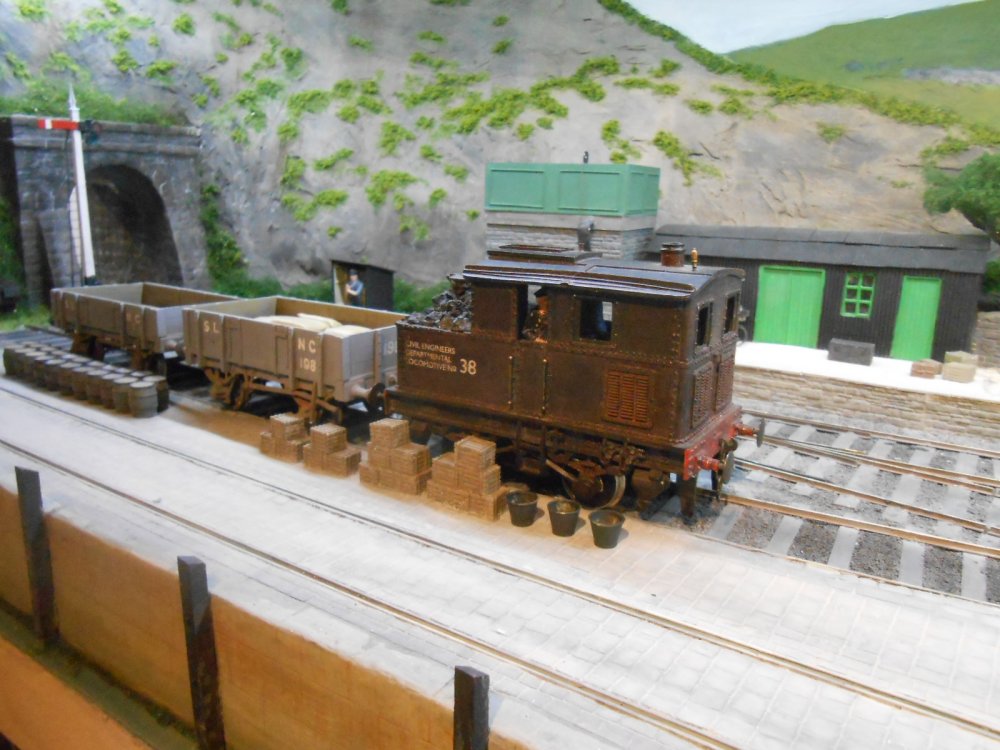

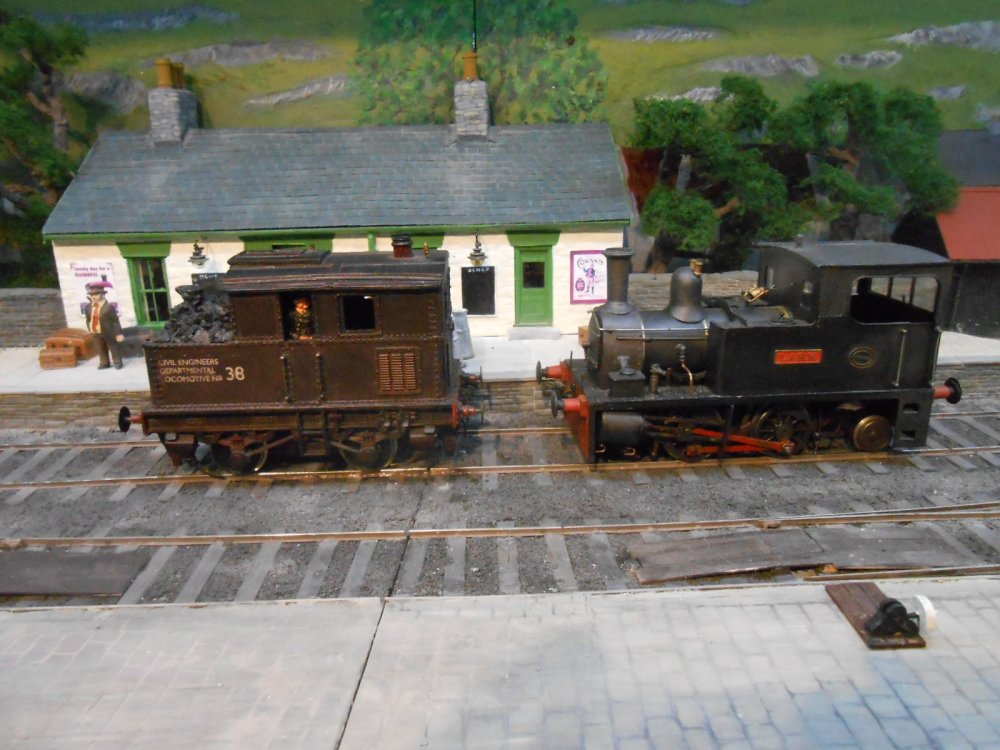

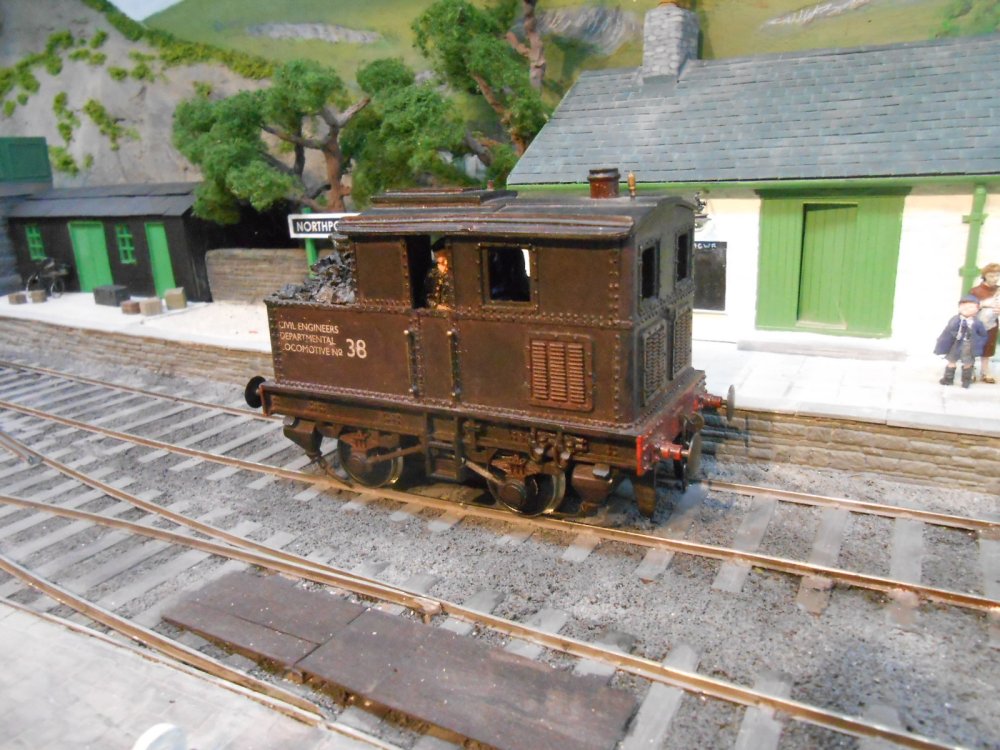

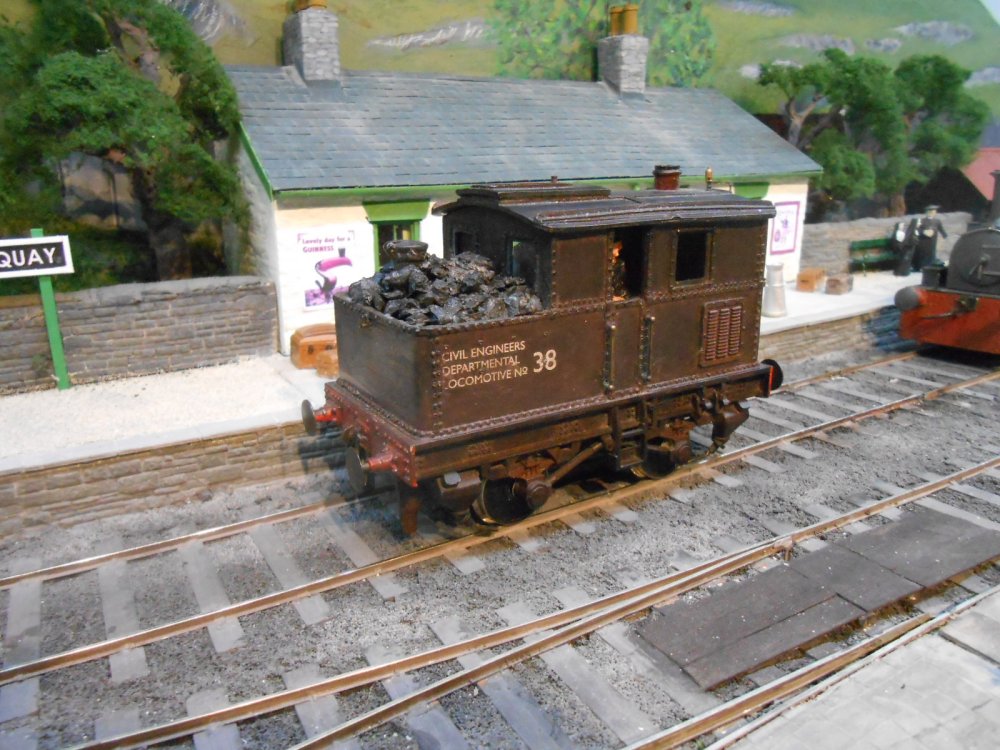

 The other distraction came from the Chatham Model Club, when I decided to liberate an old SMR model of a Sentinel shunter, to see if was possible to regauge it to 5'3. We must have had it for at least ten years, maybe more. It's a good little runner, with belt drive giving four wheel drive, so surprisingly powerful too. Seem to remember they only cost about £100 & obviously were the precursor of the current Dapol model.

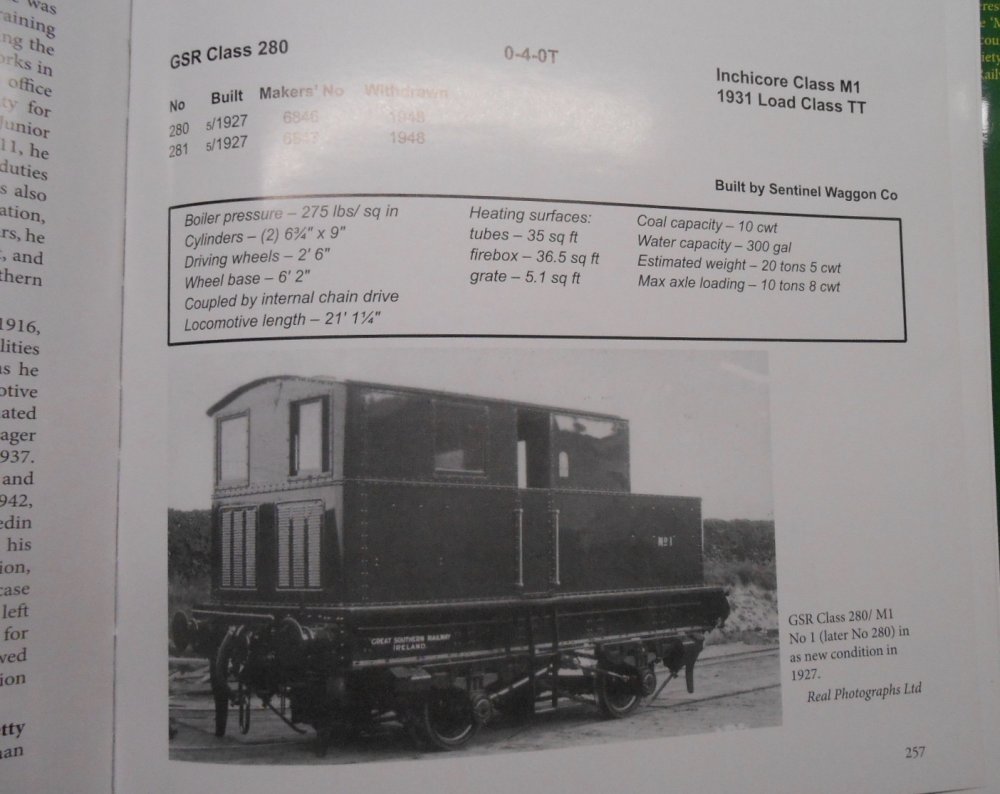

 Why a Sentinel? Well those of you who know your Green Bible will realise the GSR bought two standard Sentinels, which variously worked in Cork, Tralee and [especially] on the Limerick Market Branch. Not out of the question therefore to think that one might have made its way to Northport Quay as the resident shunter and the temptation to acquire an [almost] ready to run loco is another of those itches that has needed scratching for a while now.

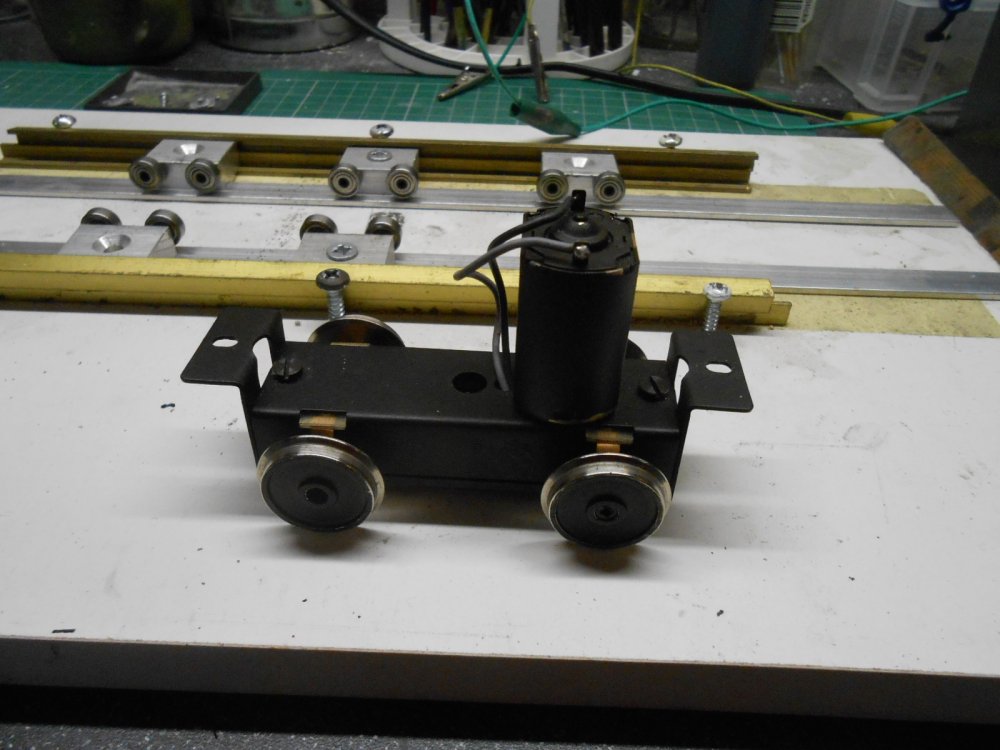

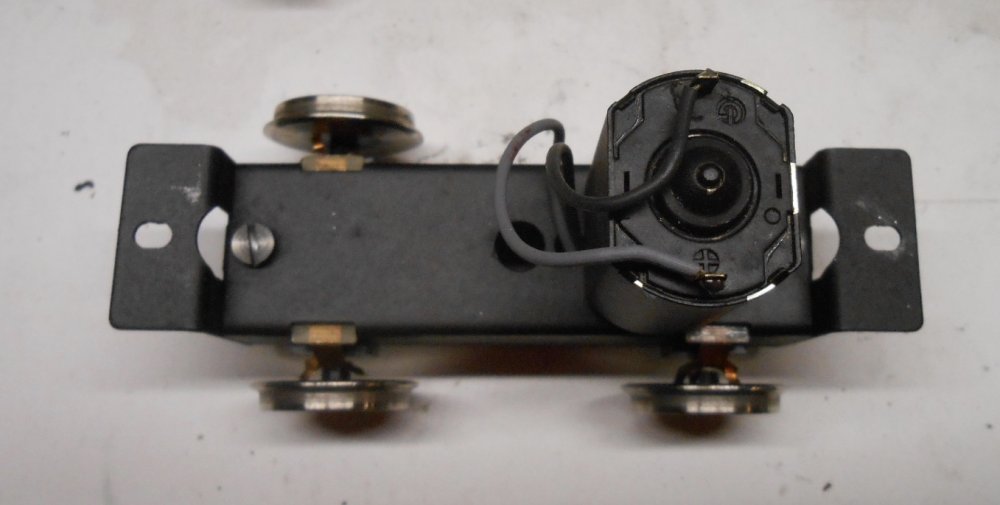

 Turns out that all that is needed to regauge the model is to tweak the wheels out to 34mm back to back and then adjust the pick ups so they still touch the wheels. Just as well, because the axles are very much not standard diameter, so best not messed with. The only other thing needed was to grind a bit off the back of the axle boxes, though a fair bit of cosmetic work to the body will be needed to make the guard irons line up, along with a few other improvements too. Probably best if I asked the Club if I can have it before I go any further though!






 I'm well aware that this SMR model is far from perfect. The wheels don't line up with the axle boxes for one thing, while best not to compare it too closely with the two Limerick shunters. Nevertheless, the Green Bible opines that it is perhaps a bit odd that GSR/CIE didn't go for a few more of these little engines, especially during the various fuel shortages, so I will not feel in the least bit guilty if this one eventually appears on Northport Quay's roster.

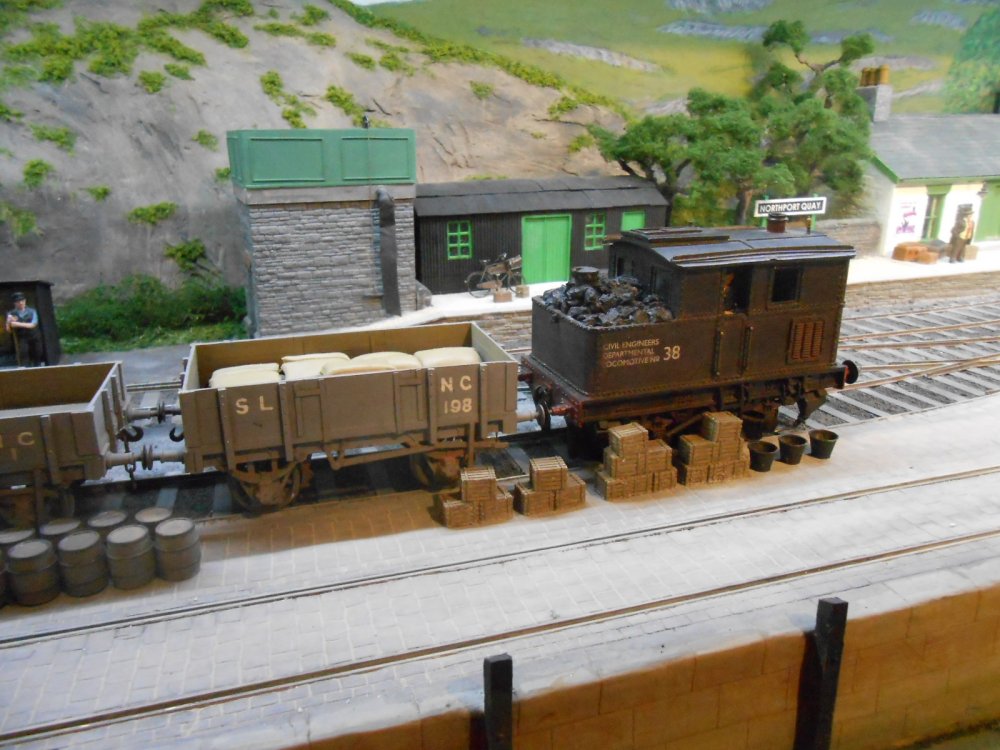

 Could make a basis for a nice little 7mm scale cameo layout too - one was tried out on the Castleisland branch, a sort of steam powered Deutz G class diesel. Any takers? The Dapol one can be got for around £100 or so, though I have no idea if it can be regauged in the same way.

  • Like 11
  • WOW! 1
Link to comment
Share on other sites

I think Acla looks brilliant David. Wasn't Gordon a professional model boat builder in a past life ? Love the Sentinel. I think Walsworth models do a similar kit now, and build it for those who want it, at a very cheap price - £150. That’s incredible value for a 7mm brass RTR loco.

 He’s very helpful and I’m sure he’d do it to 36.75 for anyone who asked nicely. Very good way to start out in 36.75 modelling….https://www.walsworthmodelservices.co.uk/product-page/sentinel-y1-3

Edited by Galteemore
  • Agree 1
Link to comment
Share on other sites

Gordon did indeed build model ships as his day job, working for a firm that made large scale models for shipping companies and so on. I was wrong about the rigging on the 2mm model though - that is there too. I think he must have a tame spider to do it.

 Articles in MRJ about the ships and a beautiful model he made of a French metre gauge loco, plus numerous tributes to Iain Rice.

  • Like 1
Link to comment
Share on other sites

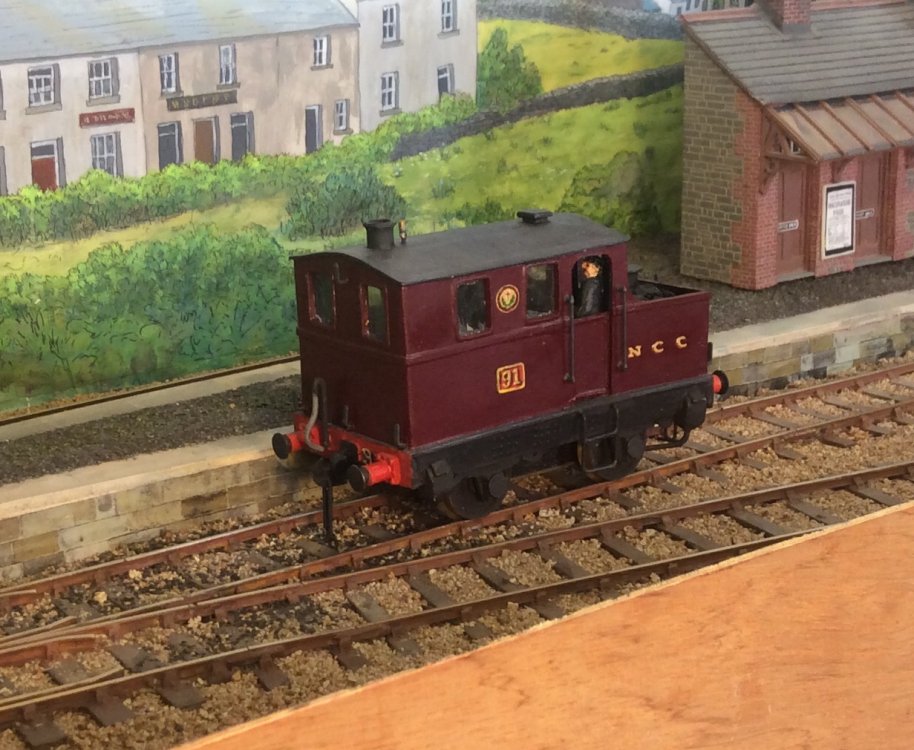

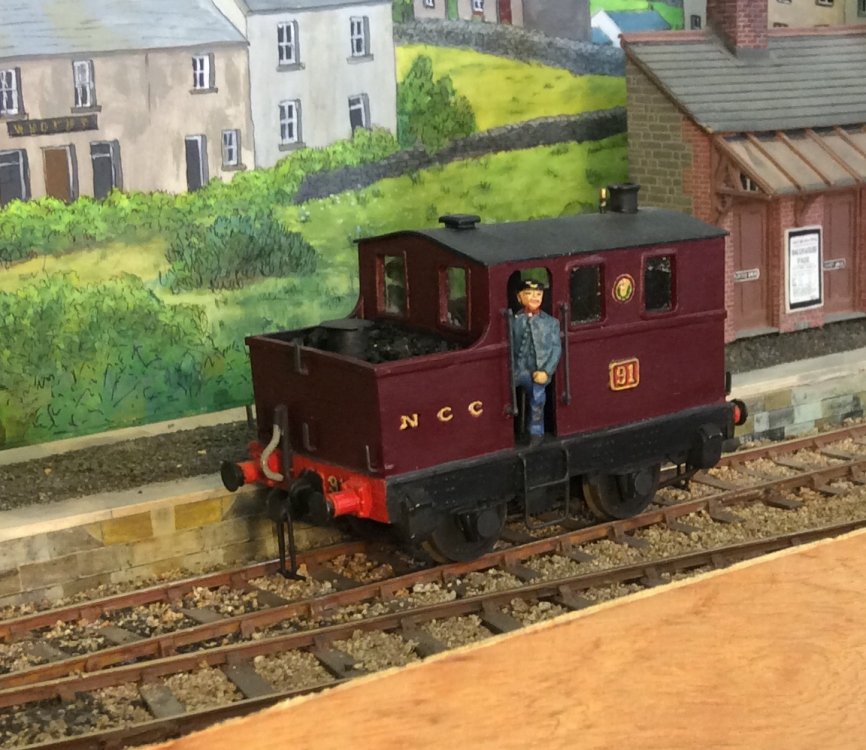

The NCC had a go with one of them, there’s a picture with it teamed up with a pair of sixwheeler coaches, though I fancy the idea didn’t get much further, pity, it would make a nice little branch line set.

my Model is a plastikard body on top of a motor bogie from an old Lima class 33 diesel, and I might have missed some louvres off the end. I fancy a new Dapol one would perform much better.8AB76F51-BEF8-4DD0-9D89-C29E9651A246.thumb.jpeg.0ad4d810f456332d25d9f75ef37ca926.jpeg64A1E5A9-5658-4F48-B764-E305BEB1C15D.thumb.jpeg.8f55a3793b4c28693485914f644c460a.jpeg

  • Like 9
  • WOW! 1
Link to comment
Share on other sites

  • 2 weeks later...

Travelling crane

 Time for a new project and what is [for now anyway] the last major component for Northport Quay. Right from the planning stage, I've fancied a rail mounted crane, running on its own stretch of track next to the harbour wall, its purpose being to load/unload smaller vessels that don't have the benefit of their own derrick, unlike the Acla. NPQ has another crane of course - the one I built from the old Airfix/Dapol kit, which is deemed to run out along the [off scene] harbour wall. It is all a bit fanciful, but then that is very much the gist of a cameo layout for me. In reality, NPQ should be three or four times longer and wider, but hopefully these key elements all hang together effectively.

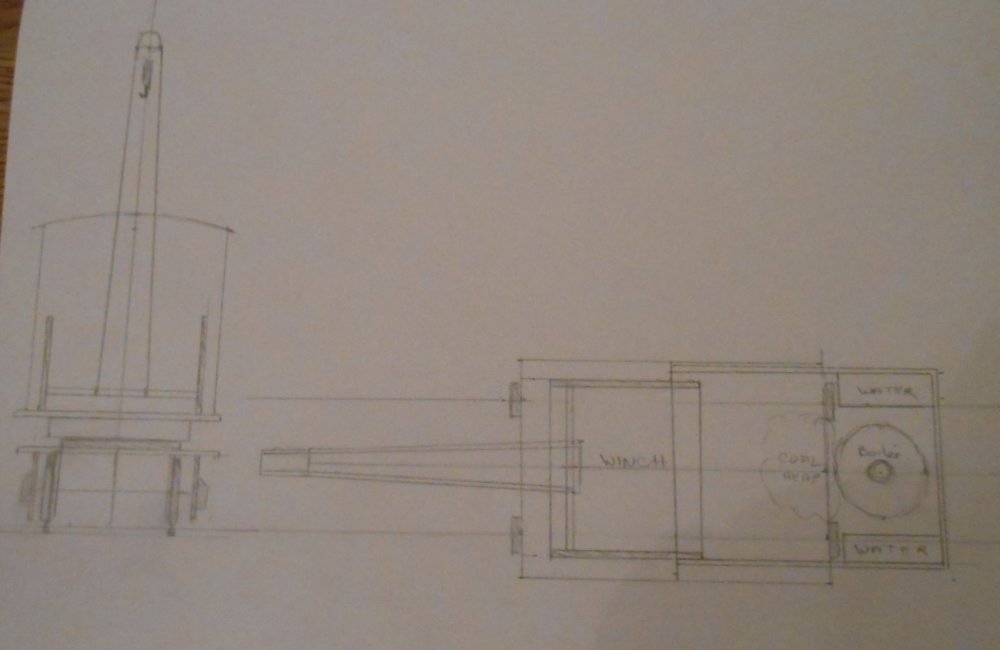

 A while ago, I posted my original drawing for the crane, based on examples in both Chatham and Gloucester Docks. However, I've come to realise that it was far too big, with amain boom around 24 feet long and 20 feet high.

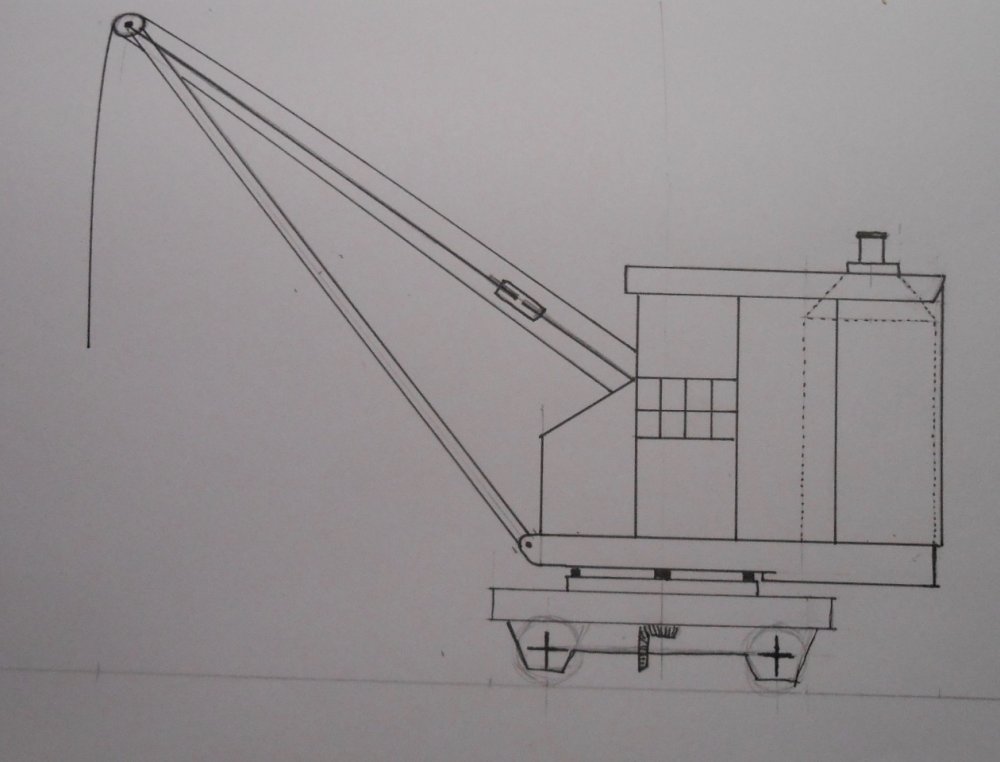

 Hence have cut it down to something smaller, as shown below:



  The track is still 5'3 and only a metre long, though I intend making the model at least able to run up and down - hopefully on a push button basis, so that there is something moving on the layout while trains are being swapped in the fiddle yard. Whether I'll get the rest of it working is another matter! I have bought Giles Favell's book on the subject and I guess I could add another piece of water in front of the quay wall and a small ship to go with it and items to load/unload - but not yet!

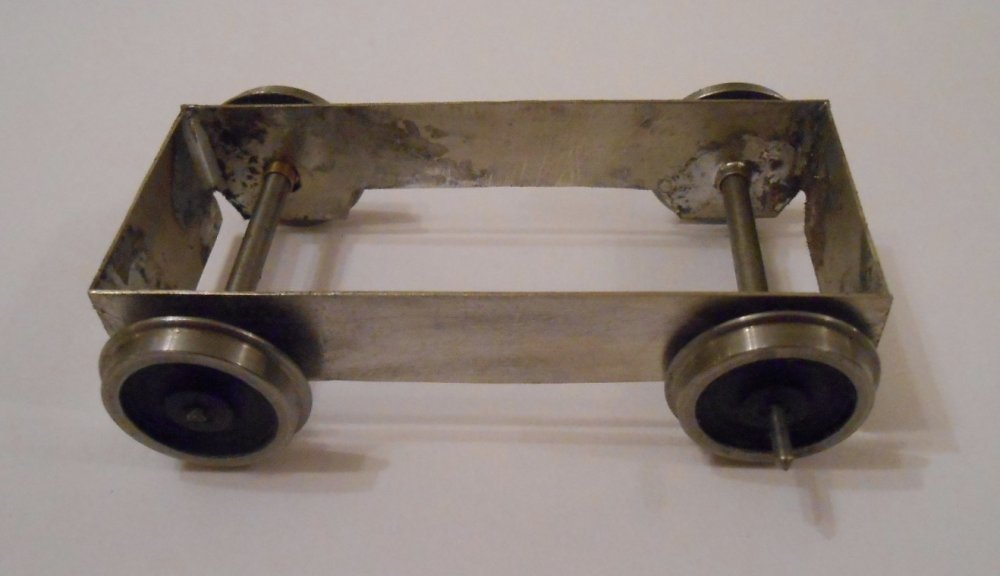

 Anyway, thus far, I've made a [very] simple chassis from four pieces of nickel silver, cut out with a slitting disc in my Dremel. Crude, but effective. Wheels are 2'6 'Lowmac' on a couple of Richard Chown's wagon axles from his spares box. The motor and gear box are from High Level: a 1219 and a 'Lowloader' with 90:1 gears, which is small enough to fit between the frames. It will be single axle drive, with the other axle able to float a bit to aid pick up. The other bought in item is the steam winch from the Langley Puffer, which is available separately, but has been sent to Santa, so I won't be doing the body work until after Christmas.


  • Like 9
Link to comment
Share on other sites

Fenit used self propelled steam cranes on the pier lines  http://www.kennellyarchive.com/id/MYH007/

The Fenit cranes ran on the pier lines, but do not appear to had buffing gear or couplings for shunting wagons, I am planning something similar for Northwharf using a Jordan HO steam navvy as a basis


There are a number of colour photos of the cranes in JHBs & Barry Carse's book Rails through North Kerry none unfortunately showing the "cab" end.

The Fenit cranes appear to had a 'fast' hoist rope with a simple hook rather than the double block arrangement shown in the second sketch.

The cranes appear to have had a fixed 'non' luffing jib supported by struts that go back to an A frame inside the cab

The hoist drum and engine were inside rather than outside the "cab" to keep the engine and drum dry to prevent the hoist rope slipping.

The "cab' layout is likely to have been similar to a steam navvy or the steam cranes at Chatham

Edited by Mayner
Link to comment
Share on other sites

1 hour ago, Mayner said:

There are a number of colour photos of the cranes in JHBs & Barry Carse's book Rails through North Kerry none unfortunately showing the "cab" end.



I think we included the best pics (if not all!) of what Barry has, but I will check with him to see if he has anything else. I know someone else who might have something - though probably a long shot.

Link to comment
Share on other sites

Thanks John and JB. Have indeed looked at the photos you mention, while there is a vast amount of stuff on the internet and the real thing outside the clubroom in Chatham Dockyard. Unfortunately, most are a bit too big for my layout and I did even consider a manual powered wagon crane at one point, but in the end decided on something smaller.

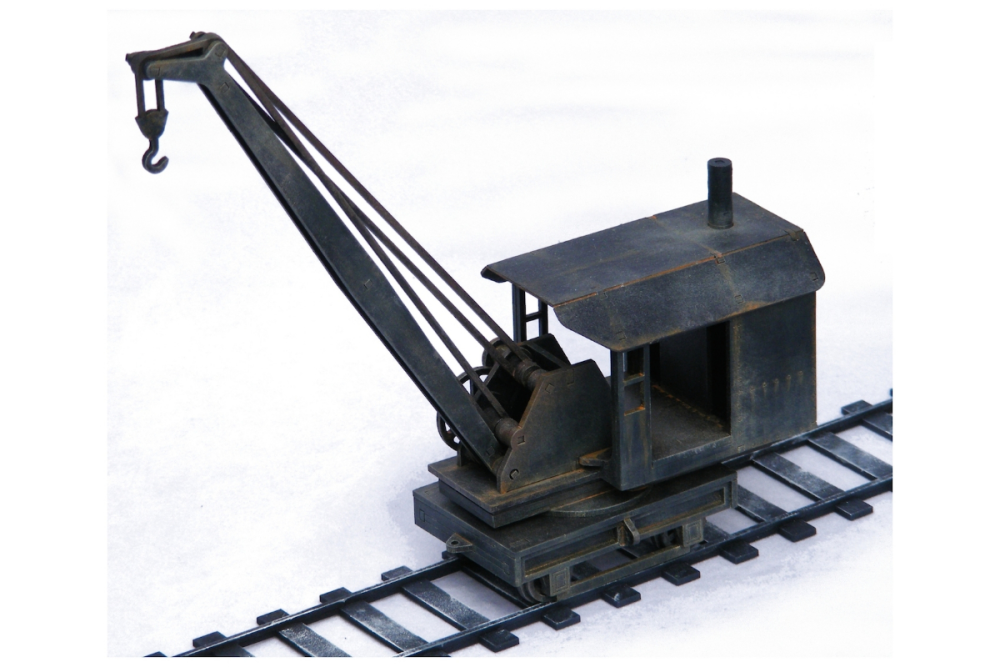

 Inspiration came from a war game model, apparently 1:50 scale,  from Arcane Models, along with some lightweight prototypes from America. All a bit hybrid, but then so is the whole layout!

 Am thinking the bodywork will feature a fair bit of wiggly tin.




Edited by David Holman
  • Like 7
Link to comment
Share on other sites

 There's nothing like some gentle freelancing when it comes to a bit of progress. The last couple of afternoons have seen the motor-gearbox assembled, fitted to the chassis and pickups added, along with a quick test.

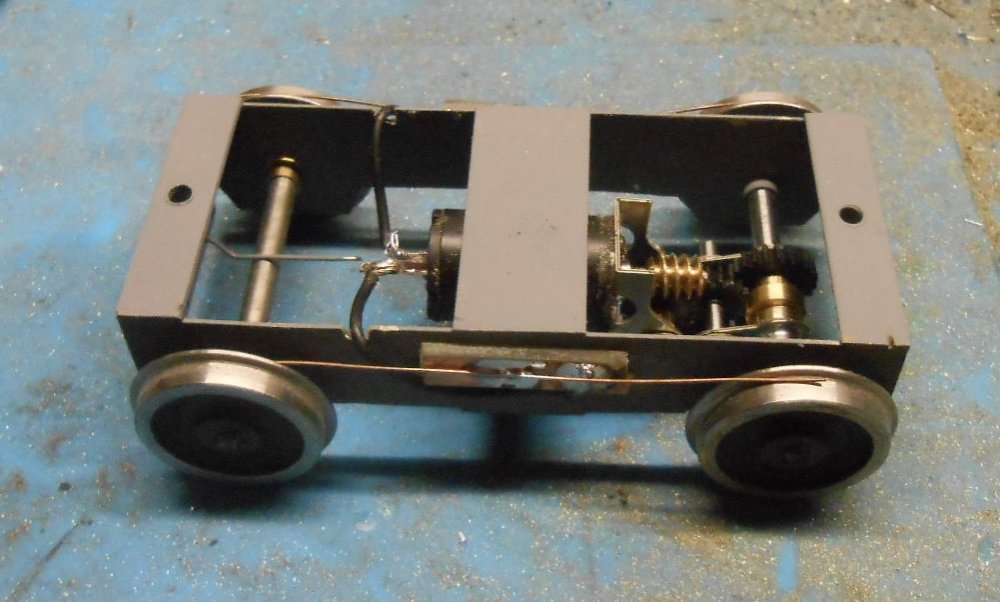

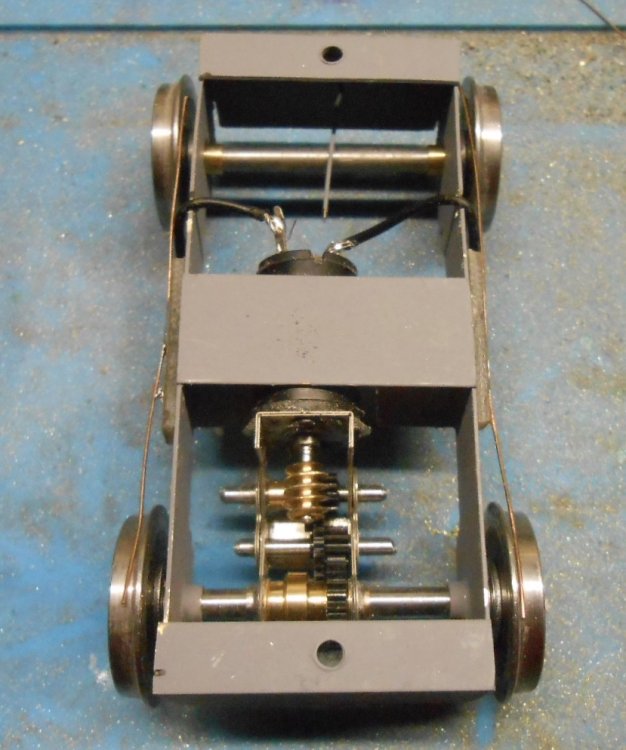

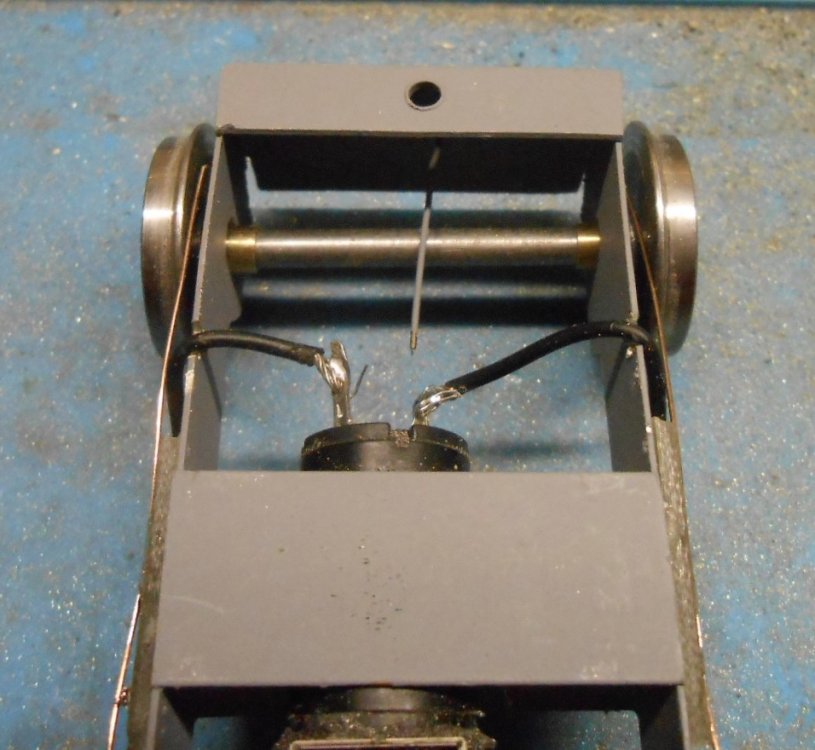

 The motor is a 1215 - absolutely tiny for me [am more used to 1933s], ordered from High Level with a Lowrider 90:1 gearbox. Very neat indeed, though would say an essential for assembly are some tapered broaches to make sure the axle bearings and gear shafts [1/8" and 1.5mm respectively] are a nice, snug fit. Apart from that, it all seemed to go together easily.




 I then added four cross pieces to the chassis. One each end at the top, drilled to take an 8BA nut to fix the the chassis to the body, plus two more in the middle, to hold the motor in place. I also soldered a piece of 0.7mm NS wire to the the end where the floating/compensated axle is, so this can press down lightly on said axle to hopefully keep all four wheels in contact with the track. Pickups are 0.5mm phosphor bronze wire, soldered to a strip of copperclad glued to the outside of each side frame, with some fine wire then going to the motor terminals. The crane will only be single axle drive, but with the jib overhanging at the front and the boiler part of the cab overhanging at the rear, am hoping there should be enough weight for the model to move itself along without problems.

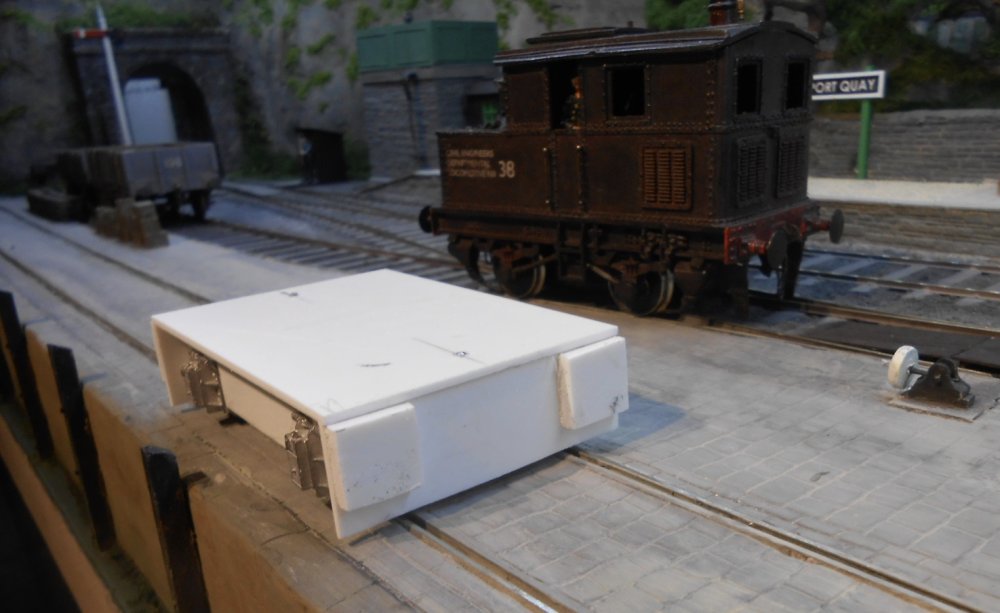

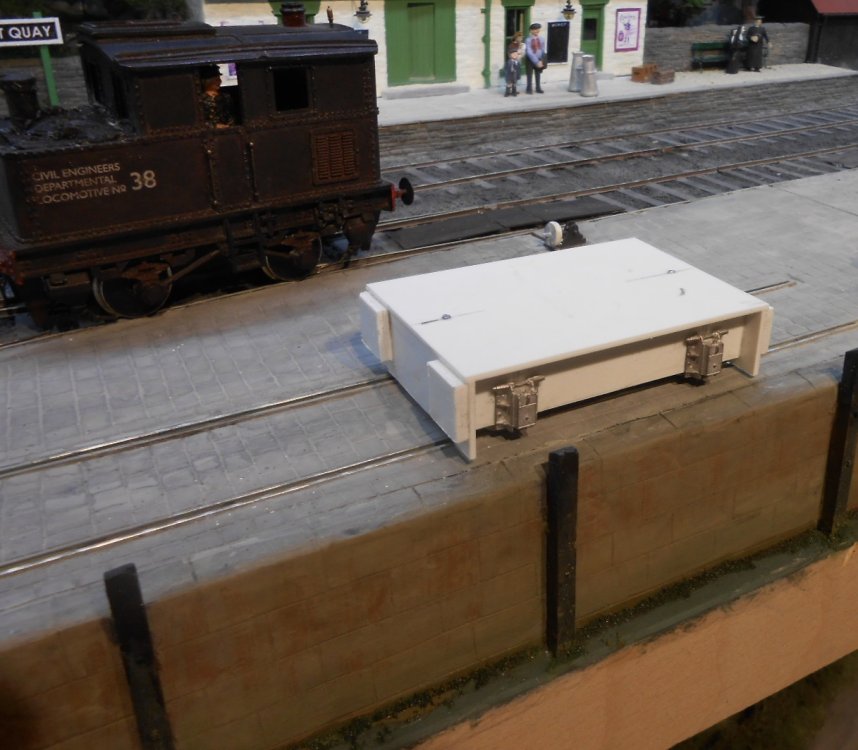

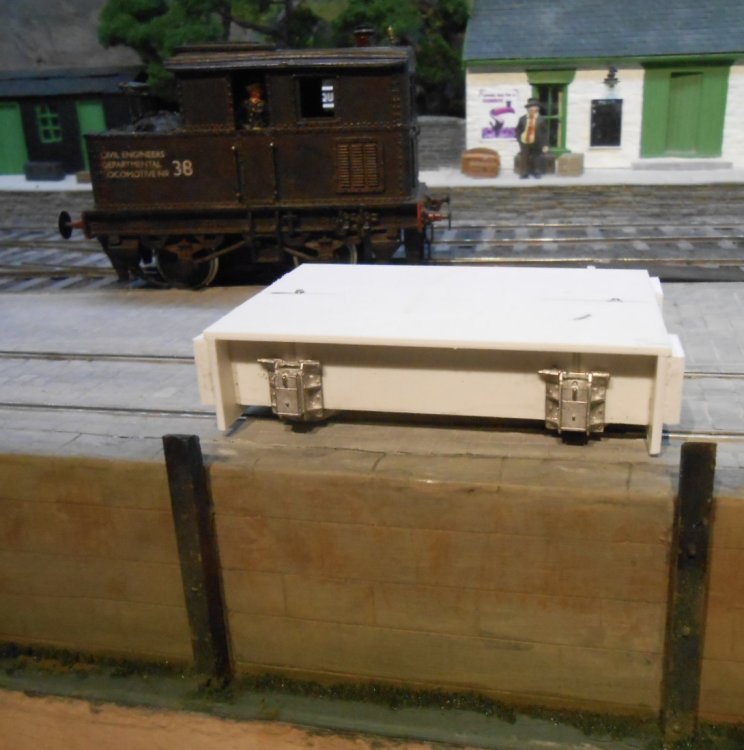

 Flushed with success, I made a basic outer chassis from some 80 thou plasticard, then drilled holes for the fixing bolts, reaming them out enough for the bolts to cut their own threads. Two bits of 'garnish' are a couple of white metal axle boxes from the spares box and four basic buffers from more plasticard. Don't tell anyone, but could only find two axles box castings, so there aren't any on the other side at the moment and these could well be different when I do eventually find some!

  • Like 12
Link to comment
Share on other sites

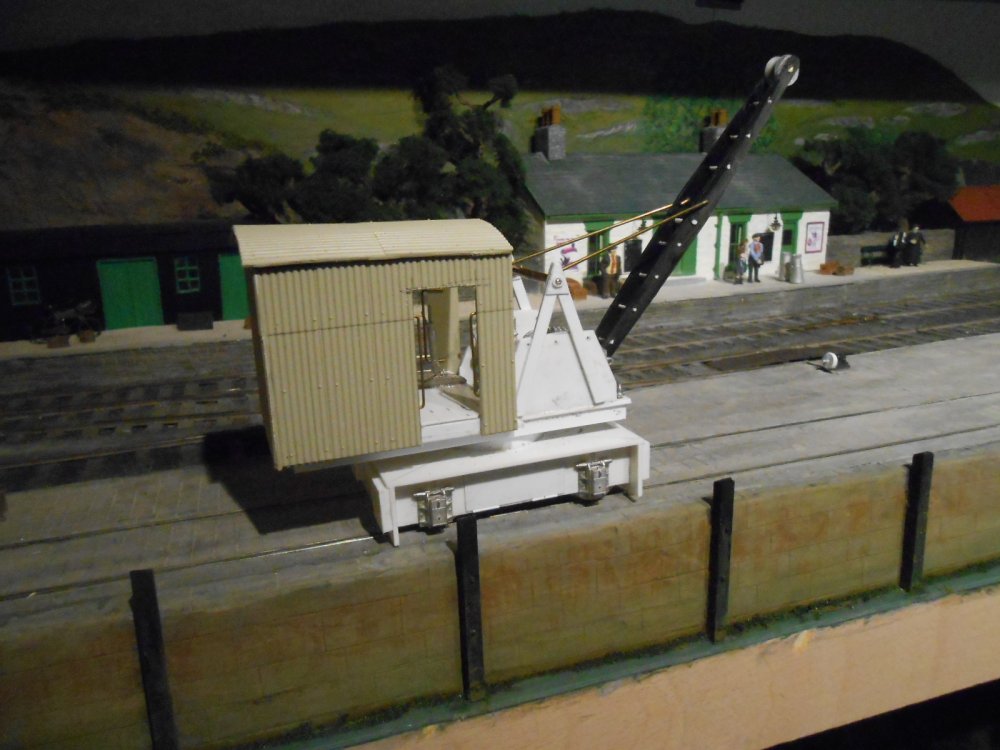

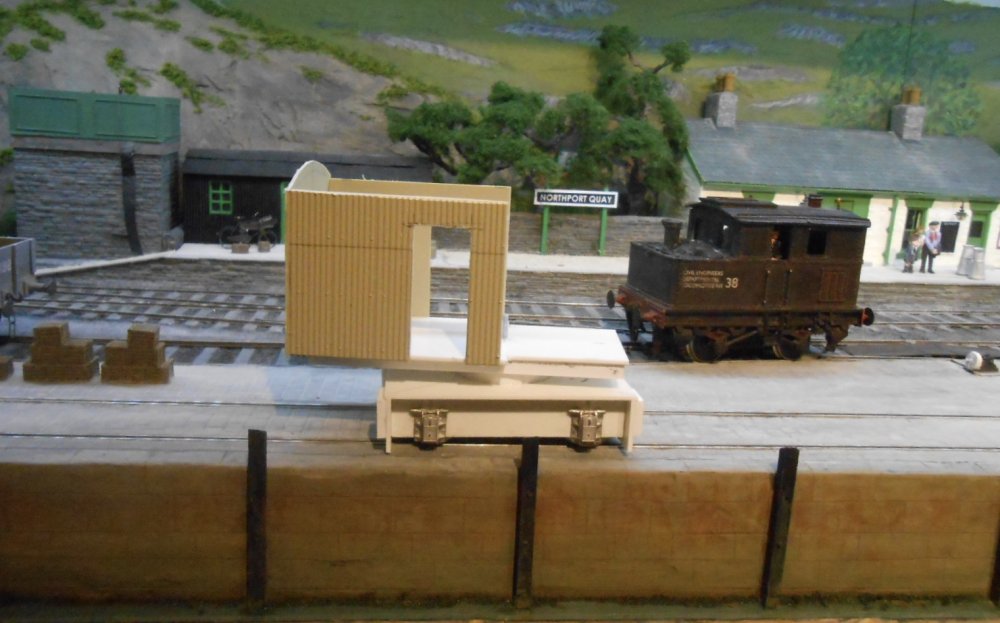

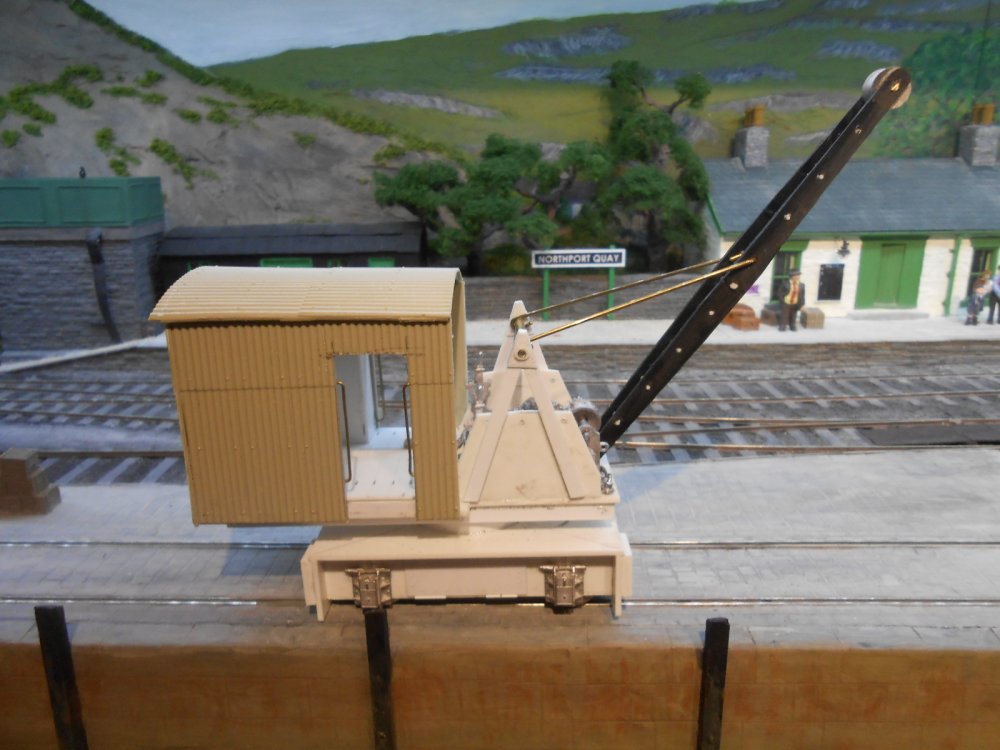

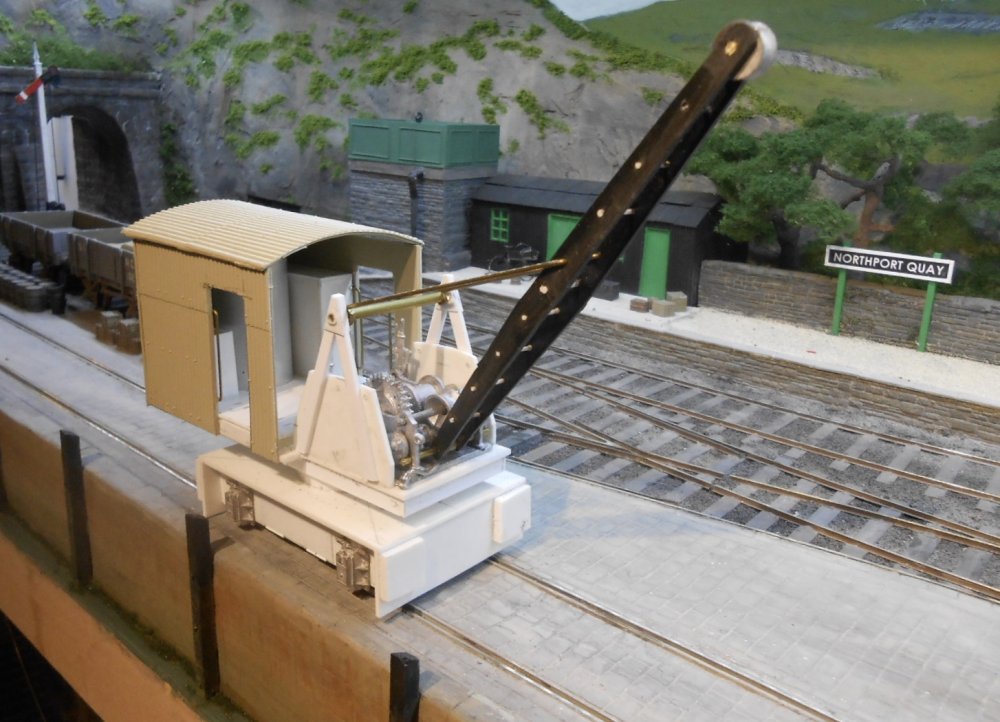

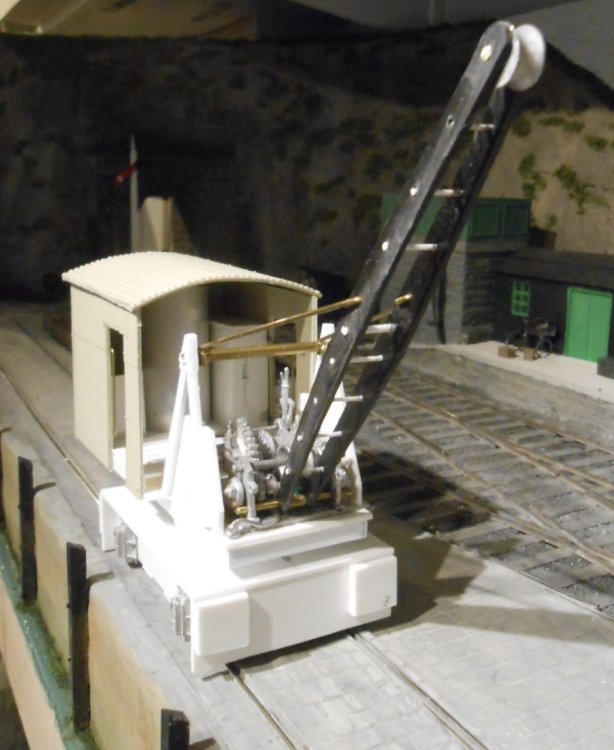

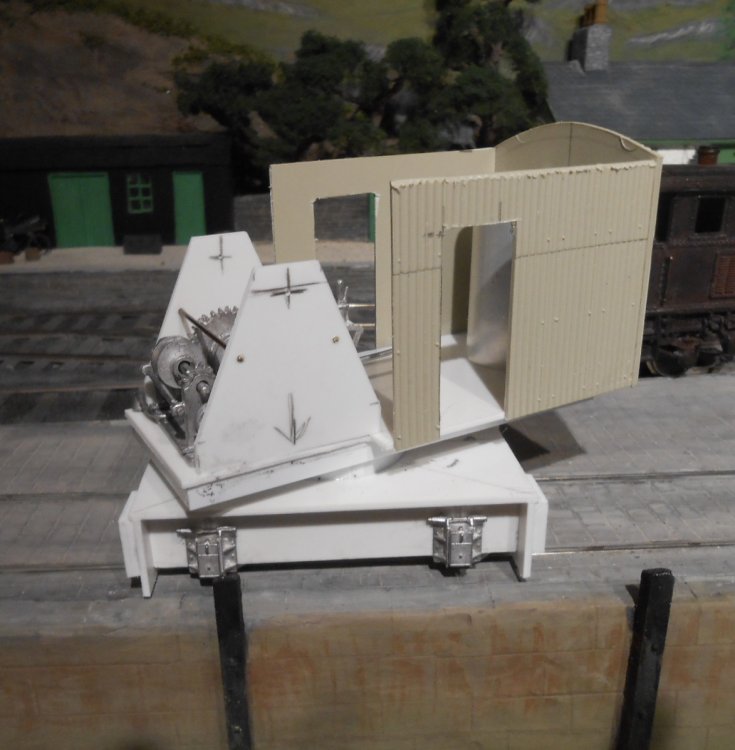

Added a bit of bodywork from Will's corrugated asbestos sheet - meant for 4mm scale, but looks ok for iron in 7mm scale. Found a piece of aluminium tube [left over from a roller blind kit], which may well do for the boiler.

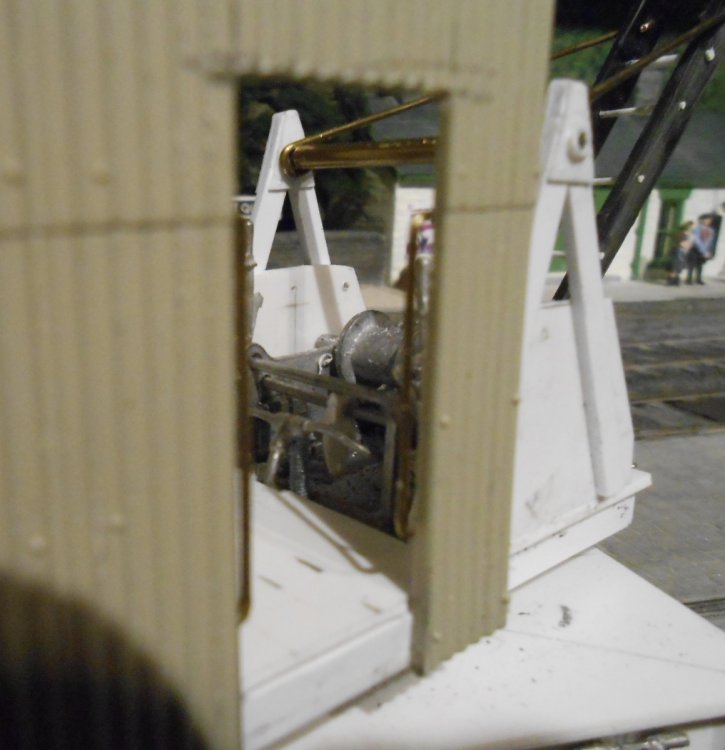

 The 'turntable' section on the chassis is a piece of plastic tube from an old vacuum cleaner pipe. The crane can pivot on an 8BA bolt, though only for photographic posing.

 Overall, I see this as a crane that would have been built locally, from whatever bits and pieces were to hand, but will certainly aim to add as much detail as possible.

Merry Christmas everyone!




  • Like 16
  • WOW! 1
Link to comment
Share on other sites

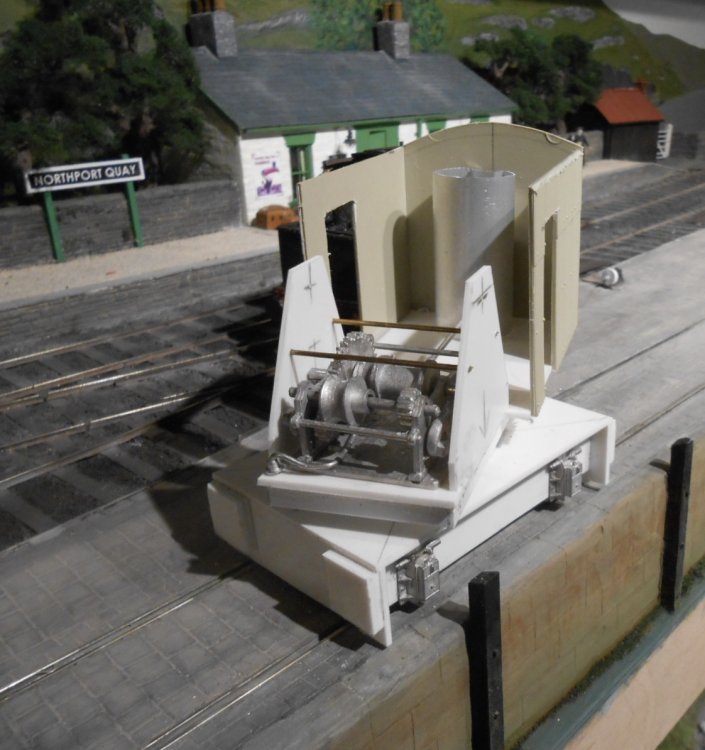

 Santa duly delivered the Langley steam winch kit on Christmas Day and this afternoon played around with the parts to go on my crane. As this would like as not have had a fixed jib, have simplified the winch so that it just appears to power the single winding drum, while some hefty steel side plates will hopefully support the jib.
