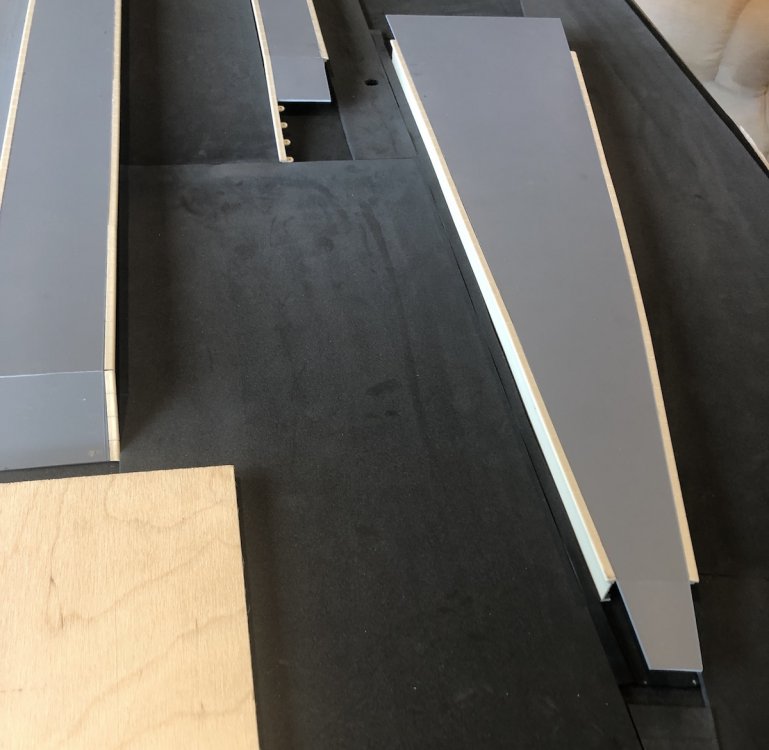

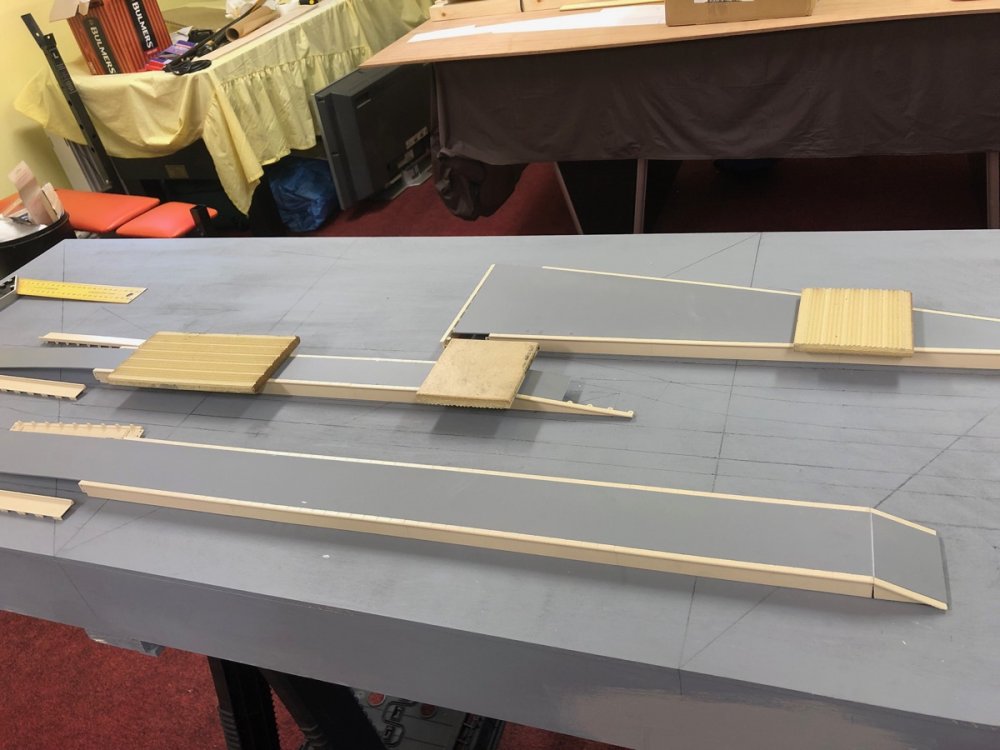

Getting back to slow progress on Gort. Some more work on the platforms before gluing the dense foam surface to the baseboards. These platforms will sit on top of the foam so they will be correct height above the track for rolling stock.

[StevieB]

Are things still progressing ok with Gort?

Stephen

[Noel]

Its been a while, but have been chipping away slowly piece meal between other projects, working on buildings, platforms, etc. Last few days. Gort is essentially designed for now as an end to end shunting layout that will eventually be part of continuous running set up in the future. Track diagram is as per the prototype as it was about 1970 nearing the end of its hey day as a busy pick up goods station for a regional agri market town.

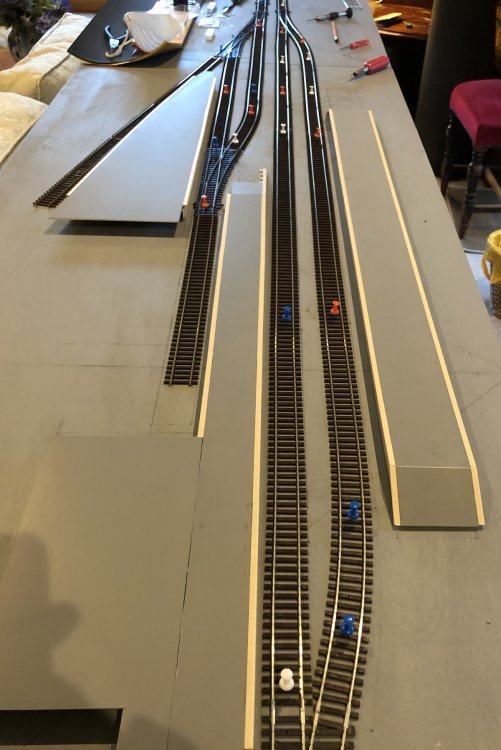

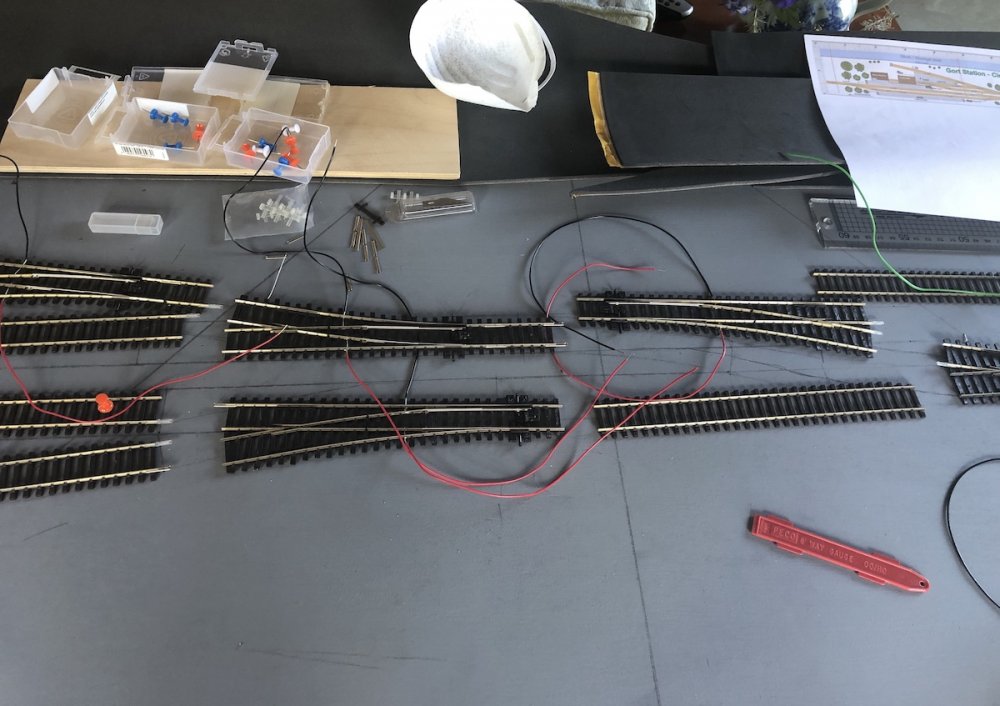

Track cut and dry laid for test fit. Points modified for frog switching and DCC. Now lift it all again, drill holes for point motors and power feed, lay two layers of closed cell foam, one over entire base board, the other just under the track, this will ensure no 'sound' bridge with the plywood for quite running. There will be no track pins, they will just be used temporarily to hold track in place while the PVA glue dries, and then removed as a track pin can act as a sound bridge to plywood baseboard guitar effect. I like quite track. In the immediate future this will just be an end to end shunting layout, but in the future part of a larger continuous loop layout. I'm rather slow laying this track as testing everything as each step progresses, free running, smooth transition curves, locations of uncoupling magnets, avoidance of under board cross members for point motors, platform clearances, etc. Its fun but very slow. I've no idea how I had the energy and stamina to lay all the track on Kingsbridge 27 years ago.

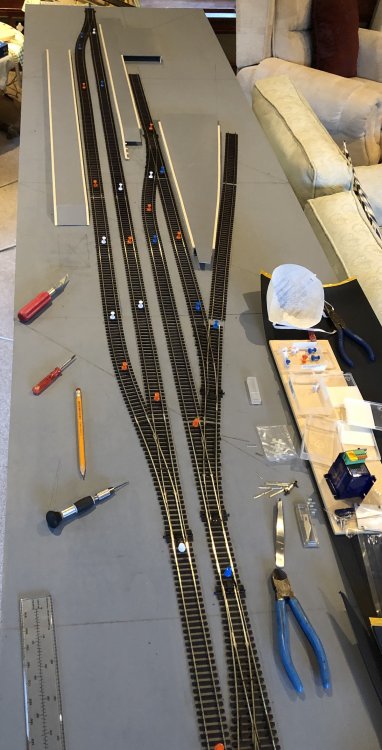

Two 5ft x 2ft baseboards for now

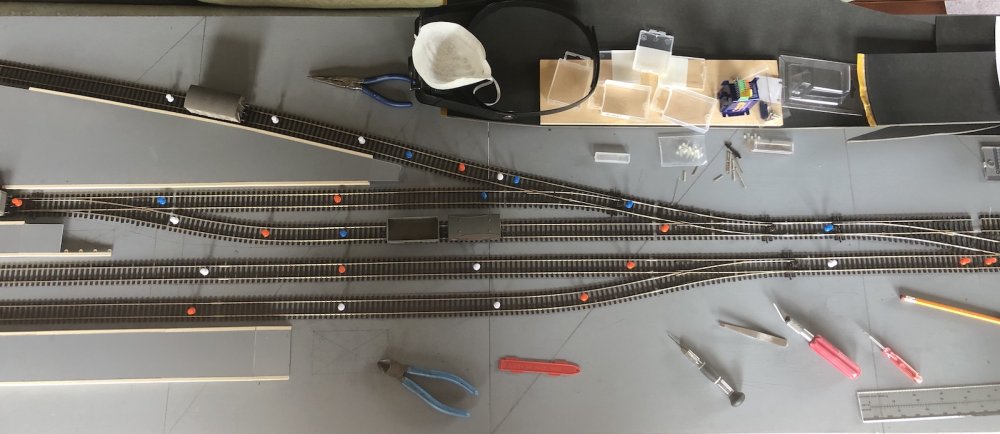

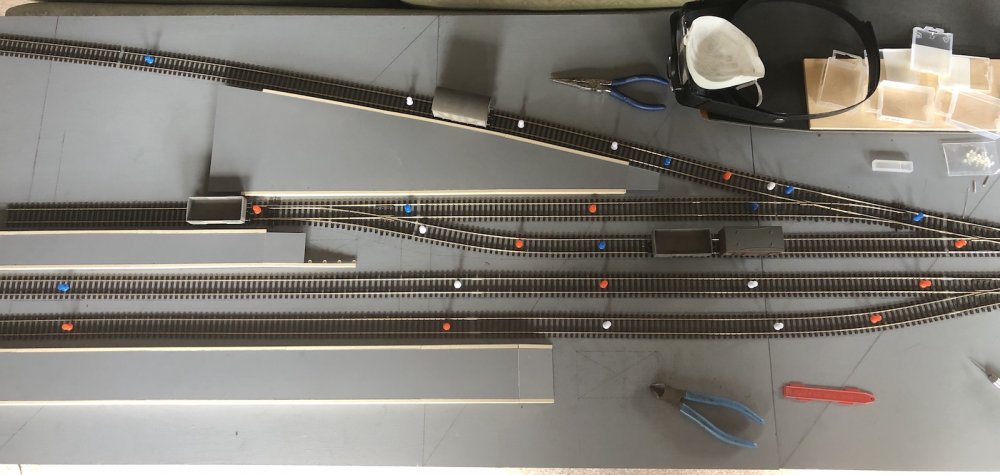

Track cut and test fitted. Now to re-lift the track again and lay the closed cell dense foam baseboard cover and track bed, then relay the track and pin temporarily while gluing it with PVA.  This is going to take a long time but enjoying it all the same.

Cattle dock will be on LHS with water tower cut into the end of the middle platform and goods shed just this side of the LHS goods platform.

This layout project was inspired by this photo in Jonathan ( @jhb171achill ) and Barry's book 'Rails Through The West', and my childhood memories of Gort as a busy market town.

https://www.amazon.co.uk/Rails-Through-West-Limerick-Illustrated/dp/1780730063/ref=sr_1_1?dchild=1&keywords=Rails+Through+The+West&qid=1592600749&sr=8-1

[Midland Man]

Looks great. With a few 141s it will looks great.

[Noel]

13 minutes ago, Midland Man said:

Looks great. With a few 141s it will looks great.

Cheers. That's the general idea. But 121, and A classes and 101 Sulzers were also visitors from Limerick and Ennis on route to Athenry, Tuam and Claremorris.

[jhb171achill]

This route was normally, for decades, the REGULAR preserve of almost solely 141s, but as Noel says, occasional visits of C, B101, A and even 071 classes were known.

In case of an eventual layout extension, I have four black'n'tan 141s, and may get another, to represent this type of route (Mallow - Waterford would probably have ended up the same had it survived).

Naturally, a layout based on Gort might have, for realism, a sprinkler above it - permanently on!

The first time I ever travelled through this station was '75 or '76 and it was a beautiful bright day, albeit with a nippy enough wind. Every other time since, it's been lashing!

[Noel]

Looking forward to loading gauge trials next week before ballasting

Chugging away slowly



Edited June 20, 2020 by Noel

[NIR]

I love the essentially Irish trackplan - straight, standard turnouts, goods loop - made for modelling.

[Irishrailwayman]

Great project - best of luck.

[Noel]

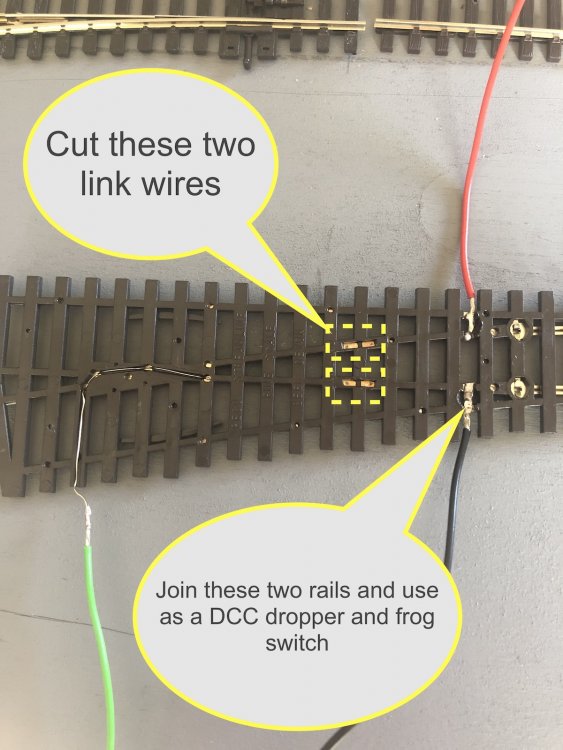

Modifying the electro frog points this afternoon as per recommendations for frog switching, etc. Messy, I need thiner wire.

[Georgeconna]

I soldered the DCC droppers to the fishplates and used some very thin brass wire to bridge the 2 rails.  Looks a tad heavy there Noel but will Stand up well I'd say.

[Noel]

3 hours ago, Georgeconna said:

I soldered the DCC droppers to the fishplates and used some very thin brass wire to bridge the 2 rails.  Looks a tad heavy there Noel but will Stand up well I'd say.

Yes I was not happy, the tip of the iron was one of those beveled types more suited to pcb and awkward to get in and out quickly without heating the plastic. I prefer a flat tip. Tedious but got all the Gort ones done today using thinner feed wires. Next time on Kingsbridge I'll use thin wire as bridges and separate track feeds. 7 done, 70 more to do!

[Noel]

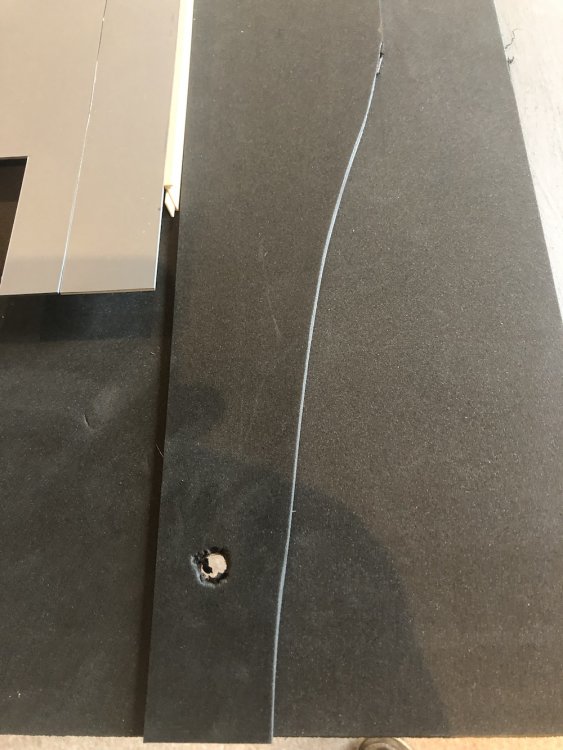

Foam underlay complete at last. I've gone for double layer for sound insulation, the entire baseboard is covered in a layer of 3mm closed cell dense foam (self adhesive backing), and then a second layer of track bed under track work (ie 3mm closed cell dense self adhesive foam). Lots of awkward transposing of track plan using a roll of grease proof paper and tippex to mark the base layer of foam so that the second layer can be correctly positioned where the track will go. I cannot cut the upper layer of foam in place for fear of cutting through the base layer which would just allow PVA glue seep through to the play base and create a sound bridge. My reason for the double layer is to prevent PVA/ballast mix coming into contact with the plywood baseboard. I've seen foam act as a great track sound insulator until it is ballasted when the PVA at the edges of the track bed hardens when dry amplifying track noise (ie effectively connecting the track with the baseboard).

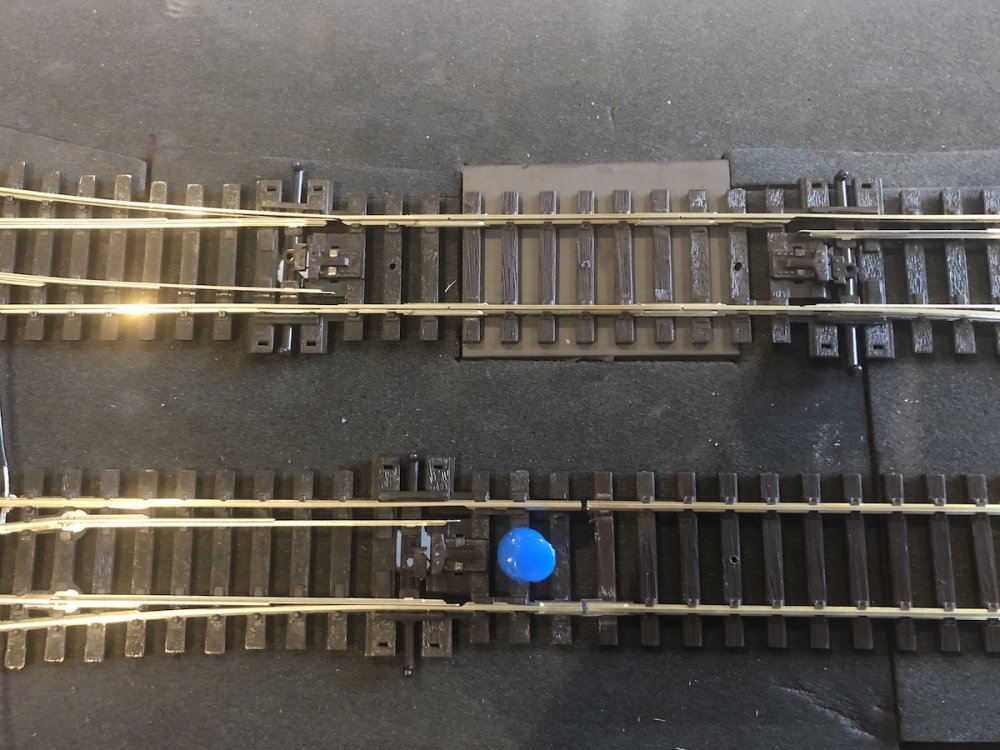

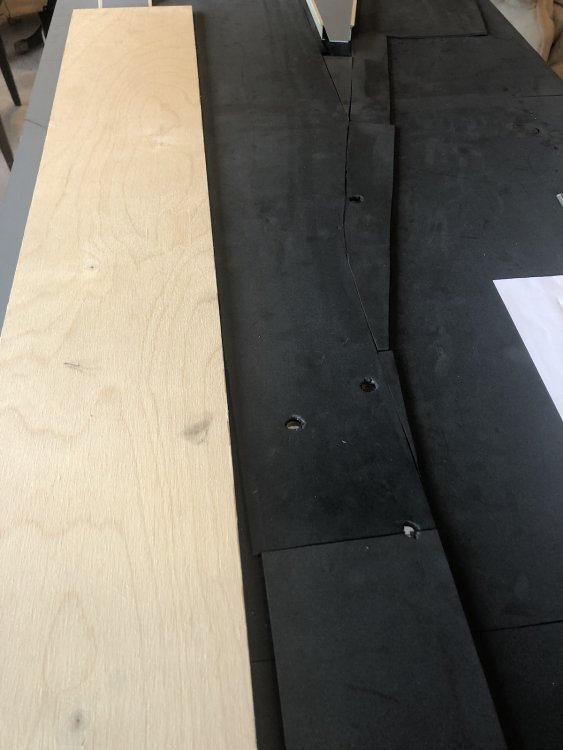

Cobalt point motor holes drilled before putting the foam down and transposed one layer at a time.

The double layer self adhesive foam has been workable so far

Next up is relay the track once again for a dry fit to check alignment and loading gauge clearances with platforms, point motor holes, etc and then remove to do the dirty scenic landscaping, or mask the track while doing the plaster work. Hope it works when running my toy choo-choos.

Edited June 27, 2020 by Noel

[Noel]

Track being relaid on the double layers of 3mm closed cell dense foam (source in link below)

https://www.efoam.co.uk/closed-cell-polyethylene-foam.php#sheet1

Kadee under track uncoupling magnet fits neatly under with the 6mm of foam. Luckily its not on the main line or it could act as a sound bridge. It is located between the head shunt and the goods yard sidings.
